HONDA ACCORD HYBRID 2006 CL7 / 7.G Owners Manual

Open the trunk.
Remove the holding clips f rom the
lining by using a f lat-tipped
screwdriver.Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.Push a new bulb straight into the
socket until it bottoms, and
reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthenewbulbtomakesureit
works.
Set the lining back.
2. 1. 4.
3. 5.
6.
Replacing Rear T urn Signal L ight
Bulbs
Lights
210
HOLDING CLIPS
BULB
SOCKET
——y

y
('
y
y

Open the trunk.Caref ully bend back the corner of
the trunk lid trim to expose the
bulbs.
Remove the socket by turning it
one-quarter turn counterclockwise,
and pull the bulb straight out of its
socket.Install a new bulb into the socket,
and reinstall the socket into the
light assembly.
Test the light.
Push the trunk lid trim back into
position.
Press the trim clips back into their
holes.

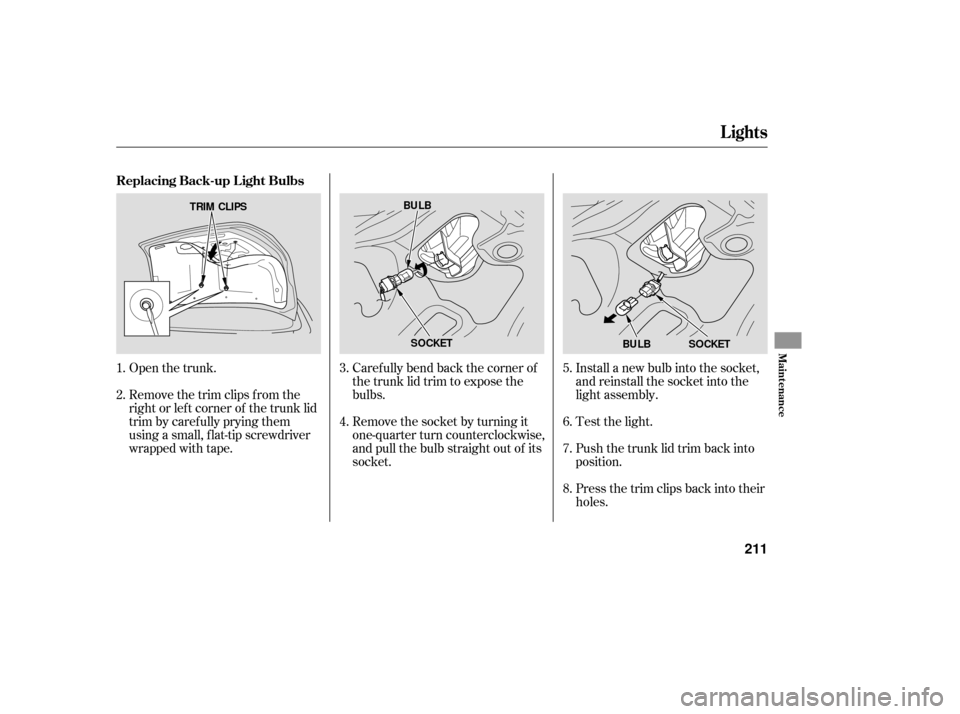

Remove the trim clips f rom the
right or lef t corner of the trunk lid
trim by caref ully prying them
using a small, f lat-tip screwdriver
wrapped with tape.
1.
3.
2. 4.5.
6.
7.
8.
Replacing Back-up L ight Bulbs
Lights
Maint enance
211
TRIM CLIPS
BULB
SOCKET SOCKET
BULB
——y

y
('
y
y

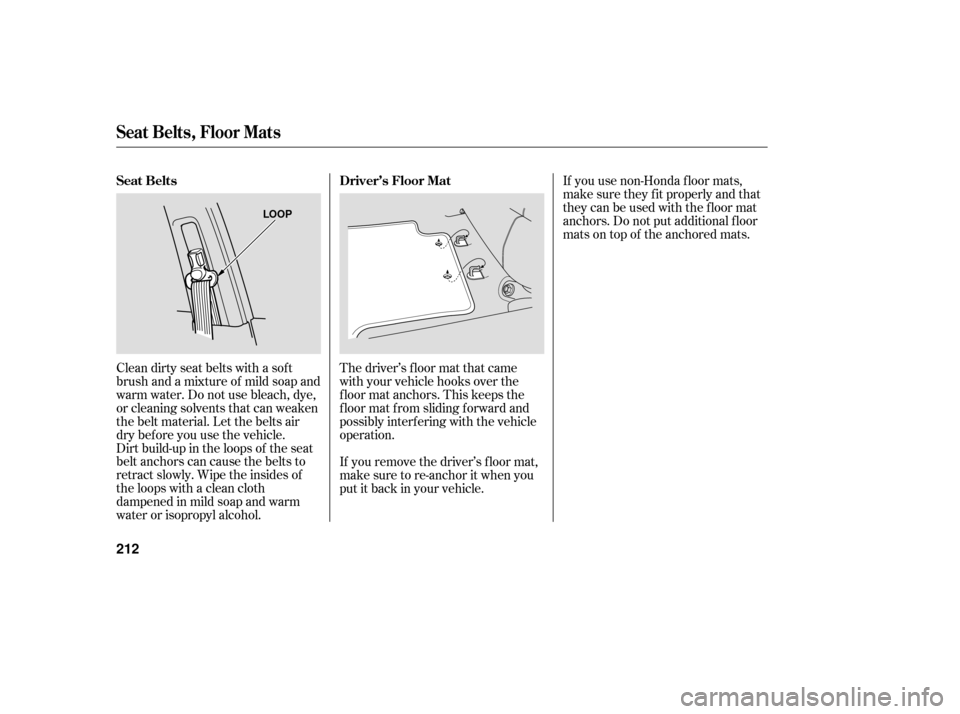

Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol. Clean dirty seat belts with a sof t
brush and a mixture of mild soap and
warm water. Do not use bleach, dye,
or cleaning solvents that can weaken
the belt material. Let the belts air
drybeforeyouusethevehicle.If you remove the driver’s f loor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.If you use non-Honda f loor mats,
make sure they f it properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional f loor
mats on top of the anchored mats.
The driver’s f loor mat that came
with your vehicle hooks over the
f loor mat anchors. This keeps the
f loor mat f rom sliding f orward and
possibly interf ering with the vehicle
operation.
Seat Belts Driver’s Floor Mat
Seat Belts, Floor Mats
212
LOOP
——y

y
('
y
y

Check the condition of the wiper
blades at least every six months.
Look f or signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you f ind
these signs, or if they leave streaks
and unwiped areas when used.To replace a wiper blade:Raise the wiper arm of f the
windshield. Raise the driver’s side
first, then the passenger’s side. Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
2.
1.
Wiper Blades
Maint enance
213
WIPER ARMS
LOCK TAB
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
——y

y
('
y
y

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.Examine the new wiper blades. If
they have no plastic or metal
reinf orcement along the back
edge, remove the metal
reinf orcement strips f rom the old
wiper blade, and install them in
the slots along the edge of the new
blade.Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield, the passenger’s
side first, then the driver’s side.
3. 4. 5.
6.
7.
Wiper Blades
214
BLADE BLADE
REINFORCEMENT
——y

y
('
y
y

Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.Underinf lated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced. Check the air pressures when the
tires are cold. This means the
vehicle has been parked f or at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures on the next page. Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf /cm ) per
month. Remember to check the
sparetireatthesametime.
Inf lation Guidelines
Tires
Maint enance
215
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
——y
y
('
y
y

If you check air pressures when the
tires are hot (driven f or several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf /cm )
higher than the cold readings. This
is normal. Do not let air out to match
the recommended cold air pressure.
The tire will be underinf lated.While tubeless tires have some
ability to self -seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Keep the inf lation pressure of your
normal tires at 32 psi (220 kPa,
2.2 kgf /cm ).
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier f or you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges. Keep the inf lation pressure of your
compact spare tire at 60 psi (420 kPa,
4.2 kgf /cm ).
See page or ref er to the tire
placard on the driver’s doorjamb f or
correct tire pressure.
253
Recommended T ire Pressure
Tires
216
——y
y
('
y
y

Every time you check inf lation, you
should also examine the tires f or
damage, f oreign objects, and wear.
Youshouldlookfor:Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance. In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitherof theseconditions.
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread lef t
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Excessive tread wear. Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see f abric or cord.
Tire Inspection Tire Maintenance
Tires
Maint enance
217
TREAD WEAR INDICATORS
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only genuine Honda wheel weights f or
balancing.
——y

y
('
yy

To help increase tire lif e and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display. Move the
tires to the positions shown in the
chart each time they are rotated. If
you purchase directional tires, rotate
only f ront-to-back.Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a dif f erent
size or construction can cause the
ABS to work inconsistently.
It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, replace the two f ront
tires or two rear tires as a pair.
Replacing just one tire can seriously
af f ect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Replacement wheels are available at
your dealer.
T ire Rotation Replacing T ires and Wheels
Tires
218
(For Non-directional
Tires and Wheels) Front Front
(For Directional
Tires and Wheels)
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
——y
y
('
y
y

´
Wheel:
Tire:
See page f or DOT tire quality
grading inf ormation, and page
f or tire size inf ormation. Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions. If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all f our wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer f or
maximum speed recommendations.
254
253
Wheels and Tires Winter Driving
Snow T ires
Tires
Maint enance
219
16x61/2JJ
P215/60R16 94V
