This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .52
............................
Instrument Panel .53
..........
Instrument Panel Indicators .54
.............................................
Gauges .62
Controls Near the Steering
.......................................
Wheel .69
..................
Wipers and Washers .70
.......
Turn Signal and Headlights .71
Automatic Lighting Off
.....................................
Feature .72
............
Daytime Running Lights .73
....
Instrument Panel Brightness .73
..........................
Hazard Warning .74
.............
Rear Window Def ogger .74
......
Steering Wheel Adjustment .75
...............................
Keys and Locks .76
........................
Immobilizer System .77
................................
Ignition Switch .78
......................................
Door Locks .79
..................
Childproof Door Locks .80
.......................
Remote Transmitter .80
................................................
Trunk .83
........
Emergency Trunk Opener .84
............................................
Armrest .84
....................................
Seat Heaters .85 ...................................................
Seat .85
.......
Adjusting the Driver’s Seat .85
...........
Driver’s Lumbar Support .86
Adjusting the Passenger’s
...........................................
Seat .86
..........................
Head Restraints .87
.............................................
Mirrors .88
....
Adjusting the Power Mirrors .88
................
Power Mirror Heaters .89
..............................
Power Windows .89
.........................................
Moonroof .92
.................................
Parking Brake .93
..........................................
Sun Visor .94
..................................
Vanity Mirror .94
.................................
Interior Lights .95
...........
Interior Convenience Items .96
.......................
Beverage Holders .96
..........
Accessory Power Sockets .96
...............
Console Compartment .97
.......................
Center CD Pocket .97
......................
Sunglasses Holder .98
....................................
Glove Box .98
Instruments and Controls
Inst rument s and Cont rols
51
— — y
y
('
y y
Page 60 of 277
This indicator comes on when you
turn on the cruise control master
button (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control. This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
gooffifyouhaveinserteda
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
141 187
77
200
141
Canadian model only
Cruise Control Indicator Cruise Control Main
Indicator
Immobilizer System
Indicator
Washer Level Indicator
Maintenance Minder
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
— — y
y
('
y y
Page 62 of 277
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
If the vehicle on board diagnostic
system continues to detect a
problem, the Malf unction Indicator
Lamp (MIL) will illuminate. If the
MIL does not go of f , have your
dealer inspect the vehicle. For more
inf ormation, see page . If your f uel cap is loose or missing, a
‘‘CHECK FUEL CAP’’ message will
appear in the inf ormation display. As
soon as it is saf ely possible, turn the
engine of f and check that the f uel
cap is installed. If it is, loosen the cap
and tighten it to at least 1 click.
Although you can use the Select/
Reset knob to cycle the f uel cap
warning of f of the display, it will be
displayed again each time the engine
is started. It will take several days of
normal driving f or the vehicle to turn
the warning of f . 237 Fuel Economy Indicator
Check Fuel Cap Display
Instrument Panel Indicators
Inst rument s and Cont rols
61
— — y
y
('
y y
Page 63 of 277
Gauges
62

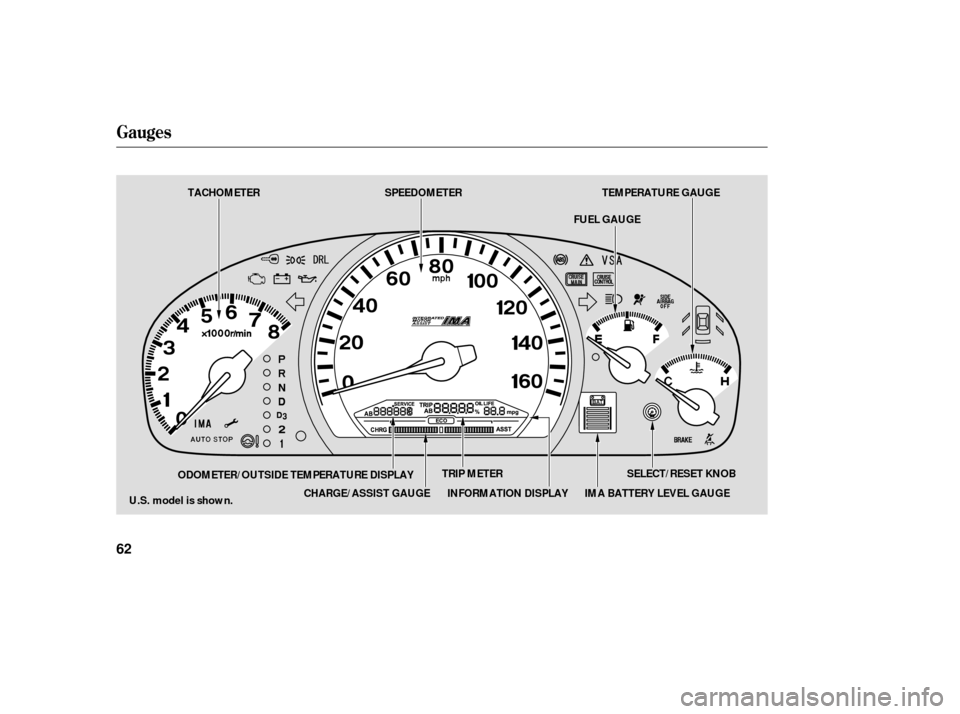

SELECT/RESET KNOB
TRIP METER
U.S. model is shown. TEMPERATURE GAUGE
FUEL GAUGE
SPEEDOMETER
TACHOMETER
CHARGE/ASSIST GAUGE IMA BATTERY LEVEL GAUGE
INFORMATION DISPLAY
ODOMETER/OUTSIDE TEMPERATURE DISPLAY
— — y
y
('
y y
Page 64 of 277
This display shows the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The inf ormation display provides
various inf ormation; odometer,
outside temperature, trip meter, trip
mileage, engine oil lif e, and
maintenance service items. To
switch the display, press the Select/
Reset knob repeatedly. When you
turn the ignition switch to the ON
(II) position, what you last selected is
shownintheinformationdisplay.
Gauges
Outside Temperature Display
Odometer
Inst rument s and Cont rols
63
— — y
y
('
y y
Page 65 of 277
¶¶µµµµ
µ µµµ This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer/outside
temperature display by pressing the
Select/Reset knob repeatedly. Each
trip meter works independently, so
you can keep track of two dif f erent
distances.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace. When you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Trip Meter
Gauges
64
— — y
y
('
y y
Page 66 of 277
The display will turn back on when
you repeat the same procedure in
step 3. You can temporarily turn of f the Trip
Mileage display.Turn the ignition switch to the ON
(II) position and make sure the
transmission is in Park and the
parking brake is set.
When either of the trip meters (trip
A or trip B) is displayed, your
vehicle’s average fuel mileage since
you last reset that trip meter can be
shownontheinformationdisplay.
This number is updated once every
10 seconds. To see the average f uel
mileage, press and release the
Select/Reset knob repeatedly. Use the Select/Reset knob to
select the odometer display.
Press and hold the Select/Reset
knob f or about 5 to 10 seconds,
then release it. The Trip Mileage
display will turn of f .
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets. It shows the number of mpg (U.S.)
or l/100 km (Canada).
1.
2.
3.
T rip Mileage T urning Of f the T rip Mileage
Display
Gauges
Inst rument s and Cont rols
65
TRIP METER
TRIP MILEAGEDISPLAY
— — y
y
('
y y
Page 101 of 277
Vents, Heating, and A/C
100
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
AUTO BUTTON OFF BUTTONDUAL BUTTON A/C BUTTON
TEMPERATURE CONTROL DIAL
(DRIVER’S SIDE)
FAN SPEED
INDICATOR
TEMPERATURE DISPLAY
TEMPERATURE CONTROL DIAL
(PASSENGER’S SIDE)
Without Navigation System
MODE BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
(U.S. model shown)
— — y
y
('
y
y
Page 102 of 277
Vents, Heating, and A/C
Features
101
AUTO BUTTONMODE ICONS A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
With Navigation System
(U.S. model shown)
— — y
y
('
y
y
Page 103 of 277
ÛÝ
The climate control system f or your
vehicle can also be operated using
the voice control system. See
NavigationsectioninyourQuick
Start Guide f or an overview of this
system and the Navigation System
manual f or complete details.
Turn the temperature control dial on
the driver’s side to adjust the airf low
temperature on both the driver’s and
passenger’s sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
Press the temperature control
buttons and on the driver’s side
to adjust the airflow temperature on
both the driver’s and passenger’s
sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display.
You can manually select the f an
speed by pressing the A/C button
next to the display, and then
pressing the f an control icons.
For vehicles without Navigation System
For vehicles with Navigation System
For vehicles without Navigation System
For vehicles with Navigation System
Only on models equipped with
Navigation System
Vents, Heating, and A/C
Voice Control System T emperature Control
Fan Control
102
— — y
y
('
y
y
