navigation system HONDA ACCORD HYBRID 2007 CL7 / 7.G Owners Manual

Î
Î
Only on vehicles equipped with navigation system. Ref er to the navigation system manual.
:
Your Vehicle at a Glance
Your Vehicle at a Glance
5
INSTRUMENT PANEL
BRIGHTNESS
VOICE CONTROL
SWITCHES HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
HORN
STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER HAZARD
WARNING BUTTON
VSA OFF SWITCH
MOONROOF
SWITCH WINDSHIELD
WIPERS/WASHERS
PASSENGER AIRBAG
OFF INDICATOR
(P.78) (P.75)
(P.33)
(P.79 )
(P.147)
(P.79, 109, 112)
(P.80 )
(P.184)
(P.97) (P.143)
(P.76)
06/08/08 14:15:50 31SDR620_010

Î
ÎOnly on vehicles equipped with navigation system. Ref er to the navigation system manual.
:

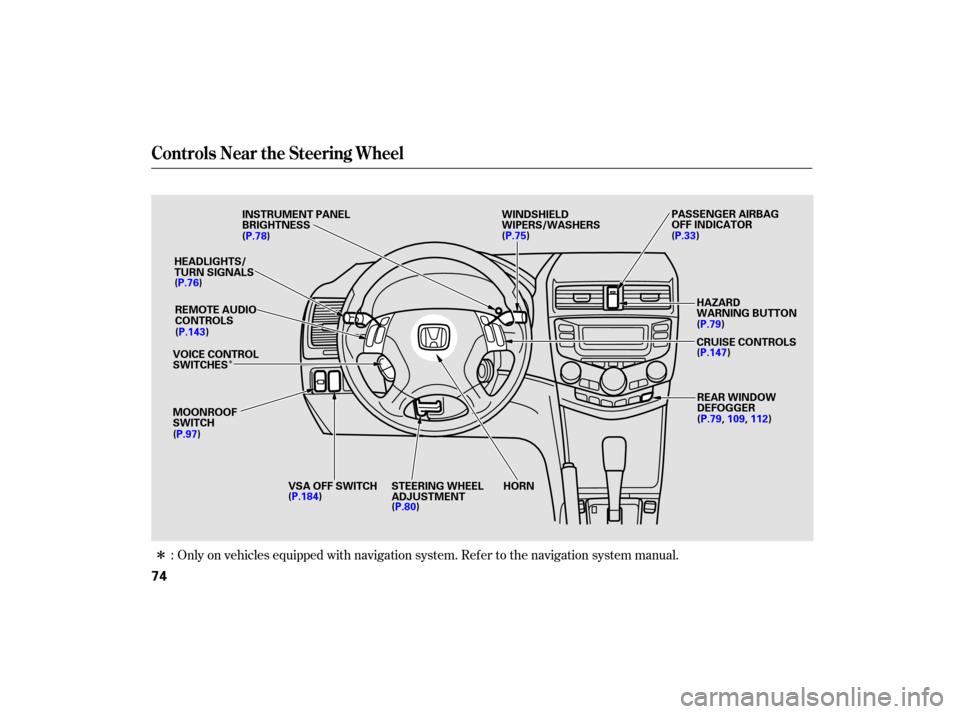

Controls Near the Steering Wheel
74
INSTRUMENT PANEL
BRIGHTNESS
VOICE CONTROL
SWITCHES HEADLIGHTS/
TURN SIGNALS
REMOTE AUDIO
CONTROLS
HORN
STEERING WHEEL
ADJUSTMENT CRUISE CONTROLS
REAR WINDOW
DEFOGGER
HAZARD
WARNING BUTTON
VSA OFF SWITCH
MOONROOF
SWITCH WINDSHIELD
WIPERS/WASHERS
PASSENGER AIRBAG
OFF INDICATOR
(P.78)
(P.76)
(P.143)
(P.97) (P.184)(P.80) (P.75)
(P.33)
(P.79)
(P.147)(P.79, 109, 112)
06/08/08 14:28:35 31SDR620_079

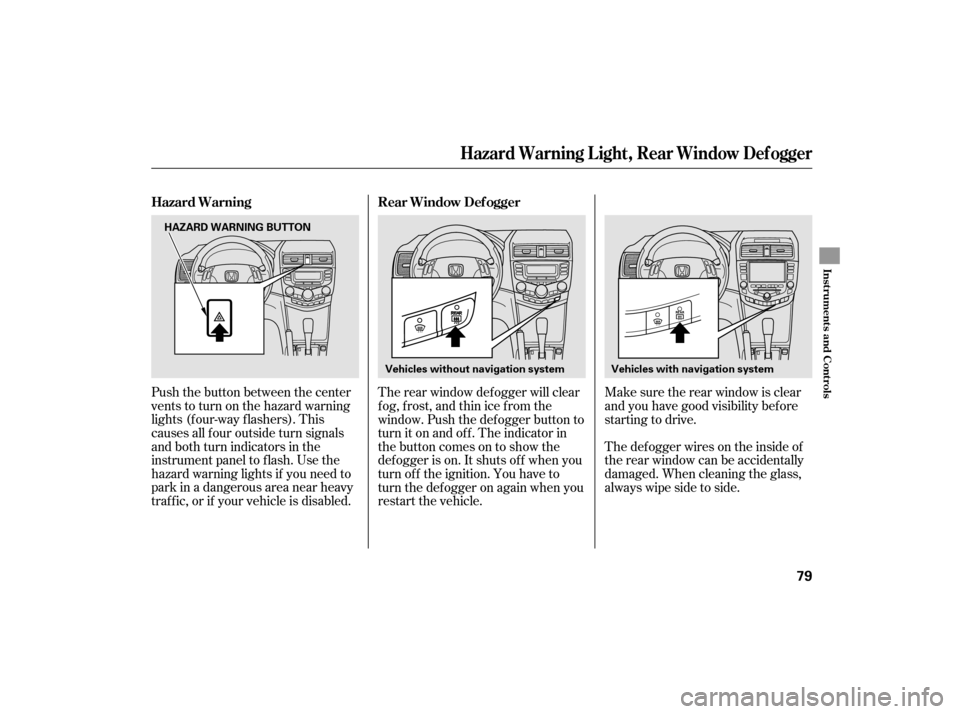

Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both turn indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traf f ic, or if your vehicle is disabled.The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The indicator in
the button comes on to show the
def ogger is on. It shuts of f when you
turn of f the ignition. You have to
turn the def ogger on again when you
restart the vehicle.Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Def ogger
Hazard Warning
Hazard Warning L ight, Rear Window Def ogger
Inst rument s and Cont rols
79
Vehicles without navigation system
Vehicles with navigation system
HAZARD WARNING BUTTON
06/08/08 14:29:27 31SDR620_084

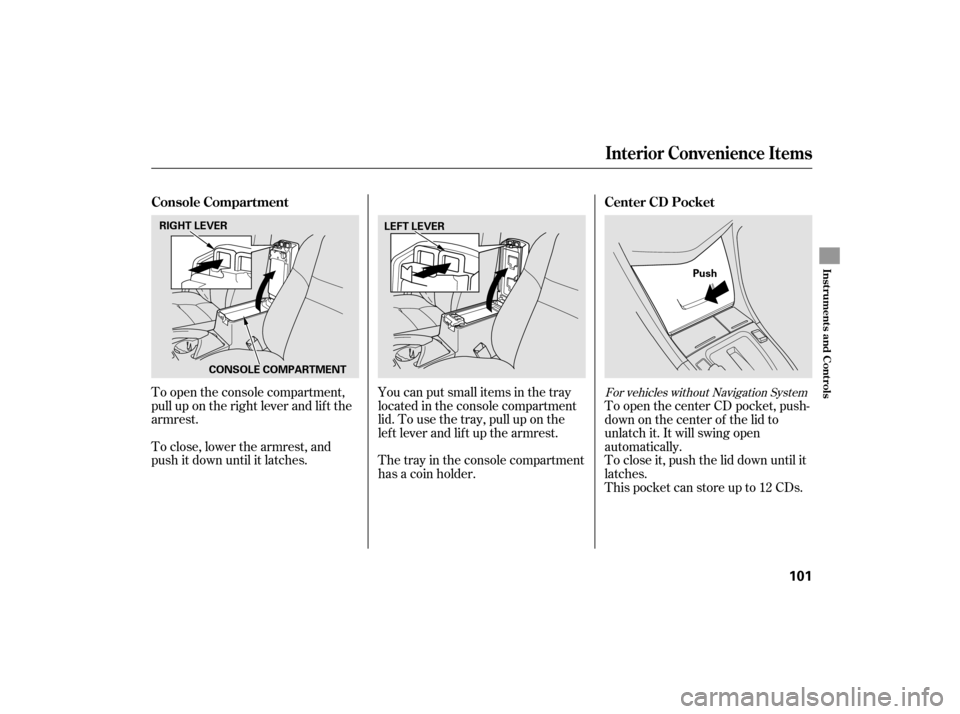

To open the console compartment,
pull up on the right lever and lif t the
armrest.
To close, lower the armrest, and
push it down until it latches.Youcanputsmallitemsinthetray
located in the console compartment
lid. To use the tray, pull up on the
lef t lever and lif t up the armrest.
Thetrayintheconsolecompartment
has a coin holder.To open the center CD pocket, push-
down on the center of the lid to
unlatch it. It will swing open
automatically.
To close it, push the lid down until it
latches.
This pocket can store up to 12 CDs.For vehicles without Navigation System
Interior Convenience Items
Console Compartment
Center CD Pocket
Inst rument s and Cont rols
101
CONSOLE COMPARTMENT
RIGHT LEVER
LEFT LEVER
Push
06/08/08 14:33:20 31SDR620_106

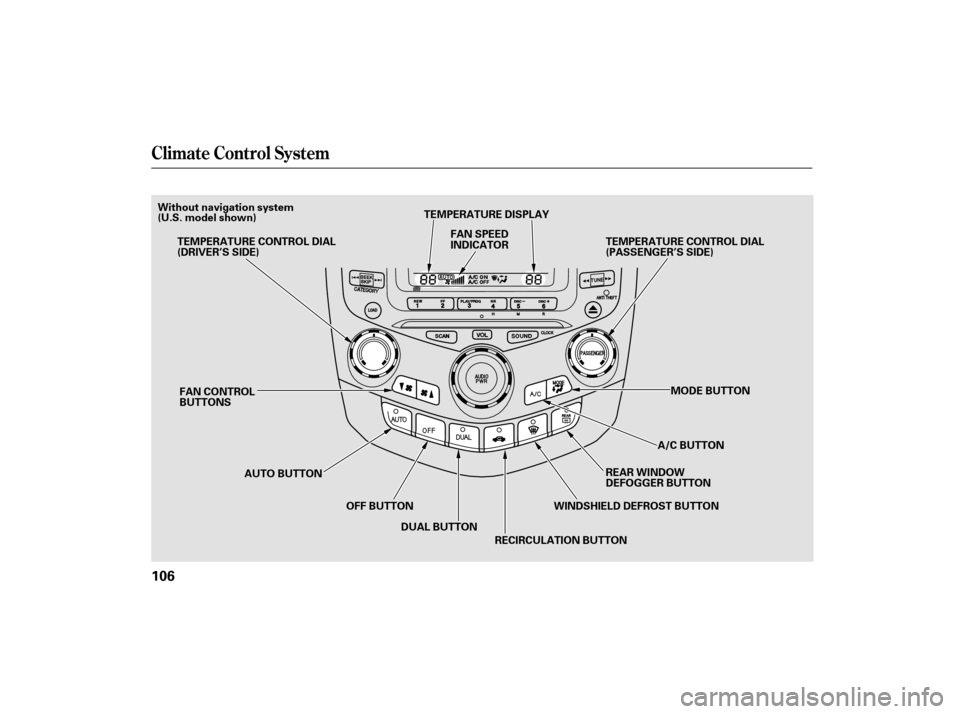

Climate Control System
106
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
AUTO BUTTON OFF BUTTONDUAL BUTTON A/C BUTTON
TEMPERATURE CONTROL DIAL
(DRIVER’S SIDE)
FAN SPEED
INDICATOR
TEMPERATURE DISPLAY
TEMPERATURE CONTROL DIAL
(PASSENGER’S SIDE)
MODE BUTTON
WINDSHIELD DEFROST BUTTON
RECIRCULATION BUTTON
(U.S. model shown)
Without navigation system
06/08/08 14:33:58 31SDR620_111

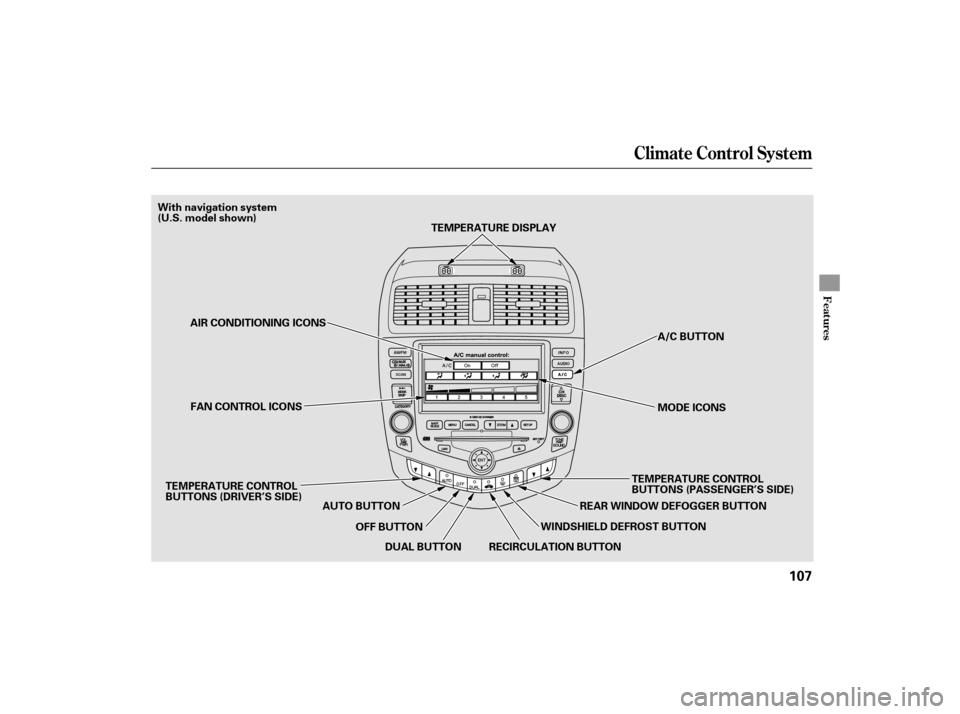

Climate Control System
Features
107
AUTO BUTTONMODE ICONS A/C BUTTON
AIR CONDITIONING ICONS
FAN CONTROL ICONS
DUAL BUTTON TEMPERATURE CONTROL
BUTTONS (PASSENGER’S SIDE)
RECIRCULATION BUTTON WINDSHIELD DEFROST BUTTONREAR WINDOW DEFOGGER BUTTON
TEMPERATURE CONTROL
BUTTONS (DRIVER’S SIDE)
OFF BUTTONTEMPERATURE DISPLAY
(U.S. model shown) With navigation system
06/08/08 14:34:04 31SDR620_112

ÛÝ
The climate control system f or your
vehicle can also be operated using
the voice control system. See the
NavigationsectioninyourQuick
Start Guide f or an overview of this
system and the Navigation System
manual f or complete details.
Turn the temperature control dial on
the driver’s side to adjust the airf low
temperature on both the driver’s and
passenger’s sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
Press the temperature control
buttons and on the driver’s side
to adjust the airflow temperature on
both the driver’s and passenger’s
sides at the same time.
When you press the DUAL button,
the indicator comes on. When it is on,
the airflow temperatures on the
driver’s and passenger’s sides can be
adjusted individually.
You can manually select the f an
speed by pressing the f an control
buttons. The f an speed is
represented by vertical bars in the
display.
You can manually select the f an
speed by pressing the A/C button
next to the display, and then
pressing the f an control icons.
On vehicles without navigation system
On vehicles with navigation system On vehicles without navigation system
On vehicles with navigation system
Only on models equipped with
navigation system
Voice Control System T emperature Control
Fan Control
Climate Control System
108
06/08/08 14:34:17 31SDR620_113

When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Press the A/C button to turn the air
conditioning on and of f . The display
shows ‘‘A/C ON’’ when the air
conditioning is on. The display
shows ‘‘A/C OFF’’ when the air
conditioning is of f .
The display shows ‘‘ON’’ and ‘‘OFF’’
after you press the A/C button. The
display shows ‘‘A/C ON’’ af ter you
touch ‘‘ON’’ to turn the air
conditioning on. The display shows
‘‘A/C OFF’’ af ter you touch ‘‘OFF’’ to
turn the air conditioning off.
When the A/C is of f , the airf low
temperature does not f all below the
outside air temperature. When you
set the airf low temperature lower
than the outside air temperature,
make sure the A/C is on.
This button turns the rear window
def ogger on and of f (see page ). The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.79On vehicles without navigation systemOn vehicles with navigation system
Air Conditioning (A/C) Button
Rear Window Def ogger Button Recirculation Button
Climate Control System
Features
109
06/08/08 14:34:30 31SDR620_114

Use the mode control buttons or
icons to select the vents the air f lows
f rom. Some air f lows f rom the
dashboard corner vents in all modes.Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents. Airf low is divided between
the vents in the dashboard and the
f loor vents. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield. When you select , the system
automatically switches to f resh air
mode and turns on the A/C.
Each time you press the MODE
button, the display shows the mode
selected.
Press the A/C button to view the
display, then touch any of the mode
icons on the display.
In AUTO mode, the system controls
the airf low direction automatically
between the dashboard vents and
the f loor vents.
1.
2.
3.
4.
On vehicles without navigation system
On vehicles with navigation system
Mode Control Ventilation
Climate Control System
110
06/08/08 14:34:47 31SDR620_115

ÛÝ
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal. Press the A/C button; the manual
operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
Turn on the A/C by pressing the
A/C button.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Select .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button; the manual
operation A/C screen will appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). 1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
3.
1.
2.
3. 72
If the interior is very warm,
On vehicles without navigation system
On vehicles with navigation system On vehicles without navigation systemOn vehicles with navigation system
Using the Heater
Using the A /C
Climate Control System
Features
111
