navigation system HONDA ACCORD HYBRID 2007 CL7 / 7.G User Guide

Ûݵ
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature by
turning the temperature control
dial. You will see AUTO in the
system’s display.
Set the desired temperature by
pressing the driver’s side
temperature control buttons. Press
to raise the temperature or
to lower it. The selected
temperature will show in the upper
display. The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence.
If you set the temperature to its
lowest limit (Lo), or its highest limit
(Hi), the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (seepage). 115
Dual Temperature Control
On vehicles without navigation system
On vehicles with navigation system
Automatic Climate Control
Climate Control System
Features
113
06/08/08 14:35:24 31SDR620_118

µ
µ
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other f eatures remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
If you press the A/C button next to
the display, the manual selections
will show in the display. Making any
manual selection causes the
indicator in the AUTO button to turn
off. Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
If youpressOFF,theclimatecontrol
system shuts of f .
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When the climate control system is
turned off, the temperature in the
upper display will also turn of f .
On vehicles without navigation system
On vehicles with navigation system On vehicles with navigation system
Semi-automatic OperationT o T urn Everything Of f
Climate Control System
114
06/08/08 14:35:35 31SDR620_119

CONT INUED
Your vehicle has two temperature
control dials, one f or the driver, and
one f or the f ront passenger.
Your vehicle has four temperature
control buttons, two f or the driver,
and two f or the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials or buttons
when the indicator in the DUAL
button is on.
Push AUTO or to turn on the
system. The selected temperatures
appear in the display (in the upper
display with the navigation system).
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
adjusting the driver’s side
temperature control dial or buttons.
On vehicles without navigation systemOn vehicles with navigation system

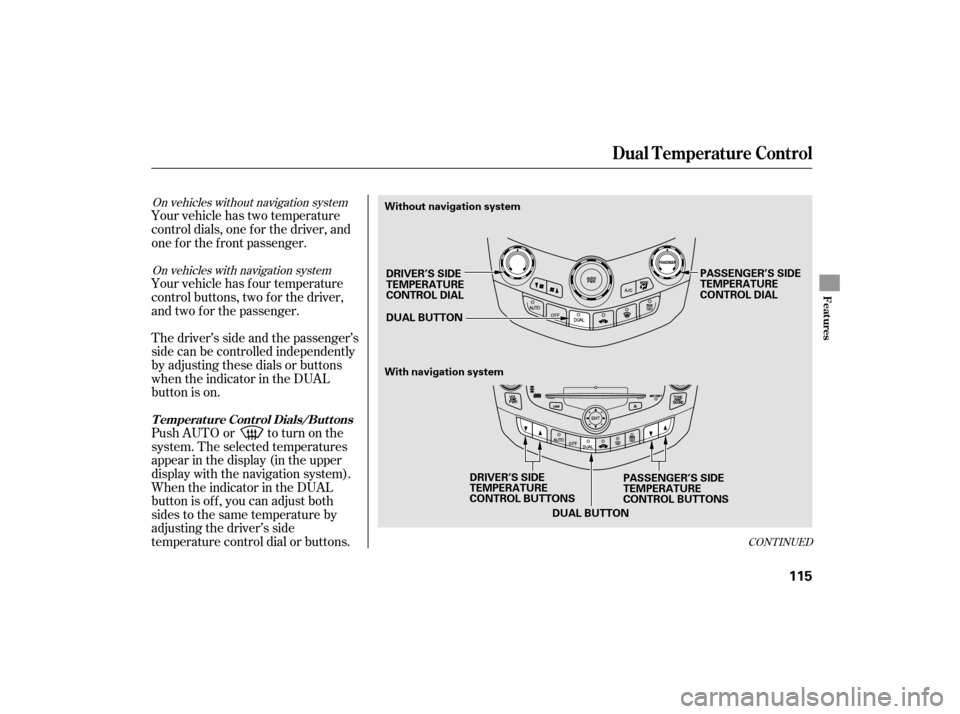

Dual Temperature Control
T emperat ure Cont rol Dials/But t ons
Features
115
DUAL BUTTON
DUAL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
Without navigation system
With navigation system
06/08/08 14:35:45 31SDR620_120

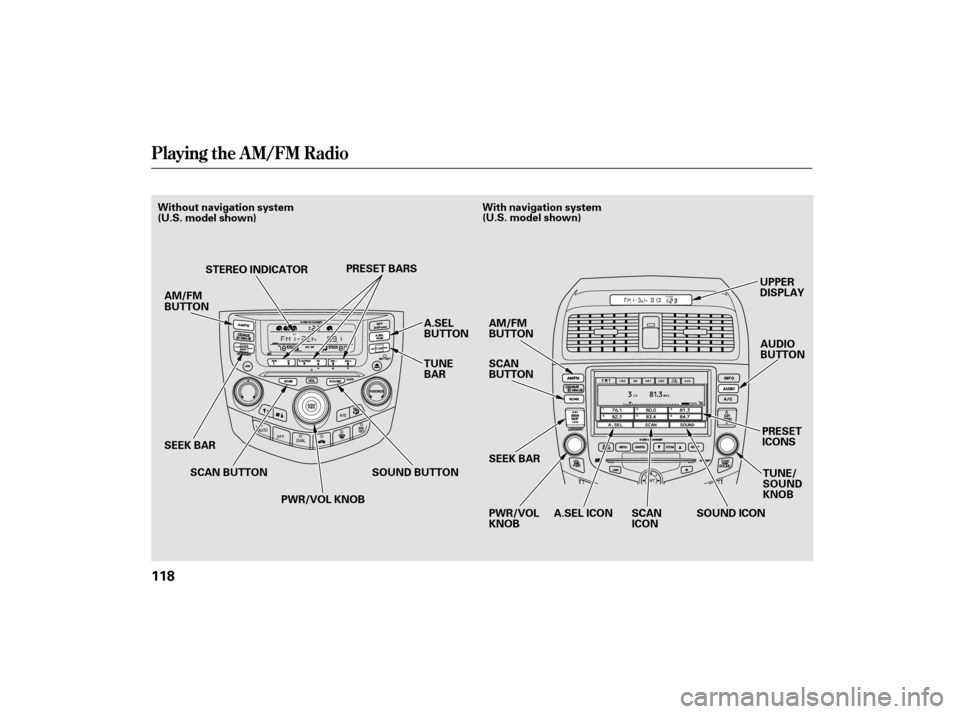

Playing the AM/FM Radio
118
STEREO INDICATOR
SEEK BAR PRESET BARS
PWR/VOL KNOB SEEK BAR SCAN
BUTTON
PWR/VOL
KNOB UPPER
DISPLAY
PRESET
ICONSTUNE/
SOUND
KNOB
SCAN BUTTON TUNE
BAR A.SEL
BUTTON
SOUND BUTTON
AM/FM
BUTTON
AM/FM
BUTTON
SOUND ICON
SCAN
ICON
(U.S. model shown)
(U.S. model shown)
A.SEL ICONAUDIO
BUTTON
Without navigation system With navigation system
06/08/08 14:36:04 31SDR620_123

µ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the preset bars or
icons.
Use the TUNE bar or
knob to tune the radio to a desired
f requency. Press the side of the
bar or turn the knob to the right to
tune to a higher f requency, and the side or turn the knob to the left
to tune to a lower f requency.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
XM satellite radio inf ormation is
available on page .
The audio system f or your vehicle
can also be operated using the voice
control system. See Navigation
section in your Quick Start Guide f or
an overview of this system and the
Navigation System manual f or
complete details.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
the PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction in
AM is not available. Pushing the AUDIO button will also
turn on the system.
137
On vehicles with navigation system
Only on models equipped with
navigation system
CONT INUED
To Select a Station
TUNE
SEEK
To Play the Radio
Voice Control System
Playing the AM/FM Radio
Features
119
06/08/08 14:36:16 31SDR620_124

µ
µµ
µ Pick the preset number (1 6)
you want for that station. Press
the left or right side of the bar or
iconandholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Each side of the bars (1
6) or preset icon can store one
f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
baroricon.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 5 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again. Push the AUDIO button to view
the audio display. You will see the
six preset icons.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
1.
2. 3.
4.
On vehicles with navigation system
Preset
SCAN
Playing the AM/FM Radio
120
06/08/08 14:36:26 31SDR620_125

µ
µ ´µ
Press the SOUND button or icon, or
press the TUNE knob repeatedly to
display the BASS, TREBLE,
BALANCE, and FADER settings.
These two
modes adjust the strength of the
sound coming f rom each speaker.
BALANCE adjusts the side-to-side
strength, while FADER adjusts the
front-to-back strength.
Use the TREBLE/
BASS modes to adjust the tone to
your liking. Eachmodeisshowninthedisplayas
it changes. Turn the PWR/VOL
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
To adjust treble and bass, touch the
‘‘ ’’ or ‘‘ ’’ icon on each side of the
TREBLE or BASS adjustment bar.
The adjustment bars show you the
current settings.
To adjust balance, touch the ‘‘L’’ or
‘‘R’’ icon. To adjust f ader, touch the
‘‘RR’’ or ‘‘FR’’ icon. The adjustment
bars show you the current settings.
You can also make an adjustment
with the joystick. Move it up and
down to switch the mode, and move
it right and lef t to change the setting.The system will automatically return
the display to the selected audio
mode about f ive seconds af ter you
stop adjusting a mode.
You can adjust the sound on the
navigation screen. To adjust the
sound, push the AUDIO button, then
enter the sound grid by touching the
SOUNDicononthedisplay.
On vehicles with navigation system On vehicles without navigation system
On vehicles with navigation system
Adjusting the Sound
Balance/Fader
Treble/Bass
Playing the AM/FM Radio
122
06/08/08 14:36:44 31SDR620_127

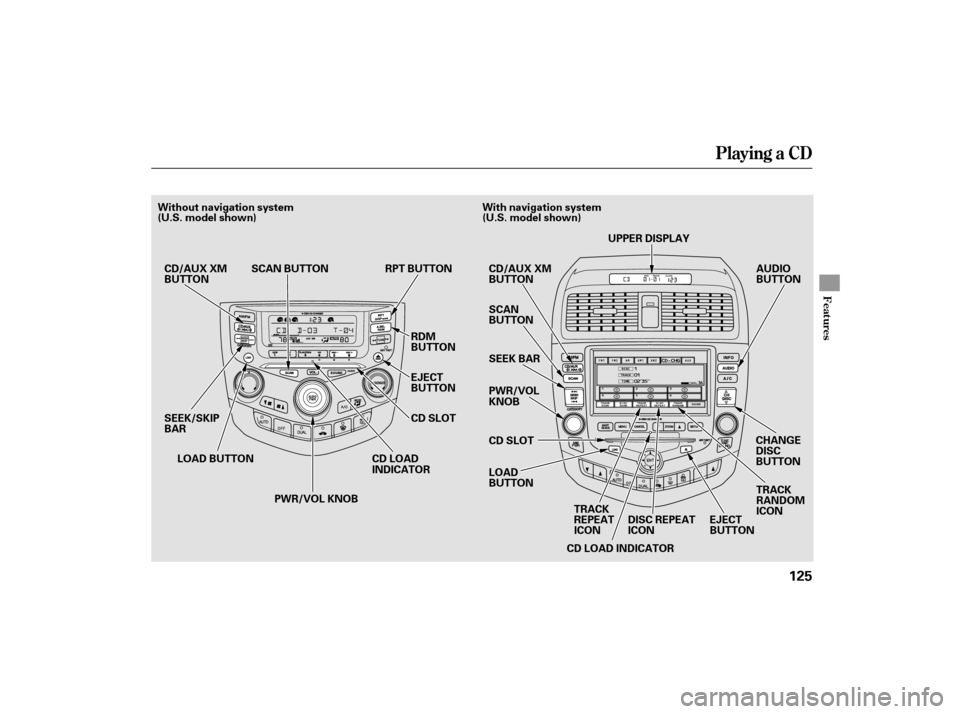

Playing a CD
Features
125
SEEK/SKIP
BARCD LOAD
INDICATORSEEK BAR
PWR/VOL
KNOB
LOAD
BUTTON
CD LOAD INDICATOR
LOAD BUTTON RPT BUTTON
RDM
BUTTON
EJECT
BUTTON
CD SLOT
PWR/VOL KNOB UPPER DISPLAY
(U.S. model shown)
(U.S. model shown)
SCAN BUTTON SCAN
BUTTON
EJECT
BUTTON
DISC REPEAT
ICON
CD/AUX XM
BUTTON
CD/AUX XM
BUTTON
CD SLOTAUDIO
BUTTON
CHANGE
DISC
BUTTON TRACK
RANDOM
ICON
TRACK
REPEAT
ICON
Without navigation system With navigation system
06/08/08 14:37:11 31SDR620_130

To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.To listen to satellite radio when a CD
is playing, press the CD/AUX XM
button.
You operate the CD changer with
the same controls used f or the radio.
To select the CD changer, press the
CD button. The numbers of the disc
andtruckplayingareshowninthe
display. On vehicles with navigation
system, these numbers also appear
in the upper display. The system will
continuously play a disc until you
change modes. To play the radio when a CD is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
To play a tape when a CD is playing,
insert a tape in the player (optional).
If a tape is in the player, press the
CD/AUX button. Press the CD/AUX
button again to switch back to the
CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
For vehicles with Satellite RadioTo Play a CD
Playing a CD, CD Changer
126
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
06/08/08 14:37:21 31SDR620_131

µµ´
Û
Ý
You can also load a CD into an empty
position while a CD is playing. Select
the empty position (the disc number
indicator is not highlighted) and
press the appropriate preset bar or
touch a disc icon. The current CD
stops playing and starts the loading
sequence. The CD just loaded will
play. To select a dif f erent disc, press the
appropriate side of a preset bar
(1 6) or use the Preset 5 (DISC )
to select the previous disc or Preset
6 (DISC ) to select the next disc in
sequence. On vehicles with
navigation system, touch the
appropriate disc icon or press the
or side of the CH/DISC bar. If
youselectanemptypositioninthe
CD changer, the system will try to
load the CD in the next available slot.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, the
system begins playing the last CD
loaded. When the CD load indicator turns
green and ‘‘LOAD’’ appears in the
screen again, insert the next CD in
the slot. Insert the disc into the CD slot
when the green CD load indicator
comes on. Insert it only about
half way; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ on the display as the CD
load indicator turns red and blinks
as the CD is loaded. The disc number f or an empty
position is highlighted and the red
light starts blinking. Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button.
1.
2.
3.
4.
5.
CONT INUED
Playing a CD, CD Changer
L oading CDs in the In-dash CD
Changer
Features
127
06/08/08 14:37:31 31SDR620_132
