HONDA ACCORD HYBRID 2017 9.G Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
400
Features

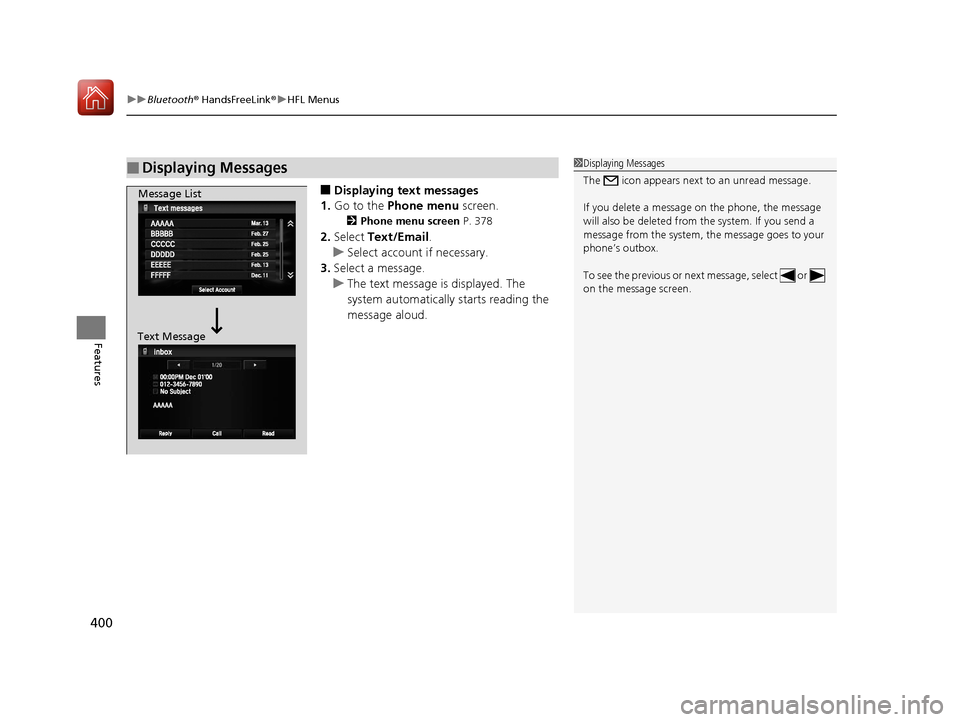

■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 378
2.Select Text/Email .
u Select account if necessary.
3. Select a message.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message
will also be dele ted from the system. If you send a
message from the system, the message goes to your
phone’s outbox.
To see the previous or ne xt message, select or
on the message screen.
Message List
Text Message
17 ACCORD FHEV-31T3W6200.book 400 ページ ２０１６年４月１１日　月曜日　午後２時４０分

401
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

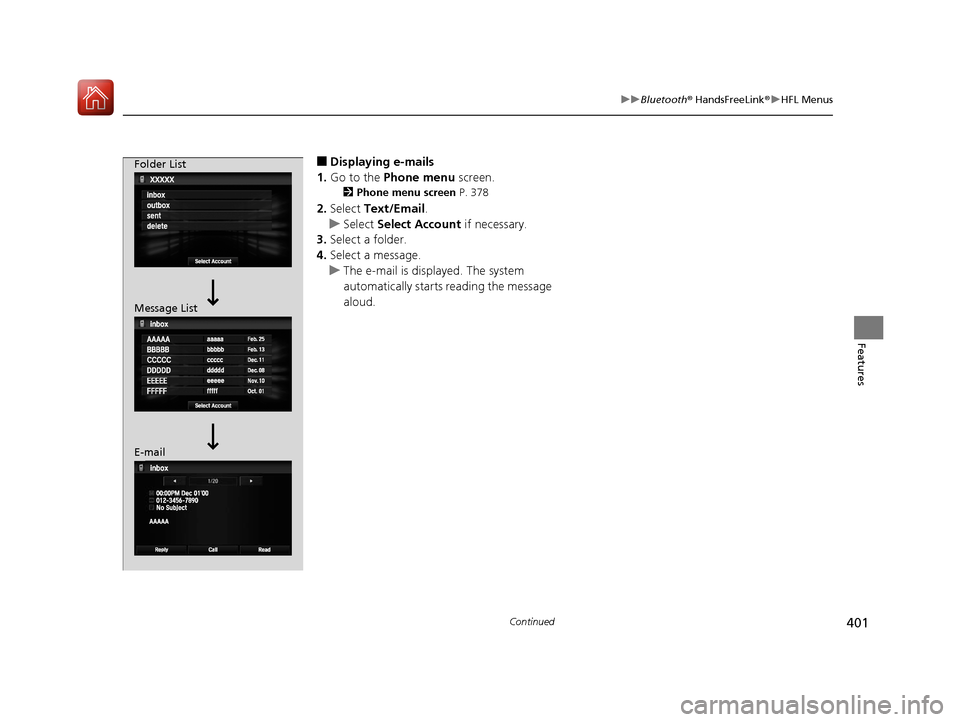

■Displaying e-mails
1. Go to the Phone menu screen.
2Phone menu screen P. 378
2.Select Text/Email .
u Select Select Account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail is displayed. The system
automatically starts reading the message
aloud.
Folder List
Message List
E-mail
17 ACCORD FHEV-31T3W6200.book 401 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
402
Features

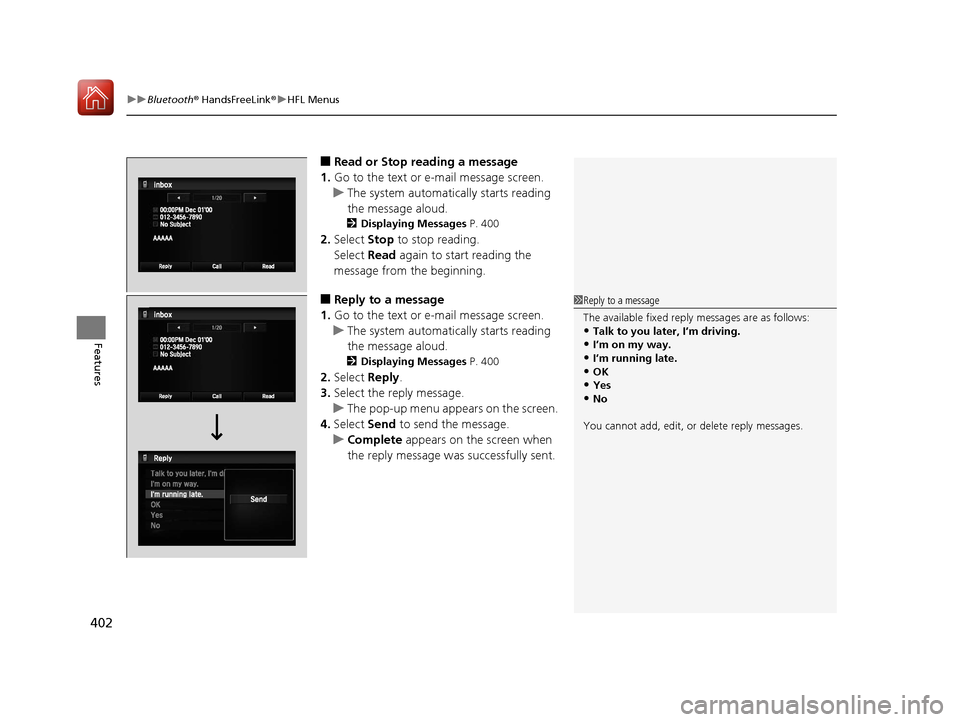

■Read or Stop reading a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 400
2.Select Stop to stop reading.
Select Read again to start reading the
message from the beginning.
■Reply to a message
1. Go to the text or e-mail message screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 400
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
17 ACCORD FHEV-31T3W6200.book 402 ページ ２０１６年４月１１日　月曜日　午後２時４０分

403
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

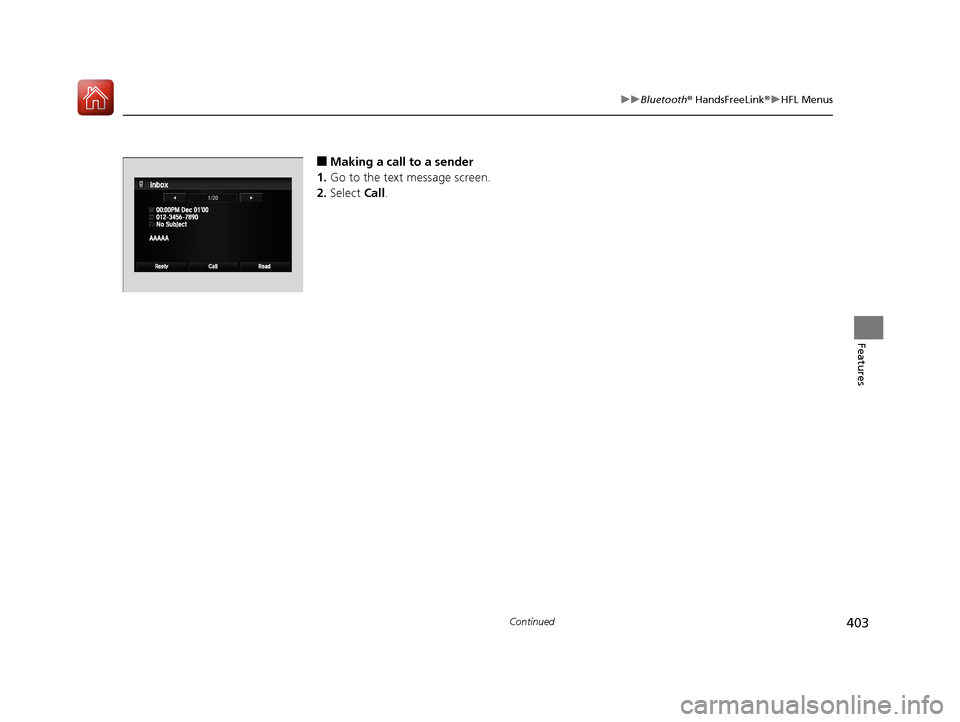

■Making a call to a sender
1. Go to the text message screen.
2. Select Call.
17 ACCORD FHEV-31T3W6200.book 403 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
404
Features

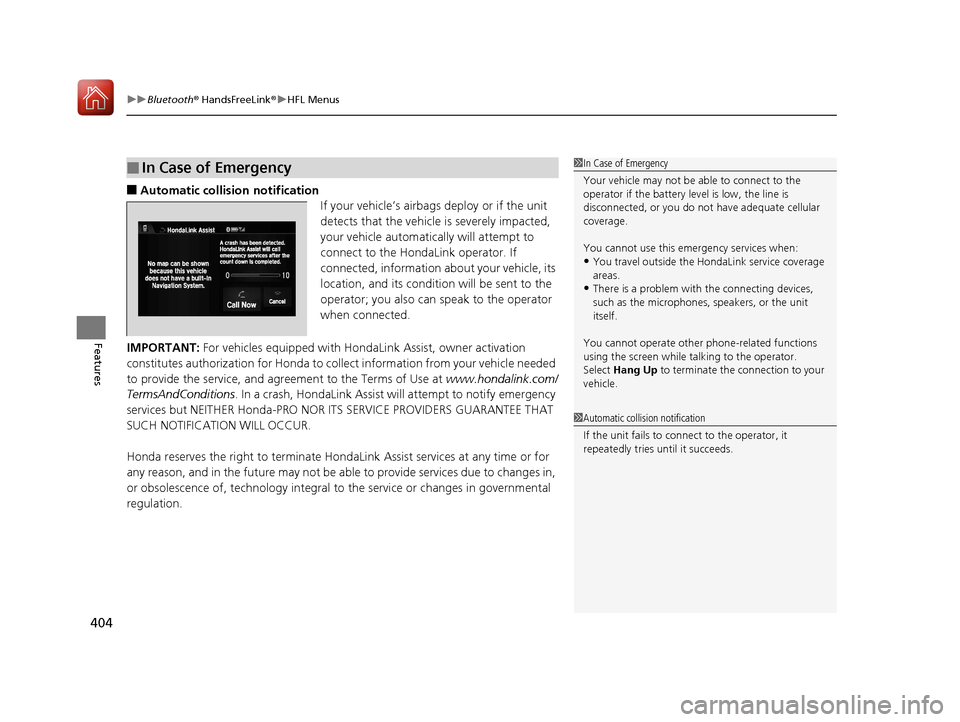

■Automatic collisi on notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. If
connected, information about your vehicle, its
location, and its condition will be sent to the
operator; you also can speak to the operator
when connected.
IMPORTANT: For vehicles equipped with Hond aLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agr eement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist w ill attempt to notify emergency
services but NEITHER Honda-PRO NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink Assist services at any time or for
any reason, and in the future may not be ab le to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.
■In Case of Emergency1 In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.
You cannot use this emergency services when:
•You travel outside the H ondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
17 ACCORD FHEV-31T3W6200.book 404 ページ ２０１６年４月１１日　月曜日　午後２時４０分

405
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

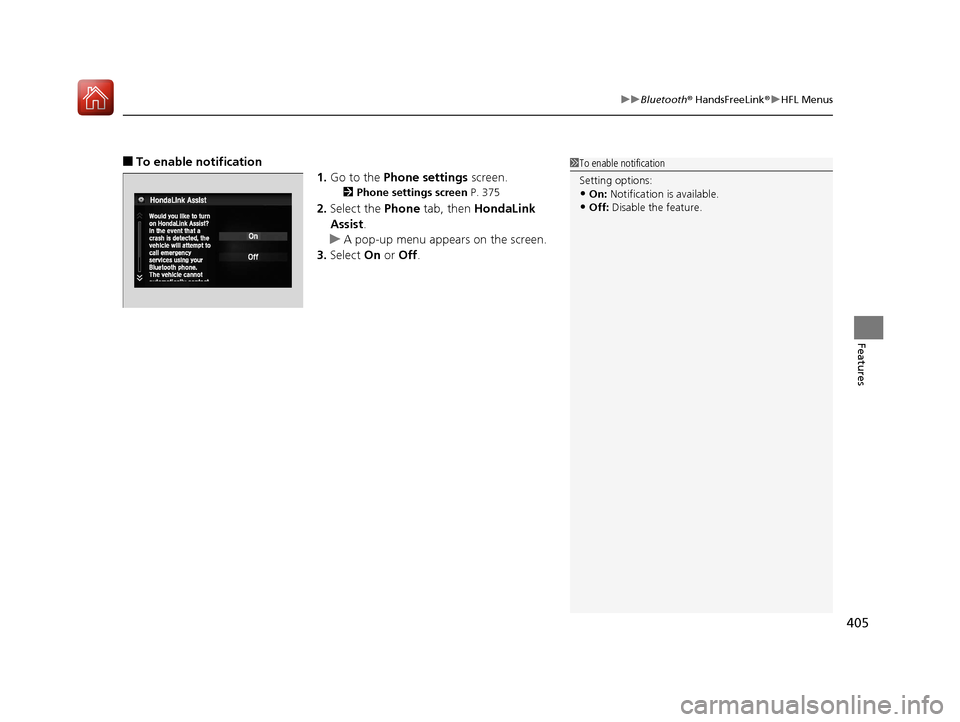

■To enable notification
1.Go to the Phone settings screen.
2Phone settings screen P. 375
2.Select the Phone tab, then HondaLink
Assist .
u A pop-up menu appears on the screen.
3. Select On or Off .
1To enable notification
Setting options:
•On: Notification is available.
•Off: Disable the feature.
17 ACCORD FHEV-31T3W6200.book 405 ページ ２０１６年４月１１日　月曜日　午後２時４０分

406
Features

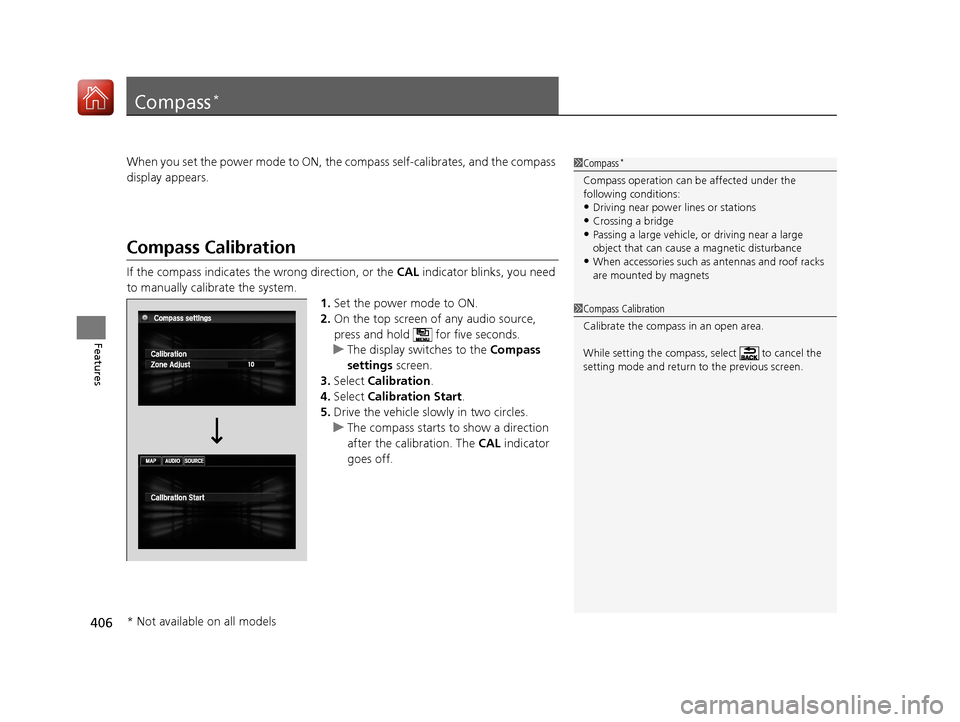

Compass*
When you set the power mode to ON, the compass self-calibrates, and the compass
display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system.
1.Set the power mode to ON.
2. On the top screen of any audio source,
press and hold for five seconds.
u The display switches to the Compass
settings screen.
3. Select Calibration .
4. Select Calibration Start .
5. Drive the vehicle slowly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass, select to cancel the
setting mode and return to the previous screen.
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 406 ページ ２０１６年４月１１日　月曜日　午後２時４０分

407
uuCompass*uCompass Zone Selection
Features

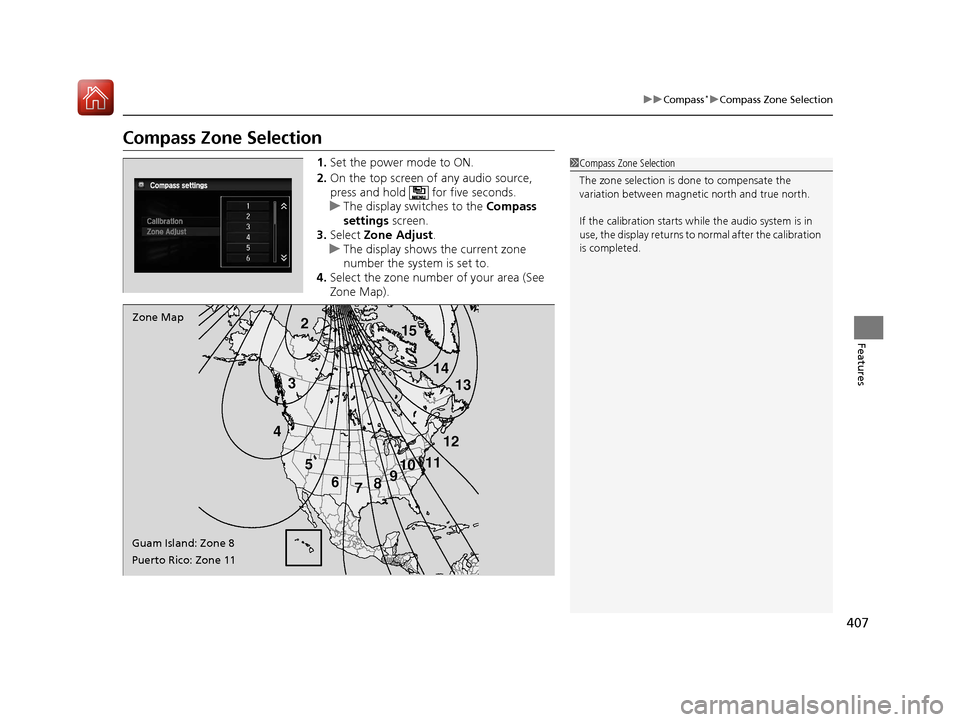

Compass Zone Selection
1. Set the power mode to ON.
2. On the top screen of any audio source,
press and hold for five seconds.
u The display swit ches to the Compass
settings screen.
3. Select Zone Adjust .
u The display shows the current zone
number the system is set to.
4. Select the zone number of your area (See
Zone Map).1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
2
3
4 5678910
111213
14
15Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
17 ACCORD FHEV-31T3W6200.book 407 ページ ２０１６年４月１１日　月曜日　午後２時４０分

408
17 ACCORD FHEV-31T3W6200.book 408 ページ ２０１６年４月１１日　月曜日　午後２時４０分

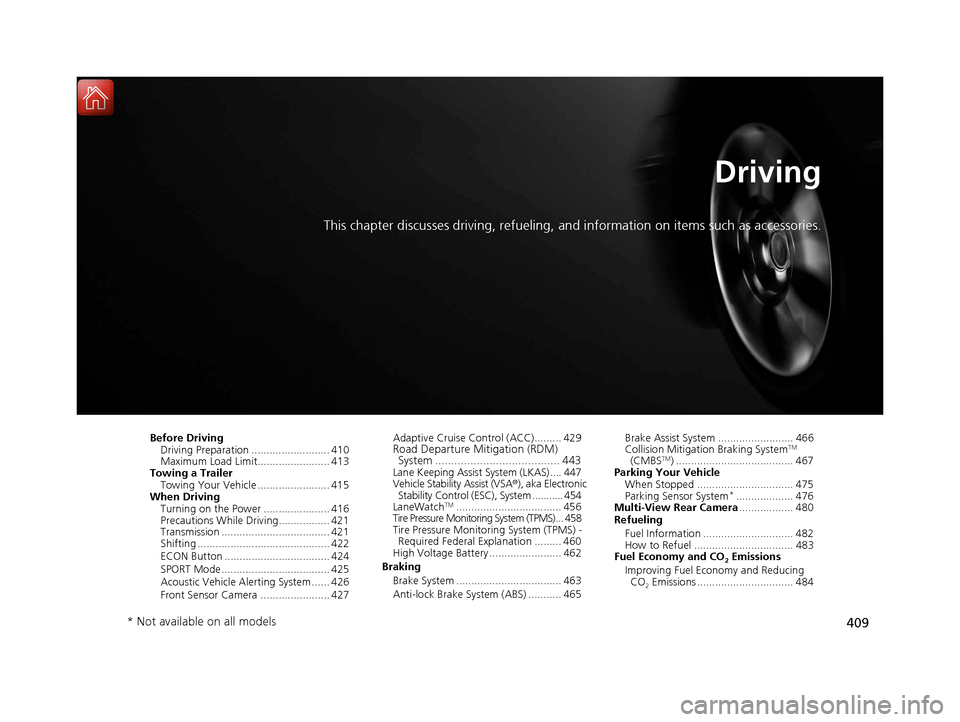

409
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 410
Maximum Load Limit........................ 413
Towing a Trailer
Towing Your Vehicle ........................ 415
When Driving
Turning on the Power ...................... 416
Precautions While Driving................. 421
Transmission .................................... 421
Shifting ............................................ 422
ECON Button ................................... 424
SPORT Mode.................................... 425
Acoustic Vehicle Al erting System ...... 426
Front Sensor Camera ....................... 427 Adaptive Cruise Control (ACC)......... 429Road Departure Mitigation (RDM)
System ....................................... 443
Lane Keeping Assist System (LKAS).... 447
Vehicle Stability Assist (VSA ®), aka Electronic
Stability Control (ESC), System ........... 454
LaneWatch
TM................................... 456
Tire Pressure Monitori ng System (TPMS) ... 458
Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 460
High Voltage Battery ........................ 462
Braking Brake System ................................... 463
Anti-lock Brake System (ABS) ........... 465 Brake Assist System ......................... 466
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 467
Parking Your Vehicle
When Stopped ................................ 475
Parking Sensor System
*................... 476
Multi-View Rear Camera .................. 480
Refueling
Fuel Information .............................. 482
How to Refuel ................................. 483
Fuel Economy and CO
2 Emissions
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 484
* Not available on all models
