HONDA ACCORD HYBRID 2017 9.G Owners Manual

California Proposition 65 Warning
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or le ss. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
WARNING: This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can re ad the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle ow ner and may not be accessed by
anyone else except as legally requir ed or with the permission of the
vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with se rvice-related devices that record
information about powertrain perfo rmance. The data can be used
to verify emissions law requirem ents and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for res earch purposes, but it remains
confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners , and CR type batteries in this
vehicle may contain perchlorate ma terials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded
by a symbol. This information is intended to help you avoid
damage to your vehicle, othe r property, or the environment.
NOTICE
17 ACCORD FHEV-31T3W6200.book 0 ページ ２０１６年４月１１日　月曜日　午後２時４０分

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:
● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol
3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
17 ACCORD FHEV-31T3W6200.book 1 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 73
Indicators P. 74 Gauges and Multi-Information Display P. 98
2Controls P. 117
Clock P. 118 Locking and Unlocking the Doors P. 120
Opening and Closing the Moonroof* P. 140
Adjusting the Seats P. 160
2 Features P. 183
Audio System P. 184 Audio System Basic Operation P. 190, 213
Customized Features P. 295, 314 HomeLink® Universal Transceiver* P. 338
2 Driving P. 409
Before Driving P. 410 Towing a Trailer P. 415
Refueling P. 482 Fuel Economy and CO
2 Emissions P. 484
2Maintenance P. 485
Before Performing Maintenance P. 486 Maintenance MinderTM P. 489
Checking and Maintaining Wiper Blades P. 514
Climate Control System Maintenance P. 527
2Handling the Unexpected P. 535
If a Tire Goes Flat P. 536 Power System Won’t Start P. 545
Overheating P. 551 Indicator, Coming On/Blinking P. 554
2Information P. 563
Specifications P. 564 Identification Numbers P. 566
Emissions Testing P. 569 Warranty Coverages P. 571
17 ACCORD FHEV-31T3W6200.book 2 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Contents
Child Safety P. 58Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Trunk P. 130 Security System P. 134 Opening and Closing the Windows P. 137
Operating the Switches Around the Steering Wheel P. 141 Adjusting the Mirrors P. 158
Interior Lights/Interior Convenience It ems P. 167 Climate Control System P. 179
Audio Error Messages P. 283General Information on the Audio System P. 288
Bluetooth® HandsFreeLink ® P. 340, 371
When Driving P. 416 Braking P. 463Parking Your Vehicle P. 475
Maintenance Under the Hood P. 493 Replacing Light Bulbs P. 506
Checking and Maintaining Tires P. 516 12-Volt Battery P. 525 Remote Transmitter Care P. 526
Cleaning P. 528 Accessories and Modifications P. 533
Jump Starting P. 548 Shift Lever Does Not Move P. 550
Fuses P. 558 Emergency Towing P. 561
Devices that Emit Radio Waves P. 567 Reporting Safety Defects P. 568
Authorized Manuals P. 573 Customer Service Information P. 574
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 73
ControlsP. 117
FeaturesP. 183
DrivingP. 409
MaintenanceP. 485
Handling the UnexpectedP. 535
InformationP. 563
IndexP. 575
17 ACCORD FHEV-31T3W6200.book 3 ページ ２０１６年４月１１日　月曜日　午後２時４０分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙System Indicators (P 74)
❙Gauges (P 98)
❙POWER Button (P 141)
❙Rear Window Defogger (P 154)
❙Front Seat Heater Switches* (P 177)
❙ECON Button (P 424)
❙Multi-Information Display (P 100)
❙Heated Mirror Button (P 154)
❙Audio/Information Screen
(P 191, 214)
❙Center Pocket (P 170)
❙Climate Control System (P 179)
❙Hazard Warning Button
❙Navigation System*
() See Navigation System Manual
❙Audio System (P 190, 213)
❙Audio Information Touch Screen*
(P 216)
❙Auxiliary Input Jack* (P 186)
❙Acoustic Vehicle Alerting System Button* (P 426)
❙ (Vehicle Stability Assist (VSA ®) System OFF) Button (P 455)
❙Collision Mitigation Braking SystemTM (CMBSTM) OFF Button (P 467)
❙Road Departure Mitigation (RDM) Button (P 443)
❙Parking Sensor System Button* (P 476)
17 ACCORD FHEV-31T3W6200.book 4 ページ ２０１６年４月１１日　月曜日　午後２時４０分

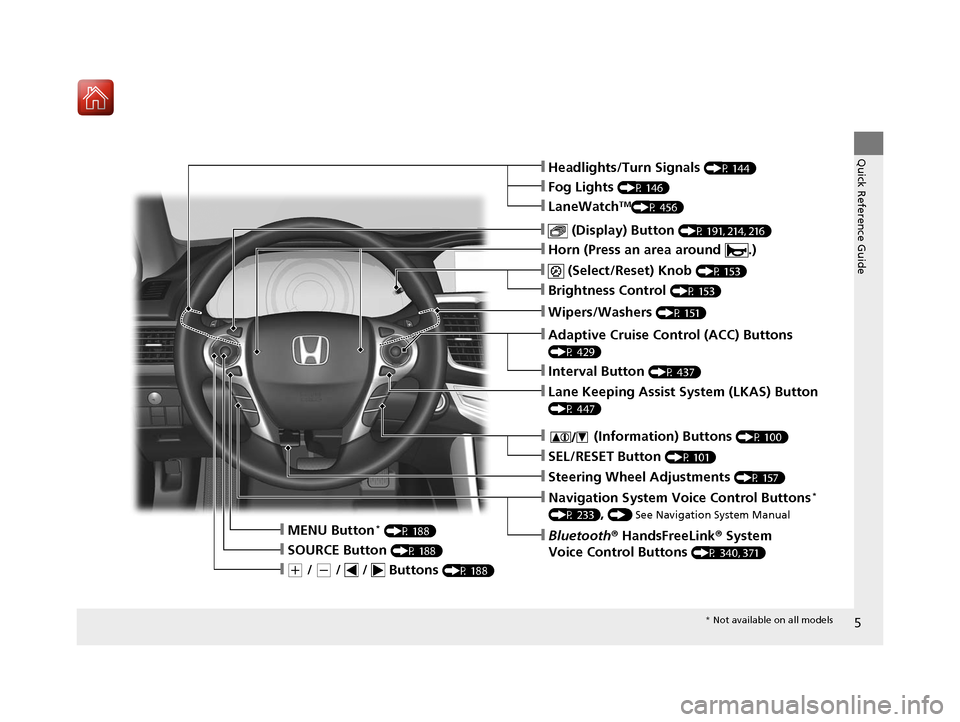

5
Quick Reference Guide
❙(+ / (- / / Buttons (P 188)
❙SOURCE Button (P 188)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 340, 371)
❙Navigation System Voice Control Buttons*
(P 233), () See Navigation System Manual
❙Steering Wheel Adjustments (P 157)
❙SEL/RESET Button (P 101)
❙ (Information) Buttons (P 100)
❙Wipers/Washers (P 151)
❙Brightness Control (P 153)
❙ (Select/Reset) Knob (P 153)
❙Horn (Press an area around .)
❙ (Display) Button (P 191, 214, 216)
❙LaneWatchTM(P 456)
❙Headlights/Turn Signals (P 144)
❙Fog Lights (P 146)
❙Adaptive Cruise Control (ACC) Buttons
(P 429)
❙Interval Button (P 437)
❙Lane Keeping Assist System (LKAS) Button
(P 447)
❙MENU Button* (P 188)
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 5 ページ ２０１６年４月１１日　月曜日　午後２時４０分

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P 159)
❙Passenger's Front Airbag
(P 48)
❙Parking Brake (P 463)
❙Glove Box (P 169)
❙Rearview Mirror (P 158)
❙Hood Release Handle (P 494)
❙Power Door Lock Master Switch (P 128)
❙Power Window Switches (P 137)
❙Interior Fuse Box (P 559)
❙Driver's Front Airbag (P 48)
❙Trunk Main Switch (P 132)
❙Fuel Fill Door Release Handle (P 483)
❙Trunk Release (P 130)
❙Transmission Shift Lever
(P 422)
❙SPORT Button (P 425)
❙USB Port (P 185)
❙Accessory Power Socket
(P 172)
❙Wireless Charger* (P 173)
❙EV Button (P 13)
17 ACCORD FHEV-31T3W6200.book 6 ページ ２０１６年４月１１日　月曜日　午後２時４０分

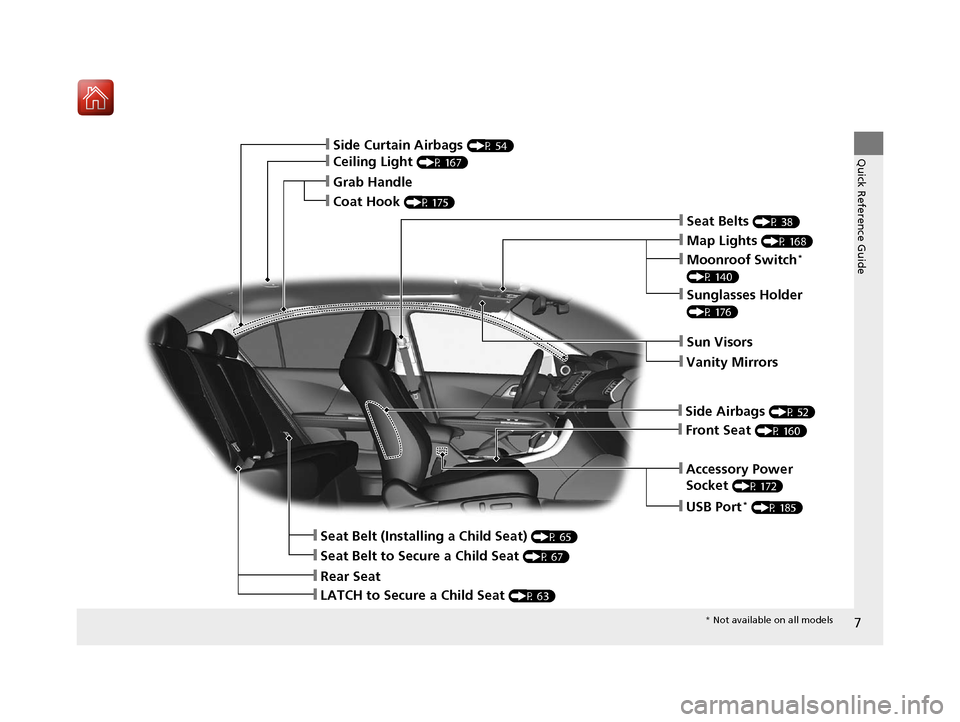

7
Quick Reference Guide
❙Seat Belt to Secure a Child Seat (P 67)
❙Sun Visors
❙Vanity Mirrors
❙Map Lights (P 168)
❙Front Seat (P 160)
❙Seat Belts (P 38)
❙LATCH to Secure a Child Seat (P 63)
❙Side Curtain Airbags (P 54)
❙Grab Handle
❙Ceiling Light (P 167)
❙Coat Hook (P 175)
❙Seat Belt (Installing a Child Seat) (P 65)
❙Rear Seat
❙Accessory Power
Socket
(P 172)
❙Side Airbags (P 52)
❙Sunglasses Holder
(P 176)
❙Moonroof Switch*
(P 140)
❙USB Port* (P 185)
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 7 ページ ２０１６年４月１１日　月曜日　午後２時４０分

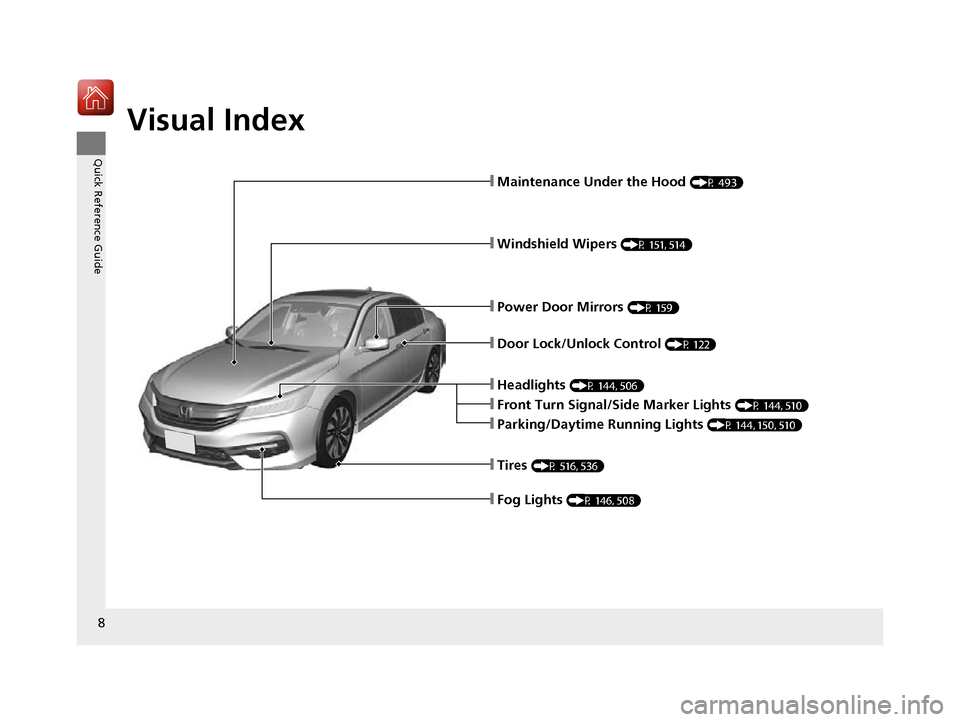

Visual Index
8
Quick Reference Guide
❙Maintenance Under the Hood (P 493)
❙Windshield Wipers (P 151, 514)
❙Tires (P 516, 536)
❙Door Lock/Unlock Control (P 122)
❙Power Door Mirrors (P 159)
❙Headlights (P 144, 506)
❙Parking/Daytime Running Lights (P 144, 150, 510)
❙Front Turn Signal/Side Marker Lights (P 144, 510)
❙Fog Lights (P 146, 508)
17 ACCORD FHEV-31T3W6200.book 8 ページ ２０１６年４月１１日　月曜日　午後２時４０分

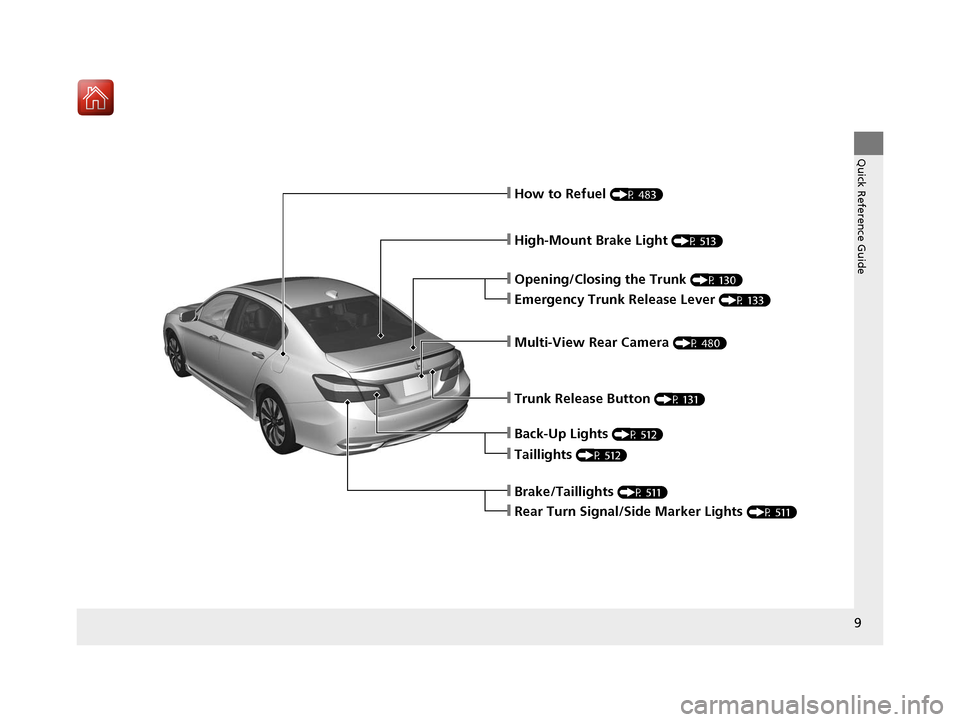

9
Quick Reference Guide
❙How to Refuel (P 483)
❙High-Mount Brake Light (P 513)
❙Emergency Trunk Release Lever (P 133)
❙Opening/Closing the Trunk (P 130)
❙Multi-View Rear Camera (P 480)
❙Trunk Release Button (P 131)
❙Back-Up Lights (P 512)
❙Taillights (P 512)
❙Brake/Taillights (P 511)
❙Rear Turn Signal/Side Marker Lights (P 511)
17 ACCORD FHEV-31T3W6200.book 9 ページ ２０１６年４月１１日　月曜日　午後２時４０分
