Handling the Unexpected

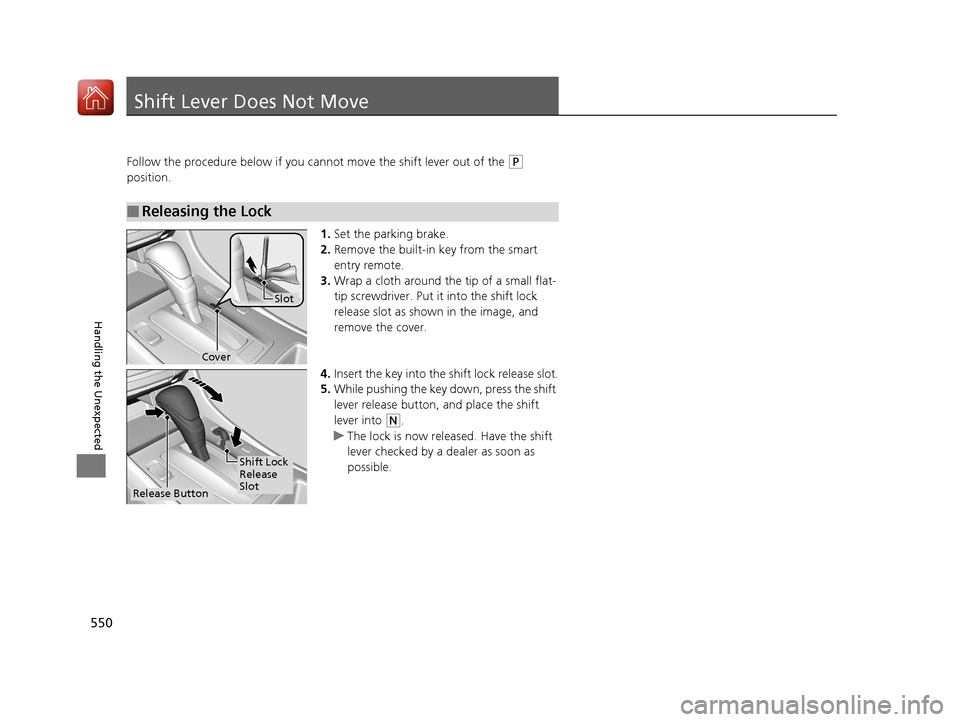

Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the built-in key from the smart
entry remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
4. Insert the key into the sh ift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Slot
Cover
Release Button
Shift Lock
Release
Slot
17 ACCORD FHEV-31T3W6200.book 550 ページ ２０１６年４月１１日　月曜日　午後２時４０分

551Continued
Handling the Unexpected

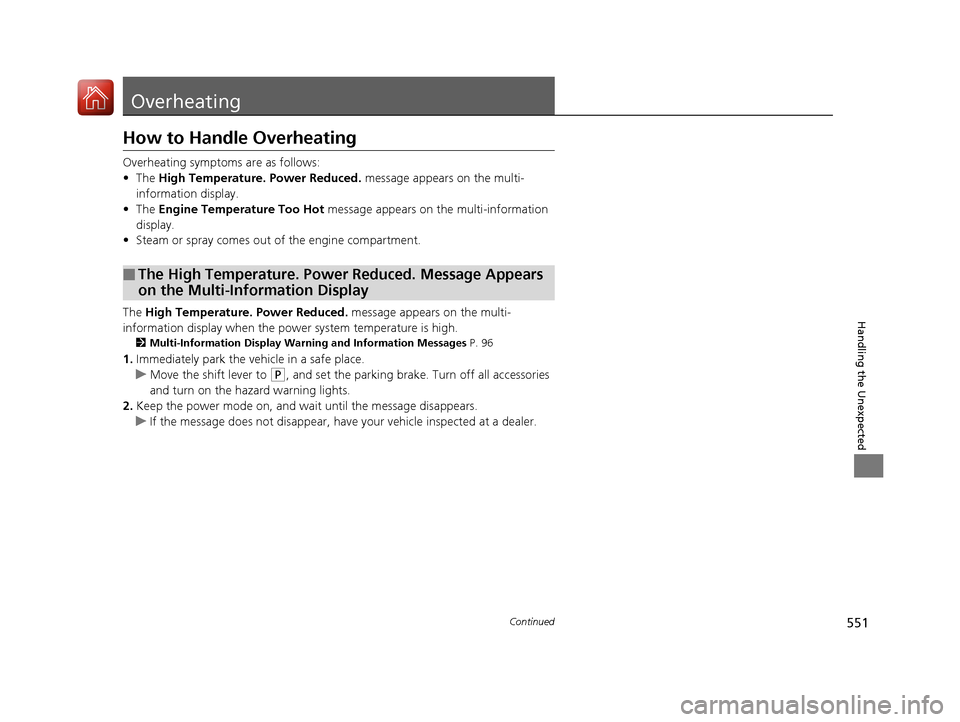

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The High Temperature. Power Reduced. message appears on the multi-
information display.
• The Engine Temperature Too Hot message appears on the multi-information
display.
• Steam or spray comes out of the engine compartment.
The High Temperature. Power Reduced. message appears on the multi-
information display when the po wer system temperature is high.
2Multi-Information Display Warning and Information Messages P. 96
1.Immediately park the vehicle in a safe place.
u Move the shift lever to
(P, and set the parking brake. Turn off all accessories
and turn on the hazard warning lights.
2. Keep the power mode on, and wait until the message disappears.
u If the message does not disappear, have your vehicle inspected at a dealer.
■The High Temperature. Power Reduced. Message Appears
on the Multi-Information Display
17 ACCORD FHEV-31T3W6200.book 551 ページ ２０１６年４月１１日　月曜日　午後２時４０分

uuOverheating uHow to Handle Overheating
552
Handling the Unexpected

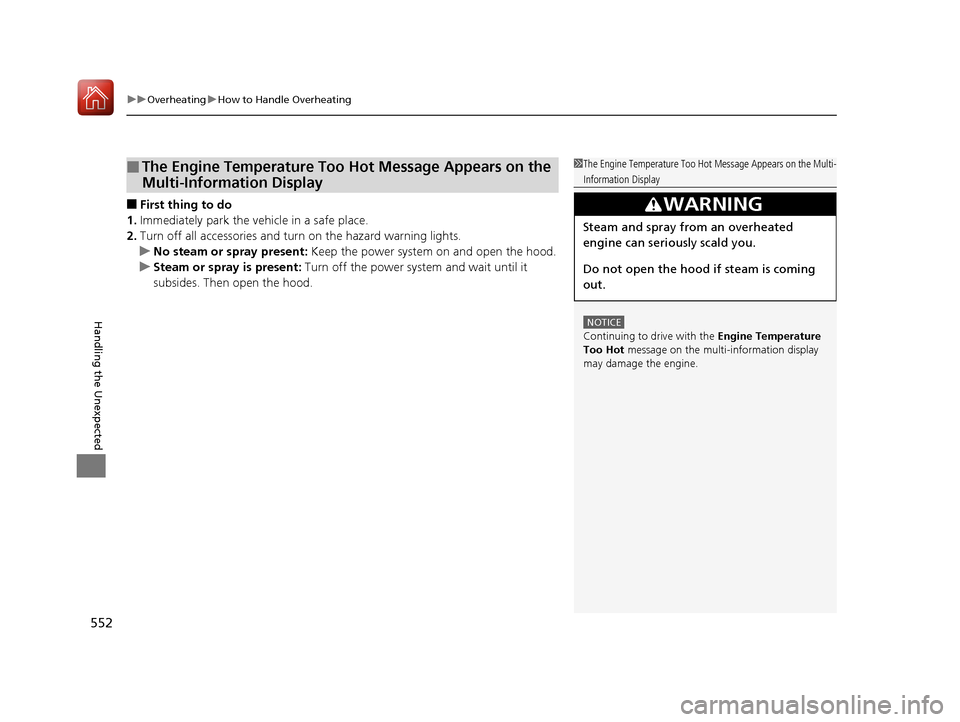

■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the power system on and open the hood.
u Steam or spray is present: Turn off the power system and wait until it
subsides. Then open the hood.
■The Engine Temperature Too Hot Message Appears on the
Multi-Information Display1 The Engine Temperature Too Hot Message Appears on the Multi-
Information Display
NOTICE
Continuing to drive with the Engine Temperature
Too Hot message on the multi- information display
may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
17 ACCORD FHEV-31T3W6200.book 552 ページ ２０１６年４月１１日　月曜日　午後２時４０分

553
uuOverheating uHow to Handle Overheating
Handling the Unexpected

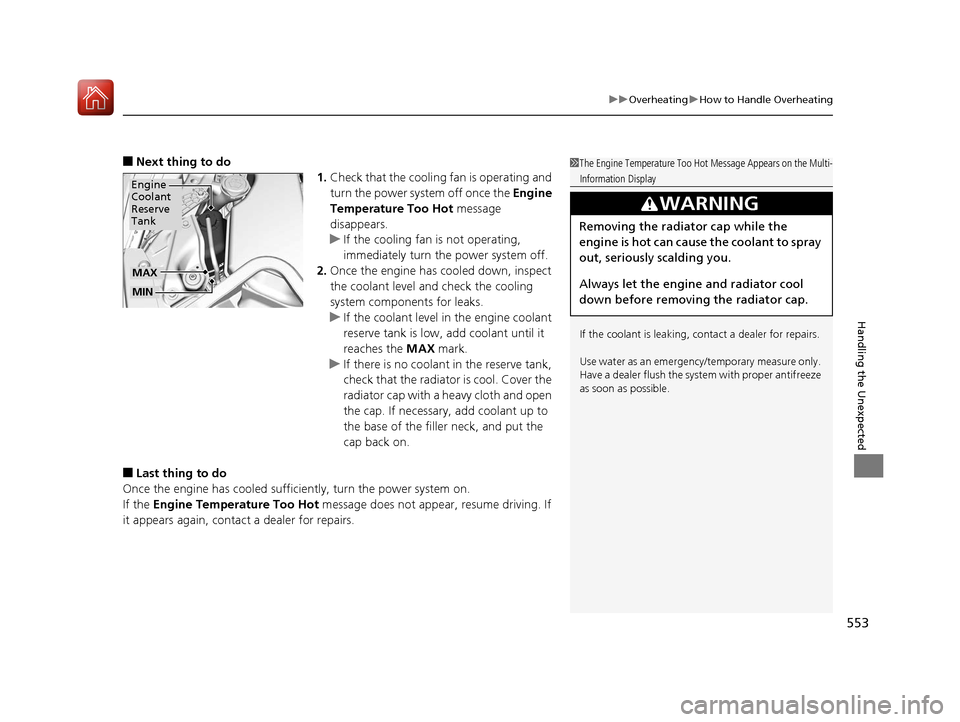

■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the Engine
Temperature Too Hot message
disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the engine coolant
reserve tank is low, add coolant until it
reaches the MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled suffici ently, turn the power system on.
If the Engine Temperature Too Hot message does not appear, resume driving. If
it appears again, contact a dealer for repairs.
1 The Engine Temperature Too Hot Message Appears on the Multi-
Information Display
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Engine
Coolant
Reserve
Tank
MAX
MIN
17 ACCORD FHEV-31T3W6200.book 553 ページ ２０１６年４月１１日　月曜日　午後２時４０分

554
Handling the Unexpected

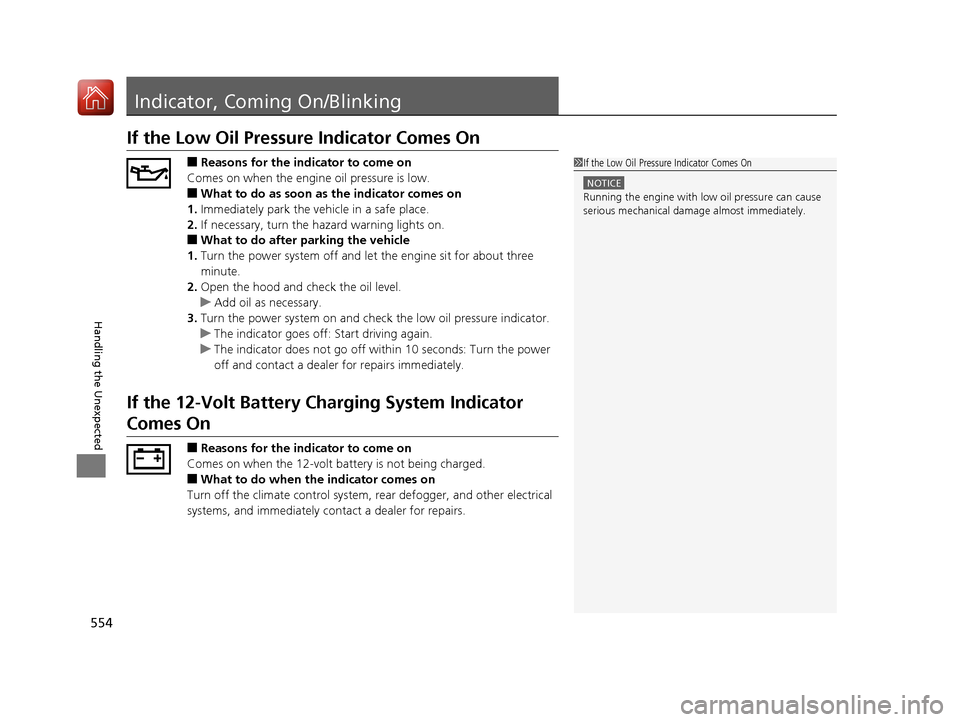

Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle in a safe place.
2. If necessary, turn the ha zard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let the engine sit for about three
minute.
2. Open the hood and check the oil level.
u Add oil as necessary.
3. Turn the power system on and check the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off within 10 seconds: Turn the power
off and contact a dealer for repairs immediately.
If the 12-Volt Battery Charging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when the indicator comes on
Turn off the climate con trol system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.
1 If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
17 ACCORD FHEV-31T3W6200.book 554 ページ ２０１６年４月１１日　月曜日　午後２時４０分

555
uuIndicator, Coming On/Blinking uIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indica tor Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on if there is a problem wi th the engine emissions control
system, or the fuel fill cap is missing, or loose.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
■The message appears on when:
An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.
■What to do when the message appears:
1. Turn the power system off.
2. Check if the fuel fill cap is fully installed.
u If not, loosen the cap, and then retight en it until it clicks at least once.
3. Drive for several days of normal driving.
u The message should go off.
■When the malfunction indicator lamp comes on
The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, check the fuel fill cap using the procedures described
above.
■Tighten Fuel Cap Message
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again next
time the engine starts, driv e to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
17 ACCORD FHEV-31T3W6200.book 555 ページ ２０１６年４月１１日　月曜日　午後２時４０分

556
uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected

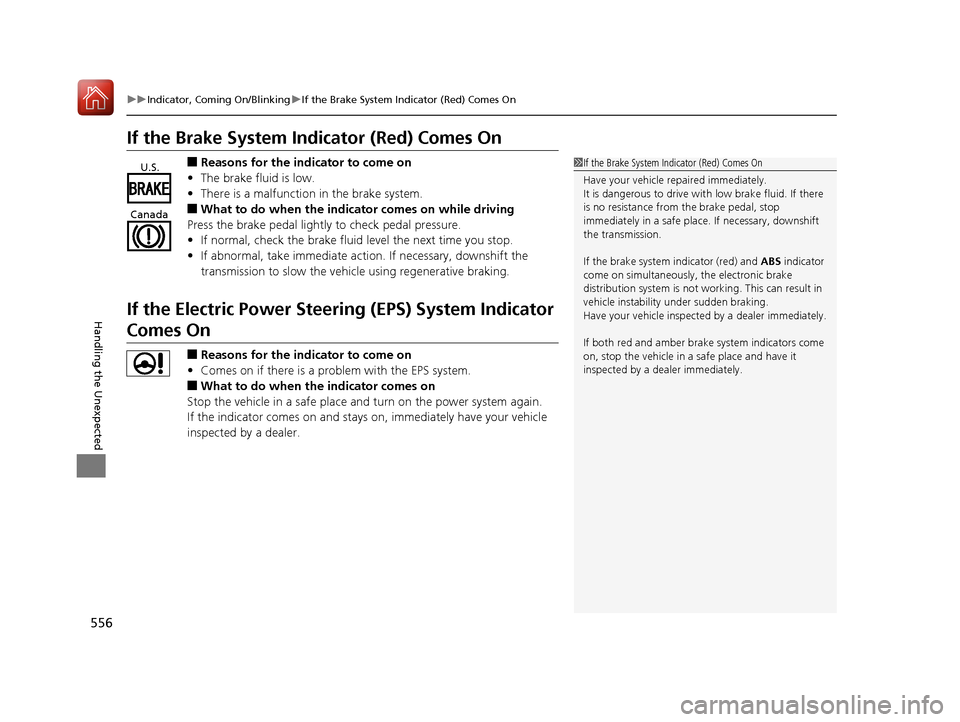

If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on if there is a problem with the EPS system.
■What to do when the indicator comes on
Stop the vehicle in a safe place an d turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary, downshift
the transmission.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.U.S.
Canada
17 ACCORD FHEV-31T3W6200.book 556 ページ ２０１６年４月１１日　月曜日　午後２時４０分

557
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

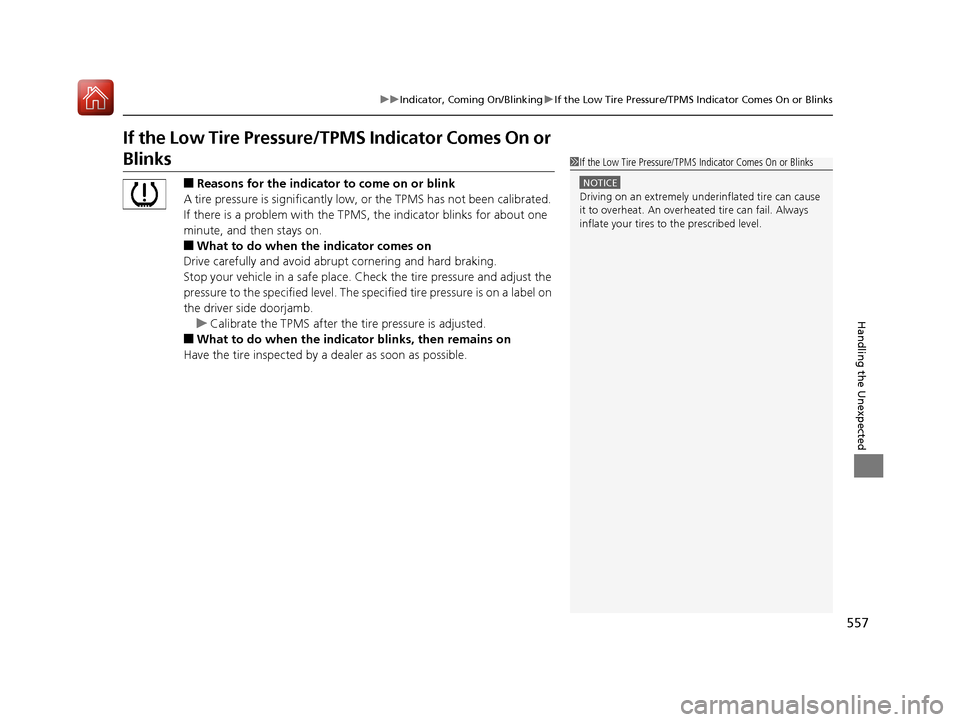

If the Low Tire Pressure/ TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
17 ACCORD FHEV-31T3W6200.book 557 ページ ２０１６年４月１１日　月曜日　午後２時４０分

558
Handling the Unexpected

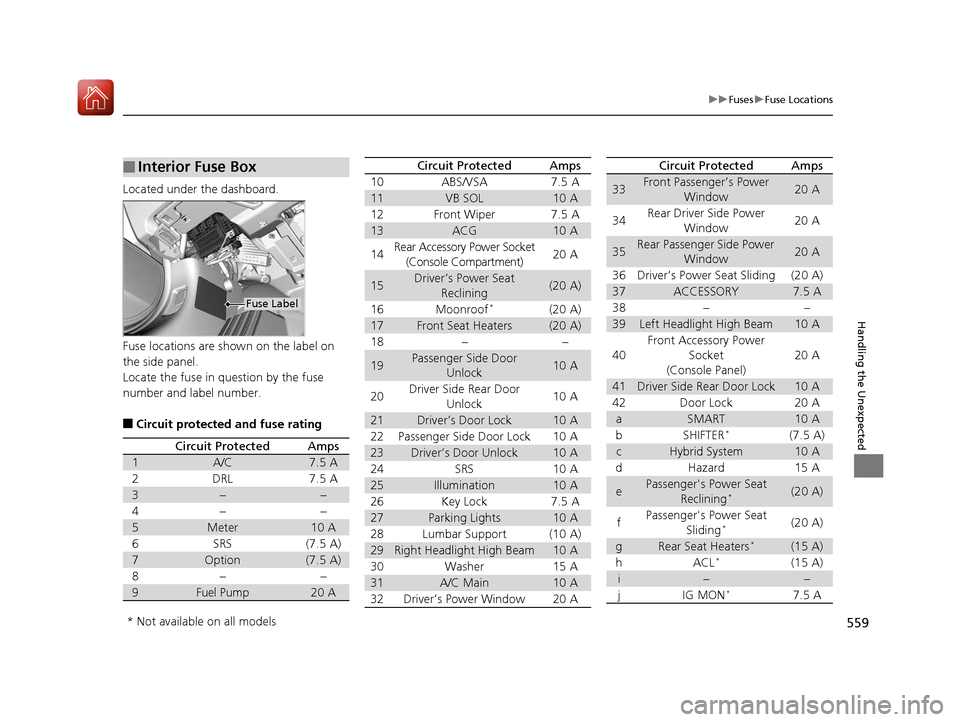

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applicable fuse is blown.
Located near the 12-volt battery. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Circuit protected and fuse rating
■Engine Compartment Fuse Box
Circuit ProtectedAmps
1Battery150 A
2
EPS70 A
ESB 40 A
Right EPB*(30 A)
Fuse Box Option 1 40 A
Shift By Wire*(30 A)
RFC 40 A
IG Main 1 30 A
3
Headlight Low Beam Main30 A
Engine Electric Water Pump30 A
IG Main 230 A
Wiper Motor30 A
4 FI Main 15 A
5PCU Electric Water Pump7.5 A
6EVTC 20A
7IG Hold10 A
8 DBW 15 A
9IG Coil15 A
10 Stop Light 10 A
11VBU10 A
12 Fuse Box Main 2 60 A
Rear Defogger 50 A
Fuse Box Main 1 60 A ABS/VSA FSR 40 A Fuse Box 30 A
ABS/VSA Motor 30 A Heater Motor 40 A Left EPB
*(30 A)
Small Light 20 A
Fuse Box Option 2 40 A
13A/C PTC 4(40 A)
14 A/CPTC 2 (40 A)
15Front Fog Light + DRL(10 A)
16 Horn 10 A
17IG Hold 3-L/R15 A
Circuit ProtectedAmps
18 Interior Light 7.5 A
19−−
20 Premium Amp*(20 A)
21Back Up10 A
22 Audio 15 A
23P-ACT Drive*(7.5 A)
24 Right Headlight Low Beam 10 A
25Left Headlight Low Beam10 A
26 IGPS LAF 10 A
Circuit ProtectedAmps
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 558 ページ ２０１６年４月１１日　月曜日　午後２時４０分

559
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1A/C7.5 A
2DRL7.5 A
3−−
4−−
5Meter10 A
6SRS(7.5 A)
7Option(7.5 A)
8−−
9Fuel Pump20 A
10ABS/VSA7.5 A
11VB SOL10 A
12Front Wiper7.5 A
13ACG10 A
14Rear Accessory Power Socket
(Console Compartment)20 A
15Driver’s Power Seat Reclining(20 A)
16Moonroof*(20 A)
17Front Seat Heaters(20 A)
18−−
19Passenger Side Door Unlock10 A
20Driver Side Rear Door
Unlock10 A
21Driver’s Door Lock10 A
22Passenger Side Door Lock10 A
23Driver’s Door Unlock10 A
24SRS10 A
25Illumination10 A
26Key Lock7.5 A
27Parking Lights10 A
28Lumbar Support(10 A)
29Right Headlight High Beam10 A
30Washer15 A
31A/C Main10 A
32Driver’s Power Window20 A
Circuit ProtectedAmps
33Front Passenger’s Power Window20 A
34Rear Driver Side Power Window20 A
35Rear Passenger Side Power Window20 A
36Driver’s Power Seat Sliding(20 A)
37ACCESSORY7.5 A
38−−
39Left Headlight High Beam10 A
40
Front Accessory Power
Socket
(Console Panel)
20 A
41Driver Side Rear Door Lock10 A
42Door Lock20 A
aSMART10 A
bSHIFTER*(7.5 A)
cHybrid System10 A
dHazard15 A
ePassenger's Power Seat Reclining*(20 A)
fPassenger's Power Seat
Sliding*(20 A)
gRear Seat Heaters*(15 A)
hACL*(15 A)
i−−
jIG MON*7.5 A
Circuit ProtectedAmps
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 559 ページ ２０１６年４月１１日　月曜日　午後２時４０分
