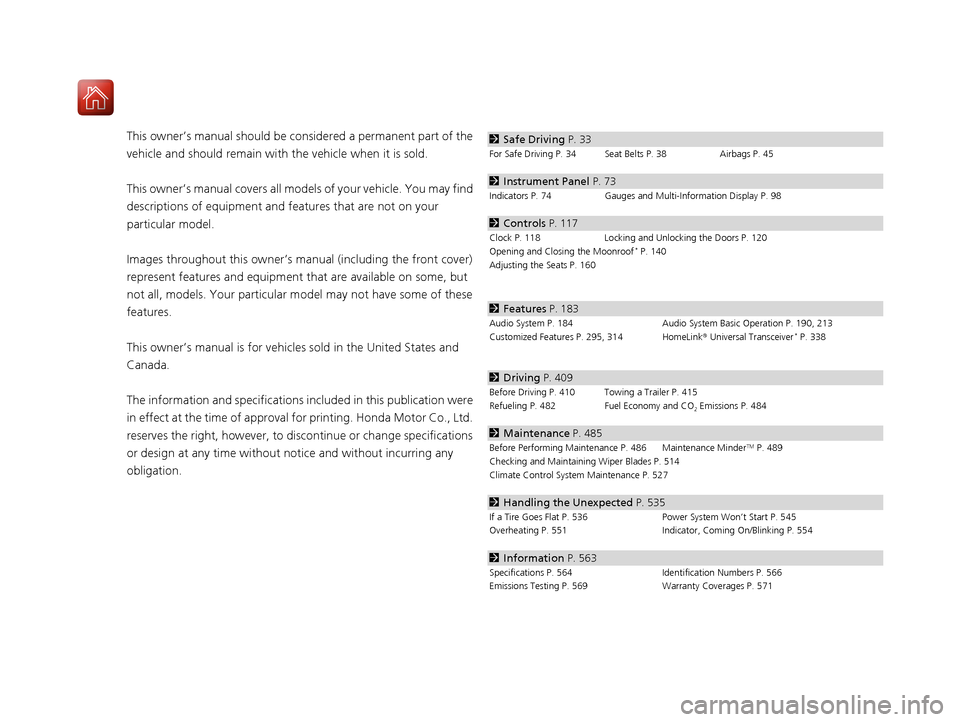

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 73
Indicators P. 74 Gauges and Multi-Information Display P. 98
2Controls P. 117
Clock P. 118 Locking and Unlocking the Doors P. 120
Opening and Closing the Moonroof* P. 140
Adjusting the Seats P. 160
2 Features P. 183
Audio System P. 184 Audio System Basic Operation P. 190, 213
Customized Features P. 295, 314 HomeLink® Universal Transceiver* P. 338
2 Driving P. 409
Before Driving P. 410 Towing a Trailer P. 415
Refueling P. 482 Fuel Economy and CO
2 Emissions P. 484
2Maintenance P. 485
Before Performing Maintenance P. 486 Maintenance MinderTM P. 489
Checking and Maintaining Wiper Blades P. 514
Climate Control System Maintenance P. 527
2Handling the Unexpected P. 535
If a Tire Goes Flat P. 536 Power System Won’t Start P. 545
Overheating P. 551 Indicator, Coming On/Blinking P. 554
2Information P. 563
Specifications P. 564 Identification Numbers P. 566
Emissions Testing P. 569 Warranty Coverages P. 571
17 ACCORD FHEV-31T3W6200.book 2 ページ 2016年4月11日 月曜日 午後2時40分
Page 4 of 584
Contents
Child Safety P. 58Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Trunk P. 130 Security System P. 134 Opening and Closing the Windows P. 137
Operating the Switches Around the Steering Wheel P. 141 Adjusting the Mirrors P. 158
Interior Lights/Interior Convenience It ems P. 167 Climate Control System P. 179
Audio Error Messages P. 283General Information on the Audio System P. 288
Bluetooth® HandsFreeLink ® P. 340, 371
When Driving P. 416 Braking P. 463Parking Your Vehicle P. 475
Maintenance Under the Hood P. 493 Replacing Light Bulbs P. 506
Checking and Maintaining Tires P. 516 12-Volt Battery P. 525 Remote Transmitter Care P. 526
Cleaning P. 528 Accessories and Modifications P. 533
Jump Starting P. 548 Shift Lever Does Not Move P. 550
Fuses P. 558 Emergency Towing P. 561
Devices that Emit Radio Waves P. 567 Reporting Safety Defects P. 568
Authorized Manuals P. 573 Customer Service Information P. 574
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 73
ControlsP. 117
FeaturesP. 183
DrivingP. 409
MaintenanceP. 485
Handling the UnexpectedP. 535
InformationP. 563
IndexP. 575
17 ACCORD FHEV-31T3W6200.book 3 ページ 2016年4月11日 月曜日 午後2時40分
Page 14 of 584
13
Quick Reference Guide
EV Button
EV mode is enabled by pressing the EV button near the shift lever.
The EV mode indicator comes on in the instrument panel when EV
mode is enabled.
Press the EV button again to switch back to HV mode.
Some conditions, such as a low High Voltage battery level and a
high vehicle speed, may keep the system from manually switching
into EV mode. The beeper sounds and a message appears on the
multi-information display with the button pressed when EV mode is
disabled.
Shifts in vehicle, driving or road conditions may automatically
cancel EV mode and switch back to HV mode.
A message will appear on the multi-information display and EV mode may be canceled automatically when:
● The High Voltage battery charge level is low.
● Your vehicle speed is too high.
● Your vehicle speed is above 25 mph (40 km/h) while the engine is in warming-up operation.
● You fully depress the accelerator pedal.
● You are driving on hilly road.
2 Multi-Information Display Warning and Information Messages (P88)
In EV mode, the acoustic vehicle alerting system is on. 2 Acoustic Vehicle Alerting System (P426)
Press
Canadian models
17 ACCORD FHEV-31T3W6200.book 13 ページ 2016年4月11日 月曜日 午後2時40分
Page 20 of 584
19
Quick Reference Guide

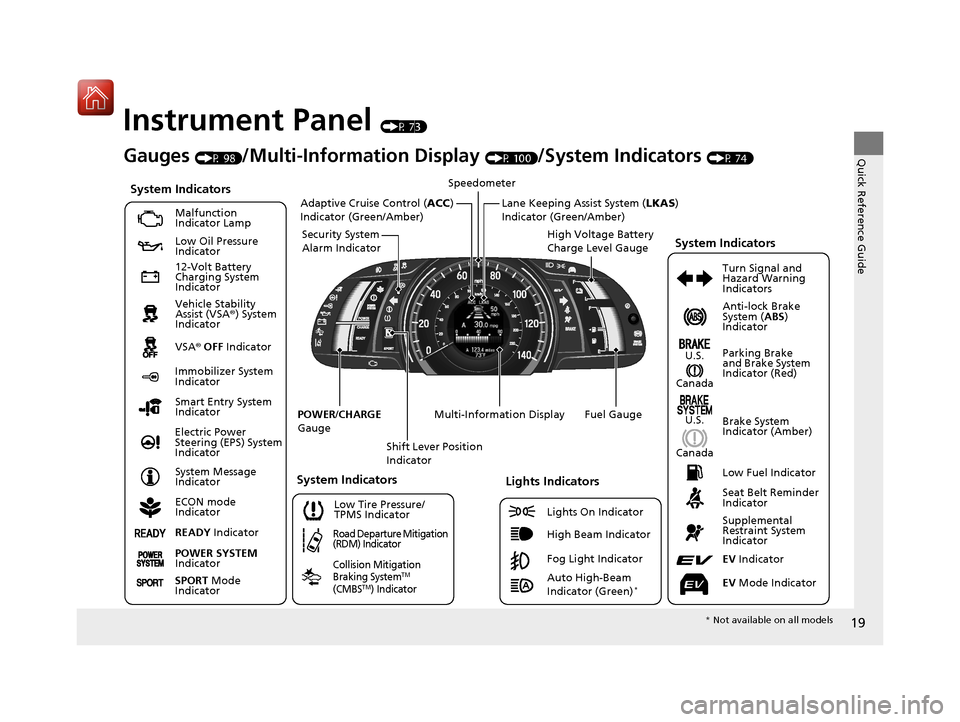

Instrument Panel (P 73)
CanadaU.S.
Low Fuel Indicator
Anti-lock Brake
System ( ABS)
Indicator
Parking Brake
and Brake System
Indicator (Red)
Canada U.S.
READY Indicator
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
12-Volt Battery
Charging System
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure/
TPMS Indicator
Electric Power
Steering (EPS) System
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
EV Indicator
POWER
/CHARGE
Gauge Speedometer
Fuel Gauge
Security System
Alarm Indicator
Shift Lever Position
Indicator
Gauges (P 98)/Multi-Information Display (P 100)/System Indicators (P 74)Turn Signal and
Hazard Warning
Indicators
System Indicators
High Voltage Battery
Charge Level Gauge
POWER SYSTEM
Indicator
Smart Entry System
Indicator
System Message
Indicator
ECON mode
Indicator
Road Departure Mitigation
(RDM) Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator
Brake System
Indicator (Amber)
Supplemental
Restraint System
Indicator
EV Mode Indicator
System Indicators
Multi-Information Display
Adaptive Cruise Control ( ACC)
Indicator (Green/Amber)Lane Keeping Assist System ( LKAS)
Indicator (Green/Amber)
SPORT Mode
Indicator
Fog Light Indicator
Auto High-Beam
Indicator (Green)*
* Not available on all models
17 ACCORD FHEV-31T3W6200.book 19 ページ 2016年4月11日 月曜日 午後2時40分
Page 47 of 584
46

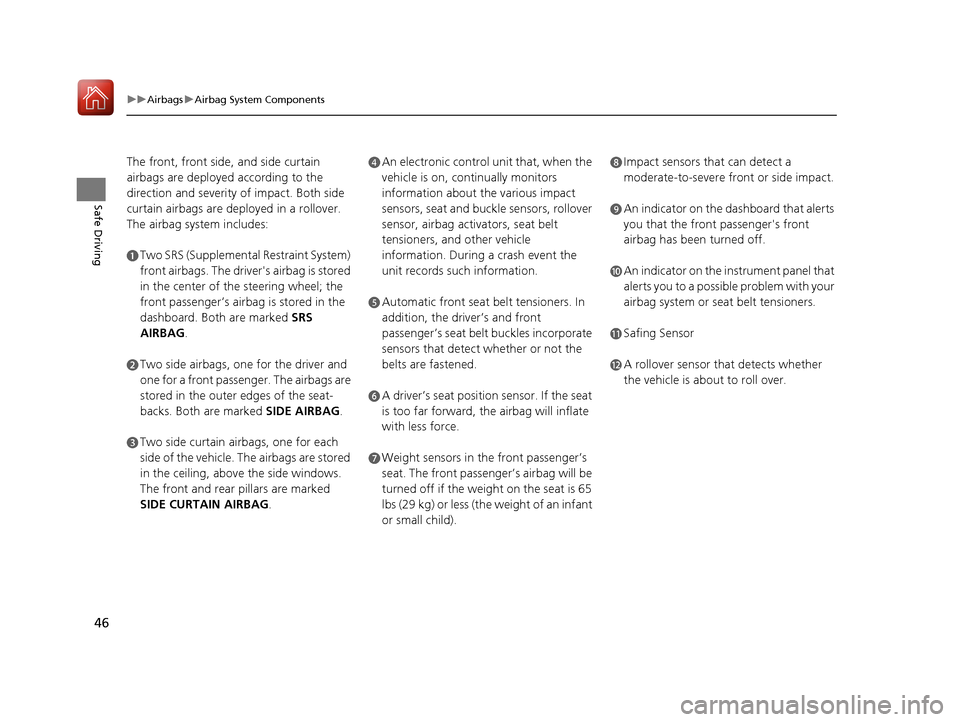

uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, seat and buckle sensors, rollover
sensor, airbag activators, seat belt
tensioners, and other vehicle
information. During a crash event the
unit records such information.
eAutomatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.
fA driver’s seat position sensor. If the seat
is too far forward, the airbag will inflate
with less force.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
hImpact sensors that can detect a
moderate-to-severe front or side impact.
iAn indicator on the dashboard that alerts
you that the front passenger's front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kSafing Sensor
lA rollover sensor that detects whether
the vehicle is about to roll over.
17 ACCORD FHEV-31T3W6200.book 46 ページ 2016年4月11日 月曜日 午後2時40分
Page 74 of 584
73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 74
Multi-Information Display Warning and Information Messages ...................... 88
Gauges and Multi-Information Display Gauges .............................................. 98
Multi-Information Display ................ 100
17 ACCORD FHEV-31T3W6200.book 73 ページ 2016年4月11日 月曜日 午後2時40分
Page 75 of 584
74
Instrument Panel

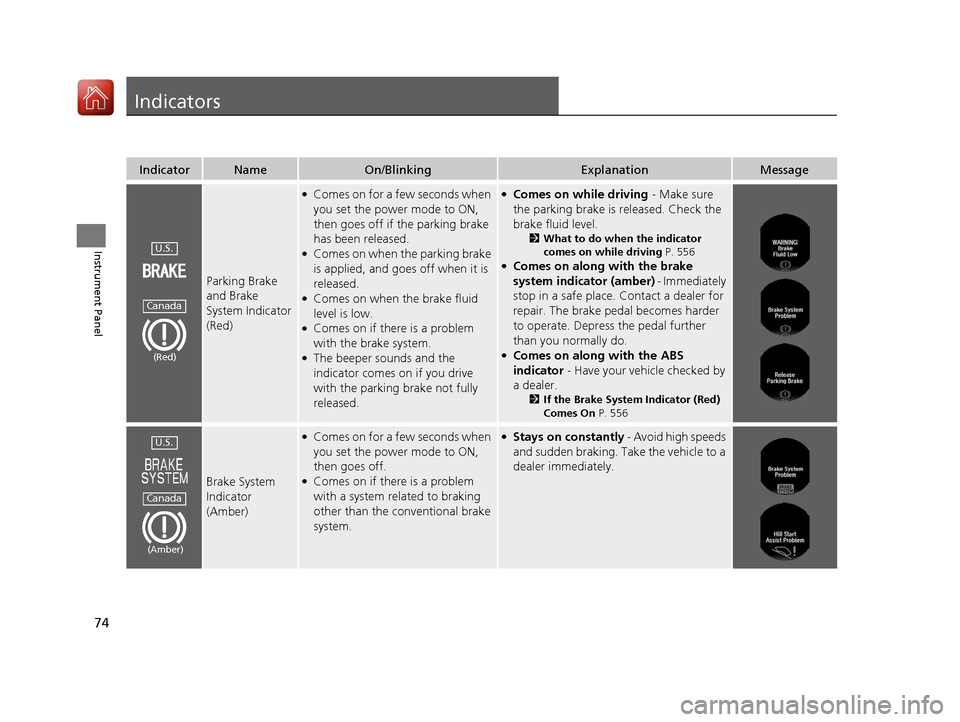

Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 556
●Comes on along with the brake
system indicator (amber) - Immediately
stop in a safe place. Contact a dealer for
repair. The brake pedal becomes harder
to operate. Depress the pedal further
than you normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 556
Brake System
Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
17 ACCORD FHEV-31T3W6200.book 74 ページ 2016年4月11日 月曜日 午後2時40分
Page 76 of 584
75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the electric vehicle system.
●Comes on when the High Voltage
battery temperature becomes high
while the battery is being charged.
●Have your vehicle checked by a dealer.
READY Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 416
EV Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is
moved by the motor, and the
engine is not operating.——
EV Mode
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the vehicle is in EV
mode.
2 SPORT HYBRID i-MMD
(intelligent Multi Mode
Drive) P. 10
—
17 ACCORD FHEV-31T3W6200.book 75 ページ 2016年4月11日 月曜日 午後2時40分
Page 77 of 584
76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Oil Pressure
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 554
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the power system is on or
after several seconds if the vehicle
did not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 569●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for the engine
to cool down. Then, take the vehicle to a
dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 555
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when
the power system is on.
●Comes on when the 12-volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the 12-Volt Battery Charging
System Indicator Comes On P. 554
17 ACCORD FHEV-31T3W6200.book 76 ページ 2016年4月11日 月曜日 午後2時40分
Page 78 of 584

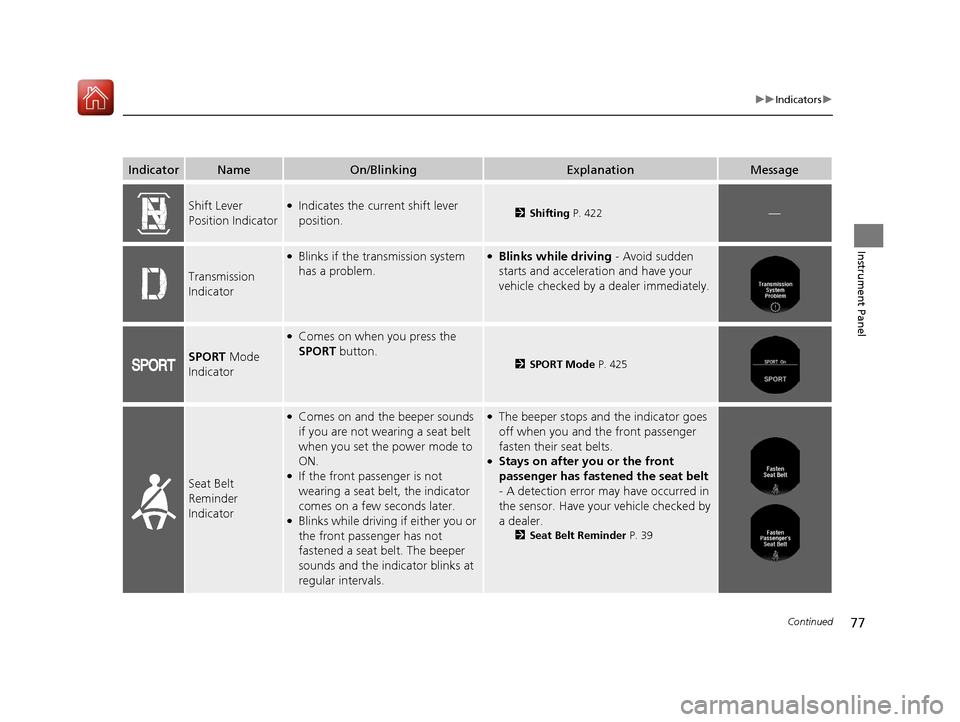

77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Shift Lever
Position Indicator●Indicates the current shift lever
position.2Shifting P. 422—
Transmission
Indicator
●Blinks if the transmission system
has a problem.●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
SPORT Mode
Indicator
●Comes on when you press the
SPORT button.
2 SPORT Mode P. 425
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
●If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
●Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indi cator blinks at
regular intervals.
●The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
●Stays on after you or the front
passenger has fastened the seat belt
- A detection error may have occurred in
the sensor. Have your vehicle checked by
a dealer.
2 Seat Belt Reminder P. 39
17 ACCORD FHEV-31T3W6200.book 77 ページ 2016年4月11日 月曜日 午後2時40分
