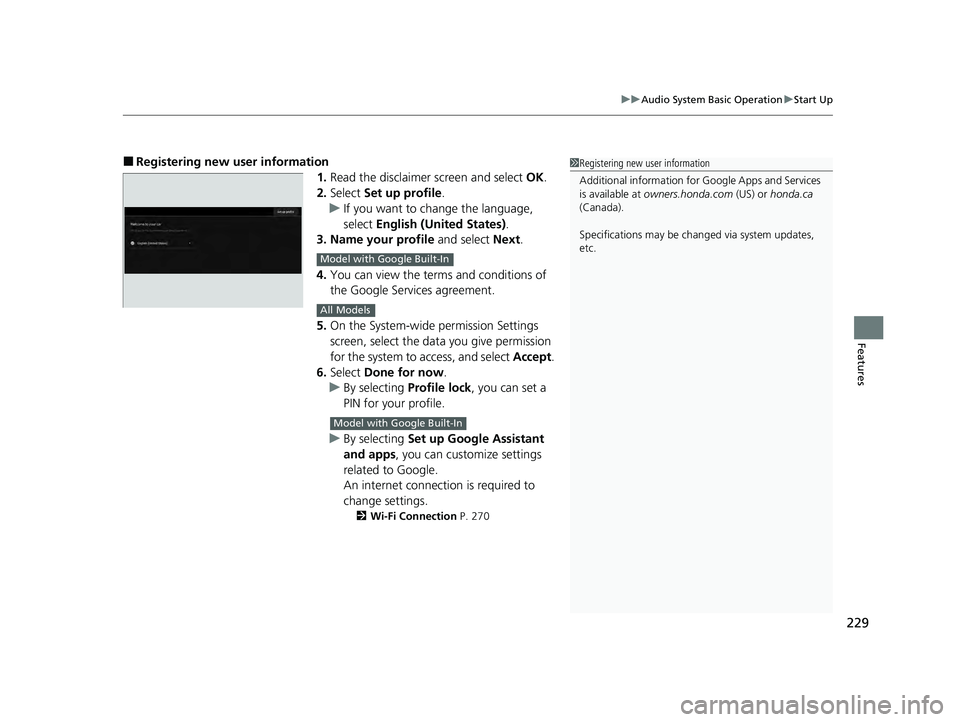

HONDA ACCORD HYBRID 2023 Owners Manual

229
uuAudio System Basic Operation uStart Up
Features
■Registering new user information
1.Read the disclaimer screen and select OK.
2. Select Set up profile .
u If you want to change the language,
select English (United States) .
3. Name your profile and select Next.
4. You can view the terms and conditions of
the Google Services agreement.
5. On the System-wide permission Settings
screen, select the data you give permission
for the system to access, and select Accept .
6. Select Done for now .
u By selecting Profile lock, you can set a
PIN for your profile.
u By selecting Set up Google Assistant
and apps , you can customize settings
related to Google.
An internet connection is required to
change settings.
2 Wi-Fi Connection P. 270
1Registering new user information
Additional information for Google Apps and Services
is available at owners.honda.com (US) or honda.ca
(Canada).
Specifications may be changed via system updates,
etc.
Model with Google Built-In
All Models
Model with Google Built-In
23 ACCORD 4D US HEV MAP-3130B6000.book 229 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

230
uuAudio System Basic Operation uReboot Audio
Features
Reboot Audio
You can reboot the audio system.
1.Press and hold Home for five seconds.
2. Select OK.
u If Safe mode is selected, the audio
system will be rebooted with third-party
applications turned off.
After the power mode has been turned
off once, third-party applications can be
used again.
23 ACCORD 4D US HEV MAP-3130B6000.book 230 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

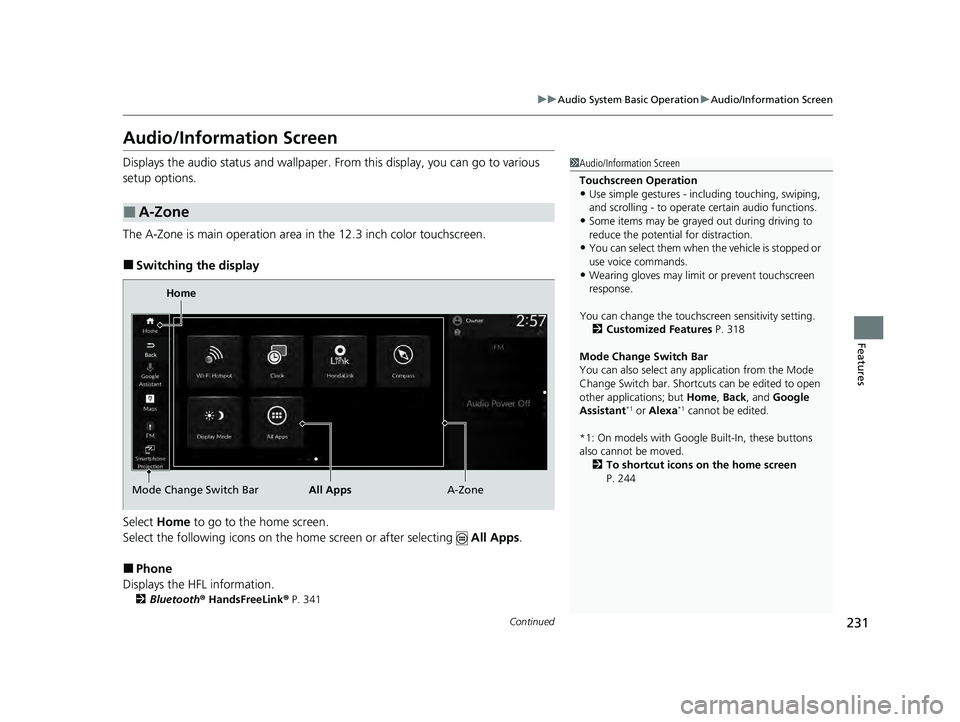

231
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this display, you can go to various
setup options.
The A-Zone is main operation area in the 12.3 inch color touchscreen.
■Switching the display
Select Home to go to the home screen.
Select the following icons on the home screen or after selecting All Apps.
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 341
■A-Zone
1 Audio/Information Screen
Touchscreen Operation
•Use simple gestures - in cluding touching, swiping,
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 318
Mode Change Switch Bar
You can also select any a pplication from the Mode
Change Switch bar. Shortc uts can be edited to open
other applications; but Home, Back, and Google
Assistant
*1 or Alexa*1 cannot be edited.
*1: On models with Googl e Built-In, these buttons
also cannot be moved. 2 To shortcut icons on the home screen
P. 244
Home
All Apps
Mode Ch a

nge Switch BarA-Zone
23 ACCORD 4D US HEV MAP-3130B6000.book 231 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

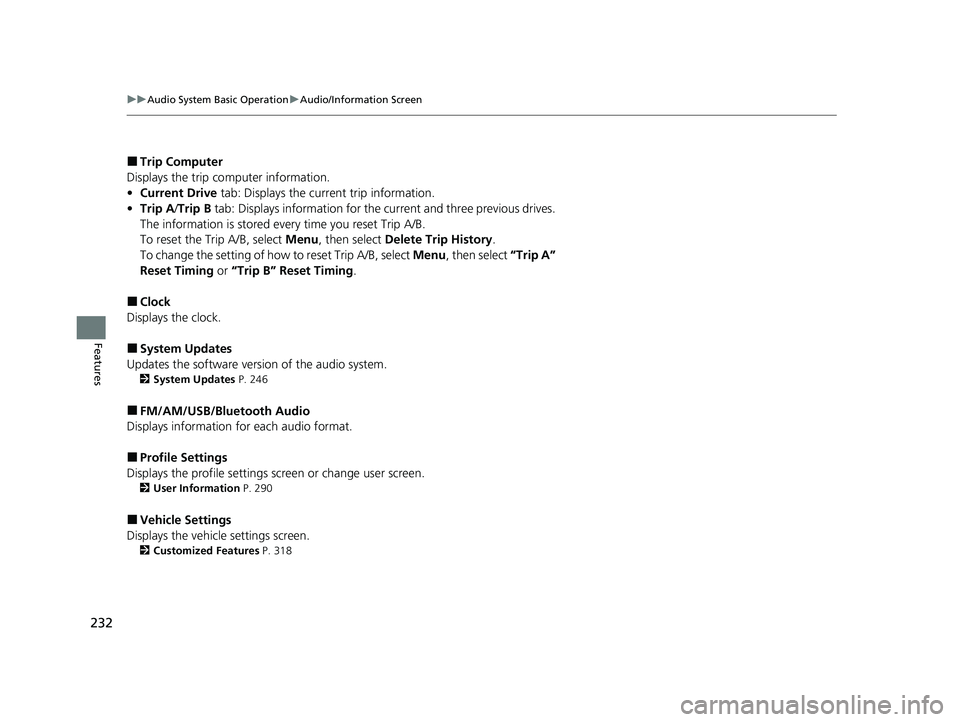

232
uuAudio System Basic Operation uAudio/Information Screen
Features
■Trip Computer
Displays the trip co mputer information.
• Current Drive tab: Displays the current trip information.
• Trip A /Trip B tab: Displays information for the current and three previous drives.
The information is stored every time you reset Trip A/B.
To reset the Trip A/B, select Menu, then select Delete Trip History .
To change the setting of how to reset Trip A/B, select Menu, then select “Trip A”
Reset Timing or “Trip B” Reset Timing.
■Clock
Displays the clock.
■System Updates
Updates the software version of the audio system.
2 System Updates P. 246
■FM/AM/USB/Bluetooth Audio
Displays information fo r each audio format.
■Profile Settings
Displays the profile settings screen or change user screen.
2 User Information P. 290
■Vehicle Settings
Displays the vehicle settings screen.
2 Customized Features P. 318
23 ACCORD 4D US HEV MAP-3130B6000.book 232 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

233
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
■General Settings
Displays the general settings screen.
2 Customized Features P. 318
■Maps*
Displays the Google Maps screen.
2Google Maps P. 288
■HondaLink
Displays the HondaLink screen.
2 HondaLink ® P. 264
■Apple CarPlay/Android Auto
Displays the Apple CarPlay or Android Auto screen.
2Apple CarPlay P. 273
2 Android AutoTM P. 280
■Wi-Fi Hotspot
Displays the AT&T Hotspot screen.
2AT&T Hotspot P. 272
■Compass
Displays the compass screen.
■Alexa
Displays the Alexa screen.
2Alexa Built-In P. 251
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 233 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

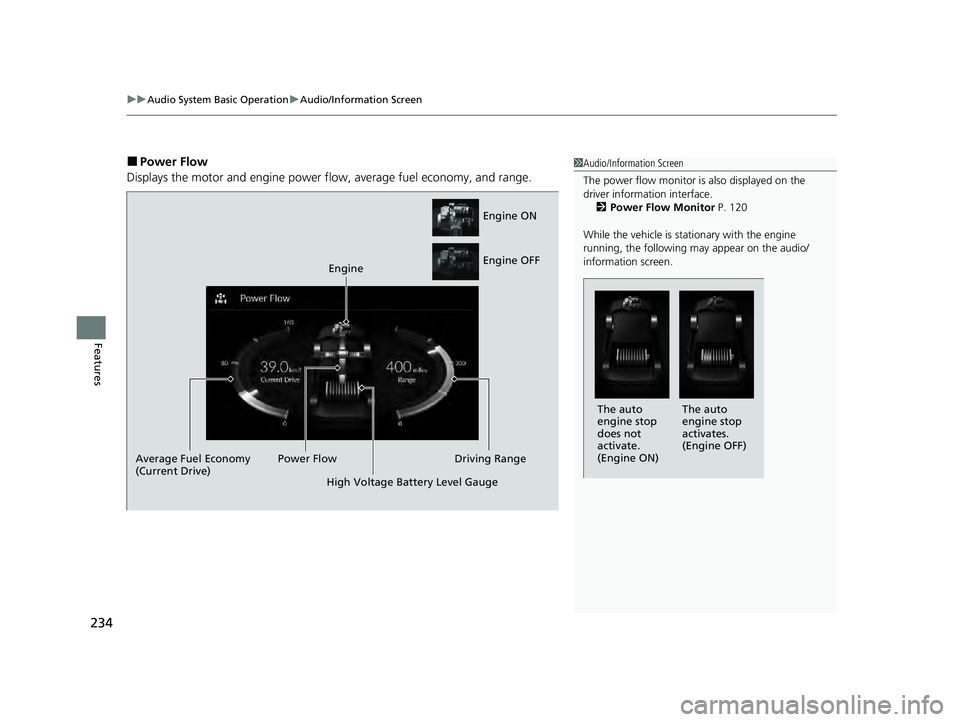

uuAudio System Basic Operation uAudio/Information Screen
234
Features
■Power Flow
Displays the motor and engine power fl ow, average fuel economy, and range.1Audio/Information Screen
The power flow monitor is also displayed on the
driver information interface.
2 Power Flow Monitor P. 120
While the vehicle is stat ionary with the engine
running, the following may appear on the audio/
information screen.
The auto
engine stop
does not
activate.
(Engine ON) The auto
engine stop
activates.
(Engine OFF)
Engine ON
Engine OFF
Engine
Average Fuel Economy
(Current Drive) Power Flow Driving Range
High Voltage Battery Level Gauge
23 ACCORD 4D US HEV MAP-3130B6000.book 234 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

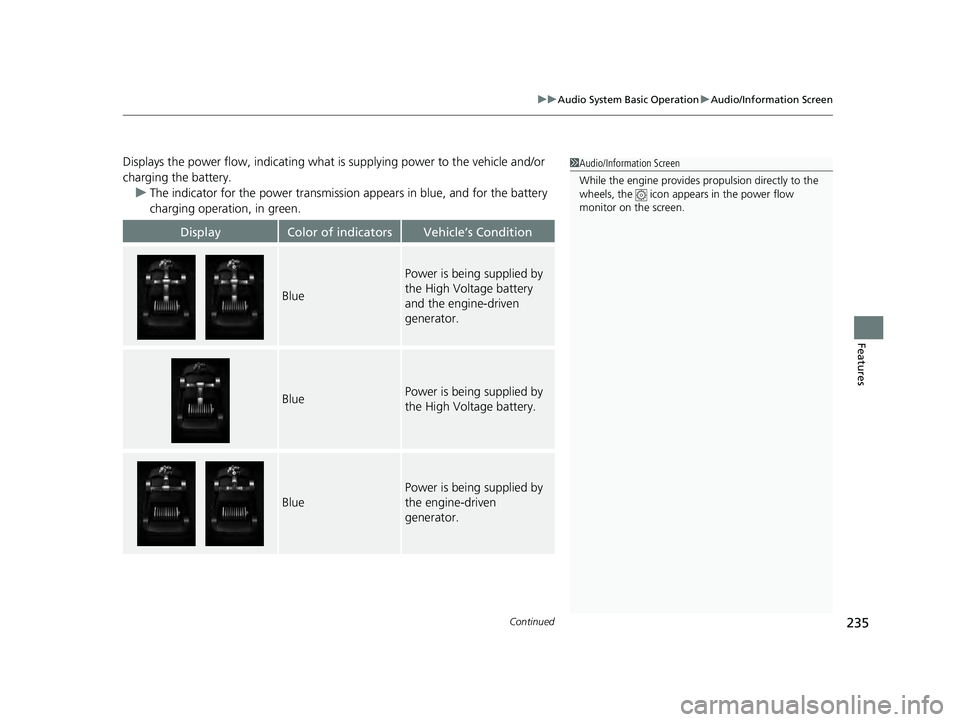

Continued235
uuAudio System Basic Operation uAudio/Information Screen
Features
Displays the power flow, indicating what is supplying power to the vehicle and/or
charging the battery.
u The indicator for the power transmission appears in blue, and for the battery
charging operation, in green.
DisplayColor of indicatorsVehicle’s Condition
Blue
Power is being supplied by
the High Voltage battery
and the engine-driven
generator.
BluePower is being supplied by
the High Voltage battery.
Blue
Power is being supplied by
the engine-driven
generator.
1 Audio/Information Screen
While the engine provides propulsion directly to the
wheels, the icon appears in the power flow
monitor on the screen.
23 ACCORD 4D US HEV MAP-3130B6000.book 235 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

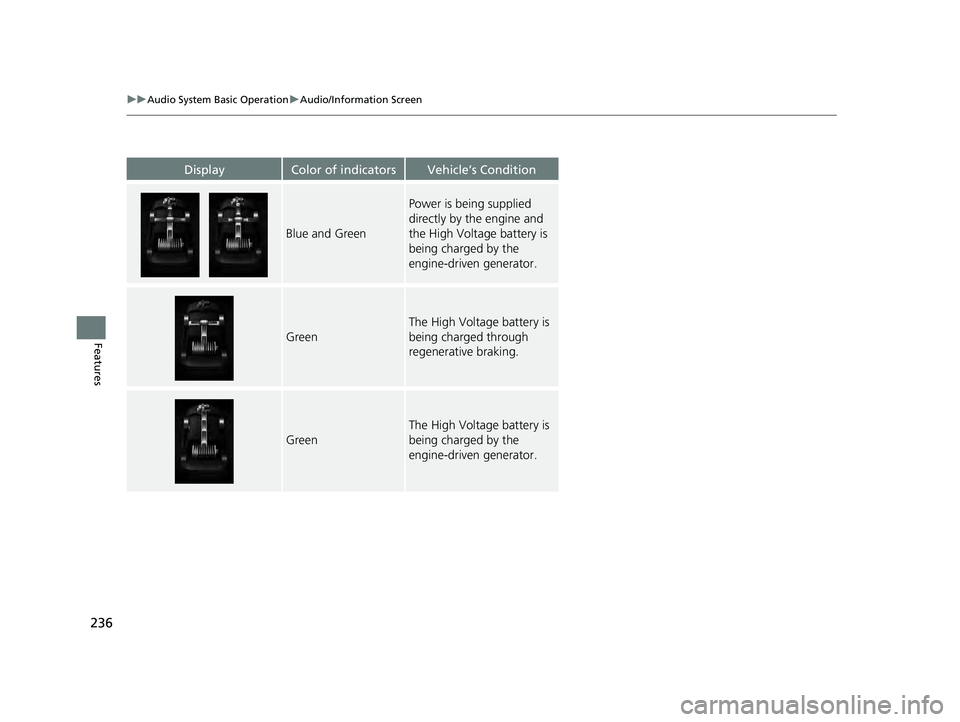

236
uuAudio System Basic Operation uAudio/Information Screen
Features
DisplayColor of indicatorsVehicle’s Condition
Blue and Green
Power is being supplied
directly by the engine and
the High Voltage battery is
being charged by the
engine-driven generator.
Green
The High Voltage battery is
being charged through
regenerative braking.
Green
The High Voltage battery is
being charged by the
engine-driven generator.
23 ACCORD 4D US HEV MAP-3130B6000.book 236 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued237
uuAudio System Basic Operation uAudio/Information Screen
Features
The B-Zone displays a card that is useful while the driver is using another application
in the A-Zone.
The following cards are available:
• Audio source
• Clock
• Navigation (Apple CarPlay or Android Auto)
• Compass
• Power Flow
■B-Zone1B-Zone
You can swipe up and down on the B-Zone to view a
different card.
Page position is indicated at the right of the B-Zone.
B-Zone
23 ACCORD 4D US HEV MAP-3130B6000.book 237 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

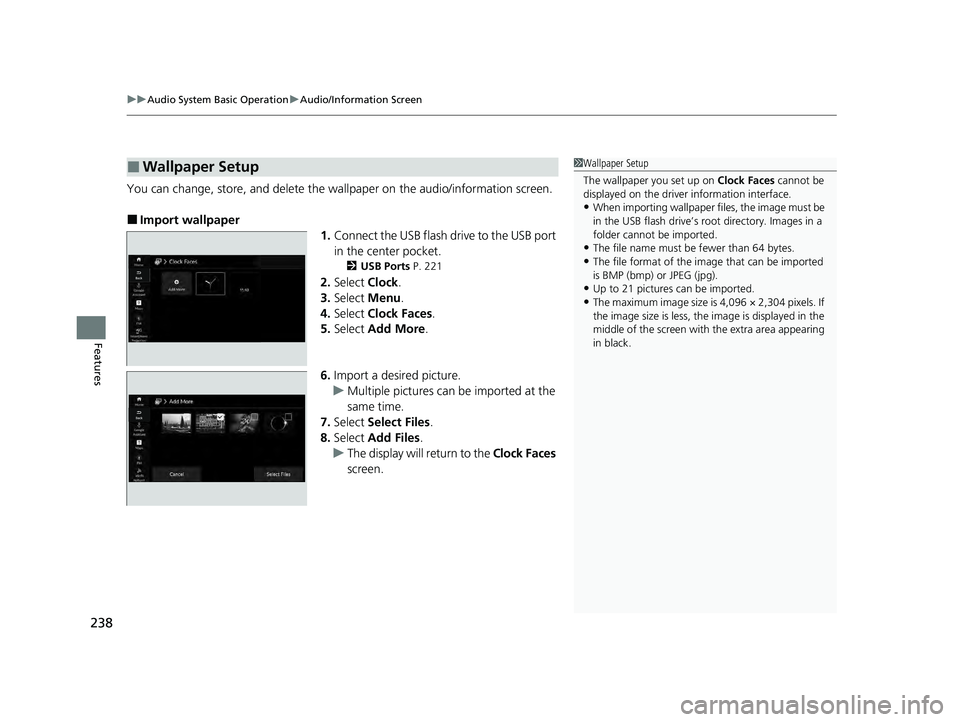

uuAudio System Basic Operation uAudio/Information Screen
238
Features
You can change, store, and delete the wa llpaper on the audio/information screen.
■Import wallpaper
1.Connect the USB flash drive to the USB port
in the center pocket.
2 USB Ports P. 221
2.Select Clock.
3. Select Menu.
4. Select Clock Faces.
5. Select Add More .
6. Import a desired picture.
u Multiple pictures can be imported at the
same time.
7. Select Select Files.
8. Select Add Files.
u The display will return to the Clock Faces
screen.
■Wallpaper Setup1 Wallpaper Setup
The wallpaper you set up on Clock Faces cannot be
displayed on the driver information interface.
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
•The file name must be fewer than 64 bytes.
•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•Up to 21 pictures can be imported.
•The maximum image size is 4,096 × 2,304 pixels. If
the image size is less, the image is displayed in the
middle of the screen with the extra area appearing
in black.
