sensor HONDA ACCORD HYBRID 2023 Owner's Guide

uuInterior Convenience Items uOther Interior Convenience Items

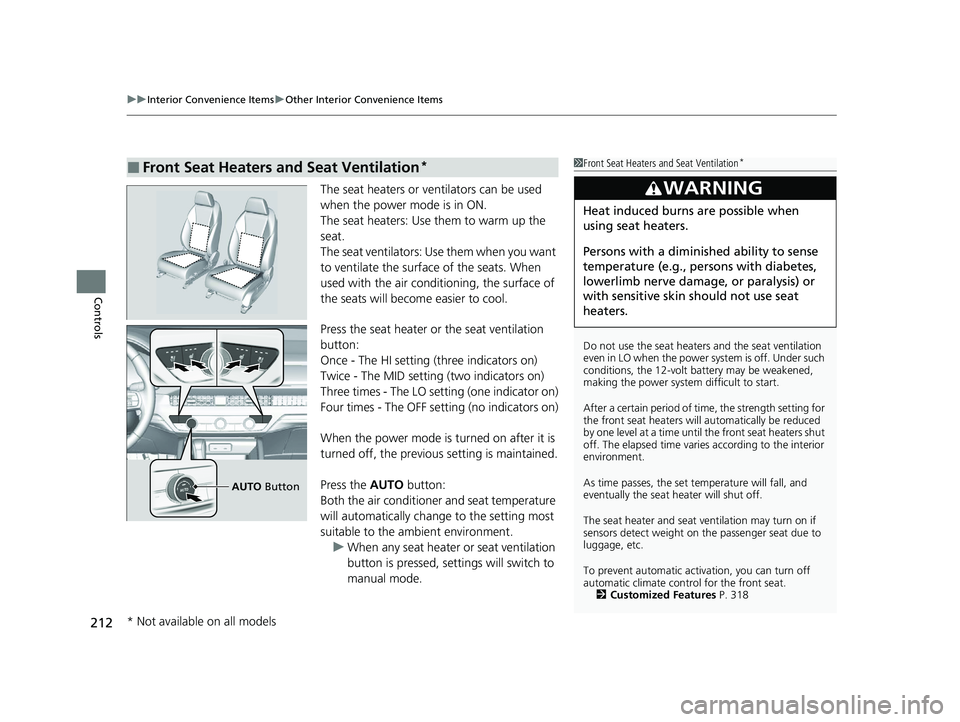

212
Controls
The seat heaters or ve ntilators can be used
when the power mode is in ON.
The seat heaters: Use them to warm up the
seat.
The seat ventilators: Use them when you want
to ventilate the surface of the seats. When
used with the air conditioning, the surface of
the seats will become easier to cool.
Press the seat heater or the seat ventilation
button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
When the power mode is turned on after it is
turned off, the previous setting is maintained.
Press the AUTO button:
Both the air conditioner and seat temperature
will automatically change to the setting most
suitable to the ambient environment. u When any seat heater or seat ventilation
button is pressed, settings will switch to
manual mode.
■Front Seat Heaters and Seat Ventilation*1Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
ev en in LO when the power syst em is off. Under such
conditions, the 12-volt ba ttery may be weakened,
making the power system difficult to start.
After a certain period of time, the strength setting for
the front seat heaters will automatically be reduced
by one level at a ti me until the front seat heaters shut
off. The elapsed time varies according to the interior
environment.
As time passes, the set temperature will fall, and
eventually the seat heater will shut off.
The seat heater and seat ventilation may turn on if
sensors detect weight on the passenger seat due to
luggage, etc.
To prevent automatic activation, you can turn off
automatic climate control for the front seat. 2 Customized Features P. 318
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lowerlimb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
AUTO Button
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 212 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

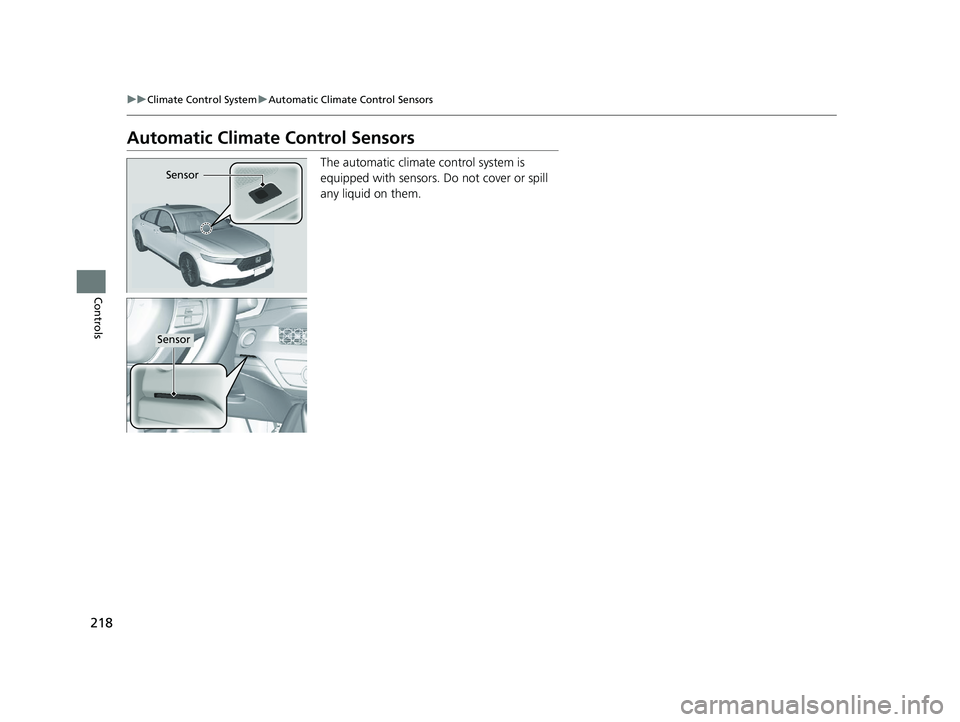

218
uuClimate Control System uAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
23 ACCORD 4D US HEV MAP-3130B6000.book 218 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

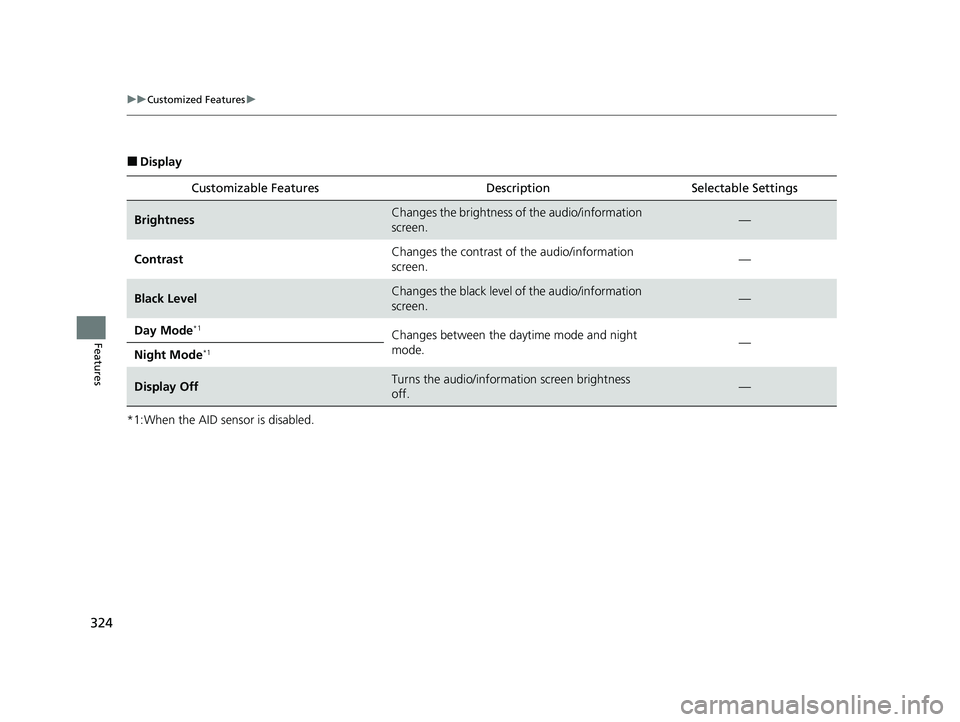

324
uuCustomized Features u
Features
■Display
*1:When the AID sensor is disabled. Customizable Features Description Selectable Settings
BrightnessChanges the brightness of the audio/information
screen.—
Contrast Changes the contrast of the audio/information
screen. —
Black LevelChanges the black level of the audio/information
screen.—
Day Mode
*1Changes between the daytime mode and night
mode. —
Night Mode
*1
Display OffTurns the audio/informat ion screen brightness
off.—
23 ACCORD 4D US HEV MAP-3130B6000.book 324 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

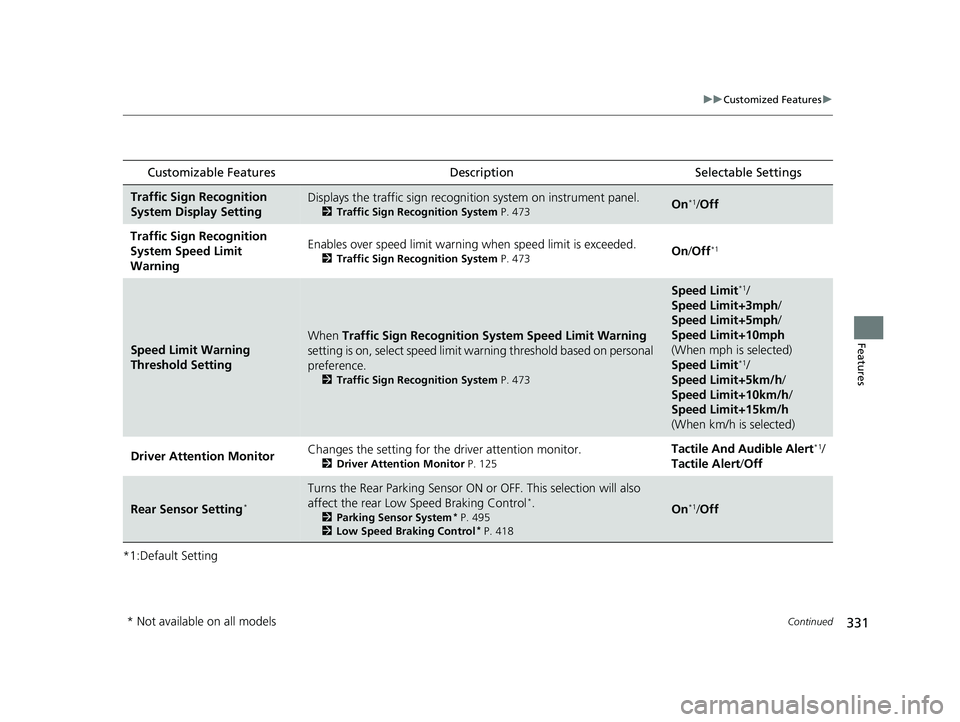

331
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognition system on instrument panel.
2Traffic Sign Recognition System P. 473On*1/Off
Traffic Sign Recognition
System Speed Limit
Warning Enables over speed limit warning
when speed limit is exceeded.
2Traffic Sign Recognition System P. 473On/Off*1
Speed Limit Warning
Threshold Setting
When Traffic Sign Recognition Sy stem Speed Limit Warning
setting is on, select speed limit warning threshold based on personal
preference.
2 Traffic Sign Recognition System P. 473
Speed Limit*1/
Speed Limit+3mph /
Speed Limit+5mph /
Speed Limit+10mph
(When mph is selected)
Speed Limit
*1/
Speed Limit+5km/h /
Speed Limit+10km/h /
Speed Limit+15km/h
(When km/h is selected)
Driver Attention Monitor Changes the setting for the
driver attention monitor.
2Driver Attention Monitor P. 125
Tactile And Audible Alert*1/
Tactile Alert /Off
Rear Sensor Setting*
Turns the Rear Parking Sensor ON or OFF. This selection will also
affect the rear Low Speed Braking Control*.
2 Parking Sensor System* P. 495
2 Low Speed Braking Control* P. 418
On*1/Off
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 331 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

363
Driving
This chapter discusses driving and refueling.
Before Driving................................... 364
Towing a Trailer ................................ 369
When Driving
Turning on the Power ...................... 370
Precautions While Driving................. 377
Transmission .................................... 377
Shifting ............................................ 378
Deceleration Paddle Selector ............ 380
Acoustic Vehicle Al erting System ...... 383
Drive Mode System .......................... 384
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ................. 390
Motion Management System ........... 392
Tire Pressure Monitoring System (TPMS)*.. 393Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 396
Blind Spot Information System ......... 398
High Voltage Battery ........................ 402

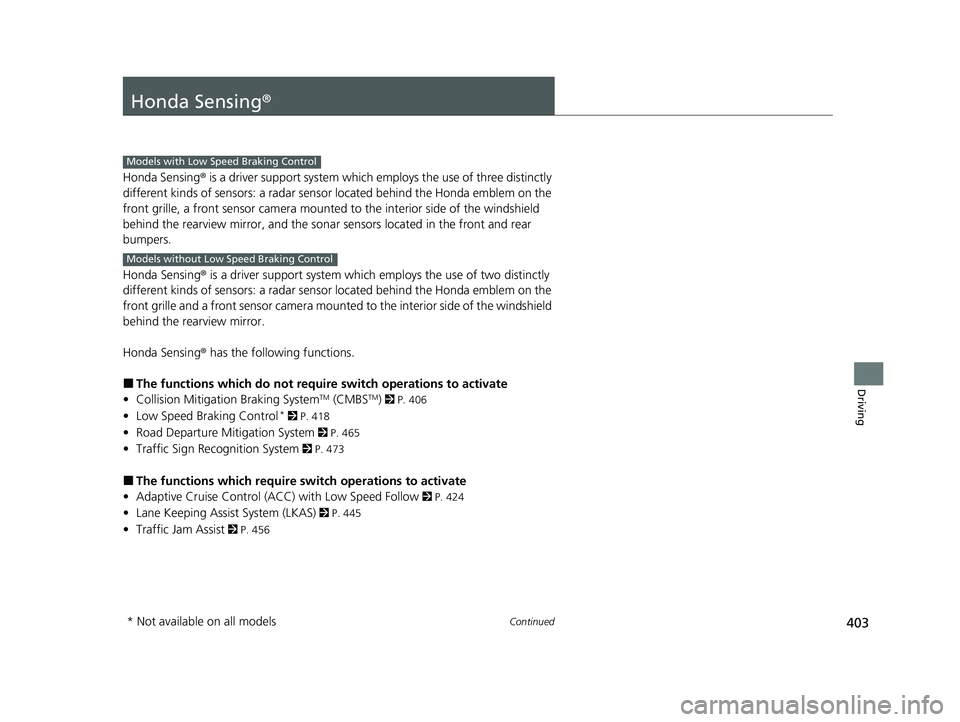

Honda Sensing ®
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 406
Low Speed Braking Control*............ 418
Adaptive Cruise Control (ACC) with Low Speed Follow ................................. 424
Lane Keeping Assist System (LKAS) .. 445
Traffic Jam Assist ............................. 456 Road Departure Miti
gation System... 465
Traffic Sign Recognition System ....... 473
Front Sensor Camera ....................... 479
Radar Sensor ................................... 481
Sonar Sensors
*................................ 482
Braking
Brake System ................................... 483
Anti-lock Brake System (ABS) ........... 491
Brake Assist System ......................... 492
Parking Your Vehicle ........................ 493
Multi-View Rear Camera .................. 502
Refueling ........................................... 504
Fuel Economy and CO
2 Emissions .... 507
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 363 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

366
uuBefore Driving uDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.
• Everyone in the vehicle must fasten their seat belt.
2Fastening a Seat Belt P. 51
•Make sure that the indicators in the in strument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 90
23 ACCORD 4D US HEV MAP-3130B6000.book 366 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

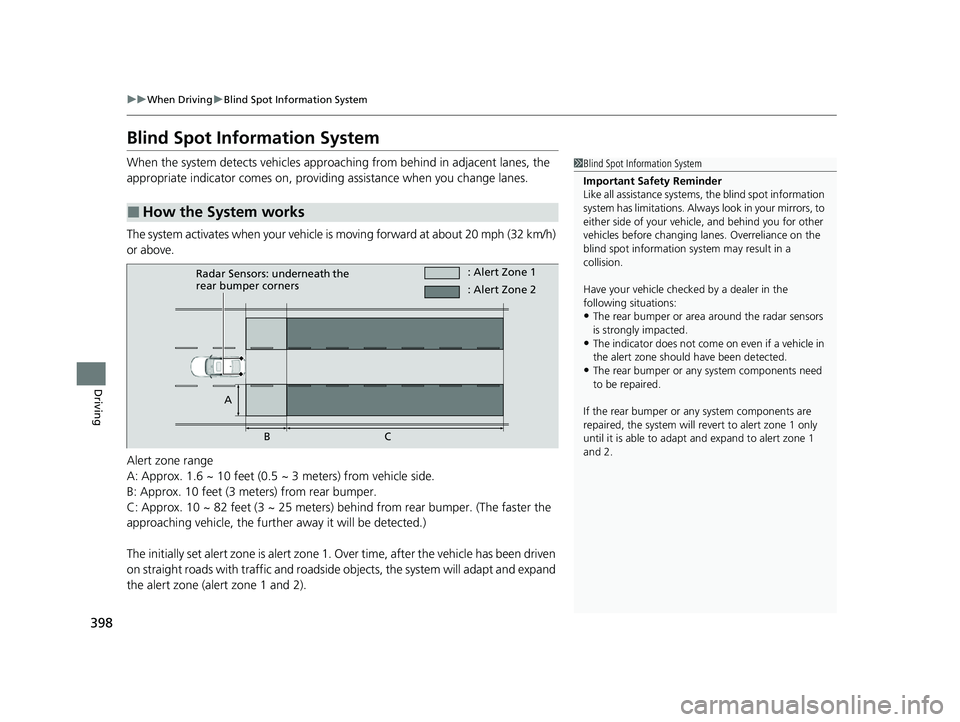

398
uuWhen Driving uBlind Spot Information System
Driving
Blind Spot Information System
When the system detects vehi cles approaching from behind in adjacent lanes, the
appropriate indicator comes on, providin g assistance when you change lanes.
The system activates when your vehicle is moving forward at about 20 mph (32 km/h)
or above.
Alert zone range
A: Approx. 1.6 ~ 10 feet (0.5 ~ 3 meters) from vehicle side.
B: Approx. 10 feet (3 meters) from rear bumper.
C: Approx. 10 ~ 82 feet (3 ~ 25 meters) behind from rear bumper. (The faster the
approaching vehicle, the furthe r away it will be detected.)
The initially set alert zone is alert zone 1. Over time, after the vehicle has been driven
on straight roads with traffic and roadside objects, the system will adapt and expand
the alert zone (alert zone 1 and 2).
■How the System works
1 Blind Spot Information System
Important Safety Reminder
Like all assistance systems, the blind spot information
system has limitations. Always look in your mirrors, to
either side of your vehicle, and behind you for other
vehicles before changing la nes. Overreliance on the
blind spot information sy stem may result in a
collision.
Have your vehicle checked by a dealer in the
following situations:
•The rear bumper or area around the radar sensors
is strongly impacted.
•The indicator does not come on even if a vehicle in
the alert zone should have been detected.
•The rear bumper or any system components need
to be repaired.
If the rear bumper or any system components are
repaired, the system will re vert to alert zone 1 only
until it is able to adapt and expand to alert zone 1
and 2.
Radar Sensors: underneath the
rear bumper corners : Alert Zone 1
A BC : Alert Zone 2
23 ACCORD 4D US HEV MAP-3130B6000.book 398 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued399
uuWhen Driving uBlind Spot Information System
Driving
■When the system detects a vehicle
Blind spot information system alert indicator:
Located on the outside door mirror on both
sides.
Comes on when:
•A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System
For proper blind spot information system operation:
•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind spot
information system not available appears on
the driver information interface.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, safety
support, low tire pressure/TPMS
*, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Comes On
Blinks
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 399 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

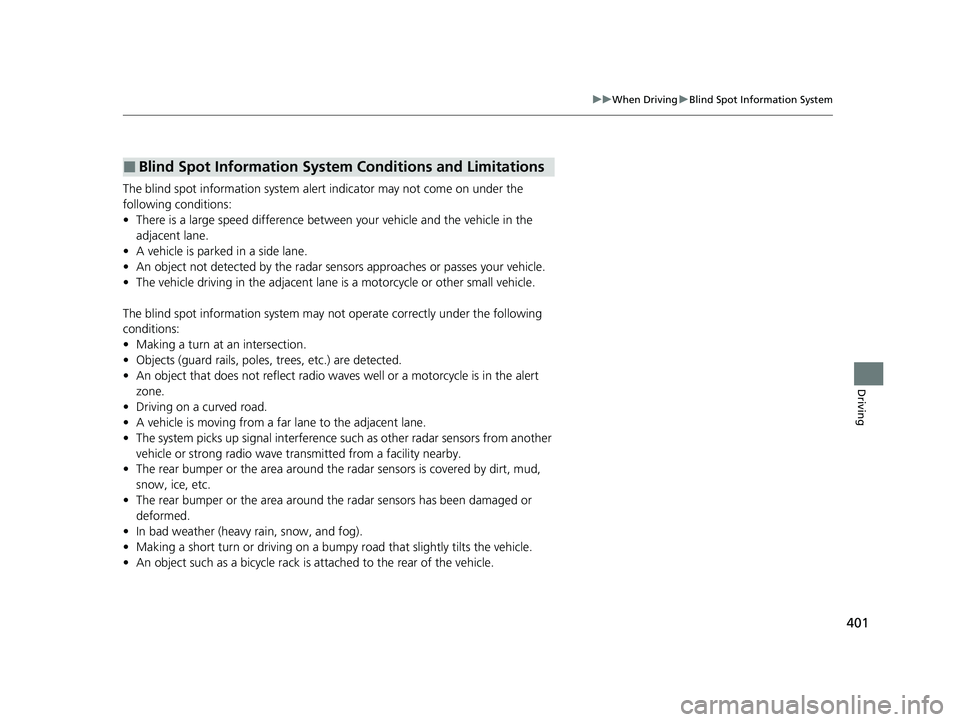

401
uuWhen Driving uBlind Spot Information System
Driving
The blind spot information system alert indicator may not come on under the
following conditions:
• There is a large speed difference between your vehicle and the vehicle in the
adjacent lane.
• A vehicle is parked in a side lane.
• An object not detected by the radar sensors approaches or passes your vehicle.
• The vehicle driving in the ad jacent lane is a motorcycle or other small vehicle.
The blind spot information system may not operate correctly under the following
conditions:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio wave s well or a motorcycle is in the alert
zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent lane.
• The system picks up signal interference su ch as other radar sensors from another
vehicle or strong radio wave tra nsmitted from a facility nearby.
• The rear bumper or the area around the radar sensors is covered by dirt, mud,
snow, ice, etc.
• The rear bumper or the area around the radar sensors has been damaged or
deformed.
• In bad weather (heavy rain, snow, and fog).
• Making a short turn or driving on a bump y road that slightly tilts the vehicle.
• An object such as a bicycle rack is attached to the rear of the vehicle.
■Blind Spot Information System Conditions and Limitations
23 ACCORD 4D US HEV MAP-3130B6000.book 401 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

403Continued
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of three distinctly
different kinds of sensors: a radar sensor located behind the Honda emblem on the
front grille, a front sensor camera mounted to the interior side of the windshield
behind the rearview mirror, and the sonar sensors located in the front and rear
bumpers.
Honda Sensing ® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located behind the Honda emblem on the
front grille and a front sensor camera mounte d to the interior side of the windshield
behind the rearview mirror.
Honda Sensing ® has the following functions.
■The functions which do not requir e switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 406
• Low Speed Braking Control* 2 P. 418
• Road Departure Mitigation System 2 P. 465
• Traffic Sign Recognition System 2 P. 473
■The functions wh ich require switch operations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow
2 P. 424
• Lane Keeping Assist System (LKAS) 2 P. 445
• Traffic Jam Assist 2 P. 456
Models with Low Speed Braking Control
Models without Low Speed Braking Control
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 403 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
