Continued499
uuParking Your Vehicle uCross Traffic Monitor
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 501
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.
■How the System Works1 Cross Traffic Monitor
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as anothe r vehicle or a wall near
your vehicle’s rear bumpe r, is blocking the radar
sensor’s scope.
•Your vehicle is moving at a speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at a speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
If the rear bumper or the sensors have been
improperly repaired or th e rear bumper has been
deformed. Have your vehi cle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
23 ACCORD 4D US HEV MAP-3130B6000.book 499 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuParking Your Vehicle uCross Traffic Monitor
500
Driving

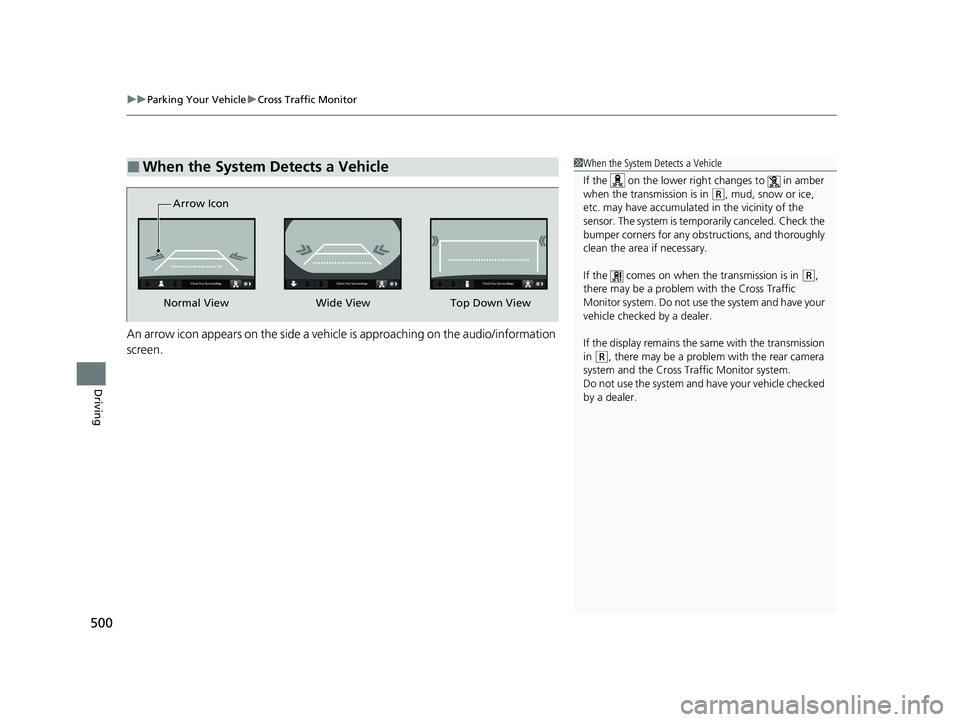

An arrow icon appears on the side a vehicl e is approaching on the audio/information
screen.
■When the System Detects a Vehicle1 When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in
(R, mud, snow or ice,
etc. may have accumulated in the vicinity of the
sensor. The system is temp orarily canceled. Check the
bumper corners for any obs tructions, and thoroughly
clean the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow IconTop Down View
23 ACCORD 4D US HEV MAP-3130B6000.book 500 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

546
Maintenance

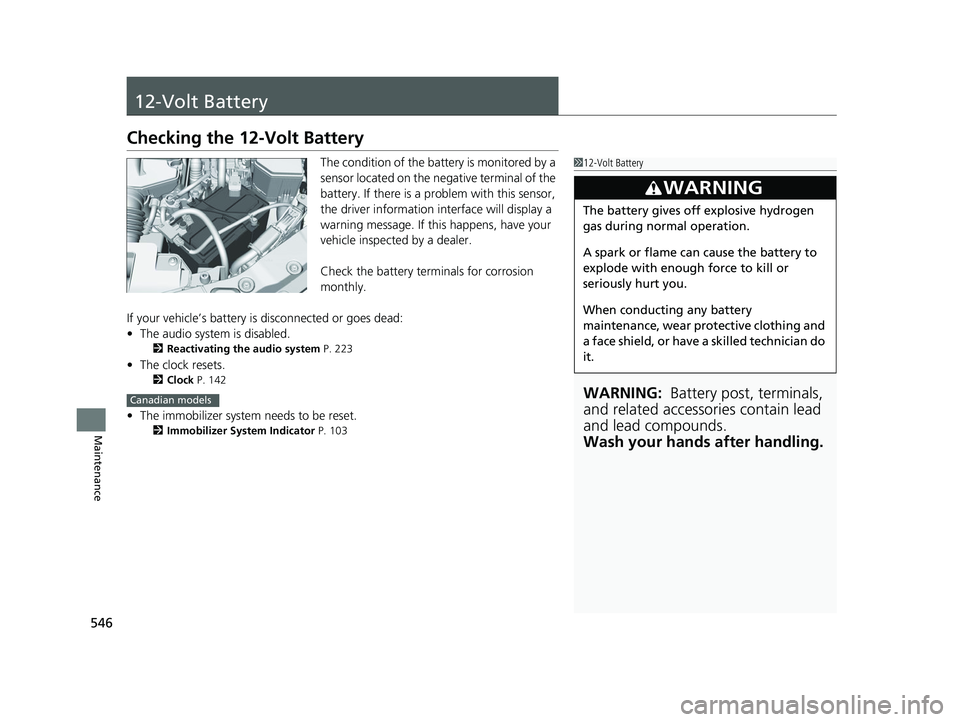

12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 223
•The clock resets.
2 Clock P. 142
•The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 103
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models
23 ACCORD 4D US HEV MAP-3130B6000.book 546 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

615
uuOpen Source Licenses uFront Sensor Camera Open Source License
Information

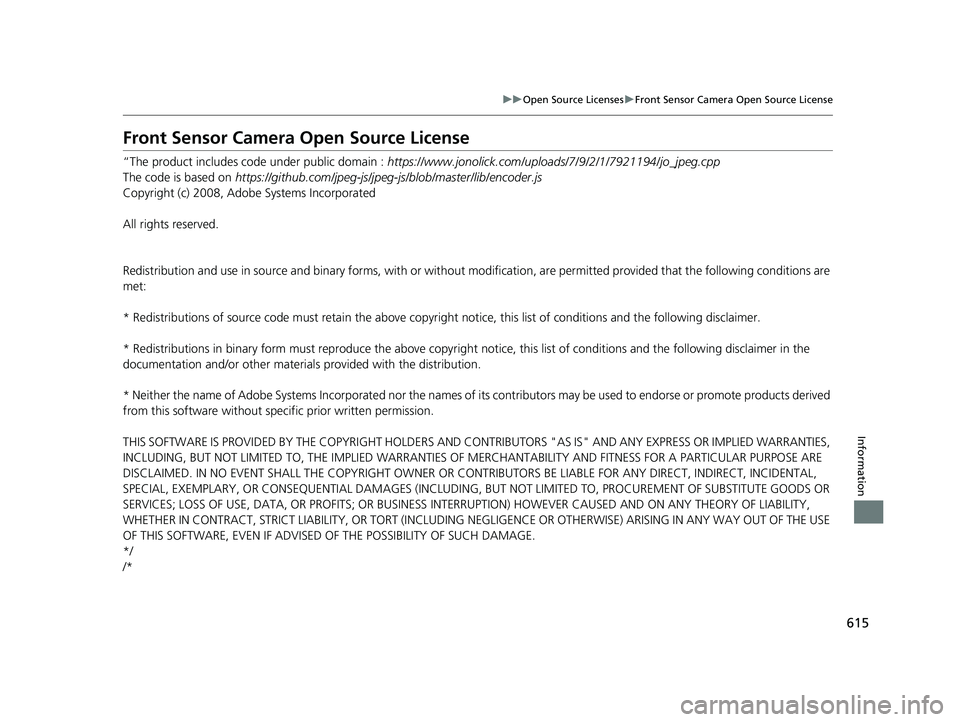

Front Sensor Camera Open Source License
“The product includes code under public domain : https://www.jonolick.com/uploads/7/9/2/1/7921194/jo_jpeg.cpp
The code is based on https://github.com/jpeg-js/jpeg- js/blob/master/lib/encoder.js
Copyright (c) 2008, Adobe Systems Incorporated
All rights reserved.
Redistribution and use in source and binary forms, with or with out modification, are permitted provided that the following cond itions are
met:
* Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
* Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
* Neither the name of Adobe Systems Incorpor ated nor the names of its contributors may be used to endorse or promote products d erived
from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF ME RCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPY RIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVE R CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/*
23 ACCORD 4D US HEV MAP-3130B6000.book 615 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Index
616
Index
Index
Numbers
12-Volt Battery.......................................... 546
Charging System Indicator ....................... 586
A
AAC ............................................................ 259
ABS (Anti-lock Brake System) ................... 491
Accessories and Modifications ................. 556
Accessory Power Socket ........................... 205
Acoustic Vehicle Alerting System ............ 383
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 424
Additives Coolant ................................................... 528
Engine Oil ................................................ 523
Washer .................................................... 531
Additives, Engine Oil ................................ 523
Adjusting Armrest ................................................... 197
Front Seats .............................................. 189
Head Restraints........................................ 195
Mirrors .................................................... 187
Rear Seats................................................ 192
Steering Wheel ........................................ 186
Air Conditioning System (Climate Control System) .................................................... 214
Changing the Mode ................................ 215
Defrosting the Windshield and Windows ............................................... 216
Dust and Pollen Filter ............................... 549 Recirculation/Fresh Air Mode ................... 215
Sensors ................................................... 218
Synchronization Mode............................. 217
Using Automatic Climate Control ............ 214
Air Pressure ....................................... 538, 603
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
After a Collision ........................................ 58
Airbag Care............................................... 73
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator.............................................. 70, 98
Knee Airbags............................................. 63
Passenger Airbag Off Indicator .................. 71
Sensors ..................................................... 55
Side Airbags .............................................. 66
Side Curtain Airbags.................................. 69
AM/FM Radio ............................................ 252
Android Auto
TM........................................ 280
Anti-lock Brake System (ABS) .................. 491
Indicator.................................................... 98
Apple CarPlay ........................................... 273
Armrest ..................................................... 197
AT&T Hotspot ........................................... 272
Audio Remote Controls ........................... 224
Audio System ............................................ 220
Adjusting the Sound................................ 248
Alexa Built-In ........................................... 251
Audio/Information Screen........................ 231
Display Setup .......................................... 249
Error Messages ........................................ 297 General Information................................ 298
Google Built-In........................................ 286
Home Screen .......................................... 240
How to Update Wirelessly ....................... 246
iPod ........................................................ 256
Limitations for Manual Operation ............ 250
MP3/WMA/AAC/FLAC/WAV ................... 259
Reactivating ............................................ 223
Remote Controls ..................................... 224
Security Code ......................................... 223
Selecting an Audio Source ...................... 250
Status Bar ............................................... 245
System Updates ...................................... 246
Theft Protection ...................................... 223
USB Flash Drives.............................. 259, 298
USB Ports ................................................ 221
Wallpaper Setup ..................................... 238
Audio/Information Screen ....................... 231
Authorized Manuals ................................ 612
Auto Door Locking/Unlocking ................ 158
Auto High-Beam ...................................... 178
Indicator ................................................. 101
Automatic Brake Hold ............................. 488
Indicator ........................................... 95, 488
Automatic Brake Hold System
Indicator ........................................... 95, 488
Automatic Intermittent Wipers .............. 182
Automatic Lighting .................................. 175
Average Fuel Economy ............................ 122
Average Speed ......................................... 124
23 ACCORD 4D US HEV MAP-3130B6000.book 616 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

617
Index
B
Battery................................................ 15, 546
12-Volt ................................................... 546
Charging (12-Volt Battery) ...................... 547
Charging System Indicator ........................ 96
High Voltage..................................... 15, 402
If the 12-Volt Battery Is Dead .................. 579
Maintenance (Checking the 12-Volt Battery) ................................................. 546
Maintenance (Replacing) ......................... 548
Belts (Seat) .................................................. 46
Beverage Holders ..................................... 201
Blind Spot Information System ............... 398
Bluetooth ® Audio ..................................... 262
Bluetooth ® HandsFreeLink ®................... 341
Booster Seats (For Children) ...................... 86
Brake System ............................................ 483
Anti-lock Brake System (ABS) .................. 491
Automatic Brake Hold ............................. 488
Brake Assist System................................. 492
Fluid ....................................................... 530
Foot Brake .............................................. 487
Indicator (Amber) .............................. 94, 589
Indicator (Red) .................... 92, 93, 588, 589
Parking Brake.......................................... 483
Brightness ................................................. 131
Built-in Key ............................................... 144
Bulb Replacement .................................... 532
Brake Lights, Rear Si de Marker/Taillights
and Rear Turn Signal Lights ................... 533
Front Side Marker Lights ......................... 532 Front Turn Signal Lights ........................... 532
Headlights ............................................... 532
High-Mount Brake Light .......................... 533
Parking/Daytime Running Lights .............. 532
Rear License Plate Light ........................... 533
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 532
Taillights, Rear Tu rn Signal Lights and
Back-Up Lights ....................................... 533
Bulb Specifications ................................... 602
C
Carbon Monoxide Gas ................................ 87
Cargo Hook ............................................... 203
Carrying Cargo .................................. 365, 367
Certification Label .................................... 604
Changing Bulbs ......................................... 532
CHARGE/DECEL Gauge ............................. 111
Charging System Indicator ......................... 96
Child Safety ................................................. 74
Childproof Door Locks ............................. 157
Emergency Trunk Opener ........................ 161
Child Seat .................................................... 74
Booster Seats ............................................. 86
Child Seat for Infants ................................. 76
Child Seat for Small Children ..................... 77
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 82
Larger Children .......................................... 85
Rear-facing Child Seat ............................... 76 Selecting a Child Seat ................................ 78
Using a Tether ........................................... 84
Childproof Door Locks ............................. 157
Cleaning the Exterior ............................... 552
Cleaning the Interior ................................ 550
Climate Control System ............................ 214
Changing the Mode ................................ 214
Defrosting the Windshield and
Windows ............................................... 216
Dust and Pollen Filter............................... 549
Recirculation and Fresh Air Mode ............ 215
Sensors ................................................... 218
Synchronization Mode............................. 217
Using Automatic Climate Control ............ 214
Clock .......................................................... 142
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 406
Coat Hook ................................................. 203
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 406
Console Compartment ............................. 200
Controls ..................................................... 141
Coolant (Engine) ...................................... 528
Adding to the Radiator ............................ 529
Adding to the Reserve Tank..................... 528
Overheating ............................................ 582
Cooling System ......................................... 528
Creeping (Transmission) ........................... 377
Cross Traffic Monitor ............................... 498
Cup Holders .............................................. 201
Customer Service Information ................. 613
23 ACCORD 4D US HEV MAP-3130B6000.book 617 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

618
Index
Customize Display..................................... 116
Customized Features ................................ 318
D
Daytime Running Lights ........................... 177
Dead Battery (12-Volt) ............................. 579
Deceleration Paddle Selector ................... 380
Defaulting All the Settings ...................... 339
Defrosting the Windshield and
Windows .................................................. 216
Devices that Emit Radio Waves ................ 605
Dimming
Headlights ............................................... 174
Rearview Mirror ....................................... 187
Dipstick (Engine Oil) ................................. 524
Directional Signals (Turn Signal) .............. 173
Door Mirrors ............................................. 188
Doors ......................................................... 144
Auto Door Locking .................................. 158
Auto Door Unlocking ............................... 158
Door and Trunk Open Message ................. 45
Keys ........................................................ 144
Locking/Unlocking the Doors from the
Inside ..................................................... 155
Locking/Unlocking the Doors from the Outside .................................................. 146
Lockout Prevention System ...................... 154
DOT Tire Quality Grading ........................ 540
Drive Mode System ................................... 384
Driver Attention Monitor ......................... 125Driver Information Interface
........... 115, 118
Switching the Display .............................. 119
Driving ...................................................... 363
Braking ................................................... 483
Transmission ........................................... 377
Turning on the Power.............................. 370
Driving Position Memory System ............ 184
Dust and Pollen Filter ............................... 549
E
e Button...................................................... 17
Eco Assist ® System ...................................... 20
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator............................................ 98, 590
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 597
Emergency Power System On .................. 577
Emergency Trunk Opener ................ 161, 599
Emissions Testing (Readiness Codes) ....... 607
Engine ....................................................... 604
Coolant ................................................... 528
If the 12-Volt Battery Is Dead................... 579
Oil ................................................... 523, 603
Engine Coolant Adding to the Radiator ............................ 529
Adding to the Reserve Tank..................... 528
Overheating ............................................ 582
Engine Oil ................................................. 523
Adding .................................................... 525 Checking ................................................ 524
Displaying Oil Life ................................... 514
Engine Oil Pressure Low Warning ............ 585
Recommended Engine Oil ....................... 523
EPS (Electric Power Steering) System ...... 590
Exhaust Gas Hazard (Carbon Monoxide) .. 87
Exterior Care (Cleaning) .......................... 552
Exterior Mirrors ........................................ 188
F
Features.................................................... 219
Filters
Dust and Pollen....................................... 549
Oil .......................................................... 526
FLAC .......................................................... 259
Flat Tire ..................................................... 561
Floor Mats ................................................ 551
Fluids Brake .............................................. 530, 603
Engine Coolant ............................... 528, 603
Transmission ................................... 529, 603
Windshield Washer ......................... 531, 602
FM/AM Radio ........................................... 252
Folding Down the Rear Seat ................... 192
Foot Brake ................................................ 487
Front Airbags (SRS) .................................... 58
Front Seats Adjusting ................................................ 189
Front Sensor Camera ............................... 479
23 ACCORD 4D US HEV MAP-3130B6000.book 618 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

621
Index
Locking/Unlocking................................... 144
Auto Door Locking/Unlocking ................. 158
Childproof Door Locks ............................ 157
From Inside ............................................. 155
From Outside .......................................... 146
Keys........................................................ 144
Using a Key............................................. 153
Lockout Prevention System ..................... 154
Low Battery Charge (12-Volt) ................. 586
Low Fuel Indicator ..................................... 98
Low Oil Pressure Warning ....................... 585
Low Smart Entry Remote Signal Strength .................................................. 145
Low Speed Braking Control .................... 418
Lower Anchors ........................................... 79
Luggage (Maximum Load Limit) ............. 367
M
Maintenance............................................ 509
12-Volt Battery ....................................... 546
Brake Fluid .............................................. 530
Cleaning ................................................. 550
Climate Control System .......................... 549
Coolant .................................................. 528
Maintenance Minder
TM............................ 513
Oil .......................................................... 524
Precautions ............................................. 510
Radiator .................................................. 529
Remote Transmitter ................................ 548
Replacing Light Bulbs .............................. 532 Safety ...................................................... 511
Service Items ........................................... 517
Tires ........................................................ 537
Transmission Fluid ................................... 529
Under the Hood ...................................... 521
Malfunction Indicator Lamp .............. 96, 587
Map Light Switches .................................. 199
Maximum Load Limit ............................... 367
Meters, Gauges ......................................... 110
Mirrors ....................................................... 187
Adjusting ................................................. 187
Door ........................................................ 188
Exterior .................................................... 188
Interior Rearview ..................................... 187
Modifications (and Accessories) .............. 556
Moonroof .................................................. 168
Motion Management System .................. 392
Motor Number .......................................... 604
MP3 ........................................................... 259
MP3/WMA/AAC/FLAC/WAV ..................... 259
Multi-View Rear Camera .......................... 502
N
Navigation................................................ 124
Numbers (Identification) .......................... 604
O
Odometer.................................................. 111 Oil (Engine)
............................................... 523
Adding .................................................... 525
Checking................................................. 524
Displaying Oil Life .................................... 514
Engine Oil Pressure Low Warning ............ 585
Recommended Engine Oil ............... 523, 603
Viscosity .......................................... 523, 603
Open Source Licenses ....................... 313, 614
Opening Trunk .............................................. 159, 599
Opening/Closing
Hood....................................................... 522
Power Windows ...................................... 165
Trunk ...................................................... 159
Outside Temperature Display .................. 113
Overheating .............................................. 582
P
Panic Mode............................................... 164
Parking ...................................................... 493
Parking Brake ........................................... 483
Parking Brake and Brake System Indicator (Amber) ............................. 94, 589
Parking Brake and Brake System Indicator (Red) ....... 92, 93, 588, 589
Parking Sensor System ............................. 495
Passenger Airbag Off Indicator ................. 71
Passing Indicators ..................................... 174
Playing Bluetooth ® Audio ........................ 262
POWER Button ......................................... 170
23 ACCORD 4D US HEV MAP-3130B6000.book 621 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

622
Index
Power Flow Monitor................................. 120
POWER Gauge .......................................... 111
Power System Turning on............................................... 370
Won’t Start.............................................. 575
Power Windows ........................................ 165
Precautions While Driving Rain ......................................................... 377
Pregnant Women ....................................... 53
Puncture (Tire) .......................................... 561
R
Radar Sensor............................................. 481
Radiator ..................................................... 529
Radio (AM/FM) .......................................... 252
Radio (FM/AM) .......................................... 252
Radio Data System (RDS) .......................... 254
Range ........................................................ 122
RDS (Radio Data System) .......................... 254
Readiness Codes (Emissions Testing) ....... 607
Rear Defogger/Heated Door Mirror Button ...................................................... 183
Rear Seat (Folding Down) ........................ 192
Rear Seat Heaters ..................................... 213
Rear Seat Reminder .................................. 193
Rearview Mirror ........................................ 187
Refueling ................................................... 504
Fuel Gauge .............................................. 111
Gasoline .................................. 504, 600, 602
Low Fuel Indicator ..................................... 98 Regulations
............................... 396, 540, 605
Remote Transmitter ................................. 152
Replacement Battery .................................................... 548
Bulbs ....................................................... 532
Fuses ............................................... 592, 593
Tires ........................................................ 543
Wiper Blade Rubber ................................ 534
Reporting Safety Defects ......................... 606
Resetting a Trip Meter ............................. 121
Reverse Tilt Door Mirror .......................... 188
Road Departure Mitigation System ........ 465
On and Off.............................................. 468
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 88
Safety Message ............................................. 5
Safety Support .......................................... 129
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 82
Pregnant Women ...................................... 53
Reminder .................................................. 48
Warning Indicator ............................... 48, 97 Seat Heaters
............................. 211, 212, 213
Seat Ventilation ....................................... 212
Seats .......................................................... 189
Adjusting ................................................ 189
Front Seats.............................................. 189
Rear Seats ............................................... 192
Seat Heaters ........................... 211, 212, 213
Seat Ventilation ...................................... 212
Security System ........................................ 162
Security System Alarm Indicator .............. 103
Selecting a Child Seat ................................ 78
Shift Position Indicator .............................. 96
Shifting (Transmission) ............................ 378
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 66
Side Curtain Airbags .................................. 69
Smart Entry with Push Button Start
System ..................................................... 146
Snow Tires ................................................ 545
Sonar Sensors ........................................... 482
Spark Plugs ............................................... 602
Specifications ........................................... 602
Specified Fuel ................................... 504, 602
Speedometer ............................................ 110
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 186
Stopping ................................................... 493
Summer Tires ............................................ 545
Sunglasses Holder .................................... 202
Supplemental Restraint System (SRS) ....... 58
23 ACCORD 4D US HEV MAP-3130B6000.book 622 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

623
Index
Switches (Around the Steering Wheel) ............................................ 8, 9, 170
System Message Indicator ....................... 102
System Updates ........................................ 246
T
Temperature
Outside Temperature Display .................. 113
Temperature Sensor ........................ 113, 218
Temporary Repair Kit (TRK) .................... 561
Tire Pressure Monitoring System (TPMS) ..................................................... 393
Indicator ................................................. 591
Tires .......................................................... 537
Air Pressure..................................... 538, 603
Checking and Maintaining ...................... 537
Inspection ............................................... 537
Labeling .................................................. 538
Puncture (Flat Tire) .................................. 561
Regulations ............................................. 540
Rotation.................................................. 544
Summer .................................................. 545
Temporary Repair Kit (TRK) ..................... 561
Tire Chains.............................................. 545
Wear Indicators....................................... 542
Winter .................................................... 545
Tools ......................................................... 560
Towing a Trailer ....................................... 369
Towing Behind a Motorhome ................. 369Towing Your Vehicle
Emergency .............................................. 597
TPMS (Tire Pressure Monitoring System) .................................................... 393
Indicator .................................................. 591
Traffic Jam Assist ...................................... 456
Traffic Sign Recognition System .............. 473
Transmission ............................................. 377
Creeping ................................................. 377
Fluid ................................................ 529, 603
Shift Position Indicator ............................... 96
Trip Meter ................................................. 121
TRK (Temporary Repair Kit) ..................... 561
Troubleshooting ....................................... 559
Blown Fuse ...................................... 592, 593
Brake Pedal Vibrates .................................. 37
Buzzer Sounds When Opening Door .......... 38
Emergency Towing .................................. 597
Noise When Braking .................................. 38
Overheating ............................................ 582
Power System Won’t Start ....................... 575
Puncture/Flat Tire ..................................... 561
Rear Door Won’t Open ...................... 37, 157
Shift Lever Does Not Move ...................... 581
Warning Indicators ............................ 90, 585
Trunk ......................................................... 159
Lid ........................................................... 159
Light Bulb ................................................ 602
Main Switch ............................................ 161
Unable to Open ....................................... 599 Turn Signals
.............................................. 173
Indicators (Instrument Panel) ................... 101
Turning on the Power .............................. 370
Does Not Activate ................................... 575
If the 12-Volt Battery Is Dead................... 579U
Under-Floor Storage Area ....................... 204
Unlocking the Doors ................................ 146
Unlocking the Fron t Doors from the
Inside ................................................. 24, 155
USB Flash Drives ............................... 259, 298
USB Ports ................................................... 221
Using the Keyless Access System ............. 146
V
Vanity Mirrors............................................. 11
Vehicle Identification Number ................ 604
Vehicle Stability Assist
TM (VSA® ).............. 390
On and Off...................................... 131, 391
System Indicator ........................................ 99
Ventilation ................................................ 215
Viscosity (Oil) .................................... 523, 603
VSA ® (Vehicle Stability Assist
TM) .............. 390
W
Wallpaper ................................................. 238
Warning Indicator On/Blinking ............... 585
Warning Labels ........................................... 88
23 ACCORD 4D US HEV MAP-3130B6000.book 623 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
