fuse HONDA ACCORD HYBRID 2023 Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
The images throughout this owner‘s manual (including the front
cover) that depict features, e quipment, and Audio/Information
screen, Meter screens are only examples and may not be
representative of your particular model.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 41
For Safe Driving P. 42 Seat Belts P. 46 Airbags P. 55
2Instrument Panel P. 89
Indicators P. 90 Gauges and Displays P. 110
2Controls P. 141
Clock P. 142 Locking and Unlocking the Doors P. 144
Moonroof P. 168
Seats P. 189
2 Features P. 219
Audio System P. 220 Audio System Basic Operation P. 227
Customized Features P. 318 Bluetooth® HandsFreeLink ® P. 341
2 Driving P. 363
Before Driving P. 364 Towing a Trailer P. 369
Parking Your Vehicle P. 493 Multi-View Rear Camera P. 502
2Maintenance P. 509
Before Performing Maintenance P. 510 Maintenance MinderTM P. 513
Checking and Maintaining Wiper Blades P. 534
Climate Control System Maintenance P. 549
2Handling the Unexpected P. 559
Tools P. 560 If a Tire Goes Flat P. 561
If the 12-Volt Battery Is Dead P. 579 Shift Lever Does Not Move P. 581
Fuses P. 592 Emergency Towing P. 597
Refueling P. 600
2 Information P. 601
Specifications P. 602 Identification Numbers P. 604
Emissions Testing P. 607 Warranty Coverages P. 609
Open Source Licenses P. 614
23 ACCORD 4D US HEV MAP-3130B6000.book 6 ページ ２０２２年１０月１３日　木曜日　 午後４時５０分

Visual Index
10
Quick Reference Guide❚Power Window Switches (P165)
❚ Master Door Lock Switch (P157)
❚Memory Buttons* (P185)
❚SET Button* (P185)
❚ Door Mirror Controls (P188)
❚/ Passenger Airbag Off
Indicator
(P71)
❚Rearview Mirror (P187)
❚Driver’s Front Airbag (P58)
❚Passenger’s Front Airbag (P58)
❚Shift Lever (P378)
❚ USB Ports (P221)
❚Glove Box (P200)
❚ Trunk Main Switch (P161)
❚ Wireless Charger* (P206)
❚Drive Mode Switch (P384)
❚ e Button (P17)
❚Automatic Brake Hold Button
(P488)
❚ Electric Parking Brake Switch
(P370)❚Interior Fuse Box (P593)
❚ Hood Release Handle (P522)
❚ Trunk Opener (P159)
23 ACCORD 4D US HEV MAP-3130B6000.book 10 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

36
Quick Reference Guide
Handling the Unexpected (P 559)
Flat Tire (P 561)
●Park in a safe location and repair the flat
tire using the tire repair kit in the trunk.
Indicators Come On
(P 585)
●Identify the indicator and consult the
owner’s manual.
Power System Won’t
Start
(P 575)
●If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P 592)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P 582)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system cool down.
Emergency Towing
(P 597)
●Call a professional towing service if you
need to tow your vehicle.
23 ACCORD 4D US HEV MAP-3130B6000.book 36 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

556
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any items other than H onda genuine accessories designated for
your vehicle over areas marked SRS AIRBAG, on the sides or backs of the front
seats, on the sides of the rear seats, on fro nt or side pillars, or near the side
windows.
Items other than Honda genuine accessories designated for your vehicle installed
in these areas may interfere with proper operation of the vehicle’s airbags or may
be propelled into you or another occupant if the airbags deploy.
• Be sure electronic accessories do not over load electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 592
•Before installing any electron ic accessory, have the installer contact a dealer for
assistance. If possible, have a d ealer inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding accessories and
modifications.
3WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or it s equivalent, in your
vehicle.
23 ACCORD 4D US HEV MAP-3130B6000.book 556 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

559
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools.................................................. 560
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 561
Handling of the Jack ......................... 574
Power System Won’t Start Checking the Procedure ................... 575
If the Keyless Remote Battery is Weak.. 576Emergency Power System On ........... 577
Emergency Power System Off........... 578
If the 12-Volt Battery Is Dead .......... 579
Shift Lever Does Not Move .............. 581
Overheating
How to Handle Overheating ............. 582 Indicator Coming On/Blinking
If the Engine oil pressure low Warning Appears ......................................... 585
If the 12-Volt Battery Charging System Indicator Comes On ....................... 586
If the Limited stopping power Warning
Appears ......................................... 586
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 587
If the Brake System Indicator (Red) Comes On or Blinks ..................................... 588
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On .....589
If the Electric Power Steering (EPS) System Indicator Comes On......................... 590
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 591
Fuses .................................................. 592
Emergency Towing ........................... 597
If You Cannot Unlock the Fuel Fill Door.. 598If You Cannot Open the Trunk ........ 599
Refueling
Refueling From a Portable Fuel Container ... 600
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 559 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

575
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on the gauge, check th e following items and take appropriate action.
If you cannot turn on the power system after checking all the it ems in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an as sisting vehicle or booster battery to jump start it.
2If the 12-Volt Battery Is Dead P. 579
Depending on the situation, it may be possible to temporarily tu rn on the power system using the emergency power system on proc edure.
2Emergency Power System On P. 577
ChecklistConditionWhat to Do
Check if the related
indicator or driver
information interface
messages come on.The Temperature is too cold for vehicle to operate
message appears.●You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
●Contact a dealer if necessary.
The To start, touch start butt on with emblem side of
remote message appears.2 If the Keyless Remote Battery is Weak
P. 576
Check the shift position. The transmission is not in (P. Put the transmission into (P.
Check the immobilizer
system indicator.When the immobilizer system indicator is blinking, the power
system cannot be turned on.2Immobilizer System P. 162
2 Immobilizer System Indicator P. 103
Check the power system
starting procedure. Follow the instructions, and try to start the
power system again.
2
Turning on the Power P. 370
Check the fuses.Check all fuses, or have your vehicle checked by
a dealer.
2Inspecting and Changing Fuses P. 595
23 ACCORD 4D US HEV MAP-3130B6000.book 575 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

592
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applicable fuse is blown.
Located near the 12-volt battery. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY175 A
2
−30 A
−40A
F/BOX OPTION60 A
A/C PTC1 (40 A)
F/BOX OPTION260 A
−60 A
F/BOX MAIN 60 A
3
AUDIO AMP(30 A)
−30 A
A/C PTC3(40 A)
−30 A
−50 A
HTR MTR40 A
RR DEFROSTER40 A
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A
ENG WATER PUMP 40 A ESB 40 A
IG MAIN 30 A −40A
R/M2 30 A
5
SUB FUSE30 A
WIPER30 A
EPS70 A
R/M130 A
RFC60 A
−(30 A)
F/BOX MAIN260 A
6− −
7IG MAIN230 A
8− −
9BACK UP15 A
10 WASHER 15 A
11−−
12 RR H/SEAT*(20 A)
13−−
14 RFC RLY CL+ 10 A
15SHUTTER GRILLE(10 A)
16 − −
17−−
18 HORN 10 A
19AUDIO SUB*(15 A)
20 AUDIO 7.5 A
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 592 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

593
uuFuses uFuse Locations
Handling the Unexpected
21EVTC20 A
22 DBW 15 A
23HAZARD15 A
24 BACKUP FI-ECU 10 A
25IGP15 A
26 − −
27LCM L20 A
28 INJ 20 A
29STOP10 A
30 LCM R 20 A
31IG COIL15 A
32 ICM 10 A
33PCU EWP10 A
34 − −
35−−
38 − −
39IGA10 A
40 IGB 10 A
41−−
42 MON2 7.5 A
43−−
44 − −
45IGPS (LAF)10 A
46 − −
Circuit ProtectedAmps
Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.

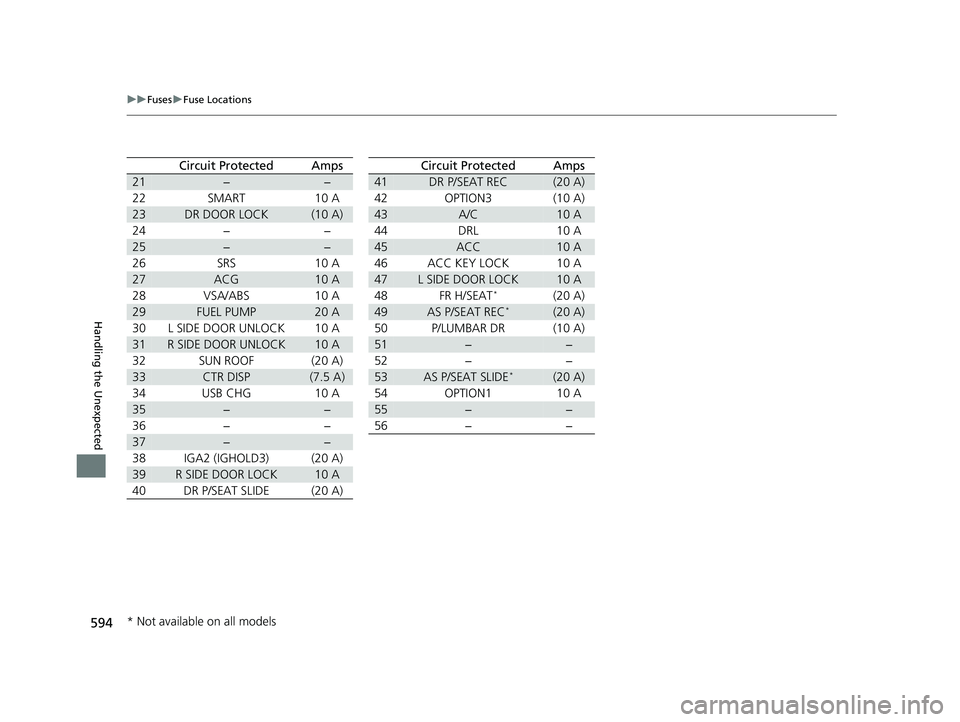

■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1P/W DR20 A
2P/W AS20 A
3P/W RR R20 A
4P/W RR L20 A
5OPTION10 A
6SRS10 A
7TRUNK LOCK ACT10 A
8−−
9FR ACC SOCKET20 A
10DOOR LOCK20 A
11METER10 A
12−(10 A)
13OPTION210 A
14MISS SOL10 A
15DR DOOR UNLOCK(10 A)
16−−
17−−
18−−
19−−
20CGW10 A
23 ACCORD 4D US HEV MAP-3130B6000.book 593 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

594
uuFuses uFuse Locations
Handling the Unexpected
21−−
22SMART10 A
23DR DOOR LOCK(10 A)
24−−
25−−
26SRS10 A
27ACG10 A
28VSA/ABS10 A
29FUEL PUMP20 A
30L SIDE DOOR UNLOCK10 A
31R SIDE DOOR UNLOCK10 A
32SUN ROOF(20 A)
33CTR DISP(7.5 A)
34USB CHG10 A
35−−
36−−
37−−
38IGA2 (IGHOLD3)(20 A)
39R SIDE DOOR LOCK10 A
40DR P/SEAT SLIDE(20 A)
Circuit ProtectedAmps
41DR P/SEAT REC(20 A)
42OPTION3(10 A)
43A/C10 A
44DRL10 A
45ACC10 A
46ACC KEY LOCK10 A
47L SIDE DOOR LOCK10 A
48FR H/SEAT*(20 A)
49AS P/SEAT REC*(20 A)
50P/LUMBAR DR(10 A)
51−−
52−−
53AS P/SEAT SLIDE*(20 A)
54OPTION110 A
55−−
56−−
Circuit ProtectedAmps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 594 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

595
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM
2 Fuse Locations P. 592
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
23 ACCORD 4D US HEV MAP-3130B6000.book 595 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
