oil filter HONDA ACCORD HYBRID 2023 Owners Manual

509
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 510
Safety When Performing Maintenance ..511Parts and Fluids Used in Maintenance Service ........................................... 512
Maintenance Minder
TM..................... 513
Maintenance Under the Hood Maintenance Items Under the Hood .. 521
Opening the Hood ........................... 522
Recommended Engine Oil ................ 523
Oil Check ......................................... 524
Adding Engine Oil ............................ 525
Changing the Engine Oil and Oil Filter ...526
Cooling System ................................ 528
Transmission Fluid ............................ 529
Brake Fluid ....................................... 530
Refilling Window Washer Fluid......... 531
Replacing Light Bulbs ....................... 532
Checking and Maintaining Wiper
Blades .......................................... 534
Checking and Maintaining Tires
Checking Tires ................................. 537
Tire and Loading Information Label .. 538
Tire Labeling .................................... 538
DOT Tire Quality Grading (U.S. Vehicles).. 540Wear Indicators................................ 542 Tire Service Life ................................ 542
Tire and Wheel Replacement ........... 543
Tire Rotation .................................... 544
Winter Tires ..................................... 545
12-Volt Battery ................................. 546
Remote Transmitter Care
Replacing the Remote Battery .......... 548
Climate Control System Maintenance.. 549CleaningInterior Care .................................... 550
Exterior Care.................................... 552
Accessories and Modifications ........ 556
23 ACCORD 4D US HEV MAP-3130B6000.book 509 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

518
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 609.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Check expiration date for tire repair kit bottle
• Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel powered vehicles, replace every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (76,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
5 •Replace engine coolant
7•Replace brake fluid*5
23 ACCORD 4D US HEV MAP-3130B6000.book 518 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

519
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 76,000 km (47,500 miles) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 609.
CODEMaintenance Main Items
A •Replace engine oil*1
0•Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
5 •Replace engine coolant
7•Replace brake fluid*5
9 •Service front and rear brakes
• Check expiration date for tire repair kit bottle
• Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
23 ACCORD 4D US HEV MAP-3130B6000.book 519 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

526
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

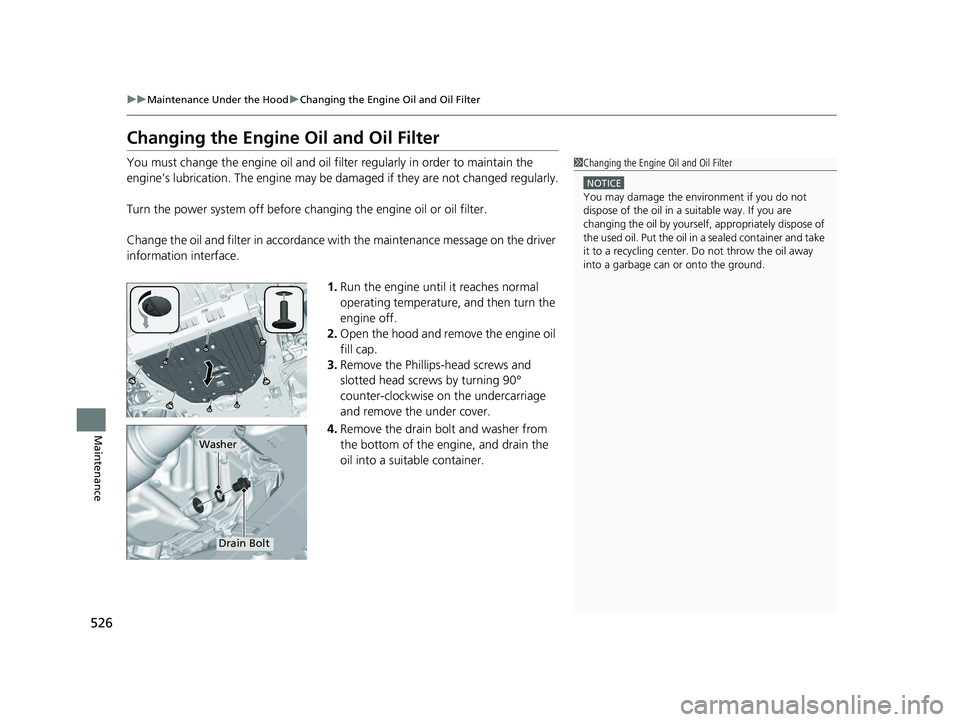

Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Turn the power system o ff before changing the engine oil or oil filter.
Change the oil and filter in accordance with the mainte nance message on the driver
information interface.
1.Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the Phillips-head screws and
slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.
4. Remove the drain bolt and washer from
the bottom of the engine, and drain the
oil into a suitable container.1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Drain Bolt
Washer
23 ACCORD 4D US HEV MAP-3130B6000.book 526 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

527
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance

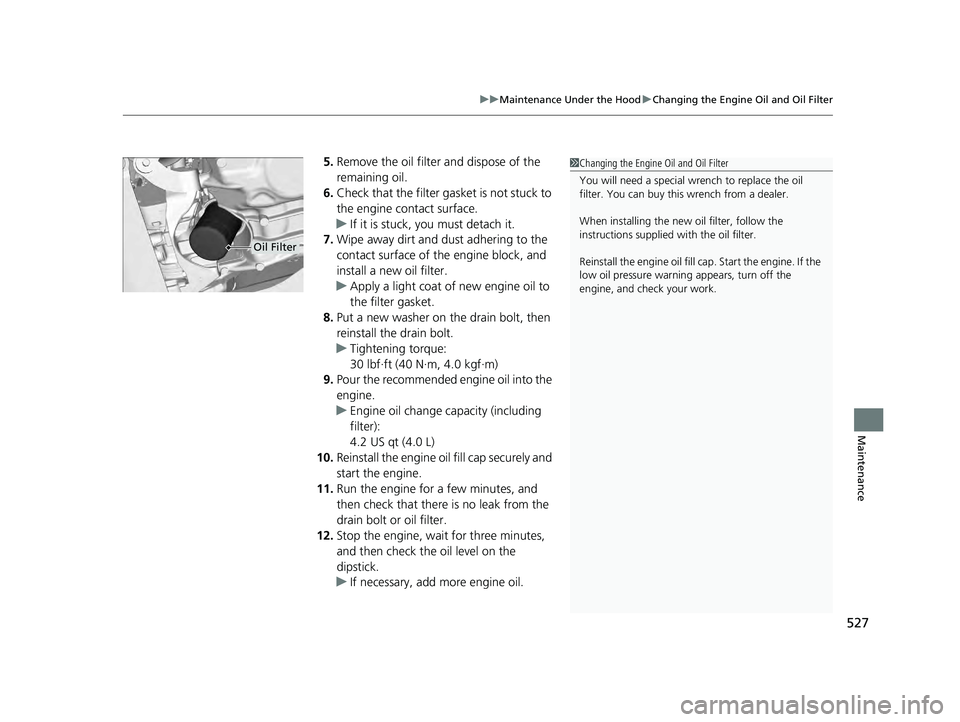

5. Remove the oil filter and dispose of the
remaining oil.
6. Check that the filter gasket is not stuck to
the engine contact surface.
u If it is stuck, you must detach it.
7. Wipe away dirt and dust adhering to the
contact surface of the engine block, and
install a new oil filter.
u Apply a light coat of new engine oil to
the filter gasket.
8. Put a new washer on the drain bolt, then
reinstall the drain bolt.
u Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)
9. Pour the recommended engine oil into the
engine.
u Engine oil change capacity (including
filter):
4.2 US qt (4.0 L)
10. Reinstall the engine oil fill cap securely and
start the engine.
11. Run the engine for a few minutes, and
then check that there is no leak from the
drain bolt or oil filter.
12. Stop the engine, wait for three minutes,
and then check the oil level on the
dipstick.
u If necessary, add more engine oil.1Changing the Engine Oil and Oil Filter
You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.
When installing the new oil filter, follow the
instructions supplied with the oil filter.
Reinstall the engine oil fill cap. Start the engine. If the
low oil pressure warning appears, turn off the
engine, and check your work.
Oil Filter
23 ACCORD 4D US HEV MAP-3130B6000.book 527 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

549
Maintenance

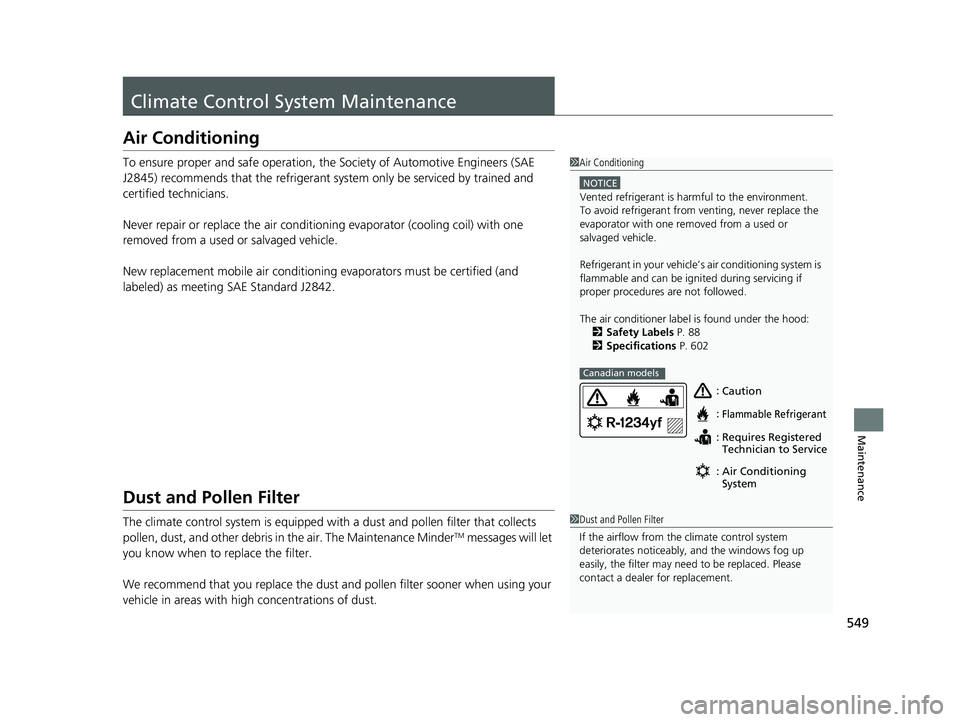

Climate Control System Maintenance
Air Conditioning
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.
Never repair or replace the air conditio ning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance MinderTM messages will let
you know when to replace the filter.
We recommend that you replace the dust an d pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1 Air Conditioning
NOTICE
Vented refrigerant is harmful to the environmentM
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicleM
Refrigerant in your vehicle

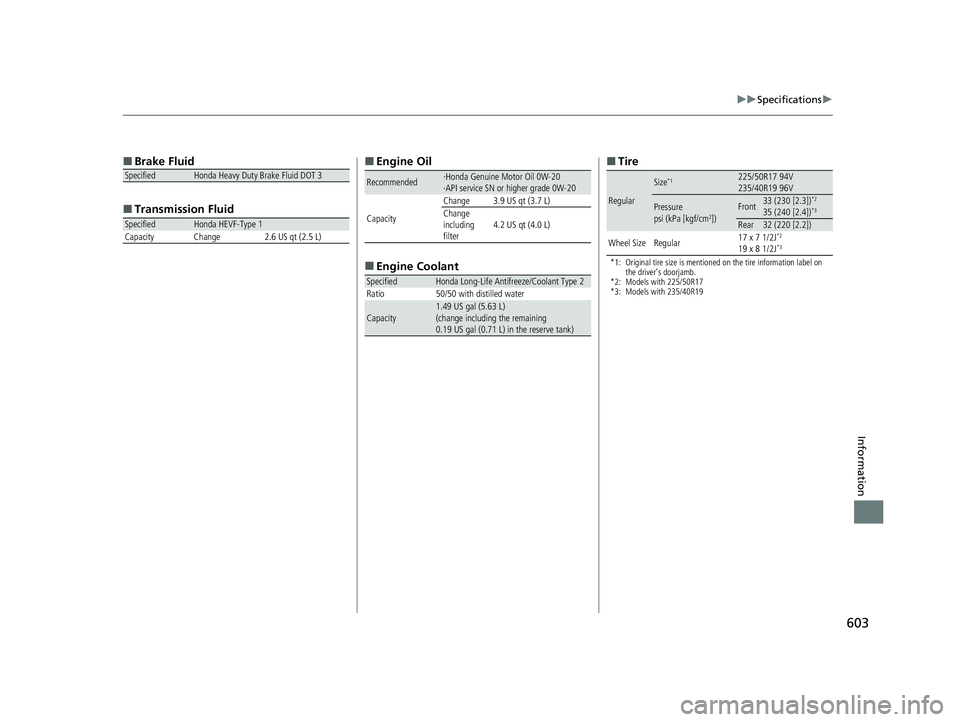

603
uuSpecifications u
Information
■
Brake Fluid
■ Transmissi on FluidSpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HEVF-Type 1
Capacity Change 2.6 US qt (2.5 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change 3.9 US qt (3.7 L)
Change
including
filter
4.2 US qt (4.0 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.49 US gal (5.63 L)
(change including the remaining
0.19 US gal (0.71 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 225/50R17
*3: Models with 235/40R19
Regular
Size*1225/50R17 94V
235/40R19 96V
Pressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])*2
35 (240 [2.4])*3
Rear32 (220 [2.2])
Wheel SizeRegular17 x 7 1/2J*2
19 x 8 1/2J*3
23 ACCORD 4D US HEV MAP-3130B6000.book 603 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

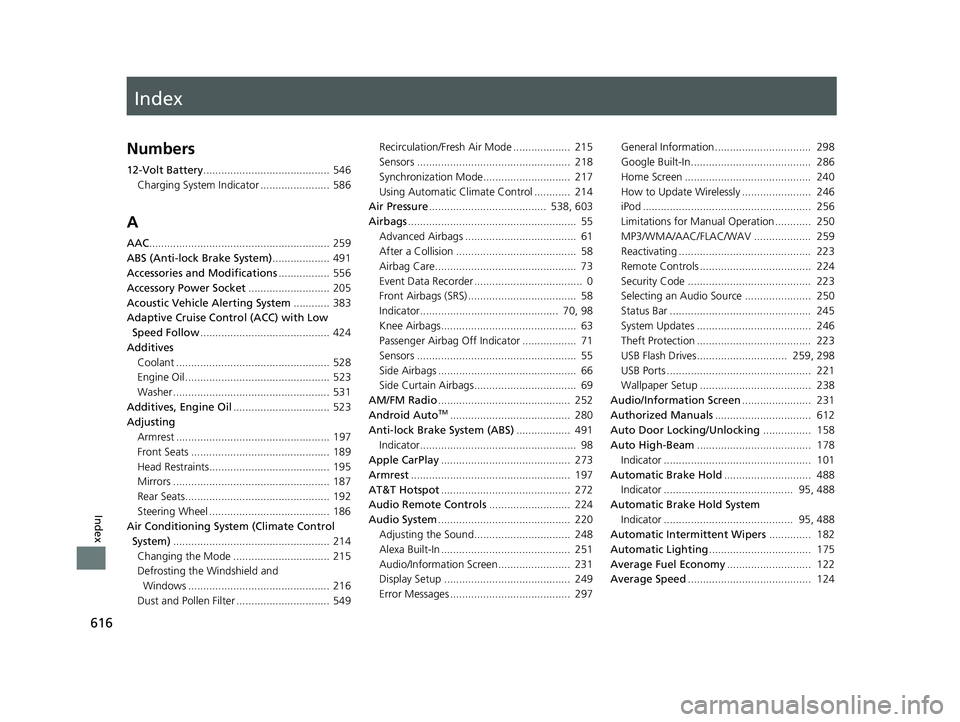

Index
616
Index
Index
Numbers
12-Volt Battery.......................................... 546
Charging System Indicator ....................... 586
A
AAC ............................................................ 259
ABS (Anti-lock Brake System) ................... 491
Accessories and Modifications ................. 556
Accessory Power Socket ........................... 205
Acoustic Vehicle Alerting System ............ 383
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 424
Additives Coolant ................................................... 528
Engine Oil ................................................ 523
Washer .................................................... 531
Additives, Engine Oil ................................ 523
Adjusting Armrest ................................................... 197
Front Seats .............................................. 189
Head Restraints........................................ 195
Mirrors .................................................... 187
Rear Seats................................................ 192
Steering Wheel ........................................ 186
Air Conditioning System (Climate Control System) .................................................... 214
Changing the Mode ................................ 215
Defrosting the Windshield and Windows ............................................... 216
Dust and Pollen Filter ............................... 549 Recirculation/Fresh Air Mode ................... 215
Sensors ................................................... 218
Synchronization Mode............................. 217
Using Automatic Climate Control ............ 214
Air Pressure ....................................... 538, 603
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
After a Collision ........................................ 58
Airbag Care............................................... 73
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator.............................................. 70, 98
Knee Airbags............................................. 63
Passenger Airbag Off Indicator .................. 71
Sensors ..................................................... 55
Side Airbags .............................................. 66
Side Curtain Airbags.................................. 69
AM/FM Radio ............................................ 252
Android Auto
TM........................................ 280
Anti-lock Brake System (ABS) .................. 491
Indicator.................................................... 98
Apple CarPlay ........................................... 273
Armrest ..................................................... 197
AT&T Hotspot ........................................... 272
Audio Remote Controls ........................... 224
Audio System ............................................ 220
Adjusting the Sound................................ 248
Alexa Built-In ........................................... 251
Audio/Information Screen........................ 231
Display Setup .......................................... 249
Error Messages ........................................ 297 General Information................................ 298
Google Built-In........................................ 286
Home Screen .......................................... 240
How to Update Wirelessly ....................... 246
iPod ........................................................ 256
Limitations for Manual Operation ............ 250
MP3/WMA/AAC/FLAC/WAV ................... 259
Reactivating ............................................ 223
Remote Controls ..................................... 224
Security Code ......................................... 223
Selecting an Audio Source ...................... 250
Status Bar ............................................... 245
System Updates ...................................... 246
Theft Protection ...................................... 223
USB Flash Drives.............................. 259, 298
USB Ports ................................................ 221
Wallpaper Setup ..................................... 238
Audio/Information Screen ....................... 231
Authorized Manuals ................................ 612
Auto Door Locking/Unlocking ................ 158
Auto High-Beam ...................................... 178
Indicator ................................................. 101
Automatic Brake Hold ............................. 488
Indicator ........................................... 95, 488
Automatic Brake Hold System
Indicator ........................................... 95, 488
Automatic Intermittent Wipers .............. 182
Automatic Lighting .................................. 175
Average Fuel Economy ............................ 122
Average Speed ......................................... 124
23 ACCORD 4D US HEV MAP-3130B6000.book 616 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

618
Index
Customize Display..................................... 116
Customized Features ................................ 318
D
Daytime Running Lights ........................... 177
Dead Battery (12-Volt) ............................. 579
Deceleration Paddle Selector ................... 380
Defaulting All the Settings ...................... 339
Defrosting the Windshield and
Windows .................................................. 216
Devices that Emit Radio Waves ................ 605
Dimming
Headlights ............................................... 174
Rearview Mirror ....................................... 187
Dipstick (Engine Oil) ................................. 524
Directional Signals (Turn Signal) .............. 173
Door Mirrors ............................................. 188
Doors ......................................................... 144
Auto Door Locking .................................. 158
Auto Door Unlocking ............................... 158
Door and Trunk Open Message ................. 45
Keys ........................................................ 144
Locking/Unlocking the Doors from the
Inside ..................................................... 155
Locking/Unlocking the Doors from the Outside .................................................. 146
Lockout Prevention System ...................... 154
DOT Tire Quality Grading ........................ 540
Drive Mode System ................................... 384
Driver Attention Monitor ......................... 125Driver Information Interface
........... 115, 118
Switching the Display .............................. 119
Driving ...................................................... 363
Braking ................................................... 483
Transmission ........................................... 377
Turning on the Power.............................. 370
Driving Position Memory System ............ 184
Dust and Pollen Filter ............................... 549
E
e Button...................................................... 17
Eco Assist ® System ...................................... 20
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator............................................ 98, 590
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 597
Emergency Power System On .................. 577
Emergency Trunk Opener ................ 161, 599
Emissions Testing (Readiness Codes) ....... 607
Engine ....................................................... 604
Coolant ................................................... 528
If the 12-Volt Battery Is Dead................... 579
Oil ................................................... 523, 603
Engine Coolant Adding to the Radiator ............................ 529
Adding to the Reserve Tank..................... 528
Overheating ............................................ 582
Engine Oil ................................................. 523
Adding .................................................... 525 Checking ................................................ 524
Displaying Oil Life ................................... 514
Engine Oil Pressure Low Warning ............ 585
Recommended Engine Oil ....................... 523
EPS (Electric Power Steering) System ...... 590
Exhaust Gas Hazard (Carbon Monoxide) .. 87
Exterior Care (Cleaning) .......................... 552
Exterior Mirrors ........................................ 188
F
Features.................................................... 219
Filters
Dust and Pollen....................................... 549
Oil .......................................................... 526
FLAC .......................................................... 259
Flat Tire ..................................................... 561
Floor Mats ................................................ 551
Fluids Brake .............................................. 530, 603
Engine Coolant ............................... 528, 603
Transmission ................................... 529, 603
Windshield Washer ......................... 531, 602
FM/AM Radio ........................................... 252
Folding Down the Rear Seat ................... 192
Foot Brake ................................................ 487
Front Airbags (SRS) .................................... 58
Front Seats Adjusting ................................................ 189
Front Sensor Camera ............................... 479
23 ACCORD 4D US HEV MAP-3130B6000.book 618 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
