washer fluid HONDA ACCORD HYBRID 2023 Owners Manual

24
Quick Reference Guide
Wipers and Washers
(P 181)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
Adjustment Ring
( -: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 186)
To adjust, push the adjustment lever down,
adjust to the desired po sition, then lock the
lever back in place.
Models with automatic intermittent wipers
To lock
To adjust
Unlocking the Front
Doors from the Inside
(P 156)
●Pull either front door inner handle to
unlock and open it at the same time.
23 ACCORD 4D US HEV MAP-3130B6000.book 24 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

35
Quick Reference Guide
Maintenance (P 509)
Under the Hood (P 521)
●Check engine oil, engine coolant, inverter coolant, and windshield
washer fluid. Add when necessary.
●Check brake fluid.●Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then raise
the hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly locked
in place.
LeverLights (P 532)
●Inspect all lights regularly.
Wiper Blades (P 534)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P 537)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 35 ページ ２０２２年１０月１３日　木曜日 　午後４時５０分

181
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
and then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wiper/Washer1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogger to warm the
windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2
OFF
LO : Low speed wipe
HI : High speed wipe Pull to
use
washer.Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 181 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

509
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 510
Safety When Performing Maintenance ..511Parts and Fluids Used in Maintenance Service ........................................... 512
Maintenance Minder
TM..................... 513
Maintenance Under the Hood Maintenance Items Under the Hood .. 521
Opening the Hood ........................... 522
Recommended Engine Oil ................ 523
Oil Check ......................................... 524
Adding Engine Oil ............................ 525
Changing the Engine Oil and Oil Filter ...526
Cooling System ................................ 528
Transmission Fluid ............................ 529
Brake Fluid ....................................... 530
Refilling Window Washer Fluid......... 531
Replacing Light Bulbs ....................... 532
Checking and Maintaining Wiper
Blades .......................................... 534
Checking and Maintaining Tires
Checking Tires ................................. 537
Tire and Loading Information Label .. 538
Tire Labeling .................................... 538
DOT Tire Quality Grading (U.S. Vehicles).. 540Wear Indicators................................ 542 Tire Service Life ................................ 542
Tire and Wheel Replacement ........... 543
Tire Rotation .................................... 544
Winter Tires ..................................... 545
12-Volt Battery ................................. 546
Remote Transmitter Care
Replacing the Remote Battery .......... 548
Climate Control System Maintenance.. 549CleaningInterior Care .................................... 550
Exterior Care.................................... 552
Accessories and Modifications ........ 556
23 ACCORD 4D US HEV MAP-3130B6000.book 509 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

521
Maintenance

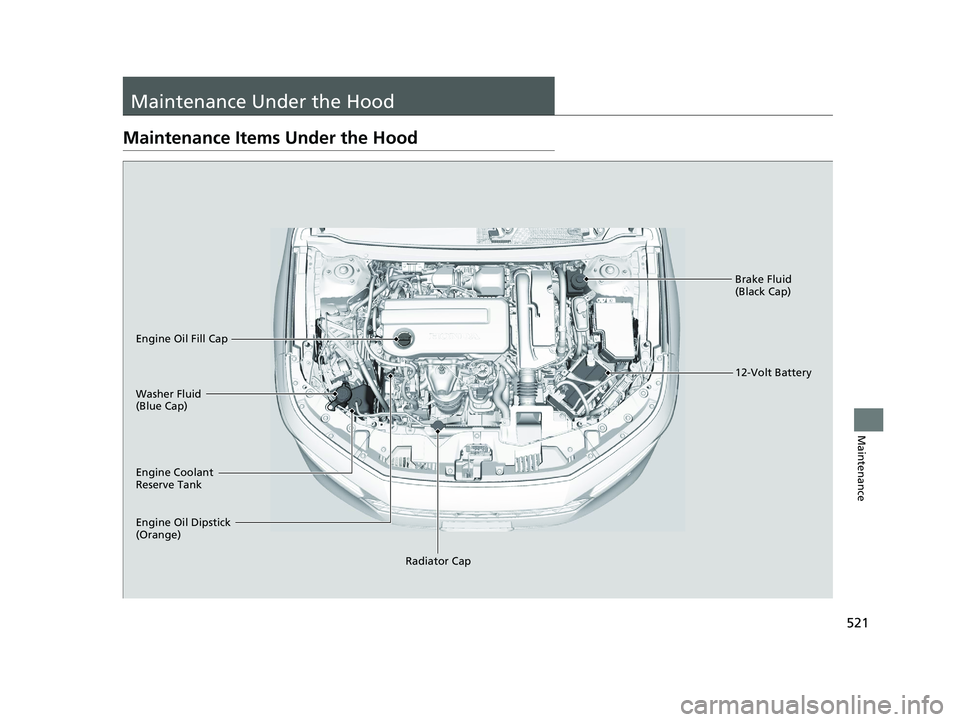

Maintenance Under the Hood
Maintenance Items Under the Hood
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap) Engine Oil Fill Cap
12-Volt Battery
Engine Oil Dipstick
(Orange)
23 ACCORD 4D US HEV MAP-3130B6000.book 521 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

531
uuMaintenance Under the Hood uRefilling Window Washer Fluid
Maintenance

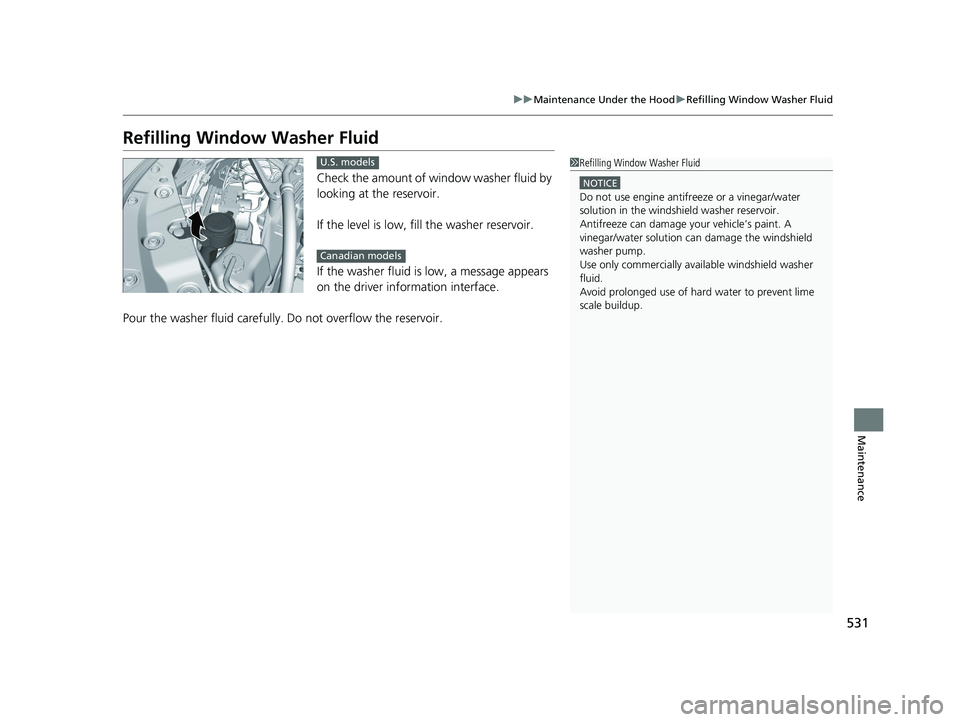

Refilling Window Washer Fluid
Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle

602
Information

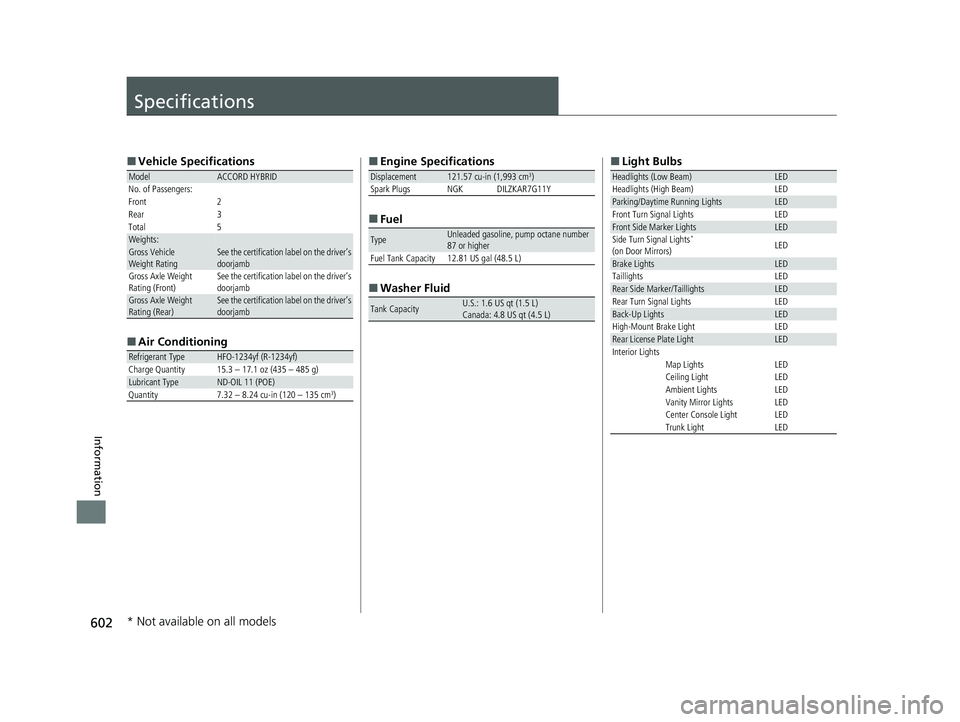

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD HYBRID
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeND-OIL 11 (POE)
Quantity 7.32 – 8.24 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.57 cu-in (1,993 cm3)
Spark Plugs NGK DILZKAR7G11Y
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 12.81 US gal (48.5 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Parking/Daytime Running LightsLED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Side Turn Signal Lights*
(on Door Mirrors) LED
Brake LightsLED
Taillights LED
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights LED
Back-Up LightsLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights LED
Ceiling Light LED
Ambient Lights LED
Vanity Mirror Lights LED
Center Console Light LED
Trunk Light LED
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 602 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

618

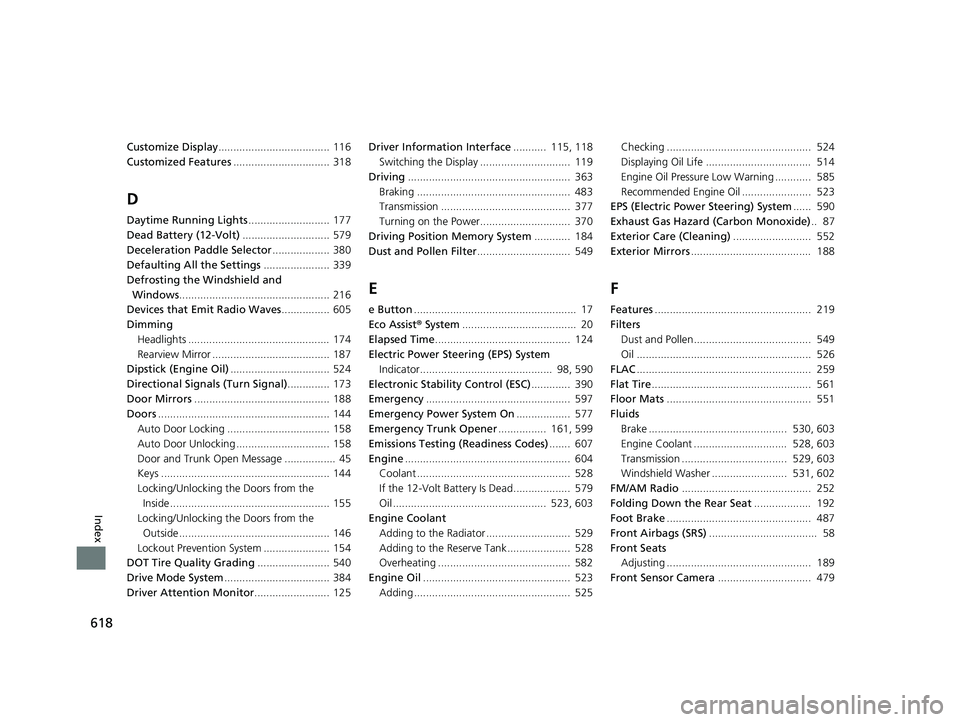

Index
Customize Display..................................... 116
Customized Features ................................ 318
D
Daytime Running Lights ........................... 177
Dead Battery (12-Volt) ............................. 579
Deceleration Paddle Selector ................... 380
Defaulting All the Settings ...................... 339
Defrosting the Windshield and
Windows .................................................. 216
Devices that Emit Radio Waves ................ 605
Dimming
Headlights ............................................... 174
Rearview Mirror ....................................... 187
Dipstick (Engine Oil) ................................. 524
Directional Signals (Turn Signal) .............. 173
Door Mirrors ............................................. 188
Doors ......................................................... 144
Auto Door Locking .................................. 158
Auto Door Unlocking ............................... 158
Door and Trunk Open Message ................. 45
Keys ........................................................ 144
Locking/Unlocking the Doors from the
Inside ..................................................... 155
Locking/Unlocking the Doors from the Outside .................................................. 146
Lockout Prevention System ...................... 154
DOT Tire Quality Grading ........................ 540
Drive Mode System ................................... 384
Driver Attention Monitor ......................... 125Driver Information Interface
........... 115, 118
Switching the Display .............................. 119
Driving ...................................................... 363
Braking ................................................... 483
Transmission ........................................... 377
Turning on the Power.............................. 370
Driving Position Memory System ............ 184
Dust and Pollen Filter ............................... 549
E
e Button...................................................... 17
Eco Assist ® System ...................................... 20
Elapsed Time ............................................. 124
Electric Power Steering (EPS) System Indicator............................................ 98, 590
Electronic Stability Control (ESC) ............. 390
Emergency ................................................ 597
Emergency Power System On .................. 577
Emergency Trunk Opener ................ 161, 599
Emissions Testing (Readiness Codes) ....... 607
Engine ....................................................... 604
Coolant ................................................... 528
If the 12-Volt Battery Is Dead................... 579
Oil ................................................... 523, 603
Engine Coolant Adding to the Radiator ............................ 529
Adding to the Reserve Tank..................... 528
Overheating ............................................ 582
Engine Oil ................................................. 523
Adding .................................................... 525 Checking ................................................ 524
Displaying Oil Life ................................... 514
Engine Oil Pressure Low Warning ............ 585
Recommended Engine Oil ....................... 523
EPS (Electric Power Steering) System ...... 590
Exhaust Gas Hazard (Carbon Monoxide) .. 87
Exterior Care (Cleaning) .......................... 552
Exterior Mirrors ........................................ 188
F
Features.................................................... 219
Filters
Dust and Pollen....................................... 549
Oil .......................................................... 526
FLAC .......................................................... 259
Flat Tire ..................................................... 561
Floor Mats ................................................ 551
Fluids Brake .............................................. 530, 603
Engine Coolant ............................... 528, 603
Transmission ................................... 529, 603
Windshield Washer ......................... 531, 602
FM/AM Radio ........................................... 252
Folding Down the Rear Seat ................... 192
Foot Brake ................................................ 487
Front Airbags (SRS) .................................... 58
Front Seats Adjusting ................................................ 189
Front Sensor Camera ............................... 479
23 ACCORD 4D US HEV MAP-3130B6000.book 618 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

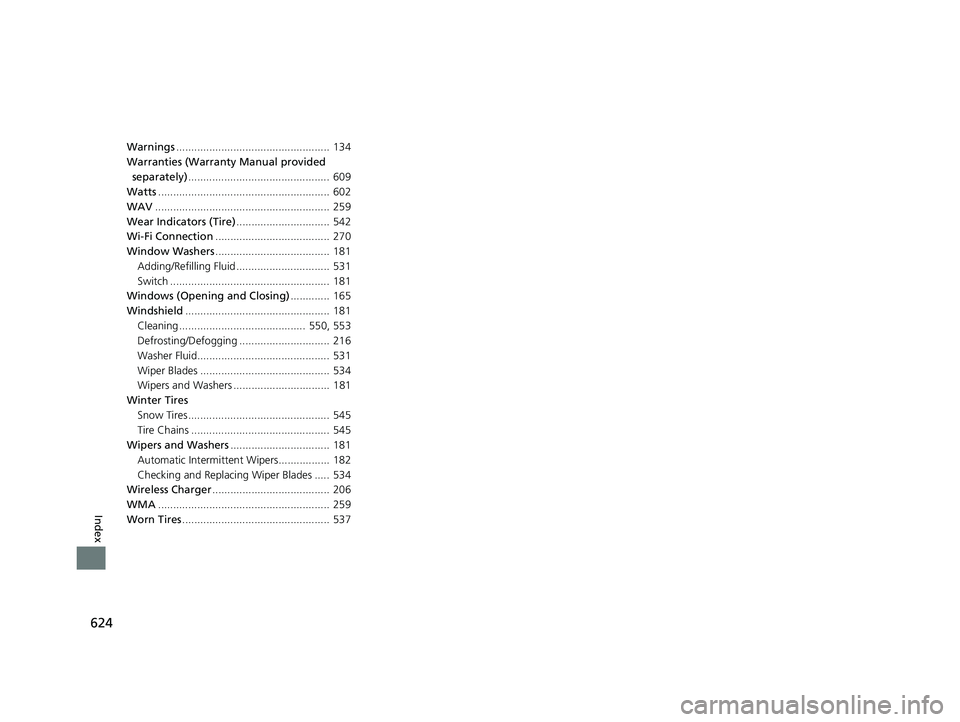

624
Index
Warnings................................................... 134
Warranties (Warranty Manual provided
separately) ............................................... 609
Watts ......................................................... 602
WAV .......................................................... 259
Wear Indicators (Tire) ............................... 542
Wi-Fi Connection ...................................... 270
Window Washers ...................................... 181
Adding/Refilling Fluid ............................... 531
Switch ..................................................... 181
Windows (Opening and Closing) ............. 165
Windshield ................................................ 181
Cleaning .......................................... 550, 553
Defrosting/Defogging .............................. 216
Washer Fluid............................................ 531
Wiper Blades ........................................... 534
Wipers and Washers ................................ 181
Winter Tires Snow Tires ............................................... 545
Tire Chains .............................................. 545
Wipers and Washers ................................. 181
Automatic Intermittent Wipers................. 182
Checking and Replacing Wiper Blades ..... 534
Wireless Charger ....................................... 206
WMA ......................................................... 259
Worn Tires ................................................. 537
23 ACCORD 4D US HEV MAP-3130B6000.book 624 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
