363
Driving
This chapter discusses driving and refueling.
Before Driving................................... 364
Towing a Trailer ................................ 369
When Driving
Turning on the Power ...................... 370
Precautions While Driving................. 377
Transmission .................................... 377
Shifting ............................................ 378
Deceleration Paddle Selector ............ 380
Acoustic Vehicle Al erting System ...... 383
Drive Mode System .......................... 384
Vehicle Stability AssistTM (VSA®), aka Electronic
Stability Control (ESC), System ................. 390
Motion Management System ........... 392
Tire Pressure Monitoring System (TPMS)*.. 393Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 396
Blind Spot Information System ......... 398
High Voltage Battery ........................ 402
Honda Sensing ®
Collision Mitigati on Braking System
TM
(CMBSTM) ....................................... 406
Low Speed Braking Control*............ 418
Adaptive Cruise Control (ACC) with Low Speed Follow ................................. 424
Lane Keeping Assist System (LKAS) .. 445
Traffic Jam Assist ............................. 456 Road Departure Miti
gation System... 465
Traffic Sign Recognition System ....... 473
Front Sensor Camera ....................... 479
Radar Sensor ................................... 481
Sonar Sensors
*................................ 482
Braking
Brake System ................................... 483
Anti-lock Brake System (ABS) ........... 491
Brake Assist System ......................... 492
Parking Your Vehicle ........................ 493
Multi-View Rear Camera .................. 502
Refueling ........................................... 504
Fuel Economy and CO
2 Emissions .... 507
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 363 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued399
uuWhen Driving uBlind Spot Information System
Driving

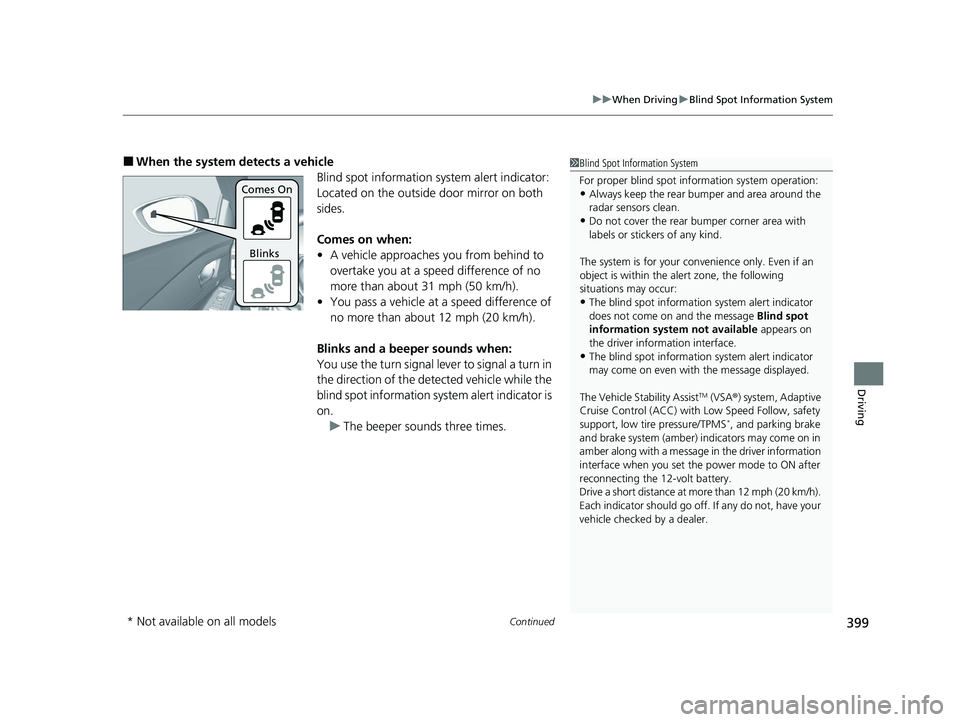

■When the system detects a vehicle
Blind spot information system alert indicator:
Located on the outside door mirror on both
sides.
Comes on when:
•A vehicle approaches you from behind to
overtake you at a speed difference of no
more than about 31 mph (50 km/h).
• You pass a vehicle at a speed difference of
no more than about 12 mph (20 km/h).
Blinks and a beeper sounds when:
You use the turn signal lever to signal a turn in
the direction of the detected vehicle while the
blind spot information system alert indicator is
on. u The beeper sounds three times.1Blind Spot Information System
For proper blind spot information system operation:
•Always keep the rear bumper and area around the
radar sensors clean.
•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
The system is for your convenience only. Even if an
object is within the alert zone, the following
situations may occur:
•The blind spot informatio n system alert indicator
does not come on and the message Blind spot
information system not available appears on
the driver information interface.
•The blind spot informatio n system alert indicator
may come on even with the message displayed.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, safety
support, low tire pressure/TPMS
*, and parking brake
and brake system (amber) indicators may come on in
amber along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
Comes On
Blinks
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 399 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued419
uuHonda Sensing ®u Low Speed Braking Control*
Driving

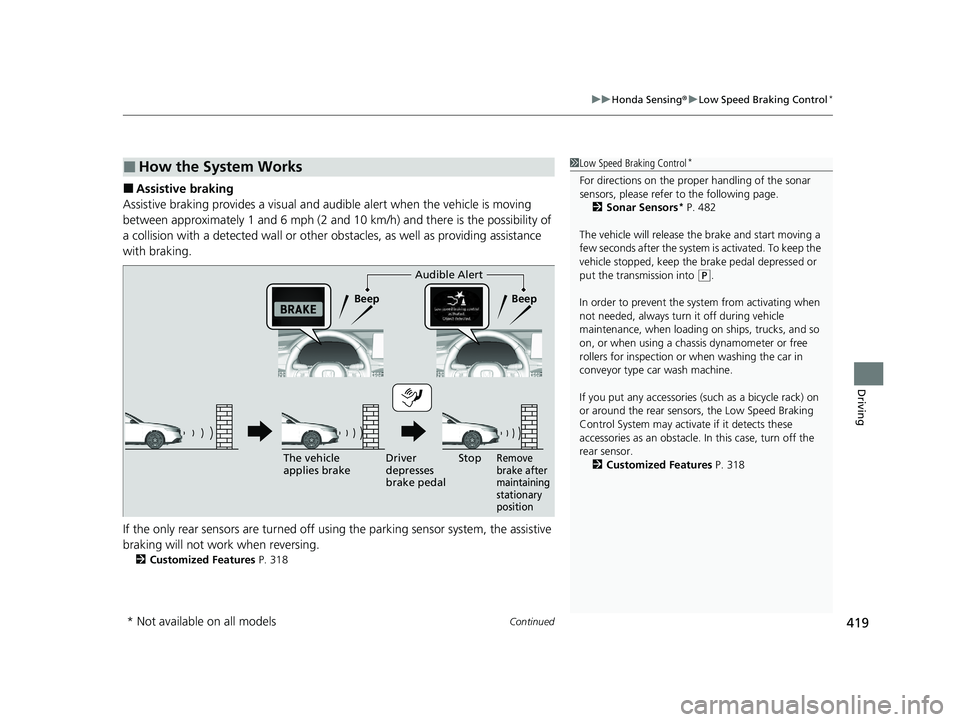

■Assistive braking
Assistive braking provides a visual and audible alert when the vehicle is moving
between approximately 1 and 6 mph (2 and 10 km/h) and there is the possibility of
a collision with a detected wall or other ob stacles, as well as providing assistance
with braking.
If the only rear sensors are turned off usi ng the parking sensor system, the assistive
braking will not work when reversing.
2 Customized Features P. 318
■How the System Works1Low Speed Braking Control*
For directions on the prop er handling of the sonar
sensors, please refer to the following page.
2 Sonar Sensors
* P. 482
The vehicle will release the brake and start moving a
few seconds after the system is activated. To keep the
vehicle stopped, keep the brake pedal depressed or
put the transmission into
( P.
In order to prevent the sy stem from activating when
not needed, always turn it off during vehicle
maintenance, when loading on ships, trucks, and so
on, or when using a chas sis dynamometer or free
rollers for inspection or when washing the car in
conveyor type car wash machine.
If you put any accessories (such as a bicycle rack) on
or around the rear sensors, the Low Speed Braking
Control System may activate if it detects these
accessories as an obstacle. In this case, turn off the
rear sensor.
2 Customized Features P. 318Audible Alert
Beep Beep
The vehicle
applies brake Driver
depresses
brake pedal
Remove
brake after
maintaining
stationary
positionStop
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 419 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

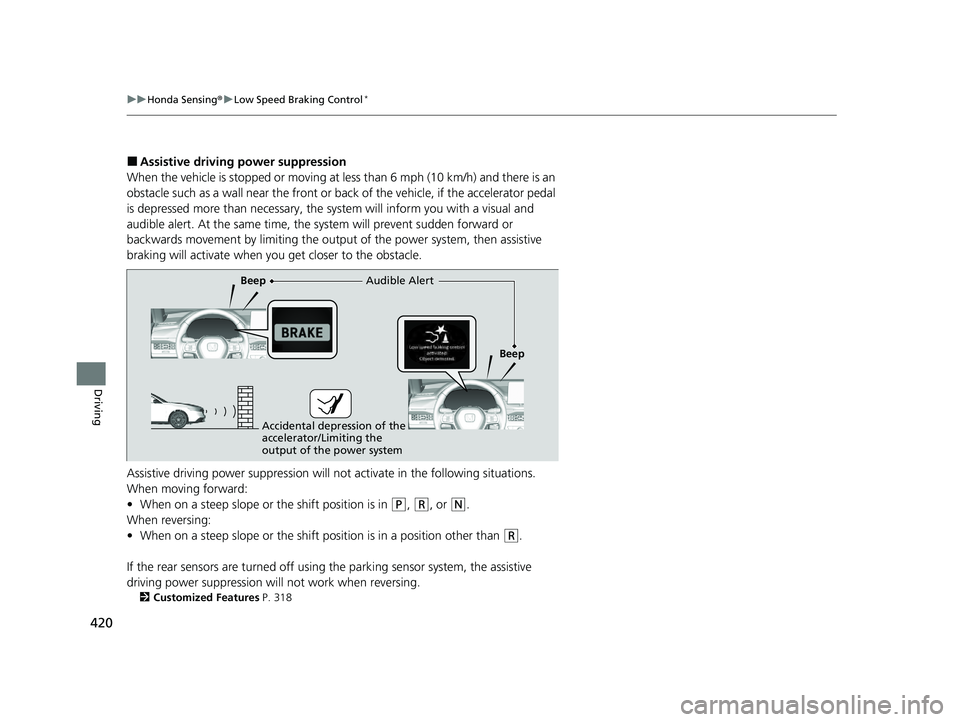

420
uuHonda Sensing ®u Low Speed Braking Control*
Driving
■Assistive driving power suppression
When the vehicle is stopped or moving at less than 6 mph (10 km/h) and there is an
obstacle such as a wall near the front or back of the vehicle, if the accelerator pedal
is depressed more than necessary, the sy stem will inform you with a visual and
audible alert. At the same time, the sy stem will prevent sudden forward or
backwards movement by limiting the output of the power system, then assistive
braking will activate when you get closer to the obstacle.
Assistive driving power suppression will no t activate in the following situations.
When moving forward:
• When on a steep slope or the shift position is in
(P, (R, or (N.
When reversing:
• When on a steep slope or the shift position is in a position other than
(R.
If the rear sensors are turned off using the parking sensor system, the assistive
driving power suppression will not work when reversing.
2Customized Features P. 318
Audible Alert
Beep
Beep
Accidental depression of the
accelerator/Limiting the
output of the power system
23 ACCORD 4D US HEV MAP-3130B6000.book 420 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

482
uuHonda Sensing ®u Sonar Sensors*
Driving

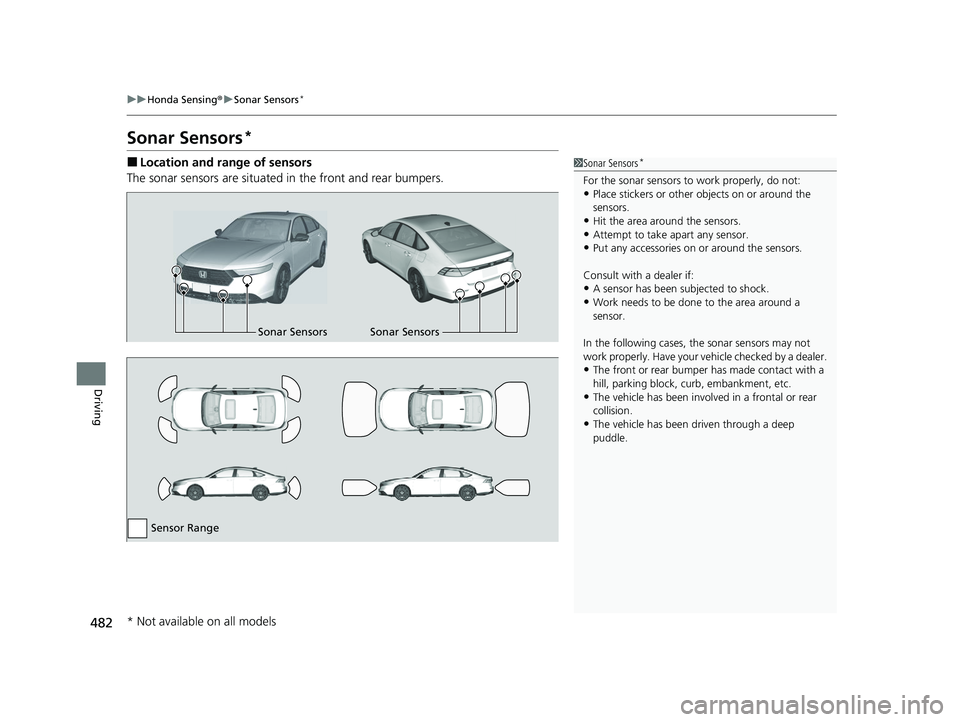

Sonar Sensors*
■Location and range of sensors
The sonar sensors are situated in the front and rear bumpers.1 Sonar Sensors*
For the sonar sensors to work properly, do not:•Place stickers or other objects on or around the
sensors.
•Hit the area around the sensors.•Attempt to take apart any sensor.
•Put any accessories on or around the sensors.
Consult with a dealer if:
•A sensor has been subjected to shock.
•Work needs to be done to the area around a
sensor.
In the following cases, the sonar sensors may not
work properly. Have your ve hicle checked by a dealer.
•The front or rear bumper has made contact with a
hill, parking block, curb, embankment, etc.
•The vehicle has been involv ed in a frontal or rear
collision.
•The vehicle has been driven through a deep
puddle.
Sonar Sensors Sonar Sensors
Sensor Range
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 482 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

495
uuParking Your Vehicle uParking Sensor System*
Continued
Driving

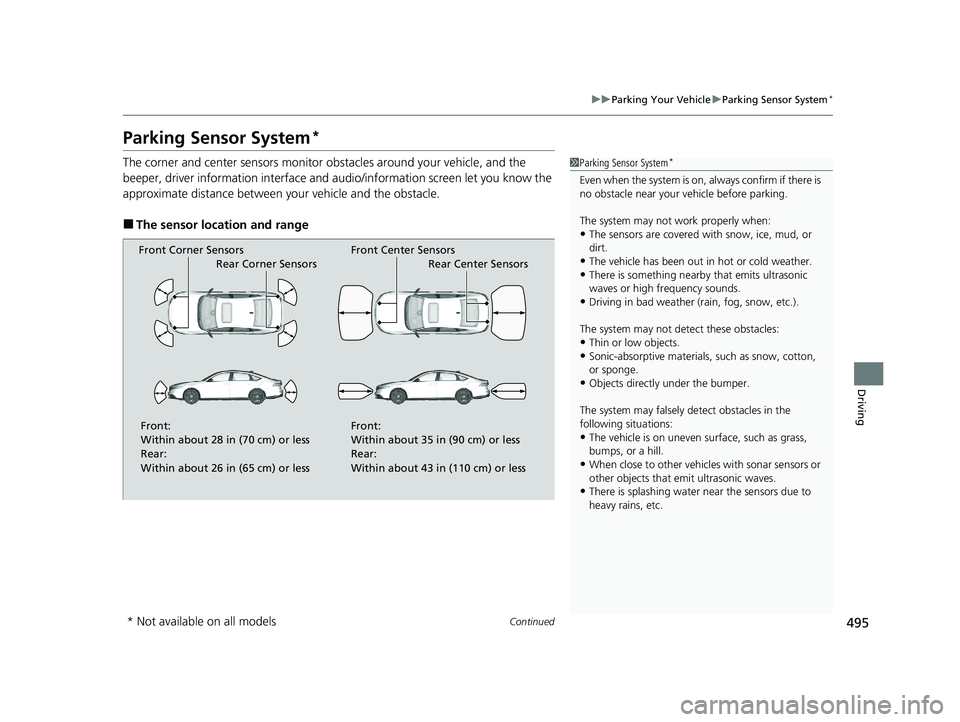

Parking Sensor System*
The corner and center sensors monitor ob stacles around your vehicle, and the
beeper, driver information interface and a udio/information screen let you know the
approximate distance between your vehicle and the obstacle.
■The sensor location and range
1 Parking Sensor System*
Even when the system is on, always confirm if there is
no obstacle near your ve hicle before parking.
The system may not work properly when:
•The sensors are covered with snow, ice, mud, or
dirt.
•The vehicle has been out in hot or cold weather.
•There is something nearby that emits ultrasonic
waves or high frequency sounds.
•Driving in bad weather (rain, fog, snow, etc.).
The system may not de tect these obstacles:
•Thin or low objects.
•Sonic-absorptive materials, such as snow, cotton,
or sponge.
•Objects directly under the bumper.
The system may falsely de tect obstacles in the
following situations:
•The vehicle is on uneven su rface, such as grass,
bumps, or a hill.
•When close to other vehicl es with sonar sensors or
other objects that em it ultrasonic waves.
•There is splashing water near the sensors due to
heavy rains, etc.
Front:
Within about 28 in (70 cm) or less
Rear:
Within about 26 in (65 cm) or less
Front Corner Sensors
Rear Corner Sensors
Front:
Within about 35 in (90 cm) or less
Rear:
Within about 43 in (110 cm) or lessRear Center Sensors
Front Center Sensors
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 495 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

uuParking Your Vehicle uParking Sensor System*
496
Driving

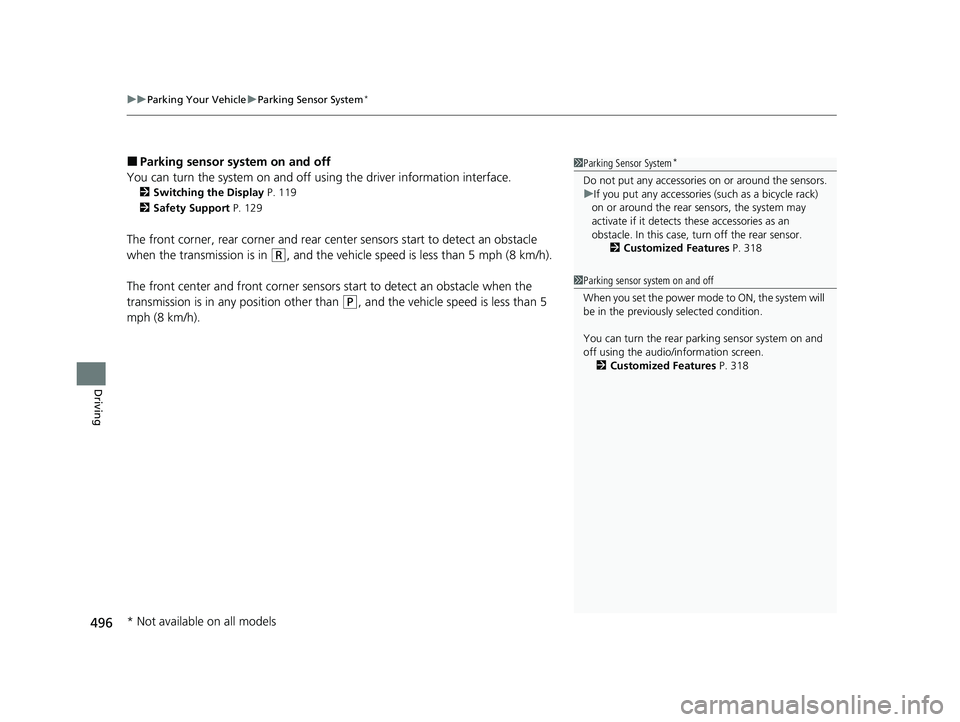

■Parking sensor system on and off
You can turn the system on and off us ing the driver information interface.
2Switching the Display P. 119
2 Safety Support P. 129
The front corner, rear corner and rear center sensors start to detect an obstacle
when the transmission is in
(R, and the vehicle speed is less than 5 mph (8 km/h).
The front center and front corner sensors start to detect an obstacle when the
transmission is in any position other than
(P, and the vehicle speed is less than 5
mph (8 km/h).
1 Parking Sensor System*
Do not put any accessories on or around the sensors.
u If you put any accessories (such as a bicycle rack)
on or around the rear sensors, the system may
activate if it detects these accessories as an
obstacle. In this case, turn off the rear sensor. 2Customized Features P. 318
1Parking sensor system on and off
When you set the power mode to ON, the system will
be in the previously selected condition.
You can turn the rear park ing sensor system on and
off using the audio/information screen. 2 Customized Features P. 318
* Not available on all models
23 ACCORD 4D US HEV MAP-3130B6000.book 496 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

497
uuParking Your Vehicle uParking Sensor System*
Driving

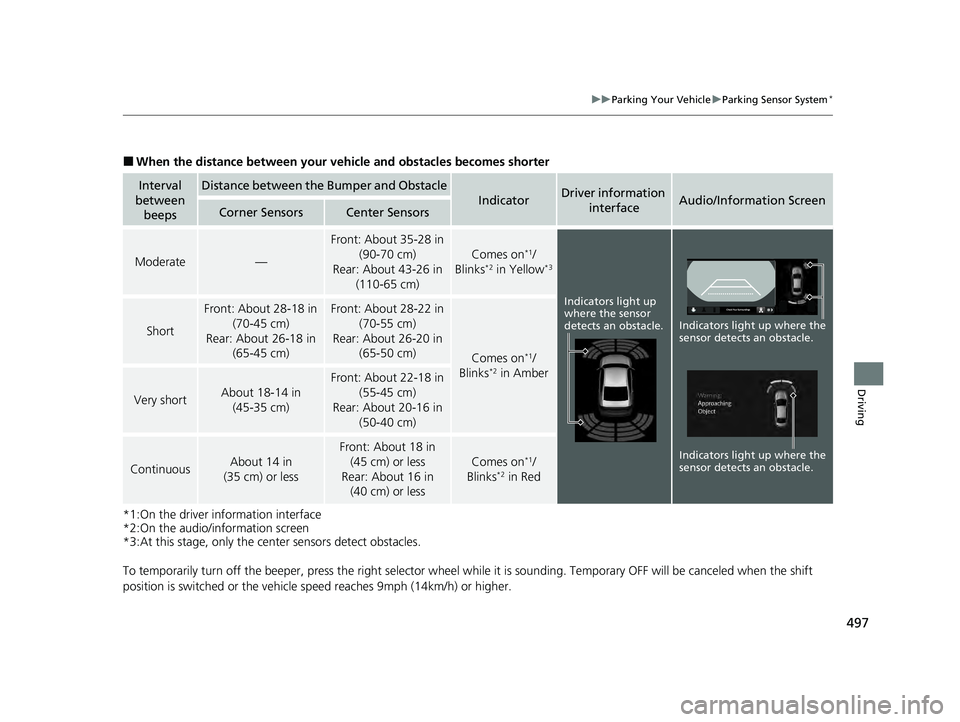

■When the distance between your vehicle and obstacles becomes shorter
*1:On the driver information interface
*2:On the audio/information screen
*3:At this stage, only the center sensors detect obstacles.
To temporarily turn off the beeper, press the right selector wheel while it is sounding. Temporary OFF will be canceled when the shift
position is switched or the vehicle speed reaches 9mph (14km/h) or higher.
Interval
between beepsDistance between the Bumper and Obstacle
IndicatorDriver information
interfaceAudio/Information ScreenCorner SensorsCenter Sensors
Moderate—
Front: About 35-28 in (90-70 cm)
Rear: About 43-26 in (110-65 cm)
Comes on*1/
Blinks*2 in Yellow*3
Short
Front: About 28-18 in
(70-45 cm)
Rear: About 26-18 in (65-45 cm)Front: About 28-22 in
(70-55 cm)
Rear: About 26-20 in (65-50 cm)
Comes on*1/
Blinks*2 in Amber
Very shortAbout 18-14 in (45-35 cm)
Front: About 22-18 in
(55-45 cm)
Rear: About 20-16 in (50-40 cm)
ContinuousAbout 14 in
(35 cm) or less
Front: About 18 in
(45 cm) or less
Rear: About 16 in (40 cm) or less
Comes on*1/
Blinks*2 in Red
Indicators light up
where the sensor
detects an obstacle.
Indicators light up where the
sensor detects an obstacle.
Indicators light up where the
sensor detects an obstacle.
23 ACCORD 4D US HEV MAP-3130B6000.book 497 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

498
uuParking Your Vehicle uCross Traffic Monitor
Driving

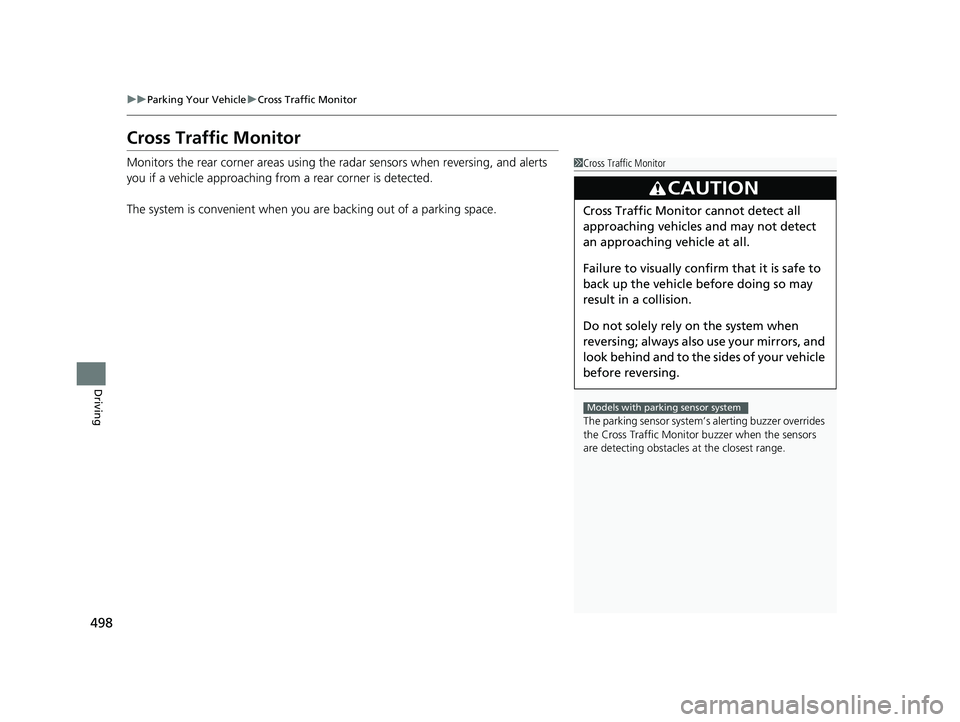

Cross Traffic Monitor
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor
The parking sensor system’s alerting buzzer overrides
the Cross Traffic Monitor buzzer when the sensors
are detecting obstacles at the closest range.
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
Models with parking sensor system
23 ACCORD 4D US HEV MAP-3130B6000.book 498 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

Continued499
uuParking Your Vehicle uCross Traffic Monitor
Driving

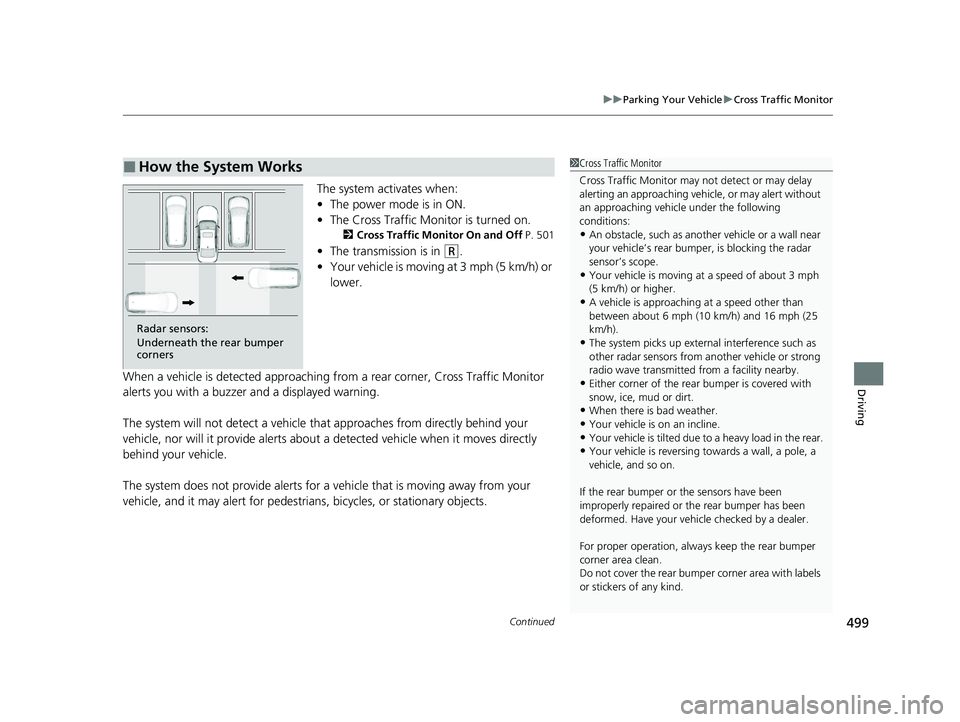

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 501
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.
■How the System Works1 Cross Traffic Monitor
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as anothe r vehicle or a wall near
your vehicle’s rear bumpe r, is blocking the radar
sensor’s scope.
•Your vehicle is moving at a speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at a speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
If the rear bumper or the sensors have been
improperly repaired or th e rear bumper has been
deformed. Have your vehi cle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
23 ACCORD 4D US HEV MAP-3130B6000.book 499 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
