spark plugs replace HONDA ACCORD HYBRID 2023 Owners Manual

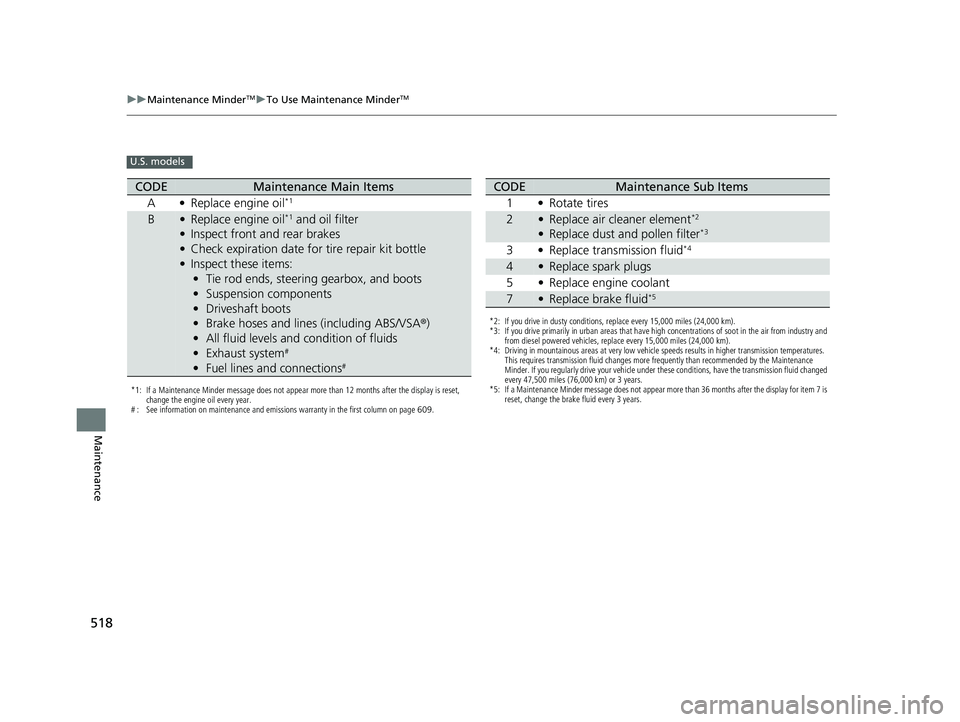

518
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 609.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Check expiration date for tire repair kit bottle
• Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*2: If you drive in dusty conditions, replace every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel powered vehicles, replace every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 47,500 miles (76,000 km) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
5 •Replace engine coolant
7•Replace brake fluid*5
23 ACCORD 4D US HEV MAP-3130B6000.book 518 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

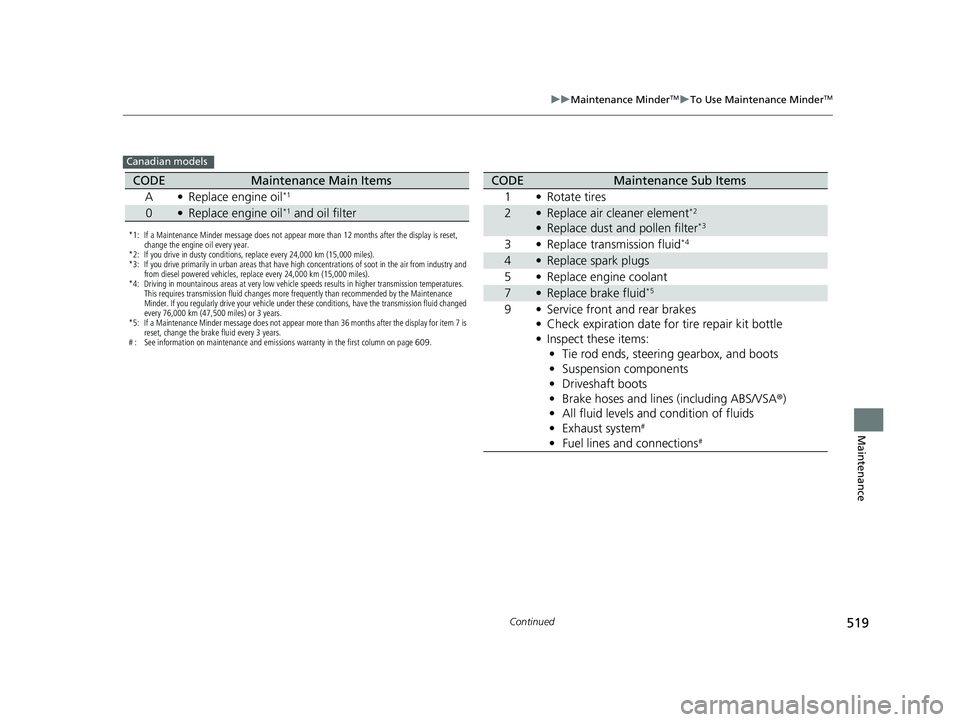

519
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel powered vehicles, replace every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 76,000 km (47,500 miles) or 3 years.
*5: If a Maintenance Minder message does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty in the first column on page 609.
CODEMaintenance Main Items
A •Replace engine oil*1
0•Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
3 •Replace transmission fluid*4
4•Replace spark plugs
5 •Replace engine coolant
7•Replace brake fluid*5
9 •Service front and rear brakes
• Check expiration date for tire repair kit bottle
• Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA ®)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
23 ACCORD 4D US HEV MAP-3130B6000.book 519 ページ ２０２２年１０月１３日　木曜日　午後４時５０分

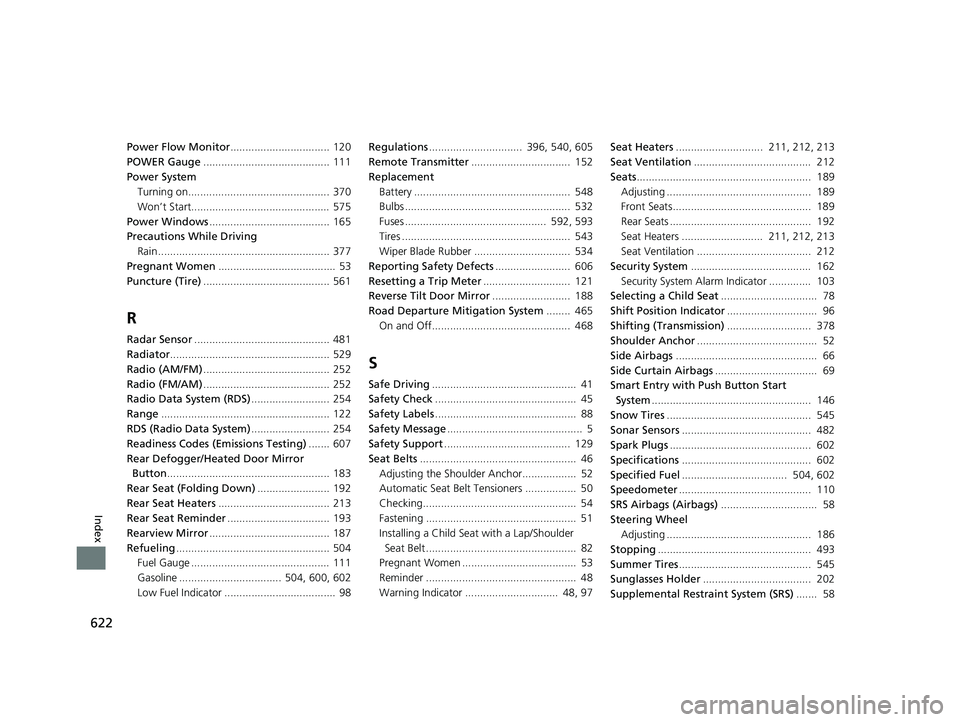

622
Index
Power Flow Monitor................................. 120
POWER Gauge .......................................... 111
Power System Turning on............................................... 370
Won’t Start.............................................. 575
Power Windows ........................................ 165
Precautions While Driving Rain ......................................................... 377
Pregnant Women ....................................... 53
Puncture (Tire) .......................................... 561
R
Radar Sensor............................................. 481
Radiator ..................................................... 529
Radio (AM/FM) .......................................... 252
Radio (FM/AM) .......................................... 252
Radio Data System (RDS) .......................... 254
Range ........................................................ 122
RDS (Radio Data System) .......................... 254
Readiness Codes (Emissions Testing) ....... 607
Rear Defogger/Heated Door Mirror Button ...................................................... 183
Rear Seat (Folding Down) ........................ 192
Rear Seat Heaters ..................................... 213
Rear Seat Reminder .................................. 193
Rearview Mirror ........................................ 187
Refueling ................................................... 504
Fuel Gauge .............................................. 111
Gasoline .................................. 504, 600, 602
Low Fuel Indicator ..................................... 98 Regulations
............................... 396, 540, 605
Remote Transmitter ................................. 152
Replacement Battery .................................................... 548
Bulbs ....................................................... 532
Fuses ............................................... 592, 593
Tires ........................................................ 543
Wiper Blade Rubber ................................ 534
Reporting Safety Defects ......................... 606
Resetting a Trip Meter ............................. 121
Reverse Tilt Door Mirror .......................... 188
Road Departure Mitigation System ........ 465
On and Off.............................................. 468
S
Safe Driving ................................................ 41
Safety Check ............................................... 45
Safety Labels ............................................... 88
Safety Message ............................................. 5
Safety Support .......................................... 129
Seat Belts .................................................... 46
Adjusting the Shoulder Anchor.................. 52
Automatic Seat Belt Tensioners ................. 50
Checking................................................... 54
Fastening .................................................. 51
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 82
Pregnant Women ...................................... 53
Reminder .................................................. 48
Warning Indicator ............................... 48, 97 Seat Heaters
............................. 211, 212, 213
Seat Ventilation ....................................... 212
Seats .......................................................... 189
Adjusting ................................................ 189
Front Seats.............................................. 189
Rear Seats ............................................... 192
Seat Heaters ........................... 211, 212, 213
Seat Ventilation ...................................... 212
Security System ........................................ 162
Security System Alarm Indicator .............. 103
Selecting a Child Seat ................................ 78
Shift Position Indicator .............................. 96
Shifting (Transmission) ............................ 378
Shoulder Anchor ........................................ 52
Side Airbags ............................................... 66
Side Curtain Airbags .................................. 69
Smart Entry with Push Button Start
System ..................................................... 146
Snow Tires ................................................ 545
Sonar Sensors ........................................... 482
Spark Plugs ............................................... 602
Specifications ........................................... 602
Specified Fuel ................................... 504, 602
Speedometer ............................................ 110
SRS Airbags (Airbags) ................................ 58
Steering Wheel Adjusting ................................................ 186
Stopping ................................................... 493
Summer Tires ............................................ 545
Sunglasses Holder .................................... 202
Supplemental Restraint System (SRS) ....... 58
23 ACCORD 4D US HEV MAP-3130B6000.book 622 ページ ２０２２年１０月１３日　木曜日　午後４時５０分
