Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR1616
To replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail.
1.
2.
Remote Transmitter
Remote Transmitter Care
Replacing the Transmitter Battery
80
SCREW
——yy
(yy

´
Inside the transmitter, separate
the inner cover f rom the keypad
by releasing the two tabs on the
cover. Remove the old battery from the
back of the inner cover, and note
the polarity. Make sure the
polarity of the new battery is the
same ( side f acing down), then
insert it into the back of the cover.
Install the parts in reverse order.
3. 4.
5.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Inst rument s and Cont rols
81
BATTERY
TAB
——yy
(yy

To protect items in the trunk when
you need to give the key to some one
else:
Give the person the valet key.
Pull
up on the trunk release lever
located to the left of the driver’s
seat. Lockthetrunkreleaseleverwith
the
master key. Also make sure
the trunk pass-through cover is
locked (see page ).
Press
and hold the trunk release
button on the remote transmitter. To
close the trunk, press down on
the trunk lid.
See page for cargo loading and
weight limit information. Keep the
trunk lid closed at all times while
driving to avoid damaging the lid,
and to prevent exhaust gas from
getting into the interior. See
on page .
You can open the trunk in either of
the following ways: 1.
2.
52
165
89
Trunk
Carbon
Monoxide Hazard
82
Pull
TRUNK RELEASE LEVER MASTER
KEY
——
y
y
(yy

As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from the
inside. To
open the trunk, push the release
lever to the left.
For more information about child
saf ety, see page . 38
Emergency T runk Opener
Trunk
Inst rument s and Cont rols
83
——yy
(yy

After the seat reaches a comfortable
temperature, select LO by pushing
the back of the switch. This will keep
the seat warm.
In HI, the heater turns of f when the
seat gets warm, and turns back on
after the seat temperature drops.
In LO, the heater runs continuously.
It does not cycle with temperature
changes.Follow these precautions whenever
you use the seat heaters:
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Both f ront seats are equipped with
seat heaters. Because of the sensors
f or the side airbag system, there is
no heater in the passenger’s seat-
back. The ignition switch must be
ON (II) to use the heaters.
U.S. EX-L and EX-V6 Canadian EX-L and EX-V6
Seat Heaters
84
——yy
(yy

µ
Raises or lowers the
seat.
Adjusts the seat-back
angle forward or
backward. Moves the front of the
seat up or down and
the rear of the seat up
or down.
Moves
the seat
forward and backward.
The
controls for the adjustable
driver’s power seat are on the
outside edge of the seat bottom. You
can adjust the power seat with the
ignition switch in any position. Make
all seat adjustmen ts before you start
driving.
To change the lumbar support, move
the lever on the right side of the
seat-back forward or backward.
Keep moving the lever forward or
backward until you find a suitable
position.
The
passenger’s seat has two
switches. One moves the seat
forward and backward, and the other
raises and lowers the seat.
See pages f or important saf ety
inf ormation and warnings about how toproperly position seats and seat-backs.
U.S. EX, EX-L, LX-V6 and EX-V6
Canadian EX-L, SE-V6 and LX-V6 1413
U.S. EX-V6 Canadian EX-V6 U.S. EX, EX-L and EX-V6
Canadian EX-L and EX-V6
Power Seat Adjustment Driver’s Lumbar Support
Seats
Inst rument s and Cont rols
85
——y
y
(yy

To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.The height of your driver’s seat is
adjustable. To raise the seat bottom,
repeatedly pull up the lever on the
outside of the seat cushion. To lower
the seat, push the lever down
repeatedly.
To adjust the seat f orward or
backward, pull up on the bar under
the seat cushion’s f ront edge. Move
the seat to the desired position, and
releasethebar.Trytomovetheseat
to make sure it is locked in position.
U.S. VP and SE
Canadian DX-G and SE
Front Seat A djustments Driver’s Seat Manual Height
Adjustment
Seats
86
——y
y
(yy

The height of your driver’s seat is
power adjustable. Pull up on the
switch to raise the seat. Push it down
to lower the seat.
Make all adjustm ents before you
start driving. They
are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
The front and rear head restraints
adjust for height. You need both
hands to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button
and push the restraint down.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers f rom whiplash and other
injuries.
See page f or important saf ety
inf ormation and a warning about how toproperly position the head restraints.
U.S. EX
Canadian EX-L, SE-V6 and EX-V6
15
Seats
Driver’s Seat Power Height
AdjustmentHead Restraints
Inst rument s and Cont rols
87
RELEASE BUTTON
——yy
(yy

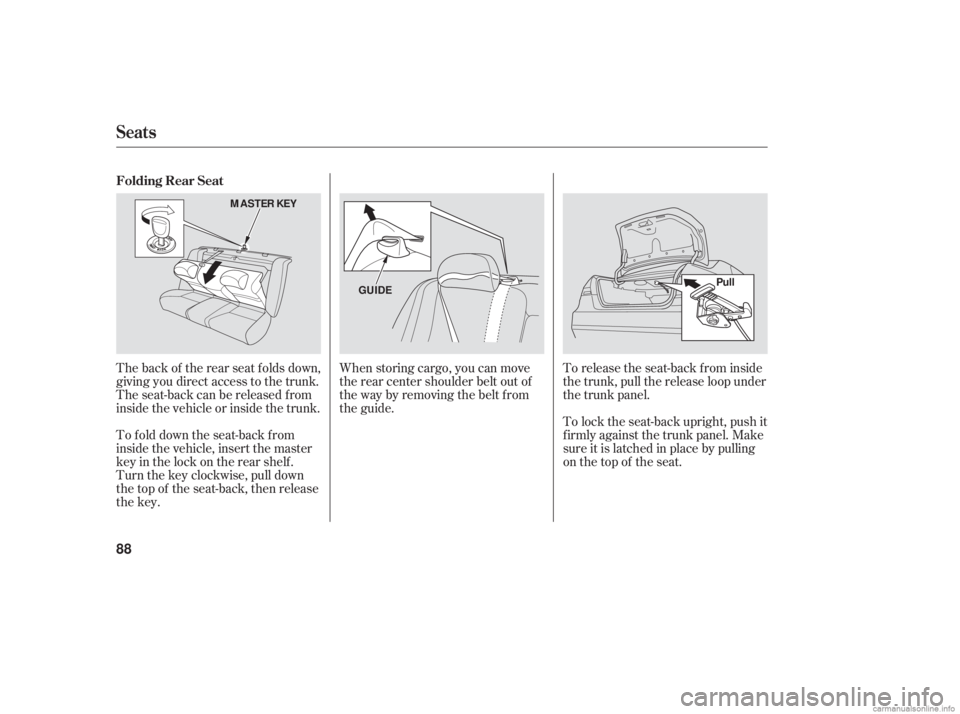

The back of the rear seat folds down,
giving you direct access to the trunk.
The seat-back can be released f rom
inside the vehicle or inside the trunk.
To fold down the seat-back from
inside the vehicle, insert the master
keyinthelockontherearshelf.
Turn the key clockwise, pull down
the top of the seat-back, then release
the key.When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt from
the guide.
To release the seat-back from inside
the trunk, pull the release loop under
the trunk panel.
To lock the seat-back upright, push it
firmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.
Folding Rear Seat
Seats
88
MASTER KEY
GUIDE Pull
——yy
(y
y

Make sure all rear shoulder belts are
positioned in front of the rear seat-
back whenever the seat-back is in its
upright position.
Make sure all items in the trunk, or
items extending through the opening
into the back seat, are secured.
Looseitemscanflyforwardand
cause injury if you have to brake
hard. See on page
.
Never drive with the seat-back
folded down and the trunk lid open.
See on
page . For
security, this cover can be
locked and unlocked only with the
master key. To lock the cover, insert
thekeyandturnitclockwise.
Never drive with this cover open and
the trunk lid open.
See on
page .
The trunk pass-through cover can be
opened f rom either side; it f olds
f orward onto the center armrest.
Open the cover by sliding the knob
downward and pushing or pulling on
the cover. To close the cover, swing
it up and push f irmly on the top.
Make sure it latches properly.
Make sure all items in the trunk and
those extending through the pass-
through are secured.
52
52
164
Except U.S. VP and Canadian DX-G
Seats
Carrying Cargo
Carbon Monoxide Hazard Carbon Monoxide Hazard
T runk Pass-through Cover
Inst rument s and Cont rols
89
KEY CYLINDER
LID KNOB
——y
y
(yy
