If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
info rmation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and secu rely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
Of
course, children vary widel y. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries. The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat. Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see page ). If the seat
belt does not f it properly, with or
without the child sitting on a booster
seat, the child should not sit in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.48
Protecting L arger Children
Physical Size
Maturity
When Can a L arger Child Sit in
Front
50
——y
y
(yy

This could result
in serious neck injuries during a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Do not let a child wear a seat belt
across t he neck. Do not put any accessories on a
seat belt.
Do not let a child put the shoulder part of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt .
Additional Saf ety Precautions
Protecting L arger Children
Driver and Passenger Saf ety
51
——y
y
(yy

Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
1.
2.
3.
4.
Carbon Monoxide Hazard
52
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
——y
y
(yy

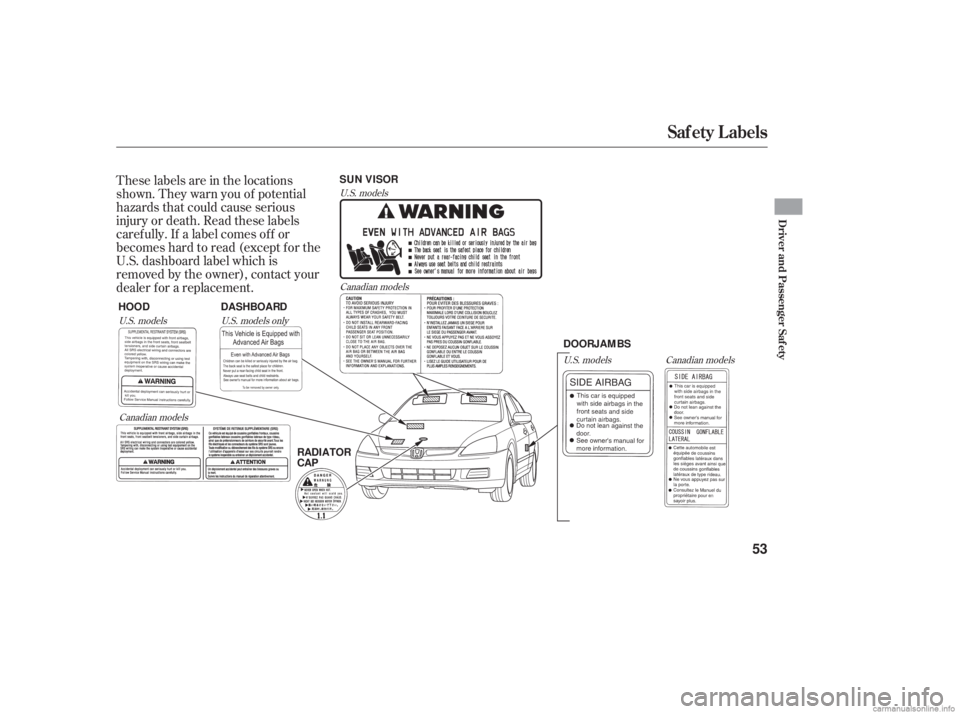

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully. If a label comes of f or
becomeshardtoread(exceptforthe
U.S. dashboard label which is
removed by the owner), contact your
dealer f or a replacement.U.S. modelsCanadian models U.S. modelsCanadian models
U.S. models
Canadian models U.S. models only
Saf ety L abels
Driver and Passenger Saf ety
53
SUN VISOR
HOOD DOORJAMBS
RADIATOR
CAP
DASHBOARD
——y

y
(yy

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
..........
Instrument Panel Indicators . 58
.............................................
Gauges .64
Odometer/Outside .............
Temperature Display . 64
.....................................
Odometer .64
...
Outside Temperature Display . 64...................................
Trip Meter .65
...................
Temperature Gauge . 65
..................................
Fuel Gauge .66
..........
Check Fuel Cap Indicator . 66
Controls Near the Steering ...........................................
Wheel .67
......................
Wipers and Washers .68
...........
Turn Signal and Headlights . 69
Automatic Lighting Off .........................................
Feature .70
................
Daytime Running Lights . 70
........
Instrument Panel Brightness . 71
..............................
Hazard Warning .71
.................
Rear Window Def ogger . 72
..........
Steering Wheel Adjustment . 73
...............................
Keys and Locks .74
........................
Immobilizer System .75
................................
Ignition Switch .76
......................................
Door Locks .77
..................
Childproof Door Locks . 78
.......................
Remote Transmitter .78
................................................
Trunk .82
........
Emergency Trunk Opener . 83
....................................
Seat Heaters .84
.................................................
Seats .85
.............
Power Seat Adjustment . 85 ...........
Driver’s Lumbar Support . 85
.............
Front Seat Adjustments . 86
Driver’s Seat Manual Height ..............................
Adjustment .86
Driver’s Seat Power Height ..............................
Adjustment .87
..........................
Head Restraints .87
.......................
Folding Rear Seat .88
.............................................
Mirrors .90
....
Adjusting the Power Mirrors . 90
..............................
Power Windows .91
Power Window Control ...............................
Operations .93
.........................................
Moonroof .94
.................................
Parking Brake .95
..........................................
Sun Visor .96
..................................
Vanity Mirror .96
.................................
Interior Lights .97
................................
Ceiling Light .97
...........
Individual Interior Lights . 97
...........
Interior Convenience Items . 98
.......................
Beverage Holders .99
..........
Accessory Power Sockets . 99
...............
Console Compartment . 99
....................
Sunglasses Holder .100
..................................
Glove Box .100
Instruments and Controls
Inst rument s and Cont rols
55
——y
y
(yy

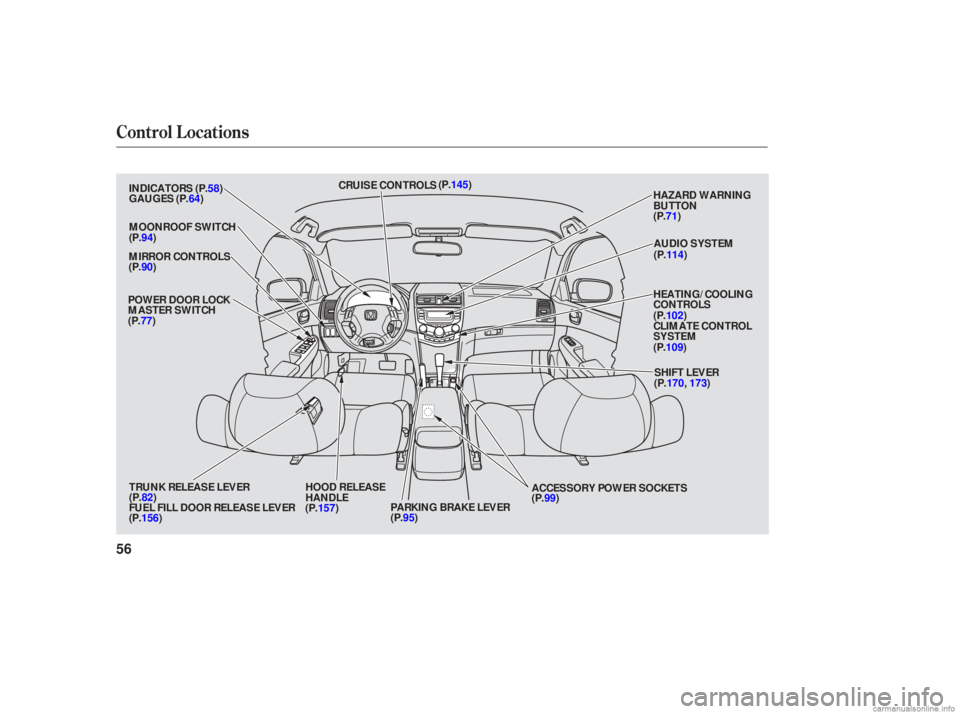

Control Locations
56
MIRROR CONTROLS
ACCESSORY POWER SOCKETSAUDIO
SYSTEM
CLIMATE CONTROL
SYSTEM HEATING/COOLING
CONTROLS HAZARD
WARNING
BUTTON
CRUISE
CONTROLS
MOONROOF SWITCH
TRUNK RELEASE LEVER
PARKING BRAKE LEVER
HOOD
RELEASE
HANDLE
INDICATORS
GAUGES
FUEL
FILL DOOR RELEASE LEVER
POWER
DOOR LOCK
MASTER SWITCH
SHIFT LEVER
(P.58)
(P.64)
(P.94)
(P.90)
(P.77)
(P.82)
(P.156) (P.145)
(P.71)
(P.114)
(P.102)
(P.109)
(P.170, 173)
(P.99)
(P.95)
(P.157)
——yy
(yy

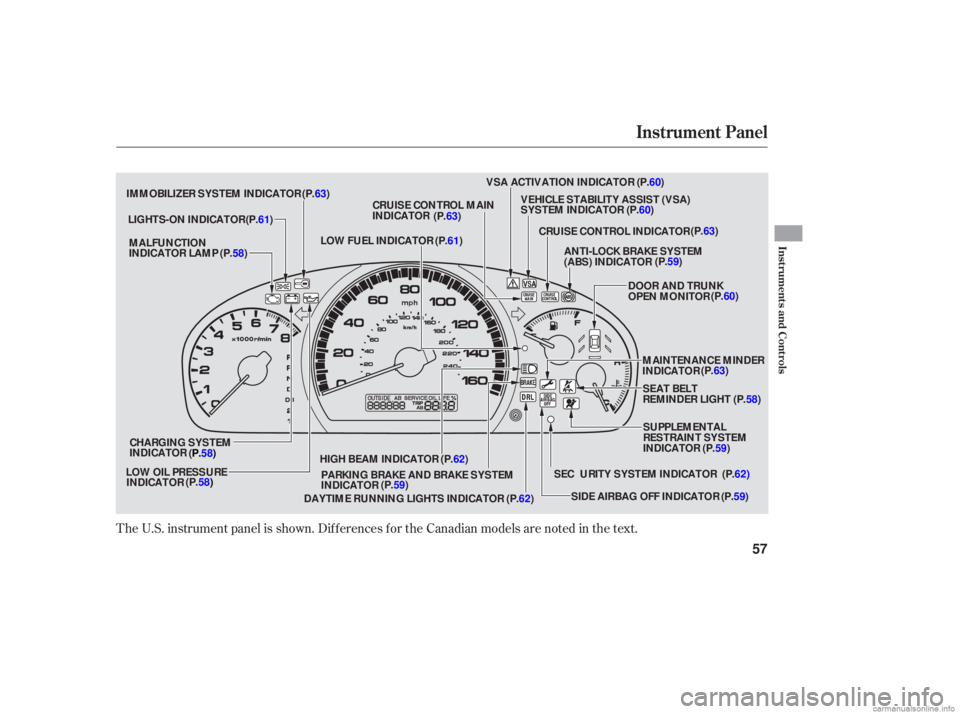

The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instru m ent sand Cont ro ls
57
CRUISE CONTROL INDICATOR
LOW FUEL INDICATOR
MALFUNCTION
INDICATOR LAMP
LOW OIL PRESSURE INDICATOR SEC URITY SYSTEM INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL
RESTRAINT SYSTEM
INDICATOR
DOOR AND TRUNK
OPEN MONITOR
CRUISE CONTROL MAIN
INDICATOR
HIGH BEAM INDICATOR
(P.58) (P.58) (P.61)
(P.61)
(P.58)
(P.62)
(P.60)
(P.63)
(P.59)
(P.63)
(P.62) VSA ACTIVATION INDICATOR
(P.63)
(P.58)
CHARGING SYSTEM
INDICATOR VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
PARKING BRAKE AND BRAKE SYSTEM
INDICATOR MAINTENANCE MINDER
INDICATOR
SEAT BELT
REMINDER LIGHT
DAYTIME RUNNING LIGHTS INDICATOR SIDE AIRBAG OFF INDICATOR (P.59)
LIGHTS-ON INDICATOR
(P.60)
(P.59)
(P.60)
(P.63)
(P.59) (P.62)
——yy
(yy

The instrument panel has many
indicato rs to give you important
information about your vehicle. The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
See page .
This
indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to fasten your seat belts.
A beeper also sounds if you and your
front passenger have not fastened
your seat belts.
If you turn the ignition switch to the
ON (II) position before fastening
your seat belts, the beeper sounds,
and the indicator flashes. If you do
not fasten your seat belts before the
beep er stops, the indicator stops
flashing but remains on. If
your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
inf ormation, see page . 20 250
251 251
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
Instrument Panel Indicators
58
——yy
(y
y

This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
info rmation, see page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.Ifthishappens,haveyour
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more information, see
page .
This
indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
poten tial problem with your front
airbags. This indica tor will also alert
you to a poten tial problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
info rmation, see page .
This
indicator has two functions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you try to drive with the
parking brake not fully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it remains lit after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page . 30
31
180
1.
2.
253 Anti-lock Brake System
(A BS) Indicator
Supplemental Restraint
System Indicator
Parking Brake and Brake System
Indicator
Side Airbag Of f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
Canada
U.S.
Canada
U.S.
——yy
(yy
