HONDA ACCORD SEDAN 2016 Owner's Manual (in English)

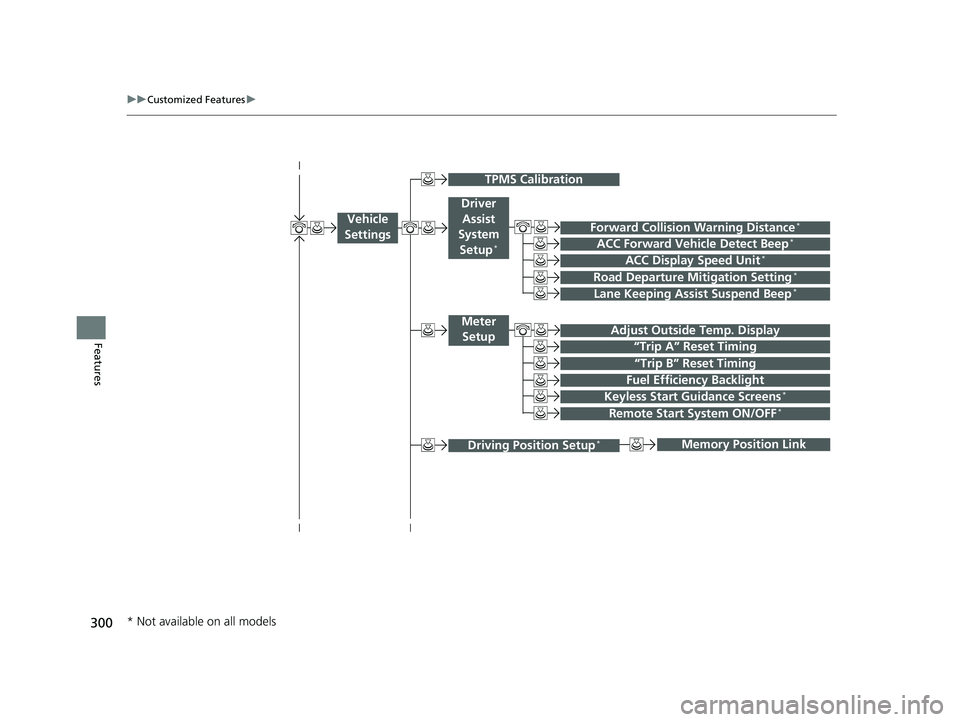

300
uuCustomized Features u
Features
“Trip B” Reset Timing
Adjust Outside Temp. Display
“Trip A” Reset Timing
Fuel Efficiency Backlight


Memory Position Link
Keyless Start Guidance Screens*
Vehicle
Settings
Meter Setup
TPMS Calibration
Driving Position Setup*
Remote Start System ON/OFF*

Driver
Assist
System
Setup
*
ACC Display Speed Unit*
Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Road Departure Mitigation Setting*
Lane Keeping Assist Suspend Beep*
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 300 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

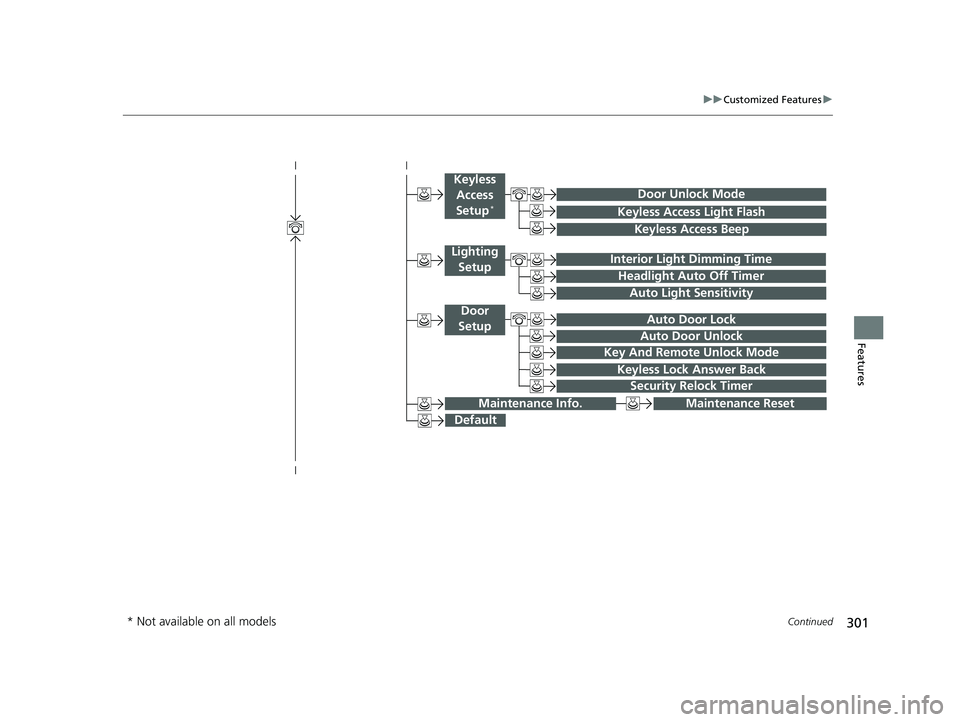

301
uuCustomized Features u
Continued
Features
Keyless Access Light Flash
Auto Light Sensitivity
Auto Door Lock
Auto Door Unlock
Door Unlock Mode
Interior Light Dimming Time
Headlight Auto Off Timer



Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Maintenance Reset
Default
Keyless
Access
Setup
*
Lighting Setup
Door
Setup
Maintenance Info.
Keyless Access Beep
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 301 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

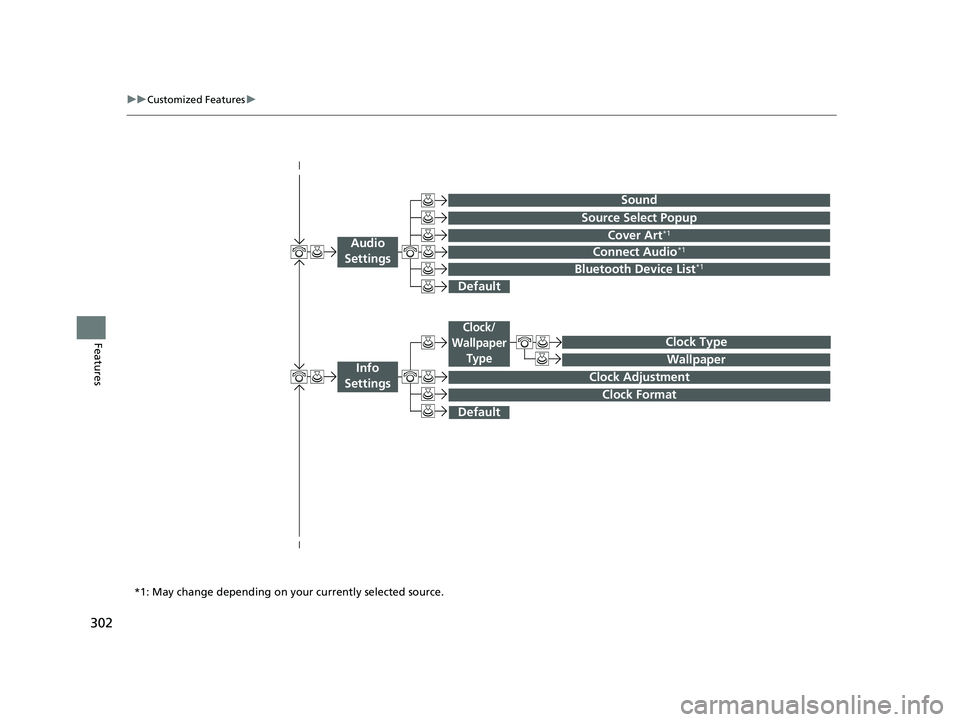

302
uuCustomized Features u
Features
Wallpaper
Source Select Popup
Clock Type

Sound

Default
Cover Art*1
Connect Audio*1
Bluetooth Device List*1

Default
Clock Adjustment
Clock Format
Audio
Settings
Clock/
Wallpaper Type
Info
Settings
*1: May change depending on your currently selected source.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 302 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

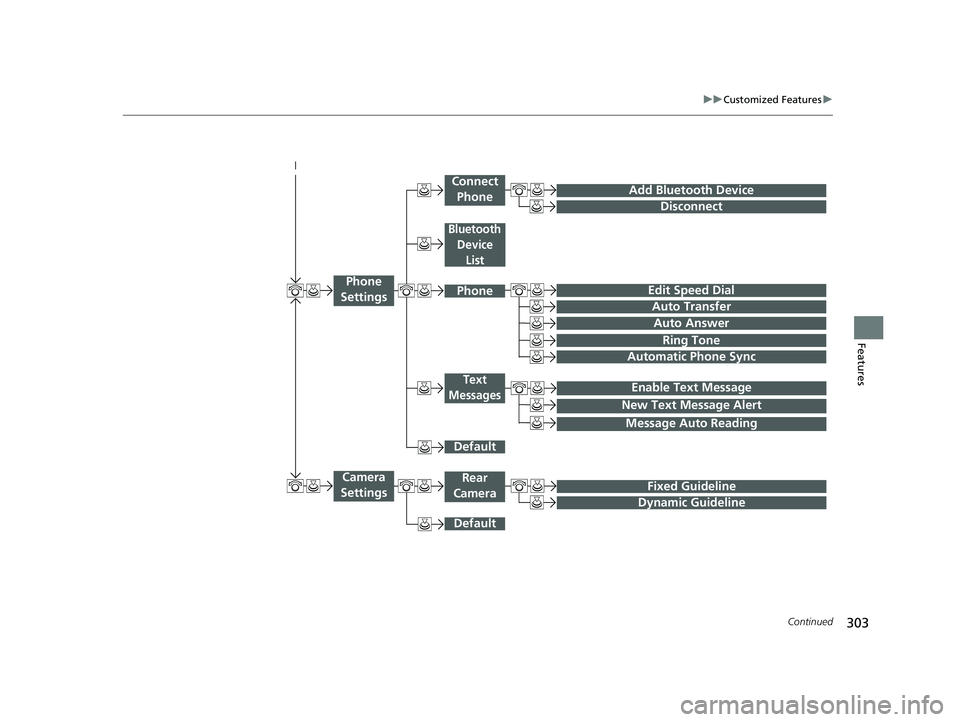

303
uuCustomized Features u
Continued
Features
Add Bluetooth Device
Disconnect
Edit Speed Dial
Auto Transfer



Auto Answer
Ring Tone
Automatic Phone Sync
Default
Enable Text Message
Message Auto Reading
New Text Message Alert
Phone
Settings
Connect Phone
Text
Messages
Bluetooth Device List
Phone

Default
Fixed Guideline
Dynamic Guideline
Camera
SettingsRear
Camera
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 303 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

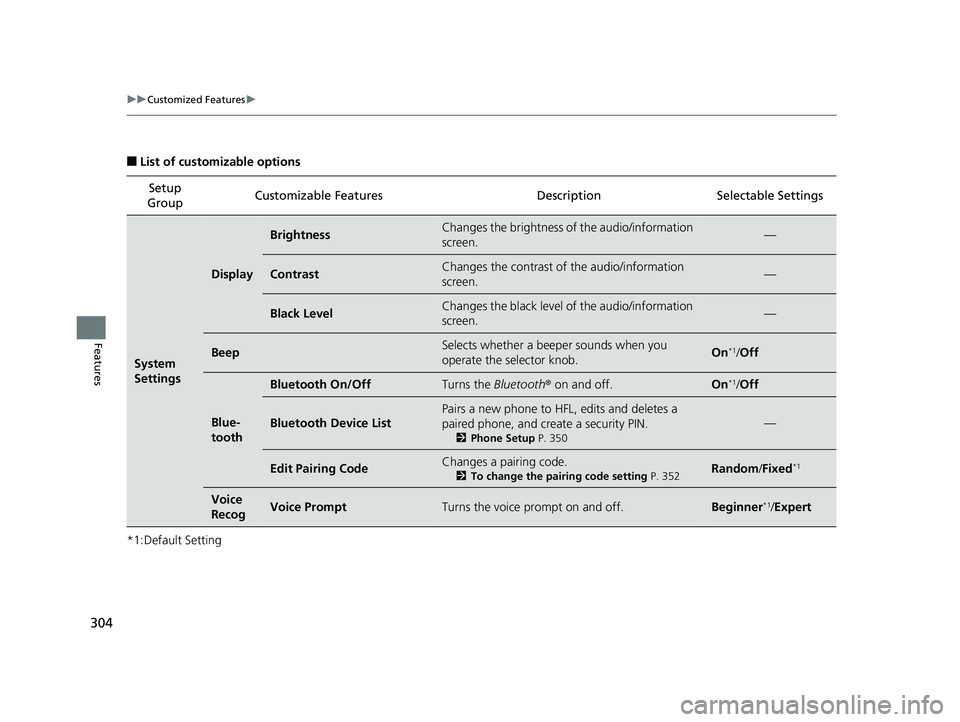

304
uuCustomized Features u
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Descri
ption Selectable Settings
System
Settings
Display
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
BeepSelects whether a beeper sounds when you
operate the selector knob.On*1/Off
Blue-
tooth
Bluetooth On/OffTurns the Bluetooth ® on and off.On*1/Off
Bluetooth Device List
Pairs a new phone to HFL, edits and deletes a
paired phone, and create a security PIN.
2 Phone Setup P. 350
—
Edit Pairing CodeChanges a pairing code.
2To change the pairing code setting P. 352Random/Fixed*1
Voice
RecogVoice PromptTurns the voice prompt on and off.Beginner*1/Expert
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 304 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

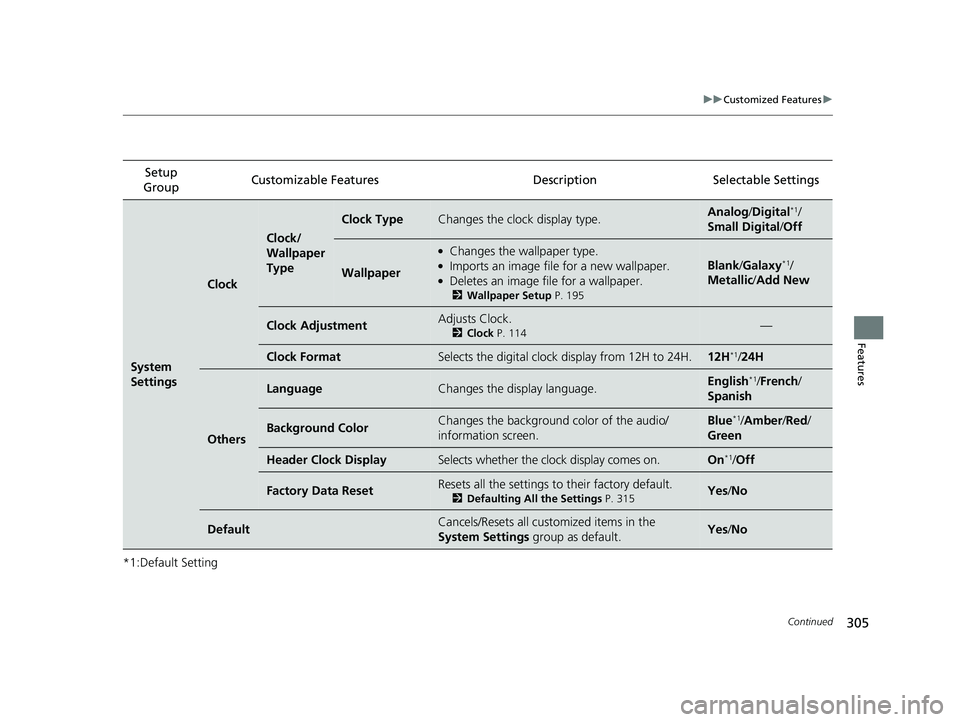

305
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Clock
Clock/
Wallpaper
Type
Clock TypeChanges the clock display type.Analog
/Digital*1/
Small Digital/ Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.
2Wallpaper Setup P. 195
Blank/Galaxy*1/
Metallic/ Add New
Clock AdjustmentAdjusts Clock.
2Clock P. 114—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Others
LanguageChanges the display language.English*1/ French /
Spanish
Background ColorChanges the background color of the audio/
information screen.Blue*1/ Amber /Red /
Green
Header Clock DisplaySelects whether the cl ock display comes on.On*1/Off
Factory Data ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 315Yes /No
DefaultCancels/Resets all customized items in the
System Settings group as default.Yes/No
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 305 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

306
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Settings TPMS Calibration
Cancels/Calibrates the TPMS. Cancel
*1/Calibrate
Driver
Assist
System
Setup
*
Forward Collision Warning
Distance*Changes at which distance the CMBSTM alerts. Long/Normal*1/ Short
ACC Forward Vehicle
Detect Beep
*
Causes the system to beep when the system
detects a vehicle, or when the vehicle goes out of
the ACC range. On
/Off*1
ACC Display Speed Unit*Changes the speed unit for ACC on the multi-
information display. mph
*1/
km/h
(U.S.)
mph /km/h
*1
(Canada)
Road Departure Mitigation
Setting
*Changes the setting for the road departure
mitigation system. Normal*1/
Wide /
Warning Only
Lane Keeping Assist
Suspend Beep
*Causes the system to b eep when the LKAS is
suspended. On
/Off*1
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 306 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

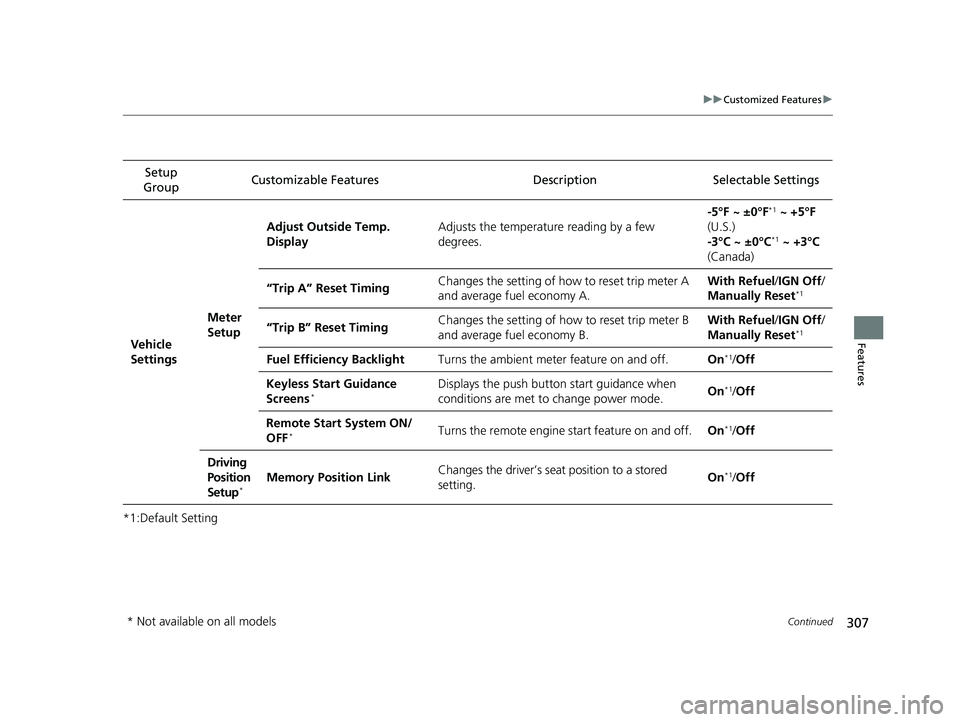

307
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
SettingsMeter
SetupAdjust Outside Temp.
Display
Adjusts the temperature reading by a few
degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A
and average fuel economy A. With Refuel
/IGN Off /
Manually Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B
and average fuel economy B. With Refuel
/IGN Off /
Manually Reset*1
Fuel Efficiency Backlight Turns the ambient meter feature on and off. On*1/Off
Keyless Start Guidance
Screens
*Displays the push button start guidance when
conditions are met to change power mode. On*1/
Off
Remote Start System ON/
OFF
*Turns the remote engine start feature on and off. On*1/Off
Driving
Position
Setup
*Memory Position Link Changes the driver’s seat position to a stored
setting. On*1/
Off
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 307 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

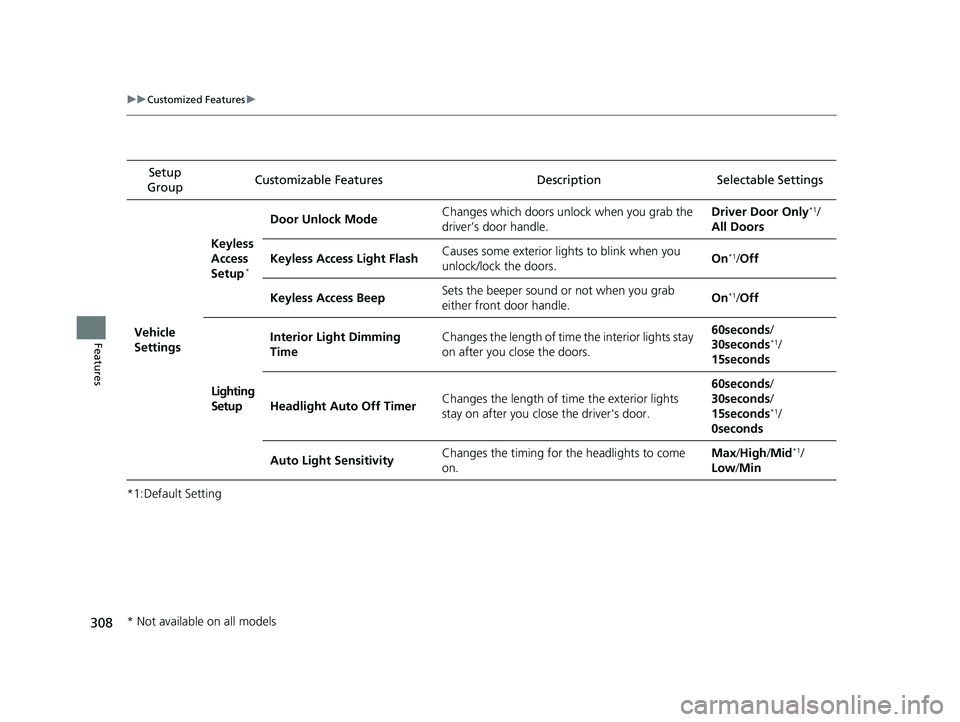

308
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Settings Keyless
Access
Setup
*
Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only*1/
All Doors
Keyless Access Light Flash Causes some exterior lig
hts to blink when you
unlock/lock the doors. On
*1/
Off
Keyless Access Beep Sets the beeper sound or not when you grab
either front door handle. On
*1/
Off
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors. 60seconds/
30seconds
*1/
15seconds
Headlight Auto Off Timer Changes the length of time the exterior lights
stay on after you close the driver's door. 60seconds/
30seconds/
15seconds
*1/
0seconds
Auto Light Sensitivity Changes the timing for the headlights to come
on. Max
/High /Mid
*1/
Low /Min
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 308 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

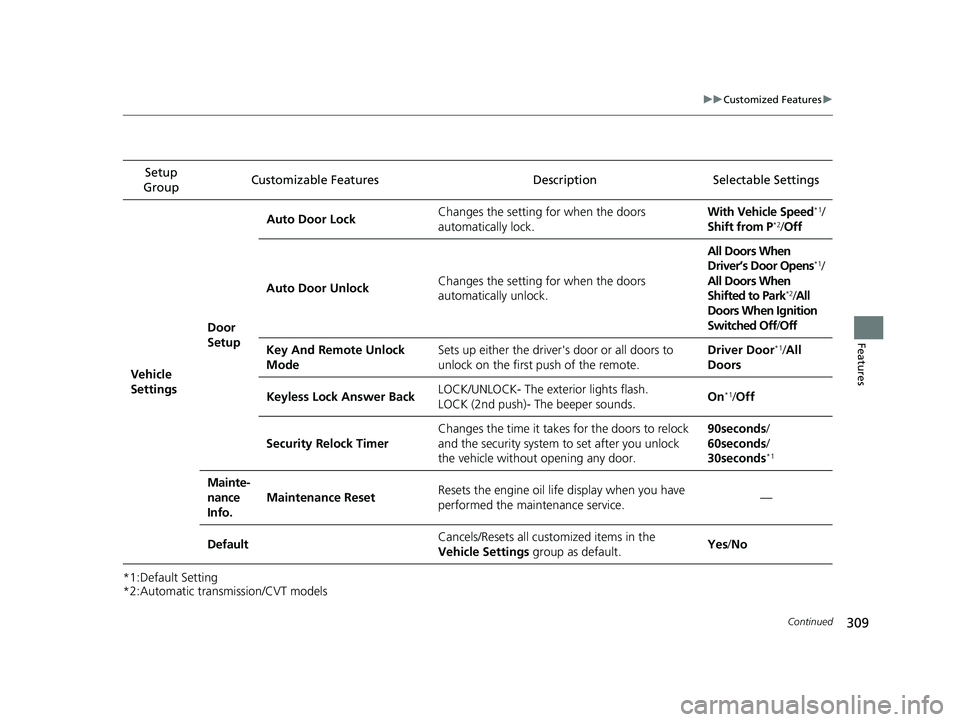

309
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Automatic transmission/CVT modelsSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Door
SetupAuto Door Lock
Changes the setting
for when the doors
automatically lock. With Vehicle Speed
*1/
Shift from P*2/ Off
Auto Door Unlock Changes the setting
for when the doors
automatically unlock. All Doors When
Driver’s Door Opens
*1/
All Doors When
Shifted to Park
*2/ All
Doors When Ignition
Switched Off /Off
Key And Remote Unlock
Mode Sets up either the driver's door or all doors to
unlock on the first push of the remote. Driver Door
*1/
All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds
*1
Mainte-
nance
Info. Maintenance Reset
Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle Settings
group as default. Yes
/No
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 309 ページ ２０１５年９月２５日　金曜日　午前１０時３８分
