HONDA ACCORD SEDAN 2016 Owner's Manual (in English)

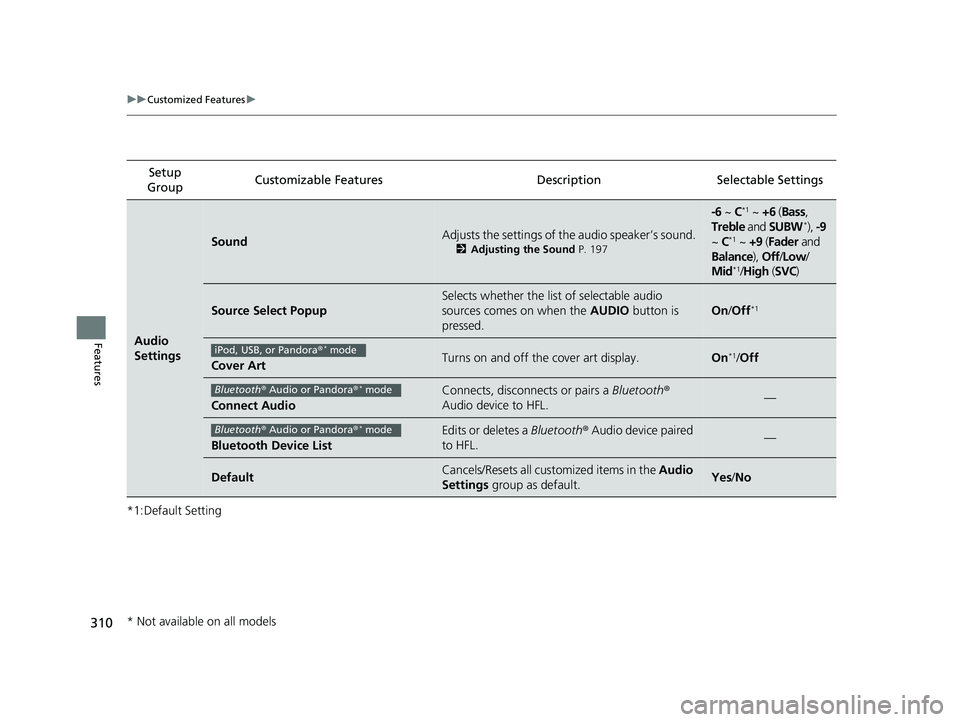

310
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio
Settings
SoundAdjusts the settings of the audio speaker’s sound.
2Adjusting the Sound P. 197
-6 ~ C*1 ~ +6 (Bass ,
Treble and SUBW*), -9
~ C*1 ~ +9 (Fader and
Balance ), Off/Low /
Mid
*1/ High (SVC)
Source Select Popup
Selects whether the list of selectable audio
sources comes on when the AUDIO button is
pressed.
On /Off*1
Cover ArtTurns on and off the cover art display.On*1/Off
Connect Audio
Connects, disconnects or pairs a Bluetooth®
Audio device to HFL.—
Bluetooth Device List
Edits or deletes a Bluetooth® Audio device paired
to HFL.—
DefaultCancels/Resets all cust omized items in the Audio
Settings group as default.Yes/No
iPod, USB, or Pandora ®* mode
Bluetooth® Audio or Pandora ®* mode
Bluetooth® Audio or Pandora ®* mode
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 310 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

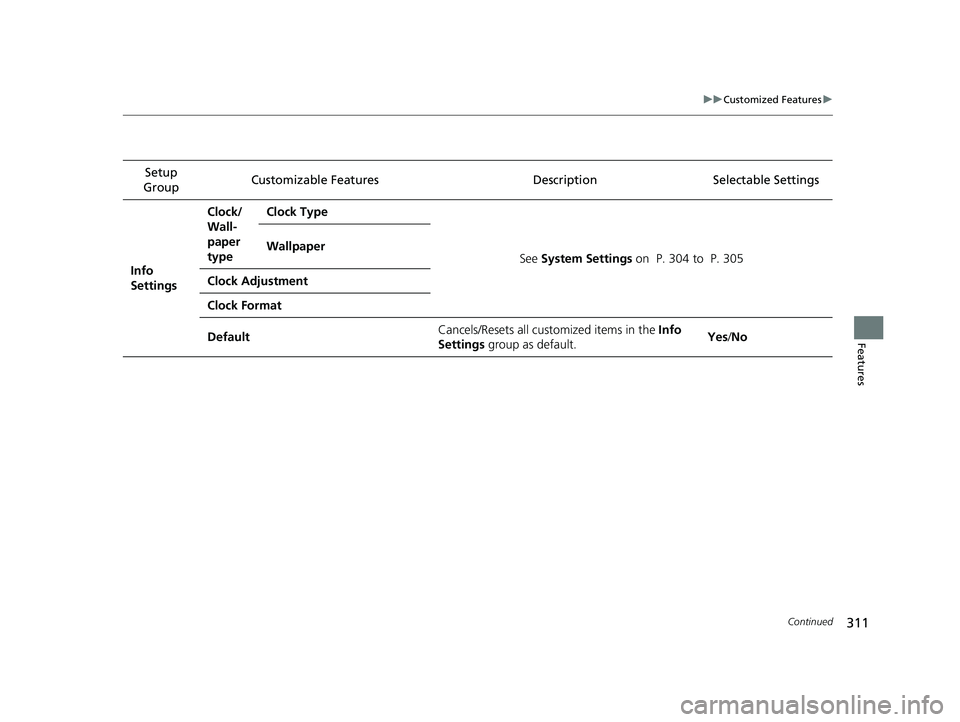

311
uuCustomized Features u
Continued
Features
Setup
Group Customizable Features
DescriptionSelectable Settings
Info
Settings Clock/
Wall-
paper
type
Clock Type
See System Settings on P. 304 to P. 305
Wallpaper
Clock Adjustment
Clock Format
Default Cancels/Resets all customized items in the
Info
Settings group as default. Yes
/No
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 311 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

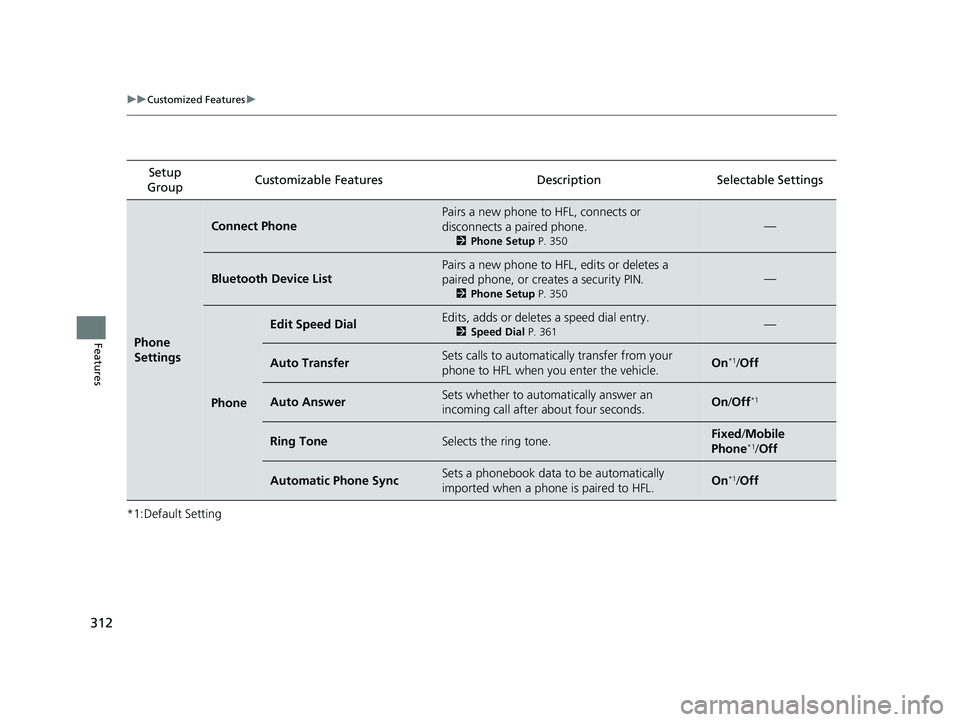

312
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Phone
Settings
Connect Phone
Pairs a new phone to HFL, connects or
disconnects a paired phone.
2Phone Setup P. 350
—
Bluetooth Device List
Pairs a new phone to HFL, edits or deletes a
paired phone, or creates a security PIN.
2Phone Setup P. 350
—
Phone
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 361—
Auto TransferSets calls to automatically transfer from your
phone to HFL when you enter the vehicle.On*1/Off
Auto AnswerSets whether to automatically answer an
incoming call after about four seconds.On /Off*1
Ring ToneSelects the ring tone.Fixed /Mobile
Phone*1/ Off
Automatic Phone SyncSets a phonebook data to be automatically
imported when a phone is paired to HFL.On*1/Off
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 312 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

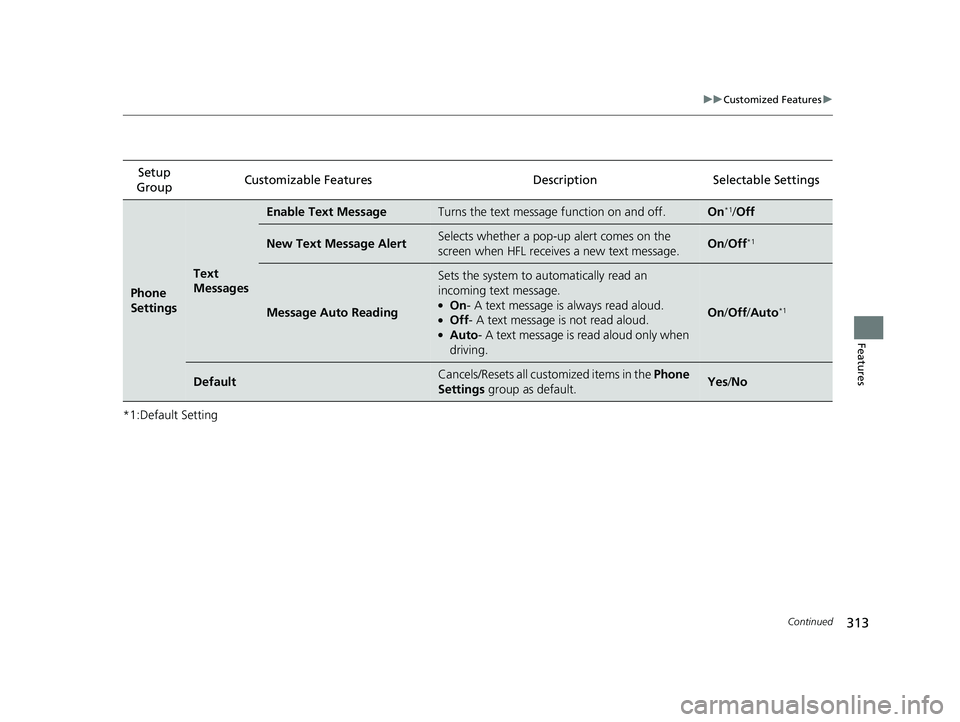

313
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Phone
Settings
Text
Messages
Enable Text MessageTurns the text message function on and off.On*1/Off
New Text Message AlertSelects whether a pop-up alert comes on the
screen when HFL receives a new text message.On /Off*1
Message Auto Reading
Sets the system to automatically read an
incoming text message.
●On - A text message is always read aloud.●Off - A text message is not read aloud.●Auto - A text message is read aloud only when
driving.
On /Off /Auto*1
DefaultCancels/Resets all customized items in the Phone
Settings group as default.Yes/No
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 313 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

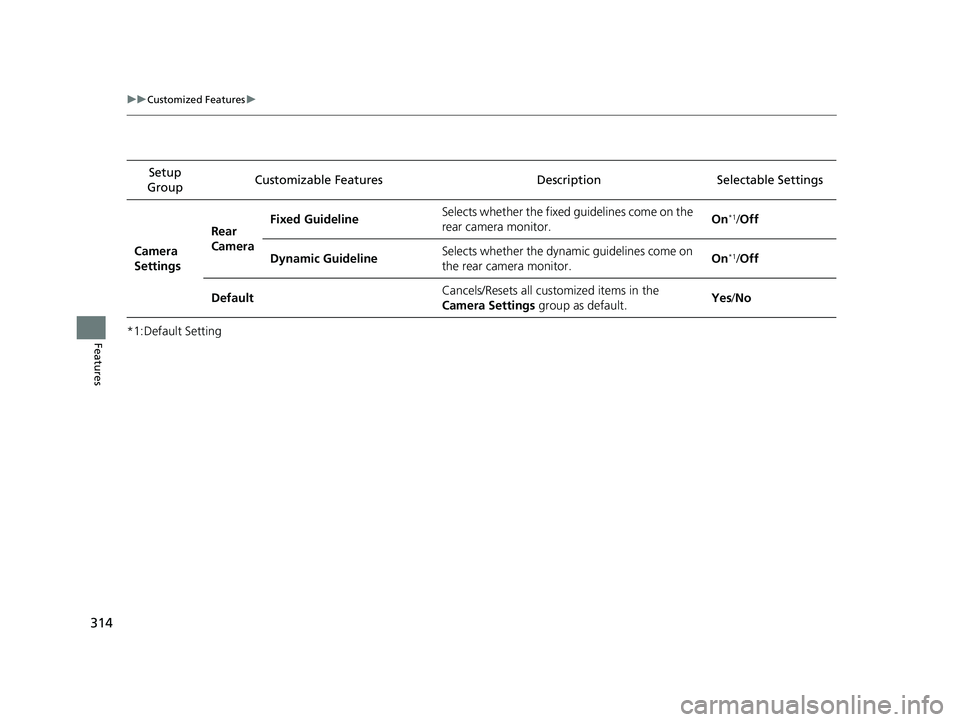

314
uuCustomized Features u
Features*1:Default SettingSetup
Group Customizable Features
Description Selectable Settings
Camera
SettingsRear
Camera
Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor. On
*1/
Off
Dynamic Guideline Selects whether the dynamic guidelines come on
the rear camera monitor.
On
*1/
Off
Default Cancels/Resets all cust
omized items in the
Camera Settings group as default. Yes
/No
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 314 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

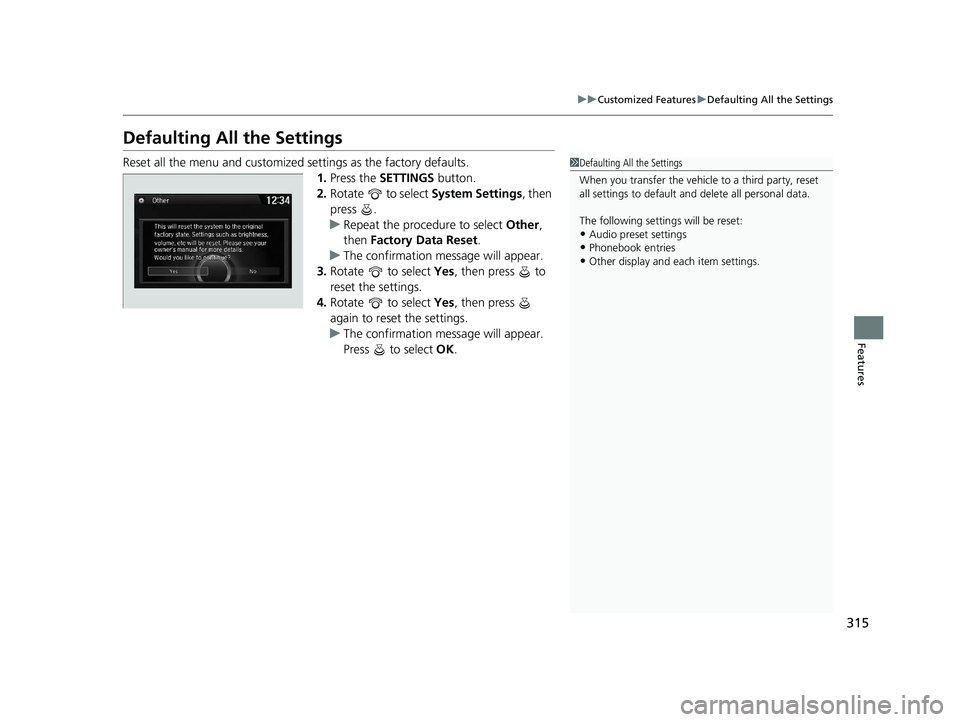

315
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
u Repeat the procedure to select Other,
then Factory Data Reset .
u The confirmation message will appear.
3. Rotate to select Yes, then press to
reset the settings.
4. Rotate to select Yes, then press
again to reset the settings.
u The confirmation message will appear.
Press to select OK.1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
The following settings will be reset:
•Audio preset settings
•Phonebook entries
•Other display and ea ch item settings.
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 315 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

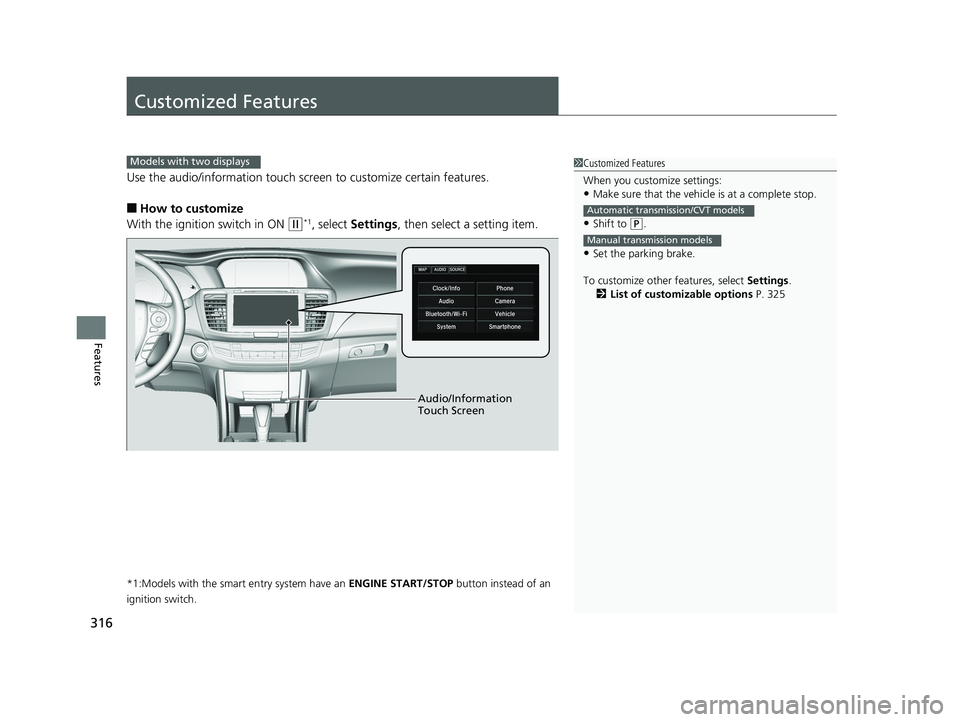

316
Features
Customized Features
Use the audio/information touch screen to customize certain features.
■How to customize
With the ignition switch in ON
(w*1, select Settings , then select a setting item.
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Customized Features
When you customize settings:
•Make sure that the vehicle is at a complete stop.
•Shift to (P.
•Set the parking brake.
To customize other features, select Settings.
2 List of customizable options P. 325
Automatic transmission/CVT models
Manual transmission models
Models with two displays
Audio/Information
Touch Screen
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 316 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

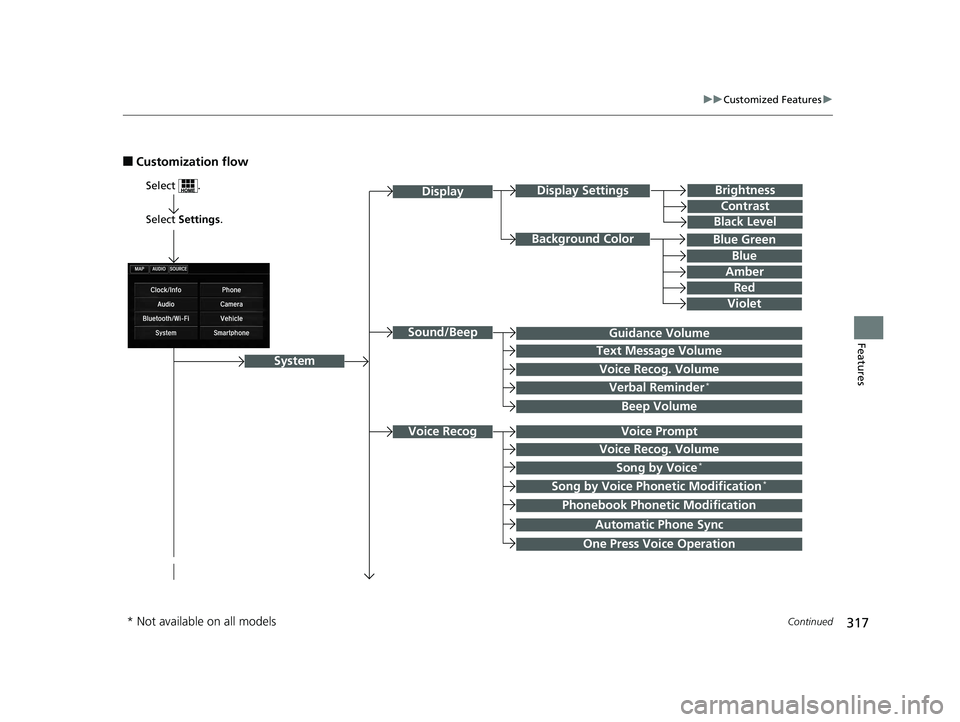

317
uuCustomized Features u
Continued
Features
■Customization flow
Select Settings .
Brightness
Contrast
Black Level
Sound/Beep
System
DisplayDisplay Settings
Background Color
Guidance Volume
Text Message Volume
Select .
Voice RecogVoice Prompt
Blue
Amber
Red
Violet
Voice Recog. Volume
Beep Volume
Voice Recog. Volume
Song by Voice*
Song by Voice Phonetic Modification*
Phonebook Phonetic Modification
Automatic Phone Sync
One Press Voice Operation
Verbal Reminder*
Blue Green
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 317 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

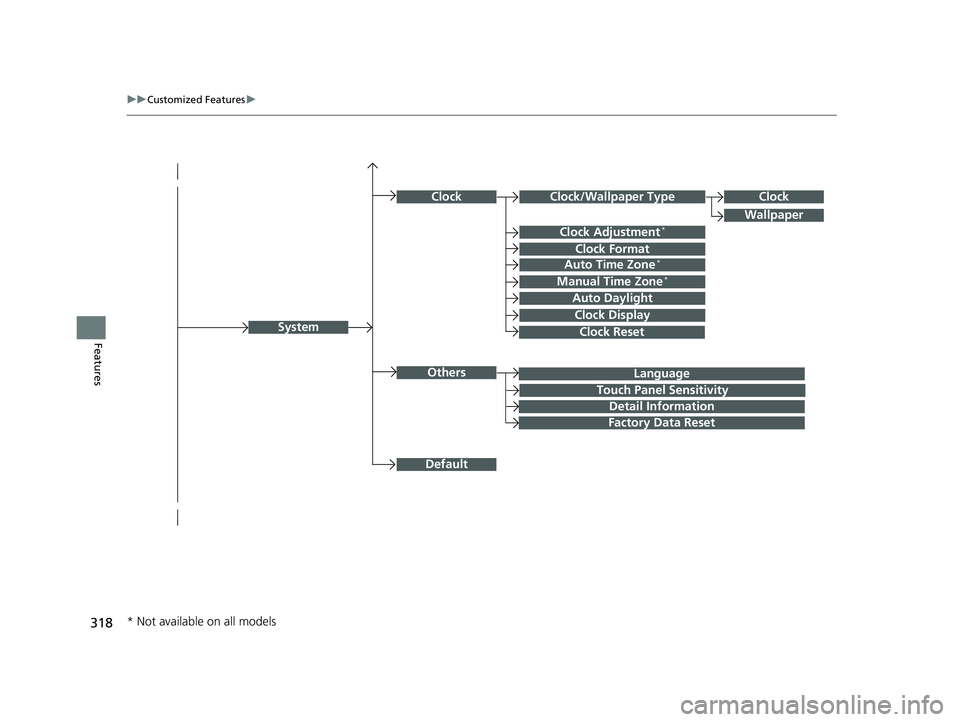

318
uuCustomized Features u
Features
Language
Default
System
Others
Clock/Wallpaper Type
Clock Adjustment*
ClockClock
Wallpaper
Manual Time Zone*
Auto Daylight
Clock Display
Touch Panel Sensitivity
Clock Format
Auto Time Zone*
Detail Information
Factory Data Reset
Clock Reset
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 318 ページ ２０１５年９月２５日　金曜日　午前１０時３８分

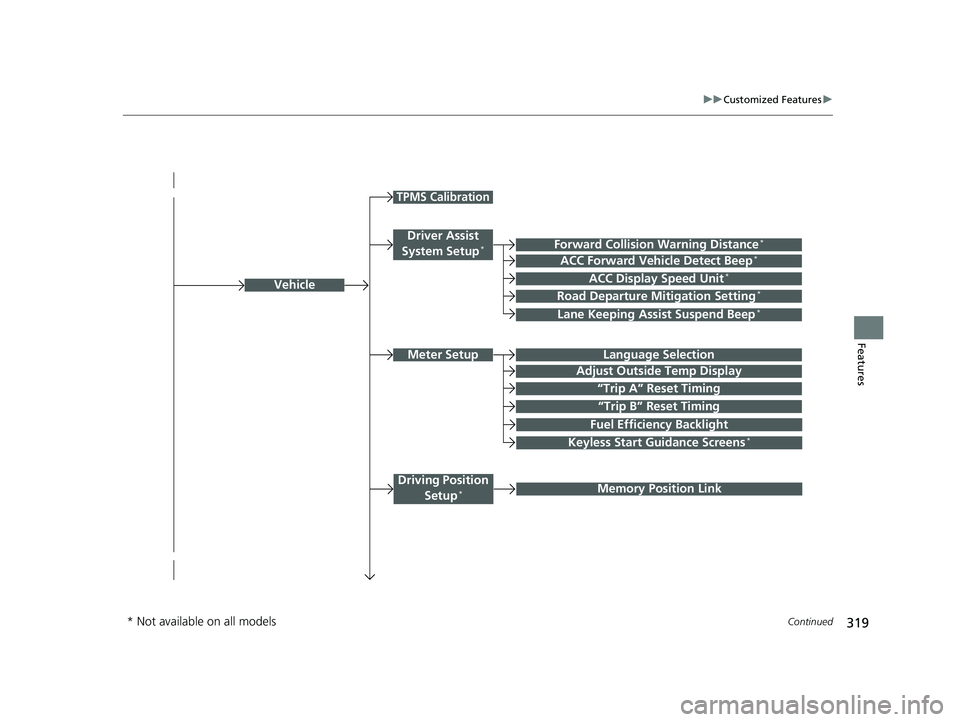

319
uuCustomized Features u
Continued
Features
Vehicle
Driver Assist
System Setup*Forward Collision Warning Distance*
ACC Forward Vehicle Detect Beep*
Road Departure Mitigation Setting*
Lane Keeping Assi st Suspend Beep*
Meter SetupLanguage Selection
Adjust Outside Temp Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Fuel Efficiency Backlight
Keyless Start Guidance Screens*
Driving Position
Setup*Memory Position Link
TPMS Calibration
ACC Display Speed Unit*
* Not available on all models
16 US ACCORD 4D (KA KC KL)-31T2A6300.book 319 ページ ２０１５年９月２５日　金曜日　午前１０時３８分
