HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

649
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

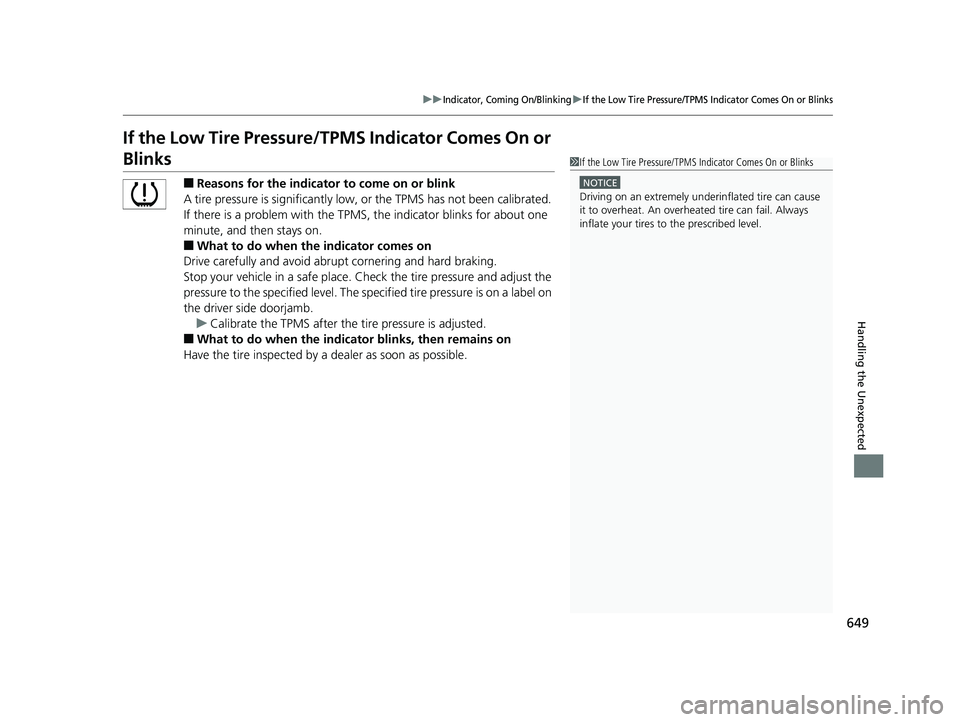

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
■What to do when th e indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible.
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
18 ACCORD HYBRID-31TWA6000.book 649 ページ ２０１８年１月３０日　火曜日　午後７時３８分

650
uuIndicator, Coming On/Blinking uIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected

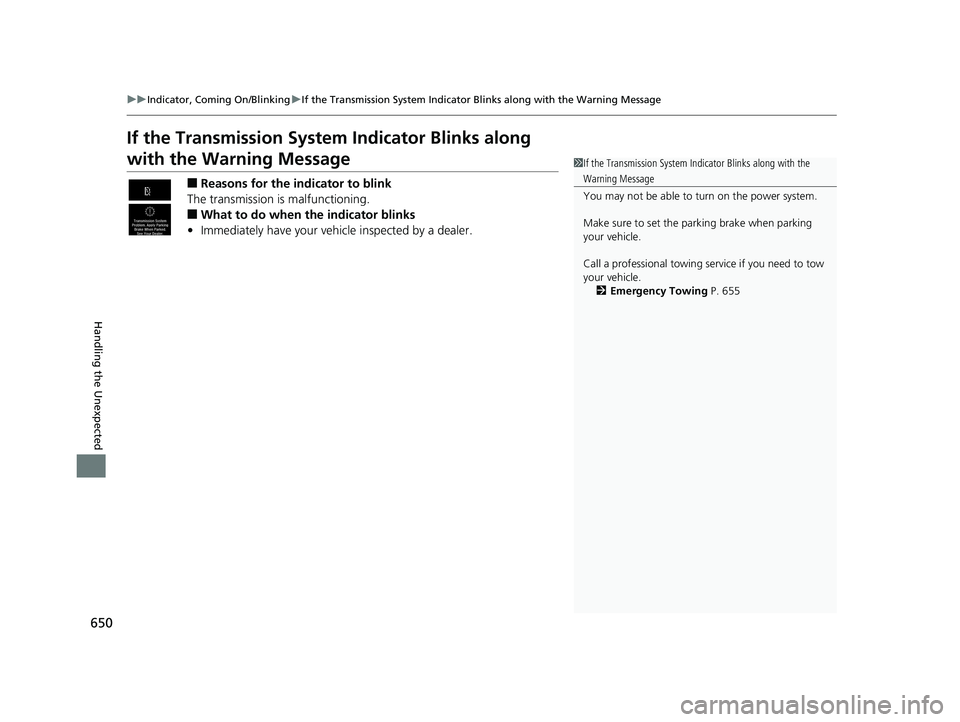

If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 655
18 ACCORD HYBRID-31TWA6000.book 650 ページ ２０１８年１月３０日　火曜日　午後７時３８分

651Continued
Handling the Unexpected

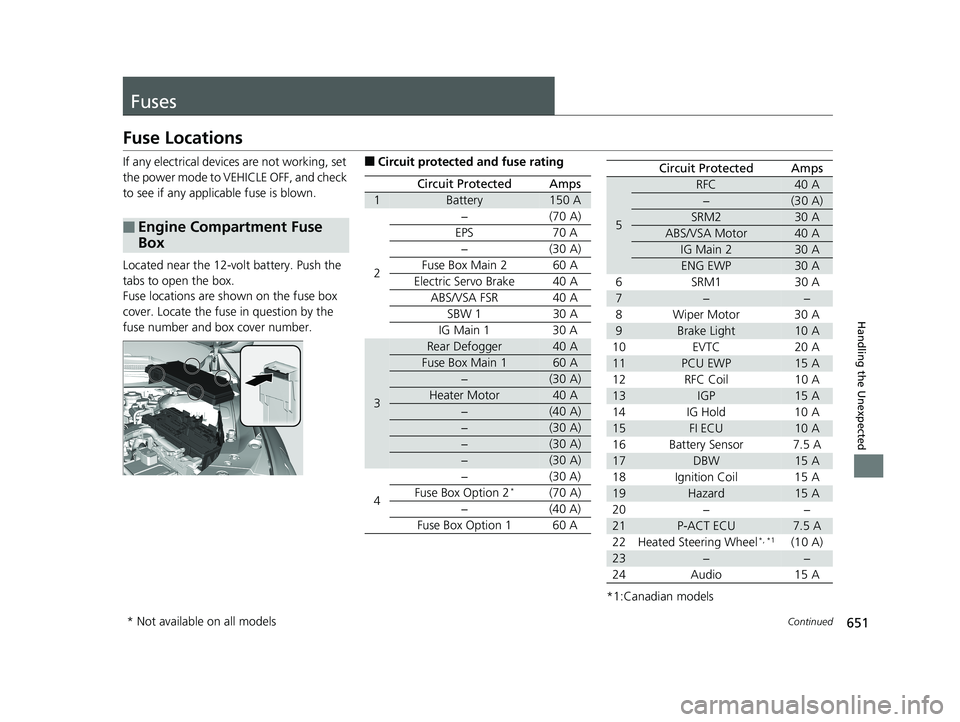

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF, and check
to see if any applic able fuse is blown.
Located near the 12-volt battery. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Battery150 A
2
−(70 A)
EPS 70 A
−(30 A)
Fuse Box Main 2 60 A
Electric Servo Brake40 A
ABS/VSA FSR 40 A SBW 1 30 A
IG Main 1 30 A
3
Rear Defogger40 A
Fuse Box Main 160 A
−(30 A)
Heater Motor40 A
−(40 A)
−(30 A)
−(30 A)
−(30 A)
4 −(30A)
Fuse Box Option 2
*(70 A)
−(40A)
Fuse Box Option 1 60 A
*1:Canadian models
Circuit ProtectedAmps
5
RFC40 A
−(30 A)
SRM230 A
ABS/VSA Motor40 A
IG Main 230 A
ENG EWP30 A
6SRM1 30A
7−−
8Wiper Motor 30A
9Brake Light10 A
10 EVTC 20 A
11PCU EWP15 A
12 RFC Coil 10 A
13IGP15 A
14 IG Hold 10 A
15FI ECU10 A
16 Battery Sensor 7.5 A
17DBW15 A
18 Ignition Coil 15 A
19Hazard15 A
20 − −
21P-ACT ECU7.5 A
22 Heated Steering Wheel*, *1(10 A)
23−−
24 Audio 15 A
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 651 ページ ２０１８年１月３０日　火曜日　午後７時３８分

652
uuFuses uFuse Locations
Handling the Unexpected

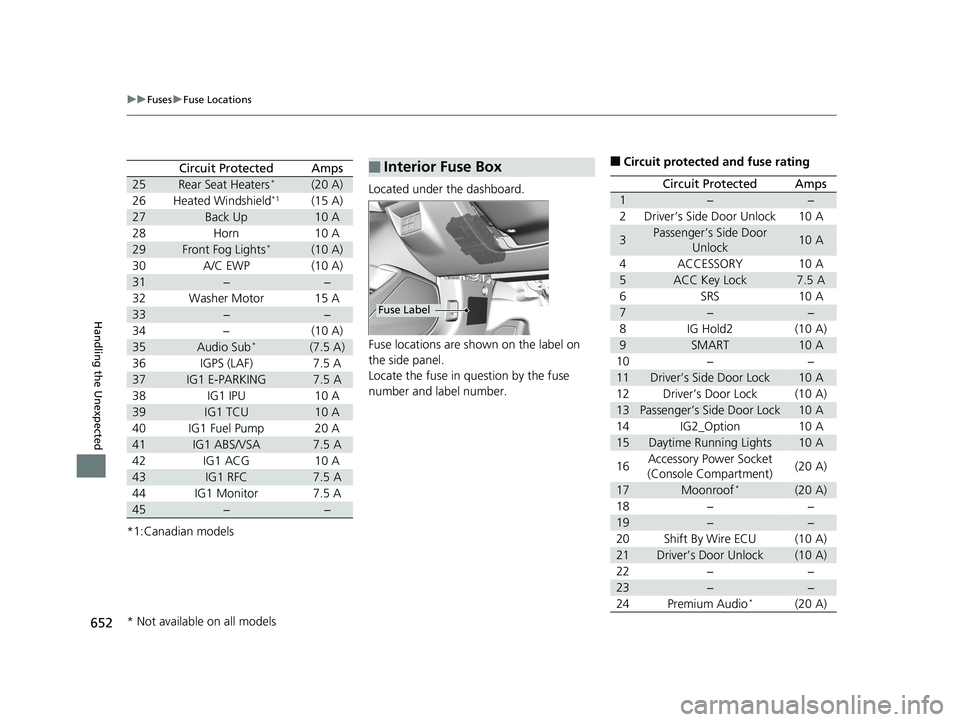

*1:Canadian models
Circuit ProtectedAmps
25Rear Seat Heaters*(20 A)
26 Heated Windshield*1(15 A)
27Back Up10 A
28 Horn 10 A
29Front Fog Lights*(10 A)
30 A/C EWP (10 A)
31−−
32 Washer Motor 15 A
33−−
34 − (10 A)
35Audio Sub*(7.5 A)
36 IGPS (LAF) 7.5 A
37IG1 E-PARKING7.5 A
38 IG1 IPU 10 A
39IG1 TCU10 A
40 IG1 Fuel Pump 20 A
41IG1 ABS/VSA7.5 A
42 IG1 ACG 10 A
43IG1 RFC7.5 A
44 IG1 Monitor 7.5 A
45−−
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Driver’s Side Door Unlock10 A
3Passenger’s Side Door
Unlock10 A
4ACCESSORY10 A
5ACC Key Lock7.5 A
6SRS10 A
7−−
8IG Hold2(10 A)
9SMART10 A
10−−
11Driver’s Side Door Lock10 A
12Driver’s Door Lock(10 A)
13Passenger’s Side Door Lock10 A
14IG2_Option10 A
15Daytime Running Lights10 A
16Accessory Power Socket
(Console Compartment)(20 A)
17Moonroof*(20 A)
18−−
19−−
20Shift By Wire ECU(10 A)
21Driver’s Door Unlock(10 A)
22−−
23−−
24Premium Audio*(20 A)
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 652 ページ ２０１８年１月３０日　火曜日　午後７時３８分

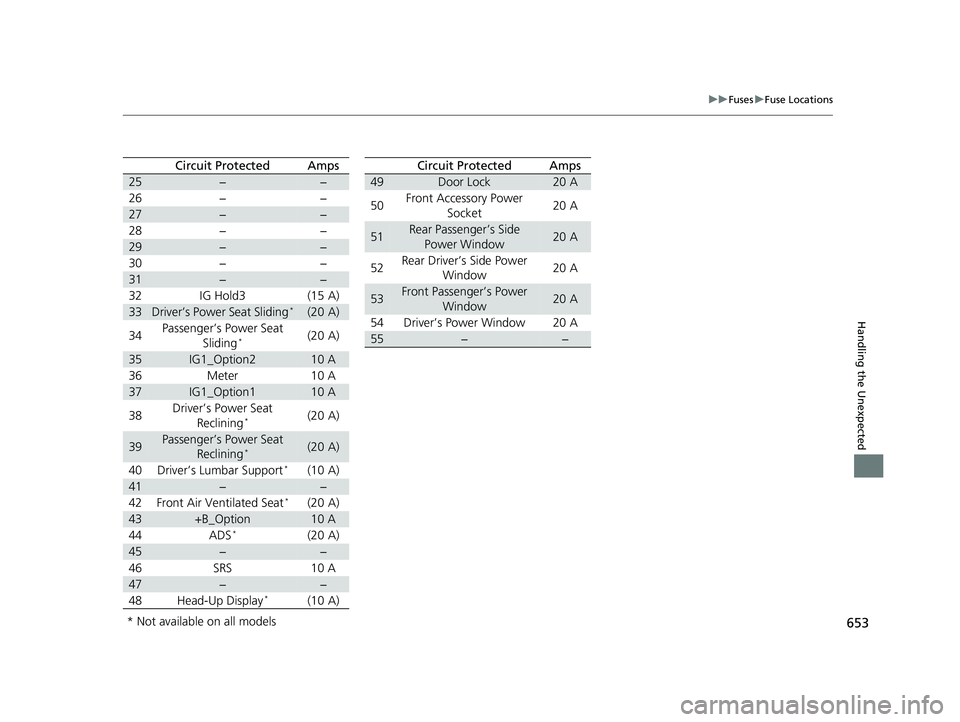

653
uuFuses uFuse Locations
Handling the Unexpected
25−−
26−−
27−−
28−−
29−−
30−−
31−−
32IG Hold3(15 A)
33Driver’s Power Seat Sliding*(20 A)
34Passenger’s Power Seat
Sliding*(20 A)
35IG1_Option210 A
36Meter10 A
37IG1_Option110 A
38Driver’s Power Seat Reclining*(20 A)
39Passenger’s Power Seat Reclining*(20 A)
40Driver’s Lumbar Support*(10 A)
41−−
42Front Air Ventilated Seat*(20 A)
43+B_Option10 A
44ADS*(20 A)
45−−
46SRS10 A
47−−
48Head-Up Display*(10 A)
Circuit ProtectedAmps
49Door Lock20 A
50Front Accessory Power
Socket20 A
51Rear Passenger’s Side Power Window20 A
52Rear Driver’s Side Power Window20 A
53Front Passenger’s Power
Window20 A
54Driver’s Power Window20 A
55−−
Circuit ProtectedAmps
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 653 ページ ２０１８年１月３０日　火曜日　午後７時３８分

654
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

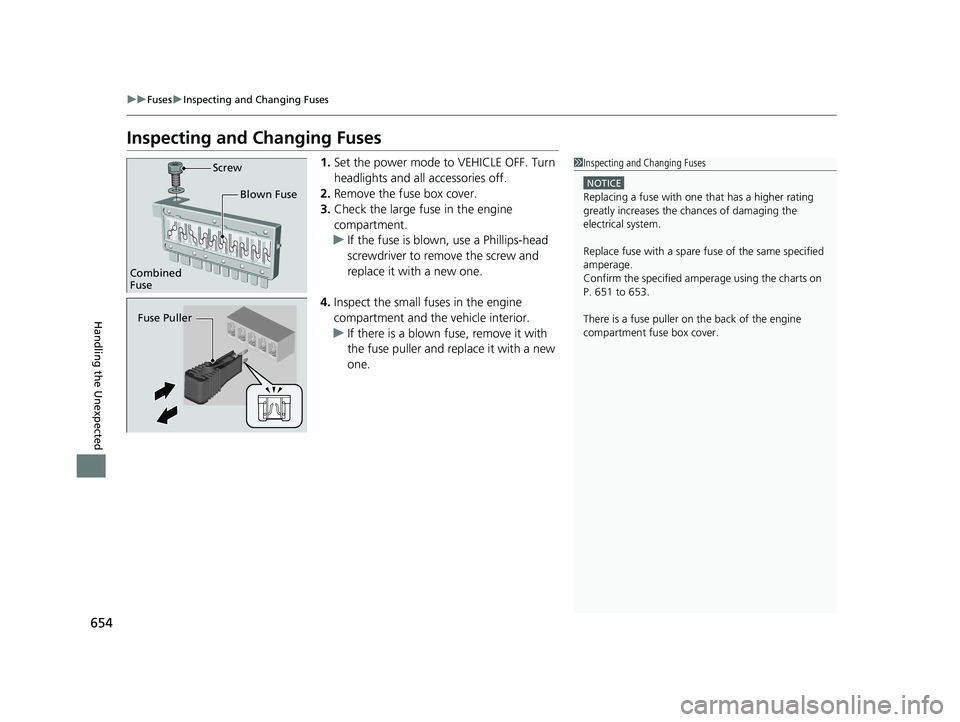

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 651 to 653.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Screw
Fuse Puller
18 ACCORD HYBRID-31TWA6000.book 654 ページ ２０１８年１月３０日　火曜日　午後７時３８分

655
Handling the Unexpected

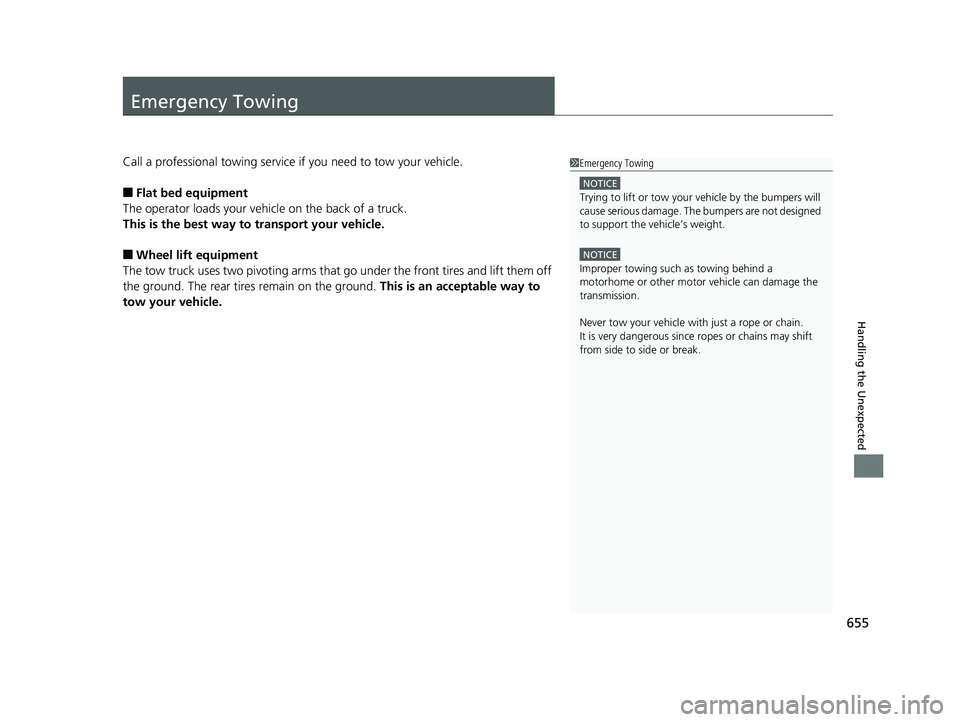

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
18 ACCORD HYBRID-31TWA6000.book 655 ページ ２０１８年１月３０日　火曜日　午後７時３８分

656
Handling the Unexpected

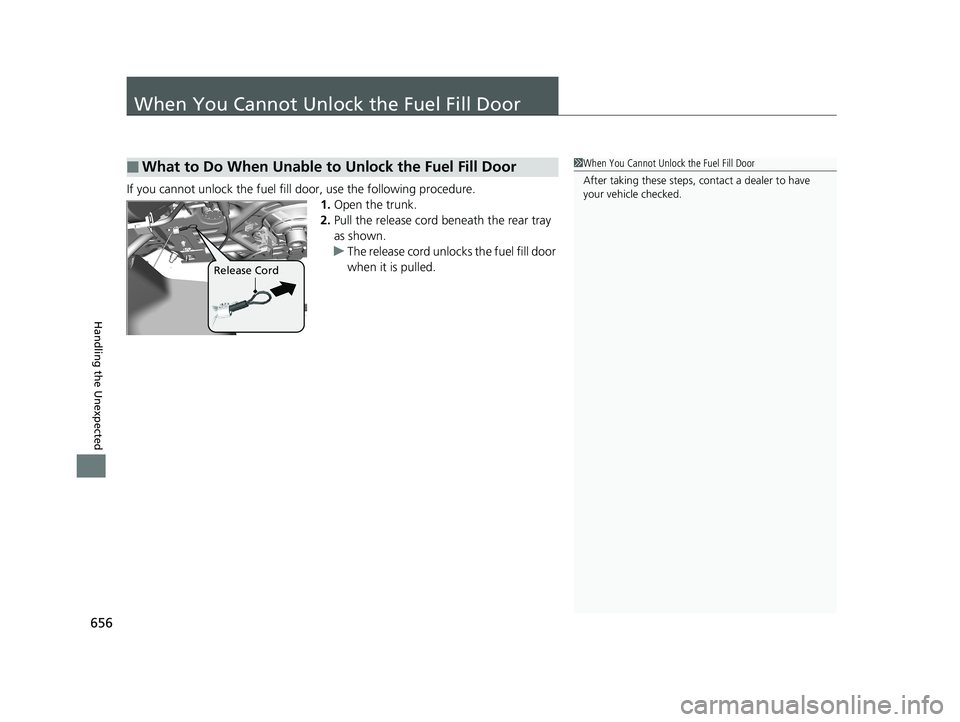

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the release cord beneath the rear tray
as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
18 ACCORD HYBRID-31TWA6000.book 656 ページ ２０１８年１月３０日　火曜日　午後７時３８分

657
Handling the Unexpected

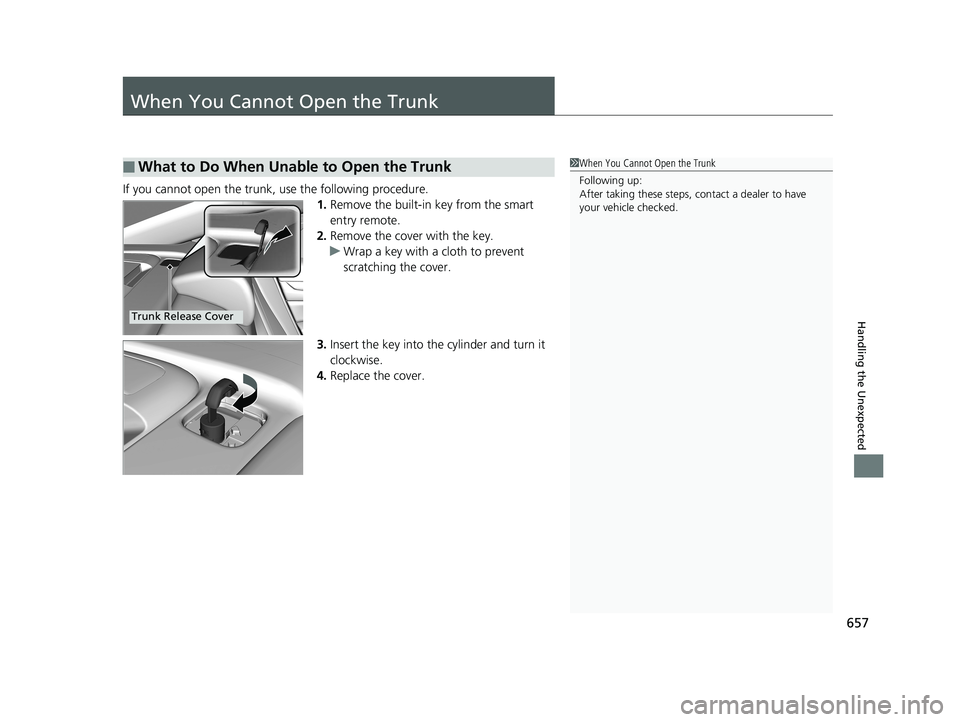

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the built-in key from the smart
entry remote.
2. Remove the cover with the key.
u Wrap a key with a cloth to prevent
scratching the cover.
3. Insert the key into th e cylinder and turn it
clockwise.
4. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
18 ACCORD HYBRID-31TWA6000.book 657 ページ ２０１８年１月３０日　火曜日　午後７時３８分

658
Handling the Unexpected

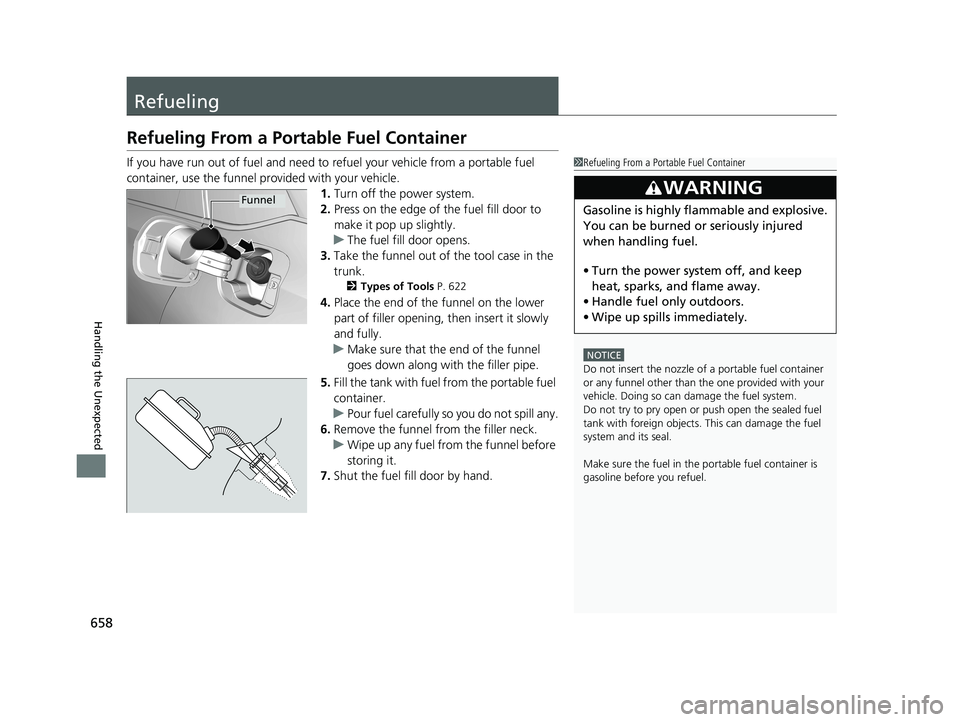

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the power system.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 622
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
