uuAccessories and Modifications uModifications
Maintenance

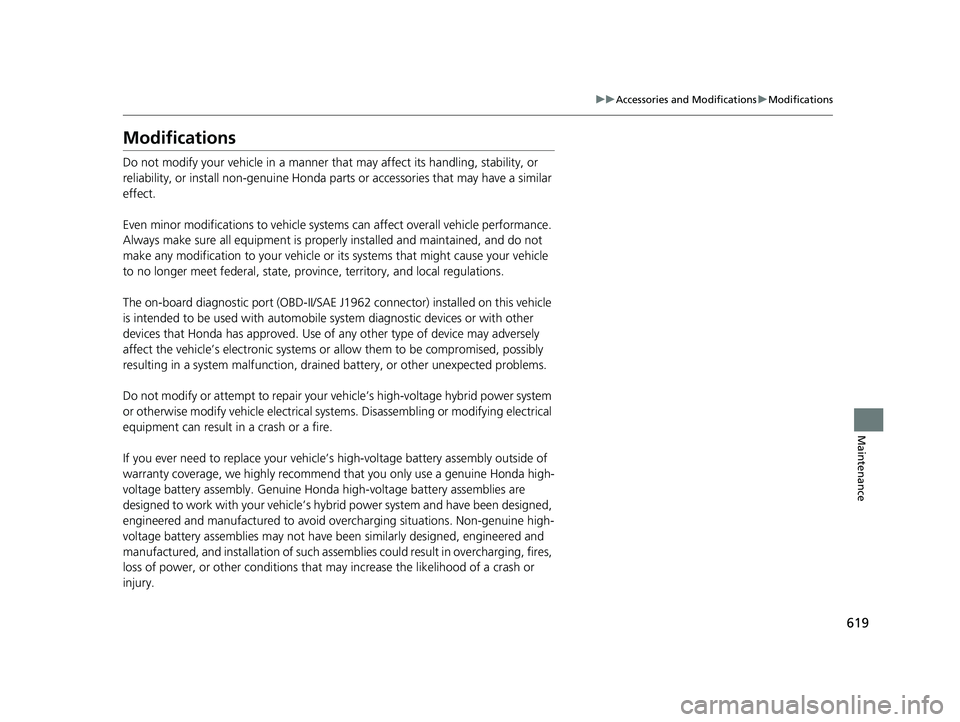

Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda pa rts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, pr ovince, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1 962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical syst ems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’ s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Honda high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have b een similarly designed, engineered and
manufactured, and installation of such assemb lies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
18 ACCORD HYBRID-31TWA6000.book 619 ページ ２０１８年１月３０日　火曜日　午後７時３８分

620
18 ACCORD HYBRID-31TWA6000.book 620 ページ ２０１８年１月３０日　火曜日　午後７時３８分

621

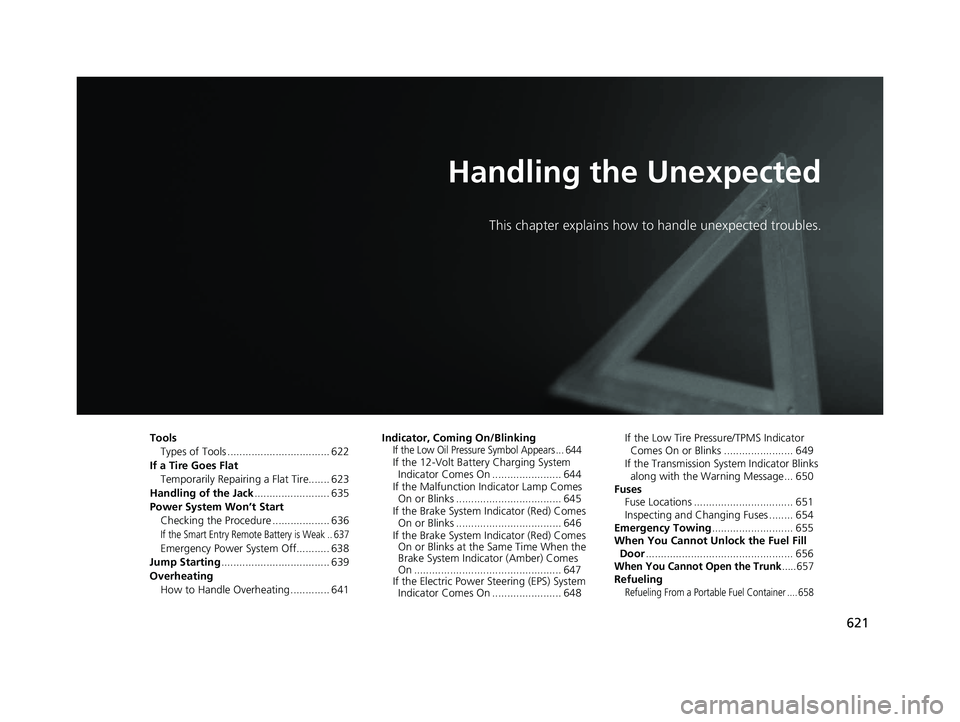

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 622
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 623
Handling of the Jack ......................... 635
Power System Won’t Start Checking the Procedure ................... 636
If the Smart Entry Remote Battery is Weak .. 637
Emergency Power System Off........... 638
Jump Starting .................................... 639
Overheating How to Handle Overheating ............. 641 Indicator, Coming On/Blinking
If the Low Oil Pressure Symbol Appears ... 644If the 12-Volt Battery Charging System
Indicator Comes On ....................... 644
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 645
If the Brake System Indicator (Red) Comes On or Blinks ................................... 646
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 647
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 648 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 649
If the Transmission System Indicator Blinks
along with the Warning Message... 650
Fuses Fuse Locations ................................. 651
Inspecting and Changing Fuses ........ 654
Emergency Towing ........................... 655
When You Cannot Unlock the Fuel Fill
Door ................................................. 656
When You Cannot Open the Trunk.....657RefuelingRefueling From a Portable Fuel Container .... 658
18 ACCORD HYBRID-31TWA6000.book 621 ページ ２０１８年１月３０日　火曜日　午後７時３８分

622
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Tire Repair Kit
Funnel
18 ACCORD HYBRID-31TWA6000.book 622 ページ ２０１８年１月３０日　火曜日　午後７時３８分

623Continued
Handling the Unexpected

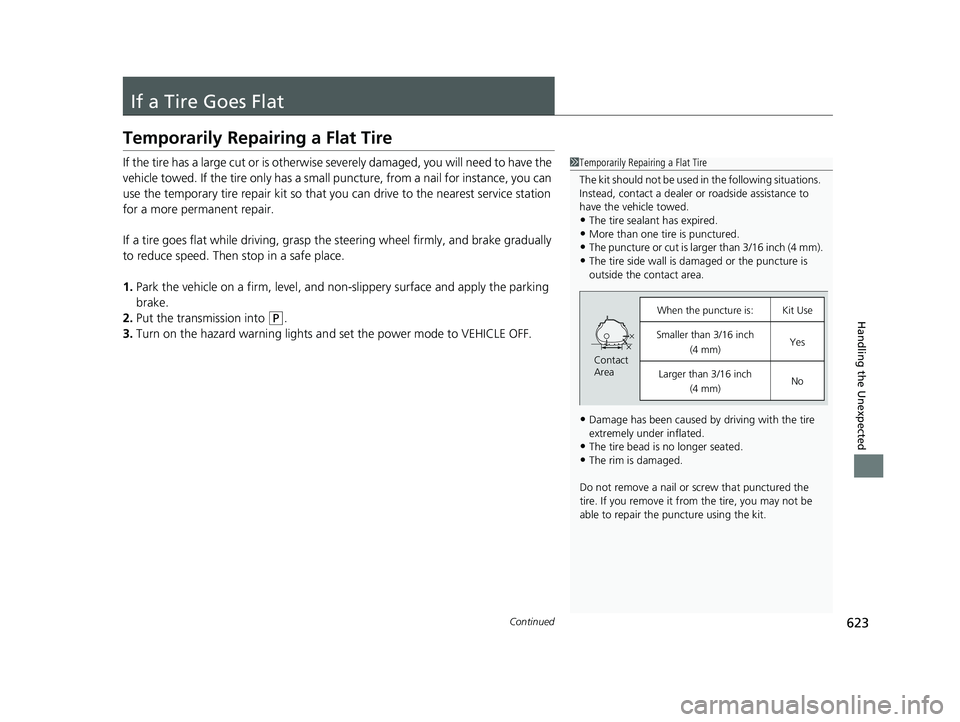

If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.
•The tire sealant has expired.
•More than one tire is punctured.
•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.
•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
18 ACCORD HYBRID-31TWA6000.book 623 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
624
Handling the Unexpected

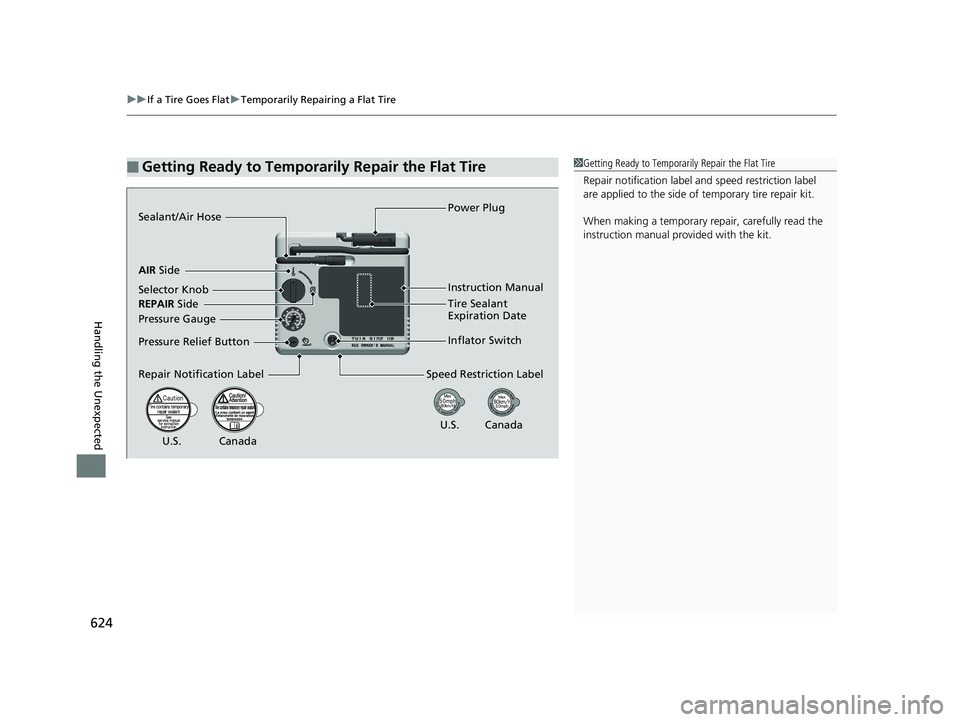

■Getting Ready to Temporarily Repair the Flat Tire1Getting Ready to Temporarily Repair the Flat Tire
Repair notificati on label and speed restriction label
are applied to the side of temporary tire repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
Selector Knob
Speed Restriction Label
Repair Notification Label Pressure Relief Button Inflator Switch Instruction Manual
REPAIR Side
Sealant/Air Hose
AIR
Side Power Plug
Pressure Gauge Tire Sealant
Expiration Date
U.S. CanadaU.S. Canada
18 ACCORD HYBRID-31TWA6000.book 624 ページ ２０１８年１月３０日　火曜日　午後７時３８分

625
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected

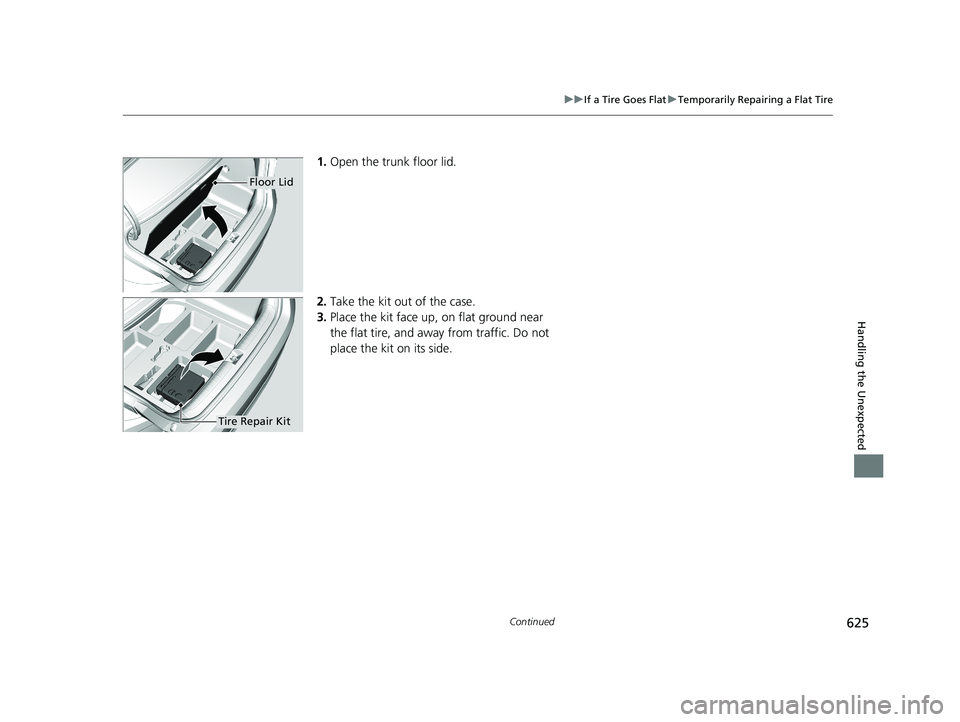

1. Open the trunk floor lid.
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Floor Lid
Tire Repair Kit
18 ACCORD HYBRID-31TWA6000.book 625 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
626
Handling the Unexpected

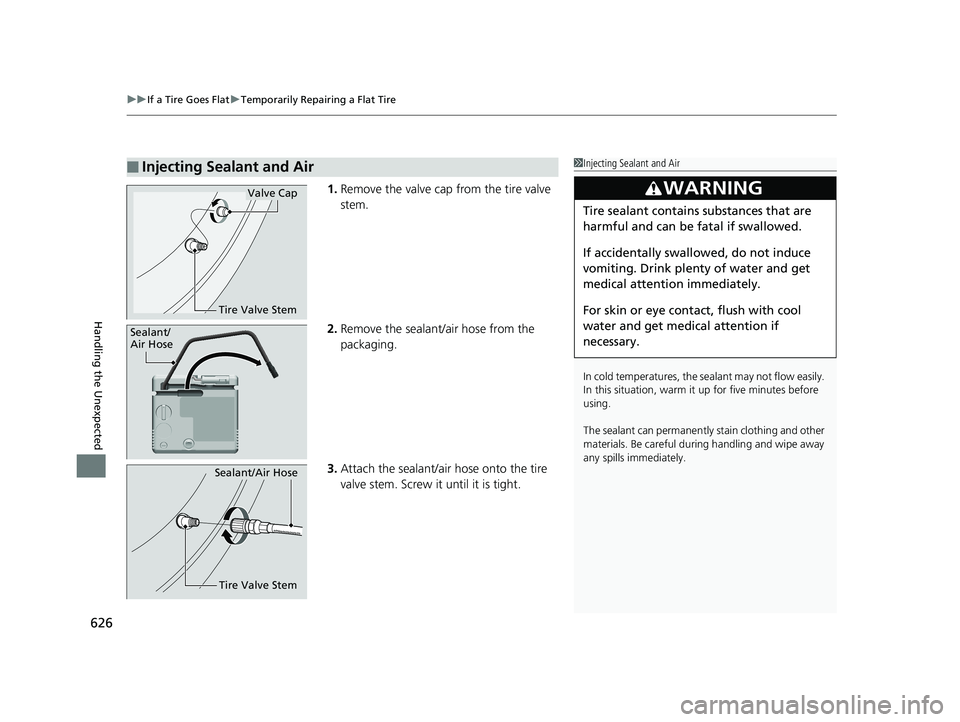

1. Remove the valve cap from the tire valve
stem.
2. Remove the sealant/air hose from the
packaging.
3. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Injecting Sealant and Air1Injecting Sealant and Air
In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.
The sealant can permanentl y stain clothing and other
materials. Be careful duri ng handling and wipe away
any spills immediately.
3WARNING
Tire sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
Tire Valve Stem
Valve Cap
Sealant/
Air Hose
Tire Valve Stem
Sealant/Air Hose
18 ACCORD HYBRID-31TWA6000.book 626 ページ ２０１８年１月３０日　火曜日　午後７時３８分

Continued627
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected

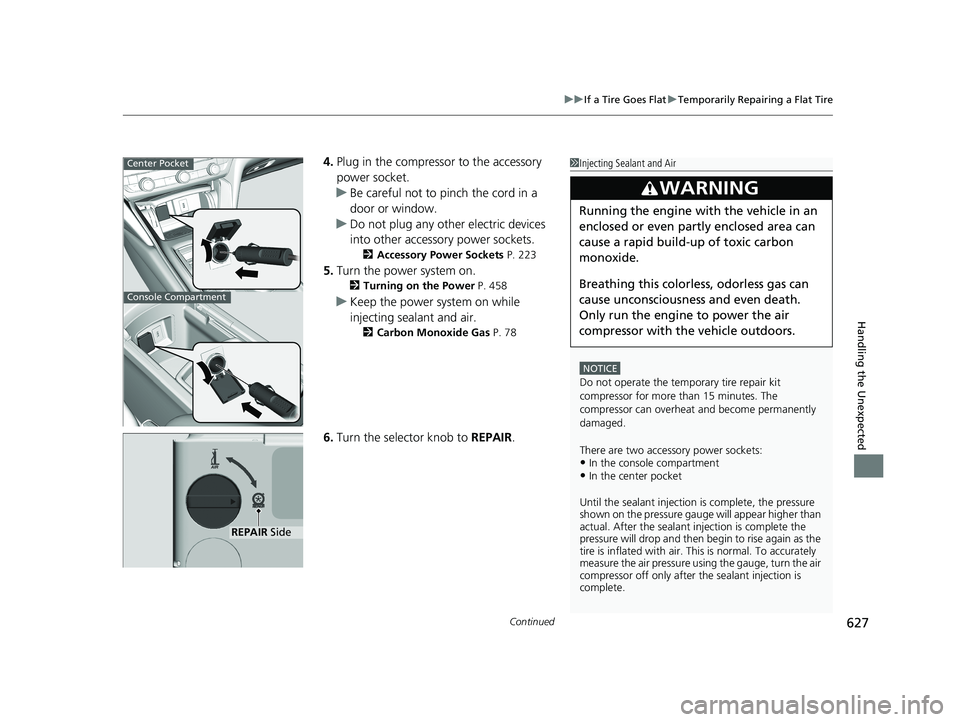

4. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electric devices
into other accessory power sockets.
2 Accessory Power Sockets P. 223
5.Turn the power system on.
2 Turning on the Power P. 458
uKeep the power system on while
injecting sealant and air.
2 Carbon Monoxide Gas P. 78
6.Turn the selector knob to REPAIR.
1Injecting Sealant and Air
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
There are two accessory power sockets:
•In the console compartment•In the center pocket
Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure usi ng the gauge, turn the air
compressor off only after the sealant injection is
complete.
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Center Pocket
Console Compartment
REPAIR Side
18 ACCORD HYBRID-31TWA6000.book 627 ページ ２０１８年１月３０日　火曜日　午後７時３８分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
628
Handling the Unexpected

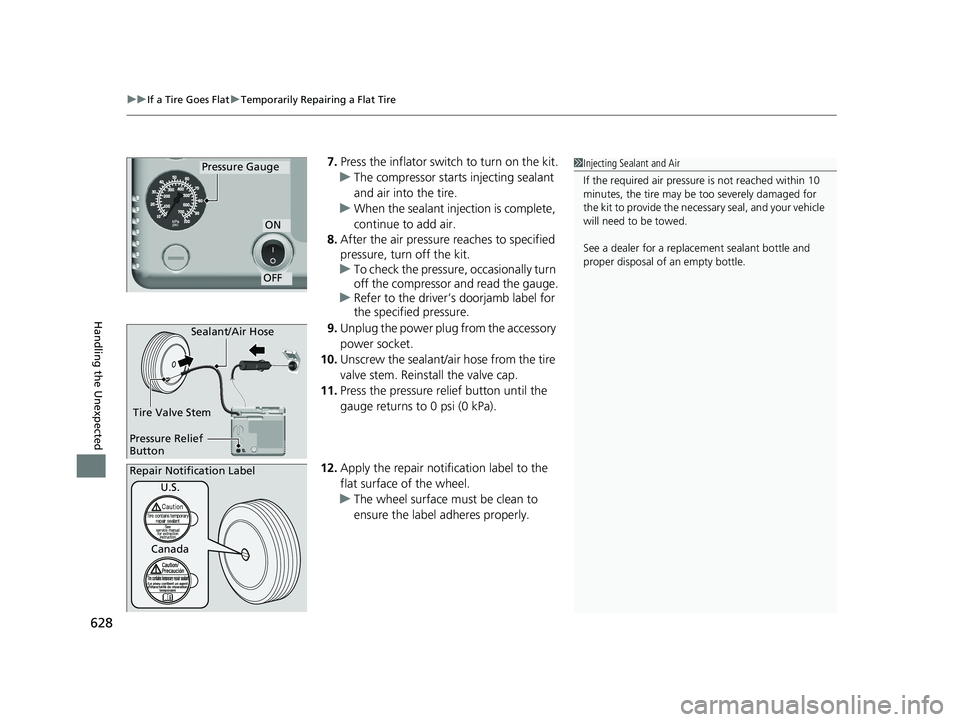

7. Press the inflator swit ch to turn on the kit.
u The compressor starts injecting sealant
and air into the tire.
u When the sealant injection is complete,
continue to add air.
8. After the air pressure reaches to specified
pressure, turn off the kit.
u To check the pressure , occasionally turn
off the compressor and read the gauge.
u Refer to the driver’s doorjamb label for
the specified pressure.
9. Unplug the power plug from the accessory
power socket.
10. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
11. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
12. Apply the repair notification label to the
flat surface of the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.1Injecting Sealant and Air
If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessa ry seal, and your vehicle
will need to be towed.
See a dealer for a replacement sealant bottle and
proper disposal of an empty bottle.Pressure Gauge
ON
OFF
Sealant/Air Hose
Tire Valve Stem
Pressure Relief
Button
Repair Notification Label U.S.
Canada
