HONDA ACCORD SEDAN 2018 Owner's Manual (in English)

659

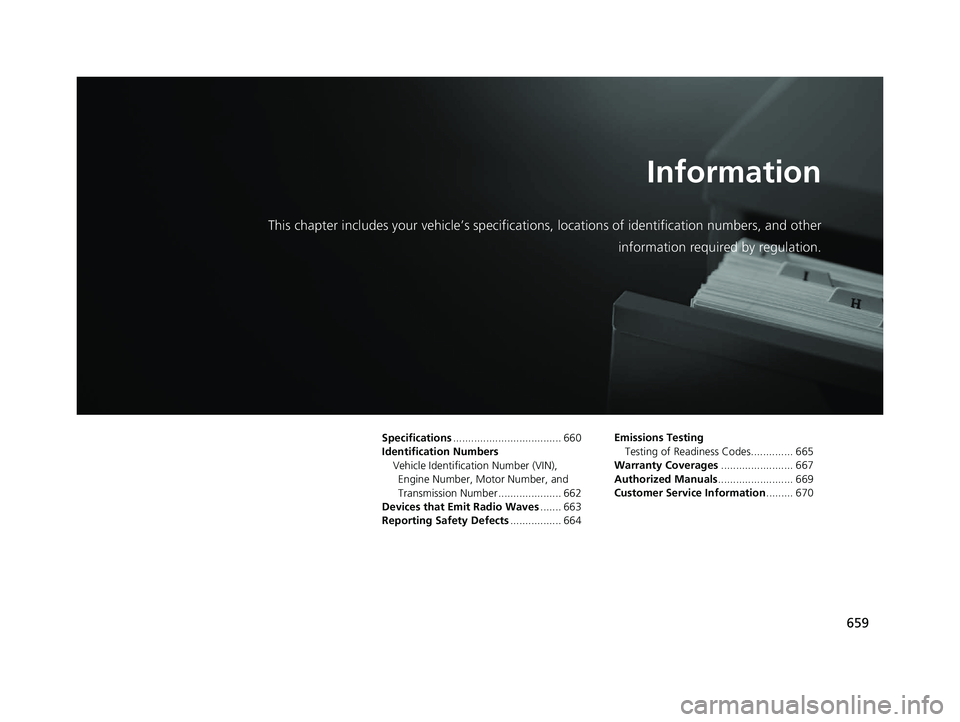

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 660
Identification Numbers Vehicle Identification Number (VIN), Engine Number, Motor Number, and
Transmission Number ..................... 662
Devices that Emit Radio Waves ....... 663
Reporting Safety Defects ................. 664Emissions Testing
Testing of Readiness Codes.............. 665
Warranty Coverages ........................ 667
Authorized Manuals ......................... 669
Customer Service Information ......... 670
18 ACCORD HYBRID-31TWA6000.book 659 ページ ２０１８年１月３０日　火曜日　午後７時３８分

660
Information

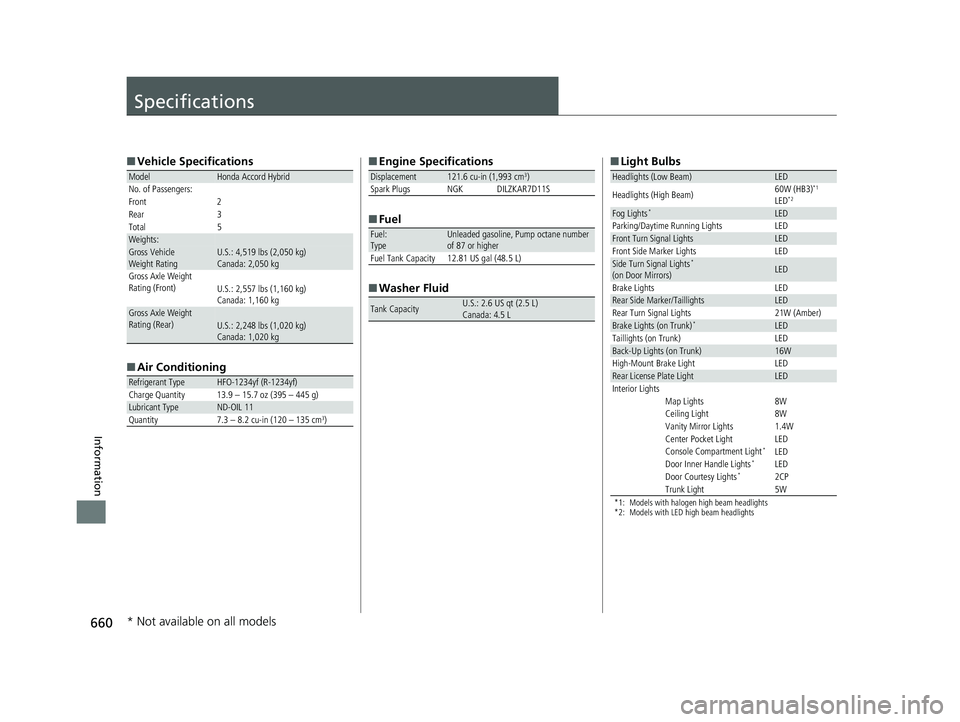

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelHonda Accord Hybrid
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingU.S.: 4,519 lbs (2,050 kg)
Canada: 2,050 kg
Gross Axle Weight
Rating (Front)U.S.: 2,557 lbs (1,160 kg)
Canada: 1,160 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,248 lbs (1,020 kg)
Canada: 1,020 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeND-OIL 11
Quantity 7.3 – 8.2 cu-in (120 – 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.6 cu-in (1,993 cm3)
Spark Plugs NGK DILZKAR7D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.81 US gal (48.5 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.5 L
■ Light Bulbs
*1: Models with halogen high beam headlights
*2: Models with LED high beam headlights
Headlights (Low Beam)LED
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights*
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W (Amber)
Brake Lights (on Trunk)*LED
Taillights (on Trunk) LED
Back-Up Lights (on Trunk)16W
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights 8W
Ceiling Light 8W
Vanity Mirror Lights 1.4W
Center Pocket Light LED
Console Compartment Light
*LED
Door Inner Handle Lights*LED
Door Courtesy Lights*2CP
Trunk Light 5W
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 660 ページ ２０１８年１月３０日　火曜日　午後７時３８分

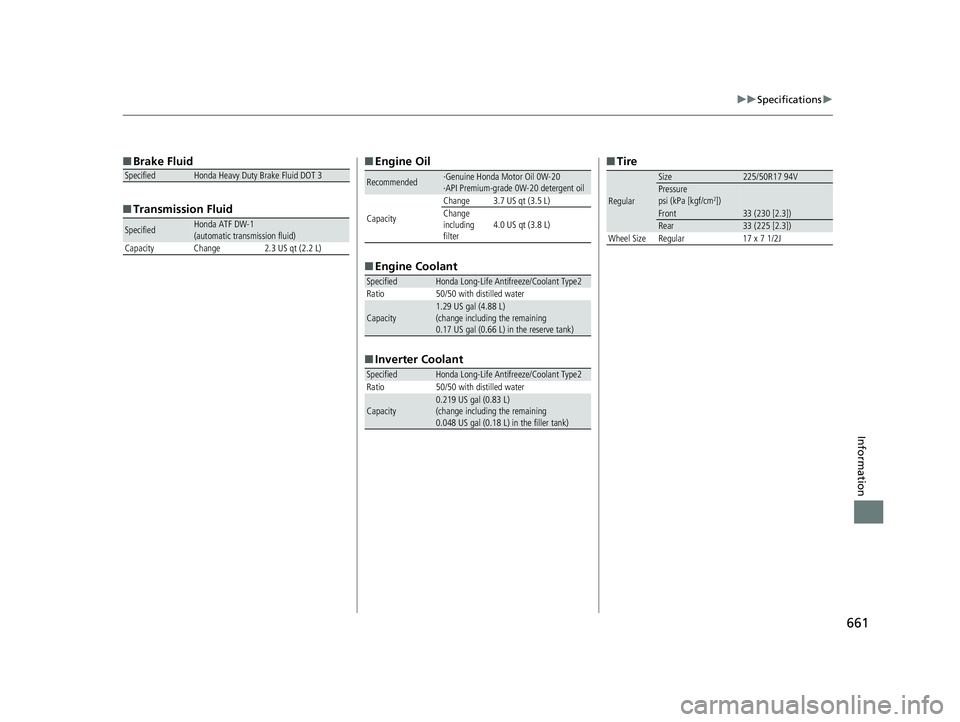

661
uuSpecifications u
Information
■Brake Fluid
■ Transmission FluidSpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.3 US qt (2.2 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 L)
Change
including
filter
4.0 US qt (3.8 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.29 US gal (4.88 L)
(change including the remaining
0.17 US gal (0.66 L) in the reserve tank)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.219 US gal (0.83 L)
(change including the remaining
0.048 US gal (0.18 L) in the filler tank)
■ Tire
Regular
Size225/50R17 94VPressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear33 (225 [2.3])
Wheel Size Regular 17 x 7 1/2J
18 ACCORD HYBRID-31TWA6000.book 661 ページ ２０１８年１月３０日　火曜日　午後７時３８分

662
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number, and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, motor number, and
transmission number are shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, Motor
Number, and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number Certification Label/
Vehicle Identification
Number
Motor Number
Vehicle Identification Number
Transmission Number
18 ACCORD HYBRID-31TWA6000.book 662 ページ ２０１８年１月３０日　火曜日　午後７時３８分

663
Information

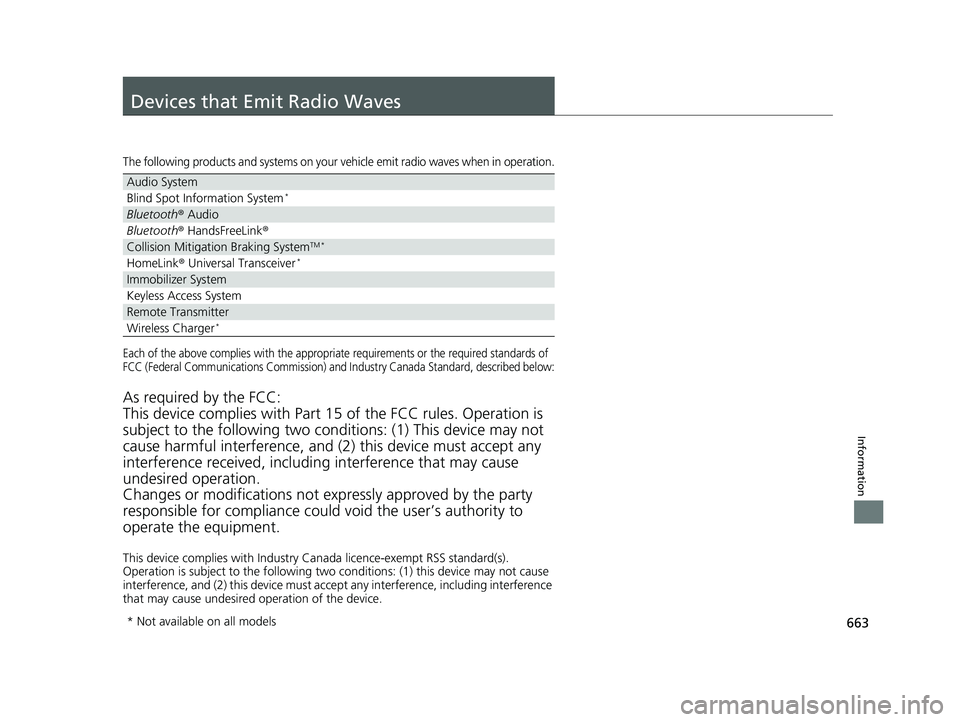

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of
FCC (Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Audio System
Blind Spot Information System*
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM *
HomeLink® Universal Transceiver*
Immobilizer System
Keyless Access System
Remote Transmitter
Wireless Charger*
* Not available on all models
18 ACCORD HYBRID-31TWA6000.book 663 ページ ２０１８年１月３０日　火曜日　午後７時３８分

664
Information

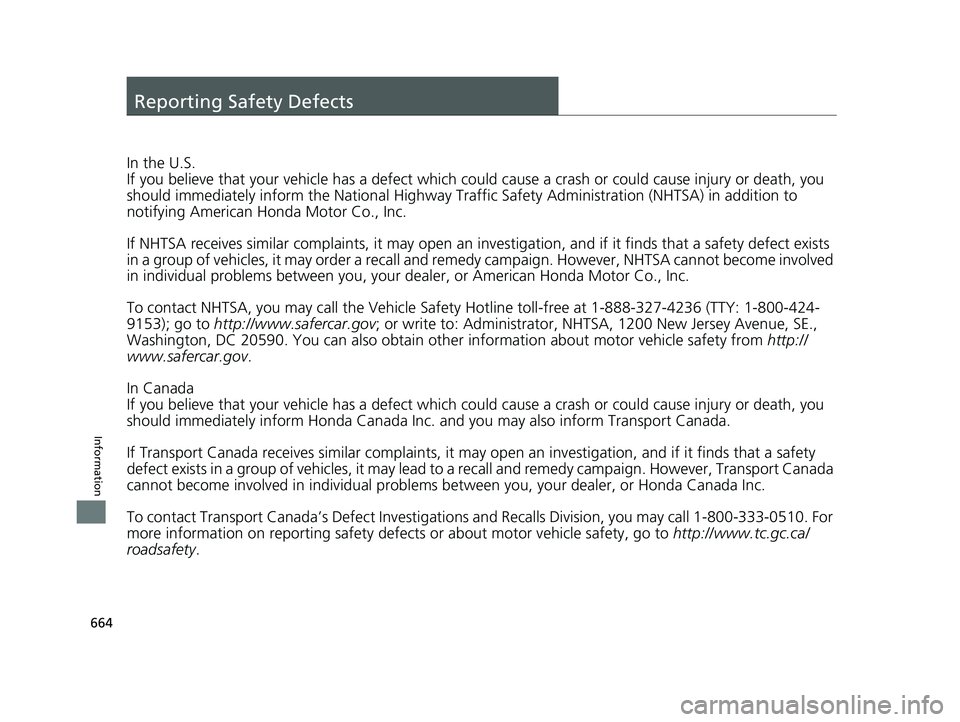

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
18 ACCORD HYBRID-31TWA6000.book 664 ページ ２０１８年１月３０日　火曜日　午後７時３８分

665Continued
Information

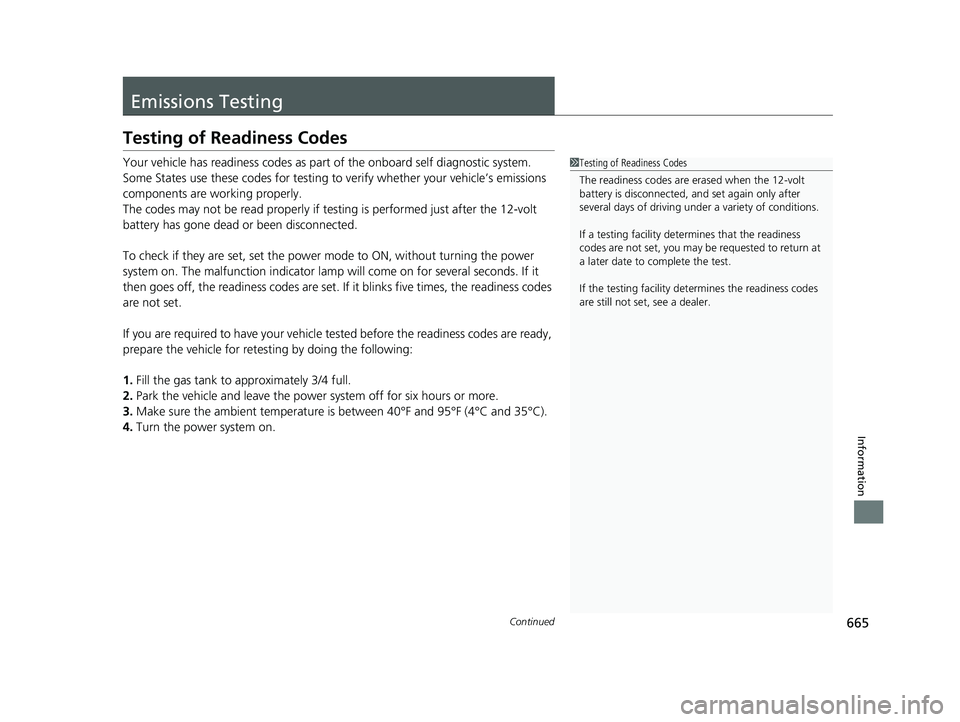

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if te sting is performed just after the 12-volt
battery has gone dead or been disconnected.
To check if they are set, set the powe r mode to ON, without turning the power
system on. The malfunction indicator lamp will come on for several seconds. If it
then goes off, the readiness co des are set. If it blinks five times, the readiness codes
are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the power system off for six hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Turn the power system on.1Testing of Readiness Codes
The readiness codes are erased when the 12-volt
battery is disconnected, and set again only after
several days of driving unde r a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
18 ACCORD HYBRID-31TWA6000.book 665 ページ ２０１８年１月３０日　火曜日　午後７時３８分

666

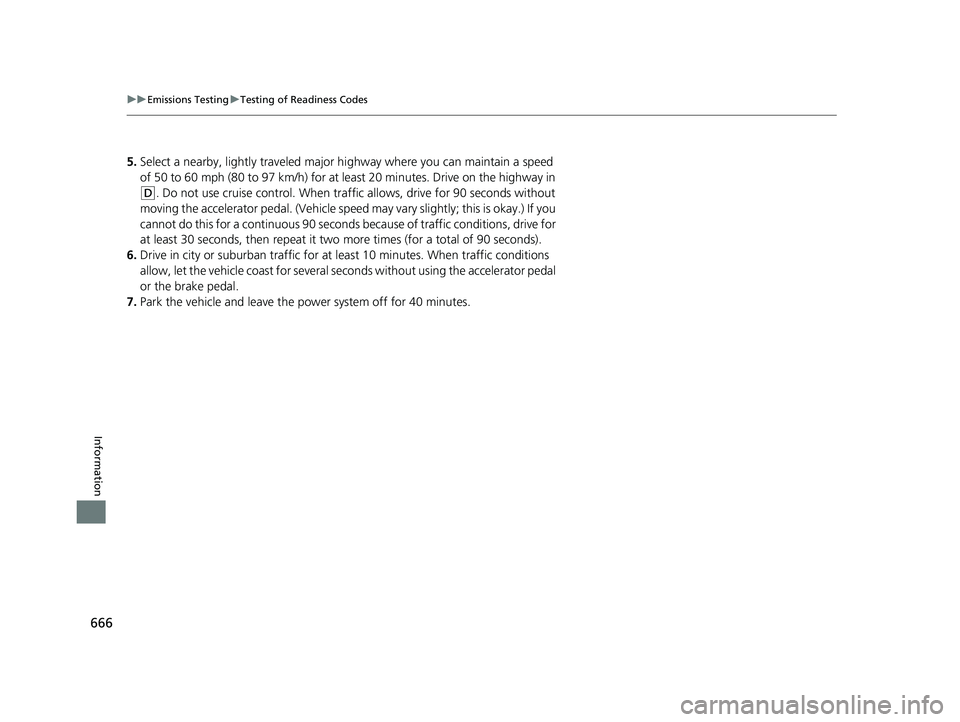

uuEmissions Testing uTesting of Readiness Codes
Information
5. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
6. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
7. Park the vehicle and leave the power system off for 40 minutes.
18 ACCORD HYBRID-31TWA6000.book 666 ページ ２０１８年１月３０日　火曜日　午後７時３８分

667Continued
Information

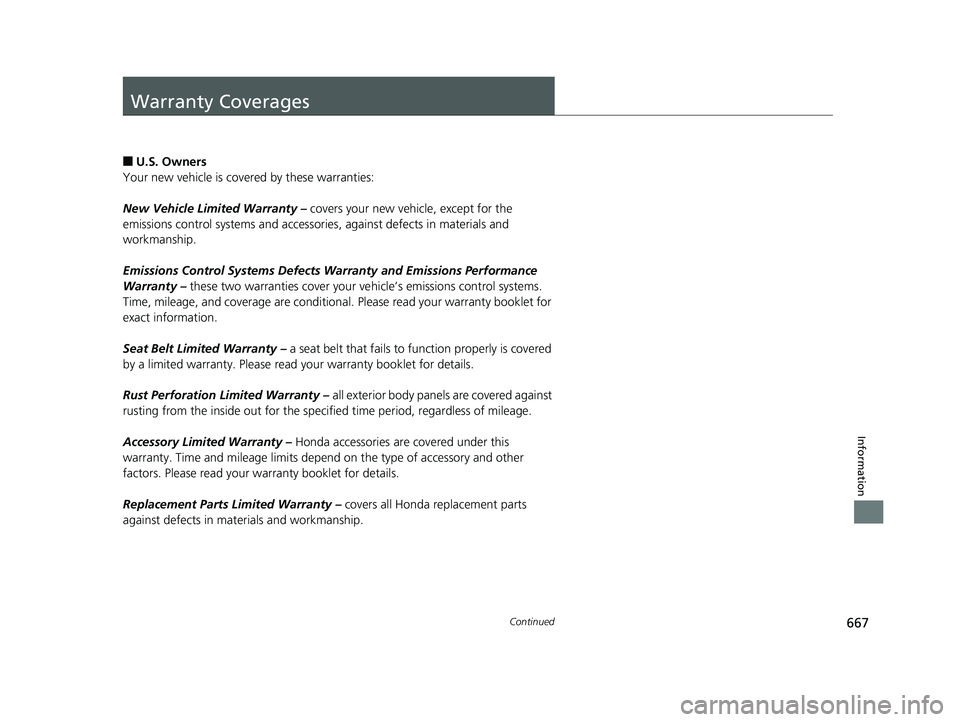

Warranty Coverages
■U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessorie s, against defects in materials and
workmanship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty – these two warranties cover your ve hicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.
Rust Perforation Limited Warranty – all exterior body panels are covered against
rusting from the inside out for the specified time period, regardless of mileage.
Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in mate rials and workmanship.
18 ACCORD HYBRID-31TWA6000.book 667 ページ ２０１８年１月３０日　火曜日　午後７時３８分

668
uuWarranty Coverages u
Information
Replacement 12-Volt Batte ry Limited Warranty – provides prorated coverage
for a replacement battery purchased from your dealer.
Replacement Muffler Life time Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to a ll these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehi cle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.
■Canadian Owners
Please refer to the warranty manual that came with your vehicle.
■EPA Contact Information
An owner may obtain further information concerning emission warranties or report
violations of the terms of the em ission warranties by contacting:
U.S. Environmental Protection Agency
Office of Transportation and Air Quality
Compliance Division, Li ght-Duty Vehicle Group
Attn: Warranty Complaints
2000 Traverwood Drive
Ann Arbor, MI 48105
Email: [email protected]
18 ACCORD HYBRID-31TWA6000.book 668 ページ ２０１８年１月３０日　火曜日　午後７時３８分
