HONDA ACCORD SEDAN 2021 Owner's Manual (in English)

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

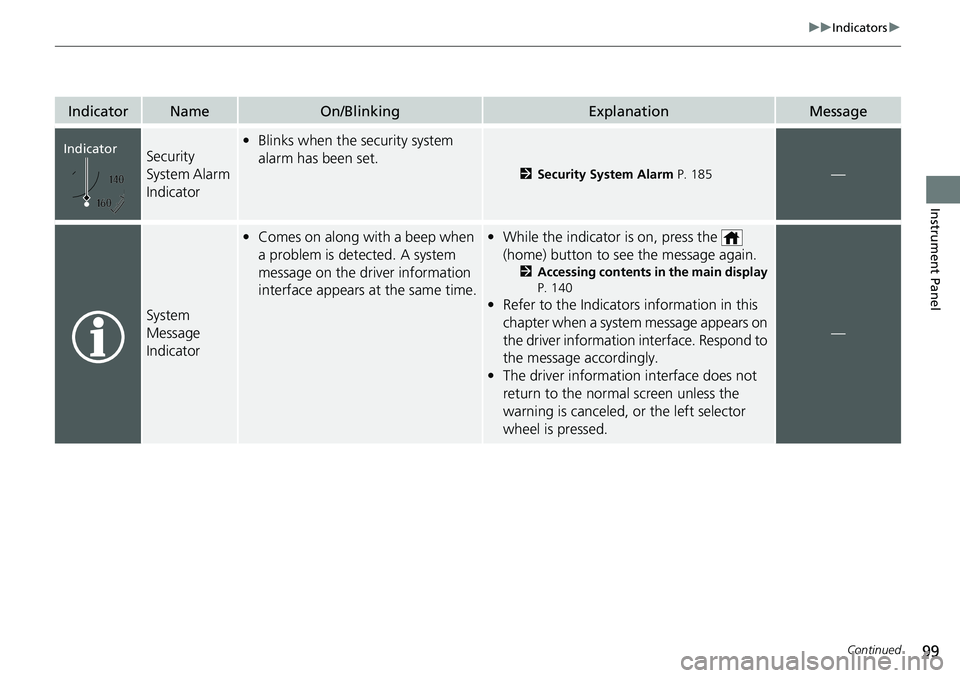

Security
System Alarm
Indicator•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 185—
System
Message
Indicator
•Comes on along with a beep when
a problem is detected. A system
message on the driver information
interface appears at the same time.•While the indicator is on, press the
(home) button to see the message again.
2 Accessing contents in the main display
P. 140
• Refer to the Indicators information in this
chapter when a system message appears on
the driver information interface. Respond to
the message accordingly.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the left selector
wheel is pressed.
—
Indicator

100
uuIndicators u
Instrument Panel
*1:Models without the adaptive damper system
*2:Models with the adaptive damper system
IndicatorNameOn/BlinkingExplanationMessage

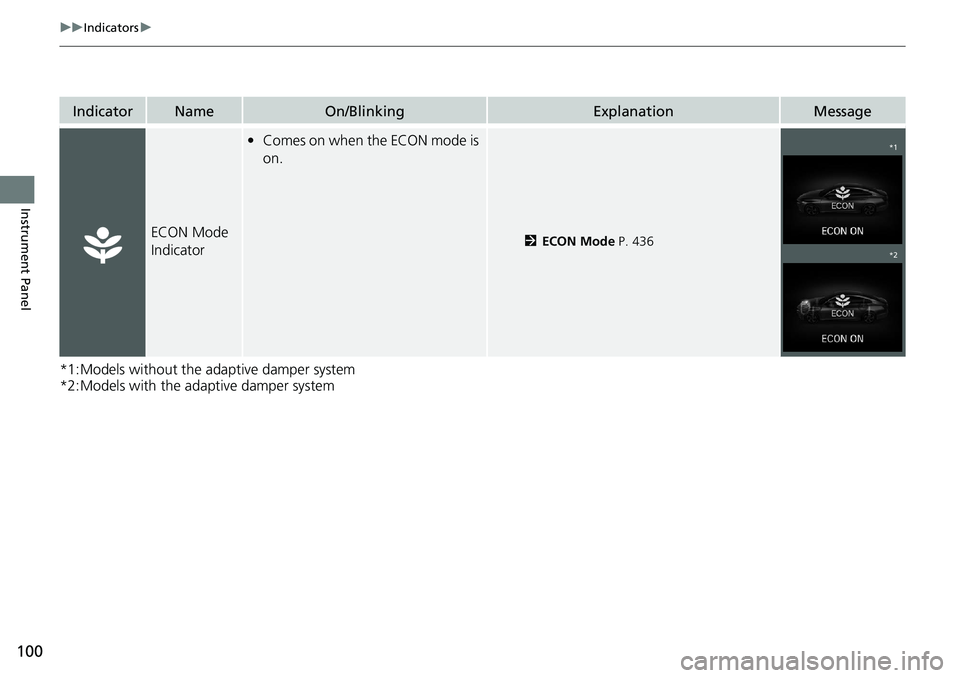

ECON Mode
Indicator
•Comes on when the ECON mode is
on.
2 ECON Mode P. 436
*1
*2

101
uuIndicators u
Continued
Instrument Panel
*1:Models without the adaptive damper system
*2:Models with the adaptive damper system
IndicatorNameOn/BlinkingExplanationMessage

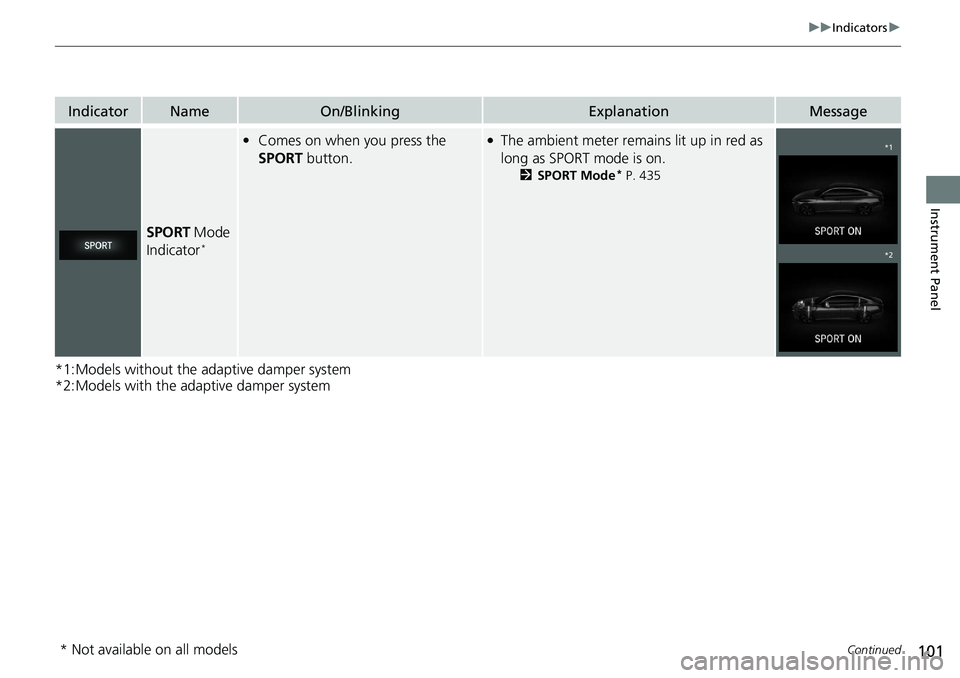

SPORT Mode
Indicator*
• Comes on when you press the
SPORT button.●The ambient meter remains lit up in red as
long as SPORT mode is on.
2 SPORT Mode* P. 435
*1
*2
* Not available on all models

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle
Stop Indicator
(Green)
*
●Comes on when Auto Idle Stop is in
operation. The engine automatically
shuts off.
2Auto Idle Stop* P. 437—
Auto Idle
Stop System
Indicator
(Amber)
*
●Comes on when the Auto Idle Stop
system has been turned off by the
Auto Idle Stop OFF button.
2Auto Idle Stop System ON/OFF P. 438
●Blinks if there is a problem with the
Auto Idle Stop system.●Blinks - Have your vehicle checked by a
dealer.
* Not available on all models

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

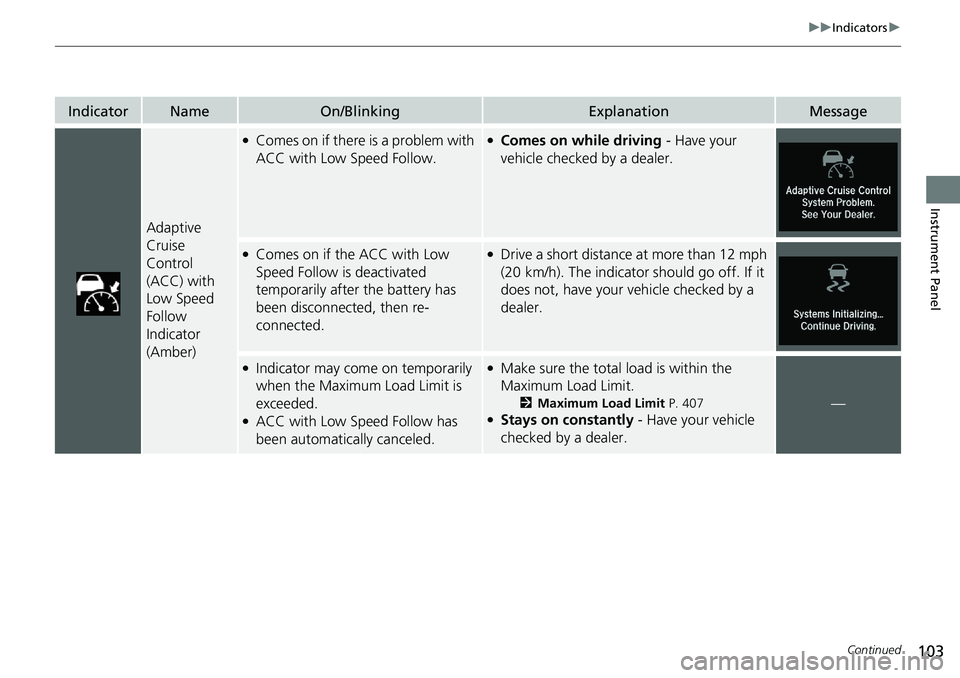

Adaptive
Cruise
Control
(ACC) with
Low Speed
Follow
Indicator
(Amber)
●Comes on if there is a problem with
ACC with Low Speed Follow.●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the battery has
been disconnecte d, then re-
connected.●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.
●ACC with Low Speed Follow has
been automatica lly canceled.
●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 407●Stays on constantly - Have your vehicle
checked by a dealer.—

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive
Cruise
Control
(ACC) with
Low Speed
Follow
Indicator
(White/
Green)●Lights up in white when you press
the button.
●Lights up in green when you press
the RES/+ button or SET/- button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 472—
Lane Keeping
Assist System
(LKAS)
Indicator
(Amber)●Comes on if there is a problem with
the LKAS.●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
(LKAS)
Indicator
(White/
Green)●Lights up in white when you press
the LKAS button.
●Lights up in green when the LKAS is
in operation.2 Lane Keeping Assist System (LKAS)
P. 488—
Cruise Mode
Indicator
(White/
Green)●Lights up in white when you change
to cruise mode.
●Lights up in green when you have
set a speed for cruise control.
2 To Switch ACC with Low Speed Follow
to Cruise Control P. 486—

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

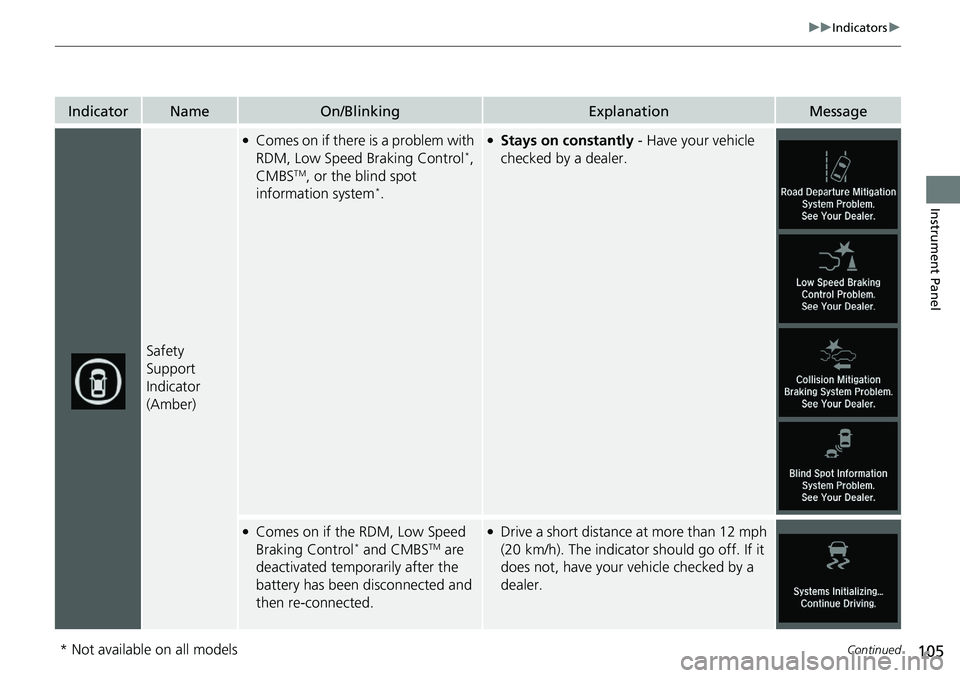

Safety
Support
Indicator
(Amber)
●Comes on if there is a problem with
RDM, Low Speed Braking Control*,
CMBSTM, or the blind spot
information system*.
●Stays on constantly - Have your vehicle
checked by a dealer.
●Comes on if the RDM, Low Speed
Braking Control* and CMBSTM are
deactivated temporarily after the
battery has been disconnected and
then re-connected.
●Drive a short distance at more than 12 mph
(20 km/h). The indicator should go off. If it
does not, have your vehicle checked by a
dealer.
* Not available on all models

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on when RDM, Low Speed
Braking Control* and/or CMBSTM
shuts itself off.
●Indicator may come on temporarily when
passing through an enclosed space, such as
a tunnel.
●The area around the radar sensor cover is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place and wipe the debris off with
a soft cloth.
Indicator may take some time to go off after
the radar sensor cover is cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go off even after you
have cleaned the radar sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
2 Radar Sensor P. 508
●Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool down
the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 506
* Not available on all models

107
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on when RDM, Low Speed
Braking Control* and/or CMBSTM
shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place and wipe the debris off with
a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed
even after you have cleaned the area
around the camera.
2 Front Sensor Camera P. 506
●Comes on when mud, snow, or ice
accumulates in the vicinity of sonar.
●Remove the obstacle in the vicinity of sonar
sensor.
2Low Speed Braking Control* P. 467
2 Sonar Sensors* P. 509
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot in formation system
sensor.
●Comes on while driving - Something may
be interfering with the blind spot
information system sensor. Check the
vicinity of the blind spot information system
sensor and remove any obstacles.
2 Blind spot information System* P. 452
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 407
—
Models with Low Speed
Braking Control
Models with blind spot
information system
* Not available on all models

108
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

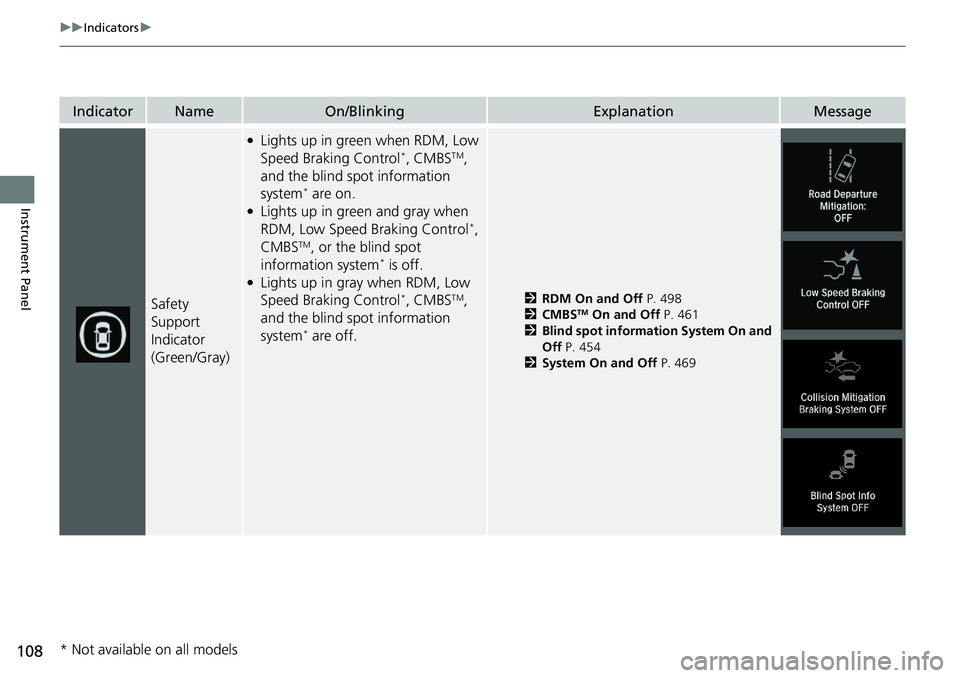

Safety
Support
Indicator
(Green/Gray)
●Lights up in green when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are on.●Lights up in green and gray when
RDM, Low Speed Braking Control*,
CMBSTM, or the blind spot
information system* is off.●Lights up in gray when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are off.
2 RDM On and Off P. 498
2 CMBSTM On and Off P. 461
2 Blind spot information System On and
Off P. 454
2 System On and Off P. 469
* Not available on all models
