HONDA CIVIC 2000 6.G Workshop Manual

20. Remove the shift cable (CVT)
WASHER
Pt-Aslc
21. Disconnect the Power
switch connector, and
cramp.
LOCKNUT29 N.m {3.0 kgf m,22lbf'ft}
steering pressure (PSP)
remove the wire harness
CLIP
ll
I
Remove the radiator caP.
!!!@ usa care when l€moving the tadiator
Ap to avoid scalding by hot coolant or steam'
Raise the hoist to full height.
SHIFT CABLE
(cont'd)
25.
26.
27.
24. Remove the front tires/wheels and splash shield.
u x l.u mm SHIELD9.8Nm(1 0 kqt'm,
7.2lbf.ftl
Drain the engine coolant (see page 10-7). Loosen
the drain plug in the radiator.
Drain the transmission fluid Reinstall thedrainplug
using a new washer (see section 13, 14).
Drain the engine oil. Reinstall the drain bolt using a
new washer (see page 8-6).
28. Remove the shift rod and extension rod (M/T)
SHIFT ROD
EXTENSIONROD
8 x 1.25 mm22 N.m t2.2 kgf'm, 't6lbtft)
ER
6x1.0mm

Engine Removal/lnstallation
Removal(cont'dl
29. Remove the Ay'C compressor.
NOTE: Do not disconnect the Ay'C hoses.
30.
8x 1.25 mm A/C COMPRESSOR24 N.m (2.{ kgf.m, t7 tbtft}
Remove the shift cable (IVT).
NOTE:
. Take care not to bend the cable when removingit. Always replace any kinked cable with a newone.
. Adjust the shift cable when installing (see sec_tion 14).
8 x 1.25 mm22 N.m (2.2 kgf.m, 16 lbf.frl
LOCK WASHERBeplace.6x1.0mm14 N.m (1.4 kgf.m, tO tbtft)
5-8
A/C COMPRESSOR
t
{
31. Remove exhaust pipe A.
Dl6Y5. D16Y7 engines:
8 x 1.25 mm22 N.m 12.2 ksl.m. 16 tbI.fr)Replace.
SELF.LOCKING8 x 1.25 mm16 N.m (1.6 kgtm,12 tbt.ftlReplace.
D16Y8 ongin6;
8 x 1.25 mm22 N.m (2.2 kgf.m. 16 tbf.ftlReplace.
GASKETReplace.
SELF.LOCKING NUT10 x 1.25 mm33 N.m {3.4 kgt.m,25 lbr'frlReplace.
SELF.LOCKING NUT8 x 1.25 mm16 N.m 11.6 kgf.m, 12 lbtft)Replace.
SELF-LOCKING NUTl0 x 1.25 mm54 N.m (5.5 kgf.m, 40 lbf.ft)Replace.

81642 engine:
8 x 1.25 mm
22N,n 12 2 kdl'rn,
Replace.
,&16 rbt.ftl
Replace.
SELF.LOCKING8 x 1.25 mm16 N.m t1.6 kg{ m, 12 lbl'ft)
Replace.
GASKETSReplace.
10 x 1 .25 mm
s4 N.m {5.5 kgf m, 40 lbf'ftl
32.
PIPE A
RePlace'
Remove the damper forks (see section 18).
Disconnect the suspension lower arm ball joints
(see section 18).
Remove the driveshafts.
CAUTION:
o Do not pull on th€ drivoshaft. the CV ioint may
com9 apart.
o Use care whgn prying out the assombly.
Pull it straight to avoid damaging the differential
oil seal or intermediate shaft dust seal.
NoTE: Coat all precision-finished surfaces with
clean engine oil. Tie plastic bags over the driveshaft
enos.
34.
HO2S CONNECTOR
!^.
35.
36.
Lower the hoist.
Remove the upper and lower radiator hoses and
heater hoses,
37. Removs the ATF cooler hoses, then plug the ATF
cooler hoses and PiPes (A,/T)
UPPERRADIATOR HOSE
HOSES
(cont'd)

Engine RemovaUlnstallation
Removal(cont'd)
38. Attach the chain hoist to the engine.
HOISTING BRACKETInstall on the cylinder headwitha8x1.25mmbolt.
5-10

39. Remove the left and right front mount and bracket'
MOUNT/BRACKET
40. Remove the rear mount bracket.
41. Remove the uPPsr bracket.
42. Remove the transmission mount bracket, then
remove the transmission mount.
44.
Check that the engine/transmission is completely
free of vacuum hoses, fuel and coolant hoses and
electricalwiring.
Slowly raise the engine approximately 150 mm (6 in)'
Check once again that all hoses and wires are discon-
nected from the engine^ransmission
Raise the engine all the way, and remove it from the
car.
UPPER
TRANSMISSION
45.
5-11

Engine RemovaUlnstallation
Installation
Brackei Bolts Torque Specifications:
Dl5Y5, Dl6Y7, Dl6Y8 €nginss
D16Y5, D16Y8 engines (M/Tl:
REAR STIFFENER
8 x 1.25 mm2/t N.m 12.4 kgf.m, 17 tbf.ftl
EXCEPT D16Y5, Dl6Yg engines lM/T)jSTIFFENERTighten the bolts on the stiffenerin the numbered sequence as shown
10 x 1.25 mm44 N.m 14.5 kgf.m,33 tbf.frt
O8x1.25mm24 N.m {2.4 kg{.m,17 tbr.ftt
10 x 1.25 mm14 N.m 14.5 kgt m,33 tbf.ft)
10 x 1.25 mm44 N.m {4.5 kgt m,33 tbr.ftl
10 x 1.25 mm54 N.m {5.5 kgf.m,40 rbf.ftl
10 x 1.25 mm44 N.m {4.5 kg'f.m,33 tbtftlALTERNATOFBRACKET
li) o).
l3l 10 x 1.25 mm44 N.m {1.5 kgt.m,33 tbt.ft)8 x 1.25 mm24 N.m (2.4 kgf.m,17 tbf.ft)
o16Ys, D16Y8enginoslM/T):FRONTSTIFFENER
10 x 1.25 mm4,4 N.m {4.5 kg{.m.33 tbf.ftl8 x 1.25 mm2{ N.m (2.t kgtm,17 rbtft)
10 x 1.25 mm14 N.m (4.5 kgf.m,33 lbf.ftl
5-12

816A2 engine
P/S PUMPBRACKET
REARSTIFFENER
SIDE ENGINEMOUNT BRACKET
t0 x 1.25 mmia{ N.m (i1.5 kgt rn,
33 lbt.tr)
t
12 x 1.25 nm57 N.m {5.8 kgf,m,12 tbl.ttl
8 x 1.25 mm24 N.m (2.4 kgl.m,17lbf.ft)
FRONTSTIFFENER
A/C COMPBESSORBRACKET
10 x 1.25 mm54 N m {5.5 kgf m, a0 lbl ft}
10 x 1.25 mm4a N,m (4.5 kgf.m,33 tbf.ftt
ALTERNATORBRACKET
'12 x 1.25 mm
57 N.m {5.8 kgt'm,
42 tbt.ft)8 x 1.25 mm24 N.m {2.4 kgf.m,17 tbtft)
'10 x 1.25 mm,14 N.m {,1.5 kgt.m,33 rbf.ft)
(cont'd)
5-13

Engine Removal/lnstallation
Installation (cont'd)
Engino Inst!llation:
Install the engine in the reverse order of removal.Beinstall the mount bolts/nuts in the following sequence.Failure to follow these procedures may cause excessivenois€ and vibration, and reduce bushing life.
l, Install the transmission mount and bracket, thentighten the bolts on the frame side,
NOTE; Do not tighten the bolts/nuts on the trans_mission side.
CW;
10 x 1.25 mm38 N.m {3.9 kgt m. 28 lbt.ftl
5-14
I
I
2, Install the upper bracket, then tighten the nuts inthe numbered ssquence shown (O _ @).
l'
aO t2 x 1.25 mm74 N.m 17.5 kgf.m,O t2 x t.2s mm74 N.m 17.5 kgtm,rbrft)

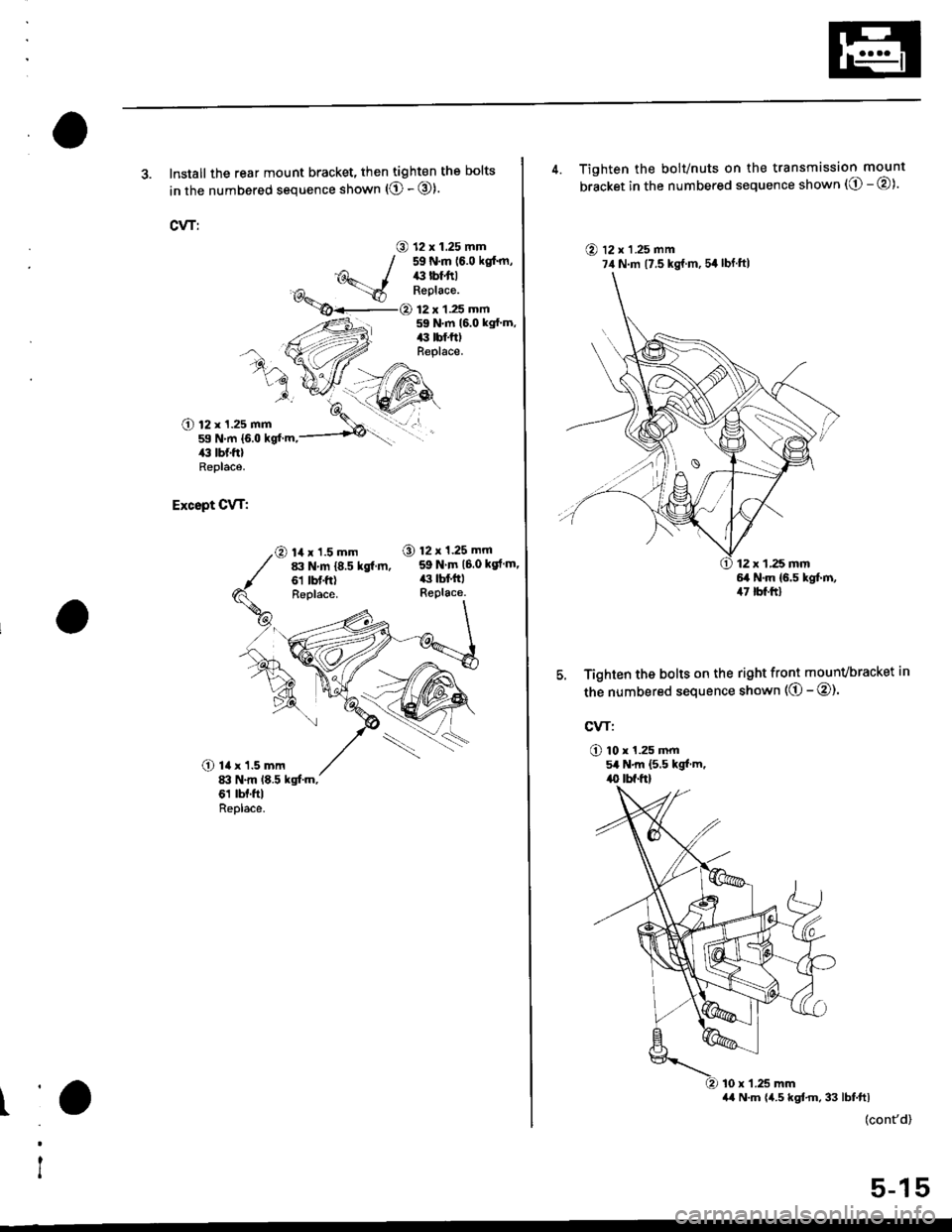

3. Install the rear mount bracket, then tighten the bolts
in the numbered sequence shown (O - @).
CVT:
O 12 x 1.25 mm59 N.m (6.0 kgl'm,ilil lbf ftlReplace.
12 x 1.25 mm59 N.m 16.0 kgf'm,|:r tbf.tt)Replace.
O 12 x 1.25 mm59 N'm {6.0 kgf'm,/€ lbf.ftlReplace.
Except CVT:
,@ 14 x'1.5 mm
/ 8:t N.m {8.5 kgf.m,
/ 61 rbr.fr) Replace.
O 12 r 1.25 mm
59 N m 16.0 kgt m,(} tbf.fttReplace.
Olax1.5mm83 N.m 18.5 kgf.m,61 tbf.ftlReplace.
L
4. Tighten the bolvnuts on the transmission mount
bracket in the numbe.ed sequence shown (O - O).
@ t2 x t.2s mm7,1N.m (7.5 kg{ m, 54 lbf ftl
Tighten the bolts on the right front mounvbracket in
the numbered sequence shown (O - @).
GW:
O to x 1.25 mm54 N.m {5.5 kgl.m./|{} lbf.ftl
10 x 1.25 mm4,1 N.m {4.5 kgf.m. 33 lbf.ftl
(cont'd)
5-15
12 x 1,25 mmfl N.m 16.5 kgt.m,47 tbf.ftl

Engine Removal/lnstallation
Installation (cont'd)
Except CVT:
12 x 1.25 mm64 N.m (6.5 kgd.m,
Tighten the bolts/nut on the left front mount in thenumbered sequence shown {O - @).
(t 12 x 1.25 mm83 N'm (8.5 kgf.m,61 tbt.trl
/+4 N.m 14.5 kgf.m,33 lbt.trl
O 12 r 1.25 mm59 N.m 16.0 kgt.m,43 tbt.rtlSeplace.
5-16
\
7. Perform the following:
. Clean the areas where the driveshaft(s) and theintermediate shaft contact the transmission (dif_ferential) thoroughly with solvent or carburetorcteaner, and dry with compressed air.. Check that the set rings on the ends of the drive_shaft and intermediate shaft click into place.CAUTION: Use new set rings,. Adjust the shift cable (see section 14).. Adjust the throttle cable (see section 11).. Adjust the cruise control cable (see section 23).. Refill the engine with engine oil (see page 8-6).. Refill the transmission with fluid (see section 13,14).
. Refill the radiator with engine coolant (see page10-7).
. Bleed air from the cooling system with the heatervalve open (see page j0-7).
. Clean the battery posts and cable terminals withsandpaper, assemble them, then apply grease toprevent corrosaon.. Inspect for fuel leakage (see section j l).After assembling the fuel line, turn on l) the igni_tion switch (do not operate the starter) so that thefuel pump runs for approximately two secondsand the fuel line pressurizes. Repeat this opera_taon two or three times, then check for fuel leak_age at any point in the fuel line,
