HONDA CIVIC 2002 7.G Workshop Manual

Power Windows
1.
2.
Passenger's Window Switch Input Test
Remove the switch panel (see page 20-4).
Disconnect the 5P connector (A) from the switch (B).
o
'' "'"1.
4.
Wire side of female terminals
BLU/WHTGRN/BLK
Input the connector and socket terminals to be sure they are all making good contact.
. lf theterminals are bent, loose or corroded, repairthem as necessary, and recheckthe system.. lf the terminals look OK, go to step 4.
Reconnect the connector, and using a back probe, make these input tests at the connector. lf any test indicates aproblem, find and correct the cause, then recheck the svstem,
CavitvWireTest conditionTest: Desired resultPossible cause if result is not obtained
3GRN/BLKlgnition switch ON
{ ll)
Check for voltage to
grouno:
There should be battery
voltage.
Blown No.6 (7,5A)fuse in the
under-dash fuse/relay box
Blown No.22 {20A)fuse in the
under-dash fuse/relay box
Faulty power window relay
An open in the wire
Poor qround (G201)
2BLD,A/VHTlgnition switch ON( )
At the master
window switch,
press and hold
down the
passenger's switch
Check for voltage to
ground:
There should be battery
voltage.
Faulty master window switch
An open in the wire
BLU/REDlgnition switch ON(||)
At the master
window switch,
pull up and hold
the passenger's
switch
Check for voltage to
grouno:
There should be battery
voltage.
Faulty master window switch
An open in the wire
22-130

5. Disconnect the 5P connector, and make these input tests.
6. lf allthe tests prove OK, the switch must be faulty. Replace it.
CavitvWireTest conditionTest: Desired resultPossible cause il result is not obtained
1REDConnect the No. 2
terminal to the No.
1 terminal, and the
No. 4 terminal to
the No. 5 terminal,
and turn the
ignition switch ON
{ll), and press the
down button on
the power window
master switch for
the passenger's
window.
Check for passenger's
window motor operation: lf
should run (the passenger's
window moves down),
There should be battery
voltage.
Faulty master's window switch
An open in the wire
Faulty passenger's window
moror.
RED/BLU
22-131

Power Windows
1.

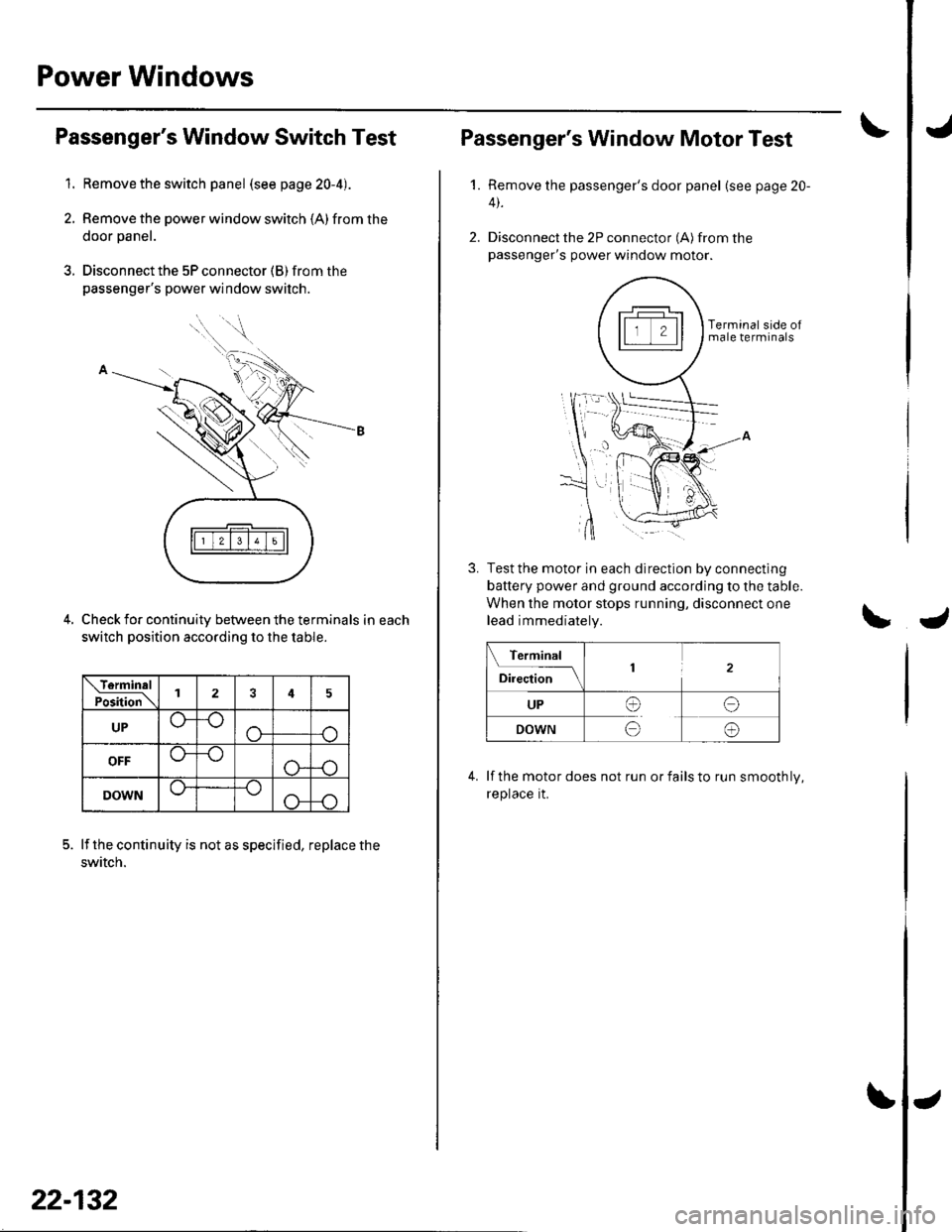

Passenger's Window Switch Test
Remove the switch panel (see page 20-4).
Remove the power window switch (A) from the
door panel.
Disconnect the 5P connector (B) from the
passenger's power window switch.
Check for continuity between the terminals in each
switch position according to the table.
lf the continuity is not as specified, replace the
swtlcn.
tfiTtTtT;Etll' '-r--r-,Jl
\TorminalPoiition\124
UP
OFF
DOWN
22-132
Passenger's Window Motor Test
1.Remove the passenger's door panel (see page 20-
4).
Disconnect the 2P connector (A) from thepassenger's power window motor.
Terminal side ofmale terminals
Test the motor in each direction by connecting
battery power and ground according to the table.
When the motor stops running, disconnect one
lead immediately.
Terminal
Dl*;;;__\1
UPI
o
o
DOWNo
lf the motor does not run or fails to run smooth ly,
reptace rt.

'1.
2.

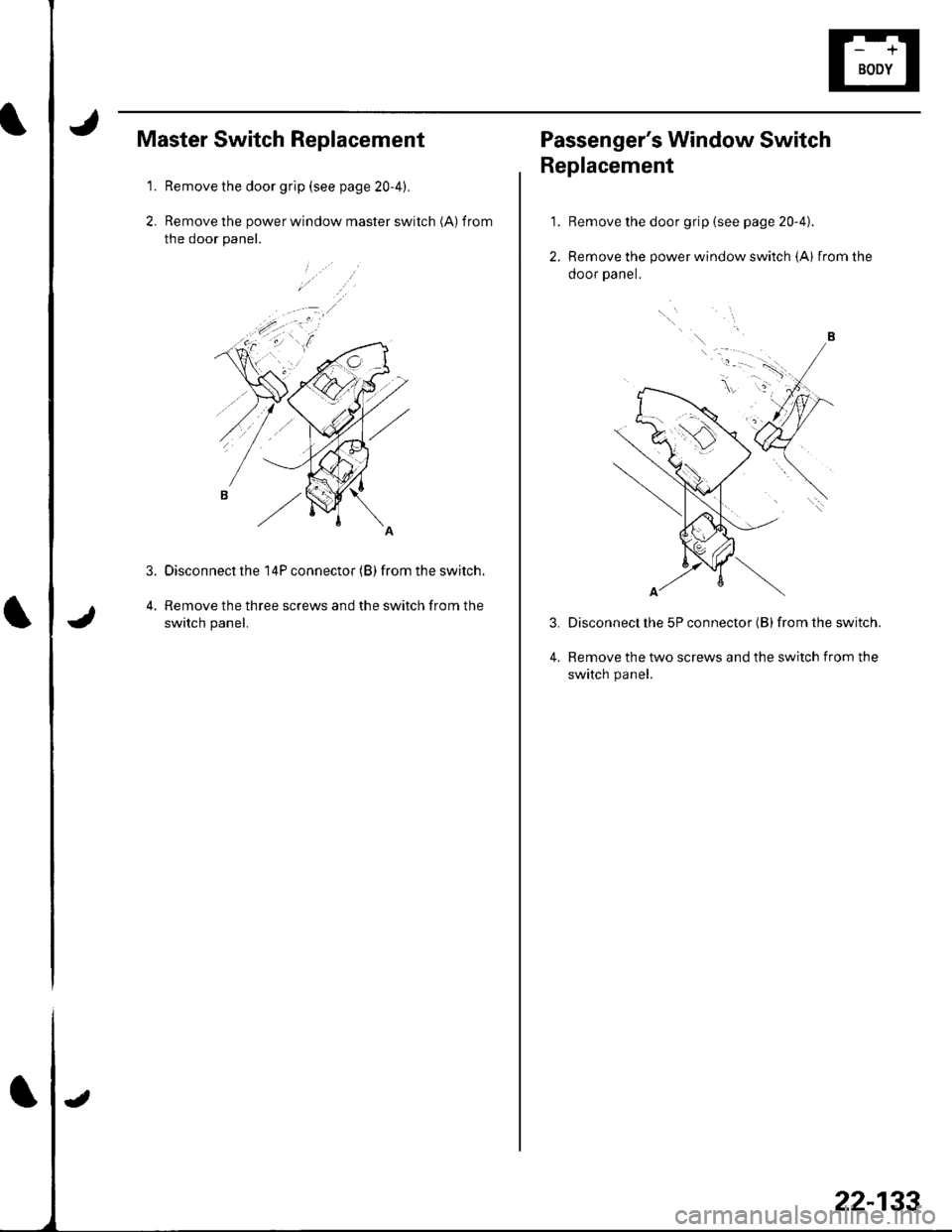

Master Switch Replacement
Remove the door grip (see page 20-4).
Remove the power window master switch (A) f rom
the door panel.
Disconnect the 14P connector (B) from the switch.
Remove the three screws and the switch from the
switch panel.
3.
22-133
Passenger's Window Switch
Replacement
Remove the door grip {see page 20-4).
Remove the power window switch (A) from the
ooor paner.
Disconnect lhe 5P connector (B) from the switch.
Remove the two screws and the switch from the
switch panel.
1.
2.
3.
4.

Wipers/Washers
Component Location Index
WINDSHIELD WIPER MOTORTest, page 22-'143Replacement, page 22-145
WINDSHIELD WIPER ARMS and LINKAGEReplacement, page 22-'145
WIPER/WASHER SWITCHTest, page 22-140Replacement,page 22 140
UNDER.DASHFUSE/RELAY BOX
INTERMITTENT WIPER CIRCUITlln the multiplex control unit)Input Test, page 22-138
22-134

REAR WINOOW WASHER MOTORTest, page 22-144Replacement, page 22 146
WINDSHIELD WASHER MOTORfesl, page 22 144Beplacement, page 22-146
WASHER TUBESReplacement, page 22-147
CONDENSERCapacityTest, page 22 107
BEAR WINDOW WIPER ARMReplacement, page 22 146
WASHER RESERVOIBReplacement, page 22'146
WASHER FLUID LEVEL SWITCH {Canada)TesI, page22-144Replacement, page 22-144
REAR WINDOW WIPER INTERMITTENTCONTROL UNITInput Test, page 22'138
REAR WINDOW WIPER MOTORf e$, page 22-143Replacement, page 22 146
22-135

Wipers/Washers
Circuit Diagram - Windshield
UNOEN HOOD FL]SE/8ELAY BOX IGNITIONSWITCN'7{ F;^--il I 6\
U-I^-- -':-;--u,Hr-
o,f-''*""
\1
L\'
MULTIPIIXcoiln0LUNIT
22-136
\,!

Circuit Diagram - Rear Window
UI\IOIF H@O FUSE/RELAY MX GNMOIIISW|ICH
- No2olaoAl :USA
BATTERY r----------------;i l No'g,soA, ro2o. | /,^1\(-;1_=l----_--_fww{"-' l
\+ylErHorb0Ni||l
I andsra8r 0
ffAn w$tDow wtPEEINTE$'ITTEI'IT C{)NNOL UI'/IT
f--------------- li
22-137

Wipers/Washers
1.
2.
Rear Window Wiper Intermittent Gontrol Unit Input Test
Remove the right rear side trim panel {see page 20-51).
Disconnect the 20P connector (A) from the rear window.wiDer intermittent control unit (B).
Inspect the connector and socket terminals to be sure they are all making good contact.
. lf the terminals are bent, loose orcorroded, repairthem as necessary, and recheckthe system.. lf the terminals look OK, go to step 4.
Wire side of female terminals
LTGRN/REO WHT/RED LT GRNWHT/RED
LT GRN/BLK
22-138

\
4. With the connector still disconnected, makethese input tests at the con necrors.
.lfanytestindicatesaproblem,findandcorrectthecause,thenrecheckthesystem.
' lf all the input tests prove OK, the control unit must be faultv. Replace it.
CavitvWireTesl conditionTest: Desired resultPossible cause if result is not obtainedGRNlgnition switch ON
flr)
Check for voltage to ground:
There should be battery
voltaqe.
. Blown No.9 (10A)fuse in the
under-dash fuse/relay box. An open in the wire10BLKUnder all
conditions
Check for continuity to
grouno:
There should be continuitv.
Poor ground (G553)
An open in the wire
6WHT/REDlgnition switch ON(ll) and rear
window washer
switch ON
Check for voltage to ground:
There should be battery
vortage.
Blown No.9 (10A) fuse in the
under-dash fuse/relay box
Faulty rear wlndow wiper/
washer switch
An open in the wire4LT GRN/
RED
lgnition switch ON(ll) and rear
window wiper
switch ON
Attach to groundl
The rear window wiper motor
should run.
LT GRNlgnition switch ON
flr)
Attach to ground:
The rear window wiper motor
should run.
Blown No. 9 (10A)fuse in the
under-dash fuse/relay box
Faulty rear window wiper motor
An open in the wire20LT GRN/
BLK
lgnition switch ON(ll)Check for voltage to ground:
There should be battery
voltage.
Blown No.9 (10A) fuse in the
under-dash fuse/relay box
Faulty rear window wiper motor
An oDen in the wire
22-139
