relay HONDA CIVIC 2003 7.G Workshop Manual

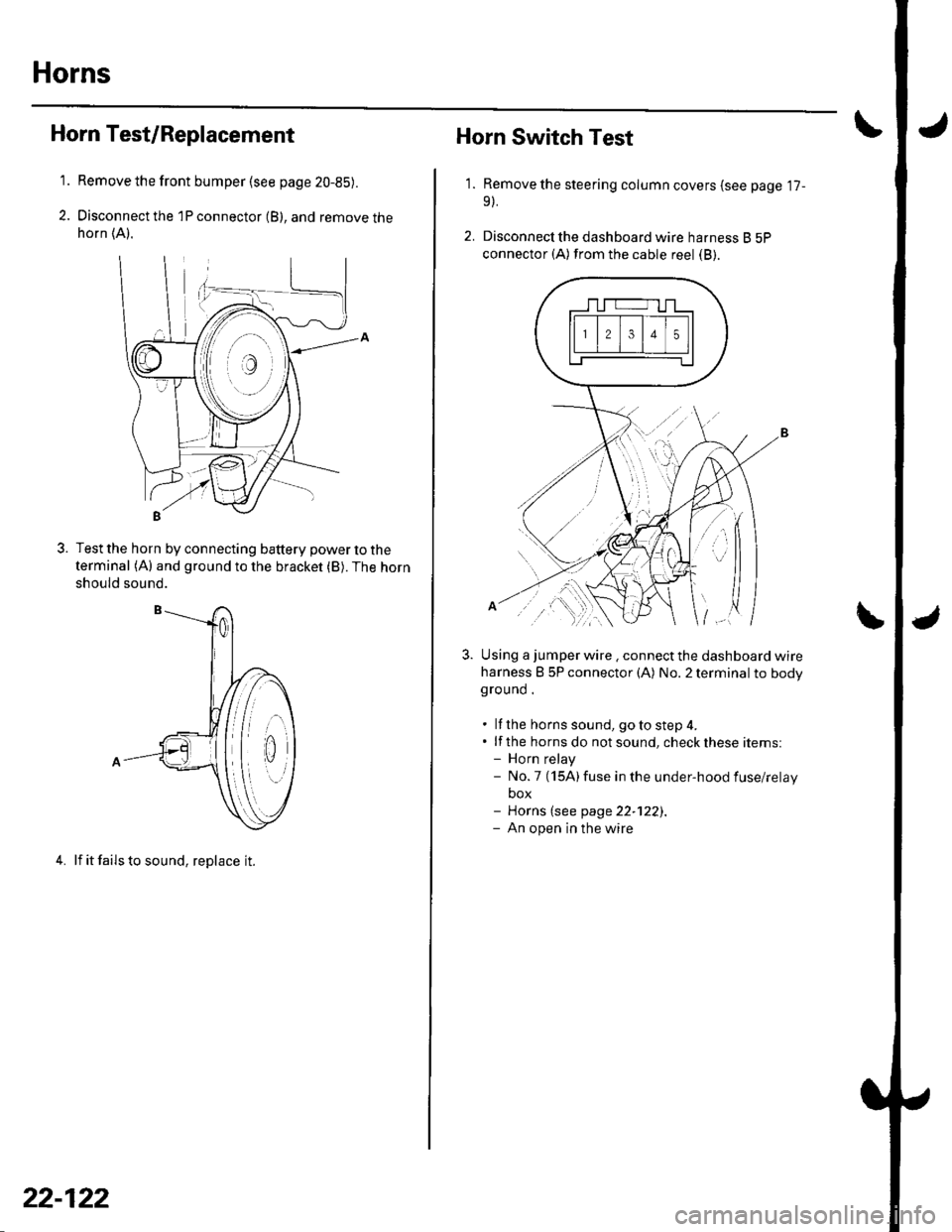

Horns
1.
3.
Horn Test/Replacement
Remove the front bumper {see page 20-85).
Disconnect the 1P connector (B), and remove thehorn (A).
Test the horn by connecting battery power to the
terminal (A) and ground to the bracket (B). The horn
should sound.
4. lf it fails to sound, replace it.
22-122
1.
Horn Switch Test
Remove the steering column covers (see page '17-
9).
Disconnecl the dashboard wire harness B 5P
connector (A) from the cable reel (B).
Using a jumper wire . connect the dashboard wire
harness B 5P connector (A) No. 2 terminal to bodyground .
. lf the horns sound, goto step 4.. lf the horns do notsound, checkthese items:- Horn relay- No.7 (15A)fuse in the under-hood fuse/relay
box- Horns (see page 22-122).- An open in the wire
| ../......:....,

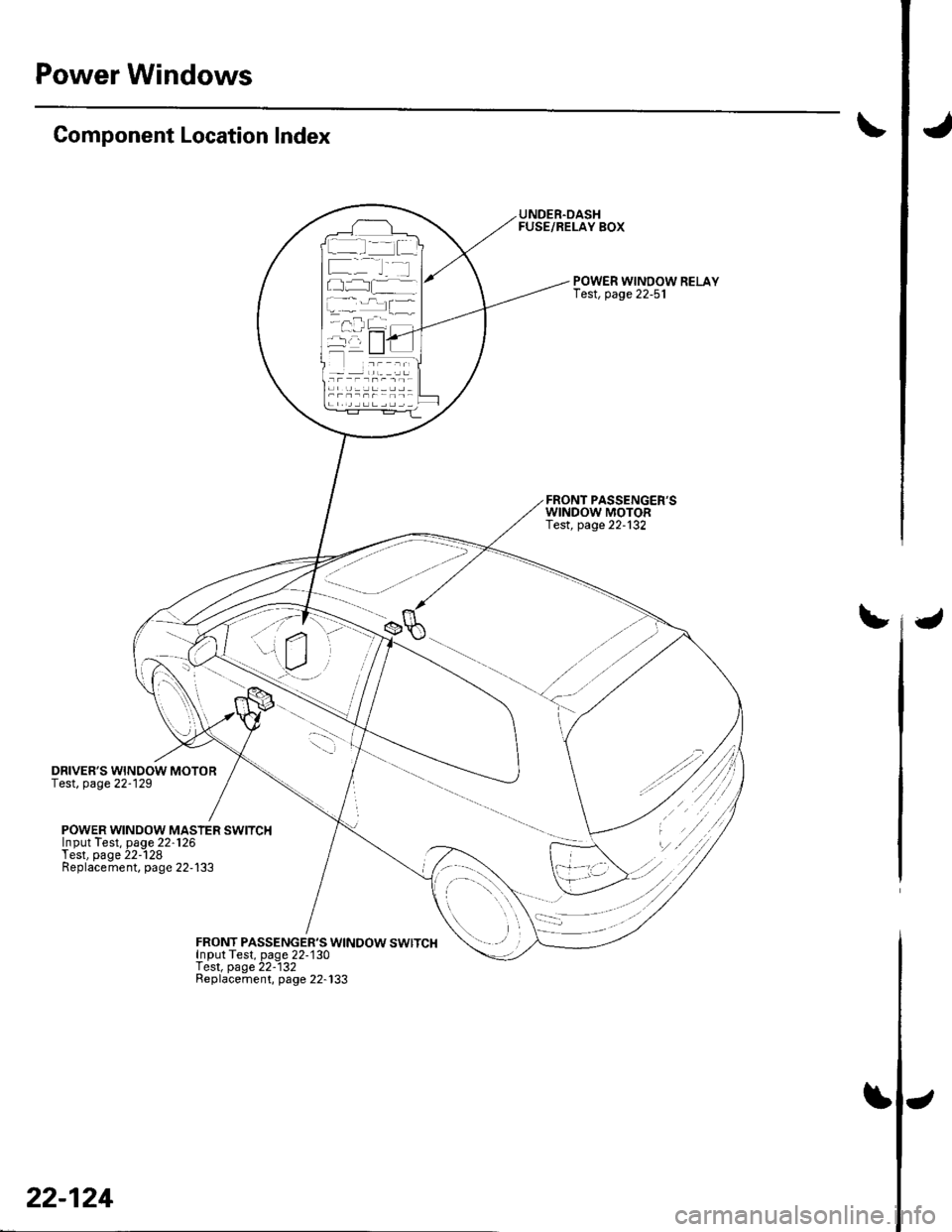

Power Windows
IJComponent Location Index
DRIVER'S WINDOW MOTORTest, page 22-129
UNDER.DASHFUSE/RELAY BOX
POWER WINDOW RELAYIest, page 22-51
FRONT PASSENGER'SWINDOW MOTORTest, page 22-132
tJ
POWER WINDOW MASIER SWITCHInput Test. Daqe 22.126Test, page 22--128Replacement, page 22-133
FRONT PASSENGER'S WINDOW SWITCHInDut Tesl, paqe 22-130f est, page 22-132Beplacement, page 22-133
al.l ' -f..--.--
L-.::
22-124
\J

4. Withthe connector still disconnected, makethese inputtests attheconnector.
.lfanytestindicatesaproblem,findandcorrectthecause.thenrecheckthesystem.
. lf allthe inputtests prove OK, goto step 5.
5. Reconnect the 14P connector to the switch, and perform the following input tests.
.lfanytestindicatesaproblem,findandcorrectthecause,thenrecheckthesystem.
. lf all the input tests prove OK, the control unit must be faulty. Replace the power window master switch.
CavityWireTest conditionTest: Desired resultPossible cause if result is not
obtained
10BLKUnder all conditionsCheck for continuity to
grouno:
There should be continuity.
. Poor ground {G50'1). An open in the wire
14
11G RN^,^/HTlgnition switch ON (ll)Check for voltage to
ground:
There should be battery
voltage.
Blown No.6 (7.5A) fuse in
the under-dash fuse/relay
box
Blown No. 22,23 l2OA) tuse
in the under-dash fuse/
relay Dox
Faulty power window relay
Poor ground (G201)
An open in the wire
2GRN/BLK
1RED/YELConnect the No. 'l'1 and
No. 7 terminals, and the
No, 4 and No. 14 terminals,
and turn the ignition switch
oN flr).
Check for driver's window
molor operaflon:
It should run (the driver's
window moves down).
. Faulty driver's window
motor. An open in the wireRED/B LK
3BLU/REDConnect the No. 2 and No. 1
terminals, and the No. 3
and No. 10 terminals, and
turn the ignition switch ON
fi r),
Check for passenger's
window motor operation:
It should run (the
passenger's window moves
oown).
Faulty passenger's window
motor
Faulty passenger's window
swatch
An open in the wire
BLU/WHT
CavityWireTest conditionTest: Desired resultPossible cause if result is not
obtained
13ORNConnect the No. 11 and
No. 7 terminals, and the
No. 4 and No. 14 terminals,
and turn the ignition switch
oN 0r).
Check for voltage between
the No. 13 and No. 14
termtnals:
About6Vshouldbe
indicated with the driver's
window motor running.
. Faulty driver's window
molor. An open in the wire
22-127

Power Windows
1.
2.

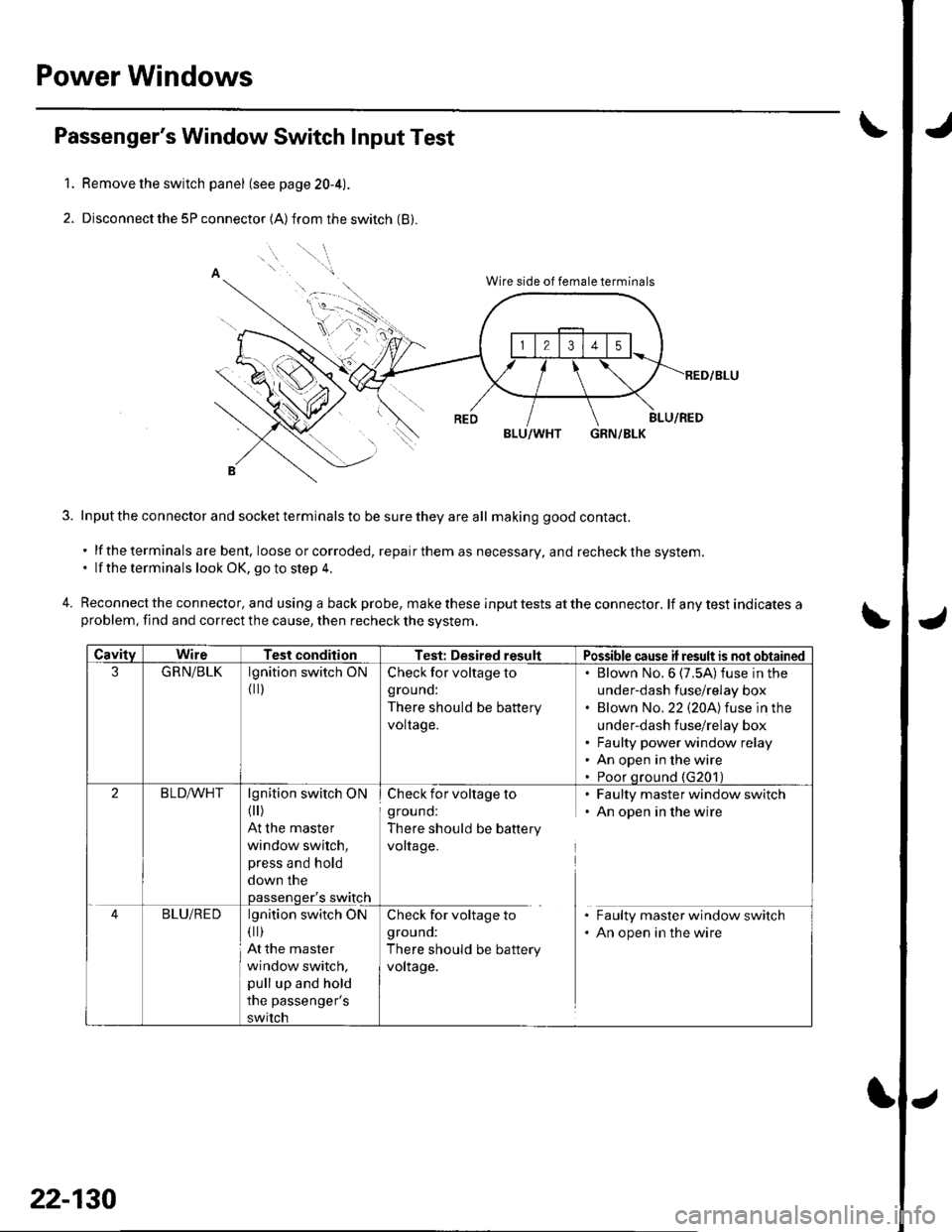

Passenger's Window Switch Input Test
Remove the switch panel (see page 20-4).
Disconnect the 5P connector (A) from the switch (B).
o
'' "'"1.
4.
Wire side of female terminals
BLU/WHTGRN/BLK
Input the connector and socket terminals to be sure they are all making good contact.
. lf theterminals are bent, loose or corroded, repairthem as necessary, and recheckthe system.. lf the terminals look OK, go to step 4.
Reconnect the connector, and using a back probe, make these input tests at the connector. lf any test indicates aproblem, find and correct the cause, then recheck the svstem,
CavitvWireTest conditionTest: Desired resultPossible cause if result is not obtained
3GRN/BLKlgnition switch ON
{ ll)
Check for voltage to
grouno:
There should be battery
voltage.
Blown No.6 (7,5A)fuse in the
under-dash fuse/relay box
Blown No.22 {20A)fuse in the
under-dash fuse/relay box
Faulty power window relay
An open in the wire
Poor qround (G201)
2BLD,A/VHTlgnition switch ON( )
At the master
window switch,
press and hold
down the
passenger's switch
Check for voltage to
ground:
There should be battery
voltage.
Faulty master window switch
An open in the wire
BLU/REDlgnition switch ON(||)
At the master
window switch,
pull up and hold
the passenger's
switch
Check for voltage to
grouno:
There should be battery
voltage.
Faulty master window switch
An open in the wire
22-130

Wipers/Washers
Component Location Index
WINDSHIELD WIPER MOTORTest, page 22-'143Replacement, page 22-145
WINDSHIELD WIPER ARMS and LINKAGEReplacement, page 22-'145
WIPER/WASHER SWITCHTest, page 22-140Replacement,page 22 140
UNDER.DASHFUSE/RELAY BOX
INTERMITTENT WIPER CIRCUITlln the multiplex control unit)Input Test, page 22-138
22-134

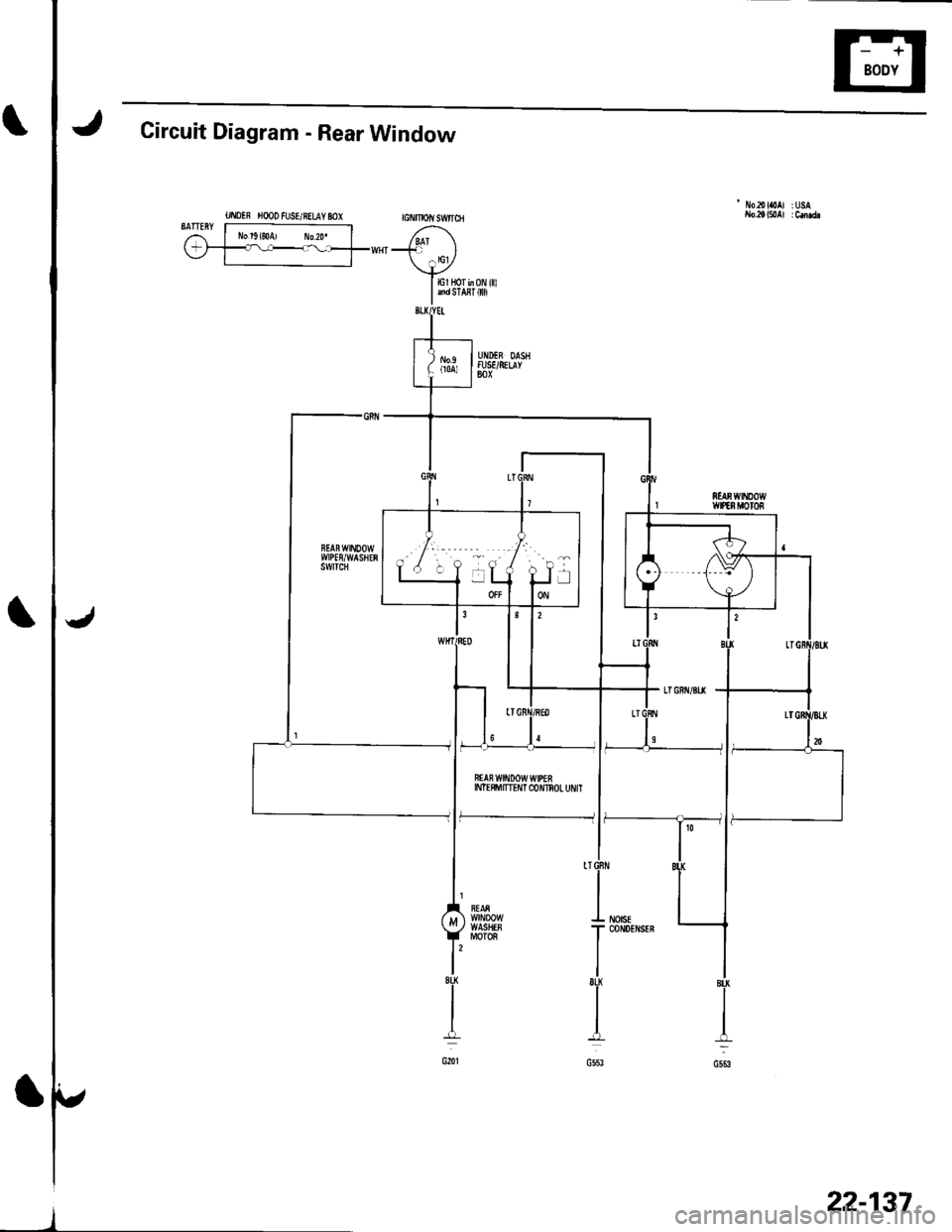

Circuit Diagram - Rear Window
UI\IOIF H@O FUSE/RELAY MX GNMOIIISW|ICH
- No2olaoAl :USA
BATTERY r----------------;i l No'g,soA, ro2o. | /,^1\(-;1_=l----_--_fww{"-' l
\+ylErHorb0Ni||l
I andsra8r 0
ffAn w$tDow wtPEEINTE$'ITTEI'IT C{)NNOL UI'/IT
f--------------- li
22-137

\
4. With the connector still disconnected, makethese input tests at the con necrors.
.lfanytestindicatesaproblem,findandcorrectthecause,thenrecheckthesystem.
' lf all the input tests prove OK, the control unit must be faultv. Replace it.
CavitvWireTesl conditionTest: Desired resultPossible cause if result is not obtainedGRNlgnition switch ON
flr)
Check for voltage to ground:
There should be battery
voltaqe.
. Blown No.9 (10A)fuse in the
under-dash fuse/relay box. An open in the wire10BLKUnder all
conditions
Check for continuity to
grouno:
There should be continuitv.
Poor ground (G553)
An open in the wire
6WHT/REDlgnition switch ON(ll) and rear
window washer
switch ON
Check for voltage to ground:
There should be battery
vortage.
Blown No.9 (10A) fuse in the
under-dash fuse/relay box
Faulty rear wlndow wiper/
washer switch
An open in the wire4LT GRN/
RED
lgnition switch ON(ll) and rear
window wiper
switch ON
Attach to groundl
The rear window wiper motor
should run.
LT GRNlgnition switch ON
flr)
Attach to ground:
The rear window wiper motor
should run.
Blown No. 9 (10A)fuse in the
under-dash fuse/relay box
Faulty rear window wiper motor
An open in the wire20LT GRN/
BLK
lgnition switch ON(ll)Check for voltage to ground:
There should be battery
voltage.
Blown No.9 (10A) fuse in the
under-dash fuse/relay box
Faulty rear window wiper motor
An oDen in the wire
22-139

Control Unit Input Test
l.Before testing, troubleshoot the multiplex control system lsee page 22-jj2).
Remove the dashboard lower cover,
Disconnect the under-dash fuse/relay box connectors B, G, J, X and y
NOTE: All connectors are wire side of female terminals.
UNDER-DASH FUSE/RELAY BOXCONNECTOR B I6PIUNDER.DASH FUSE/RELAY BOXCONNECTOR G {1OP)
2.
3.
UNDER-DASH FUSE/RELAY BOXCONNECTOR J {8PI
l-,1 - llTtlF_j-JF-#
141516 7l8l
WHT/BLU
\
l-,1 - l-rl€ll
lslrlzlol
\BLU/RED
UNDER.DASH FUSE/RELAY BOXCONNECTOR X I8PI
4. Inspect the connector and socket terminals to be sure they are all making good contact.
. lf the terminals are bent, loose or corroded, repairthem as necessary, and recheckthe system.. lf the terminals are OK, goto step 5.
(cont'd)
BLU/WHT
BLU/BLK
22-141

Wipers/Washers
Control Unit Input Test (cont'dl
5. Reconnect the connectors, and make these input tests at the connector.
.lfanytestindicatesaproblem,findandcorrectthecause,thenrecheckthesystem.
.lfalltheinputtestsproveOK,themultiplexcontrol unit must be faulty. Replace the under-dash fuse/relay box
assembly.
CavityWireTest conditionTest: Desired resultPossible cause if result is not obtained
J4BLKU nder all
conditlons
Check for voltage to ground: . Poor ground (G501)
There should be 1V or less. . AnoDeninthewire
Y6BLKU nder all
conditions
Check for voltage to ground: . Poor ground (G502)
There should be 1 V or less. . An oDen in the wire
BIWHTiBLUlgnition switch ON
{ll) and washer
switch ON
Check for voltage to ground:
There should be battery
vortage.
Blown No. 20 (20A) fuse in the
under-dash fuse/relay box
Faulty wiper/washer switch
An open in the wire
E'0BLU/REDlgnition switch ON
(ll) and wiper
switch OFF (wiper
motor stopped)
Check for voltage to ground:
There should be battery
voltage.
Blown No. 20 (20A) fuse in the
under-dash fuse/relay box
Faulty wiper/washer switch
Faulty windshield wiper motor
An open in the wire
G7BLUA/VHTlgnition switch ON(ll) and wipers in
park position
Check for voltage to ground:
There should be battery
voltage.
Blown No.20 (20A)fuse in the
under-dash fuse/relay box
Faulty windshield wiper motor
An ooen in the wire
x1BLU/BLKlgnition switch ON(ll) and wiper
switch in INT
Check for voltage to ground:
There should be battery
voltage.
Blown No.20 (20A)fuse in the
under-dash fuse/relay box
Faulty wiper/washer switch
An oDen in the wire
\J
\J
L
22-142
J

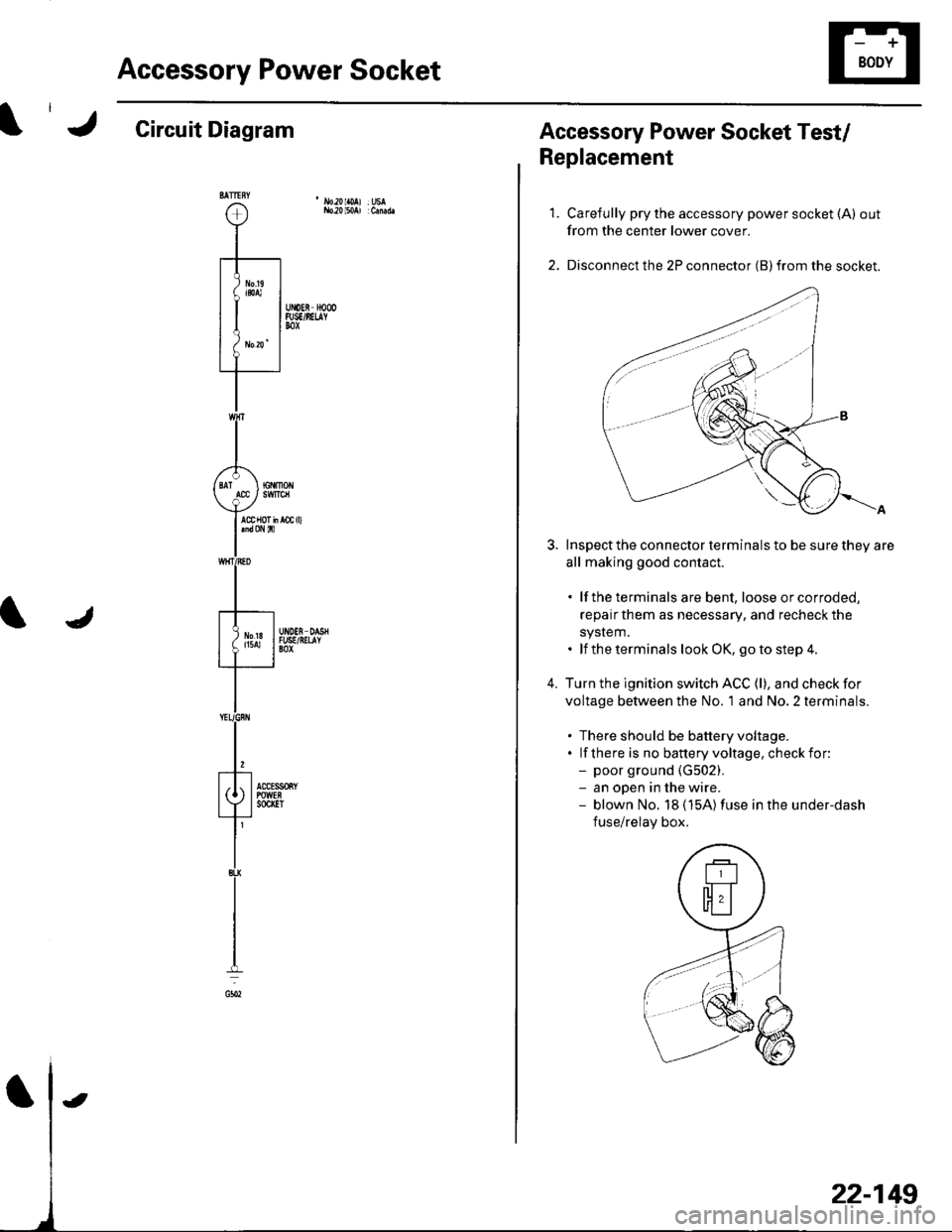

Accessory Power Socket
Circuit Diagram
22-149
Accessory Power Socket Test/
Replacement
1.
4.
Carefully pry the accessory power socket (A) out
from the center lower cover.
Disconnect the 2P connector (B) from the socket.
Inspect the connector terminals to be sure they are
all making good contact.
. lf the terminals are bent, loose orcorroded,
repairthem as necessary, and recheck the
system.. lf the terminals look OK, go to step 4.
Turn the ignition switch ACC (l), and check for
voltage between the No. 'l and No. 2 terminals.
. There should be battery voltage.. lf there is no banery voltage, checkfor:- poor ground {G502).- an open in the wire.- blown No. 18 (15A)fuse in the under-dash
fuse/relay box.
