To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is f ully
released (see page ).55

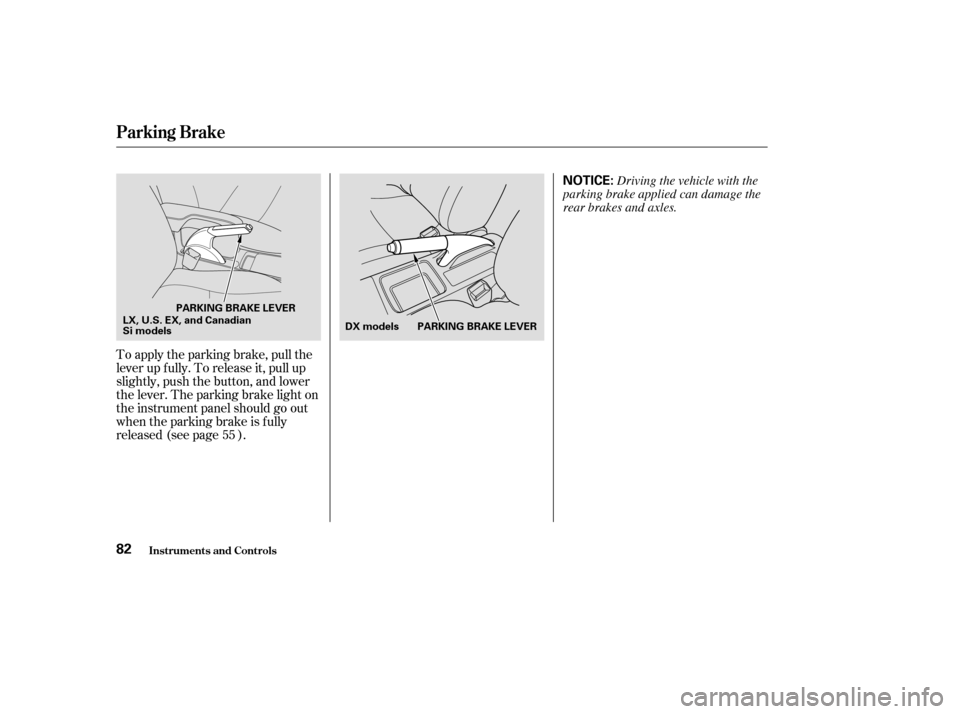

Parking Brake
Inst rument s and Cont rols82
NOTICE:
DX models PARKING BRAKE LEVER
PARKING BRAKE LEVER
LX, U.S. EX, and Canadian
Si models
Driving the vehicle with the
parking brake applied can damage the
rear brakes and axles.
——y
y
(yy

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF.
In the Door Activated (center)
position, the light comes on when
you:Open any door.
Remove the key from the ignition.
If you do not open a door, the light
f ades out in about 10 seconds.
Unlock the doors with the key or
remote transmitter. The f ront ceiling light also contains
two spotlights, Push the button next
to the light to turn it on and off.
Push on the spotlight lenses to turn
the light on and of f . The courtesy lights in the f ront
doors and around the ignition switch
come on when you open any door.
Af ter you close the door, the ignition
switch light stays on f or several
seconds.OnU.S.EXandCanadianSimodels
On LX models
Interior Lights
Inst rument s and Cont rols
Ceiling L ight Individual Interior L ights
83
FRONT
DOOR ACTIVATED
DOOR ACTIVATED
ON
OFF
OFF ON
——y
y
(yy

Inst rument s and Cont rols

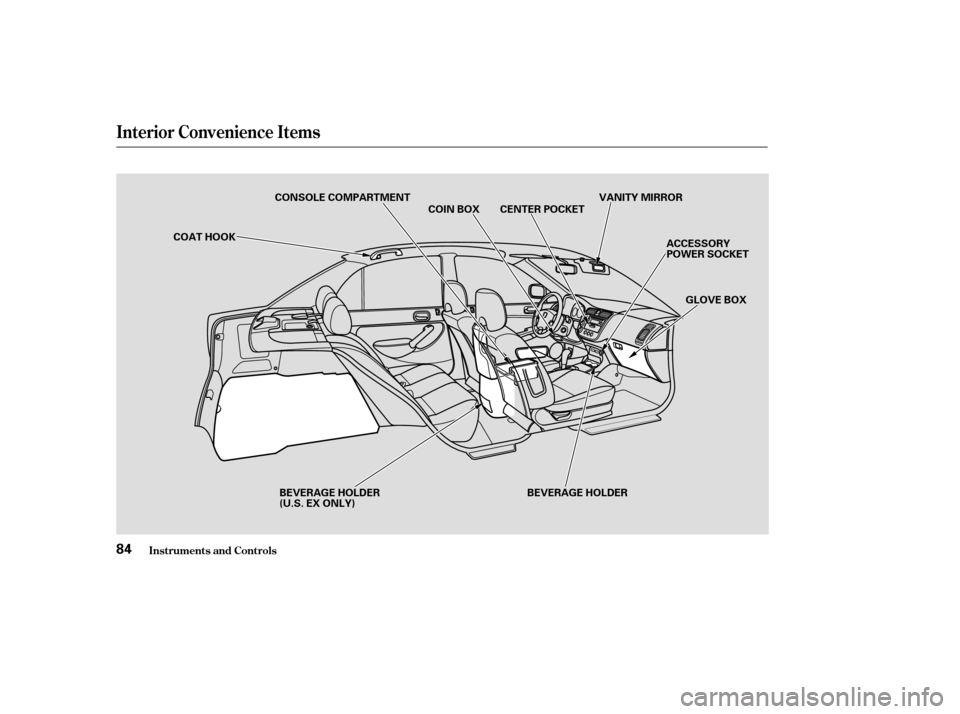

Interior Convenience Items
84
VANITY MIRRORGLOVE BOX
CONSOLE COMPARTMENT
COIN BOX CENTER POCKET
ACCESSORY
POWER SOCKET
COAT HOOK
BEVERAGE HOLDER
BEVERAGE HOLDER
(U.S. EX ONLY)
——y
y
(yy

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
OnLXandEXmodelsintheU.S.
and LX and Si models in Canada,
open the f ront beverage holder by
pushing on the top.
On U.S., EX model, open the rear
beverage holder by pushing on the
back and pulling the holder all the
way out.
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).Open the glove box by squeezing the
handle. Close it with a f irm push.
To open the console compartment,
pull the lef t lever and lif t the lid.
To close, lower the lid and push it
down until it latches.
On EX model in the U.S., and LX and Simodels in Canada
Inst rument s and Cont rols
Beverage Holders
A ccessory Power Sockets Glove Box Console Compartment
Interior Convenience Items
85
LEVER
CONSOLE COMPARTMENT
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seatbelt.
Always keep the glove box
closed while driving.
——y
y
(yy

86
——y
y
(yy

Î
ÎThe heating and air conditioning
systems in your Honda provide a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section de-
scribes those f eatures and how to
use them. (If you selected an
optional audio system, ref er to the
operating instructions that came
with it.) ...............
Vents, Heating, and A/C . 88
.........................
Air Flow Buttons . 89
............................
Playing the Radio . 92
..............................
Radio Reception . 95
....................................
Playing a CD . 97
.....................................
CD Changer . 98
......................
Protecting Your CDs . 99
.........
CD Player Error Messages . 100
.....
CD Changer Error Messages . 101
...............................
Playing a Tape . 102
.................
Radio Thef t Protection . 105
..........................
Setting the Clock . 106
...............................
Cruise Control . 107
Your Honda has an anti-thef t audio
system that requires a code number
to enable it. Air conditioning is optional on DX
model. It is standard on other models.
LXandEXmodelsintheU.S.,andLX
andSimodelsinCanada
Comf ort and Convenience Features
Comf ort and Convenience Feat ures87
——y

y
(yy

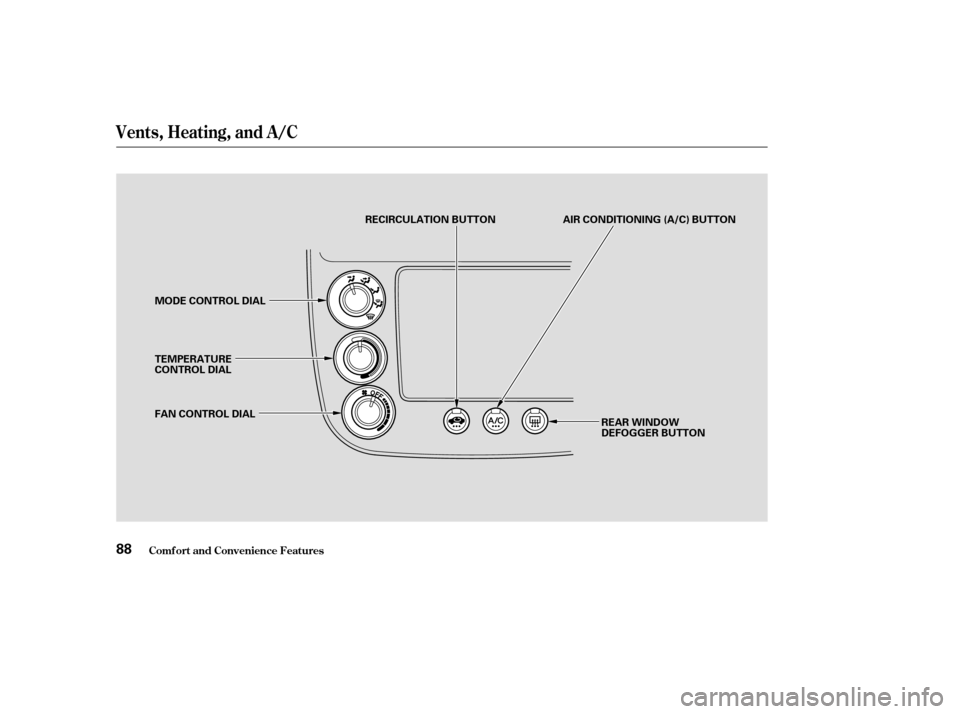

Vents, Heating, and A/C
Comf ort and Convenience Feat ures88
MODE CONTROL DIALRECIRCULATION BUTTON
FAN CONTROL DIAL
TEMPERATURE
CONTROL DIAL
REAR WINDOW
DEFOGGER BUTTON
AIR CONDITIONING (A/C) BUTTON
——y

y
(y
y

Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and of f . The light in
thebuttonisonwhentheA/Cison.The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to Recirculation mode when
driving through dusty or smoky
conditions, then return to Fresh Air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial to select
the vents the air flow from. Some air
will f low f rom the dashboard vents in
all modes. Air flows from the center
and corner vents in the dashboard.
Air f low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
Fresh Air mode.
Air f low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C.
When the light in the button is on,
air f rom the car’s interior is sent
throughout the system again. When
the light is of f , air is brought in f rom
the outside of the vehicle (Fresh Air
mode).
Turn this dial to control fan speed
and the air flow.
65
Optional on DX models
Air Flow Buttons
Comf ort and Convenience Feat ures
Fan Control Dial
T emperature Control Dial
Air Conditioning (A/C) Button
Recirculation ButtonRear Window Def ogger Button
Mode Control Dial
89
——y
y
(yy

The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.Turn the temperature control dial
all the way to the lef t.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed.
Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming through the
system.
1. 2. 3.4.
1. 2. 3. 4. 5.
1. 2.3. 60
If the interior is very warm,
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Ventilation
Using the Heater
Using the A /C
90
——y
y
(yy

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.Switch the f an on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). To remove f og f rom the inside of the
windows:
Set the f an to the desired speed.
Select , the system
automatically switches to Fresh
Air mode and turns on the A/C.
(The A/C indicator will not come
on in U.S. vehicles.)
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window. Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
(The A/C indicator will not come
on in U.S. vehicles.)
Select .
Set the f an and temperature
controls to maximum level.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f . To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
For you safety, make sure you have
a clear view through all the windows
bef ore driving.
1.2.3.4.
1. 2. 3.
1.2. 3. 4.
Vents, Heating, and A/C
Comf ort and Convenience Feat ures
Dehumidif y the Interior T o Def og and Def rost T o Remove Exterior Frost or Ice
From the Windows
91
