HONDA CIVIC 2009 8.G Owners Manual

µ
¼ Use the SEEK/SKIP button while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
Each time you
press and release the side of
the SEEK/SKIP button, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the side to skip backward to the
beginning of the current track. Press
itagaintoskiptothebeginningof
the previous track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP button.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.).
If the text data has more than 16
characters, you will see the f irst 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You can see up to 31
characters of the text data.
If youpressandholdtheDISP
button again, the display shows the
f irst 16 characters again. If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you insert a disc, and the
system begins to play.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When a new f older, f ile, or track is
selected.
You will also see some text data
under these conditions:
CONT INUED
T o Change or Select T racks/Files
SEEK /SK IP
Audio System (Models without navigation system)
Features
127
——y



y
(#y
y

µ
µ µ µ µ
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
theknobtotherighttoskiptothe
next f older, and to the lef t to move to
the beginning of the current f older.
Turn it again to skip to the beginning
of the previous f older. Turning the
TUNE knob more than one click
skips several f olders at a time.
To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off.
This feature,
when activated, replays all f iles in
the selected f older in the order they
are compressed. To activate folder repeat, press the RPT button twice.
You will hear a beep and see F-RPT
in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it off. Pressing the RDM button,
or selecting a dif f erent f older with
the TUNE knob also turns of f the
repeat feature.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal play.
This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
repeatedly to select RDM (within a
disc random play). You will see
‘‘RDM’’ in the display. Press the
RDM button for 2 seconds to return to normal play.
This
feature, when activated, plays all
f iles in the selected f older in random
order. To activate f older random,
press and release the RDM button.
You will see F-RDM in the display.
The system will then select and play
f iles randomly. This continues until
you deactivate folder random by
pressing and holding the RDM
button f or 2 seconds, or by selecting
a different folder with the TUNE
knob.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal play.
In MP3 or WMA mode
In MP3 or WMA mode
In MP3 or WMA mode
FOLDER SELECTION
REPEAT (TRACK/FILE
REPEAT)
FOL DER-REPEA T RANDOM (Random within a disc)FOLDER-RANDOM
Audio System (Models without navigation system)
128
——y


y
(#y
y

µ
µ
Each time you press and release the
SCAN button, the mode changes
f rom f ile scan to f older scan, then to
normal play. Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
it af ter 10 seconds and put it in pause
mode. To begin playing, press the
CD button.
You can also eject the disc when the
ignition switch is of f .
This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate folder scan, press the
SCAN button twice. You will see
F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the remaining
f olders f or 10 seconds each. Af ter
playing the f irst f ile of the last f older,
the system plays normally.
Pressing either side of the SEEK/
SKIP button, selecting a dif f erent
folder with the TUNE knob, or
pressing the SCAN button, also turns
of f the f older scan.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press the
SCAN button. In MP3 or WMA
mode, press the SCAN button
repeatedly to select SCAN. You will
see SCAN in the display. You will get
a10secondsamplingof eachtrack/
f ile on the disc. Press and hold the
SCAN button again to get out of scan
mode and play the last track/f ile
sampled.
Pressing either side of the SEEK/
SKIP button also turns of f the scan
feature.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player. Press the
AUX button to switch to an
appropriate audio unit.
In MP3 or WMA mode
CONT INUED
To Stop Playing a Disc
F-SCAN (FOLDER SCAN)
SCA N (T RA CK /FIL E SCA N)
Audio System (Models without navigation system)
Features
129
——y


y
(#y
y

µ´ µ´
Load the desired discs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the disc changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 4
(DISC ) or the preset 1 (DISC )
on the preset button. To select the
previous disc, press the preset 4
(DISC ), or the preset 1 (DISC )
to select the next disc in sequence. If you select an empty slot in the
magazine, the changer will search
f or the next available disc to load and
play.
An optional six or eight disc changer
is available f or your vehicle. This
disc changer uses the same controls
used f or the in-dash disc player or
the radio. For inf ormation on how to handle
and protect compact discs, see page
.
If you turn the system of f while a
disc is playing, either with the PWR/
VOL knob or by turning of f the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it lef t of f .
200
Operating the Optional Disc
Changer
Protecting Discs
Audio System (Models without navigation system)
130
——y

y
(#y
y

Î
Î
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
For additional information on
damaged discs, see page .
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
Error Message Solution
Cause
: Except Si model
201
Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc f or serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page 201 ). Insert the disc again. If the
code does not disappear, or the disc(s) cannot
be removed, consult your dealer. Do not try to
f orce the disc out of the player.
High Temperature
Track/File format not
supported
Mechanical Error
Servo Error
Disc Player Error Messages
Audio System (Models without navigation system)
Features
131
HEAT ERROR
UNSUPPORT FORMAT
BAD DISC
PLEASE CHECK
OWNER’S
MANUAL PUSH
EJECT
BAD DISC
PLEASE CHECK
OWNER’SMANUAL
——y


y
(#y
y

Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.Solution
Error Message CausePress the magazine eject button, and pull the
magazine out. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert disc.
Press the magazine eject button, pull the
magazine out, check for an error message, then
insert the magazine again. If the message does
not disappear, or the magazine cannot be pulled
out, see your dealer.
Insert disc magazine.
Will disappear when the temperature returns to
normal.
FOCUS Error
No disc in the disc magazine
Mechanical Error
No disc magazine in
the disc changer
High Temperature
Optional Disc Changer Error
Messages
Audio System (Models without navigation system)
132
——y


y
(#y
y

Audio System (Models without navigation system)

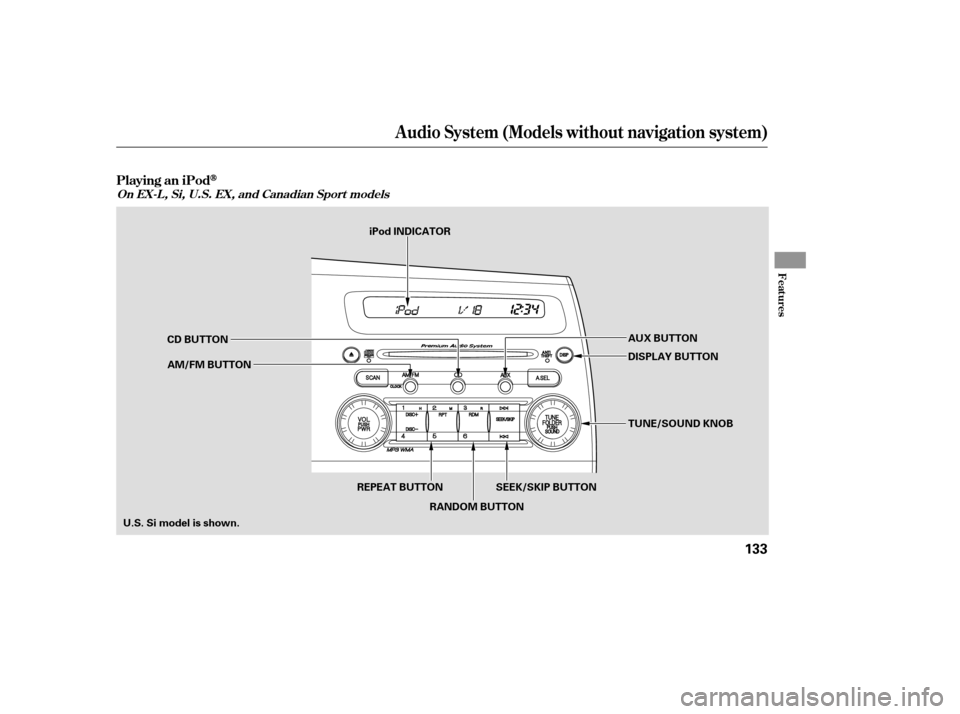

Playing an iPod
Features
On EX-L , Si, U.S. EX, and Canadian Sport models
133
AUX BUTTON
SEEK/SKIP BUTTON TUNE/SOUND KNOB
DISPLAY BUTTON
CD BUTTON
AM/FM BUTTON
U.S. Si model is shown. iPod INDICATOR
REPEAT BUTTON RANDOM BUTTON
——y

y
(#y
y

Î
Î
This audio system can select and
play the audio f iles on the iPod
with
the same controls used f or the disc

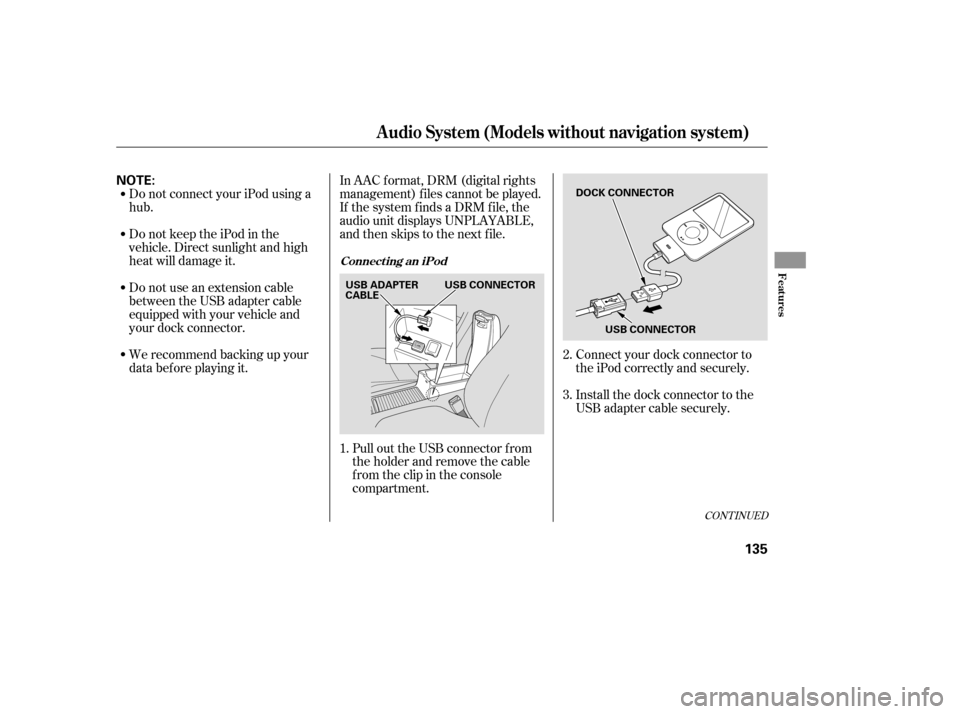

player. To play an iPod, connect it to
the USB adapter cable in the console
compartment by using your dock
connector, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions. The audio system reads and plays
sound f iles to be playable on the iPod.
The system cannot operate an iPod
as a mass storage device. The
system will only play songs stored on
the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
iPods that are compatible with your
audio system are listed below.
Use the latest f irmware.
UseonlycompatibleiPodswiththe
latest f irmware. iPods that are not
compatible will not work in this audio
unit. :Model
iPod 5G
iPod classic
iPod nano
iPod nano
2nd generation
iPod nano
3rd generation
iPod touch
iPhone Firmware
Ver. 1.2 or more
Ver. 1.0 or more
Ver. 1.2 or more
Ver. 1.1.2 or more
Ver. 1.0 or more
Ver. 1.1.1 or more
Ver. 1.1.1 or more
To Play an iPod
Audio System (Models without navigation system)
134
——y


y
(#y
y

Do not connect your iPod using a hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.In AAC f ormat, DRM (digital rights
management) f iles cannot be played.
If the system finds a DRM file, the
audio unit displays UNPLAYABLE,
andthenskipstothenextfile.
Install the dock connector to the
USB adapter cable securely.
Connect your dock connector to
the iPod correctly and securely.
We recommend backing up your
data bef ore playing it.
Pull out the USB connector f rom
the holder and remove the cable
f rom the clip in the console
compartment.
1. 2. 3.
CONT INUED
Connect ing an iPod
Audio System (Models without navigation system)
Features
135
NOTE:DOCK CONNECTOR
USB CONNECTOR USB CONNECTOR
USB ADAPTER
CABLE
——y


y
(#y
y

Î
μ
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
When the iPod is connected and the
iPod mode is selected on the audio
display, the iPod indicator is shown
in the display. Af ter loading, you will
see Honda mark on the iPod. That
means you can only operate your
iPod using the vehicle’s audio unit. Itmaytakeafewminutesfor
the Honda mark to display on
the iPod. If the display does not
change, this f unction is not
supported on your iPod model
or f irmware.
Each time you press the DISP button,
the display mode switches between
the album name, the song/track
name, the artist name, or name of f
(which turns off the text display).
The display shows up to 16
characters of the selected data. If the
text data has more than 16
characters, you will see the f irst 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown.
:
www.apple.com/
ipod. T ext Data Display Function
Audio System (Models without navigation system)
136
Sample Display
OK to disconnect.
——y

y
(#y

y
