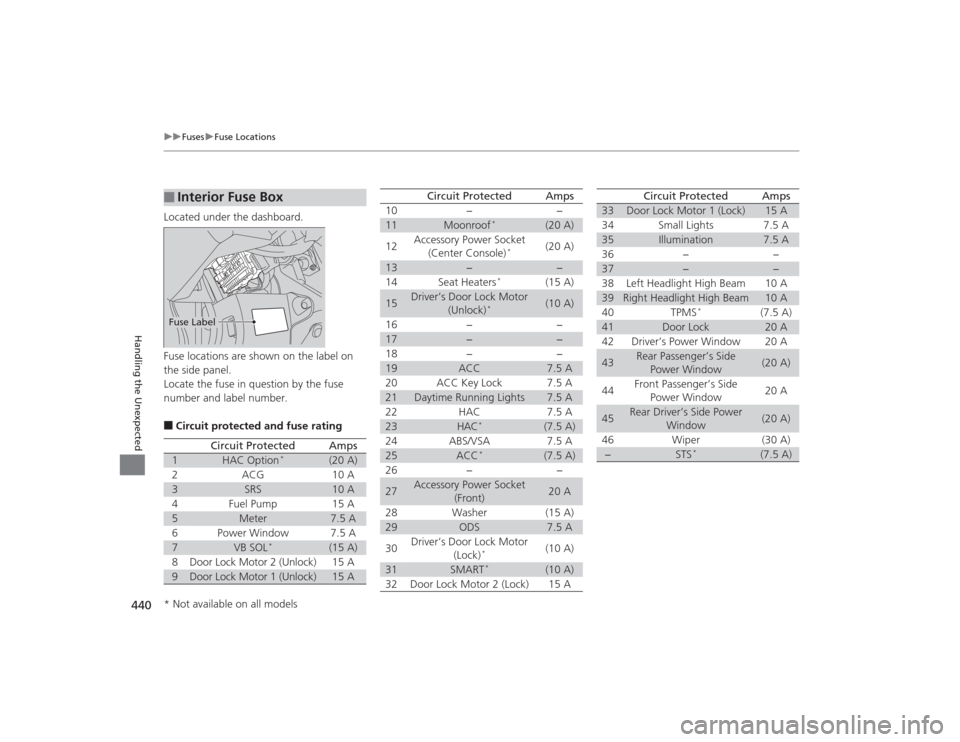

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.■Circuit protected and fuse rating■
Interior Fuse BoxFuse Label
Circuit Protected
Amps
1
HAC Option
*
(20 A)
2
ACG
10 A
3
SRS
10 A
4
Fuel Pump
15 A
5
Meter
7.5 A
6
Power Window
7.5 A
7
VB SOL
*
(15 A)
8
Door Lock Motor 2 (Unlock)
15 A
9
Door Lock Motor 1 (Unlock)
15 A
10
−
−
11
Moonroof
*
(20 A)
12
Accessory Power Socket
(Center Console)
*
(20 A)
13
−
−
14
Seat Heaters
*
(15 A)
15
Driver’s Door Lock Motor (Unlock)
*
(10 A)
16
−
−
17
−
−
18
−
−
19
ACC
7.5 A
20
ACC Key Lock
7.5 A
21
Daytime Running Lights
7.5 A
22
HAC
7.5 A
23
HAC
*
(7.5 A)
24
ABS/VSA
7.5 A
25
ACC
*
(7.5 A)
26
−
−
27
Accessory Power Socket (Front)
20 A
28
Washer
(15 A)
29
ODS
7.5 A
30
Driver’s Door Lock Motor
(Lock)
*
(10 A)
31
SMART
*
(10 A)
32
Door Lock Motor 2 (Lock)
15 A
Circuit Protected
Amps
33
Door Lock Motor 1 (Lock)
15 A
34
Small Lights
7.5 A
35
Illumination
7.5 A
36
−
−
37
−
−
38
Left Headlight High Beam
10 A
39
Right Headlight High Beam
10 A
40
TPMS
*
(7.5 A)
41
Door Lock
20 A
42
Driver’s Power Window
20 A
43
Rear Passenger’s Side Power Window
(20 A)
44
Front Passenger’s Side Power Window
20 A
45
Rear Driver’s Side Power Window
(20 A)
46
Wiper
(30 A)
−
STS
*
(7.5 A)
Circuit Protected
Amps
* Not available on all models

441
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

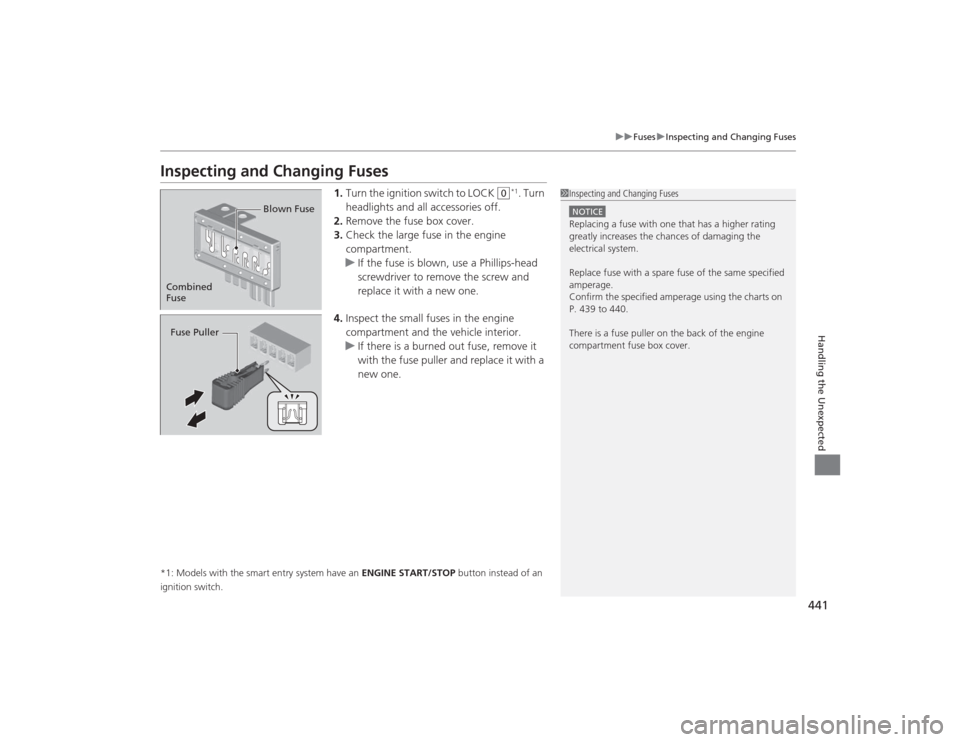

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK
(0
*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing FusesNOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 439 to 440.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown FuseFuse Puller

442Handling the Unexpected

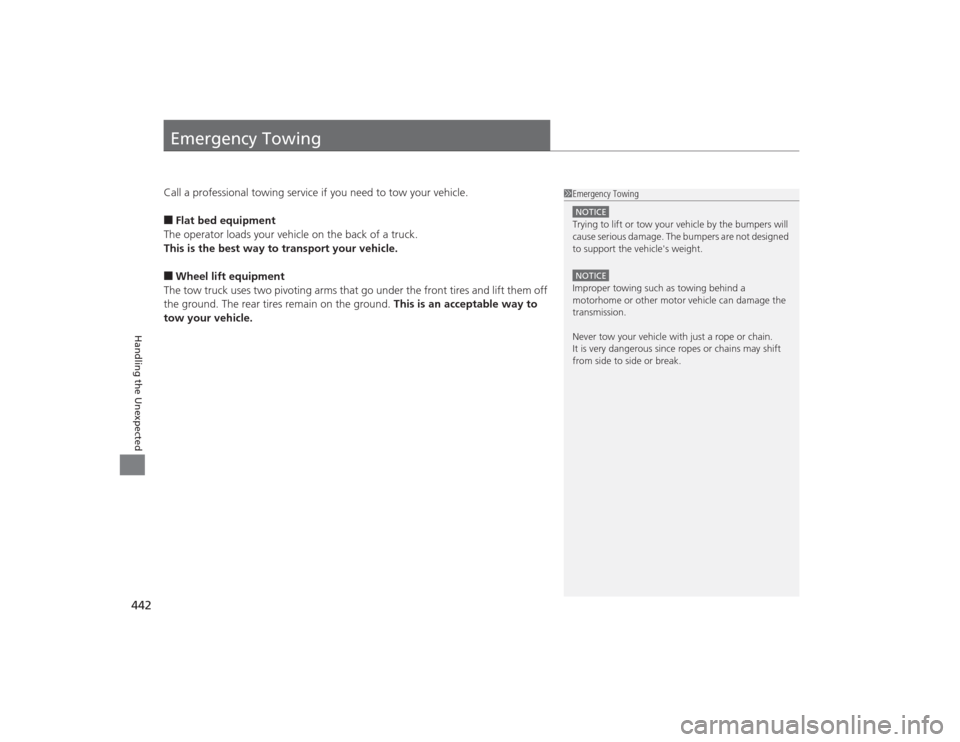

Emergency TowingCall a professional towing service if you need to tow your vehicle.■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.■Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency TowingNOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

443
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 444
Identification NumbersVehicle Identification Number (VIN)...... 448Engine Number and Transmission Number...................................... 448Devices that Emit Radio Waves ....... 449
Reporting Safety Defects ................. 450Emissions Testing
Testing of Readiness Codes.............. 451
Warranty Coverages ........................ 453
Authorized Manuals ......................... 455
Customer Service Information ......... 456

444Information

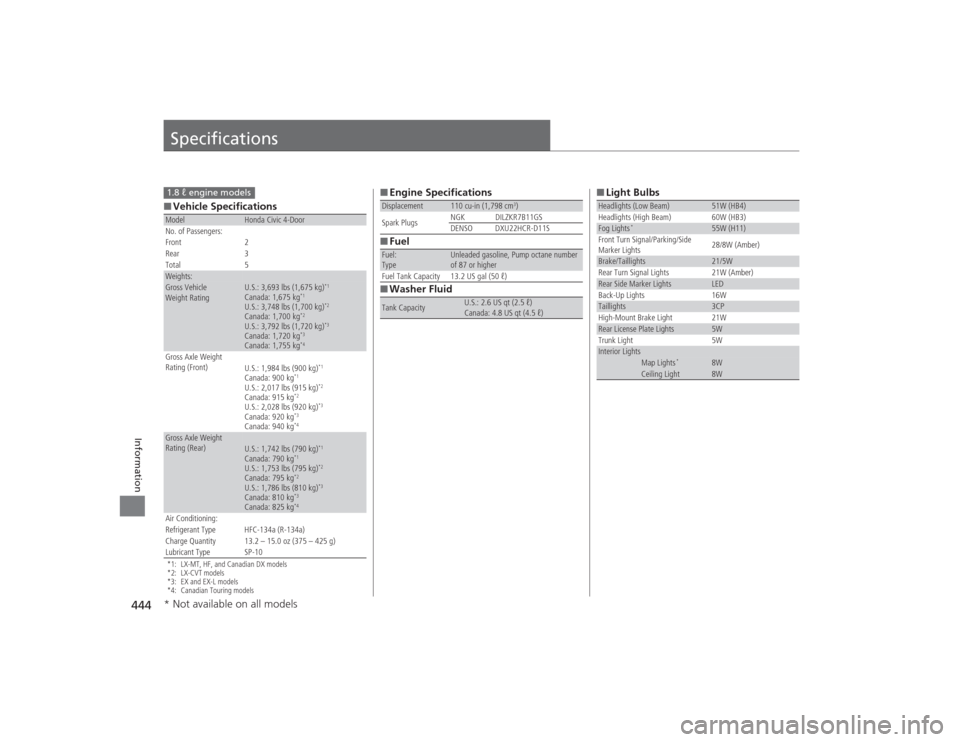

Specifications■Vehicle Specifications*1: LX-MT, HF, and Canadian DX models
*2: LX-CVT models
*3: EX and EX-L models
*4: Canadian Touring modelsModel
Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,693 lbs (1,675 kg)
*1
Canada: 1,675 kg
*1
U.S.: 3,748 lbs (1,700 kg)
*2
Canada: 1,700 kg
*2
U.S.: 3,792 lbs (1,720 kg)
*3
Canada: 1,720 kg
*3
Canada: 1,755 kg
*4
Gross Axle Weight
Rating (Front)
U.S.: 1,984 lbs (900 kg)
*1
Canada: 900 kg
*1
U.S.: 2,017 lbs (915 kg)
*2
Canada: 915 kg
*2
U.S.: 2,028 lbs (920 kg)
*3
Canada: 920 kg
*3
Canada: 940 kg
*4
Gross Axle Weight
Rating (Rear)
U.S.: 1,742 lbs (790 kg)
*1
Canada: 790 kg
*1
U.S.: 1,753 lbs (795 kg)
*2
Canada: 795 kg
*2
U.S.: 1,786 lbs (810 kg)
*3
Canada: 810 kg
*3
Canada: 825 kg
*4
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-101.8 ℓ engine models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
110 cu-in (1,798 cm
3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light BulbsHeadlights (Low Beam)
51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights
*
55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W (Amber)
Brake/Taillights
21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights
LED
Back-Up Lights 16W
Taillights
3CP
High-Mount Brake Light 21W
Rear License Plate Lights
5W
Trunk Light 5W
Interior Lights
Map Lights
*
8W
Ceiling Light
8W
* Not available on all models

445
uuSpecifications u
Continued
Information

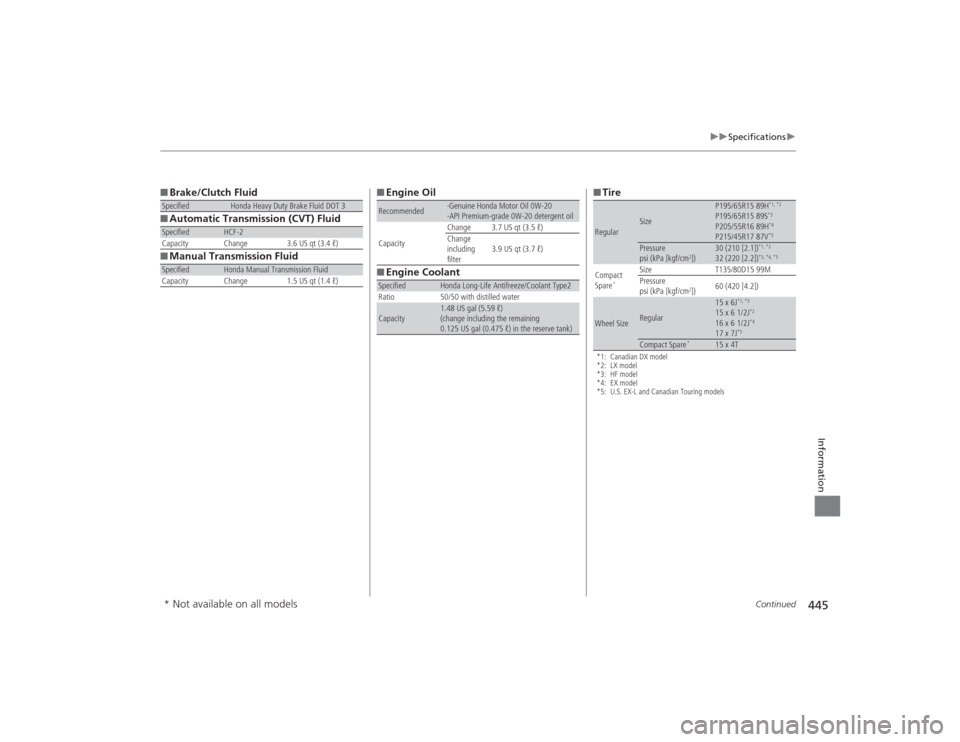

■Brake/Clutch Fluid
■ Automatic Transmission (CVT) Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
HCF-2
Capacity Change 3.6 US qt (3.4 ℓ)
Specified
Honda Manual Transmission Fluid
Capacity Change 1.5 US qt (1.4 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.7 US qt (3.5 ℓ)
Change
including
filter
3.9 US qt (3.7 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.48 US gal (5.59 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Canadian DX model
*2: LX model
*3: HF model
*4: EX model
*5: U.S. EX-L and Canadian Touring modelsRegular
Size
P195/65R15 89H
*1, *2
P195/65R15 89S
*3
P205/55R16 89H
*4
P215/45R17 87V
*5
Pressure
psi (kPa [kgf/cm
2])
30 (210 [2.1])
*1, *2
32 (220 [2.2])
*3, *4, *5
Compact
Spare
*
Size T135/80D15 99M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel Size
Regular
15 x 6J
*1, *3
15 x 6 1/2J
*2
16 x 6 1/2J
*4
17 x 7J
*5
Compact Spare
*
15 x 4T
* Not available on all models

446
uuSpecifications u
Information

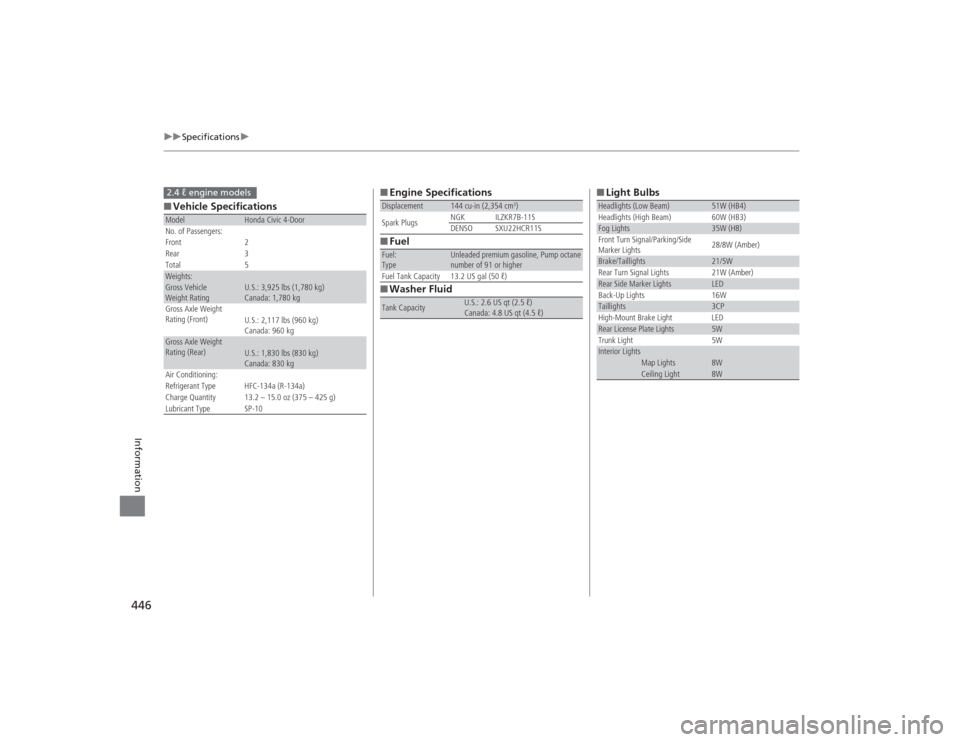

■Vehicle SpecificationsModel
Honda Civic 4-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating
U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
144 cu-in (2,354 cm
3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light BulbsHeadlights (Low Beam)
51W (HB4)
Headlights (High Beam) 60W (HB3)
Fog Lights
35W (H8)
Front Turn Signal/Parking/Side
Marker Lights 28/8W (Amber)
Brake/Taillights
21/5W
Rear Turn Signal Lights 21W (Amber)
Rear Side Marker Lights
LED
Back-Up Lights 16W
Taillights
3CP
High-Mount Brake Light LED
Rear License Plate Lights
5W
Trunk Light 5W
Interior Lights
Map Lights
8W
Ceiling Light
8W

447
uuSpecifications u
Information

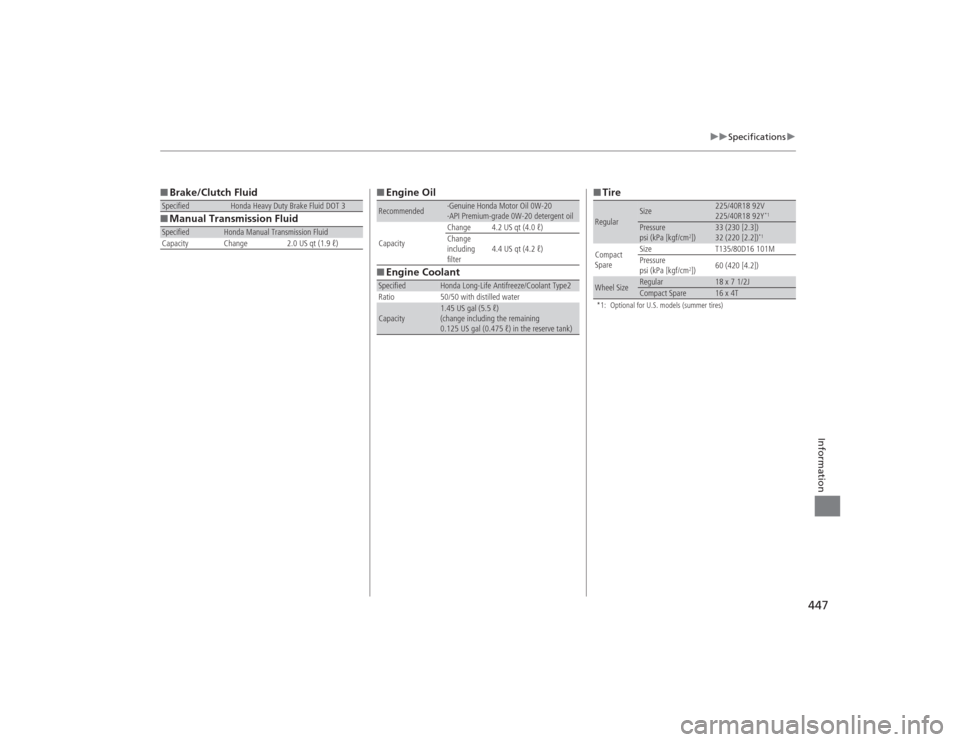

■Brake/Clutch Fluid
■ Manual Transmission FluidSpecified
Honda Heavy Duty Brake Fluid DOT 3
Specified
Honda Manual Transmission Fluid
Capacity Change 2.0 US qt (1.9 ℓ)
■ Engine Oil
■ Engine CoolantRecommended
·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.4 US qt (4.2 ℓ)
Specified
Honda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.45 US gal (5.5 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)
■ Tire*1: Optional for U.S. models (summer tires)Regular
Size
225/40R18 92V
225/40R18 92Y
*1
Pressure
psi (kPa [kgf/cm
2])
33 (230 [2.3])
32 (220 [2.2])
*1
Compact
Spare Size T135/80D16 101M
Pressure
psi (kPa [kgf/cm
2])
60 (420 [4.2])
Wheel Size
Regular
18 x 7 1/2J
Compact Spare
16 x 4T

448Information

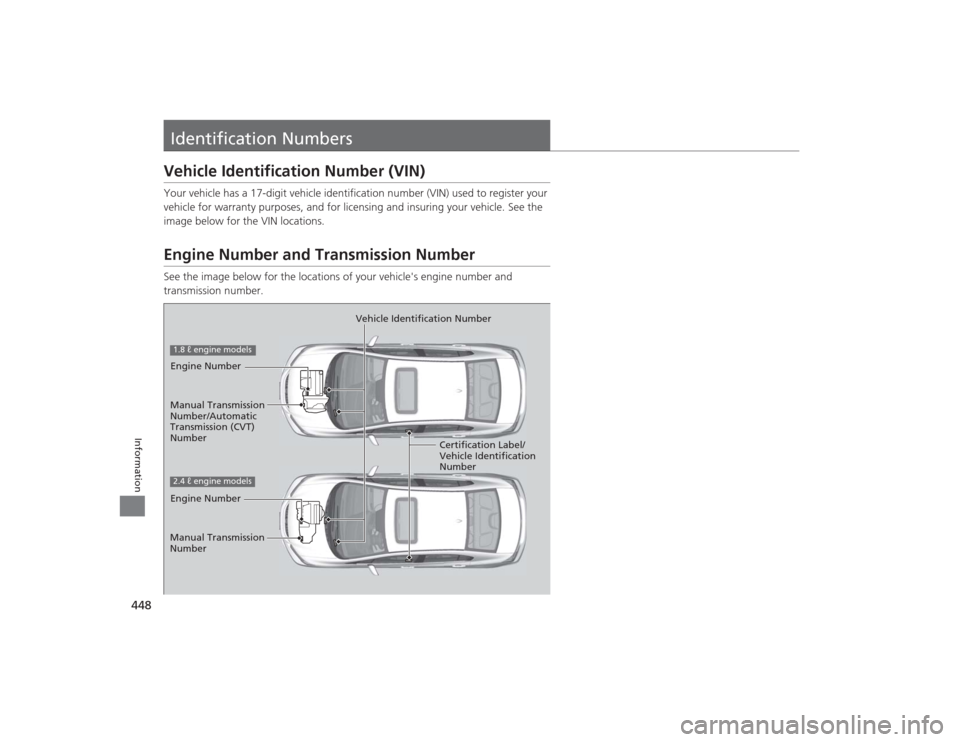

Identification NumbersVehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Manual Transmission
Number/Automatic
Transmission (CVT)
Number
2.4 ℓ engine models1.8 ℓ engine modelsEngine Number
Manual Transmission
Number

449Information

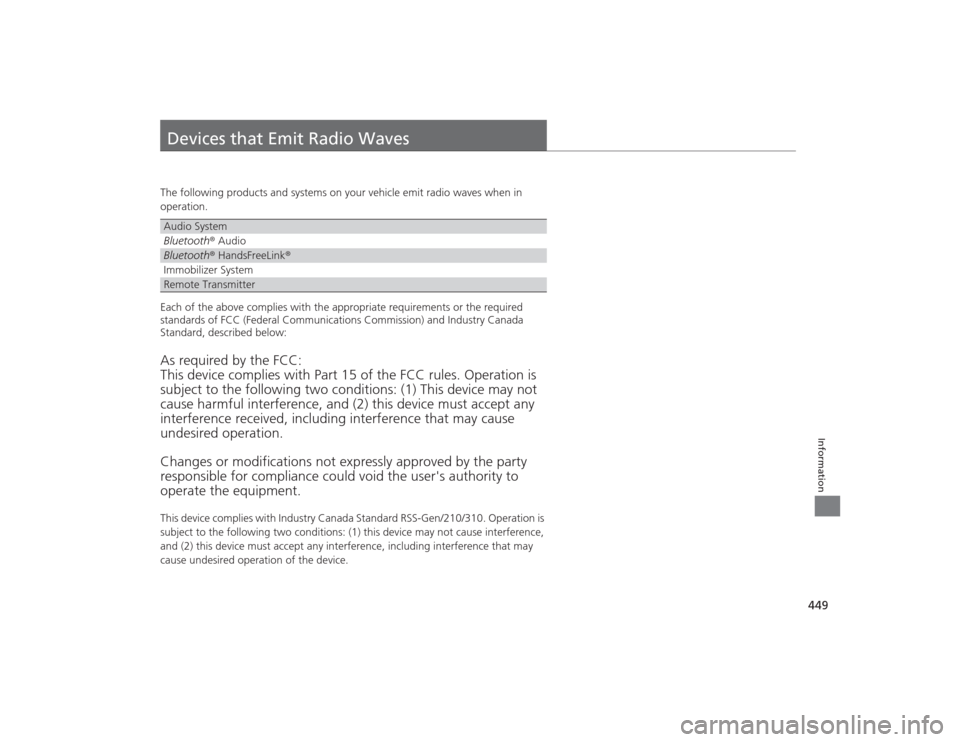

Devices that Emit Radio WavesThe following products and systems on your vehicle emit radio waves when in
operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.Audio SystemBluetooth ® AudioBluetooth® HandsFreeLink ®Immobilizer SystemRemote Transmitter
