HONDA CIVIC 2016 10.G Owners Manual

190
Controls

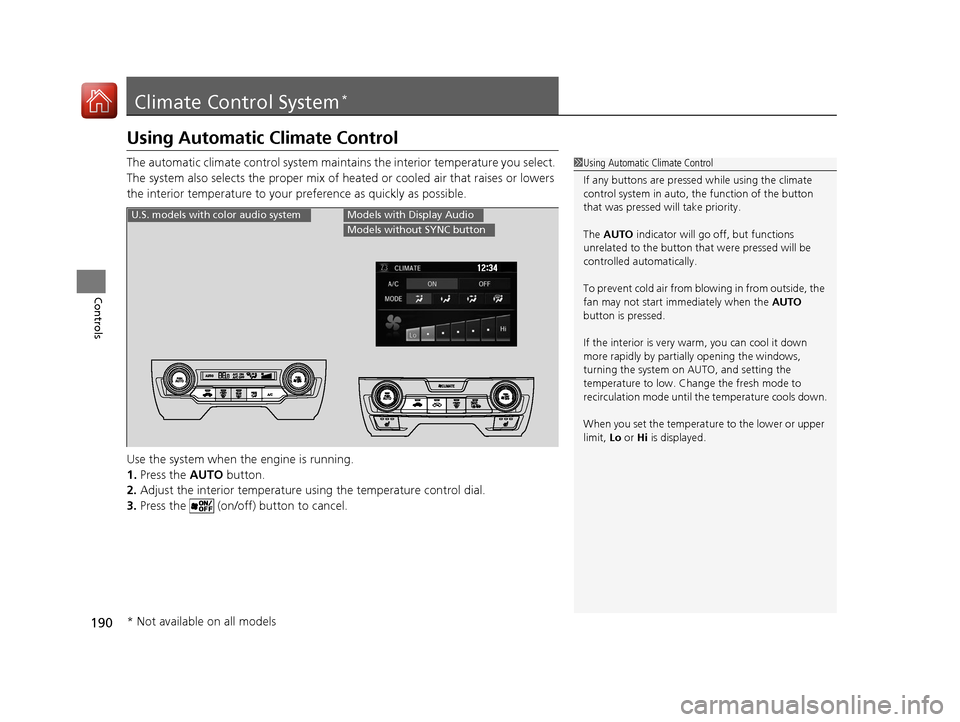

Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature us ing the temperature control dial.
3. Press the (on/off) button to cancel.1Using Automatic Climate Control
If any buttons are presse d while using the climate
control system in auto, the function of the button
that was pressed wi ll take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from bl owing in from outside, the
fan may not start i mmediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partial ly opening the windows,
turning the system on AUTO, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperat ure to the lower or upper
limit, Lo or Hi is displayed.
U.S. models with color audio systemModels with Display Audio
Models without SYNC button
* Not available on all models
16 CIVIC 4D-31TBA6000.book 190 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued191

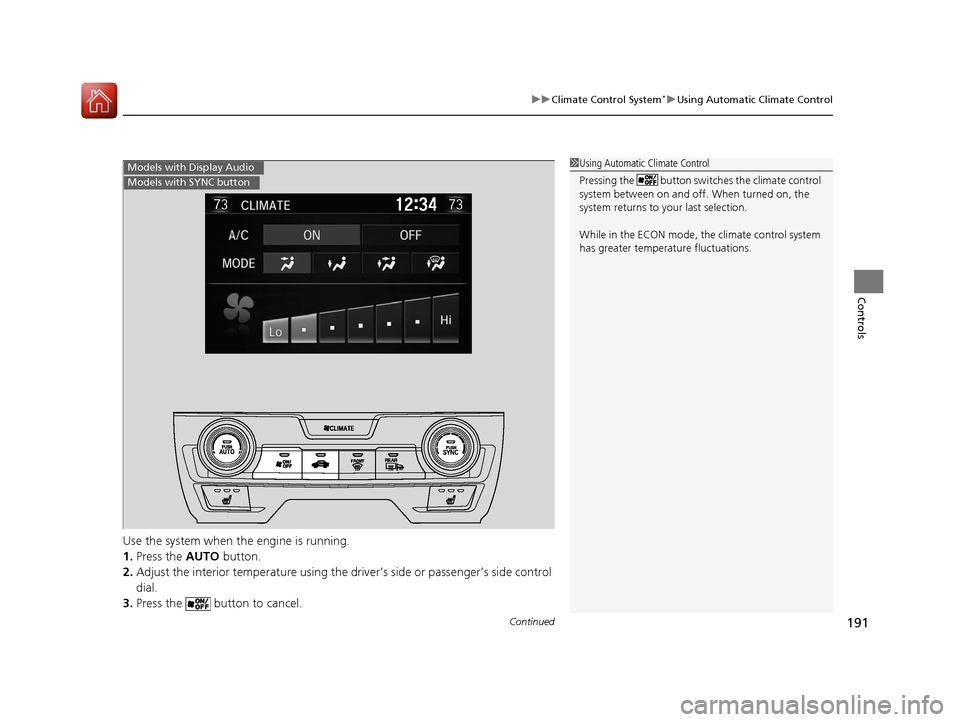

uuClimate Control System*uUsing Automatic Climate Control
Controls
Use the system when the engine is running.
1. Press the AUTO button.
2. Adjust the interior temperature using the dr iver’s side or passenger’s side control
dial.
3. Press the button to cancel.
1Using Automatic Climate Control
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.Models with Display Audio
Models with SYNC button
16 CIVIC 4D-31TBA6000.book 191 ページ ２０１５年８月３１日　月曜日　午後５時５６分

192
uuClimate Control System*uUsing Automatic Climate Control
Controls

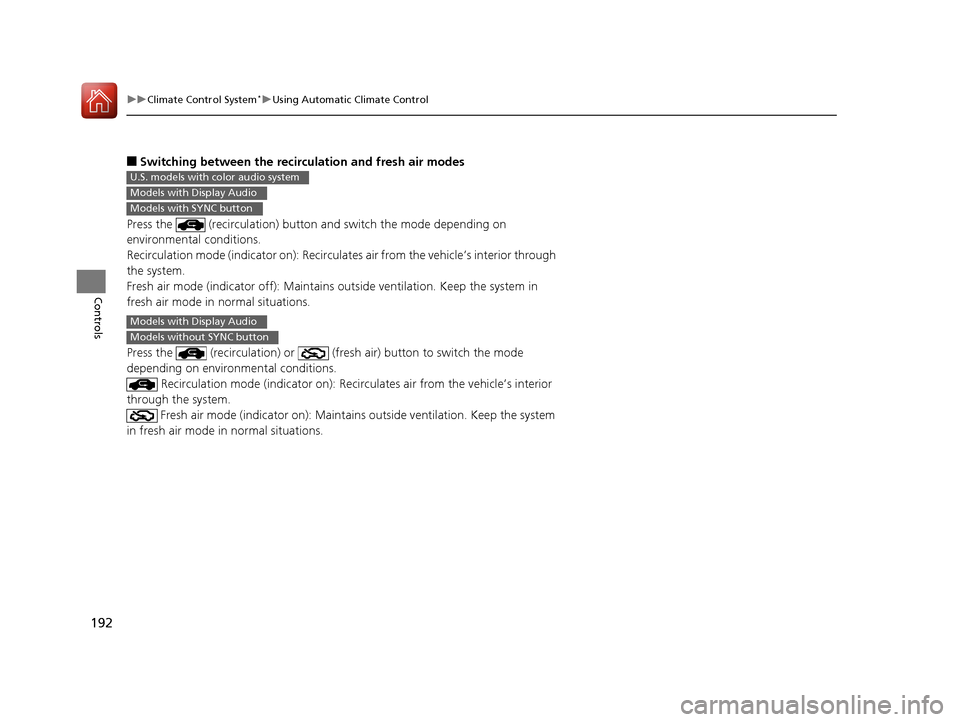

■Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculat es air from the vehicle’s interior through
the system.
Fresh air mode (indicator off): Maintains out side ventilation. Keep the system in
fresh air mode in normal situations.
Press the (recirculation) or (fre sh air) button to switch the mode
depending on environmental conditions. Recirculation mode (indicator on): Recirculates air from the vehicle’s interior
through the system. Fresh air mode (indicator on): Maintains outside ventilation. Keep the system
in fresh air mode in normal situations.
U.S. models with color audio system
Models with Display Audio
Models with SYNC button
Models with Display Audio
Models without SYNC button
16 CIVIC 4D-31TBA6000.book 192 ページ ２０１５年８月３１日　月曜日　午後５時５６分

Continued193
uuClimate Control System*uUsing Automatic Climate Control
Controls

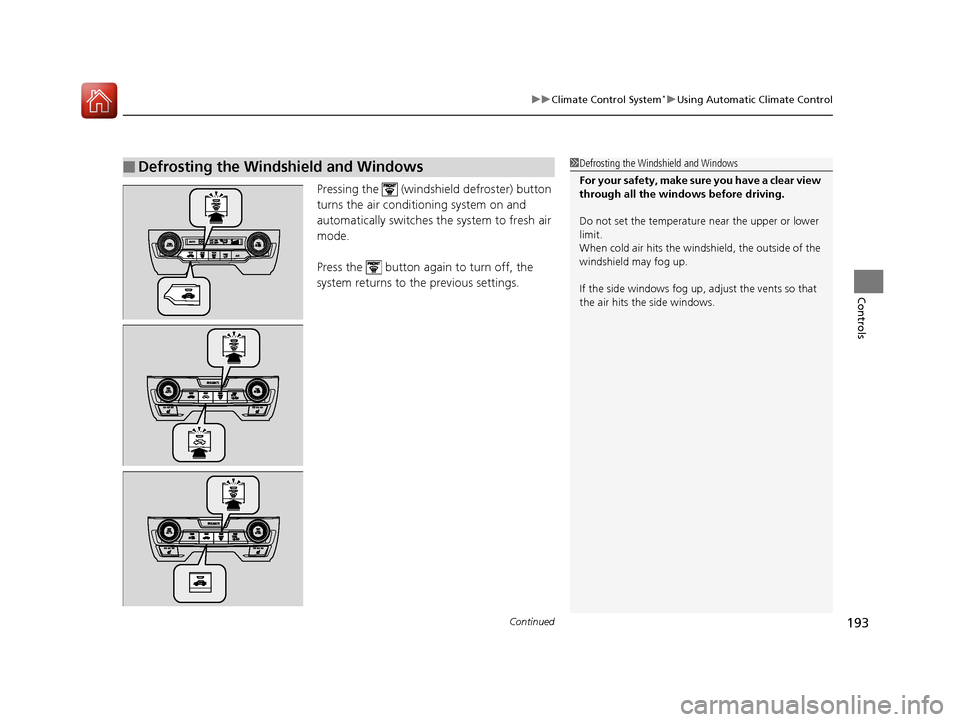

Pressing the (windshield defroster) button
turns the air conditioning system on and
automatically switches th e system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1 Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the winds hield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
16 CIVIC 4D-31TBA6000.book 193 ページ ２０１５年８月３１日　月曜日　午後５時５６分

uuClimate Control System*uUsing Automatic Climate Control
194
Controls

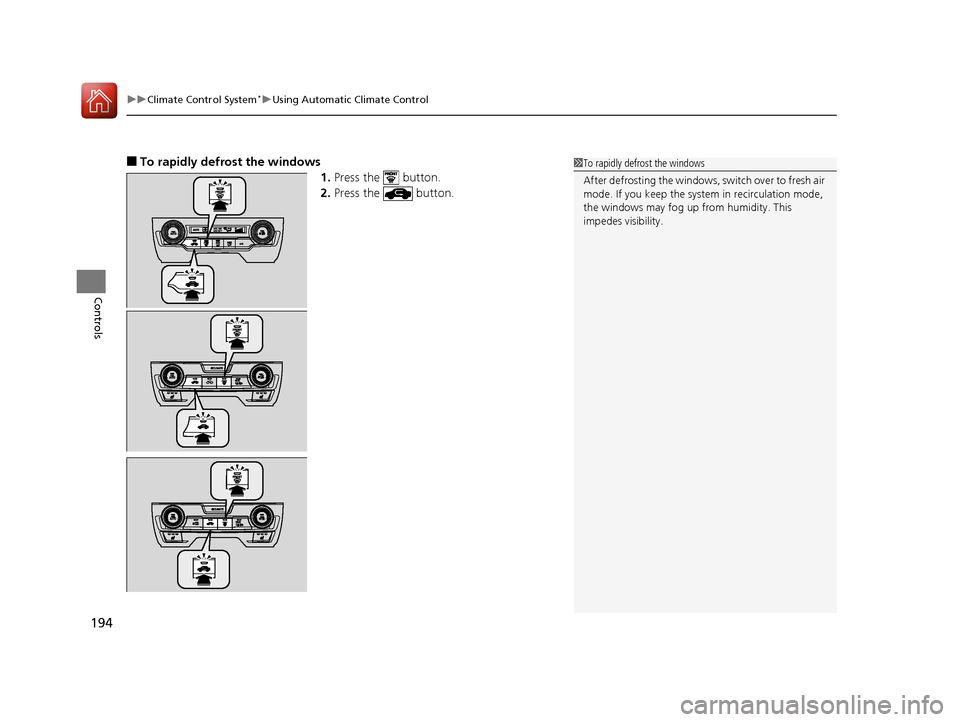

■To rapidly defrost the windows
1.Press the button.
2. Press the button.1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the syst em in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
16 CIVIC 4D-31TBA6000.book 194 ページ ２０１５年８月３１日　月曜日　午後５時５６分

195
uuClimate Control System*uSynchronized Mode*
Controls

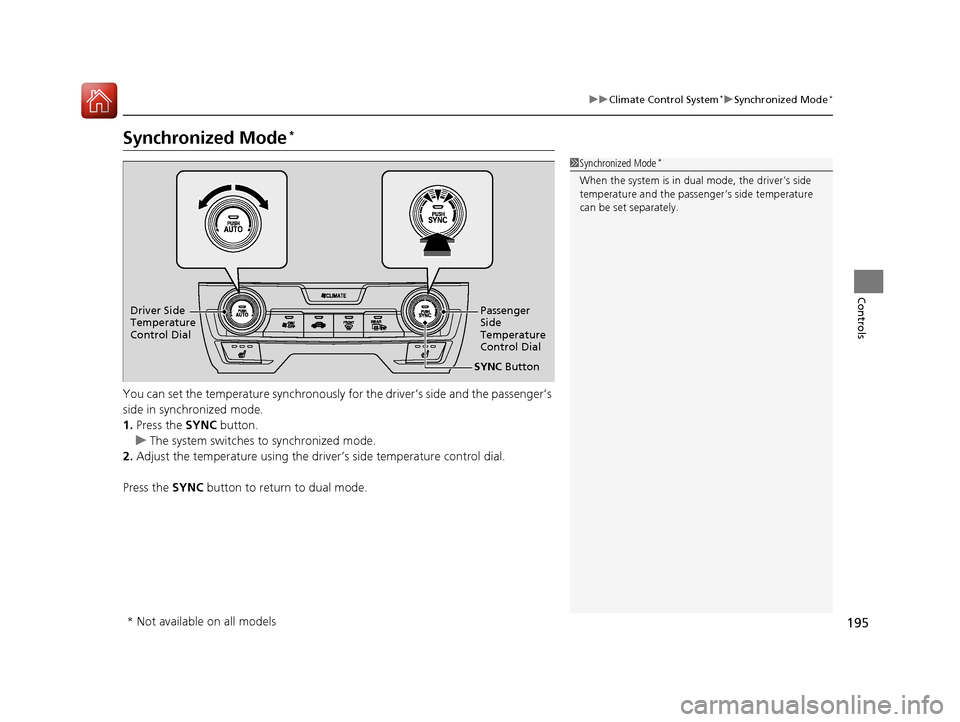

Synchronized Mode*
You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronized mode.
1. Press the SYNC button.
u The system switches to synchronized mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
Press the SYNC button to return to dual mode.
1Synchronized Mode*
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Driver Side
Temperature
Control Dial
Passenger
Side
Temperature
Control Dial
* Not available on all models
16 CIVIC 4D-31TBA6000.book 195 ページ ２０１５年８月３１日　月曜日　午後５時５６分

196
uuClimate Control System*uAutomatic Climate Control Sensors
Controls

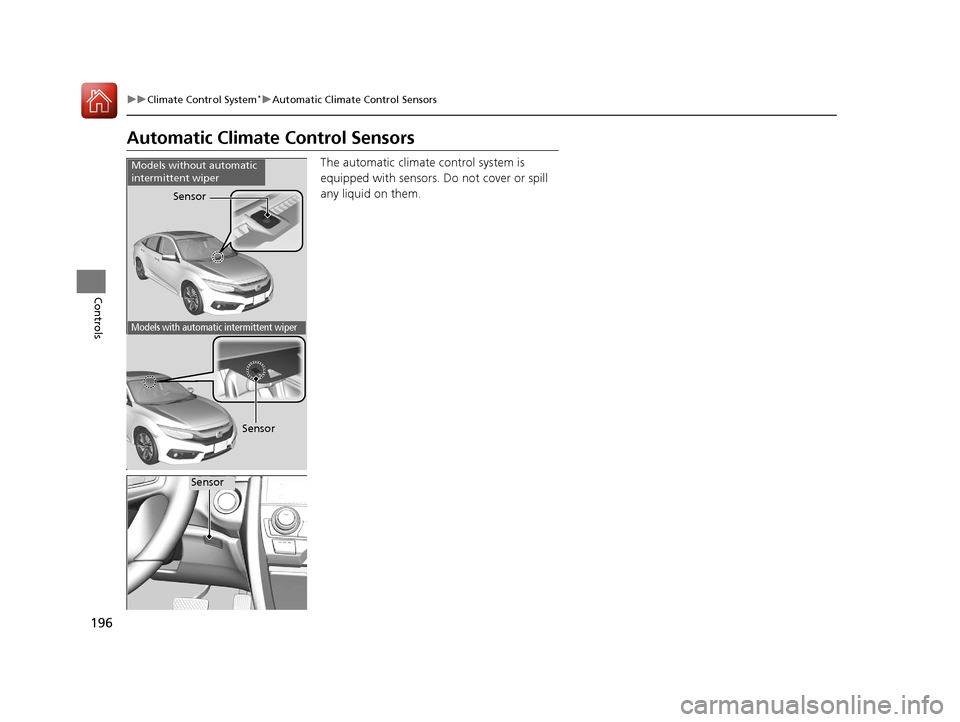

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
Sensor
Models without automatic
intermittent wiper
Sensor
Models with automatic intermittent wiper
Sensor
16 CIVIC 4D-31TBA6000.book 196 ページ ２０１５年８月３１日　月曜日　午後５時５６分

197

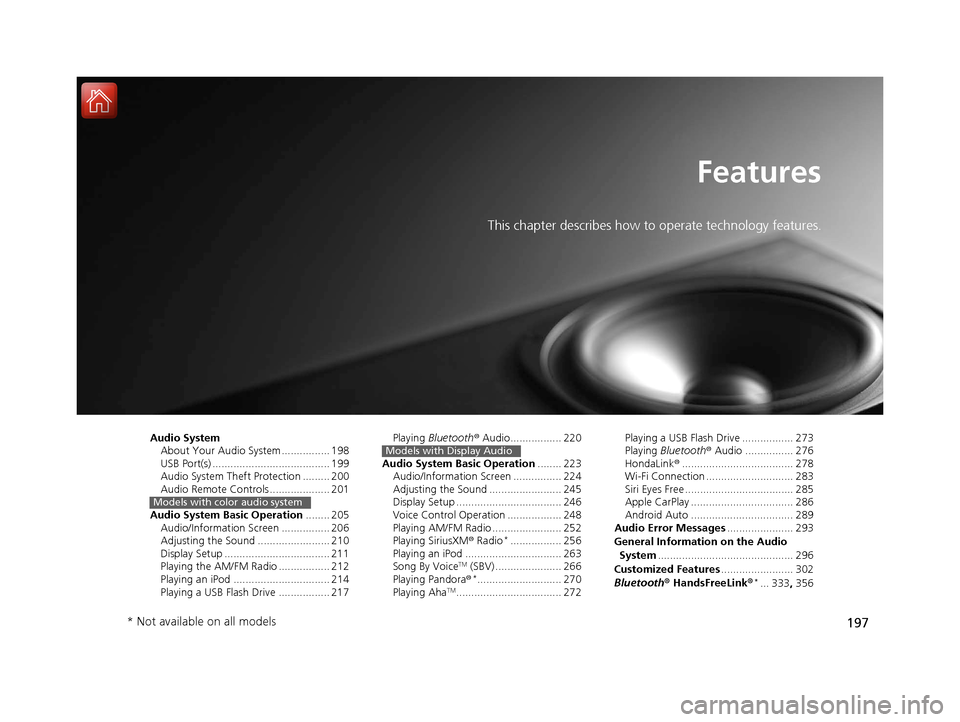

Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 198
USB Port(s) ....................................... 199
Audio System Theft Protection ......... 200
Audio Remote Controls .................... 201
Audio System Basic Operation ........ 205
Audio/Information Screen ................ 206
Adjusting the Sound ........................ 210
Display Setup ................................... 211
Playing the AM/FM Radio ................. 212
Playing an iPod ................................ 214
Playing a USB Flash Drive ................. 217
Models with color audio system
Playing Bluetooth ® Audio................. 220
Audio System Basic Operation ........ 223
Audio/Information Screen ................ 224
Adjusting the Sound ........................ 245
Display Setup ................................... 246
Voice Control Operation .................. 248
Playing AM/FM Radio ....................... 252
Playing SiriusXM ® Radio
*................. 256
Playing an iPod ................................ 263
Song By Voice
TM (SBV) ...................... 266
Playing Pandora ®*............................ 270
Playing AhaTM................................... 272
Models with Display AudioPlaying a USB Flash Drive ................. 273
Playing Bluetooth ® Audio ................ 276
HondaLink ®..................................... 278
Wi-Fi Connection ............................. 283
Siri Eyes Free .................................... 285
Apple CarPlay .................................. 286
Android Auto .................................. 289
Audio Error Messages ...................... 293
General Information on the Audio System ............................................. 296
Customized Features ........................ 302
Bluetooth® HandsFreeLink®
*... 333, 356
* Not available on all models
16 CIVIC 4D-31TBA6000.book 197 ページ ２０１５年８月３１日　月曜日　午後５時５６分

198
Features

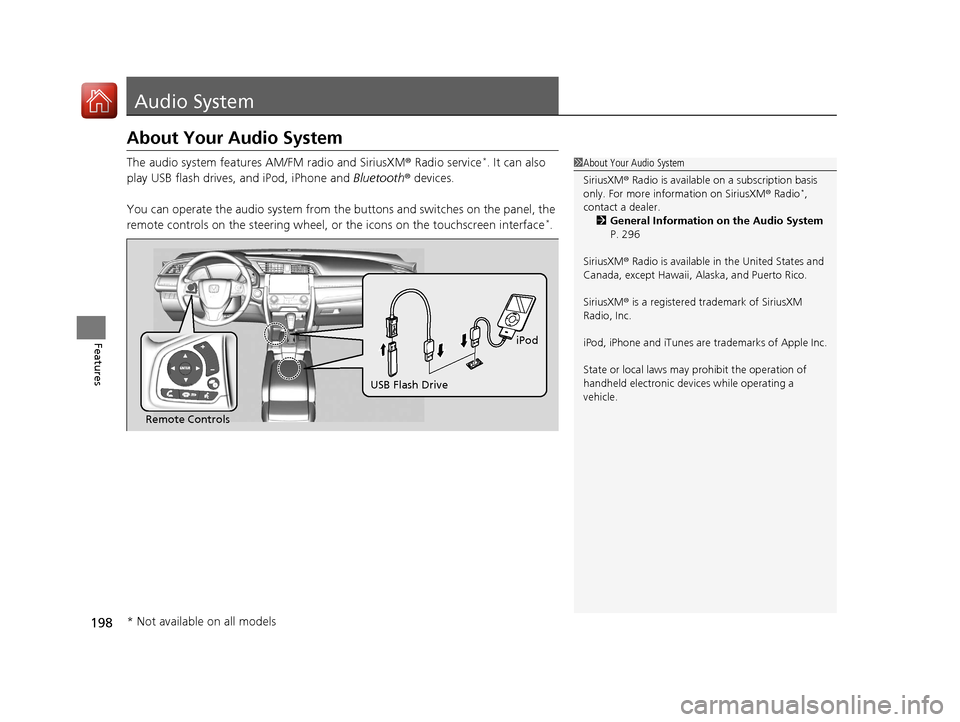

Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM® Radio service*. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1 About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio
*,
contact a dealer.
2 General Information on the Audio System
P. 296
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
* Not available on all models
16 CIVIC 4D-31TBA6000.book 198 ページ ２０１５年８月３１日　月曜日　午後５時５６分

199
uuAudio System uUSB Port(s)
Features

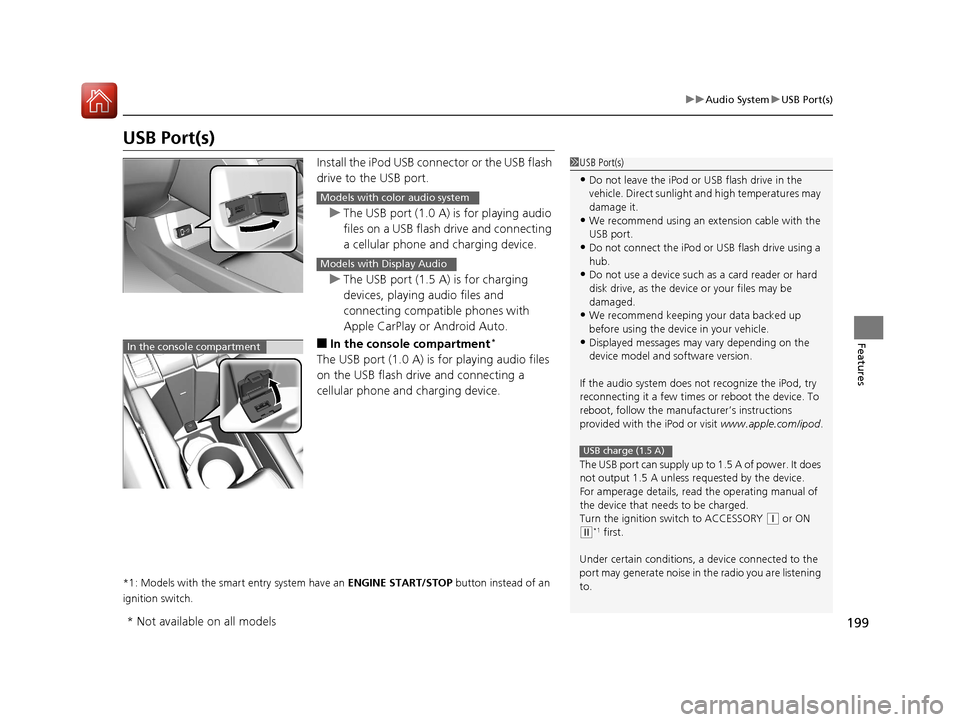

USB Port(s)
Install the iPod USB connector or the USB flash
drive to the USB port.
u The USB port (1.0 A) is for playing audio
files on a USB flash drive and connecting
a cellular phone and charging device.
u The USB port (1.5 A) is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay or Android Auto.
■In the consol e compartment*
The USB port (1.0 A) is for playing audio files
on the USB flash drive and connecting a
cellular phone and charging device.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an ex tension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
•We recommend k eeping your data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.5 A of power. It does
not output 1.5 A unless re quested by the device.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Turn the ignition switch to ACCESSORY
( q or ON
(w*1 first.
Under certain condi tions, a device connected to the
port may generate noi se in the radio you are listening
to.
USB charge (1.5 A)
Models with color audio system
Models with Display Audio
In the console compartment
* Not available on all models
