HONDA CIVIC 2022 Owners Manual

450
uuWhen Driving uDrive Mode Switch*
Driving

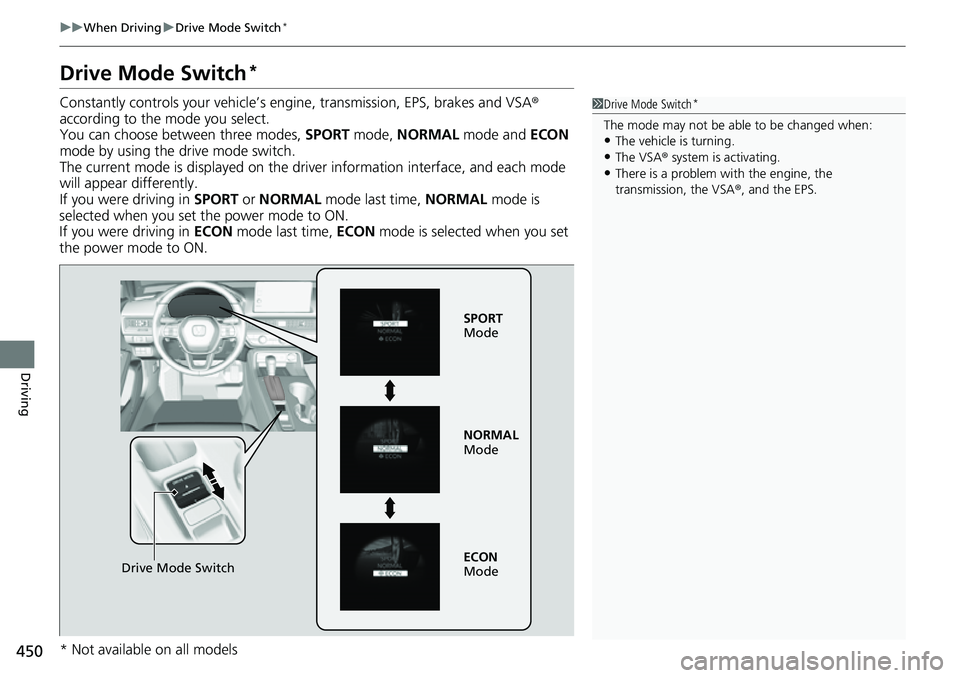

Drive Mode Switch*
Constantly controls your vehicle’s engine, transmission, EPS, brakes and VSA ®
according to the mode you select.
You can choose between three modes, SPORT mode, NORMAL mode and ECON
mode by using the drive mode switch.
The current mode is displayed on the driver information interface, and each mode
will appear differently.
If you were driving in SPORT or NORMAL mode last time, NORMAL mode is
selected when you set the power mode to ON.
If you were driving in ECON mode last time, ECON mode is selected when you set
the power mode to ON.1 Drive Mode Switch*
The mode may not be able to be changed when:
•The vehicle is turning.•The VSA ® system is activating.
•There is a problem wi th the engine, the
transmission, the VSA® , and the EPS.
Drive Mode Switch
SPORT
Mode
NORMAL
Mode
ECON
Mode
* Not available on all models

451
uuWhen Driving uDrive Mode Switch*
Continued
Driving

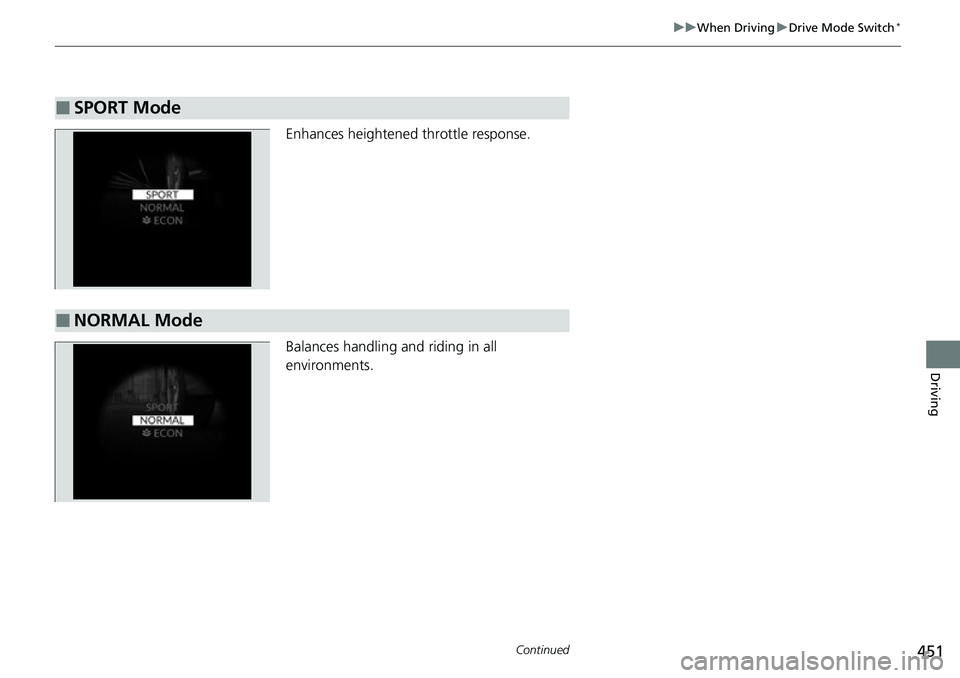

Enhances heightened throttle response.
Balances handling and riding in all
environments.
■SPORT Mode
■NORMAL Mode

452
uuWhen Driving uDrive Mode Switch*
Driving

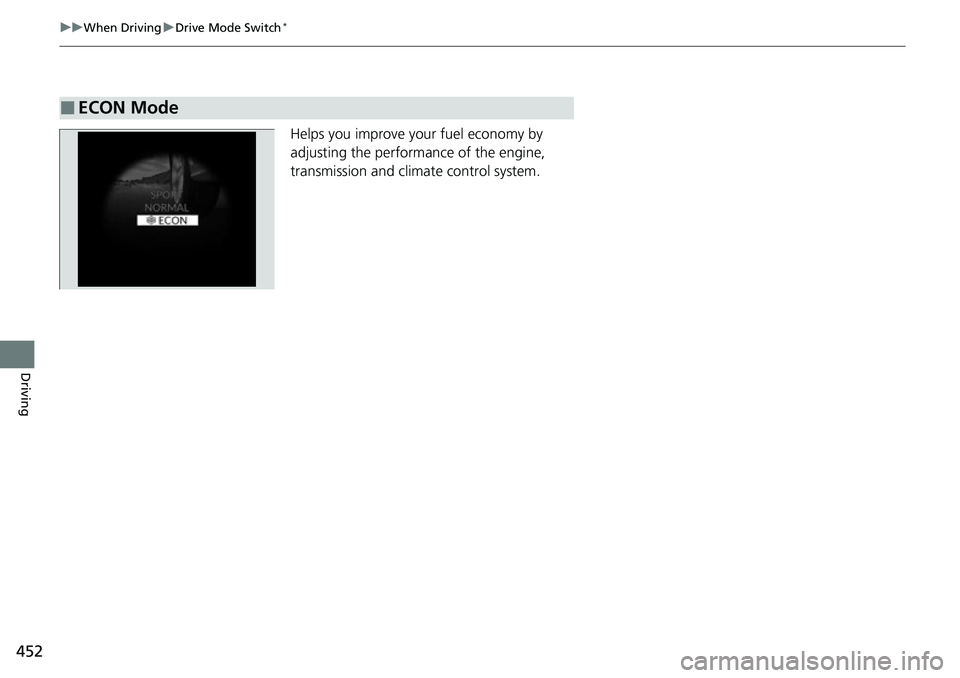

Helps you improve your fuel economy by
adjusting the performance of the engine,
transmission and climate control system.
■ECON Mode

453
uuWhen Driving uAuto Idle Stop
Continued
Driving

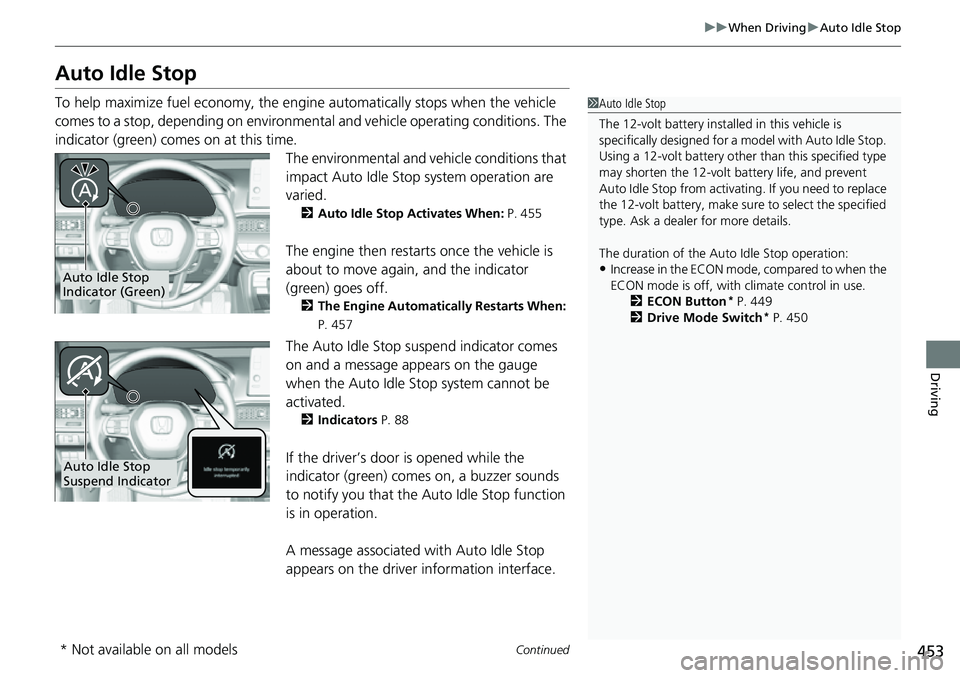

Auto Idle Stop
To help maximize fuel economy, the engine automatically stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
indicator (green) comes on at this time.
The environmental and vehicle conditions that
impact Auto Idle Stop system operation are
varied.
2Auto Idle Stop Activates When: P. 455
The engine then restarts once the vehicle is
about to move again, and the indicator
(green) goes off.
2The Engine Automatically Restarts When:
P. 457
The Auto Idle Stop suspend indicator comes
on and a message appears on the gauge
when the Auto Idle St op system cannot be
activated.
2 Indicators P. 88
If the driver’s door is opened while the
indicator (green) come s on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.
A message associated with Auto Idle Stop
appears on the driver information interface.
1 Auto Idle Stop
The 12-volt battery insta lled in this vehicle is
specifically designed for a m odel with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the 12-volt ba ttery life, and prevent
Auto Idle Stop from activati ng. If you need to replace
the 12-volt battery, make sure to select the specified
type. Ask a dealer for more details.
The duration of the Au to Idle Stop operation:
•Increase in the ECON mode, compared to when the
ECON mode is off, with climate control in use.
2 ECON Button
* P. 449
2 Drive Mode Switch* P. 450
Auto Idle Stop
Indicator (Green)
Auto Idle Stop
Suspend Indicator
* Not available on all models

uuWhen Driving uAuto Idle Stop
454
Driving
To turn the Auto Idle Stop system off, press
this button. The Auto Idle Stop system stops.
u Auto Idle Stop system will stop, the
indicator will come on and a message
appears on the gauge.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
■Auto Idle Stop System ON/OFF1 Auto Idle Stop System ON/OFF
If you turn off the Auto Idle Stop system while it is
activated, the engine will restart.
If you hold the Auto Idle Stop OFF button, you can
disable idle stop messages.
Auto Idle Stop OFF
Indicator

Continued455
uuWhen Driving uAuto Idle Stop
Driving

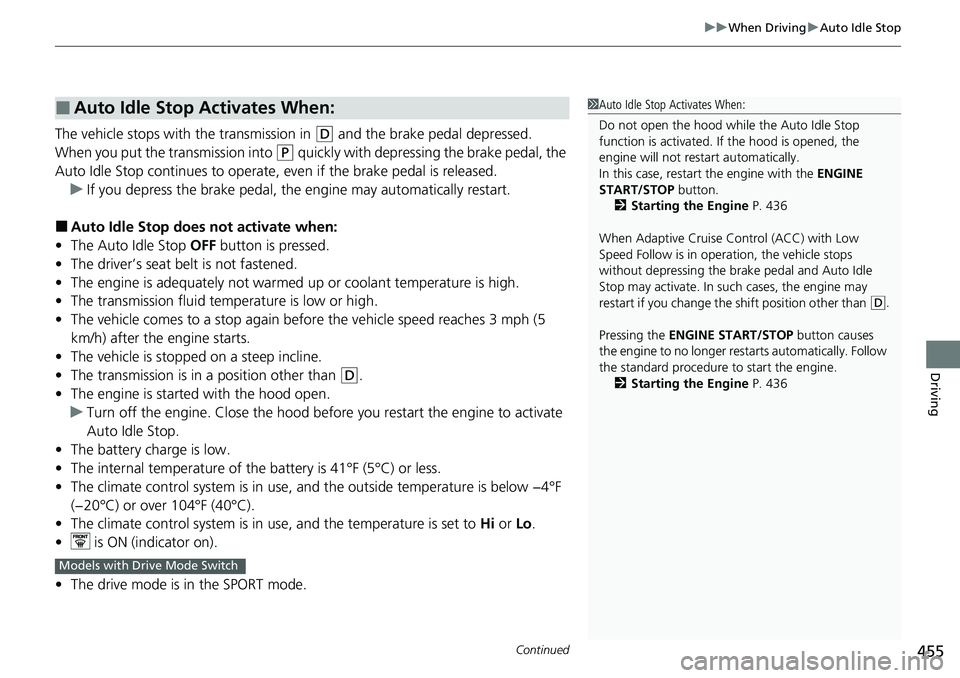

The vehicle stops with the transmission in (D and the brake pedal depressed.
When you put the transmission into
(P quickly with depressing the brake pedal, the
Auto Idle Stop continues to operate, even if the brake pedal is released.
u If you depress the brake pedal, the engine may automatically restart.
■Auto Idle Stop does not activate when:
• The Auto Idle Stop OFF button is pressed.
• The driver’s seat belt is not fastened.
• The engine is adequately not warmed up or coolant temperature is high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again befo re the vehicle speed reaches 3 mph (5
km/h) after the engine starts.
• The vehicle is stopped on a steep incline.
• The transmission is in a position other than
(D.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 41°F (5°C) or less.
• The climate control system is in use, and the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in use, and the temperature is set to Hi or Lo .
• is ON (indicator on).
• The drive mode is in the SPORT mode.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 436
When Adaptive Cruise Control (ACC) with Low
Speed Follow is in oper ation, the vehicle stops
without depressing the br ake pedal and Auto Idle
Stop may activate. In such cases, the engine may
restart if you change the shift position other than
(D.
Pressing the ENGINE START/STOP button causes
the engine to no longer restar ts automatically. Follow
the standard procedure to start the engine.
2 Starting the Engine P. 436
Models with Drive Mode Switch

456
uuWhen Driving uAuto Idle Stop
Driving

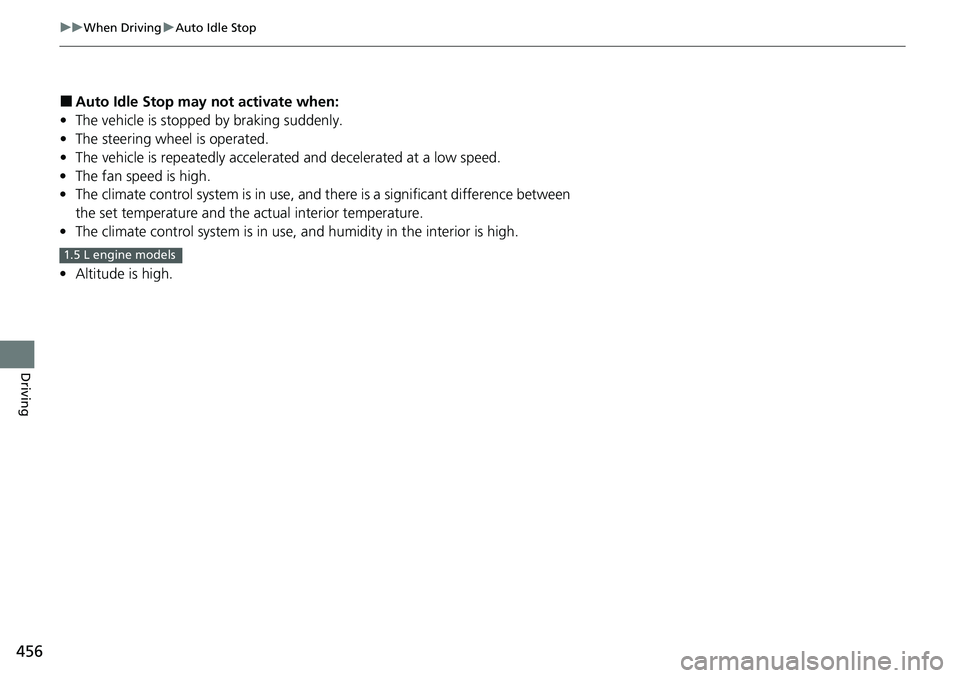

■Auto Idle Stop m ay not activate when:
• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The vehicle is repeated ly accelerated and dece lerated at a low speed.
• The fan speed is high.
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature.
• The climate control system is in use, and humidity in the interior is high.
• Altitude is high.
1.5 L engine models

Continued457
uuWhen Driving uAuto Idle Stop
Driving

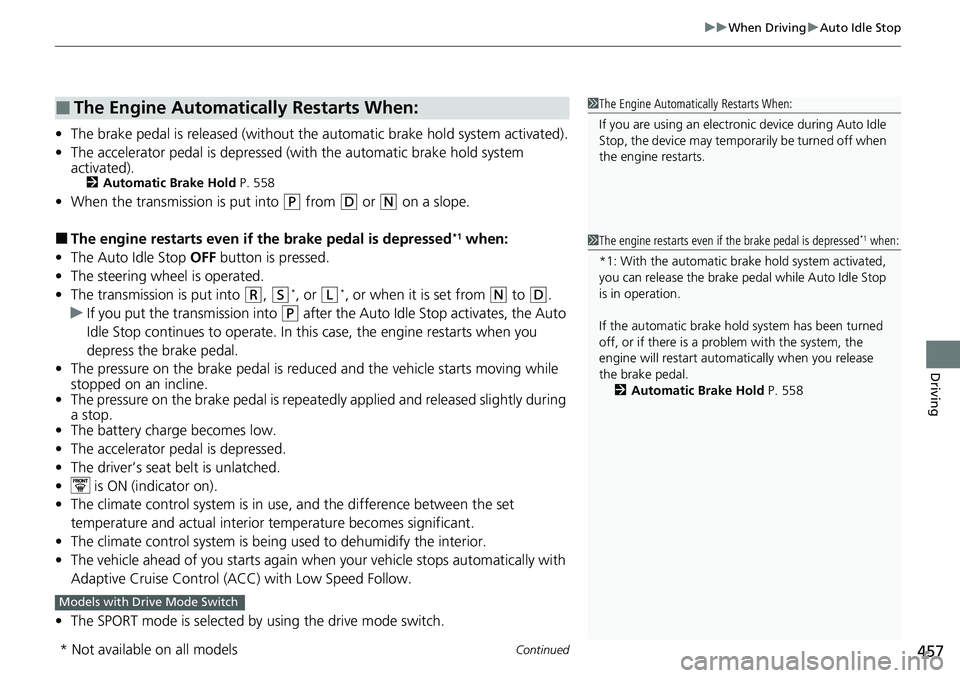

• The brake pedal is released (without the automatic brake hold system activated).
• The accelerator pedal is depressed (w ith the automatic brake hold system
activated).
2 Automatic Brake Hold P. 558
•When the transmission is put into (P from (D or (N on a slope.
■The engine restarts even if the brake pedal is depressed*1 when:
• The Auto Idle Stop OFF button is pressed.
• The steering wheel is operated.
• The transmission is put into
(R, (S*, or (L*, or when it is set from (N to (D.
u If you put the tra nsmission into
(P after the Auto Idle Stop activates, the Auto
Idle Stop continues to operate. In this case, the engine restarts when you
depress the brake pedal.
• The pressure on the brake pedal is reduced and the vehicle starts moving while
stopped on an incline.
• The pressure on the brake pedal is repeated ly applied and released slightly during
a stop.
• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
• is ON (indicator on).
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
• The vehicle ahead of you starts again when your vehicle stops automatically with
Adaptive Cruise Control ( ACC) with Low Speed Follow.
• The SPORT mode is selected by using the drive mode switch.
■The Engine Automatically Restarts When:1The Engine Automatically Restarts When:
If you are using an electroni c device during Auto Idle
Stop, the device may tempor arily be turned off when
the engine restarts.
1 The engine restarts even if the brake pedal is depressed*1 when:
*1: With the automatic brake hold system activated,
you can release the brake pedal while Auto Idle Stop
is in operation.
If the automatic brake hold system has been turned
off, or if there is a problem with the system, the
engine will restart automatically when you release
the brake pedal. 2 Automatic Brake Hold P. 558
Models with Drive Mode Switch
* Not available on all models

458
uuWhen Driving uAuto Idle Stop
Driving

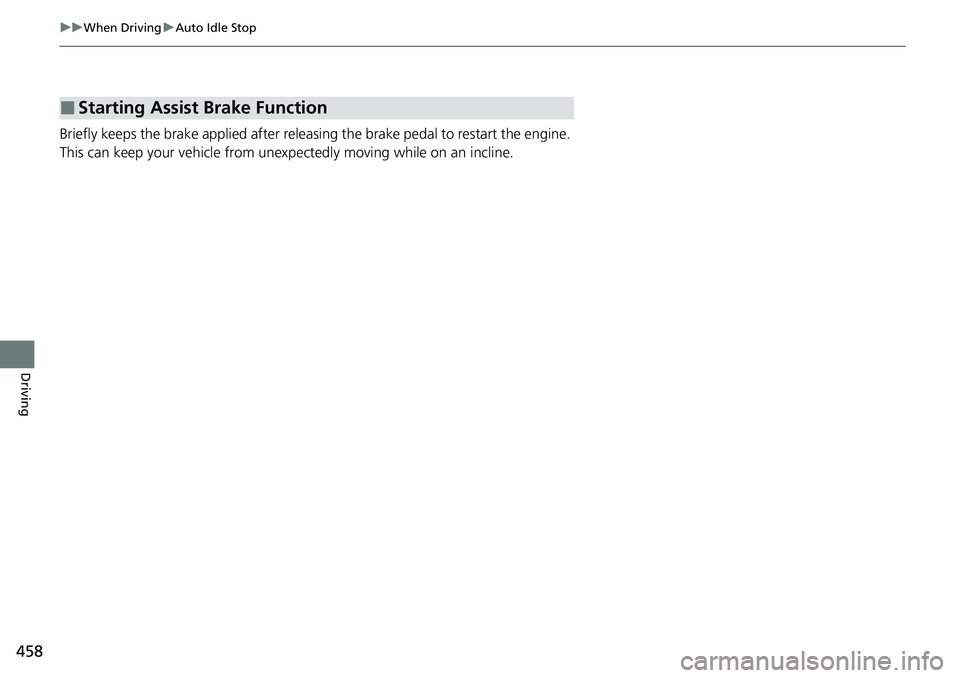

Briefly keeps the brake applied after releasi ng the brake pedal to restart the engine.
This can keep your vehicle from unexpectedly moving while on an incline.
■Starting Assist Brake Function

459
uuWhen Driving uVehicle Stability AssistTM (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving

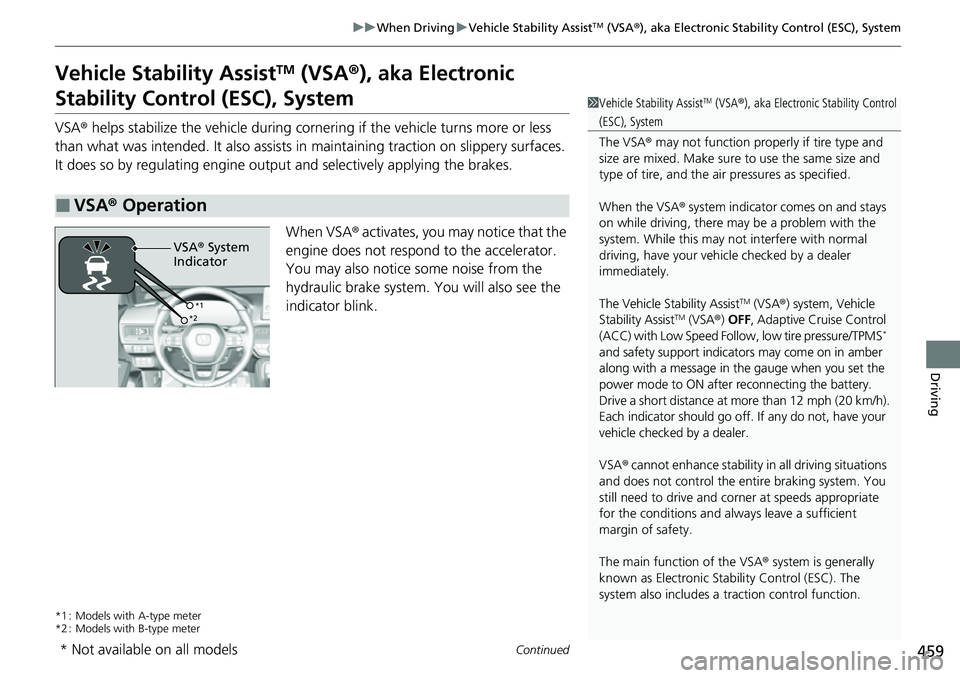

Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps stabilize the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine ou tput and selectively applying the brakes.
When VSA ® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic brake system. You will also see the
indicator blink.
*1 : Models with A-type meter
*2 : Models with B-type meter
■VSA ® Operation
1 Vehicle Stability AssistTM (VSA® ), aka Electronic Stability Control
(ESC), System
The VSA ® may not function properl y if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.
When the VSA ® system indicator comes on and stays
on while driving, there ma y be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
The Vehicle Stability Assist
TM (VSA ®) system, Vehicle
Stability AssistTM (VSA ®) OFF , Adaptive Cruise Control
(ACC) with Low Speed Follow, low tire pressure/TPMS*
and safety support indicators may come on in amber
along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
VSA® System
Indicator
*1
*2
