Page 401 of 840

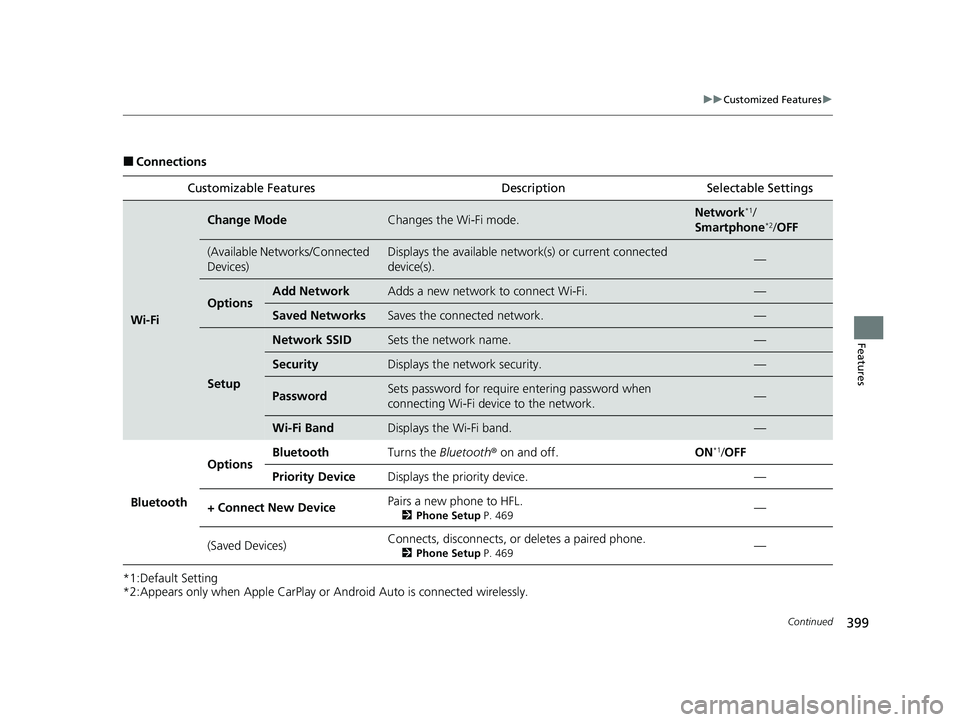

399
uuCustomized Features u
Continued
Features
■Connections
*1:Default Setting
*2:Appears only when Apple CarPlay or Android Auto is connected wirelessly. Customizable Features Description Selectable Settings
Wi-Fi
Change ModeChanges the Wi-Fi mode.Network*1/
Smartphone*2/ OFF
(Available Networks/Connected
Devices)Displays the available networ k(s) or current connected
device(s).—
OptionsAdd NetworkAdds a new network to connect Wi-Fi.—
Saved NetworksSaves the connected network.—
Setup
Network SSIDSets the network name.—
SecurityDisplays the network security.—
PasswordSets password for require entering password when
connecting Wi-Fi device to the network.—
Wi-Fi BandDisplays the Wi-Fi band.—
Bluetooth
OptionsBluetoothTurns the Bluetooth ® on and off.ON*1/OFF
Priority DeviceDisplays the priority device.—
+ Connect New DevicePairs a new phone to HFL.
2 Phone Setup P. 469—
(Saved Devices)Connects, disconnects, or deletes a paired phone.
2Phone Setup P. 469—
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 399 ページ 2022年6月23日 木曜日 午後9時28分
Page 402 of 840

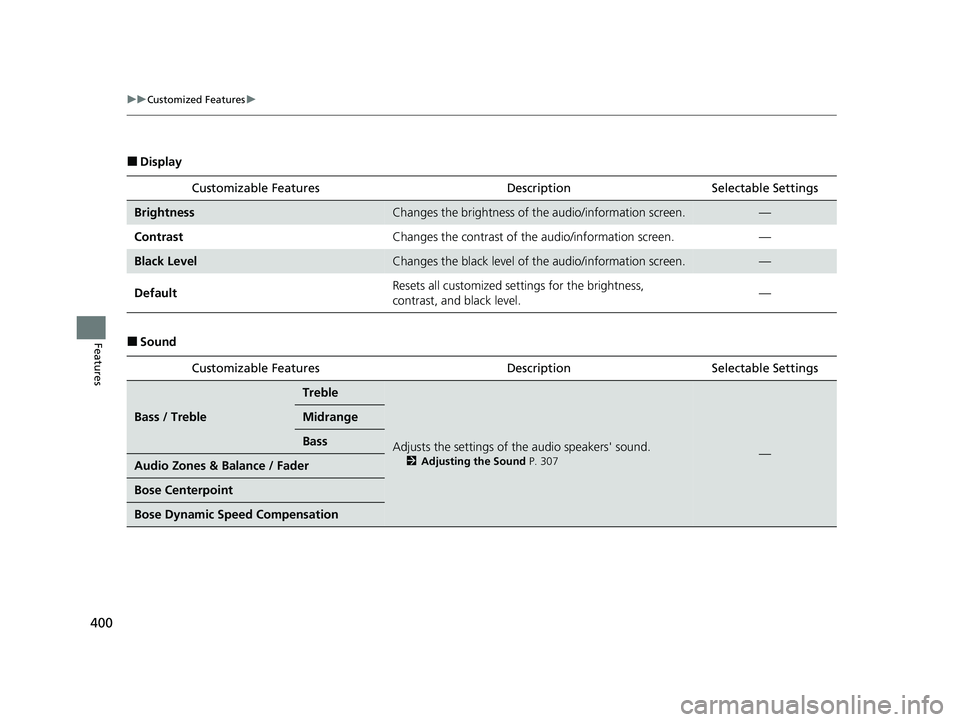

400
uuCustomized Features u
Features
■Display
■SoundCustomizable Features Descri
ption Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
ContrastChanges the contrast of the audio/information screen.—
Black LevelChanges the black level of the audio/information screen.—
DefaultResets all customized settings for the brightness,
contrast, and black level.—
Customizable Features Descri ption Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers' sound.
2Adjusting the Sound P. 307—
Midrange
Bass
Audio Zones & Balance / Fader
Bose Centerpoint
Bose Dynamic Speed Compensation
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 400 ページ 2022年6月23日 木曜日 午後9時28分

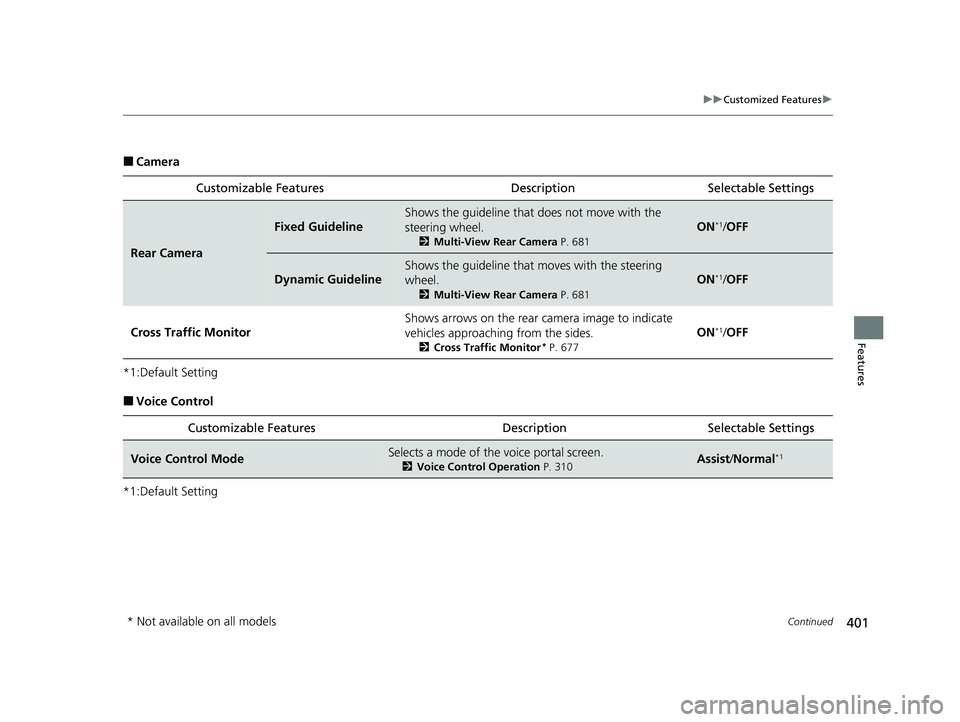

Page 403 of 840

401
uuCustomized Features u
Continued
Features
■Camera
*1:Default Setting
■Voice Control
*1:Default Setting Customizable Features Desc
ription Selectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2Multi-View Rear Camera P. 681
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera P. 681
ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear ca mera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 677
ON*1/OFF
Customizable Features Descri ption Selectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2Voice Control Operation P. 310Assist/Normal*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 401 ページ 2022年6月23日 木曜日 午後9時28分
Page 404 of 840

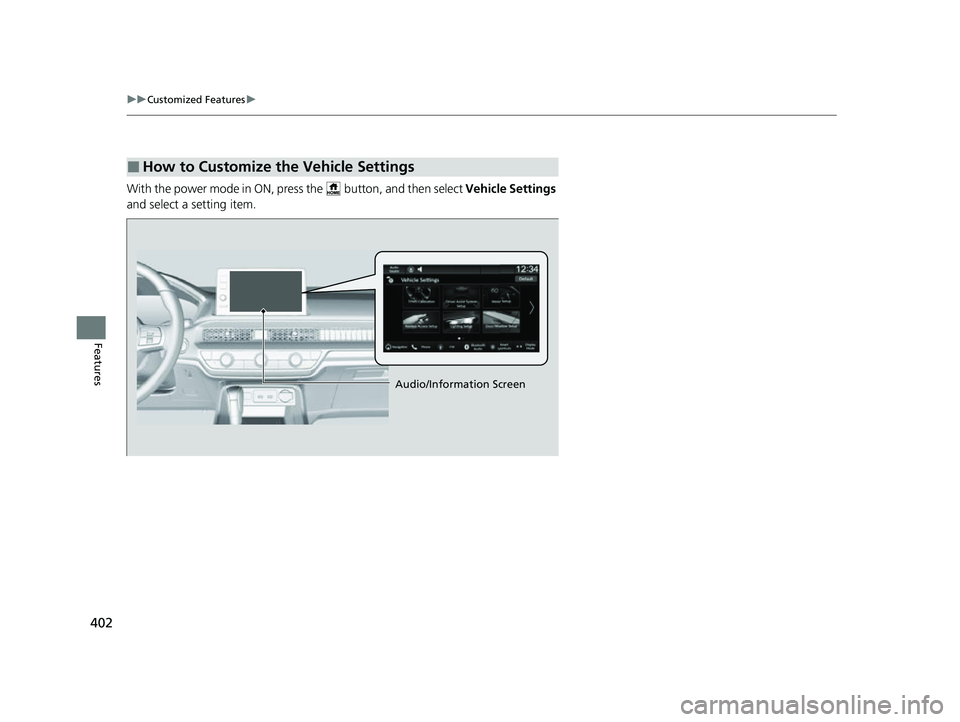

402
uuCustomized Features u
Features
With the power mode in ON, pre ss the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 402 ページ 2022年6月23日 木曜日 午後9時28分
Page 405 of 840

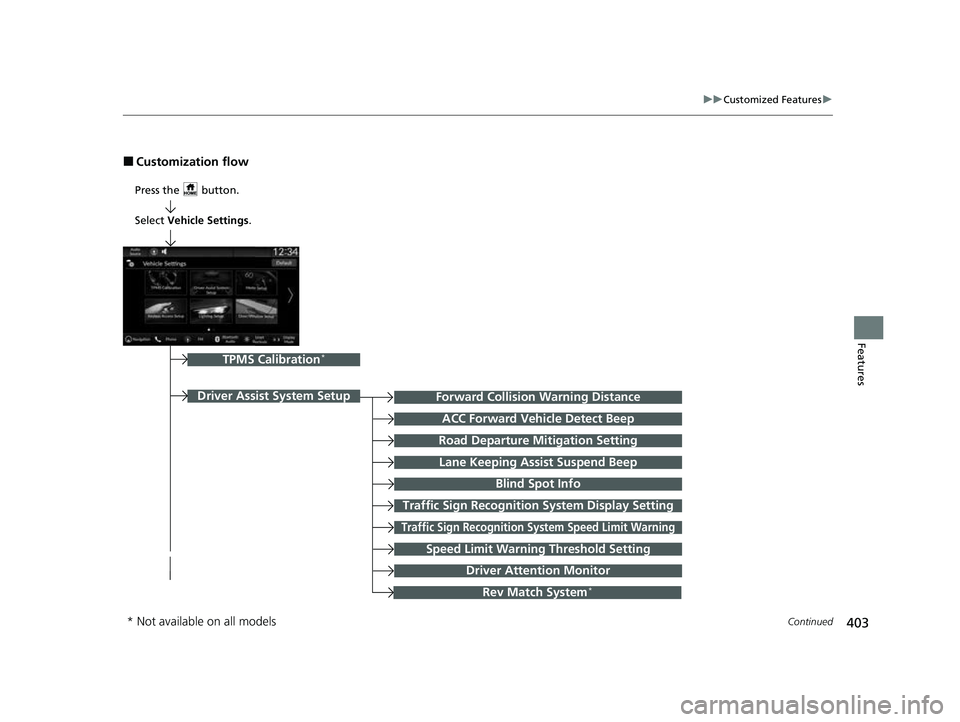

403
uuCustomized Features u
Continued
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep
Traffic Sign Recognition System Display Setting
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Blind Spot Info
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
TPMS Calibration*
Select Vehicle Settings .
Rev Match System*
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 403 ページ 2022年6月23日 木曜日 午後9時28分
Page 406 of 840

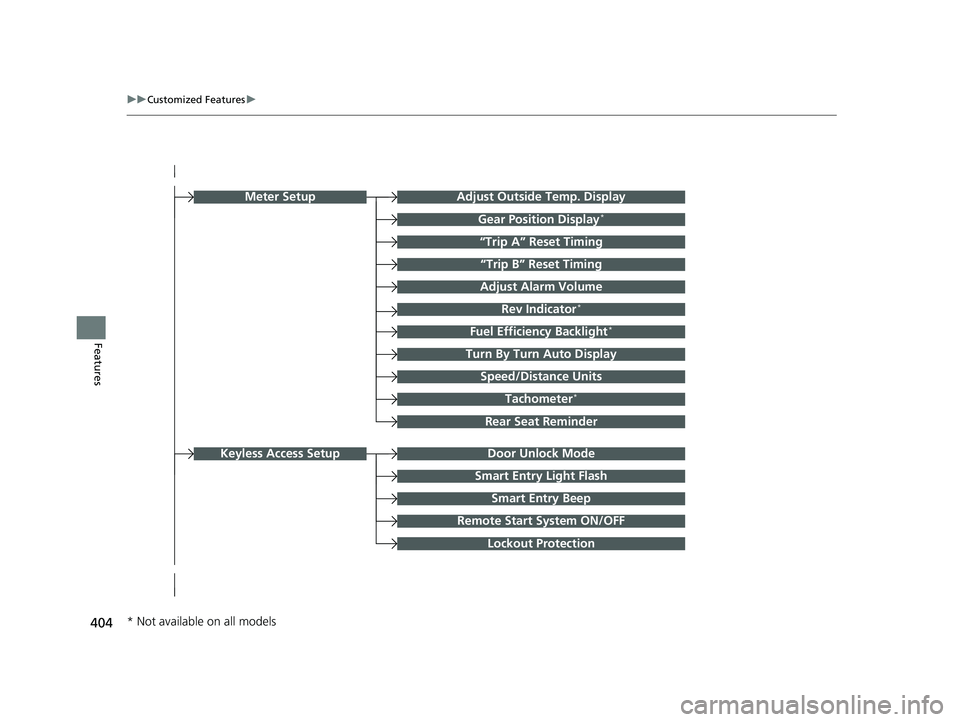

404
uuCustomized Features u
Features
Turn By Turn Auto Display
Speed/Distance Units
Smart Entry Light Flash
Rear Seat Reminder
Door Unlock Mode
Smart Entry Beep
Remote Start System ON/OFF
Lockout Protection
Keyless Access Setup
Adjust Outside Temp. Display
“Trip A” Reset Timing
“Trip B” Reset Timing
Adjust Alarm Volume
Fuel Efficiency Backlight*
Rev Indicator*
Tachometer*
Gear Position Display*
Meter Setup
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 404 ページ 2022年6月23日 木曜日 午後9時28分
Page 407 of 840

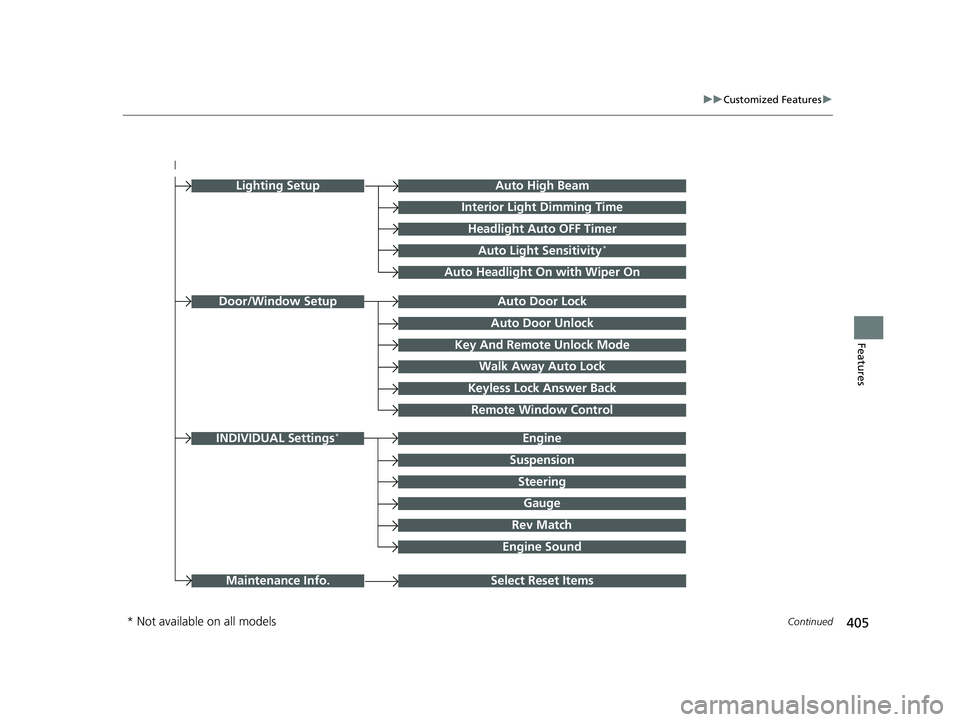

405
uuCustomized Features u
Continued
Features
Auto Door Unlock
Auto Door Lock
Key And Remote Unlock Mode
Walk Away Auto Lock
Keyless Lock Answer Back
Door/Window Setup
Lighting SetupAuto High Beam
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
Auto Headlight On with Wiper On
Remote Window Control
Select Reset ItemsMaintenance Info.
Suspension
Engine
Steering
Gauge
Rev Match
INDIVIDUAL Settings*
Engine Sound
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 405 ページ 2022年6月23日 木曜日 午後9時28分
Page 408 of 840

406
uuCustomized Features u
Features
■TPMS Calibration*
■Driver Assist System Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
TPMS CalibrationCancels/Calibrates the tire pressure monitoring system (TPMS).
2Tire Pressure Monitoring System (TPMS)* P. 540Calibrate /Cancel
Customizable Features DescriptionSelectable Settings
Forward Collision Warning
DistanceSelects distance for Forward Collision Warning audible and visual
alerts.
2 Collision Mitigation Braking SystemTM (CMBSTM) P. 555
Long/ Normal*1/Short
ACC Forward Vehicle Detect
Beep
Turns On/Off audible notification when vehicle has moved in/out of
adaptive cruise contro l with Low Speed Follow* range.
2Adaptive Cruise Control (ACC) with Low Speed Follow* P. 578
2 Adaptive Cruise Control (ACC)* P. 598
ON /OFF*1
Road Departure Mitigation
SettingSelects operating mode of the Ro ad Departure Mitigation system.
2Road Departure Mitigation System P. 639
Narrow/Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend BeepSelects On/Off the LKAS alert for not detecting road lines.
2Lane Keeping Assist System (LKAS) P. 618ON /OFF*1
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 406 ページ 2022年6月23日 木曜日 午後9時28分
Page 409 of 840

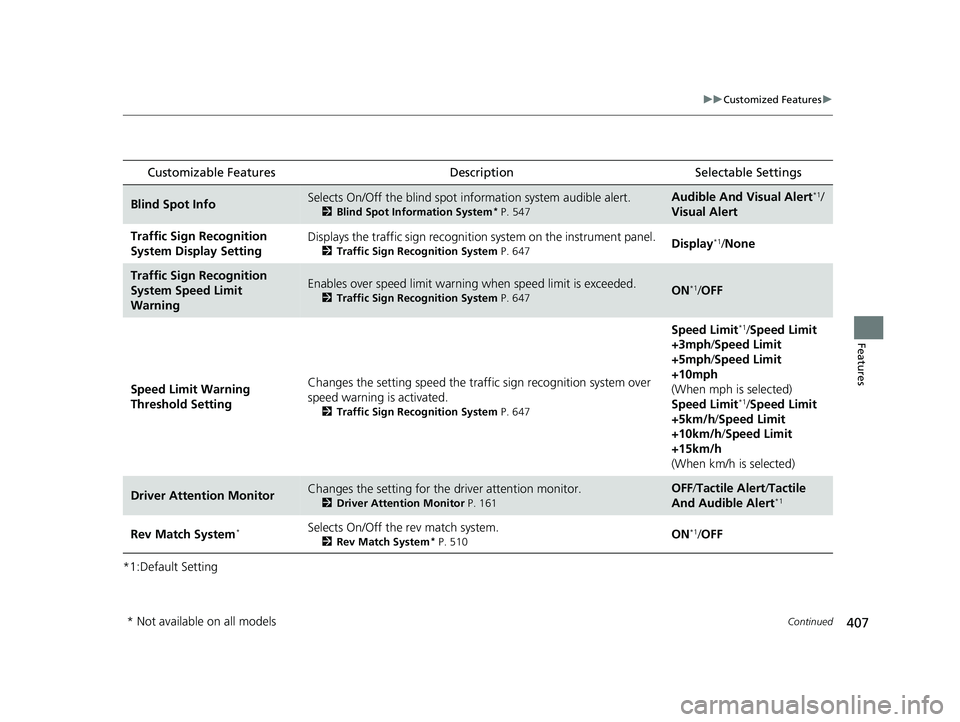

407
uuCustomized Features u
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Blind Spot InfoSelects On/Off the blind spot information system audible alert.
2Blind Spot Information System* P. 547
Audible And Visual Alert*1/
Visual Alert
Traffic Sign Recognition
System Display SettingDisplays the traffic sign recognition system on the instrument panel.
2Traffic Sign Recognition System P. 647Display*1/None
Traffic Sign Recognition
System Speed Limit
WarningEnables over speed limit warning when speed limit is exceeded.
2Traffic Sign Recognition System P. 647ON*1/OFF
Speed Limit Warning
Threshold Setting Changes the setting speed the traffi
c sign recognition system over
speed warning is activated.
2 Traffic Sign Recognition System P. 647
Speed Limit*1/Speed Limit
+3mph /Speed Limit
+5mph /Speed Limit
+10mph
(When mph is selected)
Speed Limit
*1/ Speed Limit
+5km/h /Speed Limit
+10km/h /Speed Limit
+15km/h
(When km/h is selected)
Driver Attention MonitorChanges the setting for the driver attention monitor.
2Driver Attention Monitor P. 161
OFF/Tactile Alert/ Tactile
And Audible Alert*1
Rev Match System*Selects On/Off the rev match system.
2Rev Match System* P. 510ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 407 ページ 2022年6月23日 木曜日 午後9時28分
Page 410 of 840

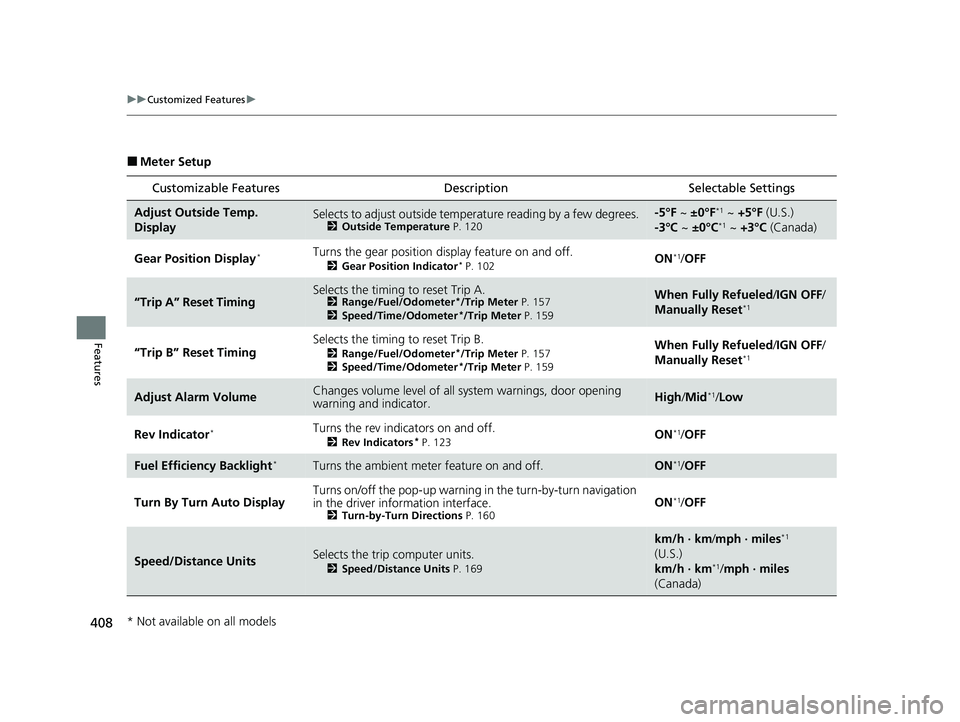

408
uuCustomized Features u
Features
■Meter Setup
Customizable Features Description Selectable Settings
Adjust Outside Temp.
DisplaySelects to adjust outside temperature reading by a few degrees.2Outside Temperature P. 120
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Gear Position Display*Turns the gear position display feature on and off.
2Gear Position Indicator* P. 102ON*1/OFF
“Trip A” Reset TimingSelects the timing to reset Trip A. 2 Range/Fuel/Odometer*/Trip Meter P. 157
2 Speed/Time/Odometer*/Trip Meter P. 159
When Fully Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Selects the timing to reset Trip B.
2 Range/Fuel/Odometer*/Trip Meter P. 157
2 Speed/Time/Odometer*/Trip Meter P. 159
When Fully Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges volume level of all system warnings, door opening
warning and indicator.High /Mid*1/Low
Rev Indicator*Turns the rev indicators on and off.
2 Rev Indicators* P. 123ON*1/OFF
Fuel Efficiency Backlight*Turns the ambient meter feature on and off.ON*1/OFF
Turn By Turn Auto DisplayTurns on/off the pop-up warning in the turn-by-turn navigation
in the driver information interface.
2 Turn-by-Turn Directions P. 160ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.
2 Speed/Distance Units P. 169
km/h · km/mph · miles*1
(U.S.)
km/h · km
*1/ mph · miles
(Canada)
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 408 ページ 2022年6月23日 木曜日 午後9時28分
