Page 411 of 840

409

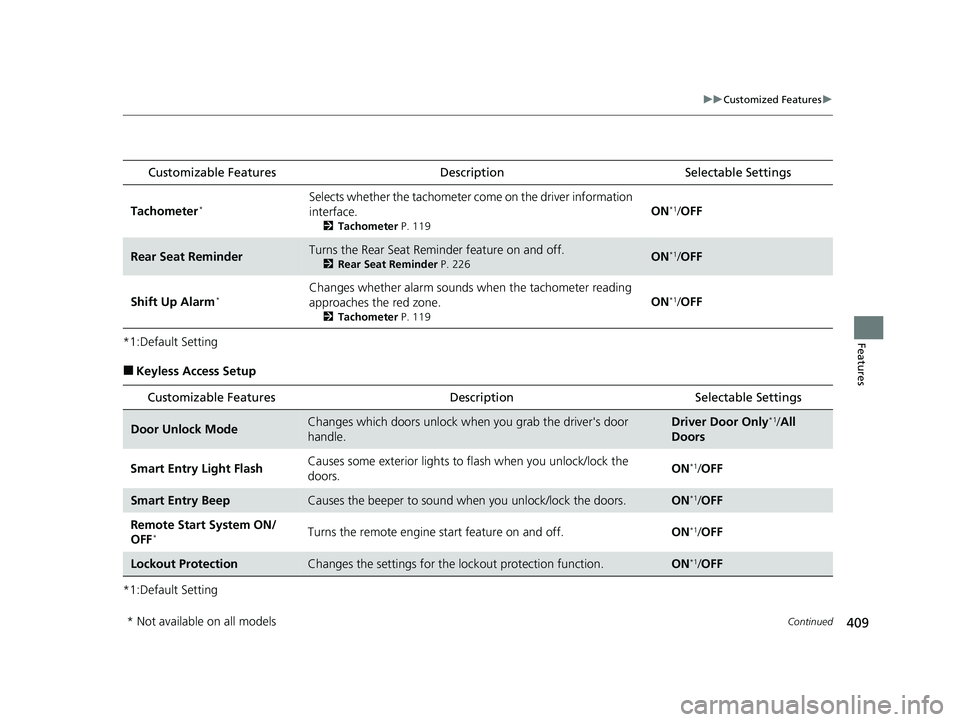

uuCustomized Features u
Continued
Features*1:Default Setting
■Keyless Access Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Tachometer*Selects whether the tachometer come on the driver information
interface.
2 Tachometer P. 119
ON*1/OFF
Rear Seat ReminderTurns the Rear Seat Reminder feature on and off.
2 Rear Seat Reminder P. 226ON*1/OFF
Shift Up Alarm*Changes whether alarm sounds when the tachometer reading
approaches the red zone.
2 Tachometer P. 119
ON*1/OFF
Customizable Features Description Selectable Settings
Door Unlock ModeChanges which doors unlock when you grab the driver's door
handle.Driver Door Only*1/All
Doors
Smart Entry Light Flash Causes some exterior lights to
flash when you unlock/lock the
doors. ON
*1/
OFF
Smart Entry BeepCauses the beeper to sound wh en you unlock/lock the doors.ON*1/OFF
Remote Start System ON/
OFF
*Turns the remote engine start feature on and off. ON*1/OFF
Lockout ProtectionChanges the settings for the lo ckout protection function.ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 409 ページ 2022年6月23日 木曜日 午後9時28分
Page 412 of 840

410
uuCustomized Features u
Features

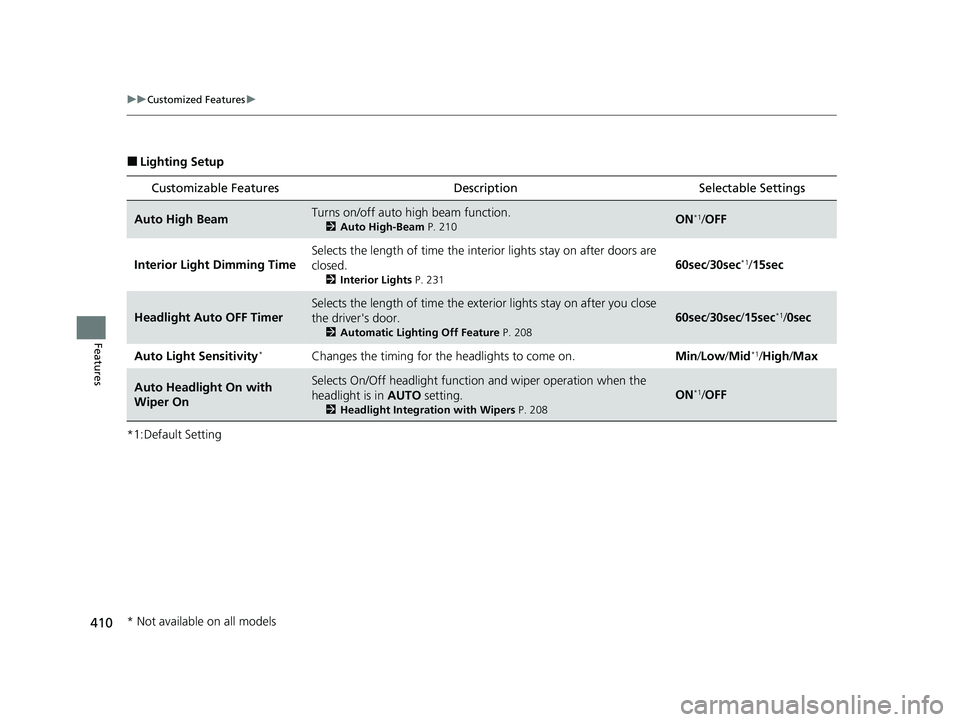

■Lighting Setup
*1:Default Setting
Customizable Features DescriptionSelectable Settings
Auto High BeamTurns on/off auto high beam function.
2Auto High-Beam P. 210ON*1/OFF
Interior Light Dimming Time Selects the length of time the inte
rior lights stay on after doors are
closed.
2 Interior Lights P. 231
60sec/30sec*1/15sec
Headlight Auto OFF Timer
Selects the length of time the exterior lights stay on after you close
the driver's door.
2 Automatic Lighting Off Feature P. 208
60sec/30sec /15sec*1/0sec
Auto Light Sensitivity
*Changes the timing for the headlights to come on. Min/Low /Mid*1/ High /Max
Auto Headlight On with
Wiper OnSelects On/Off headlight function and wiper operation when the
headlight is in AUTO setting.
2Headlight Integration with Wipers P. 208
ON*1/OFF
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 410 ページ 2022年6月23日 木曜日 午後9時28分
Page 413 of 840

411
uuCustomized Features u
Continued
Features

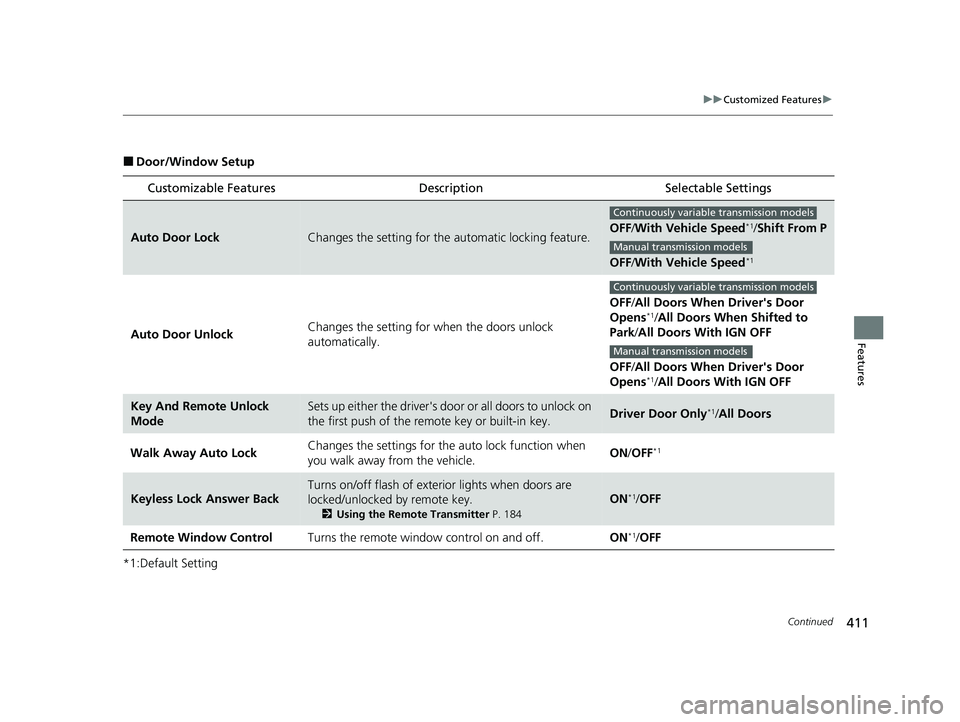

■Door/Window Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Auto Door LockChanges the setting for the automatic locking feature.OFF/With Vehicle Speed*1/ Shift From P
OFF /With Vehicle Speed
*1
Auto Door Unlock Changes the setting for when the doors unlock
automatically. OFF
/All Doors When Driver's Door
Opens
*1/ All Doors When Shifted to
Park /All Doors With IGN OFF
OFF /All Doors When Driver's Door
Opens
*1/ All Doors With IGN OFF
Key And Remote Unlock
ModeSets up either the driver's door or all doors to unlock on
the first push of the remote key or built-in key.Driver Door Only*1/All Doors
Walk Away Auto Lock Changes the settings for the
auto lock function when
you walk away from the vehicle. ON
/OFF
*1
Keyless Lock Answer Back
Turns on/off flash of exte rior lights when doors are
locked/unlocked by remote key.
2 Using the Remote Transmitter P. 184
ON*1/OFF
Remote Window Control Turns the remote window control on and off. ON
*1/OFF
Continuously variable transmission models
Manual transmission models
Continuously variable transmission models
Manual transmission models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 411 ページ 2022年6月23日 木曜日 午後9時28分
Page 414 of 840

412

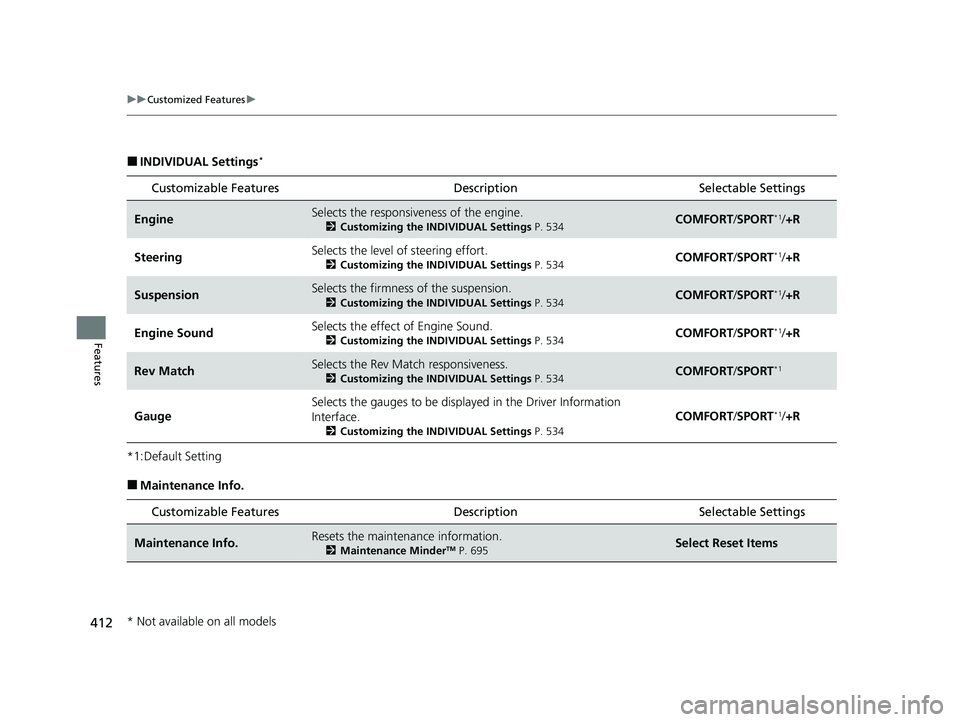

uuCustomized Features u
Features
■INDIVIDUAL Settings*
*1:Default Setting
■Maintenance Info.Customizable Features Description Selectable Settings
EngineSelects the responsive
ness of the engine.
2Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
SteeringSelects the level of steering effort.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
SuspensionSelects the firmness of the suspension.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
Engine SoundSelects the effect of Engine Sound.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1/ +R
Rev MatchSelects the Rev Match responsiveness.
2 Customizing the INDIVIDUAL Settings P. 534COMFORT/SPORT*1
Gauge
Selects the gauges to be displa yed in the Driver Information
Interface.
2 Customizing the INDIVIDUAL Settings P. 534
COMFORT/SPORT*1/ +R
Customizable Features Description Selectable Settings
Maintenance Info.Resets the maintenance information.
2 Maintenance MinderTM P. 695Select Reset Items
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 412 ページ 2022年6月23日 木曜日 午後9時28分
Page 415 of 840

413

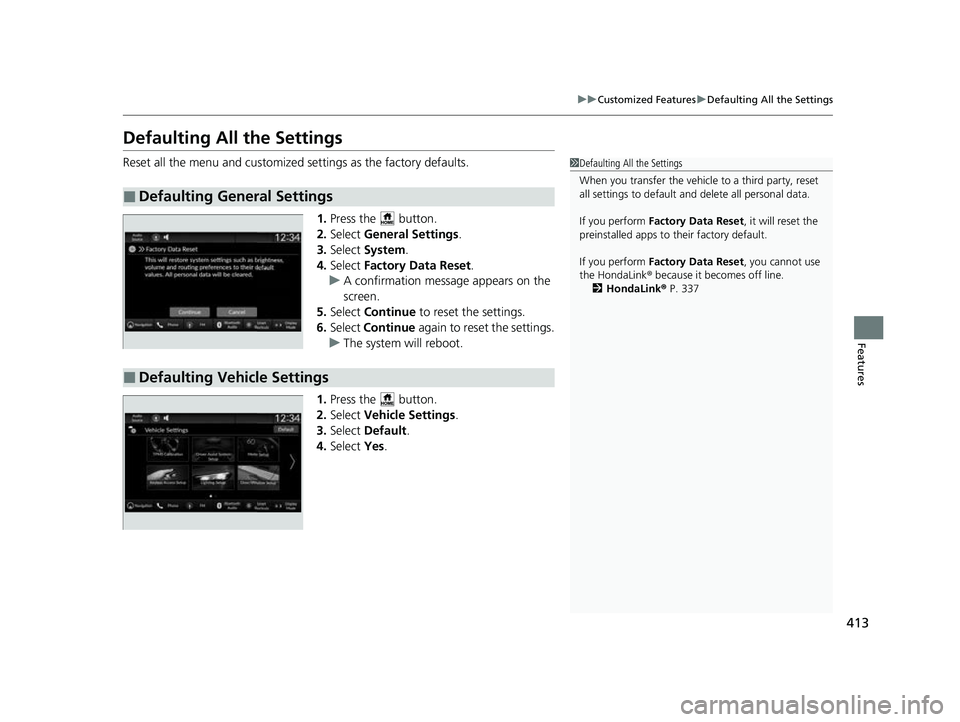

uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1.Press the button.
2. Select General Settings .
3. Select System.
4. Select Factory Data Reset .
u A confirmation message appears on the
screen.
5. Select Continue to reset the settings.
6. Select Continue again to reset the settings.
u The system w ill reboot.
1. Press the button.
2. Select Vehicle Settings.
3. Select Default .
4. Select Yes.
■Defaulting General Settings
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink® P. 337
■Defaulting Vehicle Settings
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 413 ページ 2022年6月23日 木曜日 午後9時28分
Page 416 of 840

414
Features

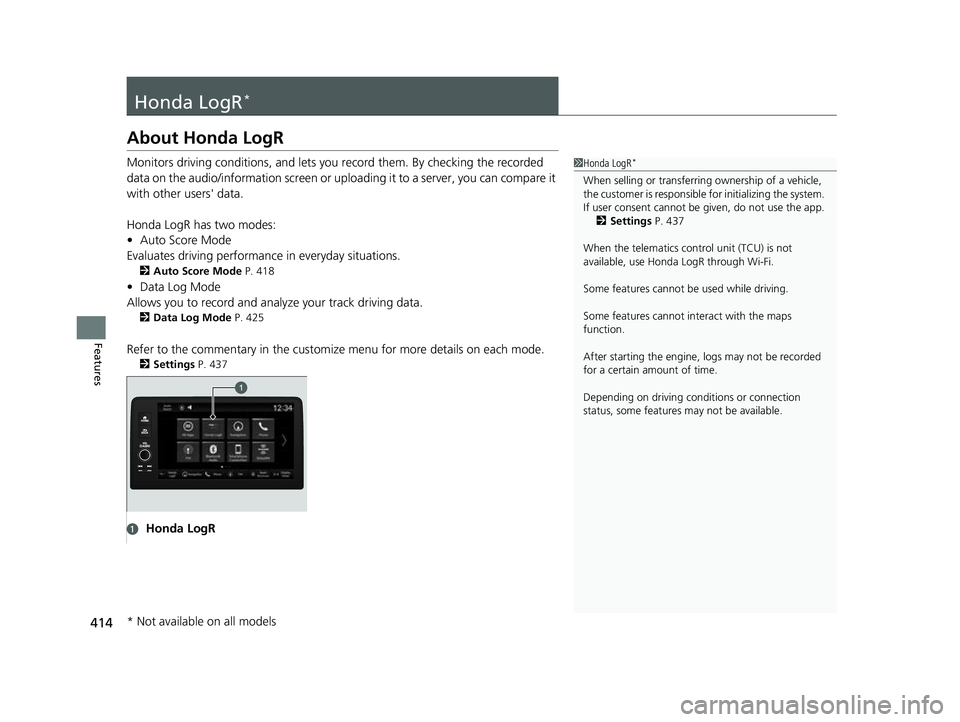

Honda LogR*
About Honda LogR
Monitors driving conditions, and lets you record them. By checking the recorded
data on the audio/information screen or uploading it to a server, you can compare it
with other users' data.
Honda LogR has two modes:
• Auto Score Mode
Evaluates driving performance in everyday situations.
2Auto Score Mode P. 418
•Data Log Mode
Allows you to record and anal yze your track driving data.
2Data Log Mode P. 425
Refer to the commentary in the customiz e menu for more details on each mode.
2Settings P. 437
1Honda LogR*
When selling or transferri ng ownership of a vehicle,
the customer is responsible for initializing the system.
If user consent cannot be given, do not use the app.
2 Settings P. 437
When the telematics control unit (TCU) is not
available, use Honda LogR through Wi-Fi.
Some features cannot be used while driving.
Some features cannot in teract with the maps
function.
After starting the engine, l ogs may not be recorded
for a certain amount of time.
Depending on driving condi tions or connection
status, some features may not be available.
aHonda LogR
* Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 414 ページ 2022年6月23日 木曜日 午後9時28分
Page 417 of 840

415
uuHonda LogR*uInitial Settings
Features

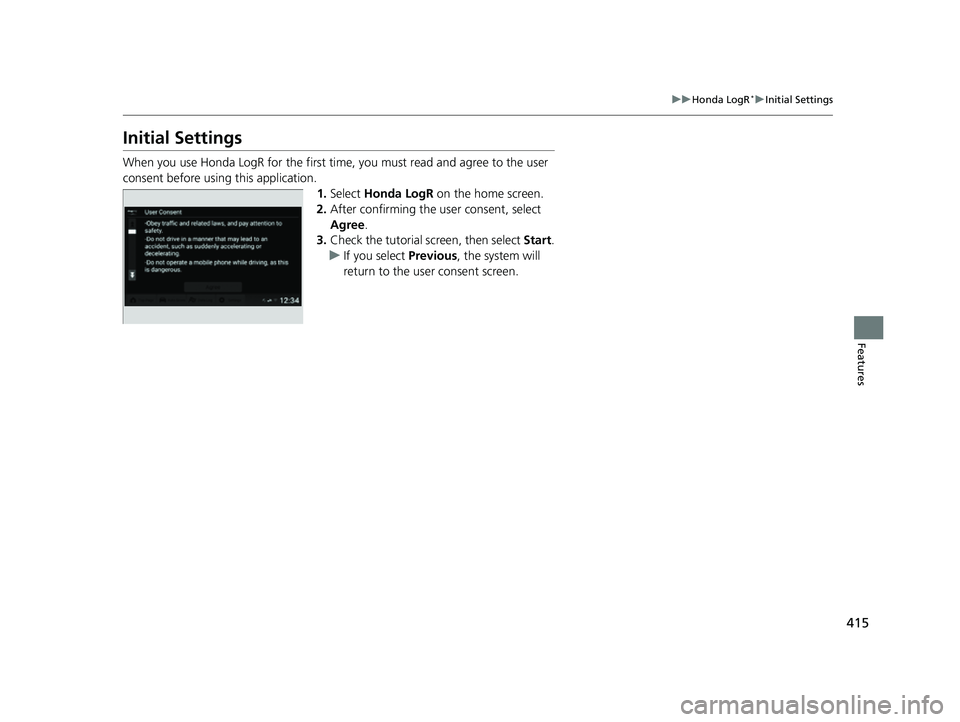

Initial Settings
When you use Honda LogR for the first time, you must read and agree to the user
consent before using this application. 1.Select Honda LogR on the home screen.
2. After confirming the user consent, select
Agree .
3. Check the tutorial screen, then select Start.
u If you select Previous, the system will
return to the user consent screen.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 415 ページ 2022年6月23日 木曜日 午後9時28分
Page 418 of 840

416
uuHonda LogR*uPerformance Monitor
Features

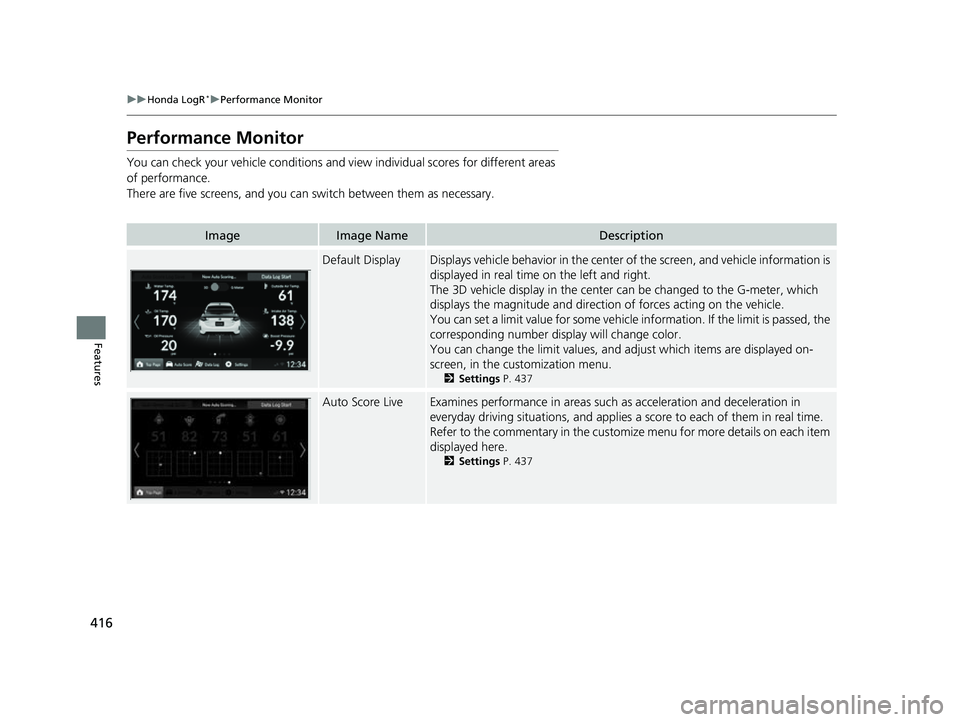

Performance Monitor
You can check your vehicle conditions and vi ew individual scores for different areas
of performance.
There are five screens, and you can switch between them as necessary.
ImageImage NameDescription
Default DisplayDisplays vehicle behavior in the center of the screen, and vehicle information is
displayed in real time on the left and right.
The 3D vehicle display in the center can be changed to the G-meter, which
displays the magnitude and directio n of forces acting on the vehicle.
You can set a limit value for some vehicle information. If the limit is passed, the
corresponding number display will change color.
You can change the limit values, and adjust which items are displayed on-
screen, in the cu stomization menu.
2Settings P. 437
Auto Score LiveExamines performance in areas such as acceleration and deceleration in
everyday driving situations, and applies a score to each of them in real time.
Refer to the commentary in the customize menu for more details on each item
displayed here.
2 Settings P. 437
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 416 ページ 2022年6月23日 木曜日 午後9時28分
Page 419 of 840

417
uuHonda LogR*uPerformance Monitor
Features
ImageImage NameDescription

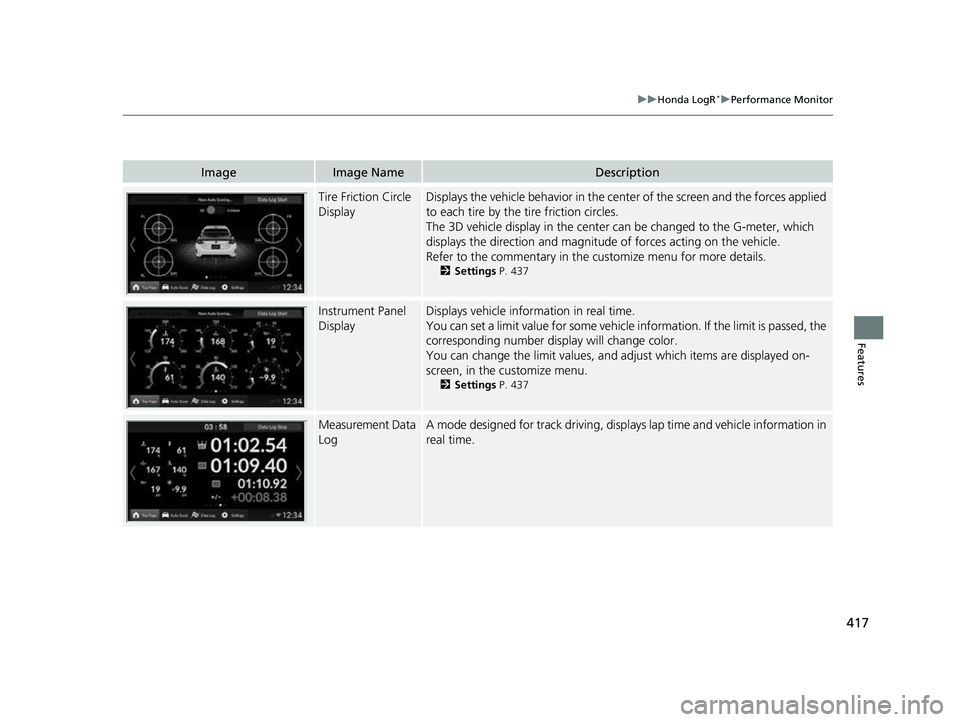

Tire Friction Circle
DisplayDisplays the vehicle behavior in the cent er of the screen and the forces applied
to each tire by the tire friction circles.
The 3D vehicle display in the center can be changed to the G-meter, which
displays the direction and magnitude of forces acting on the vehicle.
Refer to the commentary in the cu stomize menu for more details.
2Settings P. 437
Instrument Panel
DisplayDisplays vehicle inform ation in real time.
You can set a limit value for some vehicle information. If the limit is passed, the
corresponding number display will change color.
You can change the limit values, and adjust which items are displayed on-
screen, in the customize menu.
2 Settings P. 437
Measurement Data
LogA mode designed for track driving, displa ys lap time and vehicle information in
real time.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 417 ページ 2022年6月23日 木曜日 午後9時28分
Page 420 of 840

418
uuHonda LogR*uAuto Score Mode
Features

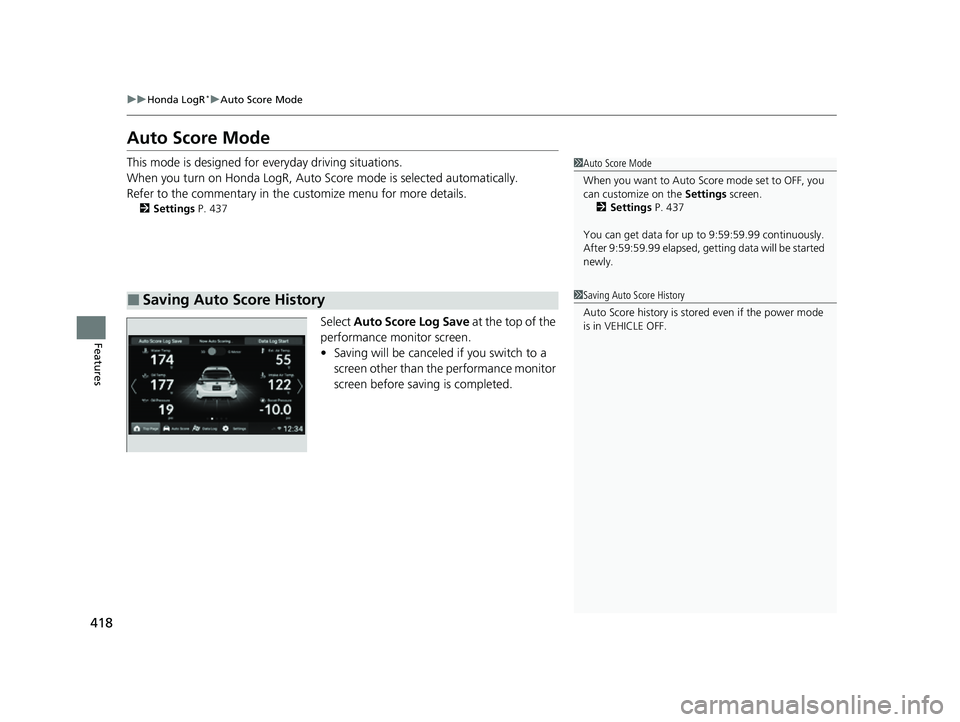

Auto Score Mode
This mode is designed for everyday driving situations.
When you turn on Honda LogR, Auto Sc ore mode is selected automatically.
Refer to the commentary in the customize menu for more details.
2Settings P. 437
Select Auto Score Log Save at the top of the
performance monitor screen.
• Saving will be canceled if you switch to a
screen other than the performance monitor
screen before saving is completed.
■Saving Auto Score History
1Auto Score Mode
When you want to Auto Score mode set to OFF, you
can customize on the Settings screen.
2 Settings P. 437
You can get data for up to 9:59:59.99 continuously.
After 9:59:59.99 elapsed, gett ing data will be started
newly.
1 Saving Auto Score History
Auto Score history is stored even if the power mode
is in VEHICLE OFF.
