driving HONDA CIVIC 2023 Owners Manual

These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. Howe ver, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an ED R, special equipment is required,
and access to the vehicle or the ED R is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can r ead the information if they have
access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.Service Diagnostic Recorders
This vehicle is equipped with serv ice-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential. Some diagnostic and maintenance information is
uploaded to Honda upon vehicle start up.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 1 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment. You will find this impo
rtant safety information in a variety of forms,
including:●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING , or CAUTION .
These signal words mean:
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehi cle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3 DANGERYou WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3 WARNINGYou CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
3CAUTIONYou CAN be HURT if you don't follow
instructions.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 5 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

Contents
This owner's manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com
(U.S.) or honda.ca (Canada). If you are the first registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.honda.com. In
Canada, please request a copy from your Honda dealer.
This owner's manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner's manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner's manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 43
For Safe Driving P. 44 Seat Belts P. 48 Airbags P. 57
2Instrument Panel P. 95
Indicators P. 96 Gauges and Driver Information Interface P. 118
2Controls P. 173
Clock P. 174 Locking and Unlocking the Doors P. 176
Operating the Switches Ar ound the Steering Wheel P. 202
Interior Convenience Items P. 231
2 Features P. 255
Audio System P. 256 Audio System Basic Operation P. 264, 289
Customized Features P. 382, 390 Honda LogR* P. 414
HomeLink ® Universal Transceiver* P. 441
2 Driving P. 485
Before Driving P. 486 Towing a Trailer P. 492
Multi-View Rear Camera P. 681 Refueling P. 683
2Maintenance P. 691
Before Performing Maintenance P. 692 Maintenance MinderTM P. 695
Checking and Maintaining Wiper Blades P. 733
Climate Control System Maintenance P. 750
2Handling the Unexpected P. 759
Tools P. 760 If a Tire Goes Flat P. 761
Shift Lever Does Not Move P. 790 Overheating P. 791
If You Cannot Unlock the Fuel Fill Door P. 809
2 Information P. 813
Specifications P. 814 Identification Numbers P. 816
Emissions Testing P. 820 Warranty Coverages P. 823
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 6 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

Contents
Child Safety P. 77Exhaust Gas Hazard P. 92Safety Labels P. 93
Hatch P. 192Security System P. 195 Windows P. 198 Moonroof* P. 201
Mirrors P. 220 Seats P. 222
Climate Control System P. 249
Audio Error Messages P. 359 General Information on the Audio System P. 361
Bluetooth ® HandsFreeLink ® P. 444, 464 Refuel Recommend P. 483
When Driving P. 493 Honda Sensing ® P. 551 Braking P. 657 Parki ng Your Vehicle P. 669
Fuel Economy and CO
2 Emissions P. 689 Turbo Engine Vehicle* P. 690
Maintenance Under the Hood P. 707 Replacing Light Bulbs P. 728
Checking and Maintaining Tires P. 736 Batt ery P. 747 Remote Transmitter Care P. 749
Cleaning P. 751 Accessories and Modifications P. 756
Handling of the Jack P. 780 Engine Does Not Start P. 781 If the Battery Is Dead P. 786
Indicator, Coming On/Blinking P. 795 Fuses P. 801Emergency Towing P. 808
If You Cannot Open the Hatch P. 810 Refueling P. 811
Devices that Emit Radio Waves P. 818 Reporting Safety Defects P. 819
Authorized Manuals P. 826 Customer Service Information P. 827 Open Source Licence P. 828
Quick Reference GuideP. 8
Safe DrivingP. 43
Instrument PanelP. 95
ControlsP. 173
FeaturesP. 255
DrivingP. 485
MaintenanceP. 691
Handling the UnexpectedP. 759
InformationP. 813
IndexP. 829
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 7 ページ ２０２２年６月２３日　 木曜日　午後９時２８分

14

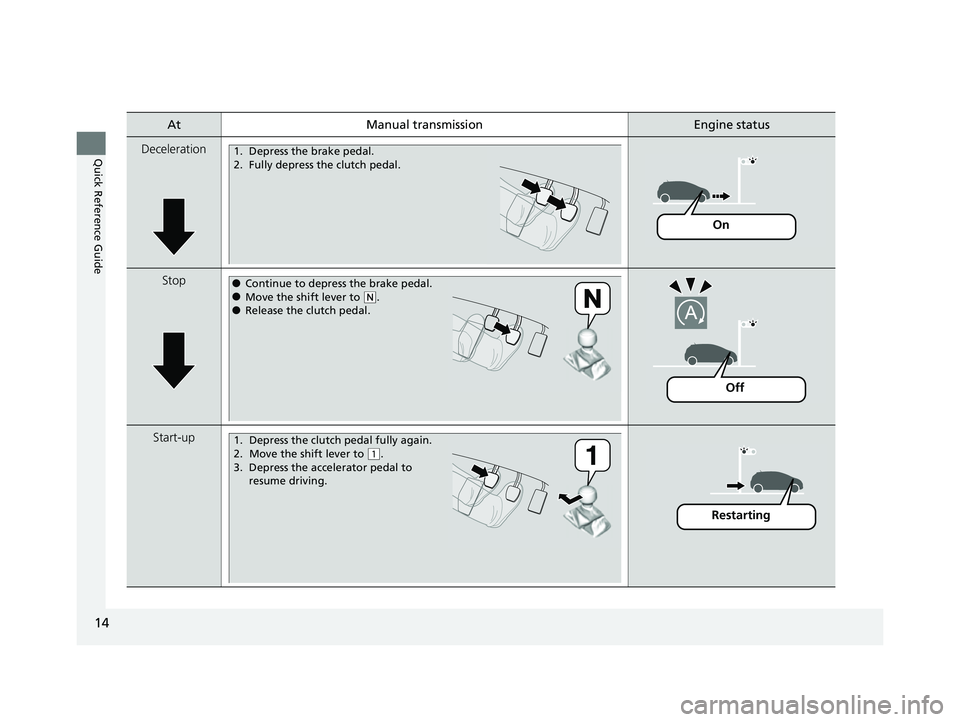

Quick Reference Guide
AtManual transmissionEngine status
Deceleration
Stop
Start-up
1. Depress the brake pedal.
2. Fully depress the clutch pedal.
On
●Continue to depress the brake pedal.●Move the shift lever to (N.●Release the clutch pedal.
Off
1. Depress the clutch pedal fully again.
2. Move the shift lever to
( 1.
3. Depress the accelerator pedal to resume driving.
Restarting
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 14 ページ ２０２２年６月２３日　木曜日　午後９時２８分

16
Quick Reference Guide

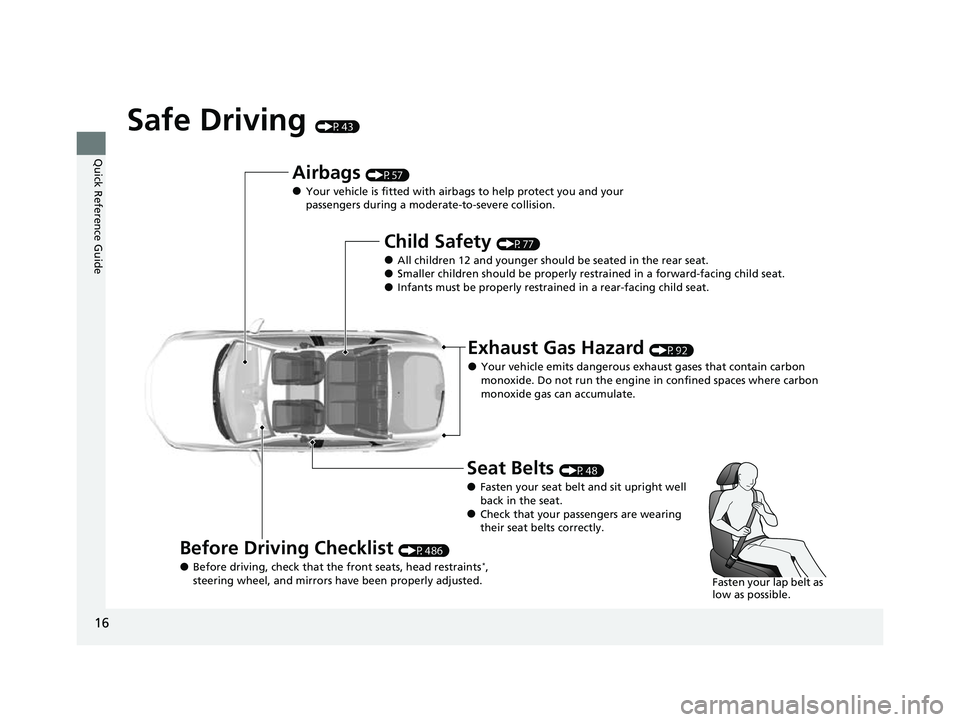

Safe Driving (P43)
Airbags (P57)
●Your vehicle is fitted with airbags to help protect you and your
passengers during a moderate-to-severe collision.
Child Safety (P77)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P92)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P486)
●Before driving, check that the front seats, head restraints*,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P48)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 16 ページ ２０２２年６月２３日　木曜日　午後９時２８分

21
Quick Reference Guide

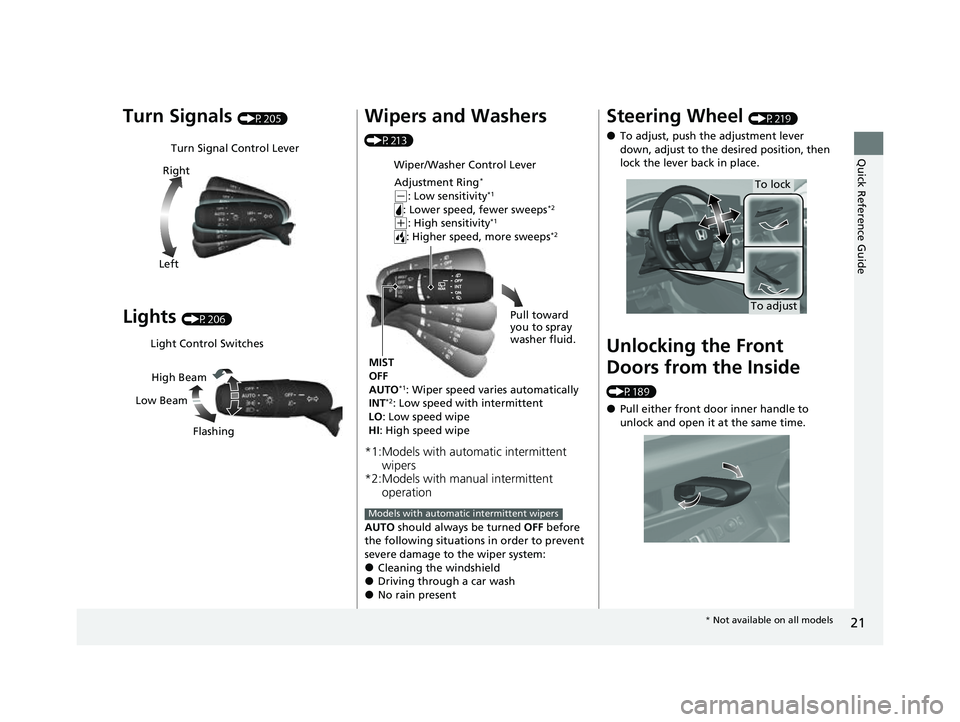

Turn Signals (P205)
Lights (P206)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P213)
*1:Models with automatic intermittent wipers
*2:Models with manual intermittent operation
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Wiper/Washer Control Lever
Adjustment Ring
*
( -: Low sensitivity*1
: Lower speed, fewer sweeps*2
(+: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Models with automatic intermittent wipers
Steering Wheel (P219)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P189)
●Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 21 ページ ２０２２年６月２３日　木曜日　午後９時２８分

29
Quick Reference Guide

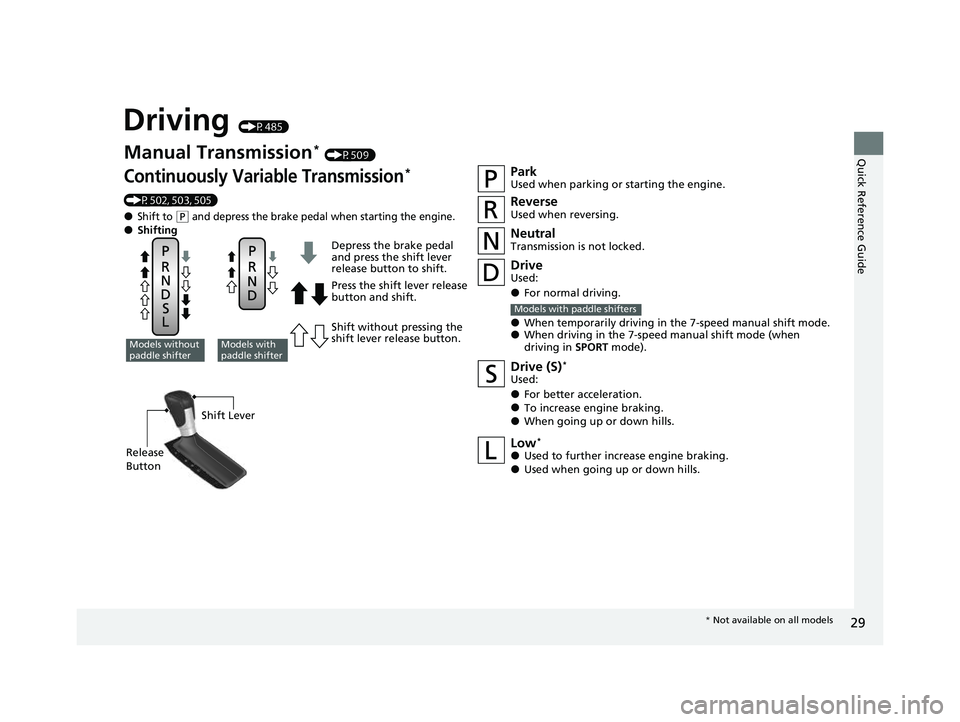

Driving (P485)
Manual Transmission* (P509)
Continuously Variable Transmission*
(P502, 503, 505)
●Shift to (P and depress the brake pedal when starting the engine.●Shifting
ParkUsed when parking or starting the engine.
NeutralTransmission is not locked.
Drive (S)*
Used:
●For better acceleration.●To increase engine braking.●When going up or down hills.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the shift lever
release button to shift.
Press the shift lever release
button and shift.
Shift without pressing the
shift lever release button.
ReverseUsed when reversing.
DriveUsed:
●For normal driving.
●When temporarily driving in the 7-speed manual shift mode.●When driving in the 7-speed manual shift mode (when
driving in SPORT mode).
Models with paddle shifters
Low*
●Used to further increase engine braking.●Used when going up or down hills.
Release
Button Shift Lever
*
Not available on all models
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 29 ページ ２０２２年６月２３日　木曜日　午後９時２８分

34
Quick Reference Guide
Honda Sensing® (P551)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors: the sonar sensors
located in the front and rear bumpers, and
the front grille, and a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Honda Sensing ® is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Models with Low Speed Braking Control
Models without Low Speed Braking Control
Models with Auto Idle Stop
Front Wide View
Camera
Sonar Sensors*
Collision Mitigation
Braking System
TM
(CMBS
TM) (P555)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Models without Auto Idle Stop
Front Wide View
Camera
Sonar Sensors*
Low Speed Braking
Control
* (P567)
Using sonar sensors lo cated on the front and
rear bumpers, and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving or when the
accelerator pedal is depressed with too
much force. The system then assists in
avoiding collisions and reducing damage
from impact through assistive braking and/
or assistive driving power suppression.
Low Speed Braking
Control
* (P573)
Using sonar sensors lo cated on the front and
rear bumpers and the front grille, this
system detects if there is danger of a
potential collision with a wall or other
obstacle during normal driving. The system
then assists in avoiding collisions and
reducing damage from impact through
assistive braking.
Continuously variable transmission models
with parking sensor system
Manual transmission models
with parking sensor system
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 34 ページ ２０２２年６月２３日　木曜日　午後９時２８分

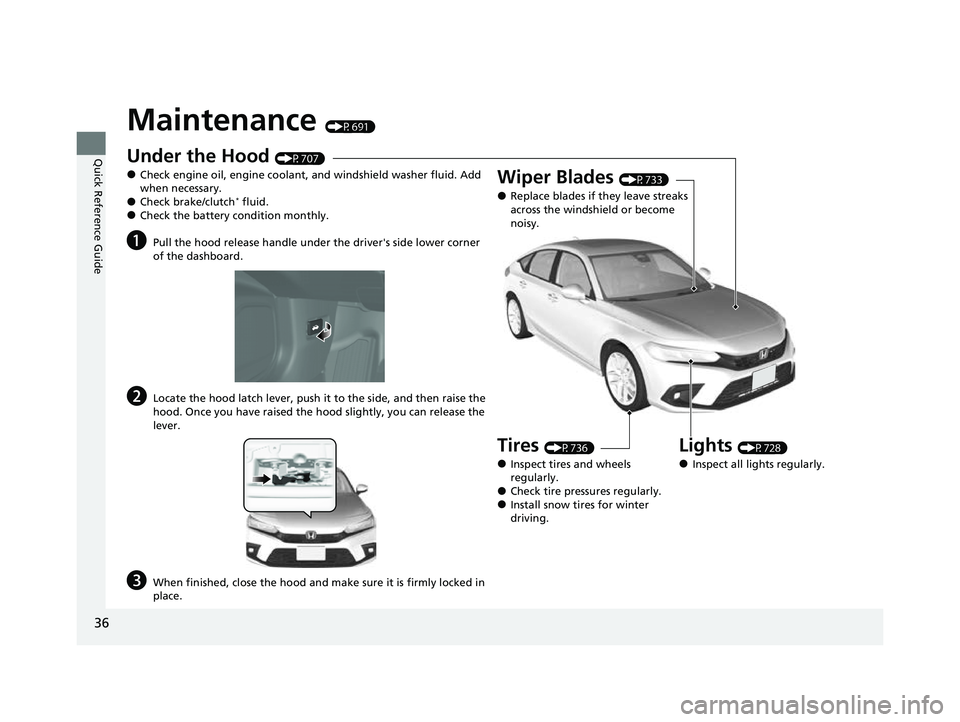

36
Quick Reference Guide
Maintenance (P691)
Under the Hood (P707)
●Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
●Check brake/clutch* fluid.●Check the battery condition monthly.
aPull the hood release handle under the driver's side lower corner
of the dashboard.
bLocate the hood latch lever, push it to the side, and then raise the
hood. Once you have raised the hood slightly, you can release the
lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P728)
●Inspect all lights regularly.
Wiper Blades (P733)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P736)
●Inspect tires and wheels
regularly.
●Check tire pressures regularly.●Install snow tires for winter
driving.
23 CIVIC HATCHBACK TYPE R-31T406100_03.book 36 ページ ２０２２年６月２３日　木曜日　午後９時２８分
