HONDA CIVIC COUPE 1998 Owners Manual

Maintenance

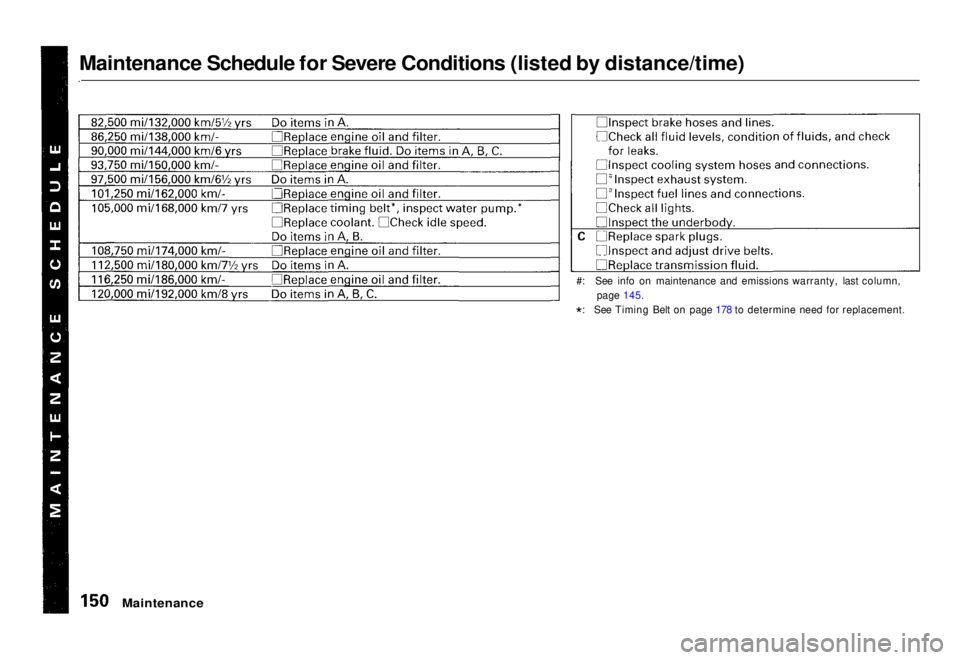

Maintenance Schedule for Severe Conditions (listed by distance/time)

#: See info on maintenance and emissions warranty, last column,page 145.
* : See Timing Belt on page 178 to determine need for replacement.Main Menu Table of Contents s t

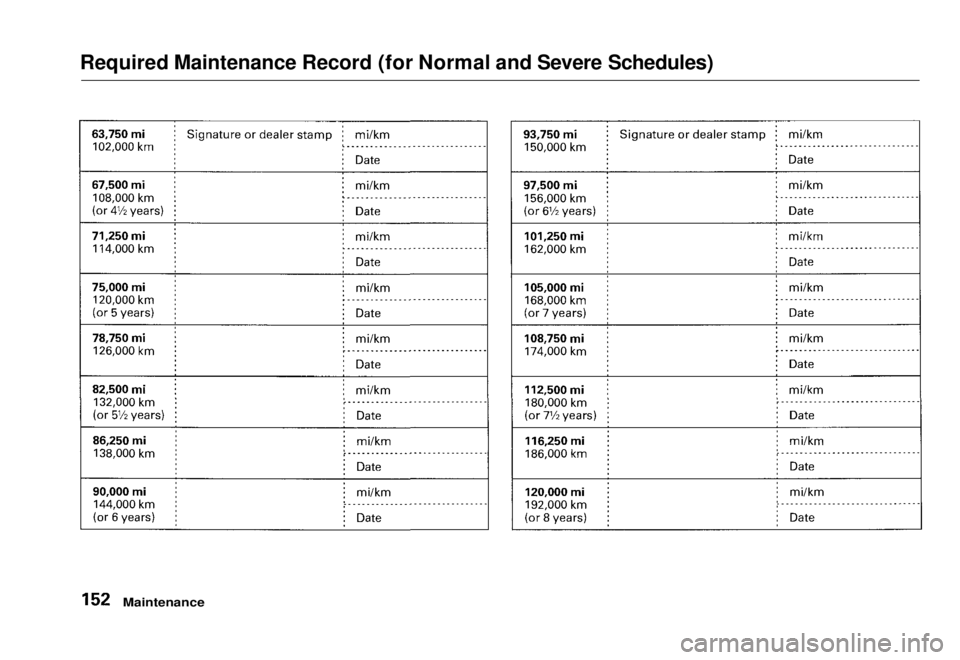

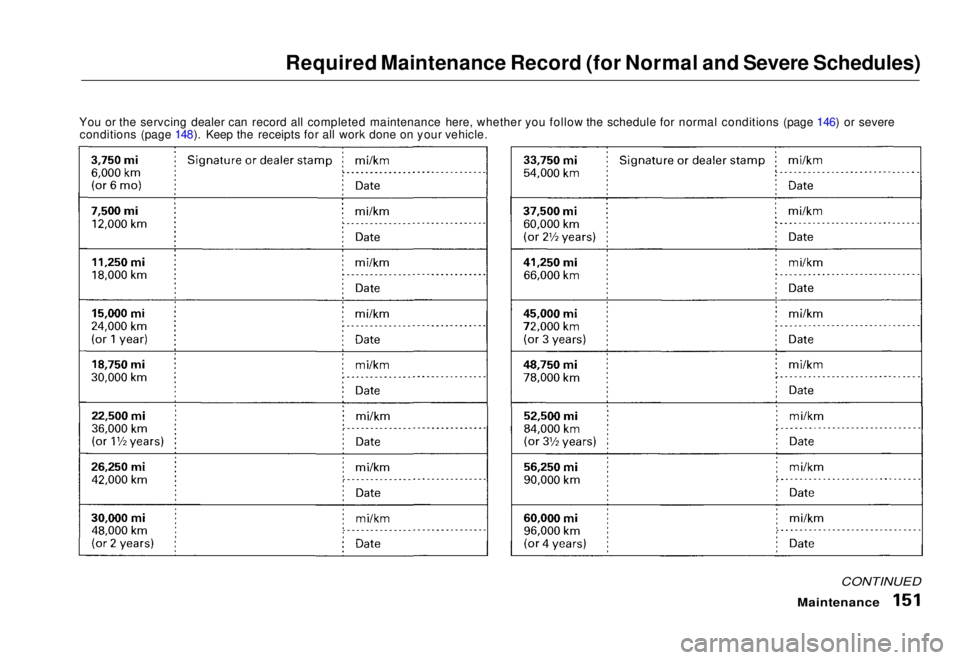

Required Maintenance Record (for Normal and Severe Schedules)
You or the servcing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page 146) or severe conditions (page 148). Keep the receipts for all work done on your vehicle.

CONTINUED

MaintenanceMain Menu Table of Contents s t

Required Maintenance Record (for Normal and Severe Schedules)

MaintenanceMain Menu Table of Contents s t

Owner Maintenance Checks
You should check the following
items at the specified intervals.


If
you are
unsure of how to perform
any check, turn to the
page given.
Engine oil level

— Check every
time you
fill the fuel tank. See

page 111.

Engine coolant level

— Check the
radiator reserve
tank every time
you fill the fuel tank. See page 112.
Windshield washer fluid

— Check
the level
in the reservoir monthly.
If weather conditions cause you to
use the washers frequently, check
the reservoir each time you stop
for fuel. See page 164.
Automatic transmission

— Check
the flui d
level monthly. See page

164.

Brakes — Check the fluid level
monthly. Se e
page 167.
Tires
— Check the tire pressure
monthly. Examin e
the tread for
wear and foreign objects. See page 180.
Lights — Check the operation of
the headlights ,
parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page 187.

MaintenanceMain Menu Table of Contents s t

Fluid Locations

AUTOMATIC
TRANSMISSIONFLUID DIPSTICK

(Yellow loop)

(Including CVT)
COOLANT
RESERVOIR
BRAKE FLUID
(Gray cap)
CLUTCH FLUID
(5-speed Manual

Transmission only)
(Gray cap)
ENGINE OIL
FILL CAP
POWER STEERING
FLUID (Red cap)
WASHER FLUID (Blue cap)
ENGINE OIL DIPSTICK

(Orange loop)

MaintenanceMain Menu Table of Contents s t

Engine Oil
Adding Oil
To add oil, unscrew and remove the engine oil fill cap on top of the valve
cover. Pour in the oil, and replace the
engine oil fill cap. Tighten it securely.
Wait a few minutes and recheck the oil level. Do not fill above the upper
mark; you could damage the engine. Recommended Oil
Oil is a major contributor to your
engine's performance and longevity.
Always use a premium-grade deter- gent oil.
You can determine an oil's SAE
viscosity and Service Classificationfrom the API Service label on the oil
container.
A fuel-efficient oil is recommended for your Honda. This is shown on the
API Service label by the words"Energy Conserving". This oil is
formulated to help your engine use less fuel. The API Service label also tells you
the service classification of the oil.
Always use an oil that is labeled "API Service SJ". This service rating may
include other classifications, such as CD. These additional classifications
are not a problem, as long as the
label also carries the SJ classification.

CONTINUED

Maintenance

ENGINE OIL
FILL CAP
API SERVICE LABELMain Menu Table of Contents s t

Engine Oil
The oil container may also display the API Certification mark. Makesure it says "For Gasoline Engines." The SAE numbers tell you the oil's
viscosity or weight. Select the oil foryour vehicle according to this chart.
An oil with a viscosity of 5W-30 is preferred for improved fuel economyand year-round protection in your
Honda. You may use a 10W-30 oil if
the temperature in your area never
goes below 20°F (-7°C). Synthetic Oil
You may use a synthetic motor oil if it meets the same requirements
given for conventional motor oil; energy conserving, a service
classification of SJ, and the proper
weight as shown on the chart. When using synthetic oil, you must follow
the oil and filter change intervals
given in the maintenance schedule.

Additives
Your Honda does not need any oiladditives. Purchasing additives for
the engine or transmission will not
increase your vehicle's performanceor longevity. It only increases the
cost of operating your vehicle.
Maintenance API CERTIFICATION MARK

Ambient TemperatureMain Menu Table of Contents s t

Engine Oil

Changing the Oil and Filter
Always change the oil and filter according to the time and distance (miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and filter collect contami- nants that can damage your engine if
they are not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
1. Run the engine until it reaches
normal operating temperature,
then shut it off.
2. Open the hood and remove the engine oil fill cap. Remove the oildrain bolt and washer from the
bottom of the engine. Drain the oil into an appropriate container. 3. Remove the oil filter and let the
remaining oil drain. A special
wrench (available from your Honda dealer) is required to
remove the filter.
4. Install a new oil filter according to instructions that come with it.
CONTINUED
Maintenance

OIL DRAIN BOLT

WASHER
OIL FILTERMain Menu Table of Contents s t

Engine Oil

5. Put a new washer on the drain bolt,
then reinstall the drain bolt.

Tighten it to:

(DX)

33 lbf.ft (44 N.m, 4.5 kgf.m)

(U.S.: HX, EX, Canada: Si)

29 Ibf.ft (39 N.m , 4.0 kgf.m)

6. Refill the engine with the recom-
mended oil.

Engine oil change capacity
(including filter):

(DX)
3.8 US qt (3.6 ,3.2 Imp qt)

(U.S.: HX, EX, Canada: Si)
3.5 US qt (3.3 ,2.9 Imp qt) 7. Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator light should go out within
five seconds. If it does not, turn off the engine and reinspect your

work.

8. Let the engine run for several minutes and check the drain bolt
and oil filter for leaks.
9. Turn off the engine, let it sit for several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Improper disposal of engine oil can be
harmful to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin

or dump it on the ground.

Maintenance
NOTICEMain Menu Table of Contents s t

Cooling System

Adding Engine Coolant

If the coolant level in the reserve
tank is at or below the MIN line, add coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
This coolant should always be a mixture of 50 percent antifreeze and50 percent water. Never add straight
antifreeze or plain water. Always use Genuine Honda
antifreeze/coolant. If it is notavailable, you may use another
major-brand non-silicate coolant as a
temporary replacement. Make sure it is a high-quality coolant
recommended for aluminum engines.
However, continued use of any non-Honda coolant can result in
corrosion, causing the coolingsystem to malfunction or fail. Have
the cooling system flushed and
refilled with Honda antifreeze/ coolant as soon as possible.
If the reserve tank is completelyempty, you should also check the
coolant level in the radiator.

CONTINUED

RESERVE TANK

Maintenance

Removing the radiator cap
while the engine is hot can cause the coolant to spray out,
seriously scalding you.
Always let the engine and radiator cool down before
removing the radiator cap.Main Menu Table of Contents s t
