HONDA CIVIC COUPE 1998 Owners Manual

Tires

If you check the pressure when the
tires are hot (the vehicle has been driven several miles), you will see
readings 4 to 6 psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm2) higher than the cold
reading. This is normal. Do not letair out to match the specified cold
pressure. The tire will be
underinflated.
You should get your own tire pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a pressure loss is due to a tire problemand not due to a variation between

gauges.

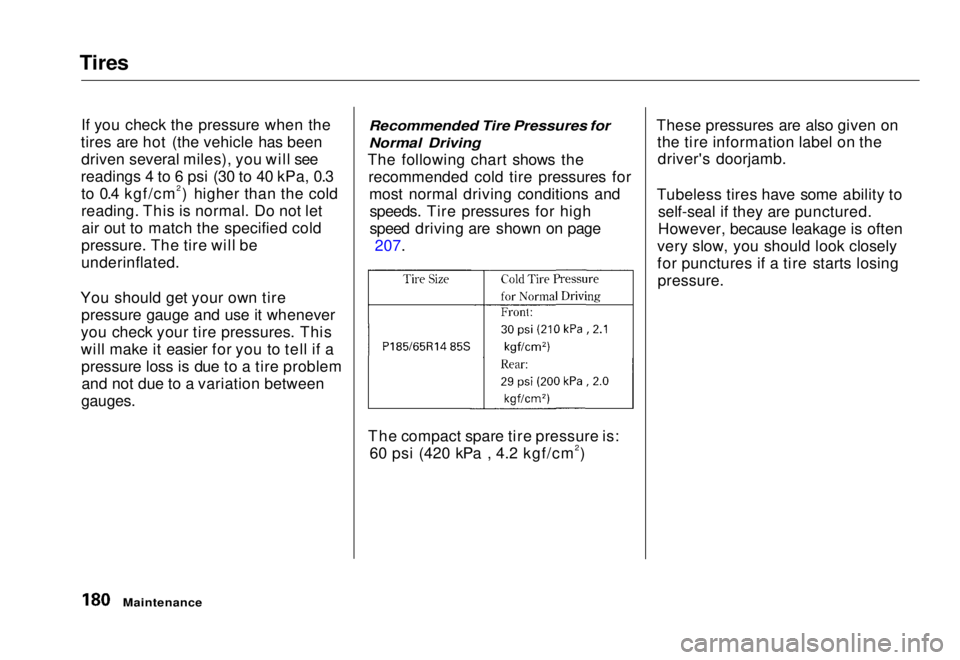

Recommended Tire Pressures for
Normal Driving

The following chart shows the recommended cold tire pressures formost normal driving conditions andspeeds. Tire pressures for high
speed driving are shown on page 207.
The compact spare tire pressure is: 60 psi (420 kPa , 4.2 kgf/cm2) These pressures are also given on
the tire information label on thedriver's doorjamb.
Tubeless tires have some ability to self-seal if they are punctured.
However, because leakage is often
very slow, you should look closely
for punctures if a tire starts losing pressure.

MaintenanceMain Menu Table of Contents s t

Tires

Inspection
Every time you check inflation, you should also examine the tires for
damage, foreign objects, and wear.
You should look for:
Bumps or bulges in the tread orside of the tire. Replace the tire if
you find either of these conditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear. Your vehicle's tires have wear indica-
tors molded into the tread. When the
tread wears down to that point, you
will see a 1/2 inch (12.7 mm) wide band running across the tread. Thisshows there is less than 1/16 inch (1.6 mm) of tread left on the tire. A
tire that is this worn gives very little
traction on wet roads. You should
replace the tire if you can see the
tread wear indicator in three or more
places around the tire. Maintenance
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer check the wheel alignment.
The tires were properly balanced by the factoiy. They may need to be
rebalanced at some time before theyare worn out. Have your dealer
check the tires if you feel a consis-
tent vibration while driving. A tire should always be rebalanced if it is
removed from the wheel for repair.

CONTINUED

Maintenance

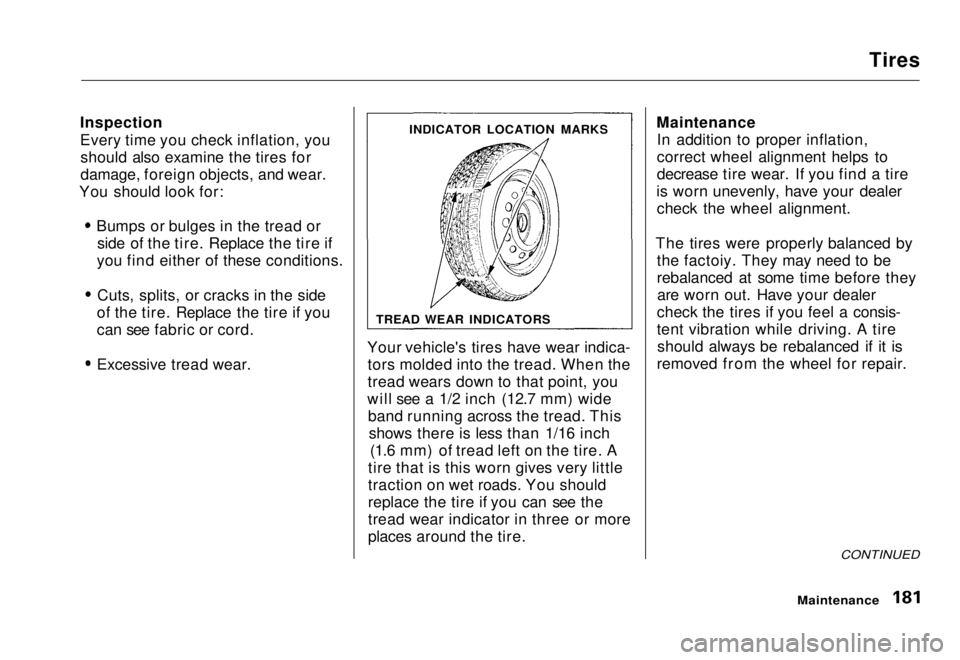

INDICATOR LOCATION MARKS
TREAD WEAR INDICATORSMain Menu Table of Contents s t

Tires
Make sure the installer balances the
wheels when you have new tires installed. This increases riding
comfort and tire life. Your vehicle'soriginal tires were dynamic or "spin"
balanced at the factory. For best
results, have the installer perform a dynamic balance.

(HX)

Improper wheel weights can damage
your vehicle's aluminum wheels. Use only Genuine Honda wheel weights for
balancing.

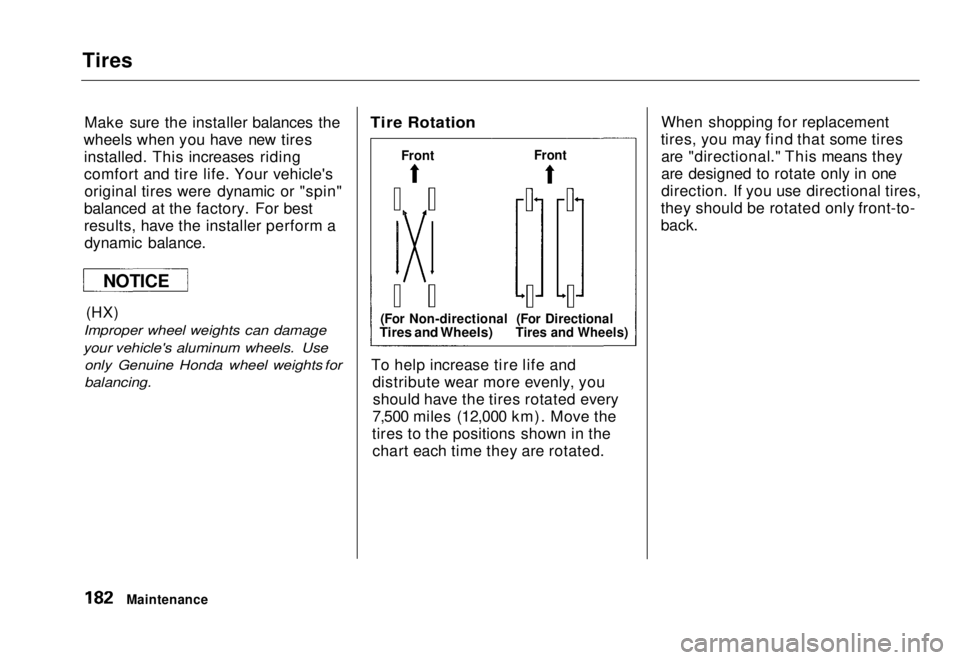

Tire Rotation

To help increase tire life and distribute wear more evenly, youshould have the tires rotated every
7,500 miles (12,000 km). Move the
tires to the positions shown in the chart each time they are rotated. When shopping for replacement
tires, you may find that some tires are "directional." This means they
are designed to rotate only in one
direction. If you use directional tires,
they should be rotated only front-to-
back.

Maintenance

NOTICE

Front


Front
(For Non-directional

Tires and Wheels)
(For Directional
Tires and Wheels)Main Menu Table of Contents s t

Tires
Replacing Tires and Wheels
The tires that came with your vehicle were selected to match the performance capabilities of the
vehicle while providing the best combination of handling, ride
comfort, and long life. You should
replace them with radial tires of thesame size, load range, speed rating,
and maximum cold tire pressure
rating (as shown on the tire's sidewall). Mixing radial and bias-ply
tires on your vehicle can reduce its
braking ability, traction, and steering
accuracy.
It is best to replace all four tires at
the same time. If that is not possible
or necessary, then replace the two
front tires or the two rear tires as a
pair. Replacing just one tire can seriously affect your vehicle's han-

dling.
The ABS works by comparing the
speed of the wheels. When replacing
tires, use the same size originally supplied with the vehicle. Tire size
and construction can affect wheel speed and may cause the system to
work inconsistently.
If you ever need to replace a wheel,
make sure the wheel's specifications
match those of the original wheel
that came on your vehicle. Re-
placement wheels are available at
your Honda dealer.

Maintenance

Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash in which you can be seriously
hurt or killed.

Always use the size and type of

tires recommended in this owner's manual.Main Menu Table of Contents s t

Tires

Wheels and Tires

Wheels:
(U.S.: DX, EX, Canada: Si)14x5J
(U.S.: HX)
14x51/2 JJ

Tires:

P185/65R1485S

See Tire Information o
n page 235 for
additional information about tire and
wheel size designations. See page 231 for information about DOT Tire
Quality Grading.
Winter Driving

Tires that are marked "M + S" or
"All Season" on the sidewall have an
all-weather tread design. They should be suitable for most winter
driving conditions. Tires without
these markings are designed for optimum traction in dry conditions.
They may not provide adequate performance in winter driving.For the best performance in snowy
or icy conditions, you should installsnow tires or tire chains. They may
be required by local laws under certain conditions.
Snow Tires

If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range as the original tires. Mount snow
tires on all four wheels to balance
your vehicle's handling in all weather conditions. Keep in mind the traction
provided by snow tires on dry roads may not be as high as your vehicle's
original equipment tires. You should
drive cautiously even when the roads
are clear. Check with the tire dealer
for maximum speed recommenda-
tions.

MaintenanceMain Menu Table of Contents s t

Tires

Tire Chains

Mount snow chains on your vehicle
when warranted by driving condi- tions or required by local laws. Makesure the chains are the correct size
for your tires. Install them only on
the front tires. If metal chains are
used, they must be SAE class "S".Cable type traction devices can also
be used.
When installing chains, follow the manufacturer's instructions and
mount them as tightly as you can.
Drive slowly with chains installed. If
you hear the chains contacting the body or chassis, stop and investigate
them. Make sure the chains areinstalled tightly, and that they are
not contacting the brake lines or
suspension. Remove the chains as
soon as you begin driving on cleared

roads.
Chains of the wrong size or that are
improperly installed can damage your
vehicle's brake lines, suspension, body,
and wheels. Stop driving if you hear the chains hitting any part of the

vehicles.

Maintenance

NOTICEMain Menu Table of Contents s t

Lights

Check the operation of your vehicle's
exterior lights at least once a month.
A burned out bulb can create an unsafe condition by reducing your
vehicle's visibility and the ability to signal your intentions to other

drivers.

Maintenance

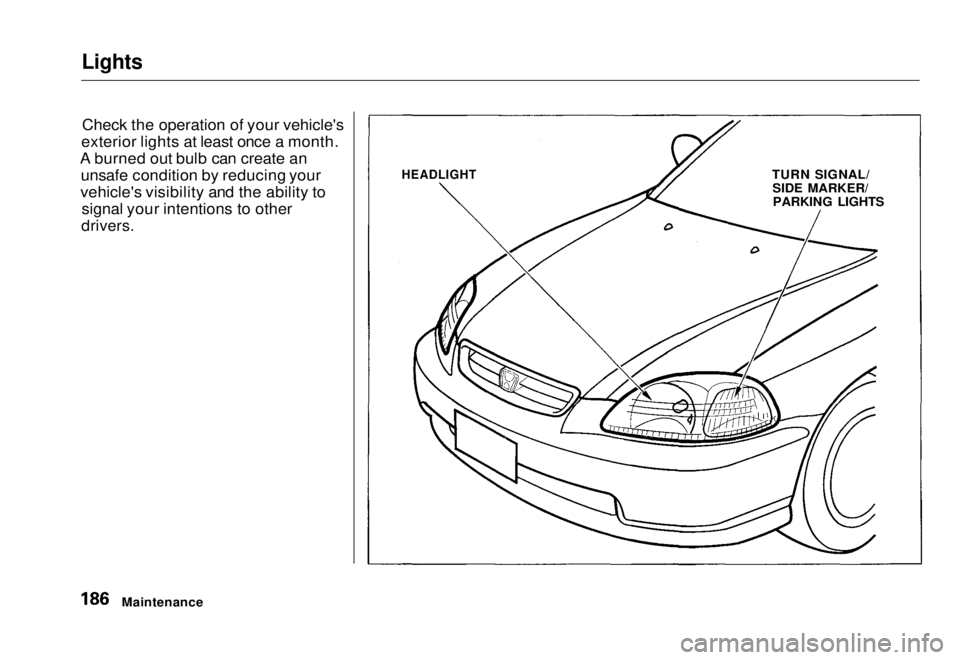

HEADLIGHT

TURN SIGNAL/
SIDE MARKER/PARKING LIGHTSMain Menu Table of Contents s t

Lights

Check the following: Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals Back-up lights
Hazard light function
License plate light
Side marker lights
Daytime running lights
(Canadian models)

If you find any bulbs are burned out,
replace them as soon as possible. Refer to the chart on page 234 to
determine what type of replacement
bulb is needed.
Maintenance

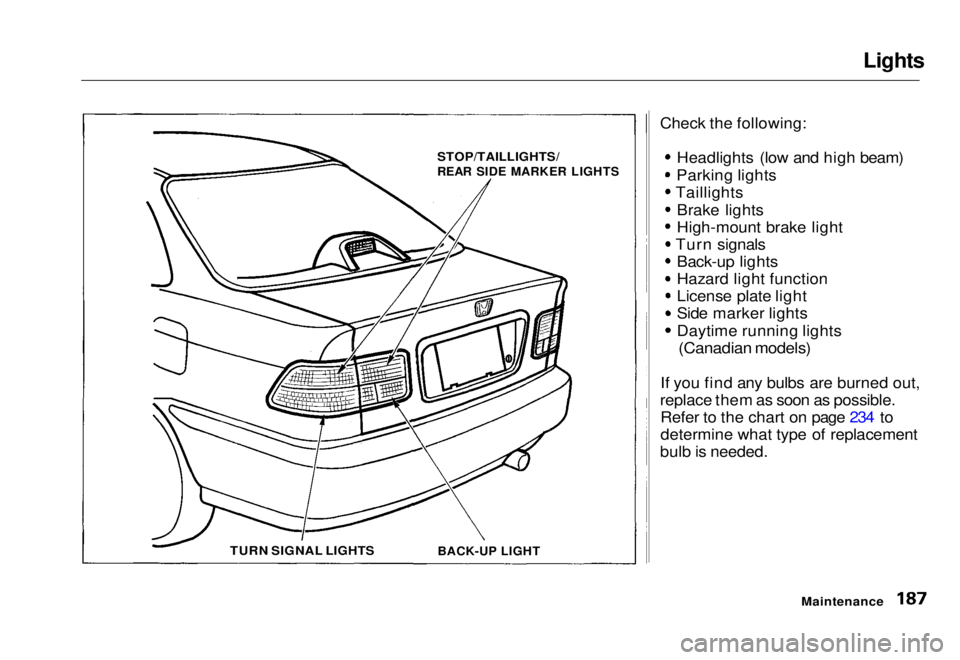

STOP/TAILLIGHTS/

REAR SIDE MARKER LIGHTS

BACK-UP LIGHT

TURN SIGNAL LIGHTSMain Menu Table of Contents s t

Lights

Headlight Aiming
The headlights were properly aimed when your vehicle was new. Youshould check their aim if you
regularly carry heavy items in the
trunk. Each headlight assembly has
horizontal and vertical adjustment
indicators. These are set to their "0"
positions after the headlights are aimed at the factory.
To check these settings: 1. Make sure the fuel tank is full. Park the vehicle on level ground.
2. The driver or someone who weighs the same should be sittingin the driver's seat for all checks
and adjustments.
Load the trunk with the items you
normally carry.
3. Open the hood.

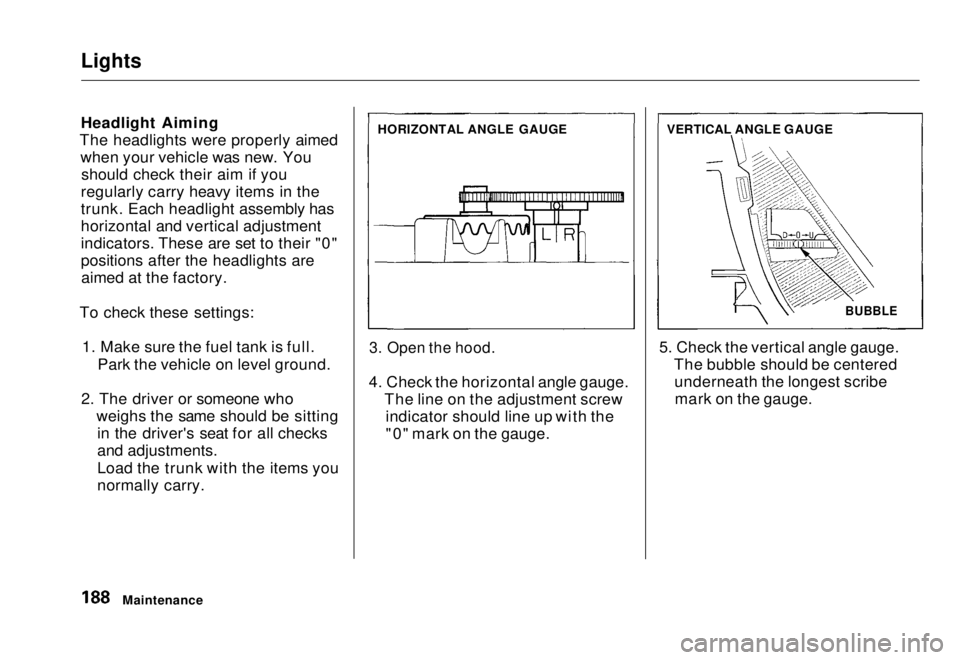

4. Check the horizontal angle gauge. The line on the adjustment screwindicator should line up with the
"0" mark on the gauge. 5. Check the vertical angle gauge.
The bubble should be centeredunderneath the longest scribemark on the gauge.
Maintenance HORIZONTAL ANGLE GAUGE
VERTICAL ANGLE GAUGE

BUBBLEMain Menu Table of Contents s t

Lights

6. If either indicator is not aligned with its "0" mark as described, anadjustment can be made using a
Phillips-head screwdriver to
realign it with the "0" mark. Please
refer to the illustrations. 7. If you cannot get an indicator to

align, have your Honda dealer

inspect the vehicle for body

damage or suspension problems.
Replacing a Headlight Bulb

Your vehicle has halogen headlight bulbs, one on each side. Whenreplacing a bulb, handle it by its steel
base and protect the glass from contact with your skin or hardobjects. If you touch the glass, clean
it with denatured alcohol and a clean

cloth.

Halogen headlight bulbs get very hot when lit Oil perspiration, or a scratch
on the glass can cause the bulb to

overheat and shatter.

CONTINUED

Maintenance

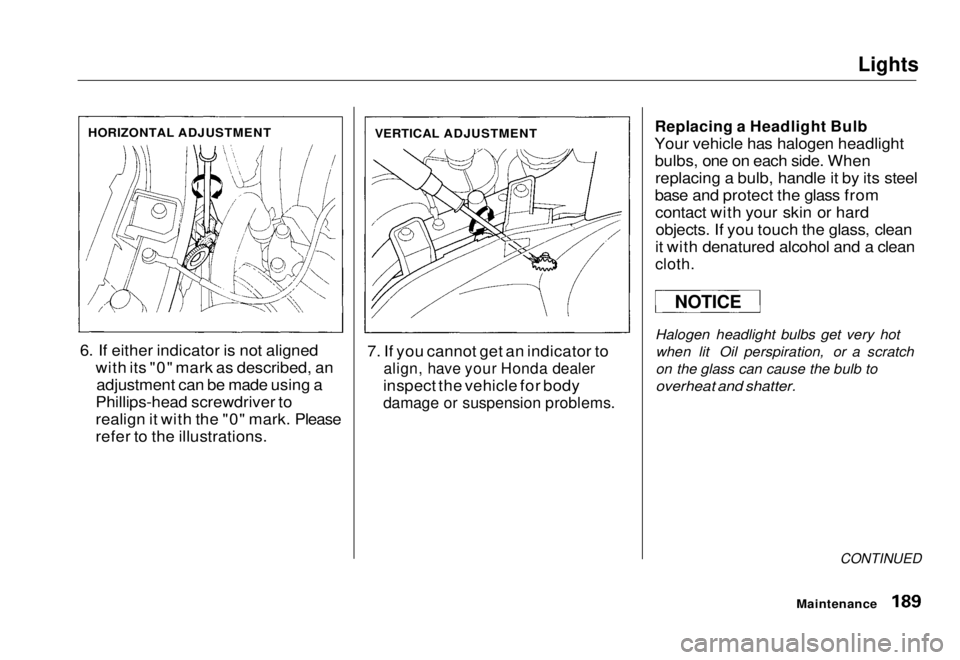

HORIZONTAL ADJUSTMENT


VERTICAL ADJUSTMENT

NOTICEMain Menu Table of Contents s t
