Look f or a burned wire inside the
f use. If it is burned, replace it with
oneof thesparefusesof thesame
rating or lower.If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ in the f requency
display. Use the Preset buttons to
enter the f ive-digit code (see page
).
When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock according to the
instructions in the audio system
sectiononthisowner’smanual.
If you cannot drive the car without
f ixing the problem, and you do not
have a spare fuse, take a fuse of the
same rating or a lower rating f rom
one of the other circuits. Make sure
youcandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio). If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualif ied mechanic.
5.
6. 149
Standard f or HX, LX and EX models in
the U.S., and LX and Si models inCanada
On all models
Fuses
T aking Care of t he Unexpect ed280
BLOWN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment f use with the proper rating f or the
circuit, install one with a lower rating.
——y
y
(%yy

µ
µ
µ
No.
CONT INUED
Amps. Circuits Protected
1 23456789
1011121314151617181920 20 A
15 A
7.5 A 20 A
10 A
15 A
15 A
20 A
10 A
40 A
40 A
40 A
40 A
40 A
15 A
20 A
15 A
80 A
40 A Condenser Fan
Small Lights
Interior Light
Cooling Fan
Hazard, Turn Signals
FI ECU
Horn, Brake Light
ABS F/S
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window
Option
Lef t Headlight
Door Lock
Right Headlight
Not Used
Battery
Ignition 1
Spare Fuses
21 257.5 A 30 A
Fuses
T aking Care of t he Unexpect ed281
UNDER-HOOD FUSE BOX
——y
y
(%yy

µµ µ µ µ µ
Î Î
Î
No. Amps.No. Amps.
Circuits Protected Circuits Protected
: On Canadian models
12345 15 A
20 A
10 A
10 A 6789
1011 1213141516171819202122232425 7.5 A
20 A
7.5 A 10 A
7.5 A
7.5 A
7.5 A
10 A
10 A
15 A
15 A
7.5 A 20 A
20 A
20 A
Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used Power Window Relay
Moonroof
Accessory, Radio
SIDE SRS
Meter
ABS
Daytime Running Lights
SRS
Power Mirrors
(Security)
Not Used
Fuel Pump
Accessory Power Socket
Turn Signal Lights
Front Wipers
Not Used
Front Right Power Window
Front Left Power Window
Not Used
Not Used
Fuses
T aking Care of t he Unexpect ed282

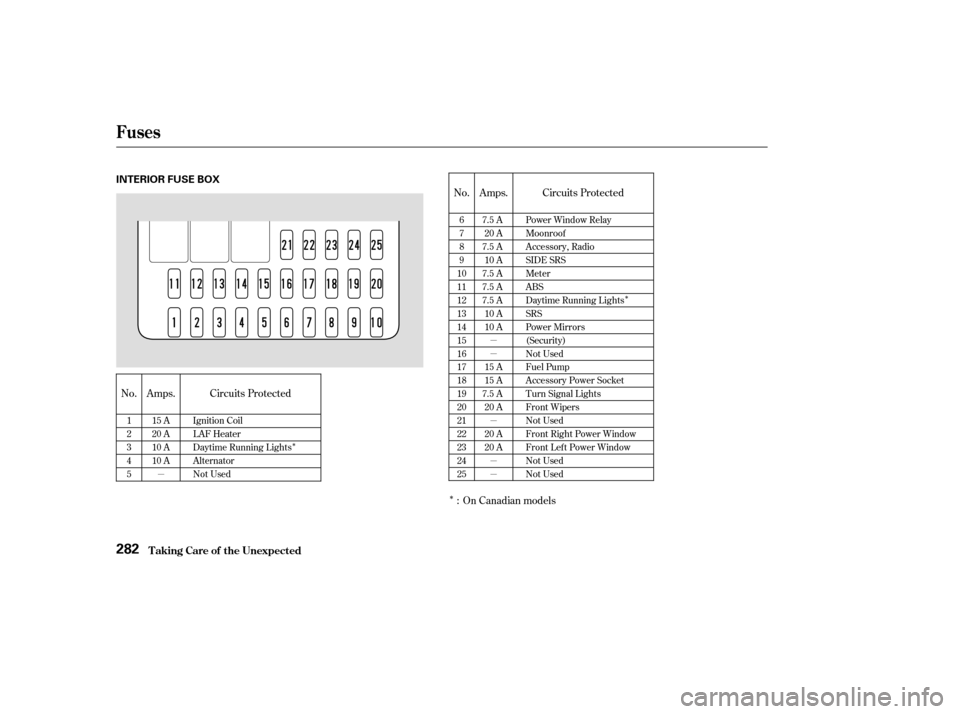

INTERIOR FUSE BOX
——y
y
(%yy

µ
µ µ
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground.
If your car needs to be towed, call a
prof essional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never
tow your car behind another vehicle
with just a rope or chain. It is very
dangerous.
There are three popular types of
prof essional towing equipment.
The operator
loads your car on the back of a truck. The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the f rame or suspension and
the cables lif t that end of the car of f
the ground. Your car’s suspension
and body can be seriously damaged.
If your Honda cannot be transported
by f lat-bed, it should be towed by
wheel-lif t equipment with the f ront
wheels of f the ground. If due to
damage, your car must be towed
with the f ront wheels on the ground,
do the f ollowing: Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine.
Release the parking brake.
Shif t the transmission to Neutral.
Automatic Transmission
5-speed Manual Transmission and
Continuously Variable Transmission(CVT)
CONT INUED
Wheel-lif t Equipment
Flat -bed Equipment Sling-t ype Equipment
T his is
an acceptable way to tow your
Honda.
This is the best way to transport
your Honda.
T his method of towing is
unacceptable.
Emergency T owing
T aking Care of t he Unexpect ed283
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
car must be transported with the f ront
wheels of f the ground.
——y
y
(%yy

If you decide to tow your car with all
f our wheels on the ground, make
sure you use a properly-designed and
attached tow bar. Prepare the car for
towing as described above, and leave
the ignition switch in Accessory (I)
so the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned of f so they do not
rundownthebattery.
With the f ront wheels on the ground,
it is best to tow the car no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your car is equipped with a f ront
spoiler, remove it bef ore towing so it
is not damaged.
Emergency T owing
T aking Care of t he Unexpect ed284
Trying to lif t or tow your car by the
bumpers will cause serious damage.
The bumpers are not designed to
support the car’s weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in Accessory (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.
——y
y
(%yy

Your car has several identif ying
numbers located in various places.

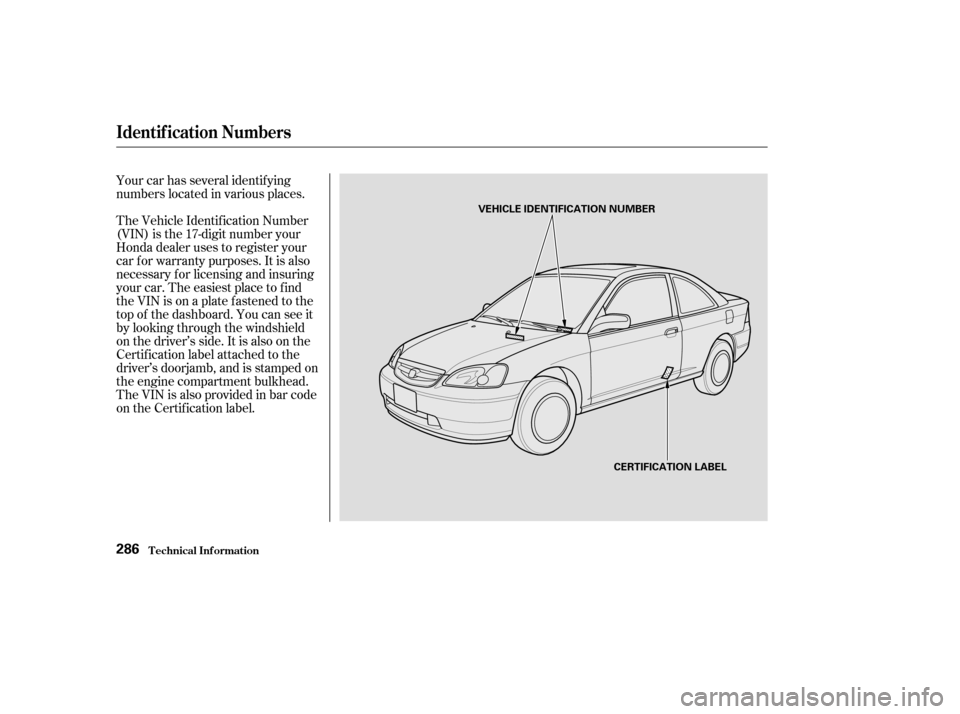

The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
car f or warranty purposes. It is also
necessary f or licensing and insuring
your car. The easiest place to find
the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshield
on the driver’s side. It is also on the
Certification label attached to the
driver’s doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code
on the Certification label.
Identif ication Numbers
T echnical Inf ormation286
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
——y

y
(%yy

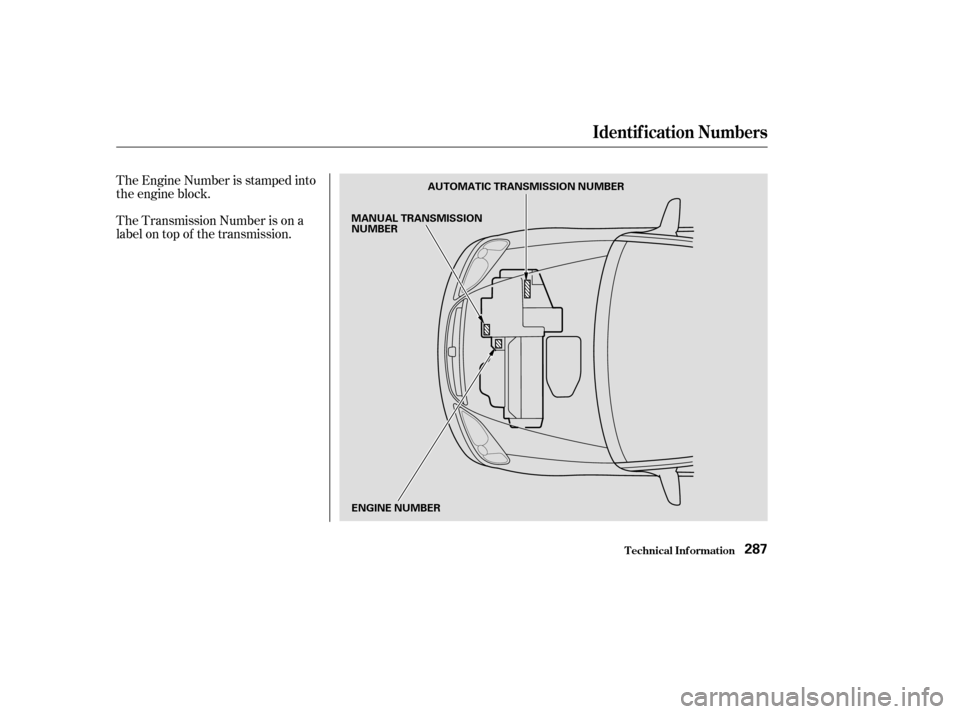

The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation287
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
MANUAL TRANSMISSION
NUMBER
——y

y
(%yy

ÎÎÎ Î ÎÎÎÎ
Î Î
Î Î
Î Î ÎÎ
Î
ÎÎ
Specif ications
T echnical Inf ormation288
Dimensions
Weights
Engine Capacities
174.7 in (4,438 mm)
66.7 in (1,695 mm)
55.1 in (1,399 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
2.95 x 3.72 in (75.0 x 94.4 mm) 13.2 US gal (50
)
102 cu-in (1,668 cm
)
9.5 9.9
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Type
BorexStroke
Displacement
Compression ratio
Spark plugs Water cooled 4-stroke
SOHC , SOHC VTEC
4-cylinder gasoline engine
Excluding the oil remaining in the engine.
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity: 0.108 US gal (0.41
)
4.8 US qt (4.5
)
2.6 US qt (2.5)
6.0 US qt (5.7)
6.3 US qt (6.0)
3.4 US qt (3.2)
2.9 US qt (2.7)
1.7 US qt (1.6)
1.6 US qt (1.5)
4.4 US qt (4.2)
3.5 US qt (3.3)
3.2 US qt (3.0)
3.7 US qt (3.5)
3.4 US qt (3.2)
Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid 1.03 US gal (3.9
)
1.00 US gal (3.8)
1.00 US gal (3.8)
1.32 US gal (5.0
)
1.29 US gal (4.9)
1.29 US gal (4.9)
See spark plug maintenance
section page 221 .
FrontRear
Approx.
U.S.: HX, EX
Canada: Si HX
DX, LX
EX, HX
3: 4: 5:6:
7:
DX, LX
1:2: Change
ManualAutomaticCVT
Total ManualAutomaticCVT
Change Including
filter
Without filter
Total
ChangeTotal
Change Total
U.S. Cars
Canada Cars
12
12 5656
7 7
3 4
Manual trans-
mission fluid
Windshield
washer reservoir
——
y

y
(%y
y

µµµ
µµ
Î ÎÎÎ
ÎÎ µ µ µ µµ µ µµµµµµµ µ µ
Î
ÎÎ ÎÎ
ÎÎ
Specif ications
T echnical Inf ormation289
Fuses
Tires
Alignment
Air Conditioning Battery
Lights
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V
12 V 60/55 W (HB2)
21/5 W
60 psi (420 kPa , 4.2 kgf/cm
)
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V 18 W
12 V 21/5 W
12 V 21 W
12 V 3 CP Interior
Under-hood Size
Pressure
Toe-in
Camber
Caster
2°14’45’
0°
0.00 in (0.0 mm)
30 psi (210 kPa , 2.1 kgf/cm)
T115/70D14 88M
P185/65R15 86HP185/70R14 87S
Refrigerant type
Charge quantity
Lubricant oil type
0.08 in ( 2.0 mm)
T125/70D15 95M
21 W
3CP
10 W5W5W8W5W
Capacity 36 AH/5 HR
12 V
38 AH/5 HR
12 V See page 282 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 281 or the fuse box
cover.
Headlights (HI/LO)
Front turn signal/side marker
lights
Front parking light
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Back-up lights
High-mount stop light
License plate lights
Ceiling light
Front ceiling light
Spotlights
Trunk light Front Rear
FrontRear
Front
Front/Rear
Spare
Front/Rear
Spare
3: 4:5:6:
1 : U.S.: EX
Canada : Si
2: LX U.S.: DX, HX and LX
Canada: DX
U.S.: EX
Canada: LX, Si
U.S.: DX, HX and LX
Canada : DX, LX and Si
U.S.: EX
Canada: LX with ABS, Si with ABS
1
12 34
56
——
y
y
(%yy

µ
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate. The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your car meet all U.S.
Federal Saf ety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to Department of
Transportation (DOT) standards.
The f ollowing explains these
gradings.
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example: Treadwear Traction AA, A, B, C
T readwear 200
Traction AA
Temperature A
Unif orm T ire Quality Grading
DOT T ire Quality Grading (U.S. Cars)
T echnical Inf ormation290
——y

y
(%yy
