HONDA CIVIC COUPE 2010 8.G Technology Reference Guide

2010
Technology Reference Guide
Civic Sedan
2010_TRG_US.qxd:QSG_US.qxd 4/13/09 5:05 PM Page 7

Indicators/InfoDisplay/TPMS
Instrument Panel Indicators
Indicators briefly appear with each engine start. Red and amber indicators are most critical. Blue and
green indicators are used for general information.
ABS (anti-lock brake system)
DRL (daytime running lights)
Malfunction lamp (check engine light)
TPMS (tire pressure monitoring system)
VSA (vehicle stability assist)
Malfunction Indicators: If an indicator remains on, there may be a problem; see your dealer.
Charging system
Low oil pressure
SRS (supplemental restraint system)
Low brake fluid
EPS (electronic power steering)*
10 Civic TRG 4D_Inside Front:Inside Cvr 7/23/2009 1:50 PM Page 1 2010 Civic Sedan

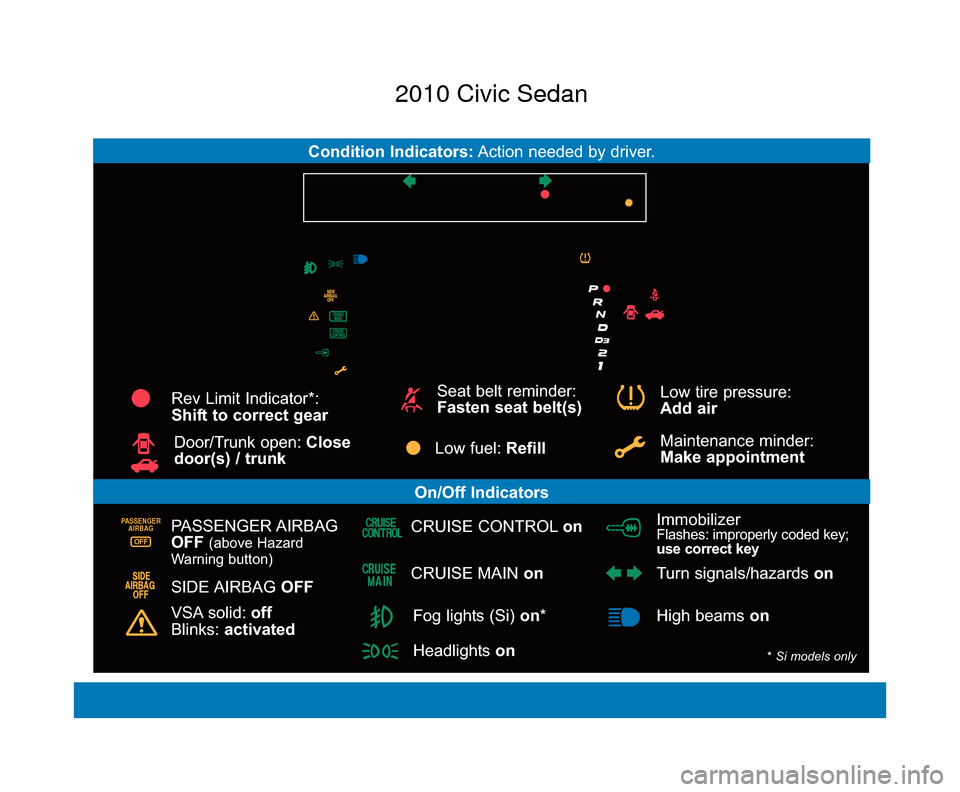

On/Off Indicators
Condition Indicators:Action needed by driver.
PASSENGER
AIRBAG
OFF
SIDE AIRBAG OFF
VSA solid: off
Blinks: activated
CRUISE CONTROL on
CRUISE MAIN on
Immobilizer Flashes: improperly coded key;
use correct key
Headlights on
Turn signals/hazards on
Fog lights (Si) on*High beams on
* Si models only
Seat belt reminder:
Fasten seat belt(s)
Low fuel: Refill
Low tire pressure:
Add air
Maintenance minder:
Make appointment
Door/Trunk open:
Close
door(s) / trunk
PASSENGER AIRBAG
OFF
(above Hazard
Warning button)
Rev Limit Indicator*:
Shift to correct gear
10 Civic TRG 4D_1ab:ExtraPages.qxd 7/23/2009 1:55 PM Page a1 2010 Civic Sedan

Information DisplayConsists of several displays that provide you with useful information.
Once you start the engine, the information display
shows your last active selection from the previous
drive cycle.
To toggle between the different displays, press
and release the select/reset button repeatedly. Information Displays
Accessing the Information Display
* if equipped
Oil life
Outside
temperature*,
Trip meter B
Outside
temperature*,
Trip meter A
Odometer,
Trip meter A
10 Civic TRG 4D_1ab:ExtraPages.qxd 7/23/2009 1:55 PM Page b1 2010 Civic Sedan

Indicators/InfoDisplay/TPMS
Tire Pressure Monitoring System (TPMS)
Each tire valve stem contains a TPMS
sensor.
When the tire pressure drops
significantly below recommended levels,
the low tire pressure indicator comes on. Visually inspect
the tires and use a tire air pressure
gauge to check which tire(s) have low pressure.
How It Works What to Do
Inflatethe tire(s) to the recommended pressures
listed on the label on the driver’s doorjamb.
INSPECT
Monitors the vehicle’s tire pressures.
and
10 Civic TRG 4D_Base:Base 7/23/2009 1:52 PM Page 2 2010 Civic Sedan

Auto Door Locks
Auto Door Locking/Unlocking
Default Lock SettingThe doors are preset to
lock when your vehicle
reaches about 9 mph. Default Unlock SettingOnly the driver’s door
is preset to unlock
when you shift into
Park (P).
Modifying the Auto Door Unlock Setting
Follow these steps to program all doors to unlock when you shift to Park:
1. Close the driver’s
door. Shift into
Park. 2.
Turn the ignition
to the ON (II)
position. 3.
Press and hold the unlock side of
the master lock switch for about 10
seconds. In that time, you will hear
three clicks. 4. Within 5 seconds, turn
the ignition to the LOCK
(0) position.
10 Civic TRG 4D_Base:Base 7/23/2009 1:52 PM Page 3 2010 Civic Sedan

Auto Door Locks
Programmable Auto Door Lock/Unlock Settings
Below are the different programmable options you can choose. See Auto Door Locking/Unlockingin
your owner's manual for instructions on programming these settings.
AUTO DOOR UNLOCK
Auto Unlock
(all doors)
When you turn
the ignition OFFWhen you shift into Park
Auto Unlock
(only driver’s door)
When you turn
the ignition OFFWhen you shift into Park
Turn off
Auto Unlock
Operate manually
AUTO DOOR LOCK
Auto Lock
When you
reach 9 mphWhen you shift out of Park
Turn off
Auto Lock
Operate manually
10 Civic TRG 4D_Base:Base 7/23/2009 1:52 PM Page 4 2010 Civic Sedan
2010 Civic Sedan

Voice Command/HFL/Navigation
Using the Voice Command System
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and sidevents away from the microphone in
the ceiling.
• Close the windows.
Voice Command
To reduce driver distraction, use voice commands for hands-free calling, \
navigation, and audio functions.
A full list of these commands is in the navigation system manual.
Voice Command Tips:
• Press and release the HFL or NAVI Talk button, wait for a
beep, then give a command.
• For a list of available HFL commands, press and release the HFL Talk button and say “Hands-free help.”
• For a list of available navigation commands, press and release the NAVI Talk button and say “Voice command help.”
HFL Talk button: Give HFL commands
or answer incoming calls.
HFL Back button: End a call, go back to
the previous command, or cancel an
operation. NAVI Talk button:
Give navigation and
audio commands.
NAVI Back button:
Cancel a command or
return to the previous
screen.
10 Civic TRG 4D_Base:Base 7/23/2009 1:52 PM Page 5 2010 Civic Sedan

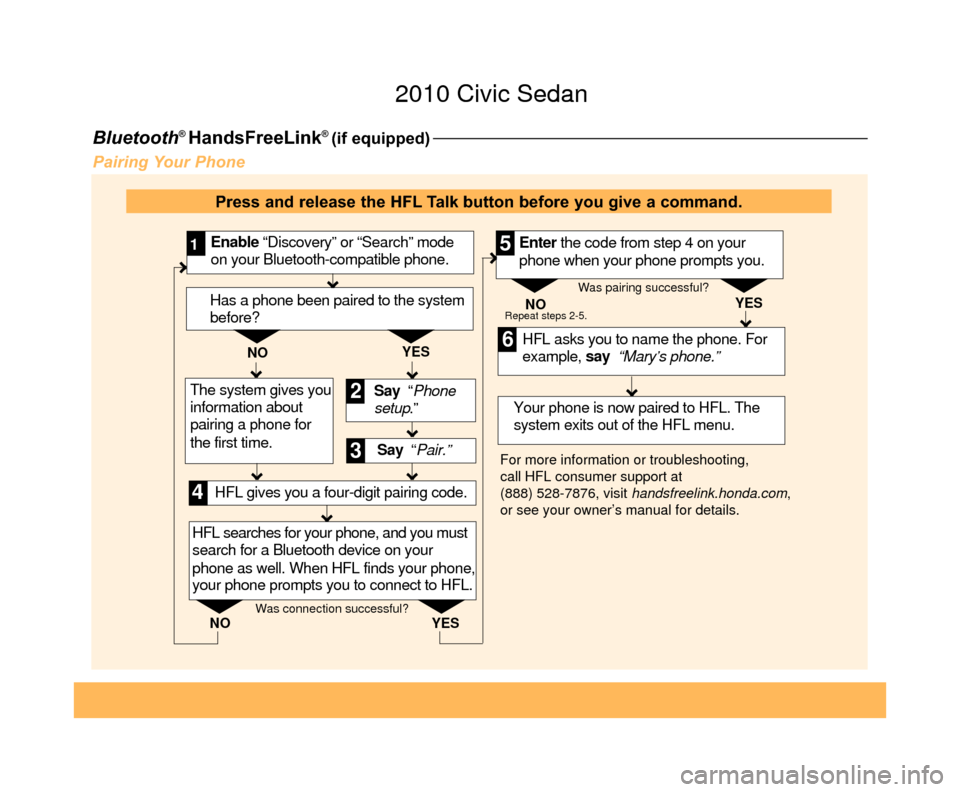

Bluetooth® HandsFreeLink® (if equipped)
Pairing Your Phone
Say “ Pair.” HFL asks you to name the phone. For
example, say “Mary’s phone.”
YES
NO
Enable “Discovery” or “Search” mode
on your Bluetooth-compatible phone.
1
Say “Phone
setup .”
2
3
HFL searches for your phone, and you must
search for a Bluetooth device on your
phone as well. When HFL finds your phone,
your phone prompts you to connect to HFL. Your phone is now paired to HFL. The
system exits out of the HFL menu.Enter the code from step 4 on your
phone when your phone prompts you.
4
5
6
For more information or troubleshooting,
call HFL consumer support at
(888) 528-7876, visit
handsfreelink.honda.com ,
or see your owner’s manual for details. NO
YES
Repeat steps 2-5.
HFL gives you a four-digit pairing code.
Was connection successful? Was pairing successful?
Has a phone been paired to the system
before?
YES
NO
The system gives you
information about
pairing a phone for
the first time.
Press and release the HFL Talk button before you give a command.
10 Civic TRG 4D_5abc:ExtraPages.qxd 7/23/2009 1:56 PM Page a5 2010 Civic Sedan

Making a Call1. Press the HFL Talk button, and say “Call”or
“Dial” and the desired phone number .
2. Pressthe HFL Talk button, and say“Call” or
“Dial” to continue.
3. The call is connected and heard through the
vehicle’s speakers.
Receiving a Call
1. A notification is heard, and the following screen appears on the navigation display.
2. Press the HFL Talk button to accept the
call.
3. Press the HFL Back button to end or
decline the call.
