HONDA CIVIC COUPE 2014 9.G Navigation Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
280
Features

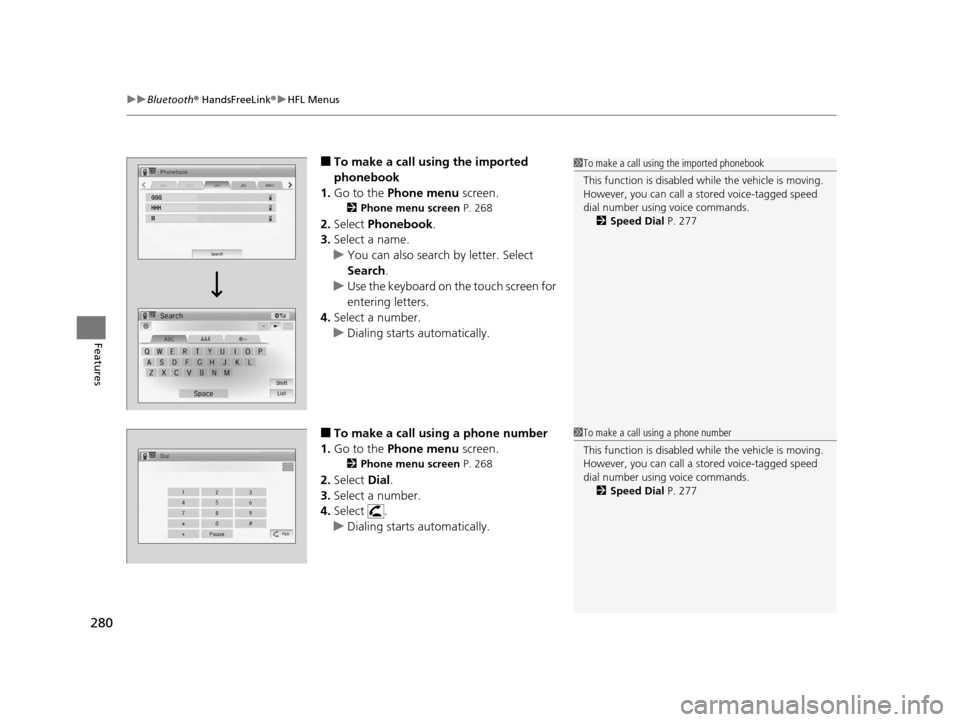

■To make a call using the imported
phonebook
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Phonebook .
3. Select a name.
u You can also search by letter. Select
Search .
u Use the keyboard on the touch screen for
entering letters.
4. Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Dial.
3. Select a number.
4. Select .
u Dialing starts automatically.
1To make a call using the imported phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands. 2 Speed Dial P. 277
1To make a call using a phone number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands.
2 Speed Dial P. 277
14 CIVIC 2D_SI-31TS86210.book 280 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued281
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

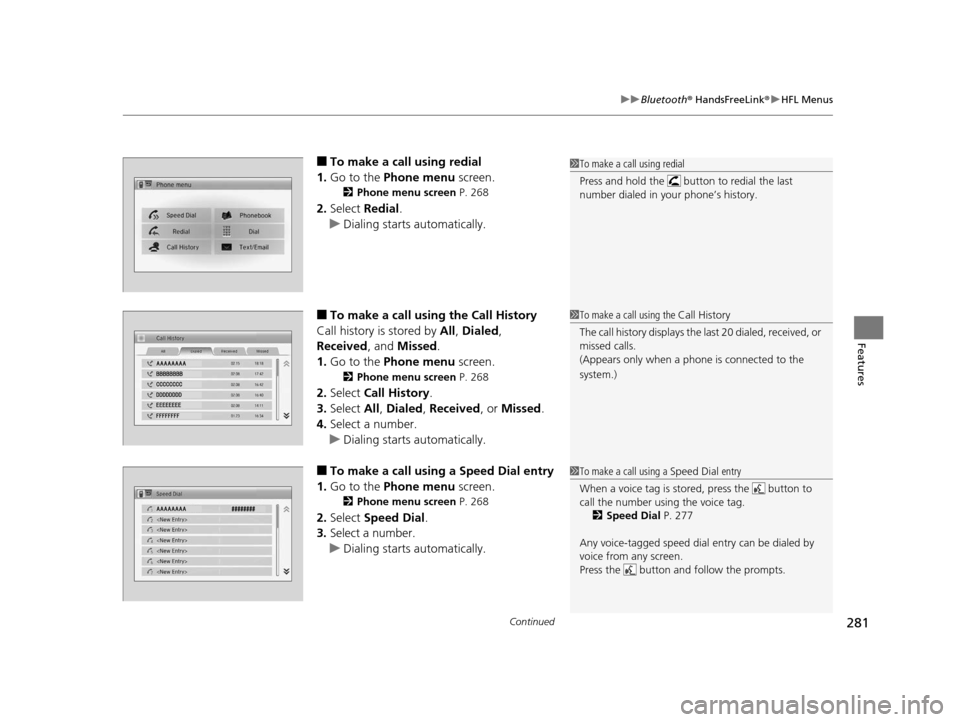

■To make a call using redial
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Redial .
u Dialing starts automatically.
■To make a call usin g the Call History
Call history is stored by All, Dialed ,
Received , and Missed .
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Call History .
3. Select All, Dialed , Received , or Missed .
4. Select a number.
u Dialing starts automatically.
■To make a call usin g a Speed Dial entry
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Speed Dial .
3. Select a number.
u Dialing starts automatically.
1To make a call using redial
Press and hold the butt on to redial the last
number dialed in your phone’s history.
1 To make a call using the Call History
The call history disp lays the last 20 dialed, received, or
missed calls.
(Appears only when a phone is connected to the
system.)
1 To make a call using a Speed Dial entry
When a voice tag is stored, press the button to
call the number using the voice tag. 2 Speed Dial P. 277
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
14 CIVIC 2D_SI-31TS86210.book 281 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
282
Features

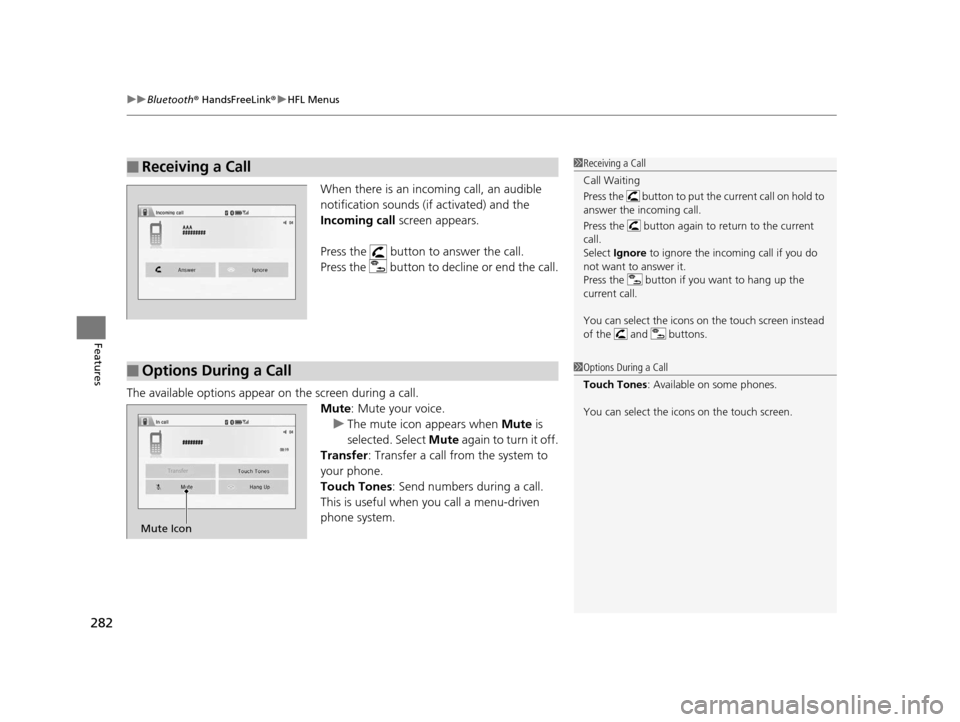

When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
The available options appear on the screen during a call.
Mute: Mute your voice.
u The mute icon appears when Mute is
selected. Select Mute again to turn it off.
Transfer : Transfer a call from the system to
your phone.
Touch Tones: Send numbers during a call.
This is useful when you call a menu-driven
phone system.
■Receiving a Call1 Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the touch screen instead
of the and buttons.
■Options During a Call1 Options During a Call
Touch Tones : Available on some phones.
You can select the icons on the touch screen.
AAAAAAAA
Mute Icon
14 CIVIC 2D_SI-31TS86210.book 282 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued283
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
HFL can display newly received text messages and e-mails as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase. 1.A pop-up appears and notifies you of a new
text message or e-mail.
2. Select Read to listen to the message.
u The text message or e-mail is displayed.
The system automatica lly starts reading
out the message.
3. To discontinue the mess age read-out, select
Stop .
■Receiving a Text Message/E-mail1Receiving a Text Message/E-mail
The system does not display any received messages
while you are driving. You can only hear them read
aloud.
With some phones, you may be able to display up to
20 most recent text messages and e-mails.
State or local laws may limit your use of the HFL text
message/e-mail feature. Only use the text message/
e-mail feature when condi tions allow you to do so
safely.
When you receive a text message or e-mail for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On .
2 To turn on or off the text/e-mail notice
P. 274
14 CIVIC 2D_SI-31TS86210.book 283 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuBluetooth ® HandsFreeLink ®u HFL Menus
284
Features

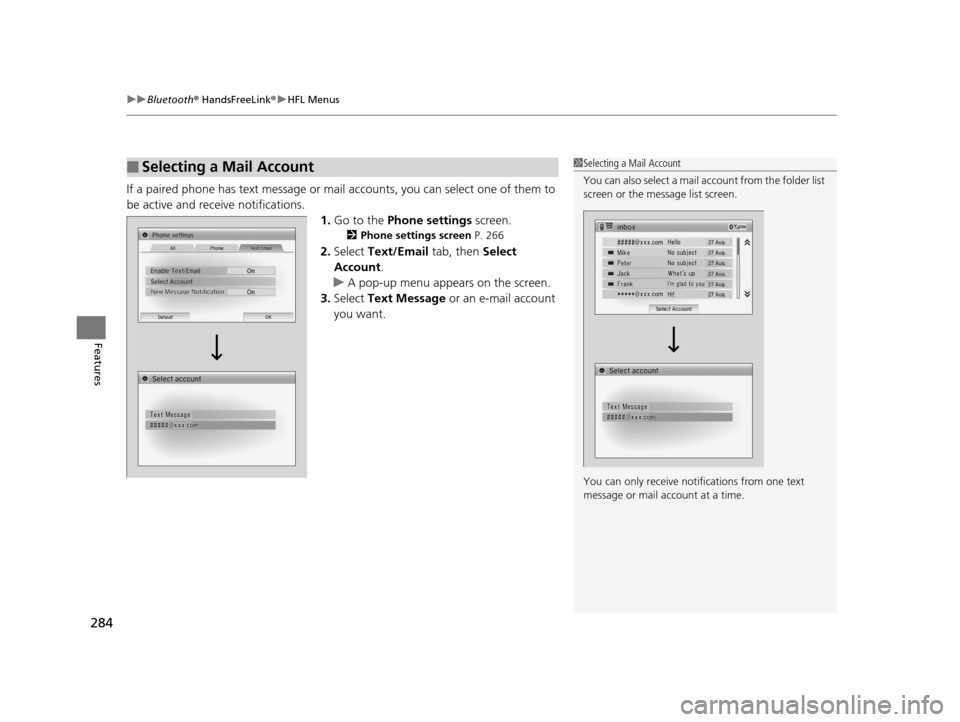

If a paired phone has text message or mail accounts, you can select one of them to
be active and receive notifications. 1.Go to the Phone settings screen.
2Phone settings screen P. 266
2.Select Text/Email tab, then Select
Account .
u A pop-up menu appears on the screen.
3. Select Text Message or an e-mail account
you want.
■Selecting a Mail Account1 Selecting a Mail Account
You can also select a mail account from the folder list
screen or the message list screen.
You can only receive notif ications from one text
message or mail a ccount at a time.
14 CIVIC 2D_SI-31TS86210.book 284 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued285
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Displaying text messages
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Text/Email .
u Select account if necessary.
3. Select a message.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or next message, select Previous
or Next on the message screen.
Message List
Text Message
14 CIVIC 2D_SI-31TS86210.book 285 ページ ２０１４年１月２９日　水曜日　午後８時９分

286
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Displaying e-mails
1. Go to the Phone menu screen.
2Phone menu screen P. 268
2.Select Text/Email .
u Select account if necessary.
3. Select a folder.
4. Select a message.
u The e-mail is displayed. The system
automatically starts reading the message
aloud.
Folder List
Message List
E-mail
14 CIVIC 2D_SI-31TS86210.book 286 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued287
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Read or stop reading a message
1. Go to the text message or e-mail screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 285
2.Select Stop to stop reading.
Select Read to start reading the message
from the beginning.
■Reply to a message
1. Go to the text message or e-mail screen.
u The system automatica lly starts reading
the message aloud.
2 Displaying Messages P. 285
2.Select Reply.
3. Select the reply message.
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.
•I’m on my way.
•I’m running late.•OK
•Yes
•No
You cannot add, edit, or delete reply messages.
14 CIVIC 2D_SI-31TS86210.book 287 ページ ２０１４年１月２９日　水曜日　午後８時９分

288
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

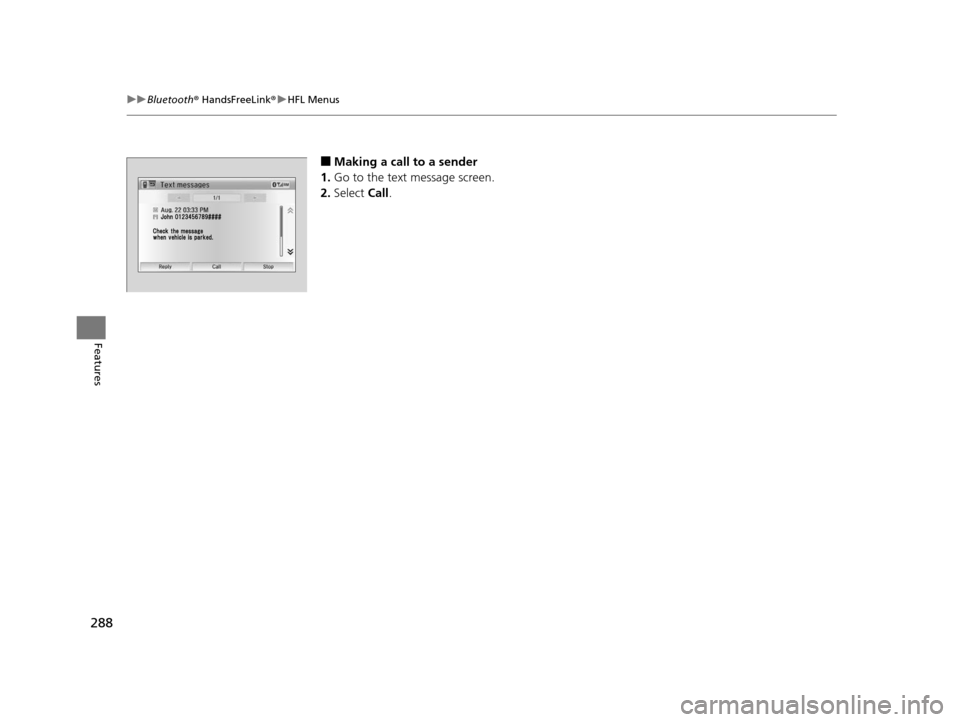

■Making a call to a sender
1. Go to the text message screen.
2. Select Call.
14 CIVIC 2D_SI-31TS86210.book 288 ページ ２０１４年１月２９日　水曜日　午後８時９分

289
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■Automatic collis ion notification
If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink operator. Once
connected, information about your vehicle, its
positioning, and its condition will be sent to
the operator; you also can speak to the
operator when connected.
IMPORTANT: For vehicles equipped with HondaLink Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions . In a crash, HondaLink Assist will attempt to notify emergency
services but NEITHER HONDA NOR I TS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.
■To enable notification
1.Go to the Phone settings screen.
2Phone settings screen P. 266
2.Select Phone tab, then HondaLink Assist.
u A pop-up menu appears on the screen.
3. Select On or Off .
■In Case of Emergency1In Case of Emergency
Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected or you do not have adequate cellular
coverage.
You cannot use emergency services when:
•You travel outside the HondaLink service coverage
areas.
•There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.
You cannot operate othe r navigation- or phone-
related functions using the screens while talking to
the operator.
1 Automatic collision notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
1To enable notification
Setting options:
•On : Notification is available.
•Off : Disable the feature.
14 CIVIC 2D_SI-31TS86210.book 289 ページ ２０１４年１月２９日　水曜日　午後８時９分
