headlights HONDA CIVIC COUPE 2014 9.G Navigation Manual

3
Quick Reference Guide❙Headlights/Turn Signals (P127)
❙Wipers/Washers (P131)
❙Km/Mile Change Knob (P81)
❙CLOCK Knob* (P100)
❙MENU Button (P87)
❙(+ / (- / / Buttons (P87)
❙Navigation System Voice Control Buttons*
() See Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P233, 264)
❙ (SEL/RESET) Knob (P84)
❙SOURCE Button (P87)
❙ (Display/Information) Button (P83)
❙Brightness Control (P132)
❙LaneWatchTM * (P320)
❙Fog Lights* (P130)
❙Paddle Shifter (Shift Down)* (P309)
❙Paddle Shifter (Shift Up)* (P309)
❙Cruise Control Buttons (P315)
❙Horn (Press an area around .)
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 3 ページ ２０１４年１月２９日　水曜日　午後８時９分

Visual Index
6
Quick Reference Guide❙Maintenance Under the Hood (P345)
❙Windshield Wipers (P131, 370)
❙Tires (P372, 393)
❙Fog Lights* (P130, 364)
❙Door Lock/Unlock Control (P105)
❙Power Door Mirrors (P135)
❙Headlights (P127, 360)
❙Emergency Trunk Release Lever
(P115)
❙Opening/Closing the Trunk (P113)
❙How to Refuel (P333)
❙High-Mount Brake Light* (P369)
❙Front Turn Signal/Parking/Side Marker Lights (P127, 365)
❙Back-Up Lights (P367)
❙Rear Turn Signal Lights (P367)
❙Brake/Taillights/Rear Side Marker
Lights
(P367)
❙Rearview Camera* (P331)
❙Trunk Release Button* (P114)
14 CIVIC 2D_SI-31TS86210.book 6 ページ ２０１４年１月２９日　水曜日　午後８時９分

73
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage
System
Message
Indicator
●Comes on for a few seconds when you
turn the ignition switch to ON
(w*1, then
goes off.
●Comes on along with a beep when a
problem is detected. A system message on
the i-MID appears at the same time.
●While the indicator is on, press the
(display/information) button to
see the message again.
●Refer to the Indicators information in
this chapter when a system message
appears on the i-MID. Take the
appropriate action for the message.
●The i-MID does not return to the normal
screen unless the wa rning is canceled,
or the button is pressed.
—
Turn Signal
and Hazard
Warning
Indicators●Blink when you operate the turn signal
lever.
●Blink along with all turn signals when you
press the hazard warning button.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown.
Change the bulb immediately.
2 Replacing Light Bulbs
P. 365, 367
—
High Beam
Indicator●Comes on when the high beam headlights
are on.——
Lights On
Indicator
●Comes on whenever the light switch is on,
or in AUTO* when the exterior lights are
on.
●If you remove the key from the ignition
switch*1 while the exteri or lights are on,
a chime sounds when the driver's door
is opened.—
Fog Light
Indicator*
●Comes on when the fog lights are on.——
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 73 ページ ２０１４年１月２９日　水曜日　午後８時９分

94
uuGauges and Multi-Information Display uintelligent Mult i-Information Display (i-MID)
Instrument Panel
*1:Default SettingSetup Group Customizable Features
DescriptionSelectable settings
Customize
SettingsLighting
Setup
Interior Light
Dimming Time
Changes the length of time the interior lights stay
on after you close the doors.
60sec
/30sec
*1/15sec
Headlight
Auto Off Timer Changes the length of time
the exterior lights stay
on after you close the driver’s door. 60sec
/30sec /15sec
*1/0sec
Auto Light
Sensitivity
*Changes the timing for the headlights to come on.Max/High /Mid*1/Low/ Min
Door
Setup Auto Door
Lock
Changes the setting for when the doors
automatically lock. Off
/With Vehicle Speed
*1/
Shift from P
Door Lock
Mode Sets up either the driver’s door or both doors to unlock
on the first operation of the remote or ignition key.
Driver Door
*1/
All Doors
Auto Unlock
All Doors Changes the setting for when the doors
automatically unlock. Off
/When Driver’s Door Opens
*1/
When Shift to Park*/ When
Ignition Off
Keyless Lock
Acknowledg-
ment LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security
Relock Timer Changes the time it takes for the doors to relock
and the security system to
set after you unlock the
vehicle without opening either door. 90sec
/60sec /30sec
*1
Default
All Cancels/Resets all the customized settings as
default. Cancel
Reset All Defaults
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 94 ページ ２０１４年１月２９日　水曜日　午後８時９分

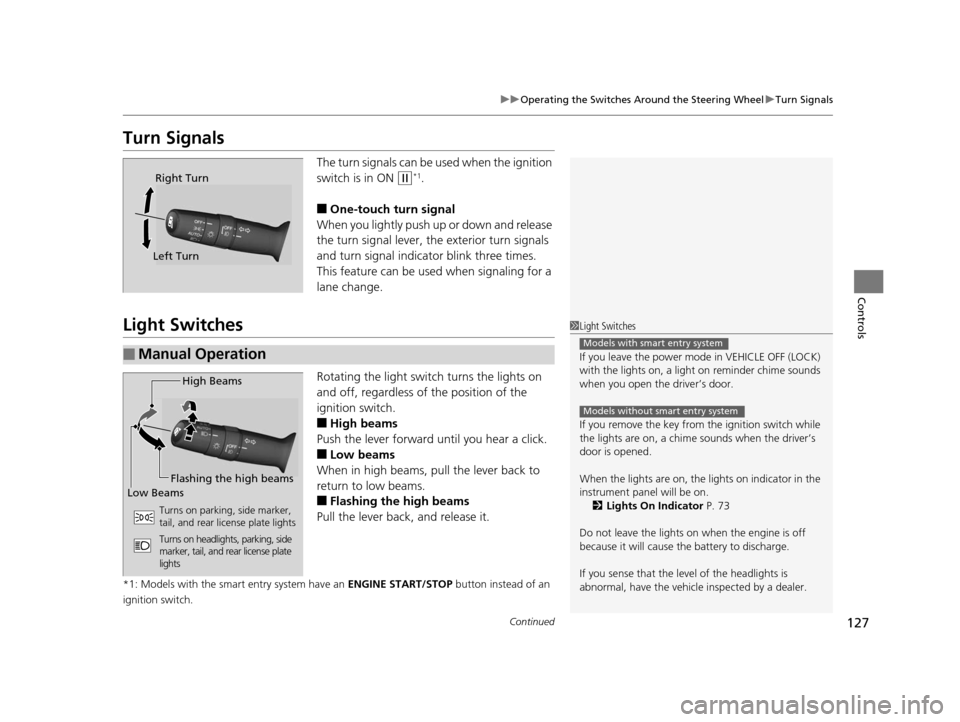

127
uuOperating the Switches Around the Steering Wheel uTurn Signals
Continued
Controls
Turn Signals
The turn signals can be used when the ignition
switch is in ON
(w*1.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indicator blink three times.
This feature can be used when signaling for a
lane change.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Right Turn
Left Turn
■Manual Operation
1 Light Switches
If you leave the power mode in VEHICLE OFF (LOCK)
with the lights on, a light on reminder chime sounds
when you open the driver’s door.
If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 73
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
Models with smart entry system
Models without smart entry system
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
14 CIVIC 2D_SI-31TS86210.book 127 ページ ２０１４年１月２９日　水曜日　午後８時９分

uuOperating the Switches Around the Steering Wheel uLight Switches
128
Controls
Automatic lighting control can be used when
the ignition switch is in ON
(w*1.
When you turn the light switch to AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness. u You can change the au to light sensitivity
setting.
2 Customized Features P. 87
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Automatic Lighting Control*1 Automatic Lighting Control*
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Adjust the auto light sensitivity as follows:
SettingThe exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Light Sensor
Bright
Dark
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 128 ページ ２０１４年１月２９日　水曜日　午後８時９分

129
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few mi nutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),
take the remote with you, and close the driver's door.
u You can change the headlight auto off timer setting.
2Customized Features P. 87
If you turn the ignition switch to LOCK (0*1 with the headlight switch on, but do
not open the door, the lights turn off afte r 10 minutes (three minutes, if the switch
is in the AUTO position).
The lights turn on again when you unlock or open the driver's door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver's door, you will hear a lights on reminder chime.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Headlight Integration with Wipers*
■Automatic Lighting Off Feature
1 Headlight Integration with Wipers*
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 129 ページ ２０１４年１月２９日　水曜日　午後８時９分

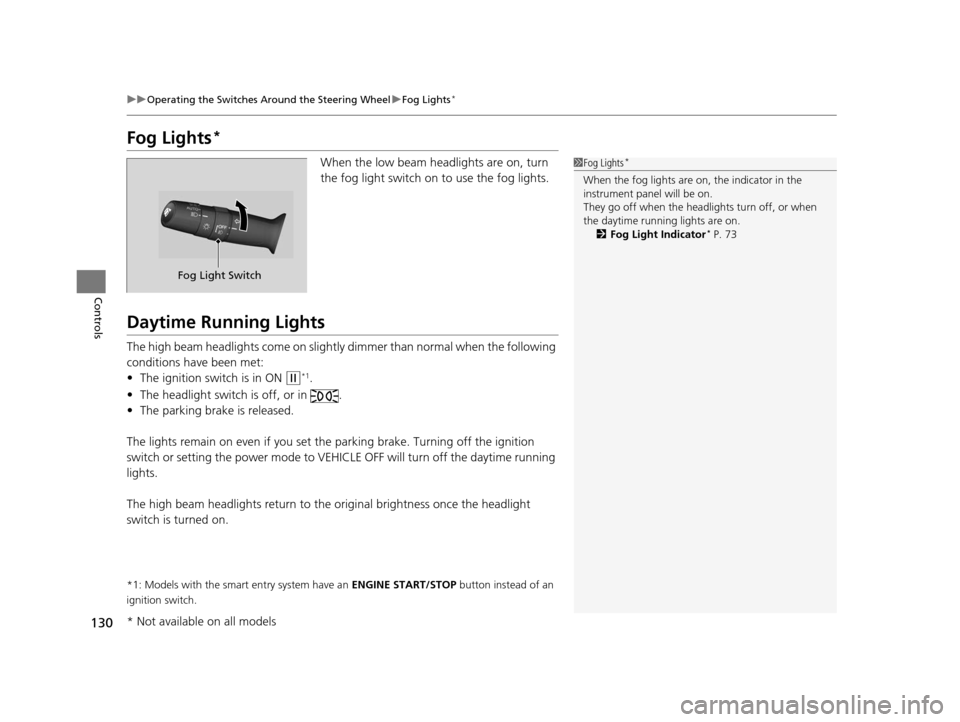

130
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The high beam headlights come on slightly dimmer than normal when the following
conditions have been met:
• The ignition switch is in ON
(w*1.
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Turning off the ignition
switch or setting the power mode to VEHI CLE OFF will turn off the daytime running
lights.
The high beam headlights re turn to the original brightness once the headlight
switch is turned on.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Fog Lights*
When the fog lights are on, the indicator in the
instrument pane l will be on.
They go off when the headlights turn off, or when
the daytime running lights are on. 2 Fog Light Indicator
* P. 73
Fog Light Switch
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 130 ページ ２０１４年１月２９日　水曜日　午後８時９分

135Continued
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
Power Door Mirrors
You can adjust the door mirrors when the
ignition switch is in ON
(w*1.
■Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror positi on adjustment switch: Press
the switch left, right, up, or down to move the
mirror.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Rearview Mirror with Day and Night Positions
1 Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 137
Tab
Daytime
Position
Night PositionUp
Down
Selector
Switch
Adjustment
Switch
14 CIVIC 2D_SI-31TS86210.book 135 ページ ２０１４年１月２９日　水曜日　午後８時９分

Continued361
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
1. Remove the holding clips (A). Push up the
tab, and remove the cover of the air intake
duct and its upper part.
■Low Beam Headlights1Low Beam Headlights
Pull the clip straight up to remove it.
Keep the head of the clip raised when you insert it,
push until it clicks.
Holding clip (A-type)
Cover
Tab Clip (A)
Air
Intake
Duct
Driver side
1.8 ℓ engine models
14 CIVIC 2D_SI-31TS86210.book 361 ページ ２０１４年１月２９日　水曜日　午後８時９分
