headlights HONDA CIVIC COUPE 2014 9.G Navigation Manual

uuReplacing Light Bulbs uHeadlight Bulbs
362
Maintenance
1. Unlock the holding c lips (B), then remove
the cover of the air intake duct.
Fold in the upper part of the air intake duct to
get enough working space.
1 Low Beam Headlights
Press down the center pin until it clicks to unlock it.
Push the center pin back to lock the clip. Then, insert
the clip into the hole and press on the center pin until
it is flat.
Holding clip (B-type)
Center pin
Push until
the pin is
flat.
Cover Clip (B)
Driver side
2.4 ℓ engine models
Air Intake Duct
14 CIVIC 2D_SI-31TS86210.book 362 ページ ２０１４年１月２９日　水曜日　午後８時９分

363
uuReplacing Light Bulbs uHeadlight Bulbs
Maintenance
2. Remove the holding clip (C) using a flat-tip
screwdriver, then remo ve the upper part of
the windshield washer reservoir.
3. Push the tab to remove the coupler.
4. Rotate the old bulb to the left to remove.
5. Insert a new bulb into the headlight
assembly and turn it to the right.
6. Insert the coupler into the connector of the
bulb.
1 Low Beam Headlights
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (C-type)
Center pin
Push until the
pin is flat.
Clip (C)Passenger side
All models
Tab
Coupler
Bulb
Both sides
All models
14 CIVIC 2D_SI-31TS86210.book 363 ページ ２０１４年１月２９日　水曜日　午後８時９分

365
uuReplacing Light Bulbs uFront Turn Signal/Parking/Side Marker Light Bulbs
Continued
Maintenance
Front Turn Signal/Parking/Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips, and a screw, and
pull the inner fender back.
2 Low Beam Headlights P. 361
3.Detach the air intake duct tube and swing it
out of the inner fender.
Front Turn Signal/Parking/Side Marker Light: 28/8 W
Clip
Inner
FenderScrew
Air
Intake
Duct
Tube
2.4 ℓ engine models
14 CIVIC 2D_SI-31TS86210.book 365 ページ ２０１４年１月２９日　水曜日　午後８時９分

367
uuReplacing Light Bulbs uBrake Light, Taillight, Rear Side Marker Light, Back-Up Light, and Rear Turn Signal Light Bulbs
Maintenance
Brake Light, Taillight, Rear Side Marker Light,
Back-Up Light, and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding cl ips using a flat-tip
screwdriver, then pull the lining back.
2Low Beam Headlights P. 361
2.Pull out the clip.
3. Turn the socket to th e left and remove it.
Remove the old bulb.
4. Insert a new bulb.
Brake/Taillight: 21/5 W
Rear Side Marker Light: 5 W
Back-Up Light: 16 W
Rear Turn Signal Light: 21 W (Amber)
Lining
Clip
Bulb
Socket
Clip
14 CIVIC 2D_SI-31TS86210.book 367 ページ ２０１４年１月２９日　水曜日　午後８時９分

368
uuReplacing Light Bulbs uRear License Plate Light Bulb
Maintenance
Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Open the trunk.
2. Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2Low Beam Headlights P. 361
3.Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
4. Remove the old bulb and insert a new bulb.
Rear License Plate Light: 5 W
Holding Clip
Bulb
Socket
14 CIVIC 2D_SI-31TS86210.book 368 ページ ２０１４年１月２９日　水曜日　午後８時９分

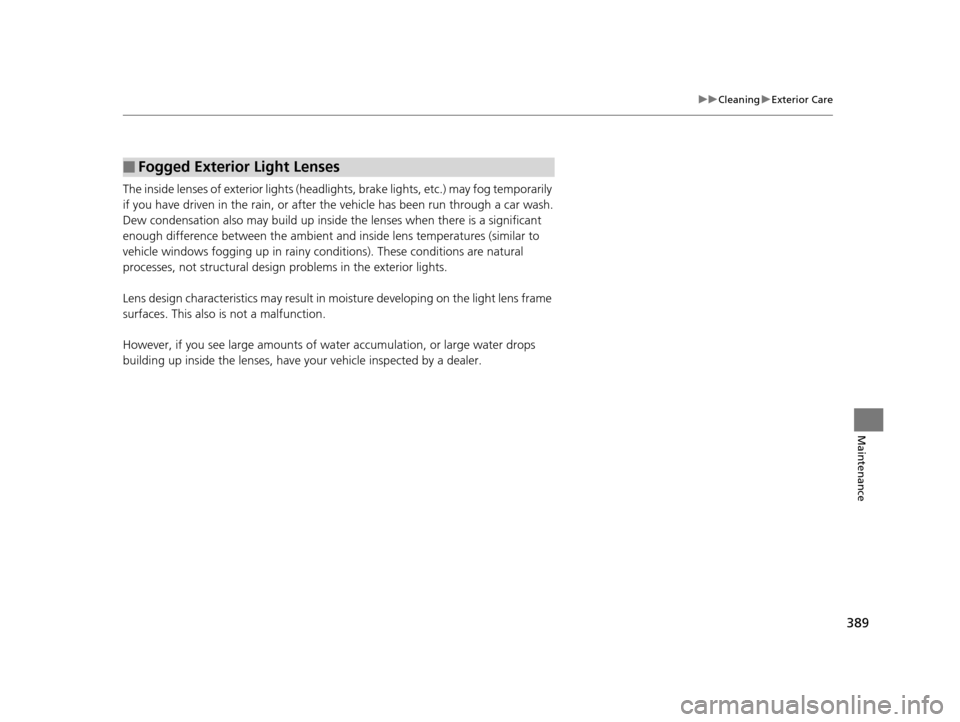

389
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
14 CIVIC 2D_SI-31TS86210.book 389 ページ ２０１４年１月２９日　水曜日　午後８時９分

415
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 413 to 414.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
14 CIVIC 2D_SI-31TS86210.book 415 ページ ２０１４年１月２９日　水曜日　午後８時９分

418
Information
Specifications
■Vehicle Specifications
*1: LX models
*2: EX and U.S. EX-L models
*3: Canadian EX-L models
*4: Manual transmission models
*5: Automatic transmission (CVT) models
ModelHonda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,682 lbs (1,670 kg)*1, *4
Canada: 1,670 kg*1, *4
U.S.: 3,704 lbs (1,680 kg)*1, *5
Canada: 1,680 kg*1, *5
U.S.: 3,792 lbs (1,720 kg)*2, *3
Canada: 1,720 kg*2, *3
Gross Axle Weight
Rating (Front)U.S.: 1,985 lbs (900 kg)*1, *4
Canada: 900 kg*1, *4
U.S.: 1,996 lbs (905 kg)*1, *5
Canada: 910 kg*1, *5
U.S.: 2,040 lbs (925 kg)*2
Canada: 925 kg*2
Canada: 930 kg*3
Gross Axle Weight
Rating (Rear)U.S.: 1,742 lbs (790 kg)*1
Canada: 790 kg*1
U.S.: 1,786 lbs (810 kg)*2, *3
Canada: 810 kg*2, *3
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
1.8 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement110 cu-in (1,798 cm3)
Spark Plugs NGK DILZKR7B11GS
DENSO DXU22HCR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
*6: LX and Canadian EX models
*7: EX-L and U.S. EX models
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights21/5W
Rear Side Marker Light 5W
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light*621W
High-Mount Brake Light*7LEDRear License Plate Light5W
Trunk Light 5W
Interior LightsMap Lights8WCeiling Light8W
* Not available on all models
14 CIVIC 2D_SI-31TS86210.book 418 ページ ２０１４年１月２９日　水曜日　午後８時９分

420
uuSpecifications u
Information
■Vehicle Specifications
ModelHonda Civic 2-Door
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,925 lbs (1,780 kg)
Canada: 1,780 kg
Gross Axle Weight
Rating (Front)U.S.: 2,117 lbs (960 kg)
Canada: 960 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,830 lbs (830 kg)
Canada: 830 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SP-10
2.4 ℓ engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel:
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Turn Signal/Parking/Side
Marker Lights 28/8W
Brake/Taillights21/5W
Rear Side Marker Light 5W
Back-Up Lights16W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 5W
Trunk Light5W
Interior Lights Map Lights 8W
Ceiling Light 8W
14 CIVIC 2D_SI-31TS86210.book 420 ページ ２０１４年１月２９日　水曜日　午後８時９分

432
Index
B
Battery....................................................... 381
Charging System Indicator ................. 67, 409
Jump Starting .......................................... 403
Maintenance (Checking the Battery) ........ 381
Maintenance (Replacing).......................... 382
Belts (Seat) .................................................. 30
Beverage Holders ...................................... 149
Bluetooth ® Audio ............................. 182, 205
Bluetooth ® HandsFreeLink ®............. 233, 264
Booster Seats (For Children) ....................... 61
Brake System ............................................. 326
Anti-lock Brake System (ABS) ................... 328
Brake Assist System ................................. 329
Fluid ........................................................ 358
Foot Brake ............................................... 327
Indicator .................................................... 66
Indicator (Amber)....................................... 66
Indicator (Red) ......................................... 411
Parking Brake .......................................... 326
Brake System Indicator (Amber) ................ 66
Brightness Control (Instrument Panel) .... 132
Bulb Replacement ..................................... 360
Brake Lights, Taillights, Re ar Side Marker lights,
Back-Up Lights and Rear Turn Signal
Lights..................................................... 367
Fog Lights ................................................ 364
Front Turn Signal/Par king/Side Marker
Lights..................................................... 365
Headlights ............................................... 360
High-Mount Brake Light .......................... 369 Rear License Plate Light ........................... 368
Bulb Specifications ........................... 418, 420
C
Carbon Monoxide Gas ............................... 62
Carrying Cargo ................................. 293, 295
CD Player ........................................... 171, 194
Center Pocket ........................................... 148
Certification Label .................................... 422
Changing Bulbs ........................................ 360
Charging System Indicator ................. 67, 409
Child Safety ................................................. 50
Emergency Trunk Opener ........................ 115
Child Seat .................................................... 50
Booster Seats ............................................ 61
Child Seat for Infants................................. 52
Child Seat for Small Children ..................... 53
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 57
Larger Children ......................................... 60
Rear-facing Child Seat ............................... 52
Selecting a Child Seat ................................ 54
Using a Tether ........................................... 59
Cleaning the Exterior ............................... 387
Cleaning the Interior ................................ 385
Climate Control System ............................ 155
Changing the Mode ................................ 155
Defrosting the Windshield and Windows ............................................... 156
Dust and Pollen Filter............................... 384 Recirculation/Fresh Air Mode................... 156
Sensors ................................................... 157
Using Automatic Climate Control............ 155
Clock ......................................................... 100
Clutch Fluid .............................................. 358
Coat Hook ................................................ 150
Compact Spare Tire .................. 393, 419, 421
Console Compartment ............................. 147
Controls ...................................................... 99
Coolant (Engine) ...................................... 355
Adding to the Radiator ........................... 356
Adding to the Reserve Tank .................... 355
High Temperature Indicator ...................... 70
Low Temperature Indicator ....................... 70
Overheating ............................................ 407
Creeping (Automatic Transmission) ........ 304
Cruise Control .......................................... 315
Indicator ................................................... 75
Cup Holders .............................................. 149
Customer Service Information ................ 430
Customized Features ......................... 87, 220
D
Daytime Running Lights .......................... 130
Dead Battery ............................................ 403
Defrosting the Windshield and
Windows ......................................... 154, 156
Devices that Emit Radio Waves ............... 423
Dimming
Headlights .............................................. 127
14 CIVIC 2D_SI-31TS86210.book 432 ページ ２０１４年１月２９日　水曜日　午後８時９分
