34
uuPersonal Information uPIN Numbers
System Setup

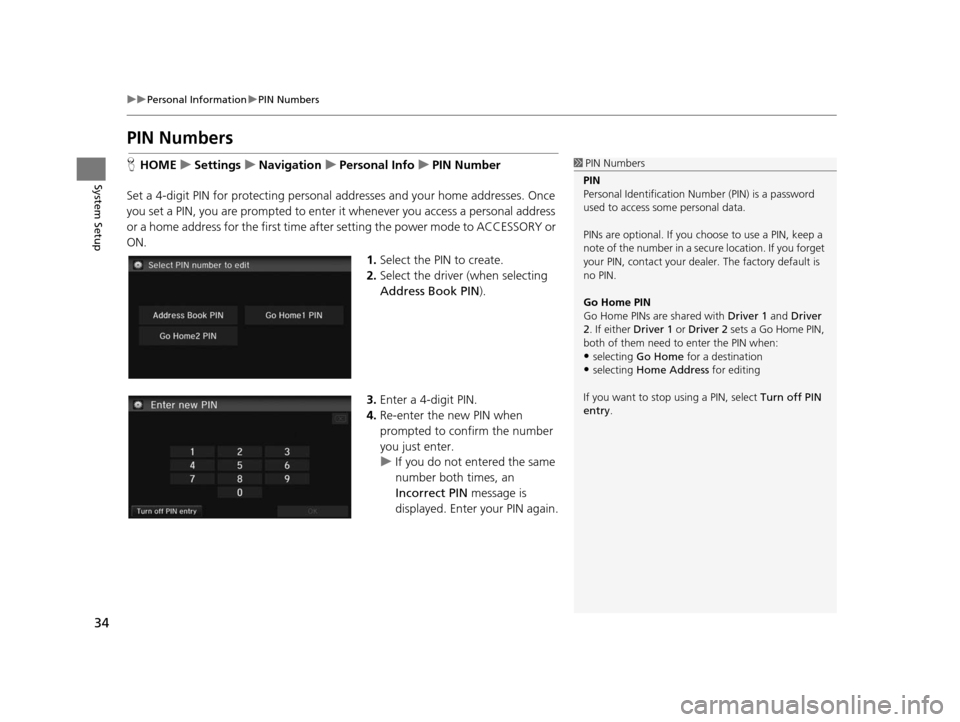

PIN Number s
HHOME uSetting su Navigation uPer sonal Info uPIN Number
Set a 4-digit PIN for protecting personal ad dresses and your home addresses. Once
you set a PIN, you are prompted to enter it whenever you access a personal address
or a home address for the first time after setting the power mode to ACCESSORY or
ON.
1.Select the PIN to create.
2. Select the driver (when selecting
Address Book PIN ).
3. Enter a 4-digit PIN.
4. Re-enter the new PIN when
prompted to confirm the number
you just enter.
u If you do not entered the same
number both times, an
Incorrect PIN message is
displayed. Enter your PIN again.1 PIN Numbers
PIN
Personal Identification Nu mber (PIN) is a password
used to access some personal data.
PINs are optional. If you choose to use a PIN, keep a
note of the number in a secure location. If you forget
your PIN, contact your deal er. The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with Driver 1 and Driver
2. If either Driver 1 or Driver 2 sets a Go Home PIN,
both of them need to enter the PIN when:
•selecting Go Home for a destination
•selecting Home Address for editing
If you want to stop using a PIN, select Turn off PIN
entry .
15 CIVIC NAVI-31TR38300.book 34 ページ ２０１４年８月７日　木曜日　午前１１時４９分

35
uuPersonal Information uUser Name
System Setup

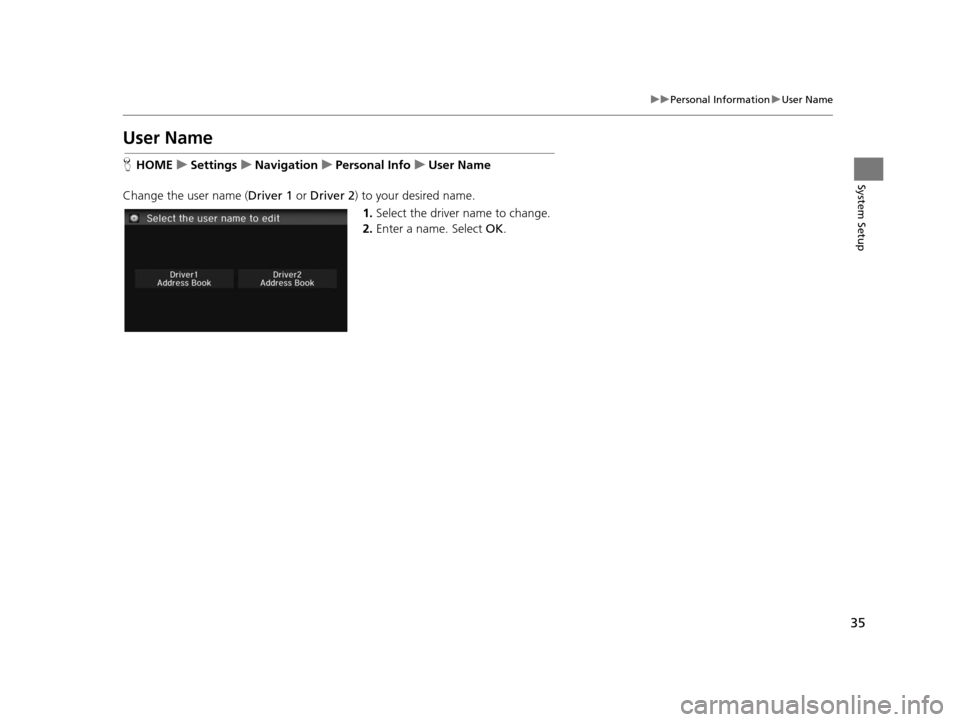

User Name
H HOME uSetting su Navigation uPer sonal Info uUser Name
Change the user name ( Driver 1 or Driver 2 ) to your desired name.
1. Select the driver name to change.
2. Enter a name. Select OK.
15 CIVIC NAVI-31TR38300.book 35 ページ ２０１４年８月７日　木曜日　午前１１時４９分

36
uuPersonal Information uPrevious Destination
System Setup

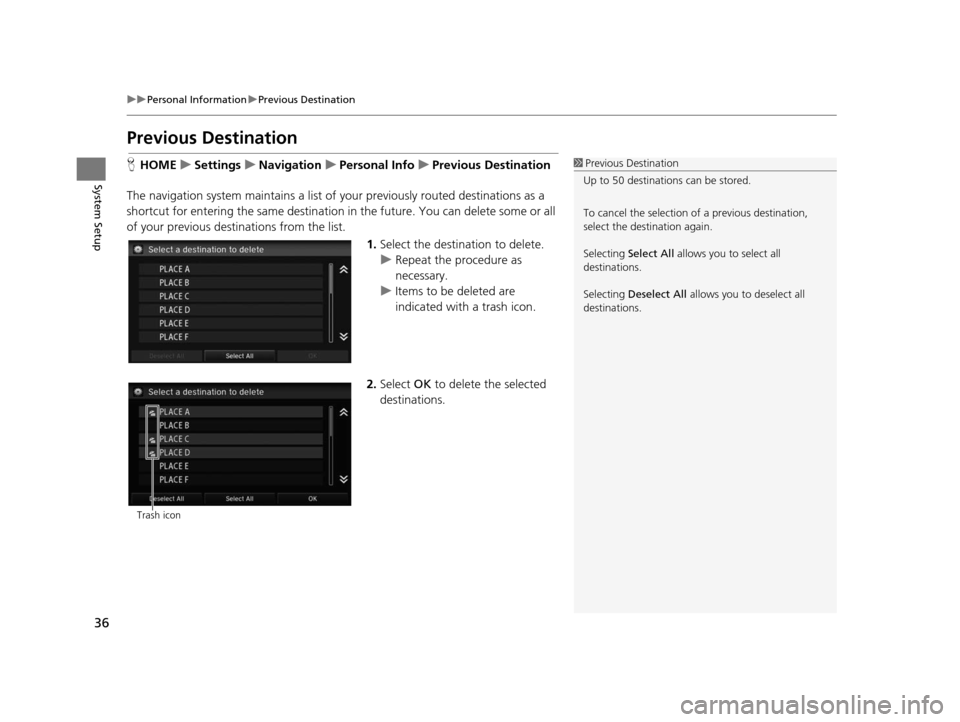

Previous De stination
HHOME uSetting su Navigation uPer sonal Info uPreviou s De stination
The navigation system maintain s a list of your previously routed destinations as a
shortcut for entering the same destination in the future. You can delete some or all
of your previous destinations from the list.
1.Select the destination to delete.
u Repeat the procedure as
necessary.
u Items to be deleted are
indicated with a trash icon.
2. Select OK to delete the selected
destinations.1 Previous Destination
Up to 50 destinations can be stored.
To cancel the selection of a previous destination,
select the destination again.
Selecting Select All allows you to select all
destinations.
Selecting Deselect All allows you to deselect all
destinations.
Trash icon
15 CIVIC NAVI-31TR38300.book 36 ページ ２０１４年８月７日　木曜日　午前１１時４９分

37
uuPersonal Information uCategory History
System Setup

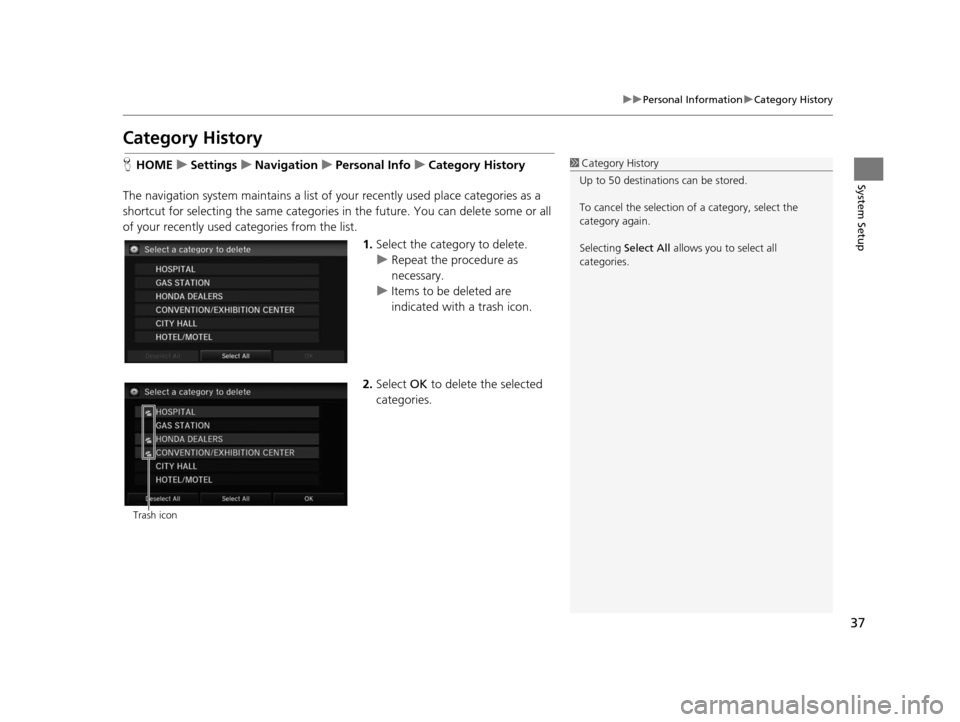

Category Hi story
HHOME uSetting su Navigation uPer sonal Info uCategory Hi story
The navigation system maintains a list of your recently used place categories as a
shortcut for selecting the same categories in the future. You can delete some or all
of your recently used categories from the list.
1.Select the category to delete.
u Repeat the procedure as
necessary.
u Items to be deleted are
indicated with a trash icon.
2. Select OK to delete the selected
categories.1 Category History
Up to 50 destinations can be stored.
To cancel the selection of a category, select the
category again.
Selecting Select All allows you to select all
categories.
Trash icon
15 CIVIC NAVI-31TR38300.book 37 ページ ２０１４年８月７日　木曜日　午前１１時４９分

38
System Setup

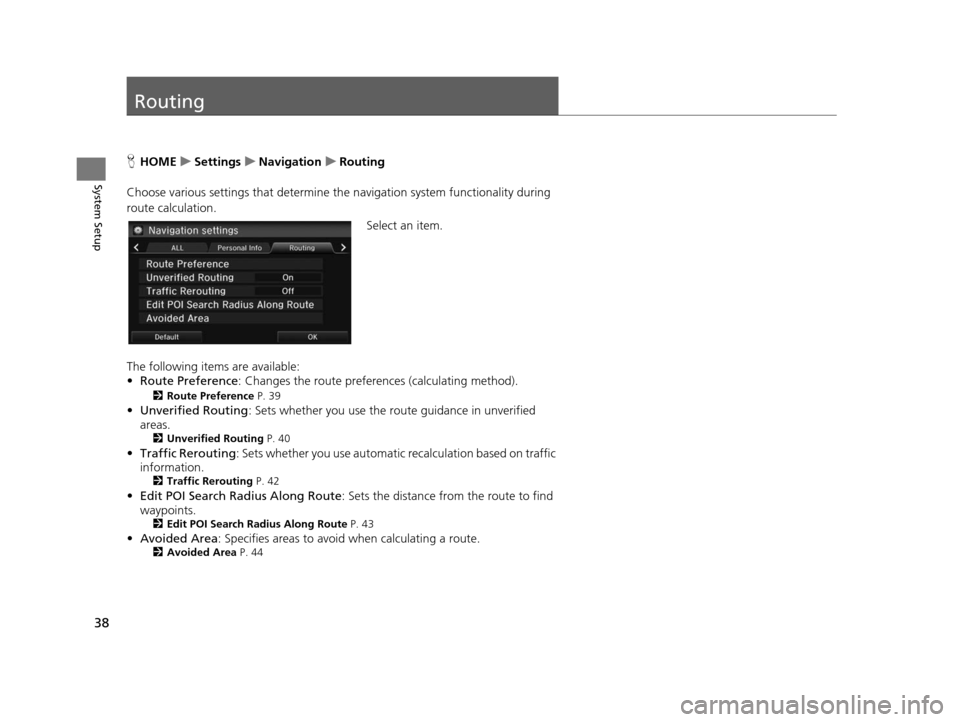

Routing
HHOME uSetting su Navigation uRouting
Choose various settings that determine th e navigation system functionality during
route calculation.
Select an item.
The following items are available:
• Route Preference : Changes the route preferen ces (calculating method).
2Route Preference P. 39
•Unverified Routing : Sets whether you use the route guidance in unverified
areas.
2 Unverified Routing P. 40
•Traffic Rerouting : Sets whether you use automatic recalculation based on traffic
information.
2 Traffic Rerouting P. 42
•Edit POI Search Radius Along Route : Sets the distance from the route to find
waypoints.
2 Edit POI Search Radiu s Along Route P. 43
•Avoided Area : Specifies areas to avoid when calculating a route.2Avoided Area P. 44
15 CIVIC NAVI-31TR38300.book 38 ページ ２０１４年８月７日　木曜日　午前１１時４９分

39
uuRouting uRoute Preference
System Setup

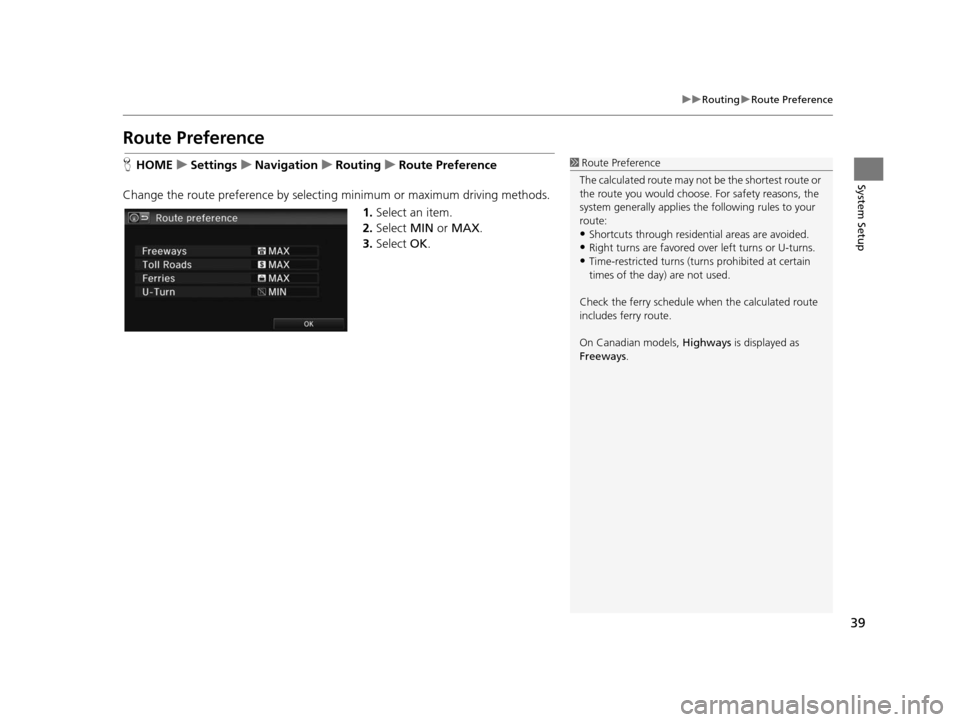

Route Preference
H HOME uSetting su Navigation uRouting uRoute Preference
Change the route preference by selecting minimum or maximum driving methods. 1.Select an item.
2. Select MIN or MAX .
3. Select OK.1Route Preference
The calculated route may not be the shortest route or
the route you would choose. For safety reasons, the
system generally a pplies the following rules to your
route:
•Shortcuts through residential areas are avoided.
•Right turns are favored over left turns or U-turns.•Time-restricted turns (tur ns prohibited at certain
times of the day) are not used.
Check the ferry schedule when the calculated route
includes ferry route.
On Canadian models, Highways is displayed as
Freeways .
15 CIVIC NAVI-31TR38300.book 39 ページ ２０１４年８月７日　木曜日　午前１１時４９分

40
uuRouting uUnverified Routing
System Setup

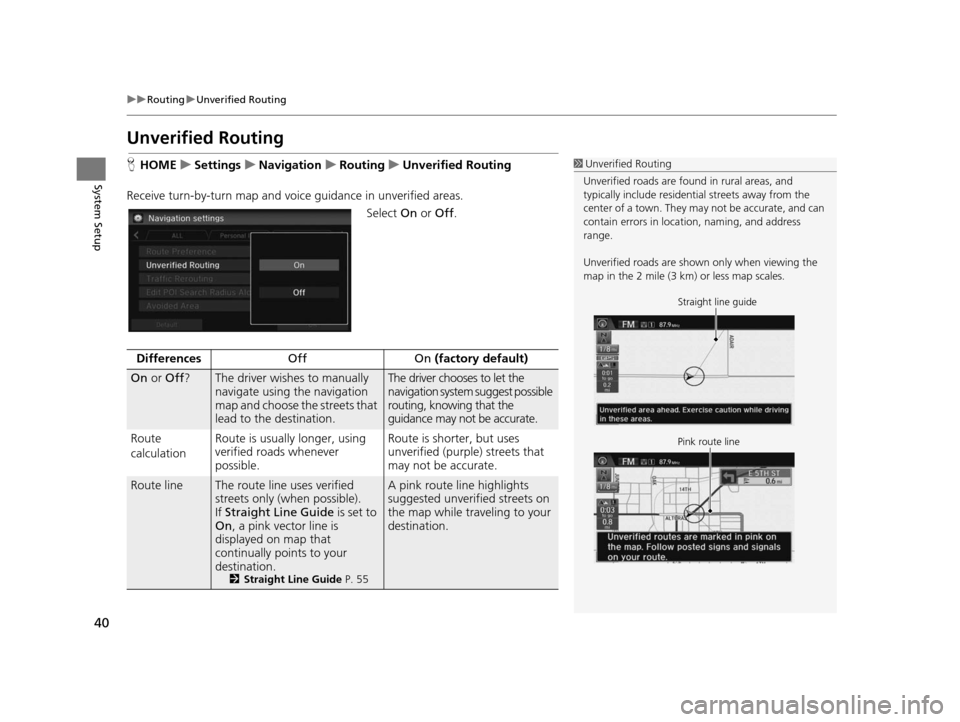

Unverified Routing
H HOME uSetting su Navigation uRouting uUnverified Routing
Receive turn-by-turn map and voice guidance in unverified areas.
Select On or Off .1Unverified Routing
Unverified roads are found in rural areas, and
typically include residentia l streets away from the
center of a town. They ma y not be accurate, and can
contain errors in locati on, naming, and address
range.
Unverified roads are shown only when viewing the
map in the 2 mile (3 km) or less map scales.
Straight line guide
Pink route line
Difference s Off On (factory default)
On or Off ?The driver wishes to manually
navigate using the navigation
map and choose the streets that
lead to the destination.The driver chooses to let the
navigation system suggest possible
routing, knowing that the
guidance may not be accurate.
Route
calculation Route is usually longer, using
verified roads whenever
possible. Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
Route lineThe route line uses verified
streets only (when possible).
If
Straight Line Guide is set to
On , a pink vector line is
displayed on map that
continually points to your
destination.
2 Straight Line Guide P. 55
A pink route line highlights
suggested unverified streets on
the map while traveling to your
destination.
15 CIVIC NAVI-31TR38300.book 40 ページ ２０１４年８月７日　木曜日　午前１１時４９分

42
uuRouting uTraffic Rerouting
System Setup

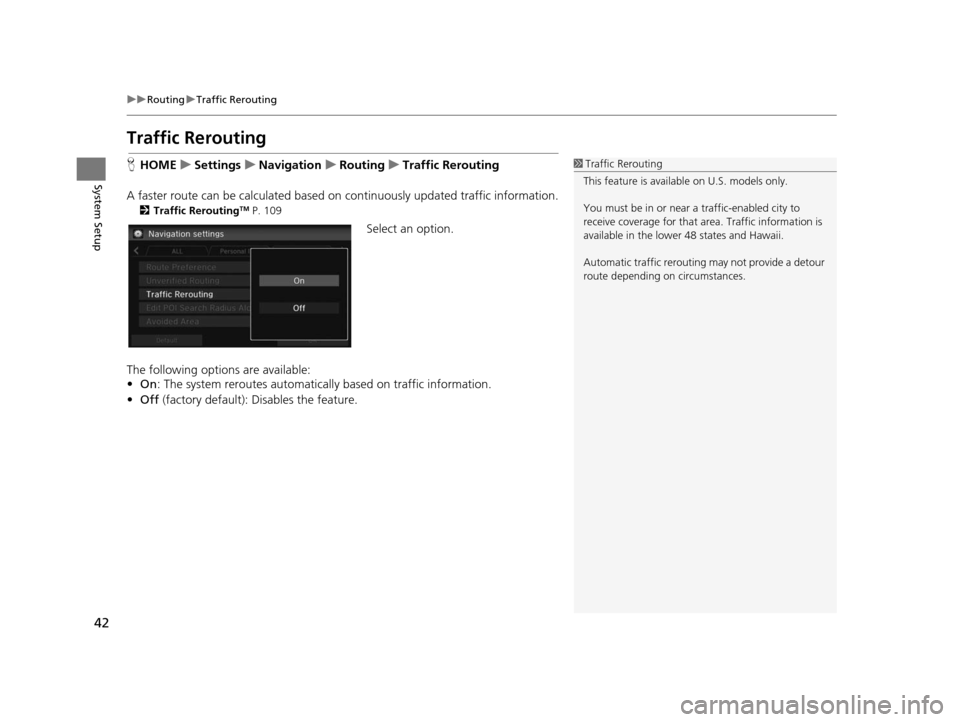

Traffic Rerouting
H HOME uSetting su Navigation uRouting uTraffic Rerouting
A faster route can be calculated based on continuously updated traffic information.
2Traffic ReroutingTM P. 109
Select an option.
The following options are available:
• On : The system reroutes automatica lly based on traffic information.
• Off (factory default): Disables the feature.
1Traffic Rerouting
This feature is availabl e on U.S. models only.
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in the lower 48 states and Hawaii.
Automatic traffic rerouting may not provide a detour
route depending on circumstances.
15 CIVIC NAVI-31TR38300.book 42 ページ ２０１４年８月７日　木曜日　午前１１時４９分

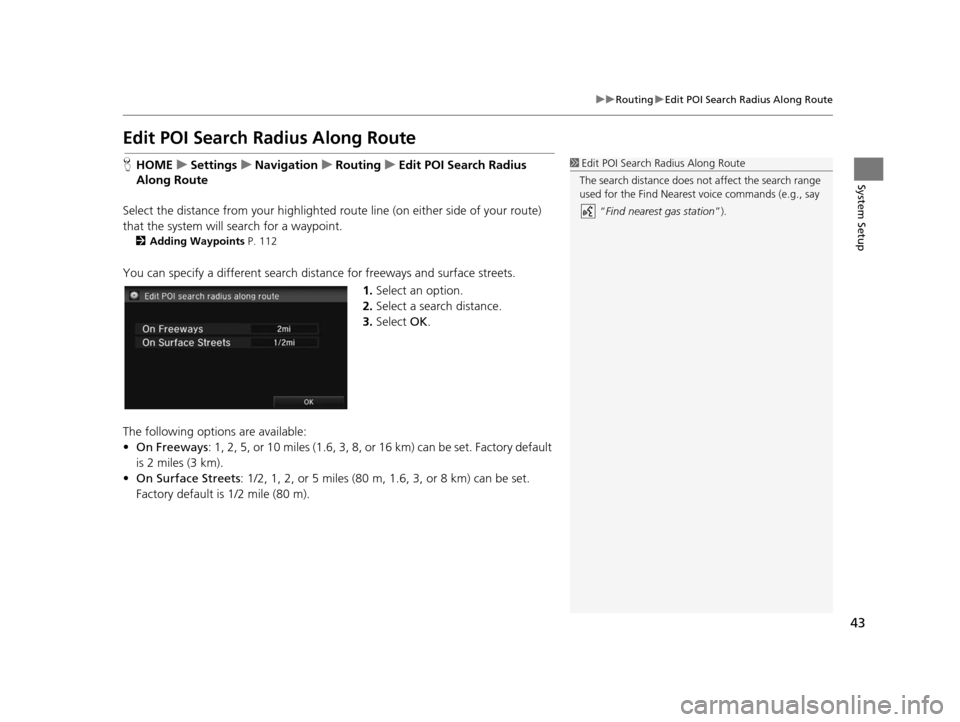

43
uuRouting uEdit POI Search Radius Along Route
System Setup
Edit POI Search Radiu s Along Route
HHOME uSetting su Navigation uRouting uEdit POI Search Radiu s
Along Route
Select the distance from your highlighted ro ute line (on either side of your route)
that the system will search for a waypoint.
2Adding Waypoint s P. 112
You can specify a different search dist ance for freeways and surface streets.
1.Select an option.
2. Select a search distance.
3. Select OK.
The following options are available:
• On Freeways : 1, 2, 5, or 10 miles (1.6, 3, 8, or 16 km) can be set. Factory default
is 2 miles (3 km).
• On Surface Streets : 1/2, 1, 2, or 5 miles (80 m, 1.6, 3, or 8 km) can be set.
Factory default is 1/2 mile (80 m).
1 Edit POI Search Radius Along Route
The search distance does not affect the search range
used for the Find Nearest voice commands (e.g., say
“Find nearest gas station ”).
15 CIVIC NAVI-31TR38300.book 43 ページ ２０１４年８月７日　木曜日　午前１１時４９分

44
uuRouting uAvoided Area
System Setup
Avoided Area
H HOME uSetting su Navigation uRouting uAvoided Area
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates routes to your destination.
1.Select New Area or an existing
area to edit.
2. Select Name to label the area to
avoid.
3. Enter a name or title. Select OK.
4. Select Area to define the area to
avoid.
The following items are availa ble (after an area is set):
• View Area : Displays the selected avoid area on the map.
• Delete: Deletes the selected avoid area.1Avoided Area
The maximum size of an “a void area” is 1/2 square
mile (800 m square).
If your selected area contains a freeway, you are
asked “Would you like to avoid the portion of
the freeway that runs through this area? ”
Selecting No allows you to use a route through an
avoid area on a freeway . The pop-up message
appears when you calculat e the route including the
area.
You can select areas to avoid, however you cannot
select roads or areas that you want the system to use
for routing.
You can enter up to 25 ch aracters for the name.
