Page 41 of 253
40
uuRouting uUnverified Routing
System Setup
Unverified Routing
H HOME uSetting su Navigation uRouting uUnverified Routing
Receive turn-by-turn map and voice guidance in unverified areas.
Select On or Off .1Unverified Routing
Unverified roads are found in rural areas, and
typically include residentia l streets away from the
center of a town. They ma y not be accurate, and can
contain errors in locati on, naming, and address
range.
Unverified roads are shown only when viewing the
map in the 2 mile (3 km) or less map scales.
Straight line guide
Pink route line
Difference s Off On (factory default)
On or Off ?The driver wishes to manually
navigate using the navigation
map and choose the streets that
lead to the destination.The driver chooses to let the
navigation system suggest possible
routing, knowing that the
guidance may not be accurate.
Route
calculation Route is usually longer, using
verified roads whenever
possible. Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
Route lineThe route line uses verified
streets only (when possible).
If
Straight Line Guide is set to
On , a pink vector line is
displayed on map that
continually points to your
destination.
2 Straight Line Guide P. 55
A pink route line highlights
suggested unverified streets on
the map while traveling to your
destination.
15 CIVIC NAVI-31TR38300.book 40 ページ 2014年8月7日 木曜日 午前11時49分

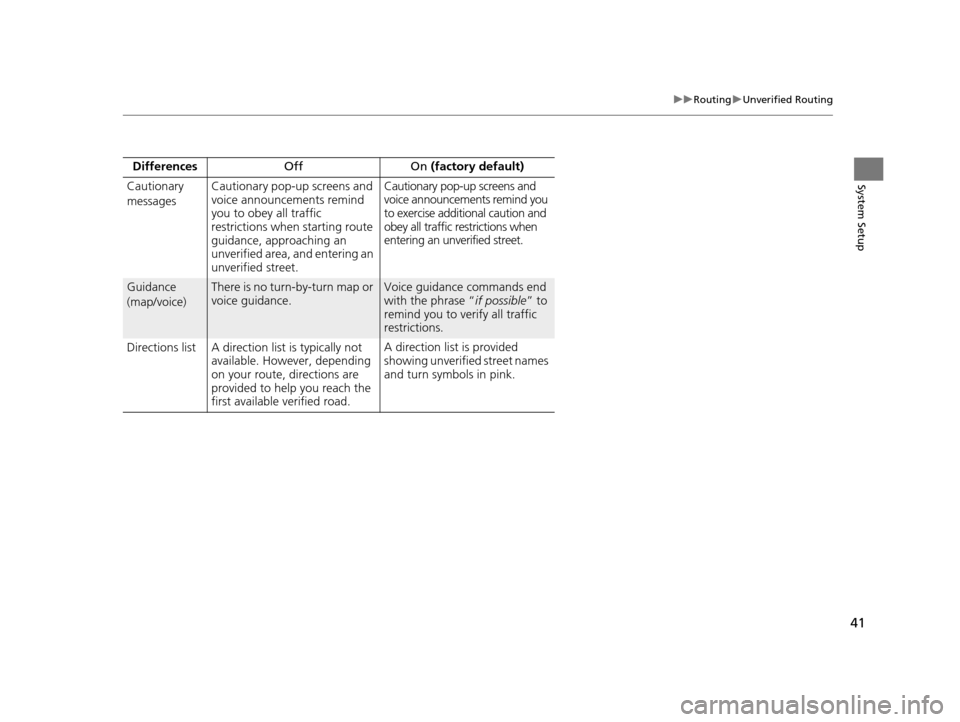

Page 42 of 253
41
uuRouting uUnverified Routing
System SetupCautionary
messages Cautionary pop-up screens and
voice announcements remind
you to obey all traffic
restrictions when starting route
guidance, approaching an
unverified area, and entering an
unverified street. Cautionary pop-up screens and
voice announcements remind you
to exercise additional caution and
obey all traffic restrictions when
entering an unverified street.
Guidance
(map/voice)There is no turn-by-turn map or
voice guidance.Voice guidance commands end
with the phrase “
if possible” to
remind you to verify all traffic
restrictions.
Directions list A direction list is typically not available. However, depending
on your route, directions are
provided to help you reach the
first available verified road. A direction list is provided
showing unverified street names
and turn symbols in pink.
Difference
s Off On (factory default)
15 CIVIC NAVI-31TR38300.book 41 ページ 2014年8月7日 木曜日 午前11時49分
Page 43 of 253
42
uuRouting uTraffic Rerouting
System Setup
Traffic Rerouting
H HOME uSetting su Navigation uRouting uTraffic Rerouting
A faster route can be calculated based on continuously updated traffic information.
2Traffic ReroutingTM P. 109
Select an option.
The following options are available:
• On : The system reroutes automatica lly based on traffic information.
• Off (factory default): Disables the feature.
1Traffic Rerouting
This feature is availabl e on U.S. models only.
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in the lower 48 states and Hawaii.
Automatic traffic rerouting may not provide a detour
route depending on circumstances.
15 CIVIC NAVI-31TR38300.book 42 ページ 2014年8月7日 木曜日 午前11時49分
Page 44 of 253
43
uuRouting uEdit POI Search Radius Along Route
System Setup
Edit POI Search Radiu s Along Route
HHOME uSetting su Navigation uRouting uEdit POI Search Radiu s
Along Route
Select the distance from your highlighted ro ute line (on either side of your route)
that the system will search for a waypoint.
2Adding Waypoint s P. 112
You can specify a different search dist ance for freeways and surface streets.
1.Select an option.
2. Select a search distance.
3. Select OK.
The following options are available:
• On Freeways : 1, 2, 5, or 10 miles (1.6, 3, 8, or 16 km) can be set. Factory default
is 2 miles (3 km).
• On Surface Streets : 1/2, 1, 2, or 5 miles (80 m, 1.6, 3, or 8 km) can be set.
Factory default is 1/2 mile (80 m).
1 Edit POI Search Radius Along Route
The search distance does not affect the search range
used for the Find Nearest voice commands (e.g., say
“Find nearest gas station ”).
15 CIVIC NAVI-31TR38300.book 43 ページ 2014年8月7日 木曜日 午前11時49分
Page 45 of 253
44
uuRouting uAvoided Area
System Setup
Avoided Area
H HOME uSetting su Navigation uRouting uAvoided Area
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates routes to your destination.
1.Select New Area or an existing
area to edit.
2. Select Name to label the area to
avoid.
3. Enter a name or title. Select OK.
4. Select Area to define the area to
avoid.
The following items are availa ble (after an area is set):
• View Area : Displays the selected avoid area on the map.
• Delete: Deletes the selected avoid area.1Avoided Area
The maximum size of an “a void area” is 1/2 square
mile (800 m square).
If your selected area contains a freeway, you are
asked “Would you like to avoid the portion of
the freeway that runs through this area? ”
Selecting No allows you to use a route through an
avoid area on a freeway . The pop-up message
appears when you calculat e the route including the
area.
You can select areas to avoid, however you cannot
select roads or areas that you want the system to use
for routing.
You can enter up to 25 ch aracters for the name.
15 CIVIC NAVI-31TR38300.book 44 ページ 2014年8月7日 木曜日 午前11時49分
Page 46 of 253
45
uuRouting uAvoided Area
System Setup
5. Select a method fo r specifying the
area.
The following items are available:
• Address : Specify the general area by entering an address.
2Addre ss P. 82
•Map Input : Specify the general area by map input.
2Map Input P. 96
6.If you select Map Input, scroll the
map to position the cursor over
your desired area, adjusting the
map scale as necessary. Select OK.
u To redo the area selection,
select BACK.
7. Select or to change the
size of the area you want to avoid.
Select OK.
8. Select OK.
u The area you specify is
displayed in the list of areas to
avoid.
1Avoided Area
The map scale can be change d at 1/4 mile (400 m) or
less.
Avoid area
15 CIVIC NAVI-31TR38300.book 45 ページ 2014年8月7日 木曜日 午前11時49分
Page 47 of 253
46
System Setup
Guidance
HHOME uSetting su Navigation uGuidance
Choose various settings that determine th e navigation system functionality during
route guidance.
Select an item.
The following items are available:
• Guidance Mode : Sets whether to display only the map screen or a split
map/guidance screen.
2 Guidance Mode P. 47
•Enhanced Voice Guidance : Sets whether to read out certain routing points (if
stored in the database) during voice guidance.
On : Voice guidance includes certain routing points.
Off (factory default): Disables the feature.
15 CIVIC NAVI-31TR38300.book 46 ページ 2014年8月7日 木曜日 午前11時49分
Page 48 of 253
47
uuGuidance uGuidance Mode
Continued
System Setup
Guidance Mode
H HOME uSetting su Navigation uGuidance uGuidance Mode
Select the display mode for the map and guidance screens. 1.Select an option.
2. Select OK.
The following items are available:
• 1 (Map) (factory default): Displays only the map screen. When you approach a
guidance point, the next guidance point appears.1 Guidance Mode
The guidance mode can also be selected from the
map menu, or selecti ng the orientation icon.
2 Map Menu P. 105
You can also change the ma p orientation (north-up,
heading-up, or 3D). 2 View (Map Orientation) P. 54
12 3
Near the next
guidance point
Map screen Next Maneuver screen
Next guidance point
15 CIVIC NAVI-31TR38300.book 47 ページ 2014年8月7日 木曜日 午前11時49分
Page 49 of 253
48
uuGuidance uGuidance Mode
System Setup
• 2 (Direction List): Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
• 3 (Next Maneuver): Displays the map and next guidance point simultaneously on
the map screen.
Near the next
guidance point
Direction List screen
Next Maneuver screen
Next guidance point
Guidance direction list
Near the next
guidance point
Next Maneuver screen
Next Maneuver screen
Next guidance point
15 CIVIC NAVI-31TR38300.book 48 ページ 2014年8月7日 木曜日 午前11時49分
Page 50 of 253
49Continued
System Setup
Map
HHOME uSetting su Navigation uMap
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Select an item.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on the Map P. 51
•Color (Day) : Selects the color of the map for the Day mode.
2Color (Day) P. 53
•Color (Night) : Selects the color of th e map for the Night mode.
2Color (Night) P. 53
•View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 54
•3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adju stment P. 55
•Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 55
