HONDA CIVIC COUPE 2016 10.G Owner's Manual

20
Quick Reference Guide

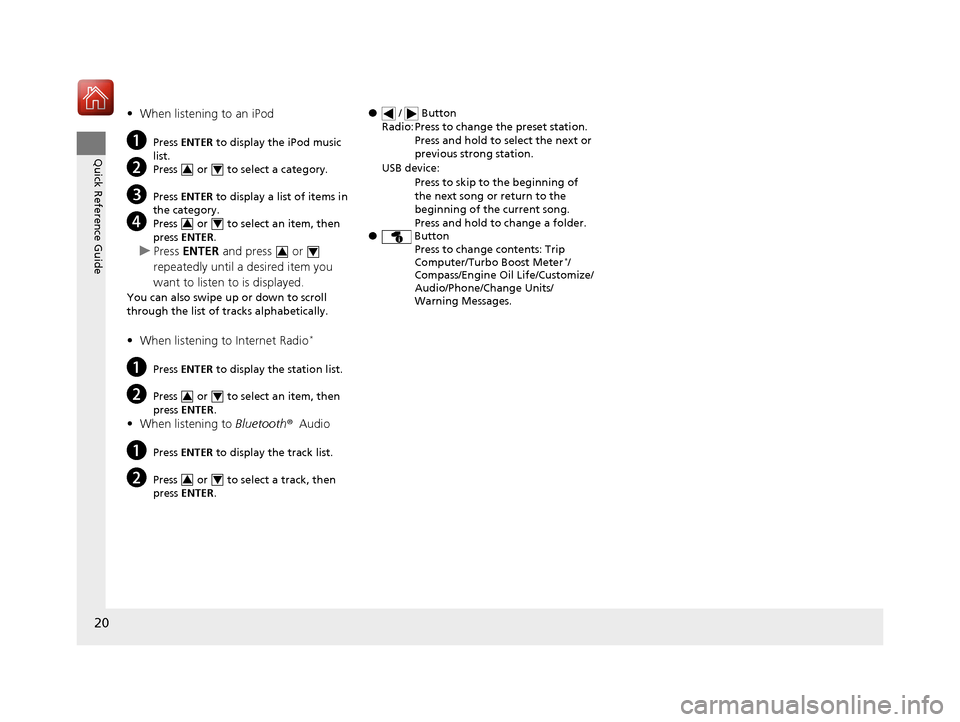

•When listening to an iPod
a Press ENTER to display the iPod music
list.
b Press or to select a category.
c Press ENTER to display a list of items in
the category.
d Press or to select an item, then press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen to is displayed.
You can also swipe up or down to scroll through the list of tra cks alphabetically.
• When listening to Internet Radio *
a Press ENTER to display the station list.
b Press or to select an item, then press ENTER .
• When listening to Bluetooth®Audio
a Press ENTER to display the track list.
b Press or to select a track, then press ENTER .
34
34
34
34
34
● / Button
● Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Press to change contents: Trip
Computer/Turbo Boost Meter *
/
Compass/Engine Oil Life/Customize/
Audio/Phone/Change Units/
Warning Messages.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 20 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

21
Quick Reference Guide

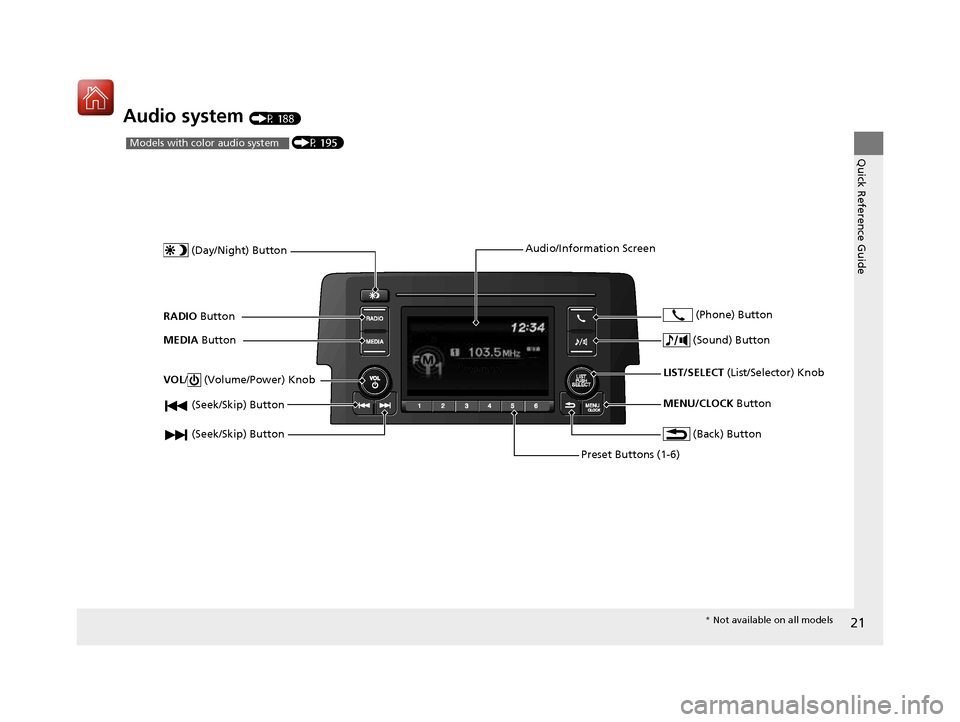

Audio system (P 188)
(P 195)Models with color audio system
(Seek/Skip) Button
RADIO Button
(Day/Night) Button
MEDIA Button
Preset Buttons (1-6)
(Seek/Skip) Button
VOL
/ (Volume/Power) Knob
Audio/Information Screen
(Back) Button
(Sound) Button
MENU/CLOCK Button
LIST/SELECT
(List/Selector) Knob
(Phone) Button
*
Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 21 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

22
Quick Reference Guide

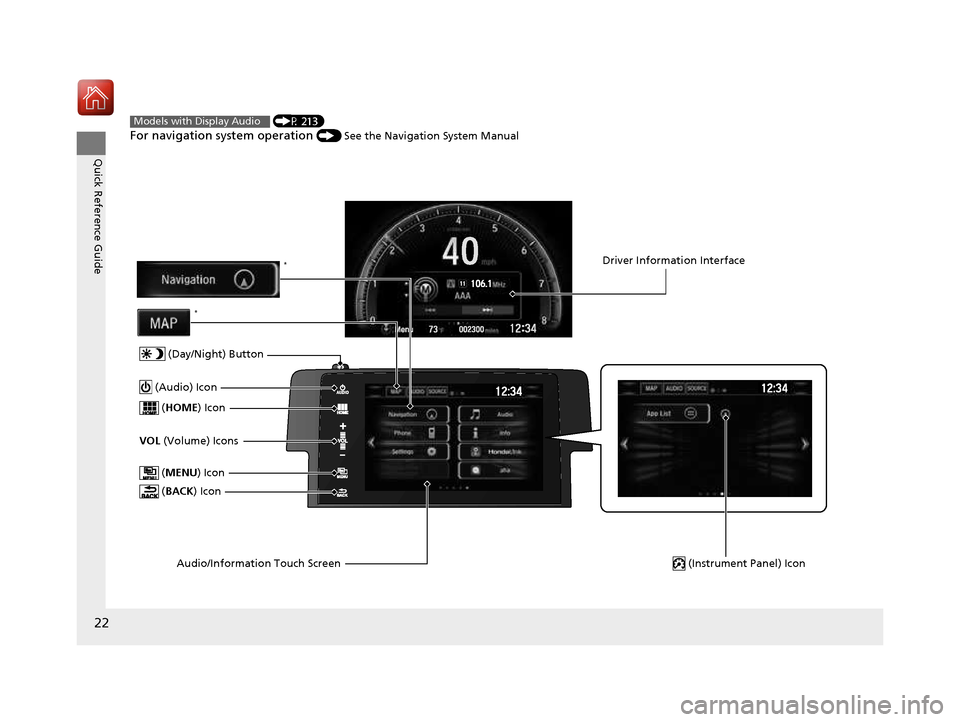

Menu
(P 213)
For navigation system operation () See the Navigation System ManualModels with Display Audio
(MENU ) Icon
VOL (Volume) Icons
(
HOME ) Icon
(BACK ) Icon
Audio/Information Touch Screen
(Audio) Icon
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
*
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 22 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

23
Quick Reference Guide

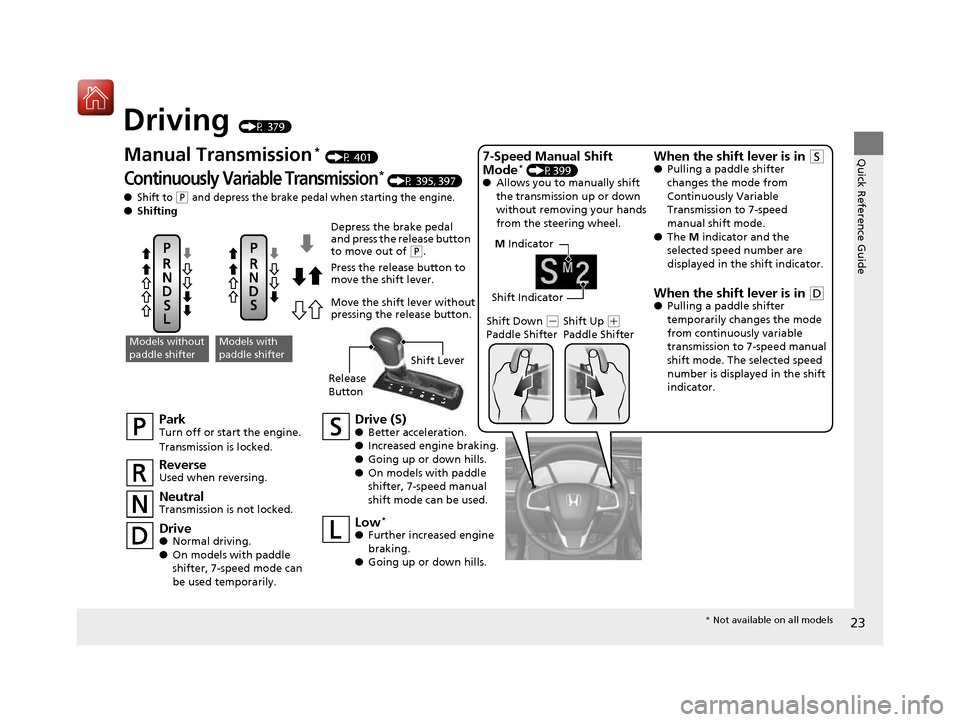

Driving (P 379)
M Indicator
Shift Indicator
Park
Turn off or start the engine.
Transmission is locked. Neutral
Transmission is not locked. Drive (S)●
Better acceleration.
● Increased engine braking.
● Going up or down hills.
● On models with paddle
shifter, 7-speed manual
shift mode can be used.
Models without
paddle shifterModels with
paddle shifter
Depress the brake pedal
and press the release button
to move out of
(P.
Press the release button to
move the shift lever.
Move the shift lever without
pressing the release button.
Reverse
Used when reversing. Drive ● Normal driving.
● On models with paddle
shifter, 7-speed mode can
be used temporarily. Low
*
● Further increased engine
braking.
● Going up or down hills. Shift Down
(-

Paddle Shifter Shift Up (+

Paddle Shifter
7-Speed Manual Shift Mode
*
(P399)
● Allows you to manually shift
the transmission up or down
without removing your hands
from the steering wheel.
When the shift lever is in (S
● Pulling a paddle shifter
changes the mode from
Continuously Variable Transmission to 7-speed manual shift mode.
● The M indicator and the
selected speed number are
displayed in the shift indicator.
When the shift lever is in
(D
● Pulling a paddle shifter
temporarily changes the mode
from continuously variable
transmission to 7-speed manual
shift mode. The selected speed
number is displayed in the shift indicator.
Manual Transmission
*
(P 401)
Continuously Variable Transmission* (P 395, 397)
●Shift to (P and depress the brake pedal when starting the engine.
● Shifting
Release Button Shift Lever
*
Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 23 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

24
Quick Reference Guide

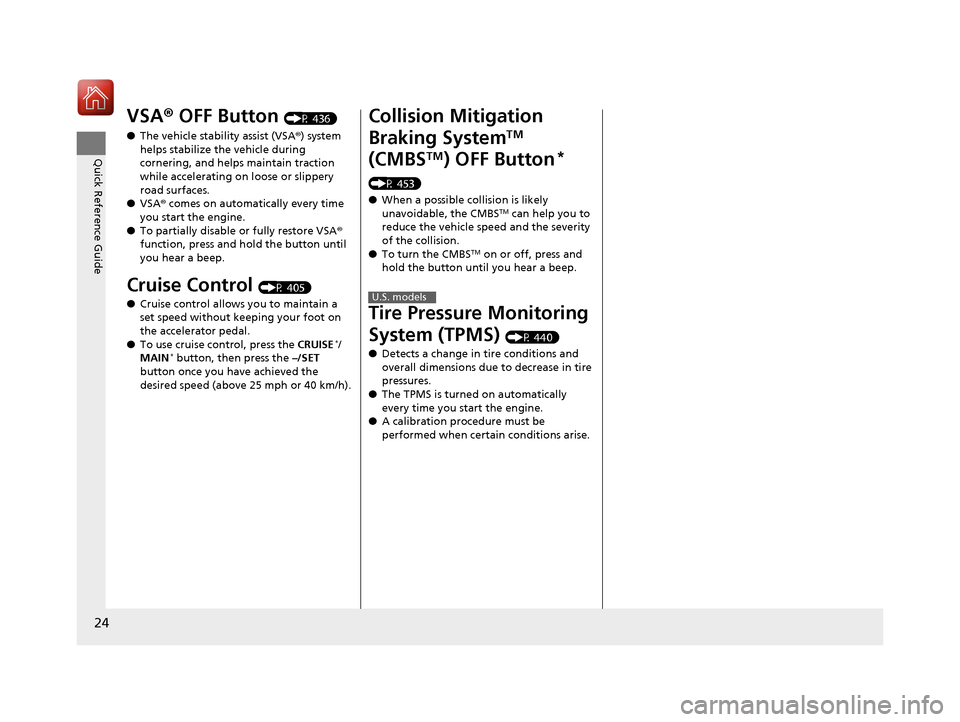

VSA® OFF Button (P 436)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
Cruise Control (P 405)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE*
/
MAIN *
button, then press the –/SET
button once you have achieved the
desired speed (above 25 mph or 40 km/h). Collision Mitigation
Braking System
TM

(CMBS TM
) OFF Button *

(P 453) ● When a possible collision is likely
unavoidable, the CMBS TM
can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS TM
on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring System (TPMS) (P 440)
● Detects a change in tire conditions and
overall dimensions due to decrease in tire pressures.
● The TPMS is turned on automatically
every time you start the engine.
● A calibration procedure must be
performed when certain conditions arise.
U.S. models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 24 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

25
Quick Reference Guide

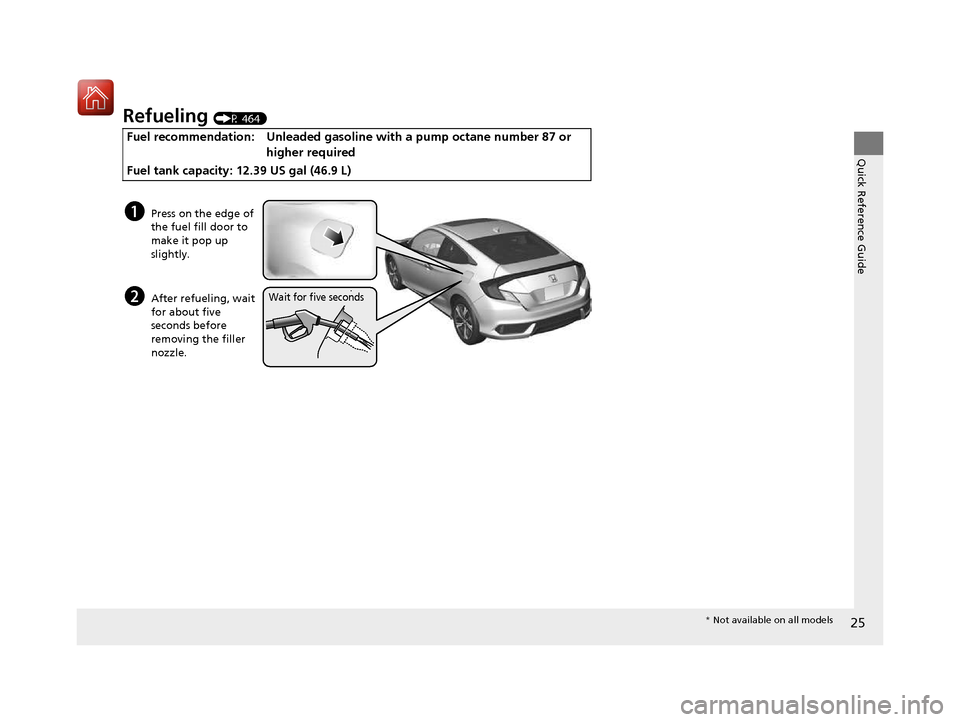

Refueling (P 464)
Fuel recommendation: Unleaded gasoline with a pump octane number 87 or
higher required
Fuel tank capacity: 12.39 US gal (46.9 L)
a Press on the edge of
the fuel fill door to
make it pop up
slightly.
b After refueling, wait for about five
seconds before
removing the filler
nozzle.
Wait for five seconds
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 25 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

26
Quick Reference Guide

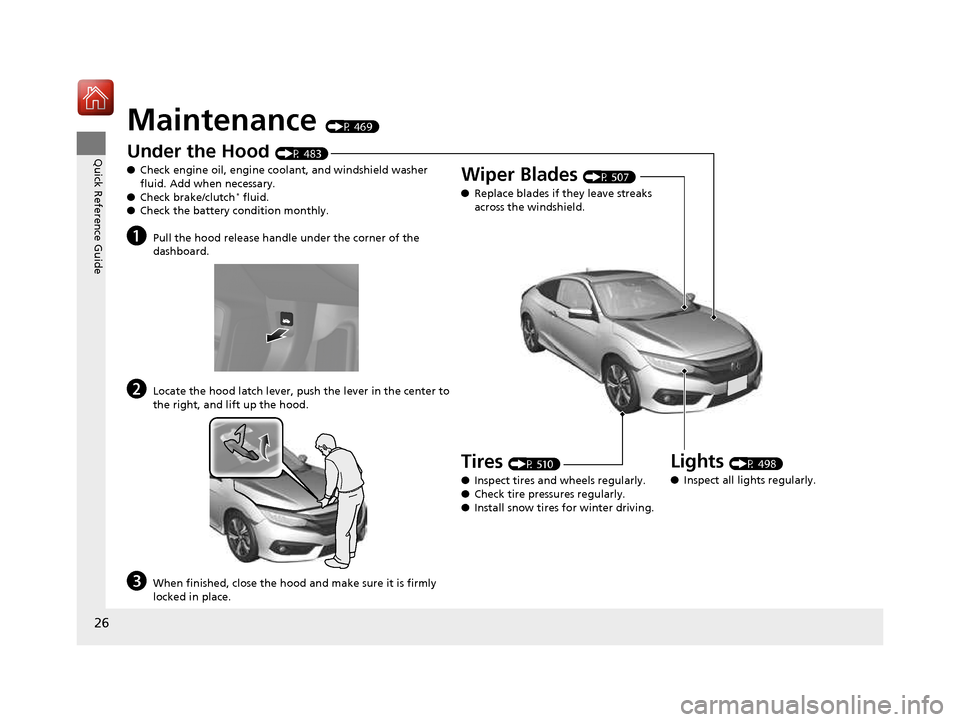

Maintenance (P 469)
Under the Hood (P 483)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake/clutch *
fluid.
● Check the battery condition monthly.
a Pull the hood release handle under the corner of the
dashboard.
b Locate the hood latch lever, pus h the lever in the center to
the right, and lift up the hood.
c When finished, close the hood and make sure it is firmly
locked in place.
Lights (P 498)
● Inspect all lights regularly.
Wiper Blades
(P 507)
● Replace blades if they leave streaks
across the windshield.
Tires (P 510)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 26 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

Quick Reference Guide
27

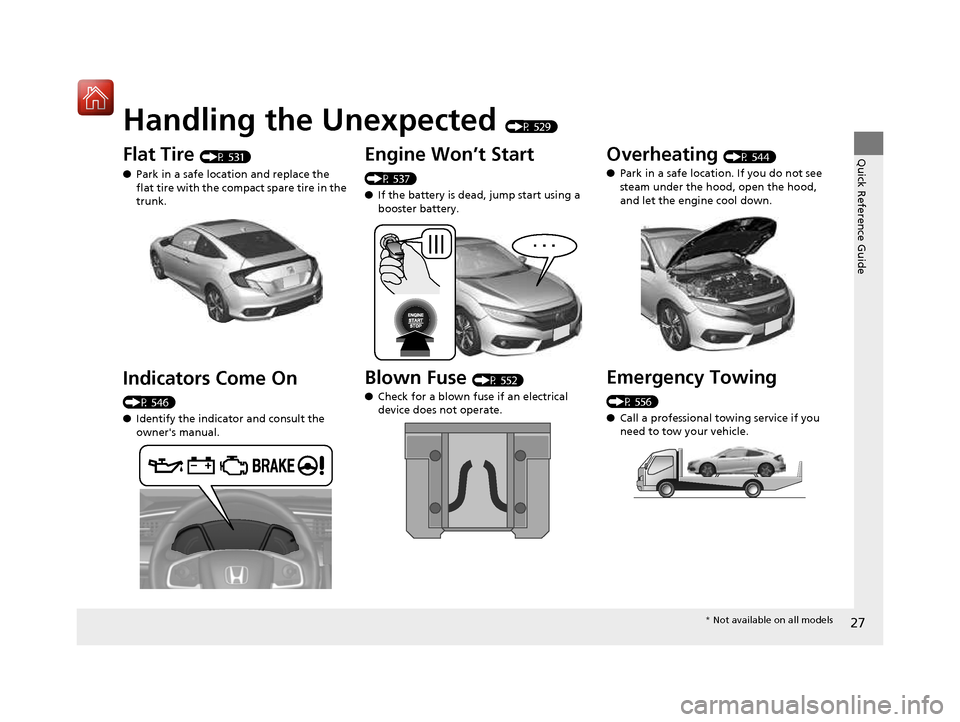

Handling the Unexpected
(P 529)
Flat Tire (P 531)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P 546) ● Identify the indica tor and consult the
owner's manual.
Engine Won’t Start
(P 537) ● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 552)
● Check for a blown fuse if an electrical
device does not operate.Overheating (P 544)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 556) ● Call a professional towing service if you
need to tow your vehicle.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 27 ページ >0>.>/６年>0月>/>0日　金 曜日　午後４時>/６分

28
Quick Reference Guide

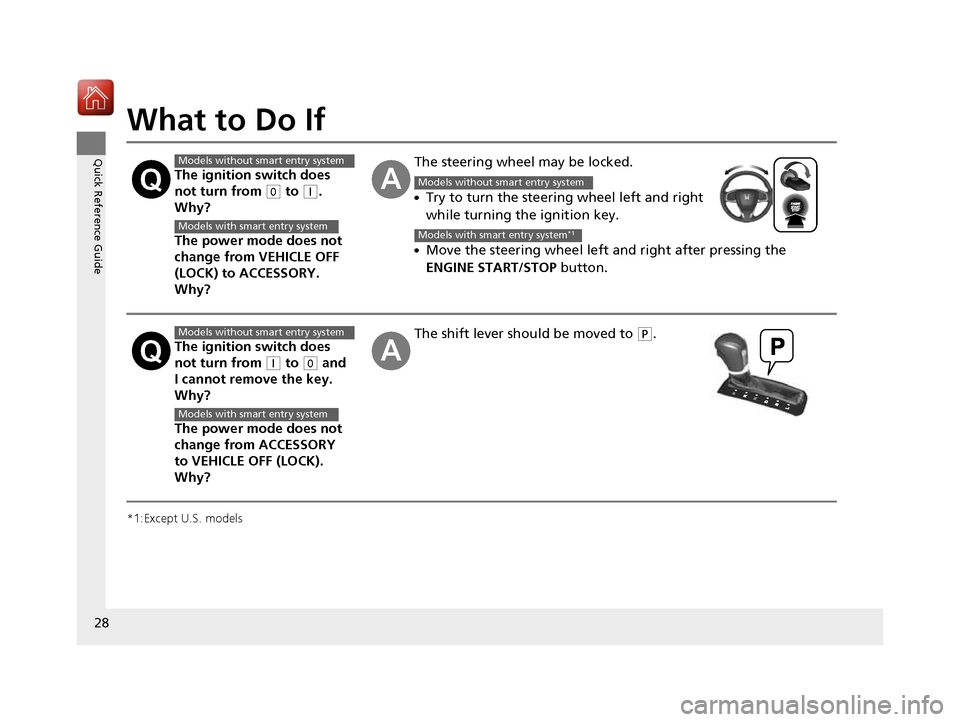

What to Do If
*1:Except U.S. models
The ignition switch does
not turn from
(0 to (q .
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked. ● Try to turn the steering wheel left and right
while turning the ignition key.
● Move the steering wheel left and right after pressing the
ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P .
Models without smart entry system
Models with smart entry system
Models without smart entry system
Models with smart entry system *1
Models without smart entry system
Models with smart entry system
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 28 ページ >0>.>/６年>0月>/>0日　金
曜日　午後４時>/６分

29
Quick Reference Guide

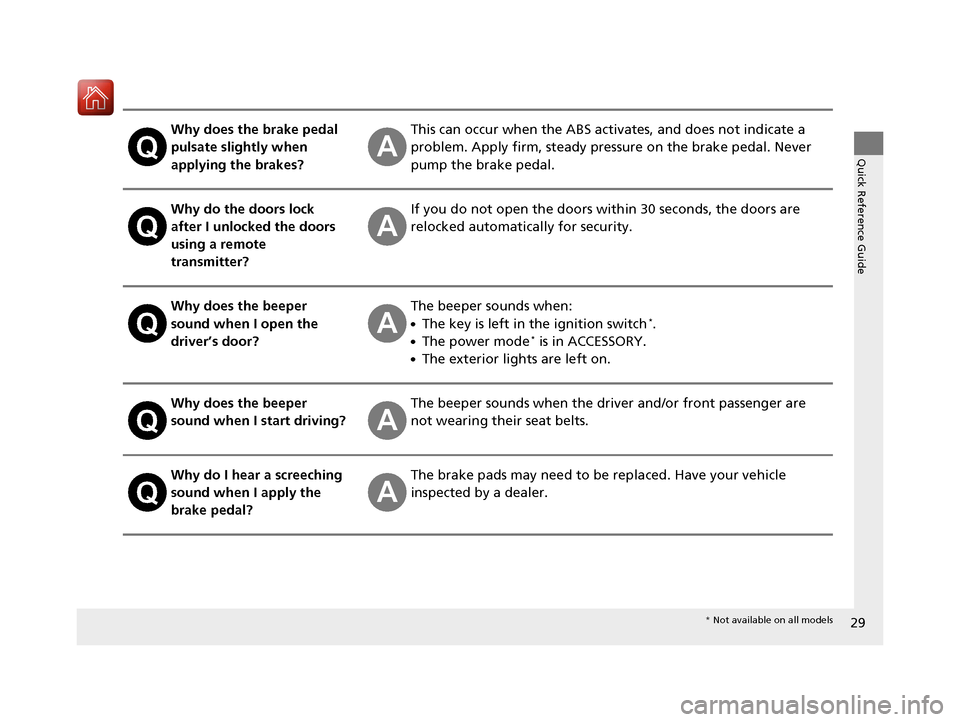

Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
Why do the doors lock
after I unlocked the doors using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when: ●The key is left in the ignition switch *
.
● The power mode *
is in ACCESSORY.
● The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
* Not available on all models
