HONDA CIVIC COUPE 2016 10.G Owners Manual

320

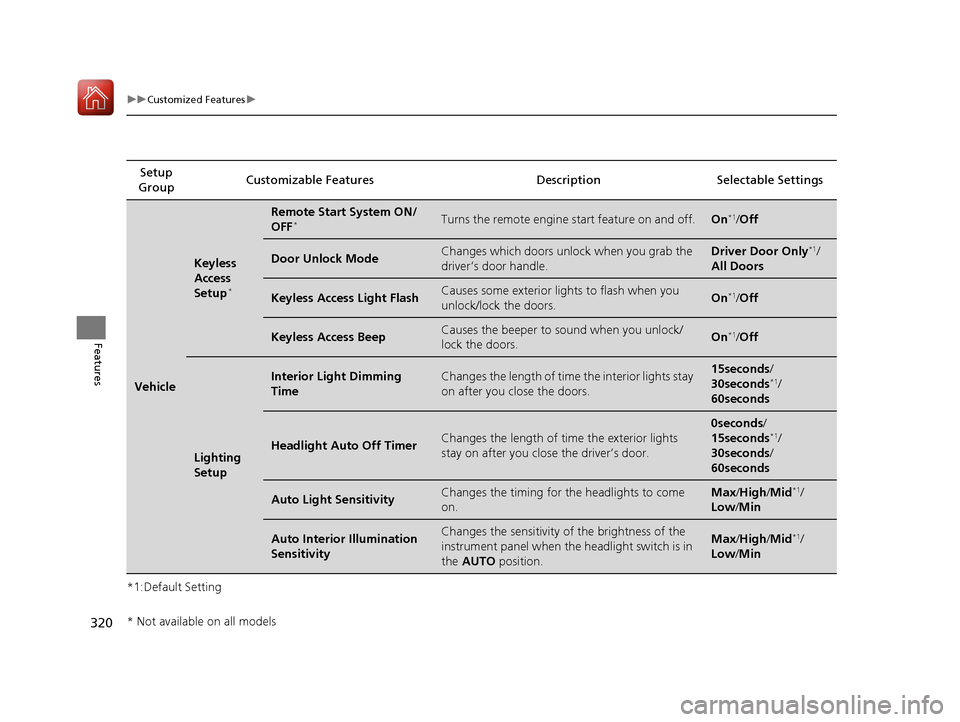

uuCustomized Featuresu
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Keyless
Access
Setup*
Remote Start System ON/ OFF
*Turns the remote engine start feature on and off.On*1
/Off
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only *1
/
All Doors
Keyless Access Light FlashCauses some exterior lights to flash when you
unlock/lock the doors.On *1
/Off
Keyless Access BeepCauses the beeper to sound when you unlock/
lock the doors.On *1
/Off
Lighting
Setup
Interior Light Dimming TimeChanges the length of time the interior lights stay
on after you close the doors.15seconds /
30seconds *1
/
60seconds
Headlight Auto Off TimerChanges the length of ti me the exterior lights
stay on after you close the driver’s door.
0seconds /
15seconds *1
/
30seconds /
60seconds
Auto Light SensitivityChanges the timing for the headlights to come
on.Max /High /Mid *1
/
Low /Min
Auto Interior Illumination SensitivityChanges the sensitivity of the brightness of the
instrument panel when the headlight switch is in
the AUTO position.Max/High /Mid *1
/
Low /Min
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 320 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

321
uuCustomized Featuresu
Features
*1:Default Setting
*2:Continuously variable transmission modelsSetup

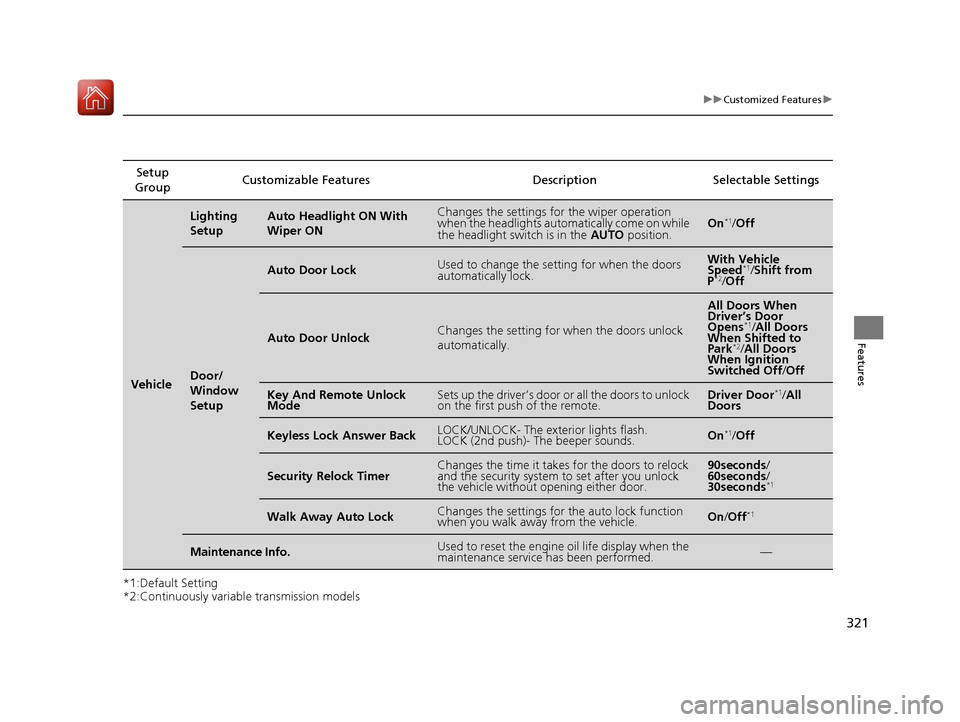

Group Customizable Features Description Selectable Settings
Vehicle
Lighting
SetupAuto Headlight ON With Wiper ONChanges the settings for the wiper operation
when the headlights automa
tically come on while
the headlight switch is in the AUTO position.On*1
/Off
Door/
Window
Setup
Auto Door LockUsed to change the sett ing for when the doors
automatically lock.With Vehicle
Speed *1
/Shift from
P *2
/Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When
Driver’s Door
Opens *1
/All Doors
When Shifted to Park *2
/All Doors
When Ignition
Switched Off /Off
Key And Remote Unlock
ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door *1
/All
Doors
Keyless Lock Answer BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On *1
/Off
Security Relock TimerChanges the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening either door.90seconds /
60seconds /
30seconds *1
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.On
/Off *1
Maintenance Info.Used to reset the engine
oil life display when the
maintenance service has been performed.—
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 321 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

322
uuCustomized FeaturesuDefaulting All the Settings
Features

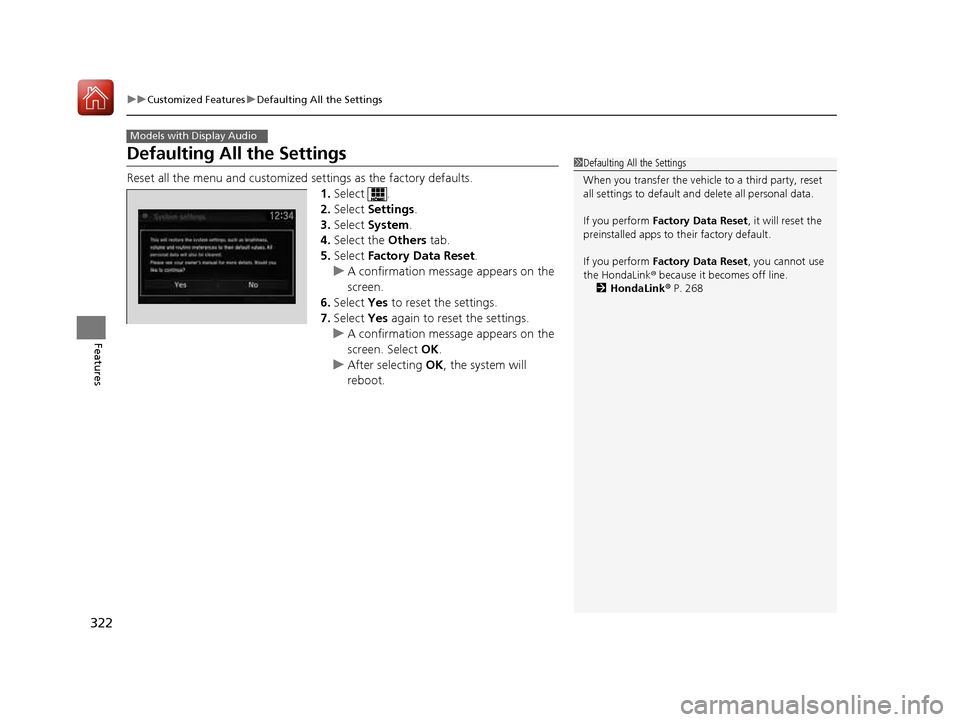

Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Factory Data Reset .
uA confirmation message appears on the screen.
6. Select Yes to reset the settings.
7. Select Yes again to reset the settings.
uA confirmation message appears on the
screen. Select OK.
uAfter selecting OK, the system will
reboot.
Models with Display Audio
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink ® P. 268
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 322 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

323
Continued
Features

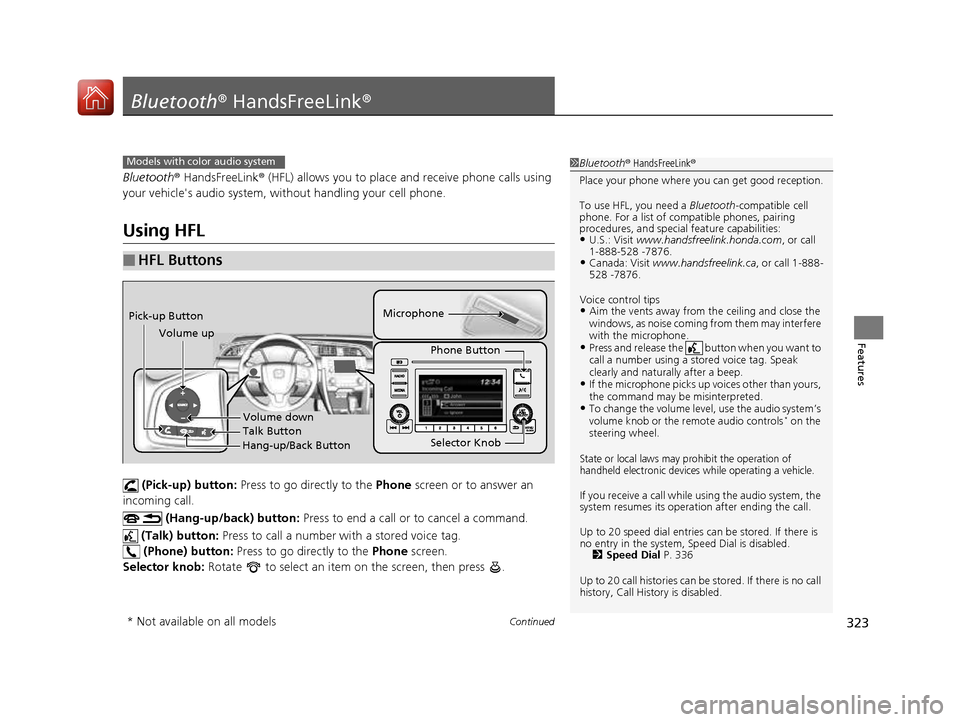

Bluetooth
® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle's audio system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go directly to the Phone screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call or to cancel a command.
(Talk) button: Press to call a number with a stored voice tag.
(Phone) button: Press to go directly to the Phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■HFL Buttons
1Bluetooth® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528 -7876.
• Canada: Visit www.handsfreelink.ca , or call 1-888-
528 -7876.
Voice control tips
• Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
• Press and release the button when you want to call a number using a st ored voice tag. Speak
clearly and naturally after a beep.
• If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, use the audio system’s
volume knob or the remote audio controls *
on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devices while operating a vehicle.
If you receive a call while using the audio system, the
system resumes its operati on after ending the call.
Up to 20 speed dial entries can be stored. If there is
no entry in the system, Speed Dial is disabled. 2 Speed Dial P. 336
Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.
Models with color audio system
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up Button
Volume down
Selector Knob
Phone Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 323 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uUsing HFL
324
Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or i noperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped. Only previously stored speed dial entries can be called using voice commands while
the vehicle is in motion. 2 Speed Dial P. 336

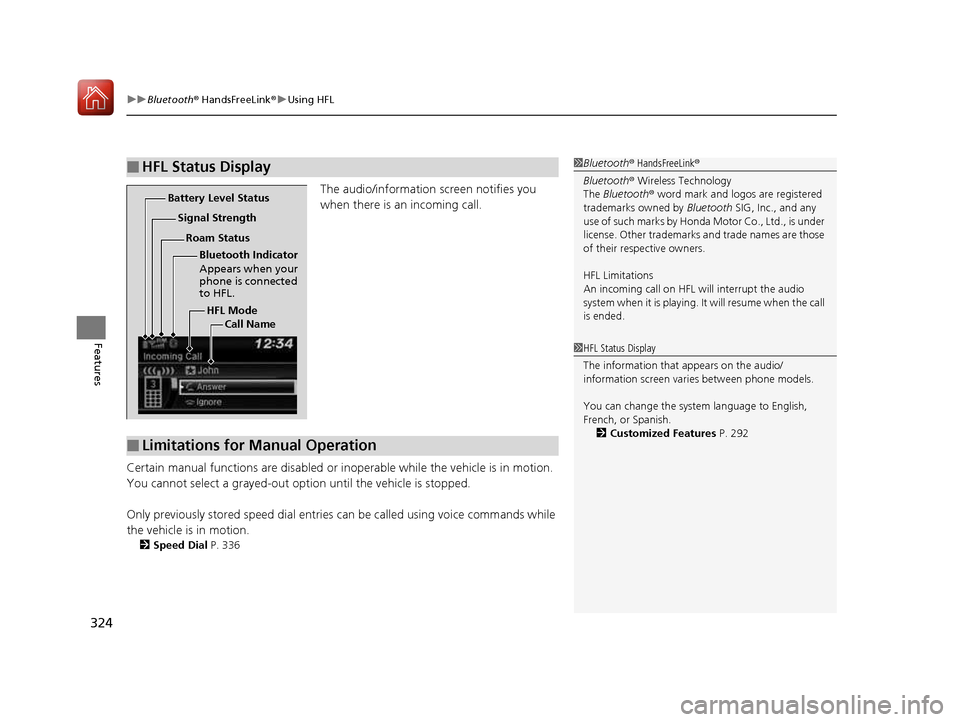

■HFL Status Display1Bluetooth® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call is ended.
HFL Mode
Battery Level Status
Signal Strength
Bluetooth Indicator
Appears when your
phone is connected
to HFL.
Roam Status
Call Name
■Limitations for Manual Operation
1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language to English,
French, or Spanish. 2 Customized Features P. 292
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 324 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

325
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features

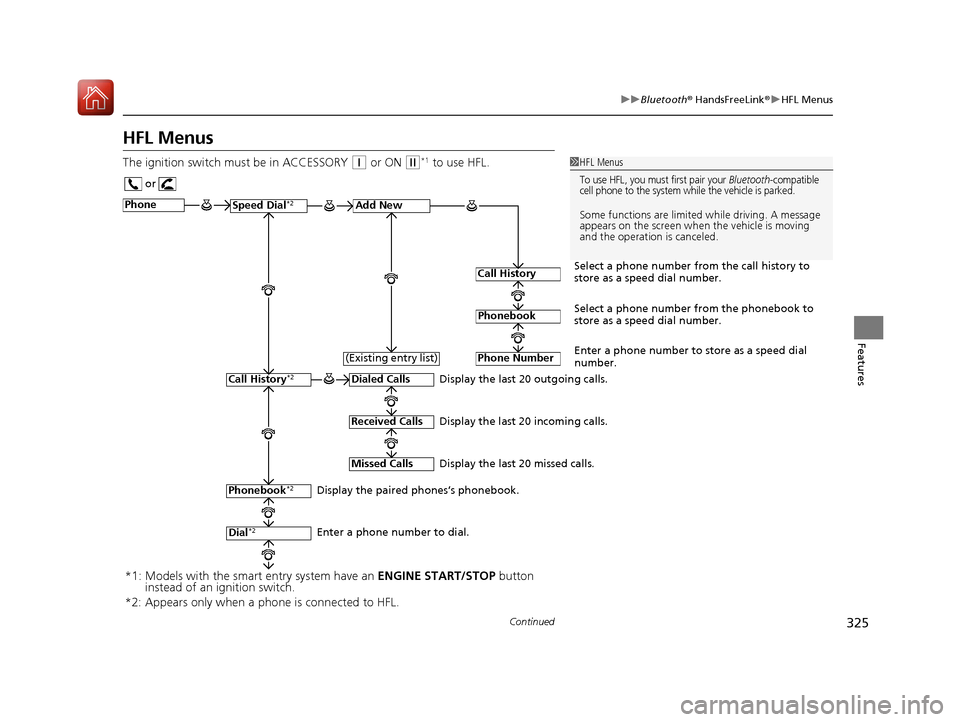

HFL Menus
The ignition switch mu st be in ACCESSORY
(q or ON (w*1
to use HFL.1HFL Menus
To use HFL, you must first pair your Bluetooth-compatible
cell phone to the system while the vehicle is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
or
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
Phone
Speed Dial
*2Add New
Select a phone number from the call history to
store as a speed dial number.
Call History
PhonebookSelect a phone number from the phonebook to
store as a speed dial number.
Phone Number
Enter a phone number to store as a speed dial
number.
Dialed Calls
Received Calls
Missed Calls
Phonebook *2
Dial*2
Call History *2
Display the paired phones’s phonebook.
Enter a phone number to dial.(Existing entry list)
*1: Models with the smart entry system have an
ENGINE START/STOP button
instead of an ignition switch.
*2: Appears only when a pho ne is connected to HFL.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 325 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

326
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

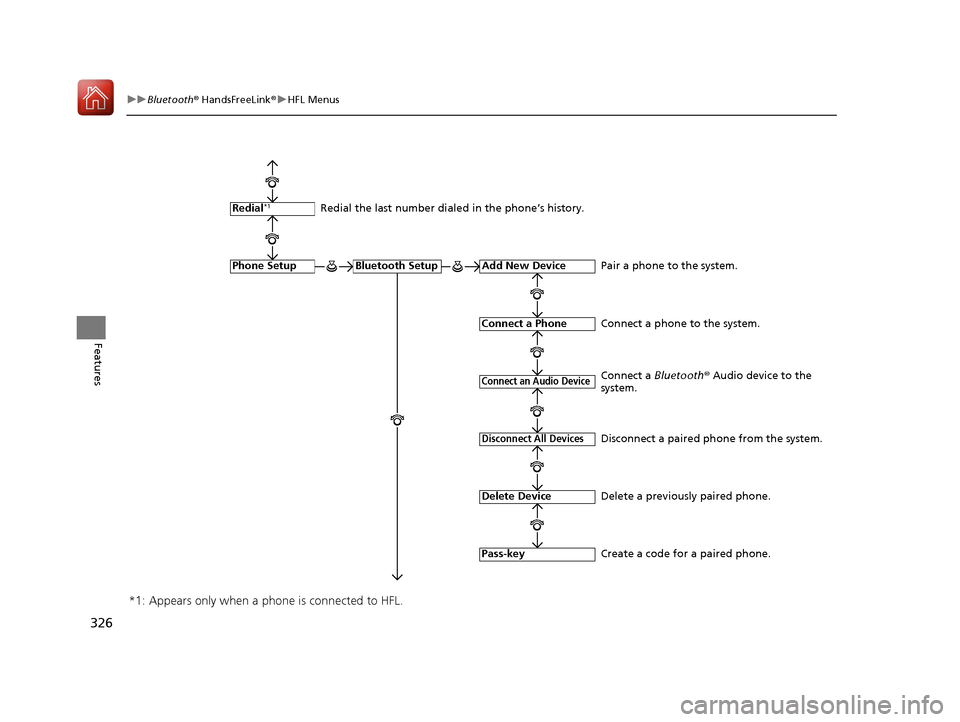

Redial the last number dialed in the phone’s history.
Add New Device
Connect a Phone
Connect an Audio Device
Bluetooth SetupPhone Setup
Redial*1
Pair a phone to the system.
Connect a phone to the system.
Create a code for a paired phone.
Disconnect All Devices
Delete Device
Pass-key
Disconnect a paired phone from the system.
Delete a previously paired phone.
Connect a
Bluetooth® Audio device to the
system.
*1: Appears only when a pho ne is connected to HFL.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 326 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

327
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features

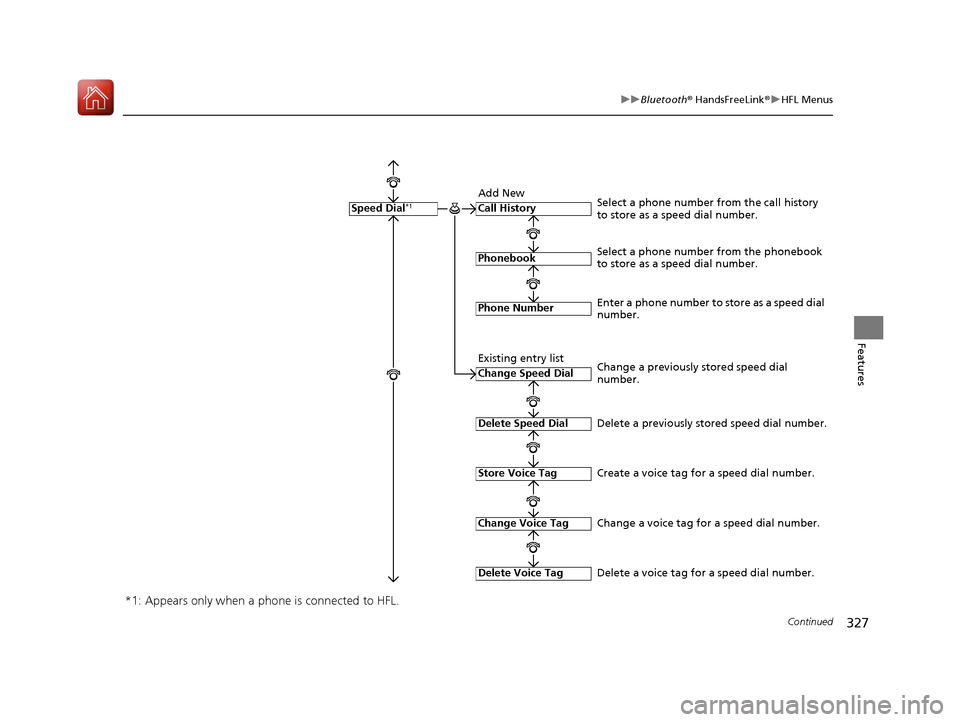

Call History
Phonebook
Phone Number
Speed Dial*1
Select a phone number from the phonebook
to store as a speed dial number.
Select a phone number from the call history
to store as a speed dial number.
Create a voice tag for a speed dial number.
Change Speed Dial
Delete Speed Dial
Store Voice Tag
Enter a phone number to store as a speed dial
number.
Delete a previously stored speed dial number.
Change Voice Tag
Delete Voice Tag
Change a previously stored speed dial
number.
Change a voice tag for a speed dial number.
Delete a voice tag for a speed dial number.
Add New
Existing entry list
*1: Appears only when a pho
ne is connected to HFL.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 327 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

328
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

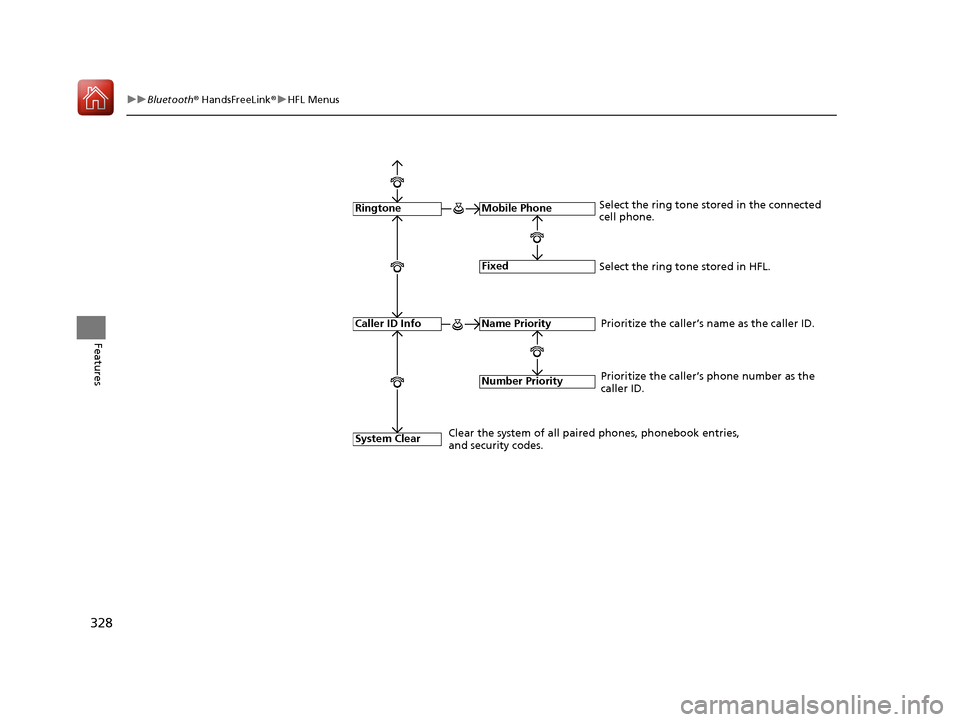

Fixed
Mobile Phone
System Clear
RingtoneSelect the ring tone stored in the connected
cell phone.
Name Priority
Number Priority
Caller ID InfoPrioritize the caller’s name as the caller ID.
Clear the system of all paired phones, phonebook entries,
and security codes. Prioritize the caller’s phone number as the caller ID.
Select the ring tone stored in HFL.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 328 ページ >0>.>/６年>0月>/>0日　
金曜日　午後４時>/６分

Continued329
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

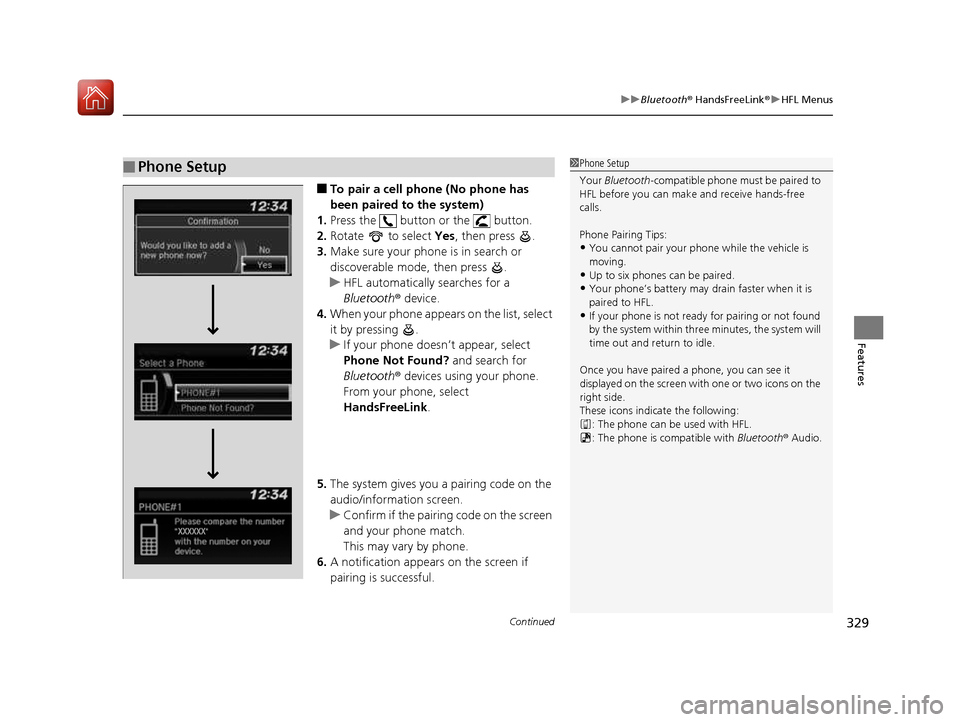

■To pair a cell phone (No phone has
been paired to the system)
1. Press the button or the button.
2. Rotate to select Yes, then press .
3. Make sure your phone is in search or
discoverable mode, then press .
uHFL automatically searches for a
Bluetooth ® device.
4. When your phone appears on the list, select
it by pressing .
uIf your phone doesn’t appear, select
Phone Not Found? and search for
Bluetooth ® devices using your phone.
From your phone, select
HandsFreeLink .
5. The system gives you a pairing code on the audio/information screen.
uConfirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
■Phone Setup1Phone Setup Your Bluetooth -compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Pairing Tips: • You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone’s battery may dr ain faster when it is
paired to HFL.
• If your phone is not ready for pairing or not found
by the system within three minutes, the system will time out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the right side.
These icons indicate the following: : The phone can be used with HFL.
: The phone is compatible with Bluetooth® Audio.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 329 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分
