HONDA CIVIC COUPE 2016 10.G Owners Manual

uuBluetooth® HandsFreeLink ®uHFL Menus
340
Features
You can make calls by inpu tting any phone number, or by using the imported
phonebook, call history, speed dial entries, or redial.
■Making a Call1Making a Call
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
The maximum range be tween your phone and
vehicles is 30 fe et (10 meters).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 340 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued341
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

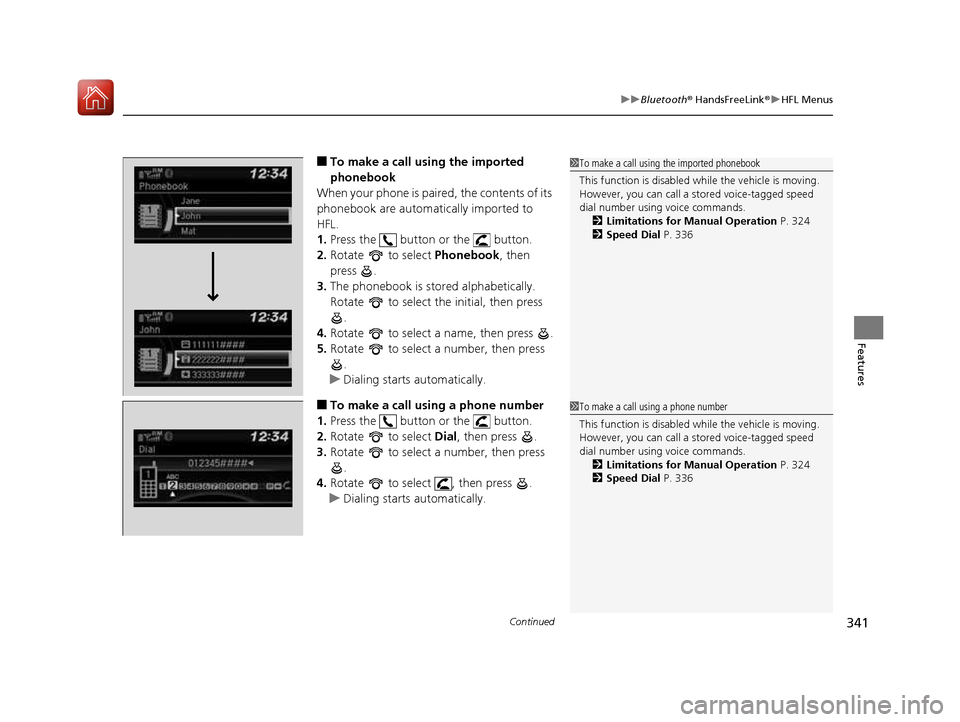

■To make a call us ing the imported
phonebook
When your phone is paired, the contents of its
phonebook are automatically imported to HFL. 1. Press the button or the button.
2. Rotate to select Phonebook, then
press .
3. The phonebook is stored alphabetically.
Rotate to select the initial, then press
.
4. Rotate to select a name, then press .
5. Rotate to select a number, then press
.
uDialing starts automatically.
■ To make a call using a phone number
1. Press the button or the button.
2. Rotate to select Dial, then press .
3. Rotate to select a number, then press
.
4. Rotate to select , then press .
uDialing starts automatically.
1To make a call using the imported phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands.
2 Limitations for Manual Operation P. 324
2 Speed Dial P. 336
1To make a call using a phone number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number using voice commands. 2 Limitations for Manual Operation P. 324
2 Speed Dial P. 336
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 341 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uHFL Menus
342
Features

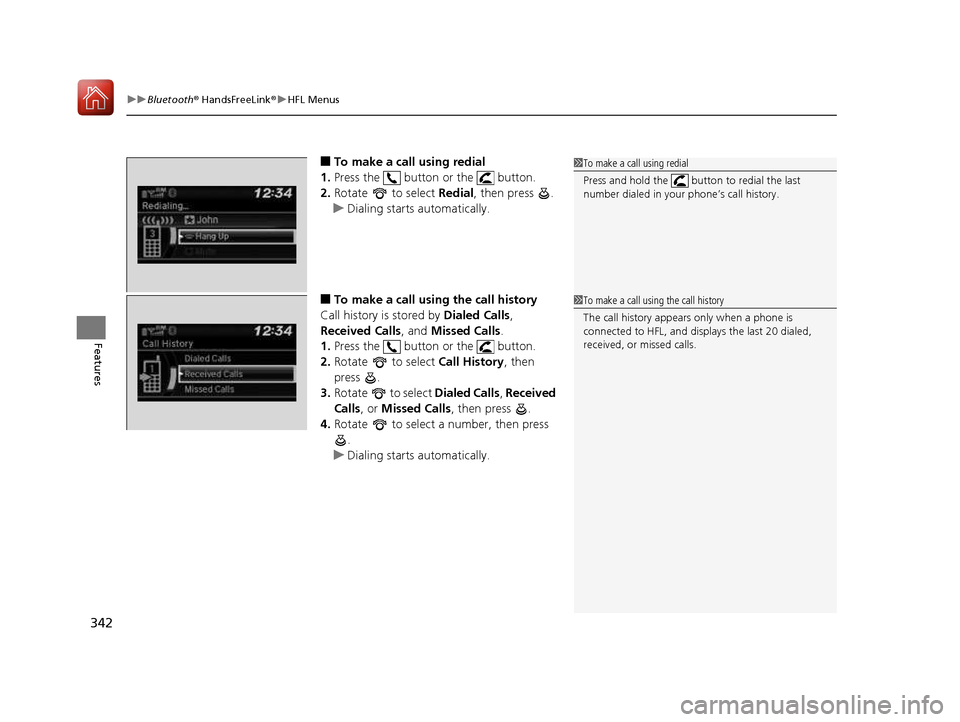

■ To make a call using redial
1. Press the button or the button.
2. Rotate to select Redial, then press .
uDialing starts automatically.
■ To make a call using the call history
Call history is stored by Dialed Calls,
Received Calls , and Missed Calls .
1. Press the button or the button.
2. Rotate to select Call History, then
press .
3. Rotate to select Dialed Calls, Received
Calls , or Missed Calls , then press .
4. Rotate to select a number, then press
.
uDialing starts automatically.
1To make a call using redial
Press and hold the butt on to redial the last
number dialed in your phone’s call history.
1To make a call using the call history
The call history appears only when a phone is connected to HFL, and disp lays the last 20 dialed,
received, or missed calls.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 342 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued343
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

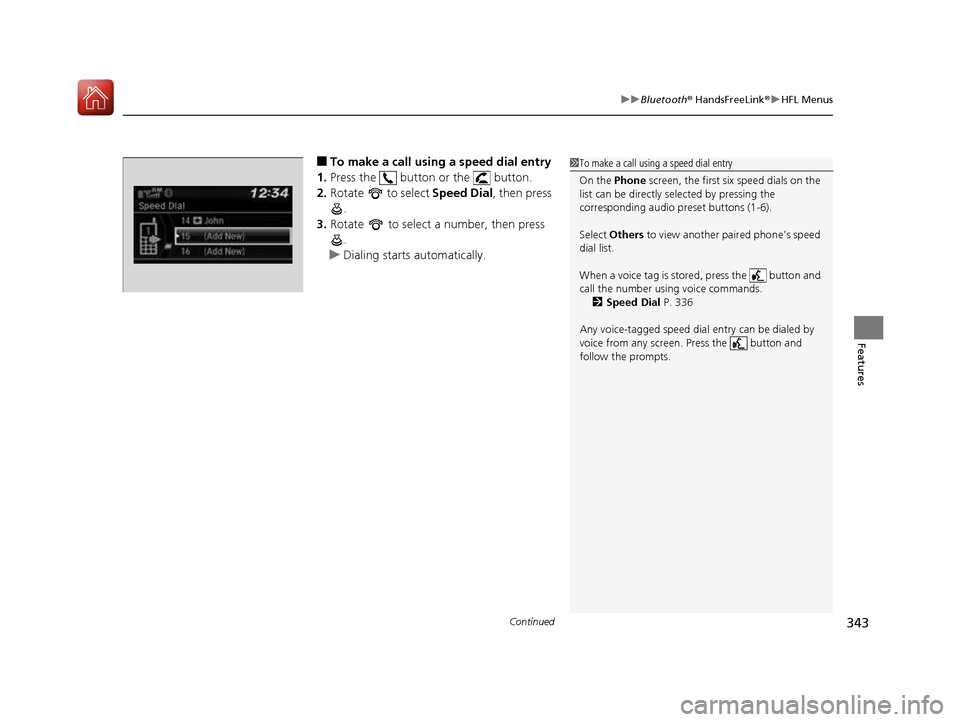

■To make a call using a speed dial entry
1. Press the button or the button.
2. Rotate to select Speed Dial, then press
.
3. Rotate to select a number, then press
.
uDialing starts automatically.
1To make a call using a speed dial entry On the Phone screen, the first six speed dials on the
list can be directly selected by pressing the
corresponding audio preset buttons (1-6).
Select Others to view another paired phone’s speed
dial list.
When a voice tag is stored, press the button and call the number using voice commands. 2 Speed Dial P. 336
Any voice-tagged speed dial entry can be dialed by
voice from any screen. Press the button and
follow the prompts.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 343 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uHFL Menus
344
Features

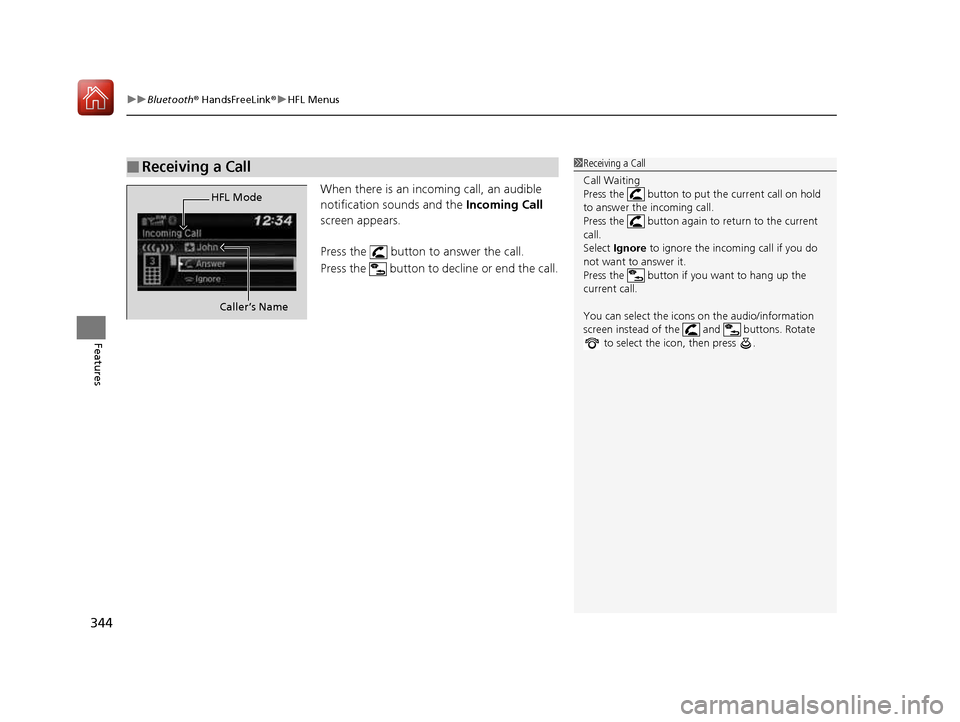

When there is an incoming call, an audible
notification sounds and the Incoming Call
screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put the current call on hold
to answer the incoming call.
Press the button again to return to the current call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons. Rotate
to select the icon, then press .
HFL Mode
Caller’s Name
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 344 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

345
uuBluetooth® HandsFreeLink ®uHFL Menus
Features

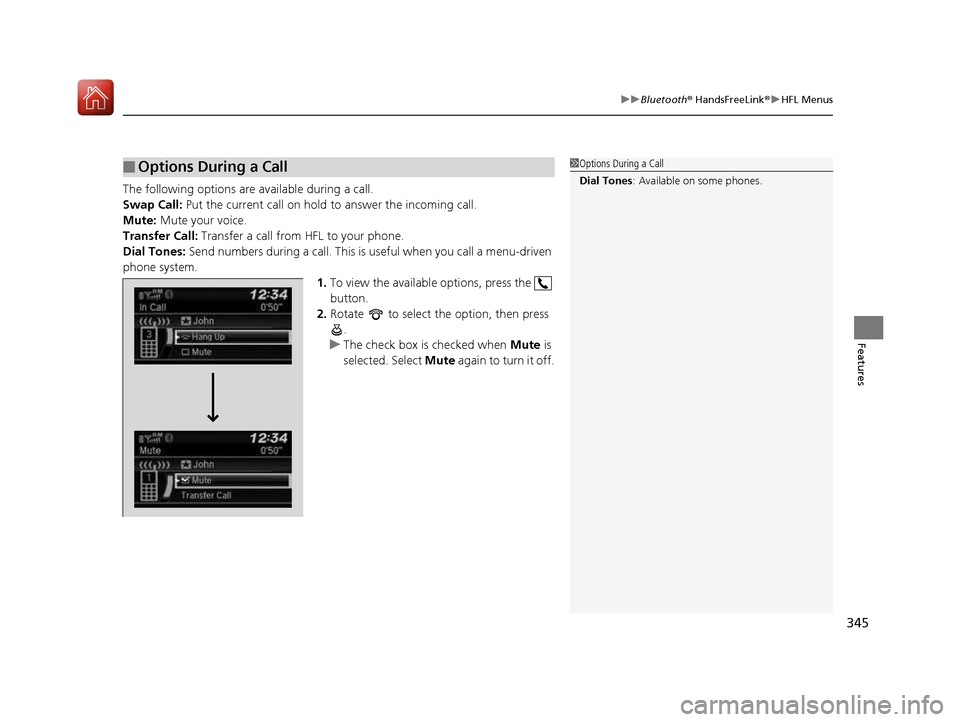

The following options ar e available during a call.
Swap Call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer Call: Transfer a call from HFL to your phone.
Dial Tones: Send numbers during a call. This is useful when you call a menu-driven
phone system. 1.To view the available options, press the
button.
2. Rotate to select the option, then press
.
uThe check box is checked when Mute is
selected. Select Mute again to turn it off.
■Options During a Call1Options During a Call
Dial Tones : Available on some phones.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 345 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

346
Features

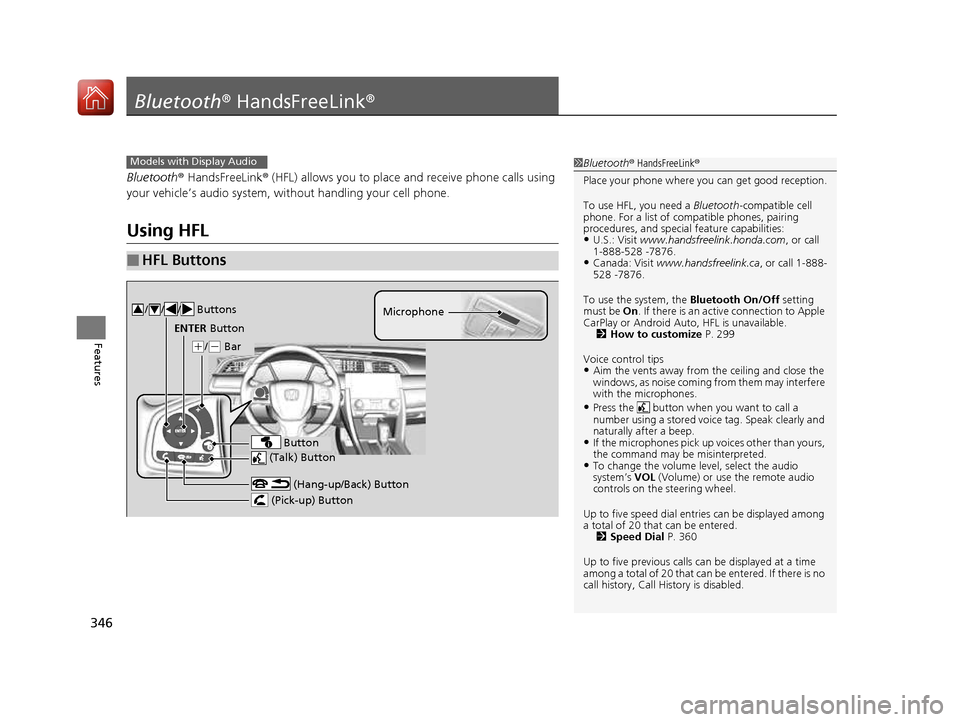

Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s audio system, without handling your cell phone.
Using HFL
■HFL Buttons
1Bluetooth ® HandsFreeLink ®
Place your phone where y ou can get good reception.
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
• U.S.: Visit www.handsfreelink.honda.com , or call
1-888-528 -7876.
• Canada: Visit www.handsfreelink.ca , or call 1-888-
528 -7876.
To use the system, the Bluetooth On/Off setting
must be On. If there is an acti ve connection to Apple
CarPlay or Android Auto , HFL is unavailable.
2 How to customize P. 299
Voice control tips • Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphones.
• Press the button when you want to call a
number using a stored voic e tag. Speak clearly and
naturally after a beep.
• If the microphones pick up vo ices other than yours,
the command may be misinterpreted.
• To change the volume level, select the audio system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
Up to five speed dial en tries can be displayed among
a total of 20 that can be entered.
2 Speed Dial P. 360
Up to five previous calls can be displayed at a time
among a total of 20 that can be entered. If there is no
call history, Call History is disabled.Models with Display Audio
(Talk) Button
(+ /(- Bar Microphone
(Hang-up/Back) Button
(Pick-up) Button
ENTER Button
Button
/ / / Buttons34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 346 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

Continued347
uuBluetooth® HandsFreeLink ®uUsing HFL
Features

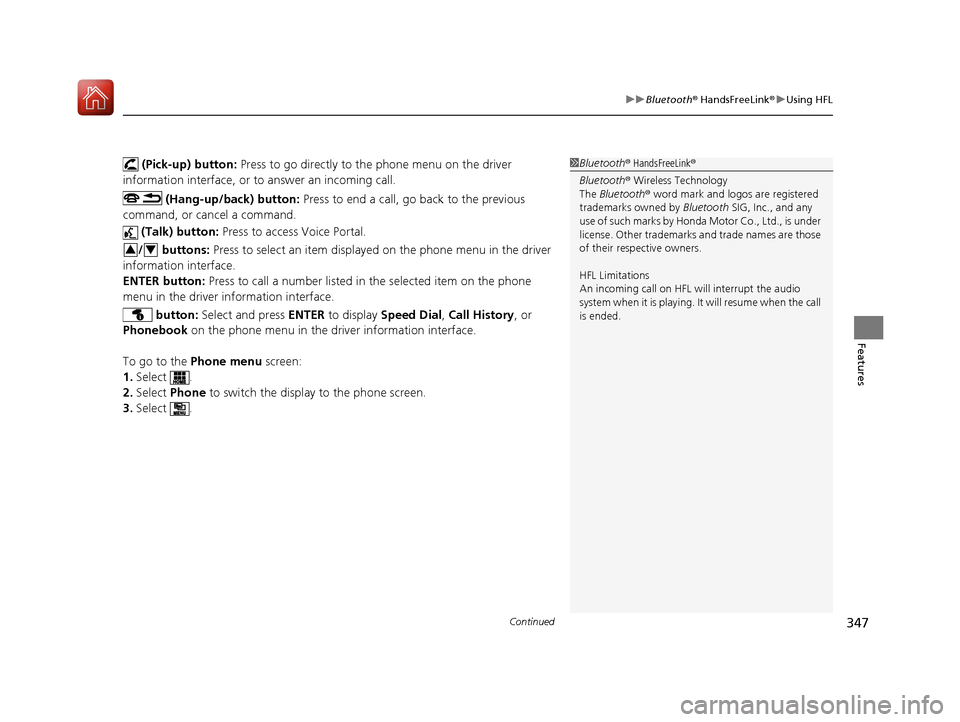

(Pick-up) button: Press to go directly to the phone menu on the driver
information interface, or to answer an incoming call.
(Hang-up/back) button: Press to end a call, go back to the previous
command, or cancel a command.
(Talk) button: Press to access Voice Portal.
/ buttons: Press to select an item displayed on the phone menu in the driver
information interface.
ENTER button: Press to call a number listed in the selected item on the phone
menu in the driver information interface.
button: Select and press ENTER to display Speed Dial , Call History , or
Phonebook on the phone menu in the driver information interface.
To go to the Phone menu screen:
1. Select .
2. Select Phone to switch the displa y to the phone screen.
3. Select .1Bluetooth ® HandsFreeLink ®
Bluetooth ® Wireless Technology
The Bluetooth ® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. It will resume when the call is ended.
34
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 347 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

uuBluetooth® HandsFreeLink ®uUsing HFL
348
Features

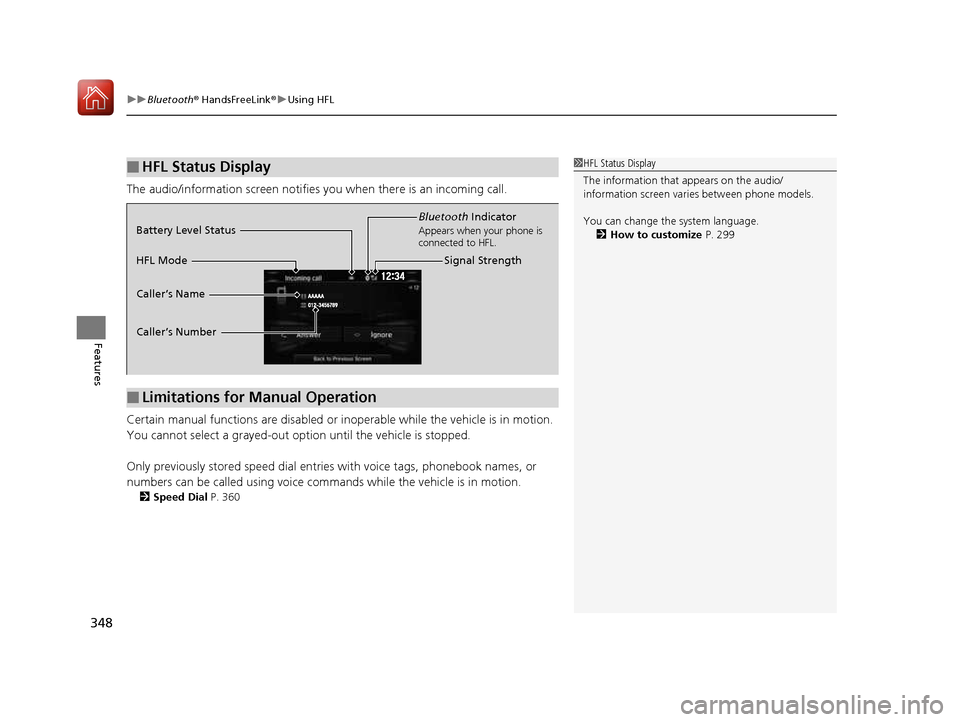

The audio/information screen notifies you when there is an incoming call.
Certain manual functions are disabled or i noperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored speed dial entries with voice tags, phonebook names, or
numbers can be called using voice commands while the vehicle is in motion. 2 Speed Dial P. 360
■HFL Status Display1HFL Status Display
The information that appears on the audio/
information screen vari es between phone models.
You can change the system language. 2 How to customize P. 299
■Limitations for Manual Operation
Bluetooth Indicator
Appears when your phone is
connected to HFL.
Signal Strength
HFL Mode
Battery Level Status
Caller’s Name
Caller’s Number
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 348 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

349
uuBluetooth® HandsFreeLink ®uHFL Menus
Continued
Features

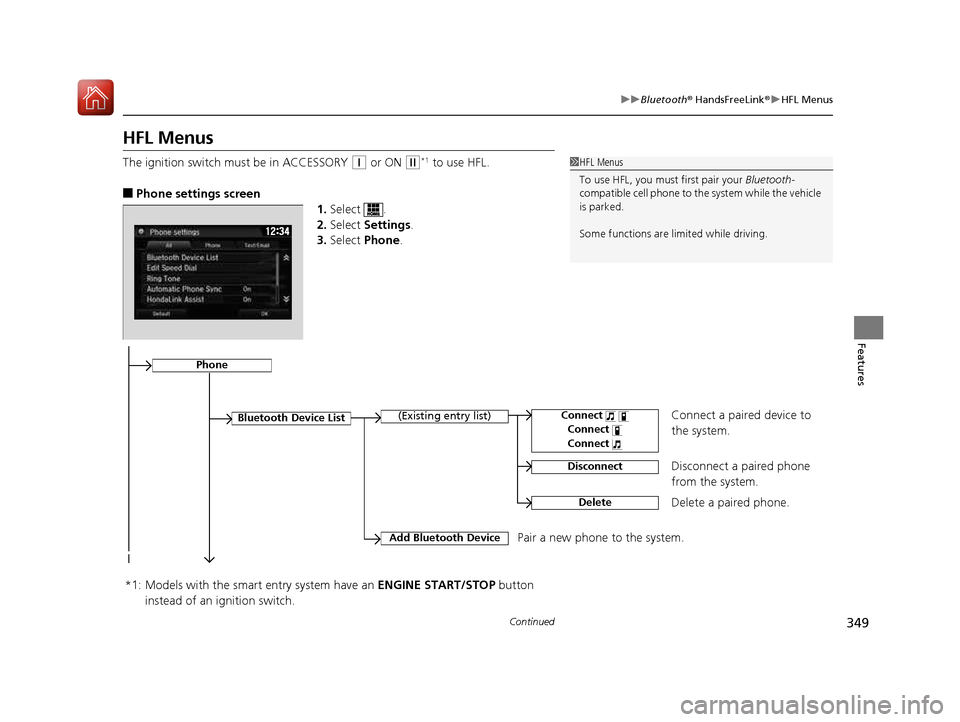

HFL Menus
The ignition switch mu st be in ACCESSORY
(q or ON (w*1
to use HFL.
■ Phone settings screen
1.Select .
2. Select Settings .
3. Select Phone .1HFL Menus
To use HFL, you must first pair your Bluetooth-
compatible cell phone to th e system while the vehicle
is parked.
Some functions are limited while driving.
Disconnect a paired phone
from the system.
Bluetooth Device List
(Existing entry list)
Disconnect
DeleteDelete a paired phone.
Add Bluetooth Device
Pair a new phone to the system.
Phone
Connect a paired device to
the system.Connect
Connect
Connect
*1: Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
