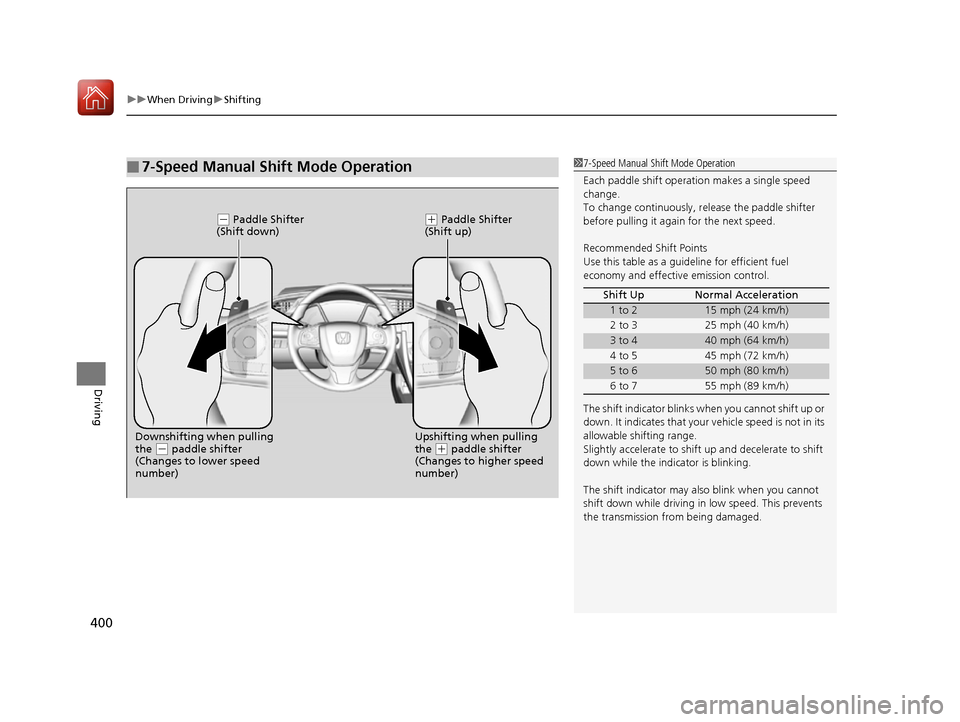

HONDA CIVIC COUPE 2016 10.G Owners Manual

uuWhen DrivinguShifting
400
Driving
■7-Speed Manual Shift Mode Operation17-Speed Manual Shift Mode Operation
Each paddle shift operati on makes a single speed
change.
To change continuously, re lease the paddle shifter
before pulling it agai n for the next speed.
Recommended Shift Points
Use this table as a guideline for efficient fuel economy and effective emission control.
The shift indicator blinks when you cannot shift up or
down. It indicates that your vehicle speed is not in its
allowable shifting range.
Slightly accelerate to shift up and decelerate to shift
down while the indi cator is blinking.
The shift indicator may also blink when you cannot
shift down while driving in low speed. This prevents
the transmission from being damaged. Shift Up Normal Acceleration
1 to 215 mph (24 km/h)
2 to 3 25 mph (40 km/h)
3 to 440 mph (64 km/h)
4 to 5 45 mph (72 km/h)
5 to 650 mph (80 km/h)
6 to 7 55 mph (89 km/h)
(- Paddle Shifter
(Shift down)(+ Paddle Shifter
(Shift up)
Downshifting when pulling the
(- paddle shifter
(Changes to lower speed
number) Upshifting when pulling the (+
paddle shifter
(Changes to higher speed
number)
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 400 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

401
uuWhen DrivinguShifting
Continued
Driving

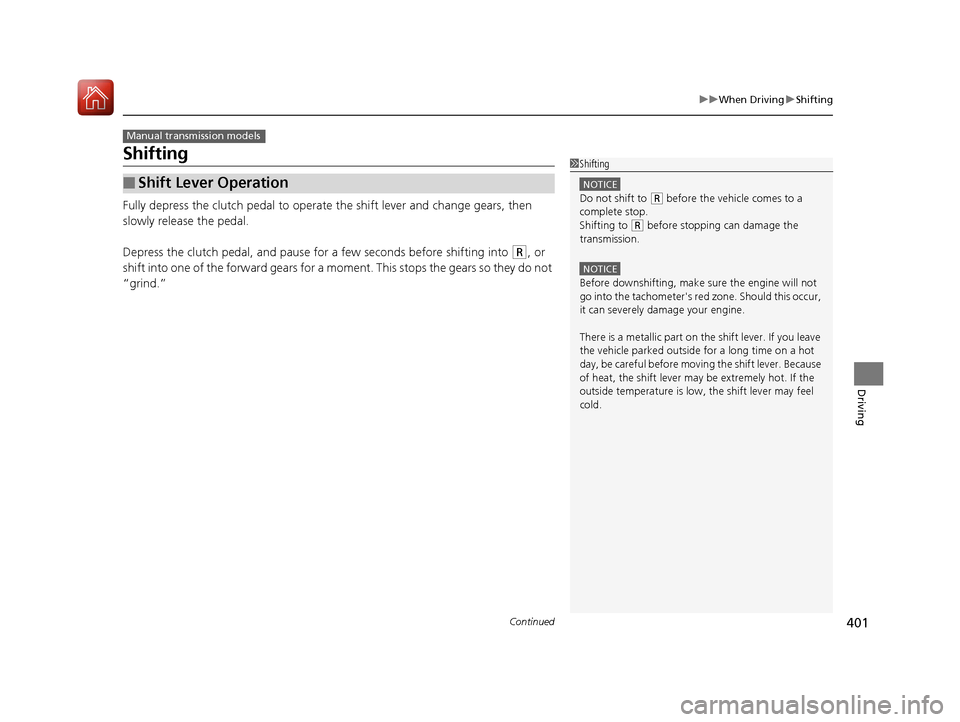

Shifting
Fully depress the clutch pedal to operate the shift lever and change gears, then
slowly release the pedal.
Depress the clutch pedal, and pause for a few seconds before shifting into
(R, or
shift into one of the forward gears for a mo ment. This stops the gears so they do not
“grind.”
■Shift Lever Operation
Manual transmission models
1Shifting
NOTICE
Do not shift to (R before the vehicle comes to a
complete stop.
Shifting to
(R before stopping can damage the
transmission.
NOTICE
Before downshifting, make su re the engine will not
go into the tachometer's red zone. Should this occur,
it can severely da mage your engine.
There is a metallic part on the shift lever. If you leave
the vehicle parked outside for a long time on a hot
day, be careful before movi ng the shift lever. Because
of heat, the shift lever may be extremely hot. If the
outside temperature is low, the shift lever may feel cold.
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 401 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

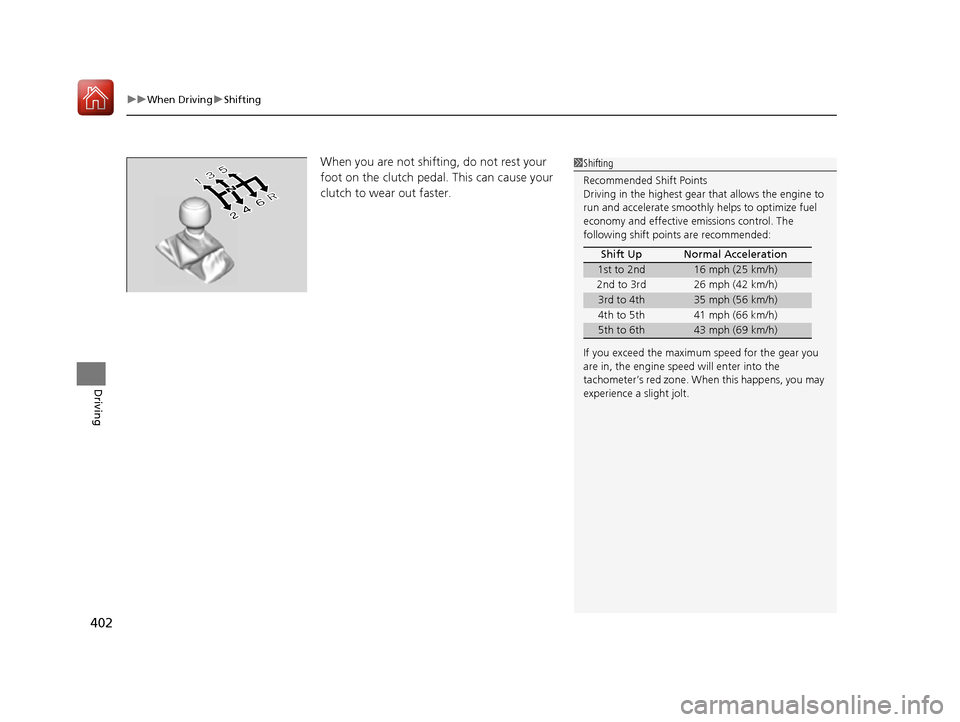

uuWhen DrivinguShifting
402
Driving
When you are not shifting, do not rest your
foot on the clutch pedal. This can cause your
clutch to wear out faster.1Shifting Recommended Shift Points
Driving in the highest gear that allows the engine to run and accelerate smoothly helps to optimize fuel
economy and effective em issions control. The
following shift points are recommended:
If you exceed the maximum speed for the gear you
are in, the engine speed will enter into the
tachometer’s red zone. When this happens, you may
experience a slight jolt. Shift Up Normal Acceleration
1st to 2nd16 mph (25 km/h)
2nd to 3rd 26 mph (42 km/h)
3rd to 4th35 mph (56 km/h)
4th to 5th 41 mph (66 km/h)
5th to 6th43 mph (69 km/h)
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 402 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

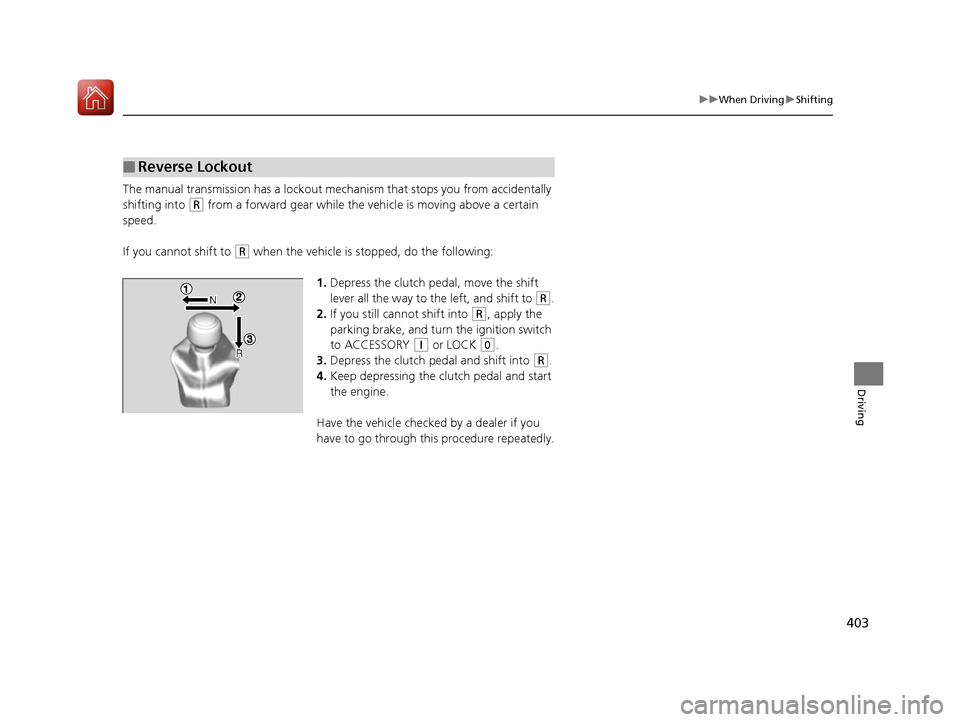

403
uuWhen DrivinguShifting
Driving
The manual transmission has a lockout mechanism that stops you from accidentally
shifting into
(R from a forward gear while the ve hicle is moving above a certain
speed.
If you cannot shift to
(R when the vehicle is stopped, do the following:
1.Depress the clutch pedal, move the shift
lever all the way to the left, and shift to
(R .
2. If you still cannot shift into
(R , apply the
parking brake, and turn the ignition switch
to ACCESSORY
(q or LOCK (0.
3. Depress the clutch pedal and shift into
(R .
4. Keep depressing the clutch pedal and start the engine.
Have the vehicle checked by a dealer if you
have to go through this procedure repeatedly.
■Reverse Lockout
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 403 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

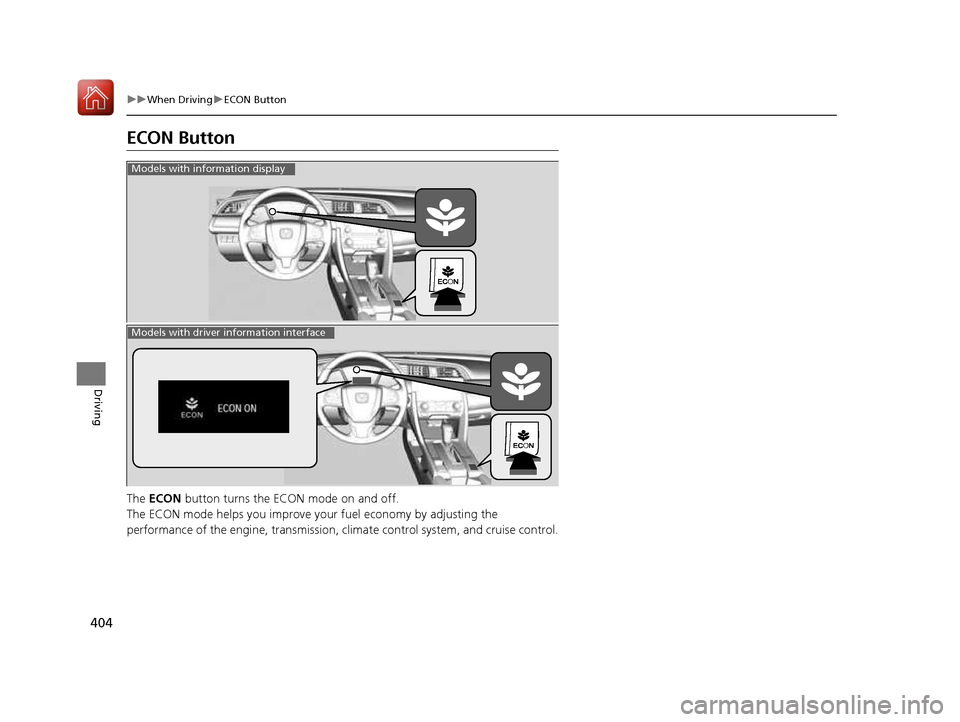

404
uuWhen DrivinguECON Button
Driving
ECON Button The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the engine, tra nsmission, climate control system, and cruise control.
Models with information display
Models with driver information interface
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 404 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

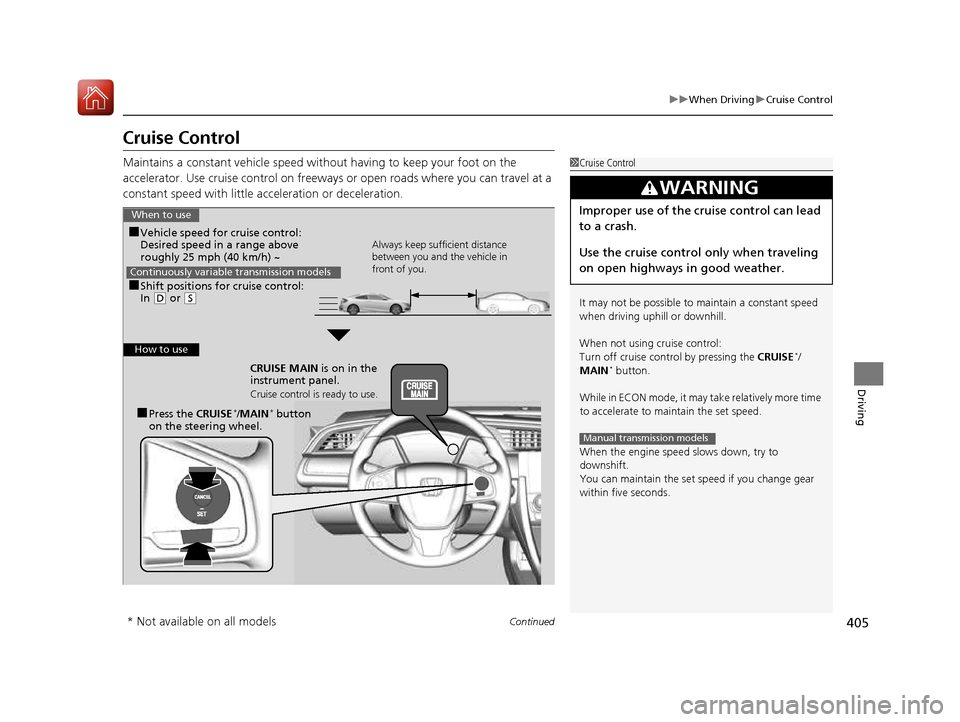

405
uuWhen DrivinguCruise Control
Continued
Driving
Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little ac celeration or deceleration.
1Cruise Control It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE*
/
MAIN *
button.
While in ECON mode, it may take relatively more time
to accelerate to maintain the set speed.
When the engine speed slows down, try to downshift.
You can maintain the set sp eed if you change gear
within five seconds.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Manual transmission models
When to use
■ Shift positions for cruise control: In (D or (S Always keep sufficient distance
between you and the vehicle in
front of you.
Continuously variable transmission models
■
Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~
How to use
CRUISE MAIN is on in the
instrument panel.
Cruise control is ready to use.
■ Press the CRUISE*
/MAIN *
button
on the steering wheel.
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 405 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

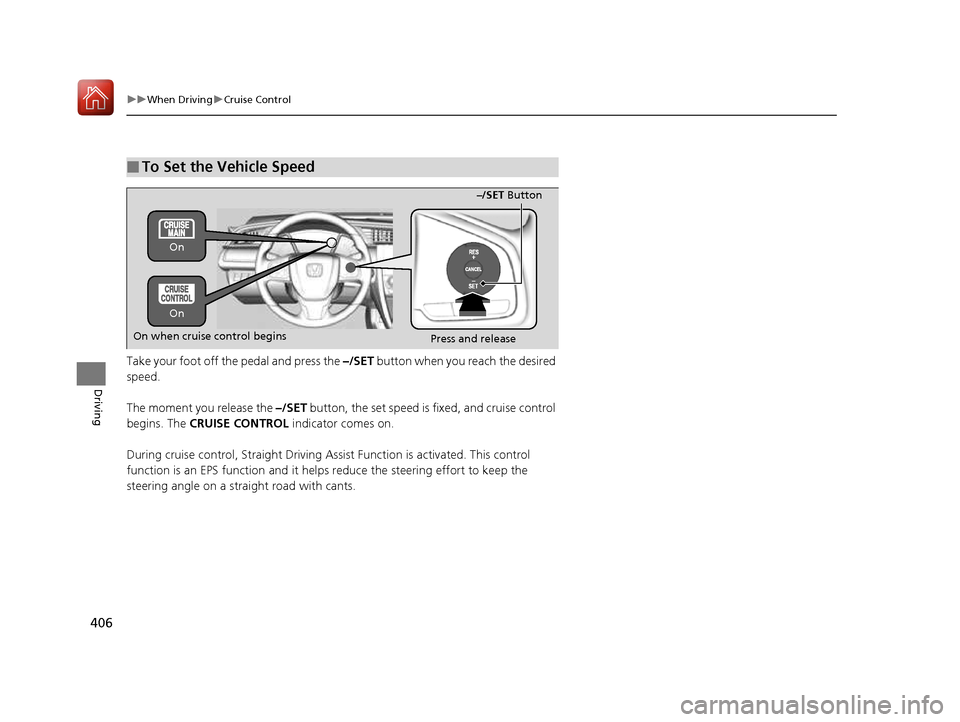

406
uuWhen DrivinguCruise Control
Driving
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
During cruise control, Straight Driving Assist Function is activated. This control
function is an EPS function and it helps reduce the steering effort to keep the
steering angle on a straight road with cants.
■To Set the Vehicle Speed
–/SET Button
On when cruise control begins Press and release
On On
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 406 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

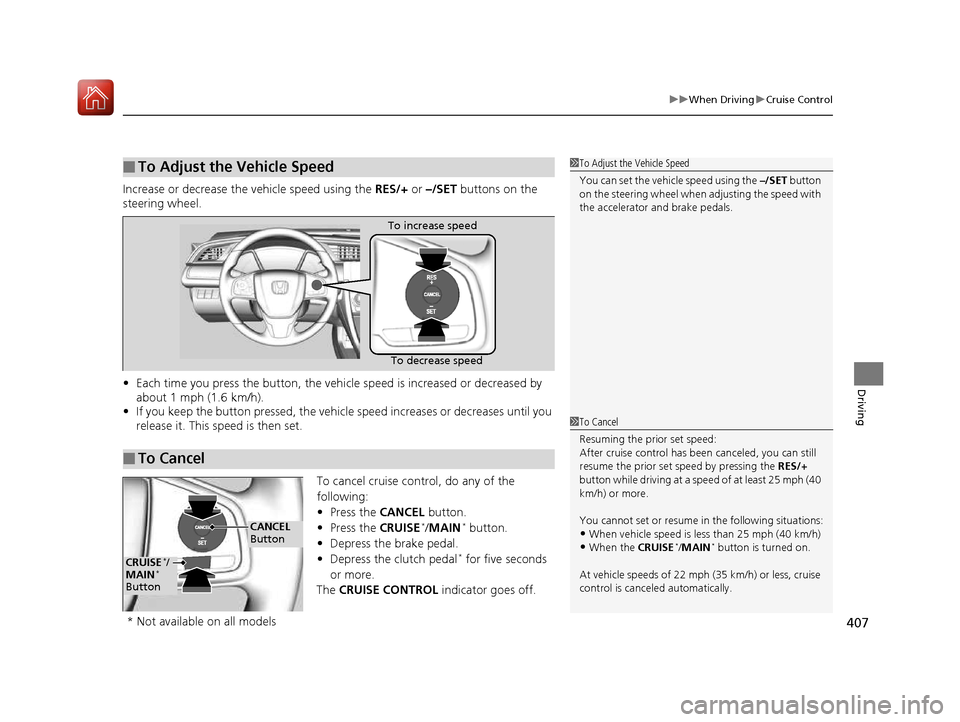

407
uuWhen DrivinguCruise Control
Driving
Increase or decrease the vehicle speed using the RES/+ or –/SET buttons on the
steering wheel. • Each time you press the button, the vehicl e speed is increased or decreased by
about 1 mph (1.6 km/h).
• If you keep the button pressed, the vehicl e speed increases or decreases until you
release it. This speed is then set.
To cancel cruise control, do any of the
following: •Press the CANCEL button.
• Press the CRUISE*
/MAIN *
button.
• Depress the brake pedal.
• Depress the clutch pedal *
for five seconds
or more.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed using the –/SET button
on the steering wheel when adjusting the speed with
the accelerator and brake pedals.
■To Cancel
To decrease speed
To increase speed
1To Cancel
Resuming the prior set speed:
After cruise control has be
en canceled, you can still
resume the prior set speed by pressing the RES/+
button while driving at a speed of at least 25 mph (40
km/h) or more.
You cannot set or resume in the following situations: • When vehicle speed is less than 25 mph (40 km/h)
• When the CRUISE*
/MAIN *
button is turned on.
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
CRUISE *
/
MAIN *

Button
CANCEL
Button
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 407 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

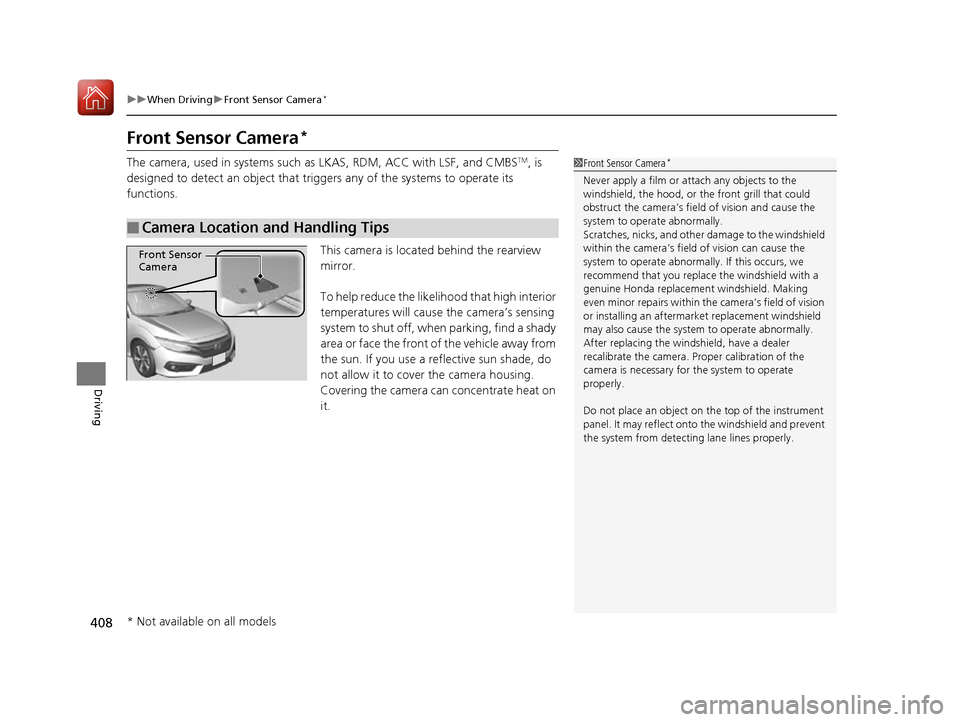

408
uuWhen DrivinguFront Sensor Camera*
Driving
Front Sensor Camera *
The camera, used in systems such as LKAS, RDM, ACC with LSF, and CMBS TM
, is
designed to detect an object that triggers any of the systems to operate its
functions.
This camera is located behind the rearview mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on it.
■Camera Location and Handling Tips
1Front Sensor Camera *
Never apply a film or attach any objects to the
windshield, the hood, or the front grill that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Honda replacem ent windshield. Making
even minor repairs within th e camera’s field of vision
or installing an aftermarket replacement windshield
may also cause the system to operate abnormally.After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detect ing lane lines properly.
Front Sensor
Camera
* Not available on all models
16 CIVIC 2D HC２ (０A ０１ ０C)-31TBG6000.book 408 ページ >0>.>/６年>0月>/>0日　 金曜日　午後４時>/６分

409
uuWhen DrivinguFront Sensor Camera*
Driving

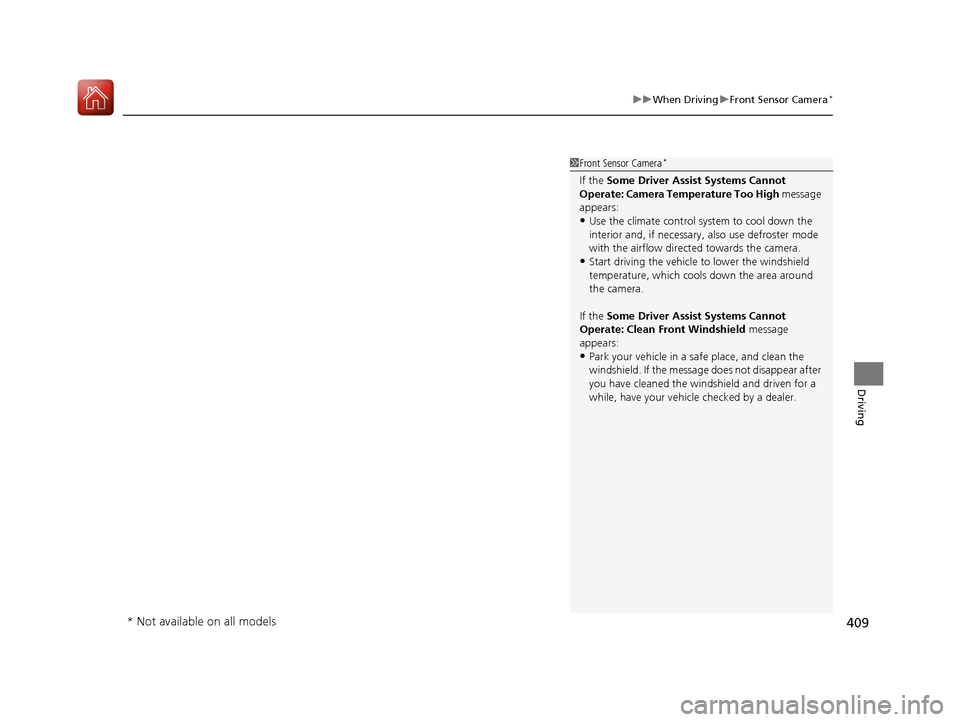

1Front Sensor Camera*
If the Some Driver Assist Systems Cannot
Operate: Camera Temperature Too High message
appears: • Use the climate control system to cool down the
interior and, if necessary, also use defroster mode
with the airflow directed towards the camera.
• Start driving the vehicle to lower the windshield temperature, which cool s down the area around
the camera.
If the Some Driver Assist Systems Cannot
Operate: Clean Front Windshield message
appears:
• Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
* Not available on all models
