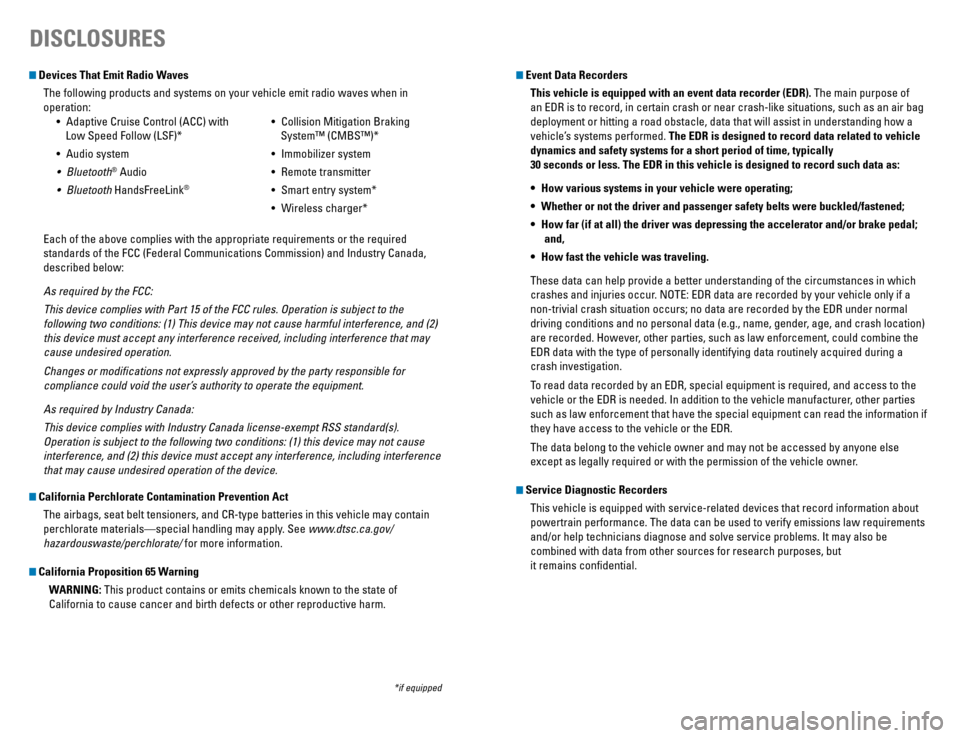

Devices That Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation:
DISCLOSURES
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as: • How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal;
and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal
driving conditions and no personal data (e.g., name, gender, age, and crash location)
are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties such as law enforcement that have the special equipment can read the information if they have access to the vehicle or the EDR. The data belong to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about
powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains con dential.
•
Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)*
• Audio system
• Bluetooth ®
Audio
• Bluetooth HandsFreeLink ® •
Collision Mitigation Braking
System™ (CMBS™)*
• Immobilizer system
• Remote transmitter
• Smart entry system*
• Wireless charger*
Each of the above complies with the appropriate requirements or the required standards of the FCC (Federal Communications Commission) and Industry Canada, described below: As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modiications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. As required by Industry Canada: This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR-type batteries in this vehicle may contain
perchlorate materials—special handling may apply. See www.dtsc.ca.gov/
hazardouswaste/perchlorate/ for more information.
California Proposition 65 Warning
WARNING: This product contains or emits chemicals known to the state of
California to cause cancer and birth defects or other reproductive harm.
*if equipped
Page 3 of 82

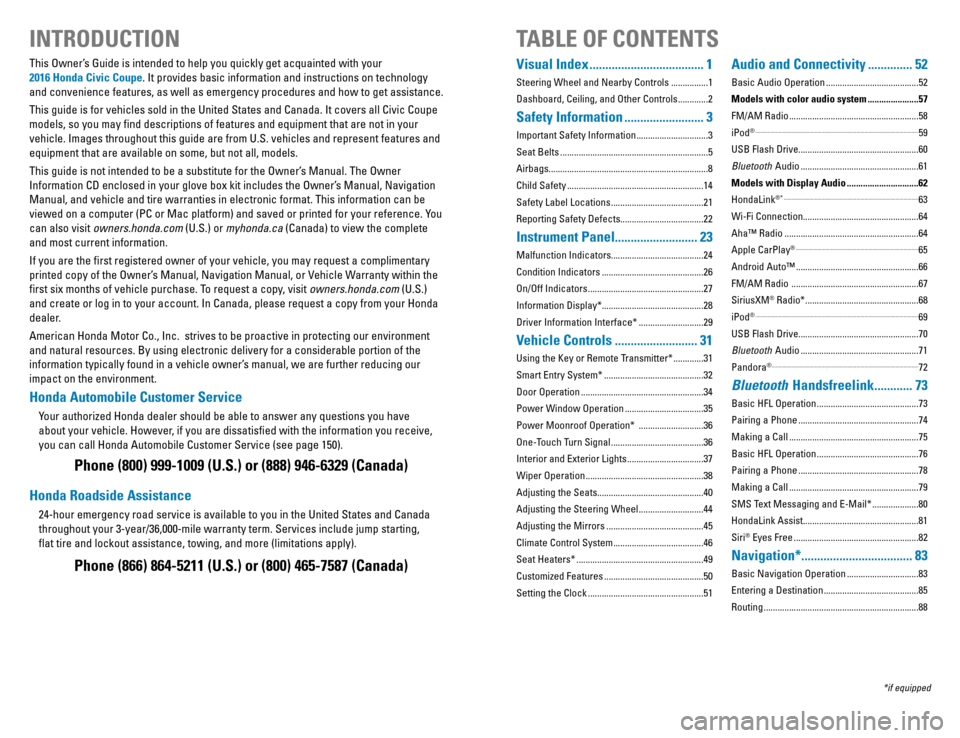

INTRODUCTION TABLE OF CONTENTS
This Owner’s Guide is intended to help you quickly get acquainted with your
2016 Honda Civic Coupe. It provides basic information and instructions on technology
and convenience features, as well as emergency procedures and how to get assistance.
This guide is for vehicles sold in the United States and Canada. It covers all Civic Coupe models, so you may nd descriptions of features and equipment that are not in your
vehicle. Images throughout this guide are from U.S. vehicles and represent features and equipment that are available on some, but not all, models.
This guide is not intended to be a substitute for the Owner’s Manual. The Owner
Information CD enclosed in your glove box kit includes the Owner’s Manual, Navigation
Manual, and vehicle and tire warranties in electronic format. This information can be
viewed on a computer (PC or Mac platform) and saved or printed for your reference. You can also visit owners.honda.com (U.S.) or myhonda.ca (Canada) to view the complete
and most current information.
If you are the rst registered owner of your vehicle, you may request a complimentary
printed copy of the Owner’s Manual, Navigation Manual, or Vehicle Warranty within the
rst six months of vehicle purchase. To request a copy, visit owners.honda.com (U.S.)
and create or log in to your account. In Canada, please request a copy from your Honda
dealer. American Honda Motor Co., Inc. strives to be proactive in protecting our environment
and natural resources. By using electronic delivery for a considerable portion of the
information typically found in a vehicle owner’s manual, we are further reducing our impact on the environment.
Honda Automobile Customer Service
Your authorized Honda dealer should be able to answer any questions you have
about your vehicle. However, if you are dissatis ed with the information you receive, you can call Honda Automobile Customer Service (see page 150).
Phone (800) 999-1009 (U.S.) or (888) 946-6329 (Canada)
Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada
throughout your 3-year/36,000-mile warranty term. Services include jump starting, at tire and lockout assistance, towing, and more (limitations apply).
Phone (866) 864-5211 (U.S.) or (800) 465-7587 (Canada)
*if equipped
Visual Index .................................... 1
Steering Wheel and Nearby Controls ................1
Dashboard, Ceiling, and Other Controls .............2
Safety Information .........................3
Important Safety Information ...............................3
Seat Belts ................................................................ 5
Airbags.....................................................................8 Child Safety ........................................................... 14
Safety Label Locations ........................................21
Reporting Safety Defects....................................22
Instrument Panel.......................... 23
Malfunction Indicators........................................24 Condition Indicators ............................................ 26
On/Off Indicators .................................................. 27
Information Display*............................................28Driver Information Interface* ............................29
Vehicle Controls ..........................31
Using the Key or Remote Transmitter* .............31
Smart Entry System* ........................................... 32
Door Operation ..................................................... 34
Power Window Operation ..................................35
Power Moonroof Operation* ............................36
One-Touch Turn Signal ........................................36
Interior and Exterior Lights .................................37
Wiper Operation ................................................... 38
Adjusting the Seats..............................................40 Adjusting the Steering Wheel ............................44
Adjusting the Mirrors .......................................... 45
Climate Control System .......................................46
Seat Heaters* ....................................................... 49
Customized Features ........................................... 50
Setting the Clock .................................................. 51
Audio and Connectivity ..............52
Basic Audio Operation ........................................52
Models with color audio system ......................57
FM/AM Radio ........................................................ 58
iPod ®
.........................................................................................................................
59
USB Flash Drive....................................................60 Bluetooth Audio ................................................... 61
Models with Display Audio ...............................62
HondaLink ®*
....................................................................................................
63
Wi-Fi Connection..................................................64Aha™ Radio .......................................................... 64
Apple CarPlay ®
...........................................................................................
65

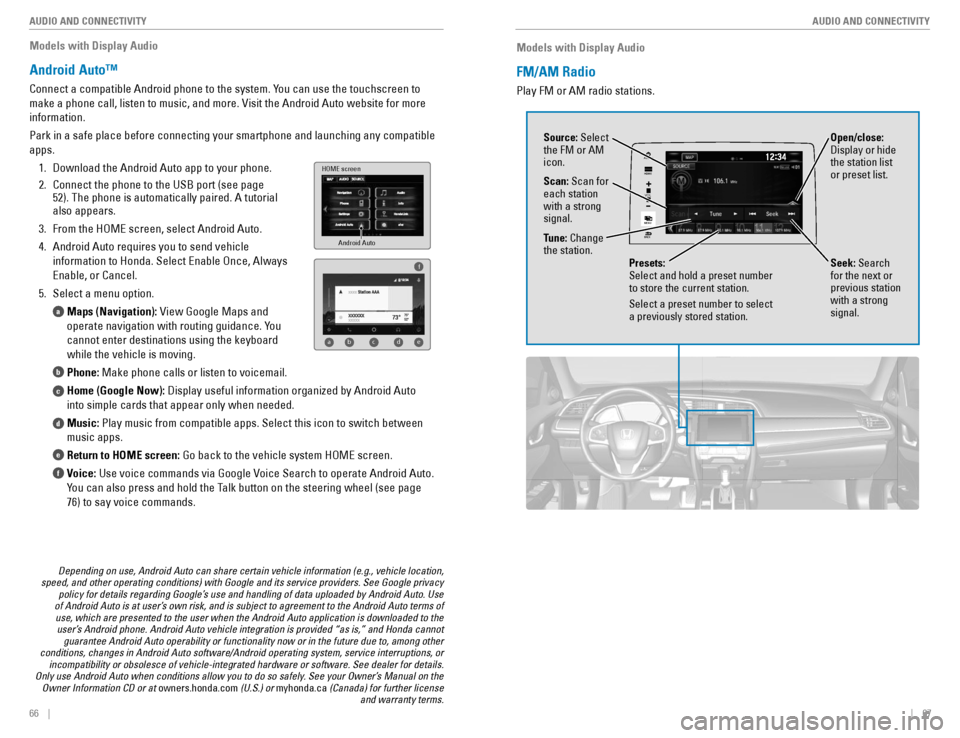

Android Auto™ ..................................................... 66
FM/AM Radio ....................................................... 67
SiriusXM ®
Radio* ................................................. 68
iPod ®
.........................................................................................................................
69
USB Flash Drive....................................................70Bluetooth Audio ................................................... 71
Pandora ®
.............................................................................................................
72
Bluetooth Handsfreelink ............73
Basic HFL Operation ............................................ 73
Pairing a Phone .................................................... 74
Making a Call ........................................................ 75
Basic HFL Operation ............................................ 76
Pairing a Phone .................................................... 78
Making a Call ........................................................ 79
SMS Text Messaging and E-Mail* ....................80
HondaLink Assist..................................................81 Siri ®
Eyes Free ...................................................... 82
Navigation*................................... 83
Basic Navigation Operation ...............................83
Entering a Destination ......................................... 85
Routing ................................................................... 88
Page 31 of 82

54 || 55
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY

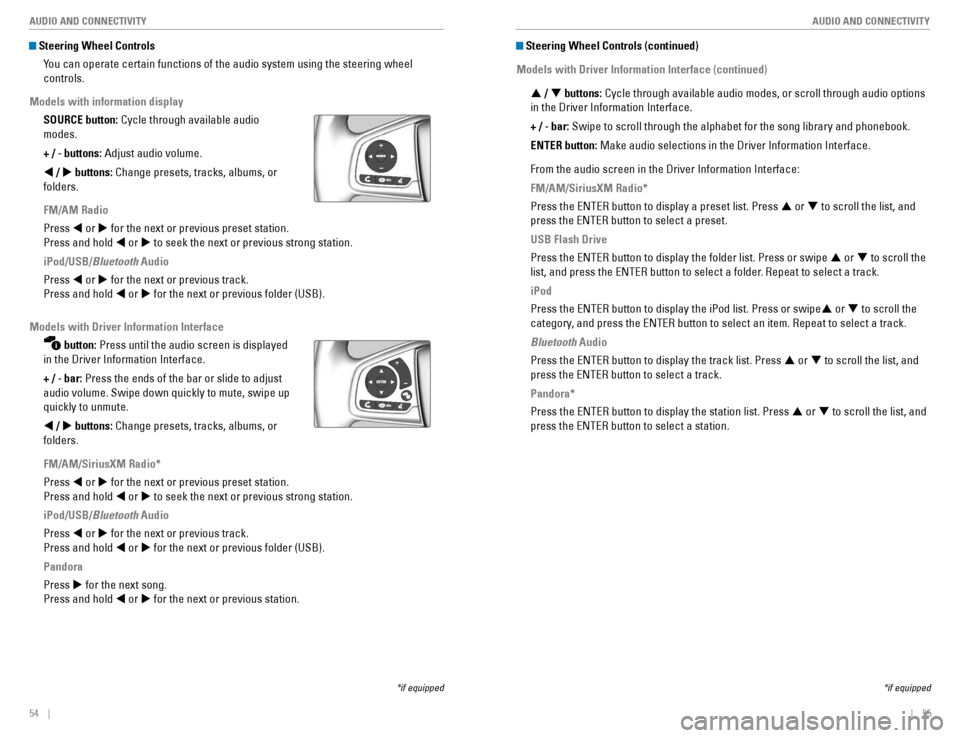

Steering Wheel Controls
You can operate certain functions of the audio system using the steering wheel controls.
Models with information display
SOURCE button: Cycle through available audio
modes. + / - buttons: Adjust audio volume.
t / u buttons: Change presets, tracks, albums, or
folders.
FM/AM Radio
Press t or u for the next or previous preset station.
Press and hold t or u to seek the next or previous strong station.
iPod/USB/ Bluetooth Audio
Press t or u for the next or previous track.
Press and hold t or u for the next or previous folder (USB).
Models with Driver Information Interface
button: Press until the audio screen is displayed
in the Driver Information Interface.
+ / - bar: Press the ends of the bar or slide to adjust
audio volume. Swipe down quickly to mute, swipe up quickly to unmute. t / u buttons: Change presets, tracks, albums, or
folders.
FM/AM/SiriusXM Radio*
Press t or u for the next or previous preset station.
Press and hold t or u to seek the next or previous strong station.
iPod/USB/ Bluetooth Audio
Press t or u for the next or previous track.
Press and hold t or u for the next or previous folder (USB).
Pandora
Press u for the next song.
Press and hold t or u for the next or previous station.
*if equipped
Steering Wheel Controls (continued)
Models with Driver Information Interface (continued)
p / q buttons: Cycle through available audio modes, or scroll through audio options
in the Driver Information Interface. + / - bar: Swipe to scroll through the alphabet for the song library and phonebook.
ENTER button: Make audio selections in the Driver Information Interface.
From the audio screen in the Driver Information Interface:
FM/AM/SiriusXM Radio*
Press the ENTER button to display a preset list. Press p or q to scroll the list, and
press the ENTER button to select a preset.
USB Flash Drive
Press the ENTER button to display the folder list. Press or swipe p or q to scroll the
list, and press the ENTER button to select a folder. Repeat to select a track.
iPod
Press the ENTER button to display the iPod list. Press or swipe p or q to scroll the
category, and press the ENTER button to select an item. Repeat to select a track.
Bluetooth Audio
Press the ENTER button to display the track list. Press p or q to scroll the list, and
press the ENTER button to select a track.
Pandora*
Press the ENTER button to display the station list. Press p or q to scroll the list, and
press the ENTER button to select a station.
*if equipped
Page 33 of 82

58 || 59
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY

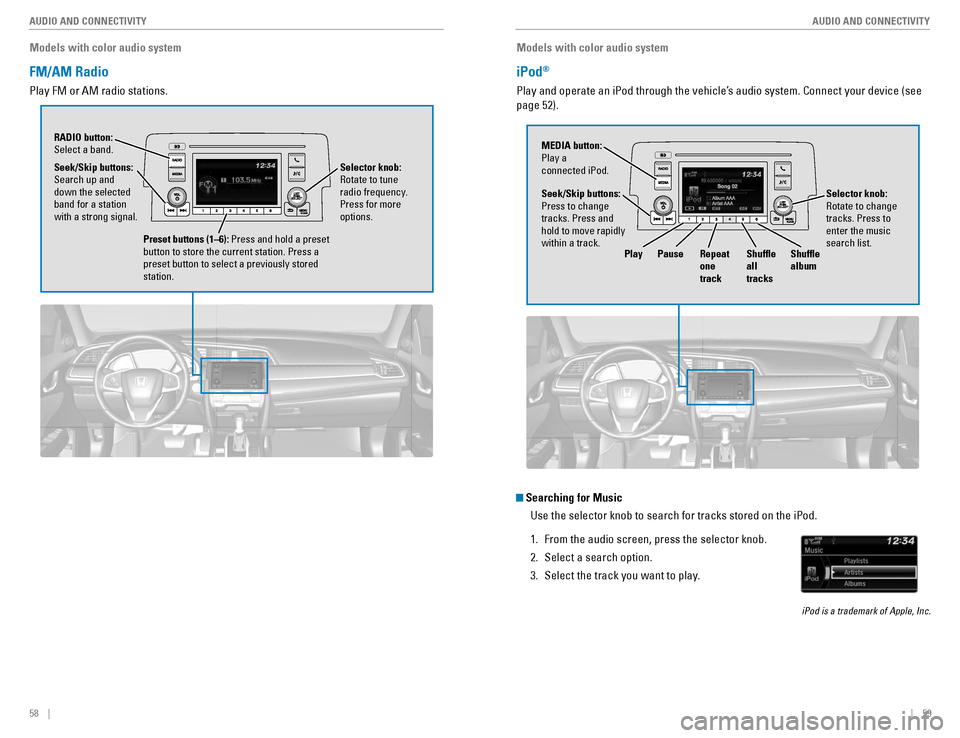

Models with color audio system
FM/AM Radio
Play FM or AM radio stations.
RADIO button: Select a band.
Preset buttons (1–6): Press and hold a preset
button to store the current station. Press a preset button to select a previously stored station.
Seek/Skip buttons: Search up and down the selected band for a station with a strong signal.
Selector knob: Rotate to tune
radio frequency. Press for more options.
Models with color audio system
iPod
®
Play and operate an iPod through the vehicle’s audio system. Connect your device (see
page 52).
Searching for Music
Use the selector knob to search for tracks stored on the iPod.
1. From the audio screen, press the selector knob.
2. Select a search option.
3. Select the track you want to play.
iPod is a trademark of Apple, Inc.
Seek/Skip buttons: Press to change tracks. Press and hold to move rapidly within a track.
MEDIA button: Play a connected iPod.
Selector knob: Rotate to change tracks. Press to enter the music search list.
Play Pause Repeat one trackShuf e all tracksShuf e album
Page 36 of 82

64 || 65
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with Display Audio

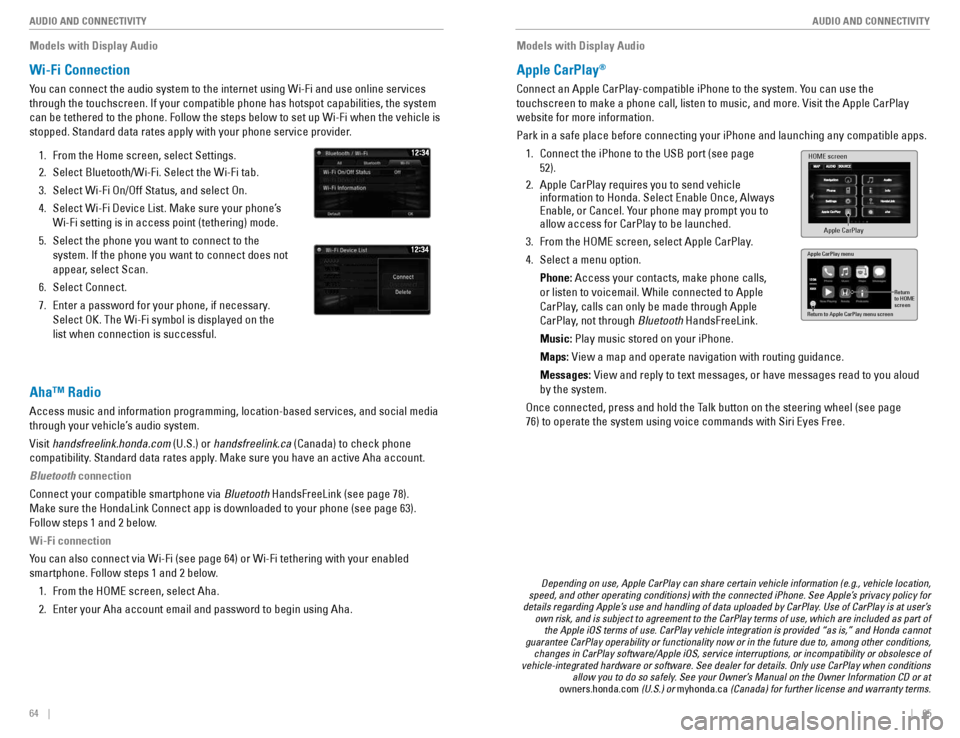

Wi-Fi Connection
You can connect the audio system to the internet using Wi-Fi and use online services through the touchscreen. If your compatible phone has hotspot capabilities, the system
can be tethered to the phone. Follow the steps below to set up Wi-Fi when the vehicle is
stopped. Standard data rates apply with your phone service provider.
1. From the Home screen, select Settings.
2. Select Bluetooth/Wi-Fi. Select the Wi-Fi tab.
3. Select Wi-Fi On/Off Status, and select On.
4. Select Wi-Fi Device List. Make sure your phone’s Wi-Fi setting is in access point (tethering) mode.
5. Select the phone you want to connect to the system. If the phone you want to connect does not
appear, select Scan.
6. Select Connect.
7. Enter a password for your phone, if necessary. Select OK. The Wi-Fi symbol is displayed on the list when connection is successful.
1234
AAAAA
BBBB B
CCCCC DDDDD EEEE E
Aha™ Radio
Access music and information programming, location-based services, and social media
through your vehicle’s audio system. Visit handsfreelink.honda.com (U.S.) or handsfreelink.ca (Canada) to check phone
compatibility. Standard data rates apply. Make sure you have an active Aha account.
Bluetooth connection
Connect your compatible smartphone via Bluetooth HandsFreeLink (see page 78).
Make sure the HondaLink Connect app is downloaded to your phone (see page 63).
Follow steps 1 and 2 below.
Wi-Fi connection
You can also connect via Wi-Fi (see page 64) or Wi-Fi tethering with your enabled
smartphone. Follow steps 1 and 2 below.
1. From the HOME screen, select Aha.
2. Enter your Aha account email and password to begin using Aha.
Models with Display Audio
Apple CarPlay ®
Connect an Apple CarPlay-compatible iPhone to the system. You can use the
touchscreen to make a phone call, listen to music, and more. Visit the Apple CarPlay website for more information. Park in a safe place before connecting your iPhone and launching any compatible apps.
1. Connect the iPhone to the USB port (see page 52).
2. Apple CarPlay requires you to send vehicle information to Honda. Select Enable Once, Always
Enable, or Cancel. Your phone may prompt you to allow access for CarPlay to be launched.
3. From the HOME screen, select Apple CarPlay.
4. Select a menu option. Phone: Access your contacts, make phone calls,
or listen to voicemail. While connected to Apple
CarPlay, calls can only be made through Apple
CarPlay, not through Bluetooth HandsFreeLink.
Music: Play music stored on your iPhone.
Maps: View a map and operate navigation with routing guidance.
Messages: View and reply to text messages, or have messages read to you aloud
by the system.
Once connected, press and hold the Talk button on the steering wheel (see page 76) to operate the system using voice commands with Siri Eyes Free.
HOME screen
Apple CarPlay
Apple CarPlay menu
Return to HOMEscreen
Return to Apple CarPlay menu screen
Depending on use, Apple CarPlay can share certain vehicle information (e.g., vehicle location,
speed, and other operating conditions) with the connected iPhone. See Apple’s privacy policy for
details regarding Apple’s use and handling of data uploaded by CarPlay. Use of CarPlay is at user’s own risk, and is subject to agreement to the CarPlay terms of use, which are included as part of the Apple iOS terms of use. CarPlay vehicle integration is provided “as is,” and Honda cannot
guarantee CarPlay operability or functionality now or in the future due to, among other conditions, changes in CarPlay software/Apple iOS, service interruptions, or incompatibility or obsolesce of
vehicle-integrated hardware or software. See dealer for details. Only use CarPlay when conditions allow you to do so safely. See your Owner’s Manual on the Owner Information CD or at
owners.honda.com (U.S.) or myhonda.ca (Canada) for further license and warranty terms.
Page 37 of 82

66 || 67
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with Display Audio
Android Auto™
Connect a compatible Android phone to the system. You can use the touchscreen to
make a phone call, listen to music, and more. Visit the Android Auto website for more information. Park in a safe place before connecting your smartphone and launching any compatible apps.
1. Download the Android Auto app to your phone.
2. Connect the phone to the USB port (see page 52). The phone is automatically paired. A tutorial also appears.
3. From the HOME screen, select Android Auto.
4. Android Auto requires you to send vehicle information to Honda. Select Enable Once, Always Enable, or Cancel.
5. Select a menu option. Maps (Navigation): View Google Maps and
operate navigation with routing guidance. You cannot enter destinations using the keyboard while the vehicle is moving. Phone: Make phone calls or listen to voicemail.
Home (Google Now): Display useful information organized by Android Auto
into simple cards that appear only when needed.Music: Play music from compatible apps. Select this icon to switch between
music apps.Return to HOME screen: Go back to the vehicle system HOME screen.
Voice: Use voice commands via Google Voice Search to operate Android Auto.
You can also press and hold the Talk button on the steering wheel (see page 76) to say voice commands.
a
b
c
d
e
f
Android Auto
HOME screen
f
ab cde
Depending on use, Android Auto can share certain vehicle information (e.g., vehicle location,
speed, and other operating conditions) with Google and its service providers. See Google privacy policy for details regarding Google’s use and handling of data uploaded by Android Auto. Use
of Android Auto is at user’s own risk, and is subject to agreement to the Android Auto terms of use, which are presented to the user when the Android Auto application is downloaded to the user’s Android phone. Android Auto vehicle integration is provided “as is,” and Honda cannot guarantee Android Auto operability or functionality now or in the future due to, among other
conditions, changes in Android Auto software/Android operating system, service interruptions, or incompatibility or obsolesce of vehicle-integrated hardware or software. See dealer for details.
Only use Android Auto when conditions allow you to do so safely. See your Owner’s Manual on the Owner Information CD or at owners.honda.com (U.S.) or myhonda.ca (Canada) for further license
and warranty terms.
Models with Display Audio
FM/AM Radio
Play FM or AM radio stations.
VOL
HOME
MENU
BA CK
AUDIO
Source: Select
the FM or AM icon.
Tune: Change
the station.
Seek: Search
for the next or previous station with a strong signal.
Open/close: Display or hide the station list or preset list.
Scan:
Scan for
each station with a strong signal.
Presets:
Select and hold a preset number to store the current station. Select a preset number to select a previously stored station.
Page 38 of 82

68 || 69
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with Display Audio

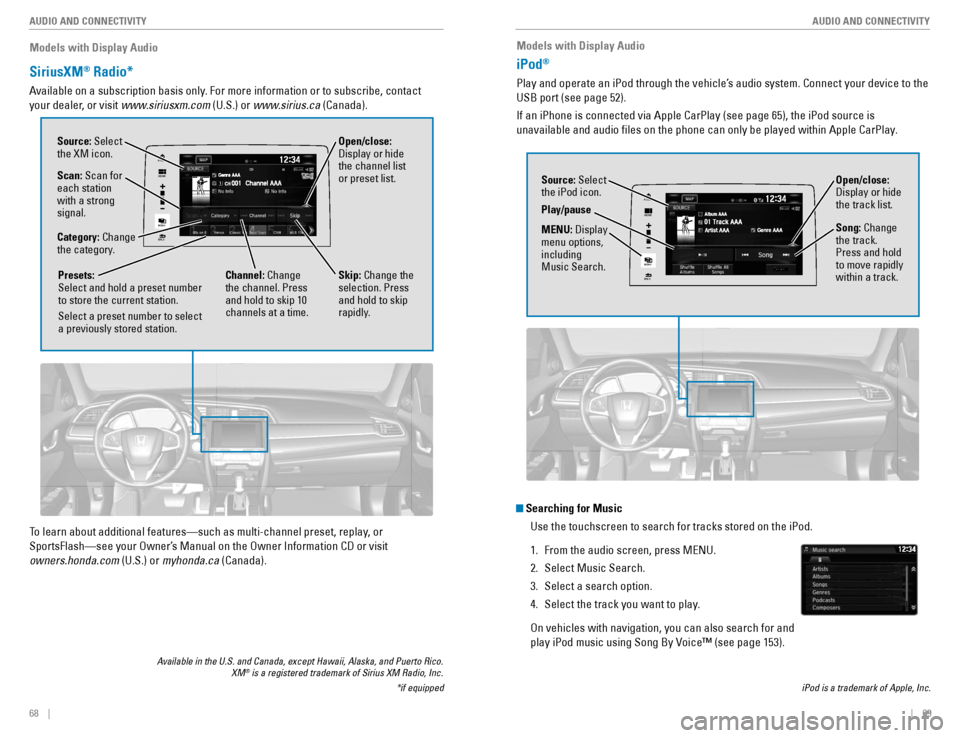

SiriusXM ®
Radio*
Available on a subscription basis only. For more information or to subscribe, contact
your dealer, or visit www.siriusxm.com (U.S.) or www.sirius.ca (Canada).
Available in the U.S. and Canada, except Hawaii, Alaska, and Puerto Rico. XM®
is a registered trademark of Sirius XM Radio, Inc.
*if equipped
To learn about additional features—such as multi-channel preset, replay, or
SportsFlash—see your Owner’s Manual on the Owner Information CD or visit owners.honda.com
(U.S.) or myhonda.ca (Canada).
VOL
HOME
MENU
BA CK
AUDIO
Open/close: Display or hide the channel list or preset list.Source: Select
the XM icon. Category: Change
the category.
Channel: Change
the channel. Press and hold to skip 10 channels at a time.
Scan: Scan for
each station with a strong signal.
Presets:
Select and hold a preset number to store the current station. Select a preset number to select a previously stored station.
Skip: Change the
selection. Press and hold to skip
rapidly.
Models with Display Audio
iPod ®
Play and operate an iPod through the vehicle’s audio system. Connect your device to the
USB port (see page 52). If an iPhone is connected via Apple CarPlay (see page 65), the iPod source is
unavailable and audio les on the phone can only be played within Apple CarPlay.
Searching for Music
Use the touchscreen to search for tracks stored on the iPod.
1. From the audio screen, press MENU.
2. Select Music Search.
3. Select a search option.
4. Select the track you want to play. On vehicles with navigation, you can also search for and
play iPod music using Song By Voice™ (see page 153).
iPod is a trademark of Apple, Inc.
VOL
HOME
MENU
BA CK
AUDIO
Source: Select
the iPod icon. Open/close:
Display or hide the track list.
MENU: Display
menu options, including Music Search. Song:
Change
the track. Press and hold to move rapidly within a track.
Play/pause
Page 80 of 82

152 || 153

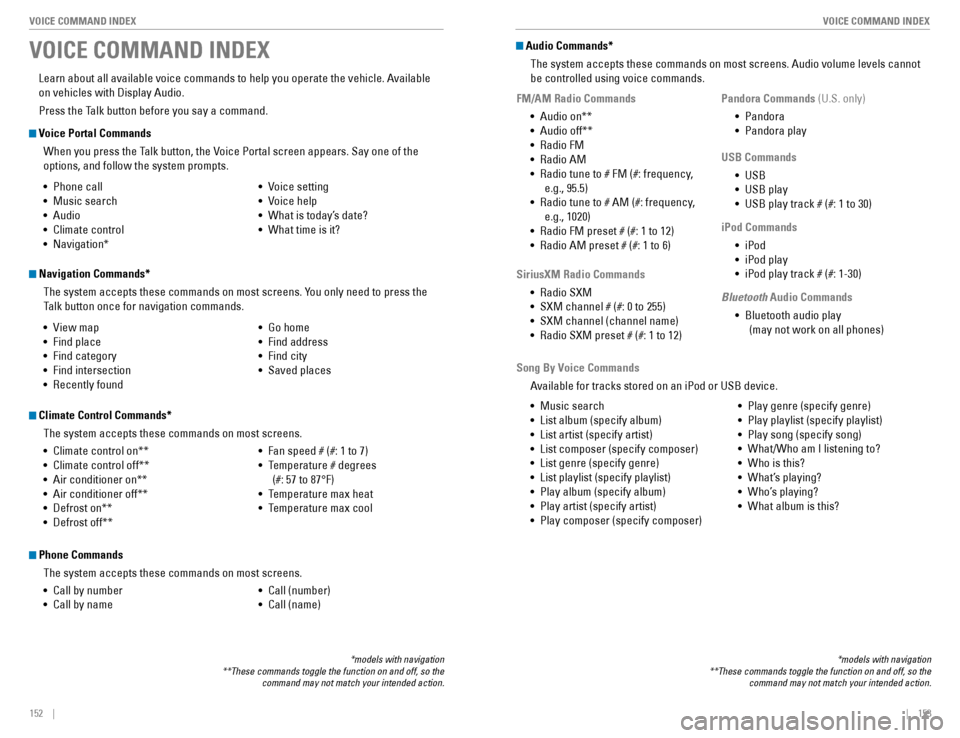

VOICE COMMAND INDEX
VOICE COMMAND INDEX
Voice Portal Commands
When you press the Talk button, the Voice Portal screen appears. Say one of the options, and follow the system prompts.
Navigation Commands*
The system accepts these commands on most screens. You only need to press the
Talk button once for navigation commands.
Learn about all available voice commands to help you operate the vehicle. Available on vehicles with Display Audio.
Press the Talk button before you say a command.
VOICE COMMAND INDEX
•
Phone call
• Music search
• Audio
• Climate control
• Navigation* •
Voice setting
• Voice help
• What is today’s date?
• What time is it?
• View map
• Find place
• Find category
• Find intersection
• Recently found •
Go home
• Find address
• Find city
• Saved places
*models with navigation
**These commands toggle the function on and off, so the command may not match your intended action.
Climate Control Commands*
The system accepts these commands on most screens. • Climate control on**
• Climate control off**
• Air conditioner on**
• Air conditioner off**
• Defrost on**
• Defrost off** •
Fan speed # (#: 1 to 7)
• Temperature # degrees
(#: 57 to 87°F)
• Temperature max heat
• Temperature max cool
Phone Commands
The system accepts these commands on most screens. • Call by number
• Call by name •
Call (number)
• Call (name)
Audio Commands*
The system accepts these commands on most screens. Audio volume levels cannot be controlled using voice commands.
FM/AM Radio Commands
• Audio on**
• Audio off**
• Radio FM
• Radio AM
• Radio tune to # FM (#: frequency,
e.g., 95.5)
• Radio tune to # AM (#: frequency,
e.g., 1020)
• Radio FM preset # (#: 1 to 12)
• Radio AM preset # (#: 1 to 6)
SiriusXM Radio Commands
• Radio SXM
• SXM channel # (#: 0 to 255)
• SXM channel (channel name)
• Radio SXM preset # (#: 1 to 12)
USB Commands
• USB
• USB play
• USB play track # (#: 1 to 30)
Pandora Commands (U.S. only)
• Pandora
• Pandora play
iPod Commands
• iPod
• iPod play
• iPod play track # (#: 1-30)
Bluetooth Audio Commands
• Bluetooth audio play
(may not work on all phones)
• Music search
• List album (specify album)
• List artist (specify artist)
• List composer (specify composer)
• List genre (specify genre)
• List playlist (specify playlist)
• Play album (specify album)
• Play artist (specify artist)
• Play composer (specify composer) •
Play genre (specify genre)
• Play playlist (specify playlist)
• Play song (specify song)
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
Song By Voice Commands
Available for tracks stored on an iPod or USB device.
*models with navigation
**These commands toggle the function on and off, so the command may not match your intended action.
Page 81 of 82

154 || 155

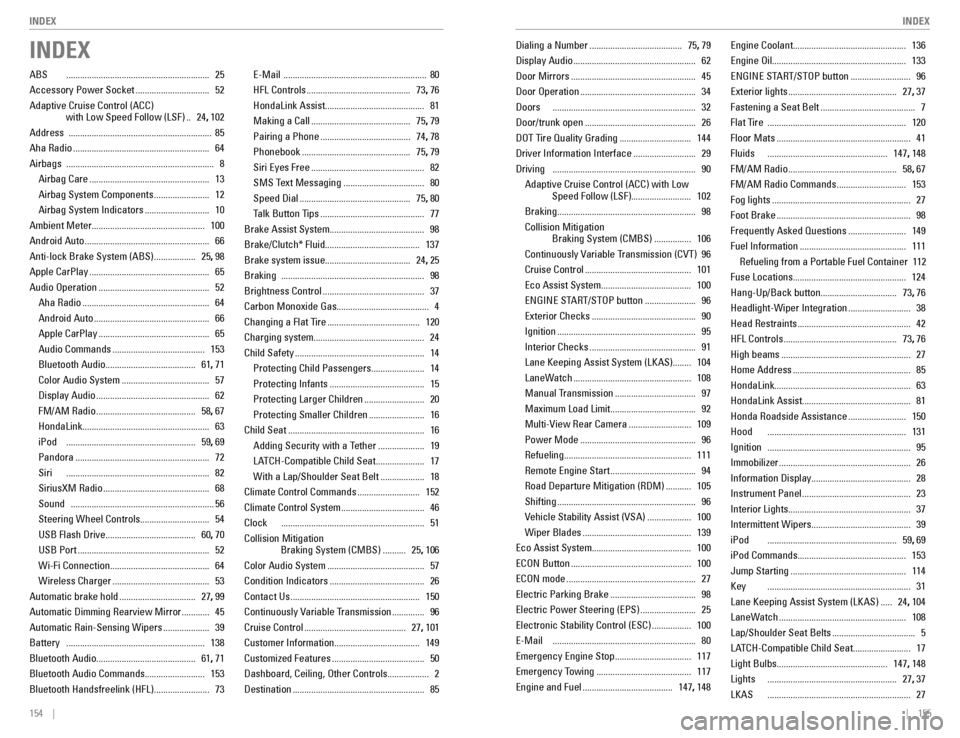

INDEX
INDEX
INDEX
ABS .............................................................. 25
Accessory Power Socket ................................ 52
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .. 24 , 102
Address .............................................................. 85
Aha Radio ........................................................... 64
Airbags ................................................................ 8
Airbag Care .................................................... 13
Airbag System Components ........................ 12
Airbag System Indicators ............................ 10
Ambient Meter................................................. 100 Android Auto ...................................................... 66
Anti-lock Brake System (ABS) .................. 25, 98
Apple CarPlay .................................................... 65
Audio Operation ................................................ 52
Aha Radio ....................................................... 64
Android Auto .................................................. 66
Apple CarPlay ................................................ 65
Audio Commands ........................................ 153
Bluetooth Audio ....................................... 61, 71
Color Audio System ...................................... 57
Display Audio ................................................. 62
FM/AM Radio ........................................... 58, 67
HondaLink ....................................................... 63
iPod ........................................................ 59, 69
Pandora .......................................................... 72
Siri .............................................................. 82
SiriusXM Radio .............................................. 68
Sound .............................................................. 56
Steering Wheel Controls .............................. 54
USB Flash Drive ....................................... 60, 70
USB Port ......................................................... 52
Wi-Fi Connection ........................................... 64
Wireless Charger .......................................... 53
Automatic brake hold ................................. 27, 99
Automatic Dimming Rearview Mirror ............ 45
Automatic Rain-Sensing Wipers .................... 39
Battery ............................................................ 138
Bluetooth Audio........................................... 61 , 71
Bluetooth Audio Commands.......................... 153Bluetooth Handsfreelink (HFL) ........................ 73E-Mail
.............................................................. 80
HFL Controls ............................................. 73, 76
HondaLink Assist ........................................... 81
Making a Call ........................................... 75, 79
Pairing a Phone ....................................... 74, 78
Phonebook ............................................... 75, 79
Siri Eyes Free ................................................. 82
SMS Text Messaging ................................... 80
Speed Dial ................................................ 75, 80
Talk Button Tips ............................................. 77
Brake Assist System......................................... 98
Brake/Clutch* Fluid......................................... 137
Brake system issue..................................... 24 , 25
Braking .............................................................. 98
Brightness Control ............................................ 37
Carbon Monoxide Gas........................................ 4
Changing a Flat Tire ........................................ 120
Charging system................................................ 24 Child Safety ........................................................ 14
Protecting Child Passengers ....................... 14
Protecting Infants ......................................... 15
Protecting Larger Children .......................... 20
Protecting Smaller Children ........................ 16
Child Seat ........................................................... 16
Adding Security with a Tether .................... 19
LATCH-Compatible Child Seat ..................... 17
With a Lap/Shoulder Seat Belt ................... 18
Climate Control Commands ........................... 152
Climate Control System .................................... 46
Clock .............................................................. 51
Collision Mitigation Braking System (CMBS) .......... 25, 106
Color Audio System .......................................... 57
Condition Indicators ......................................... 26
Contact Us ........................................................ 150
Continuously Variable Transmission .............. 96
Cruise Control ............................................ 27, 101
Customer Information..................................... 149Customized Features ........................................ 50
Dashboard, Ceiling, Other Controls.................. 2Destination ......................................................... 85Dialing a Number
........................................ 75, 79
Display Audio ..................................................... 62
Door Mirrors ...................................................... 45
Door Operation .................................................. 34
Doors .............................................................. 32
Door/trunk open ................................................ 26
DOT Tire Quality Grading ............................... 144
Driver Information Interface ........................... 29
Driving .............................................................. 90
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF).......................... 102
Braking ............................................................ 98
Collision Mitigation Braking System (CMBS) ................ 106
Continuously Variable Transmission (CVT) 96Cruise Control .............................................. 101
Eco Assist System ....................................... 100
ENGINE START/STOP button ...................... 96
Exterior Checks ............................................. 90
Ignition ............................................................ 95
Interior Checks .............................................. 91
Lane Keeping Assist System (LKAS) ........ 104
LaneWatch ................................................... 108
Manual Transmission ................................... 97
Maximum Load Limit ..................................... 92
Multi-View Rear Camera ........................... 109
Power Mode .................................................. 96
Refueling ....................................................... 111
Remote Engine Start ..................................... 94
Road Departure Mitigation (RDM) ........... 105
Shifting ............................................................ 96
Vehicle Stability Assist (VSA) ................... 100
Wiper Blades ............................................... 139
Eco Assist System........................................... 100ECON Button .................................................... 100
ECON mode ........................................................ 27
Electric Parking Brake ..................................... 98
Electric Power Steering (EPS) ........................ 25
Electronic Stability Control (ESC) ................. 100
E-Mail .............................................................. 80
Emergency Engine Stop ................................. 117
Emergency Towing .........................................
117
Engine and Fuel ....................................... 147, 148 Engine Coolant................................................. 136
Engine Oil.......................................................... 133
ENGINE START/STOP button
.......................... 96
Exterior lights ............................................... 27, 37
Fastening a Seat Belt ......................................... 7
Flat Tire ............................................................ 120
Floor Mats .......................................................... 41
Fluids .................................................... 147, 148
FM/AM Radio ............................................... 58, 67
FM/AM Radio Commands .............................. 153
Fog lights ............................................................ 27
Foot Brake .......................................................... 98
Frequently Asked Questions ......................... 149
Fuel Information .............................................. 111
Refueling from a Portable Fuel Container 112
Fuse Locations................................................. 124
Hang-Up/Back button................................. 73 , 76
Headlight-Wiper Integration ........................... 38
Head Restraints ................................................. 42
HFL Controls ................................................. 73, 76
High beams ........................................................ 27
Home Address ................................................... 85
HondaLink........................................................... 63
HondaLink Assist............................................... 81 Honda Roadside Assistance ......................... 150
Hood ............................................................ 131
Ignition .............................................................. 95
Immobilizer ......................................................... 26
Information Display........................................... 28Instrument Panel ............................................... 23
Interior Lights..................................................... 37
Intermittent Wipers........................................... 39iPod ........................................................ 59, 69
iPod Commands............................................... 153 Jump Starting .................................................. 114
Key .............................................................. 31
Lane Keeping Assist System (LKAS) ..... 24, 104
LaneWatch ....................................................... 108
Lap/Shoulder Seat Belts .................................... 5
LATCH-Compatible Child Seat ......................... 17
Light Bulbs................................................ 147 , 148
Lights ........................................................ 27, 37
LKAS .............................................................. 27

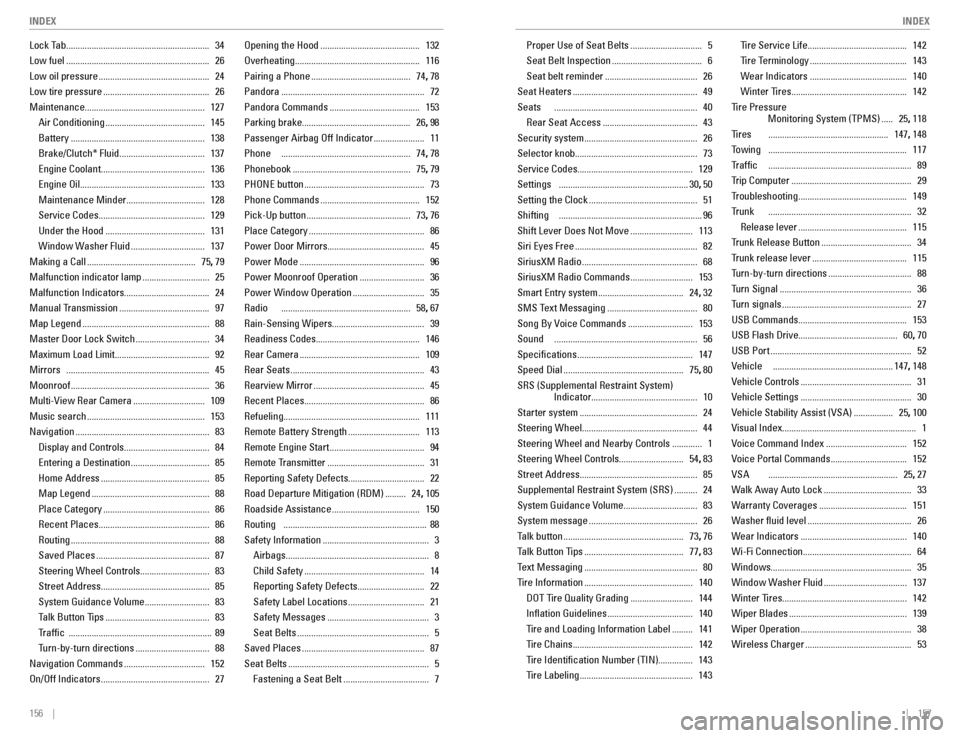

Page 82 of 82

156 || 157
INDEX
INDEX
Lock Tab .............................................................. 34
Low fuel .............................................................. 26
Low oil pressure ................................................ 24
Low tire pressure .............................................. 26
Maintenance.................................................... 127 Air Conditioning ........................................... 145
Battery .......................................................... 138
Brake/Clutch* Fluid ..................................... 137
Engine Coolant ............................................. 136
Engine Oil ...................................................... 133
Maintenance Minder .................................. 128
Service Codes .............................................. 129
Under the Hood ........................................... 131
Window Washer Fluid ................................ 137
Making a Call ............................................... 75, 79
Malfunction indicator lamp ............................. 25
Malfunction Indicators..................................... 24
Manual Transmission ....................................... 97
Map Legend ....................................................... 88
Master Door Lock Switch ................................ 34
Maximum Load Limit......................................... 92Mirrors .............................................................. 45
Moonroof ............................................................ 36
Multi-View Rear Camera ............................... 109
Music search ................................................... 153
Navigation .......................................................... 83
Display and Controls ..................................... 84
Entering a Destination .................................. 85
Home Address ............................................... 85
Map Legend ................................................... 88
Place Category .............................................. 86
Recent Places ................................................ 86
Routing ............................................................ 88
Saved Places ................................................. 87
Steering Wheel Controls .............................. 83
Street Address ............................................... 85
System Guidance Volume ............................ 83
Talk Button Tips ............................................. 83
Traf c .............................................................. 89
Turn-by-turn directions ................................ 88
Navigation Commands ................................... 152
On/Off Indicators ............................................... 27Opening the Hood
........................................... 132
Overheating...................................................... 116Pairing a Phone ........................................... 74, 78
Pandora .............................................................. 72
Pandora Commands ....................................... 153
Parking brake............................................... 26 , 98
Passenger Airbag Off Indicator ...................... 11
Phone ........................................................ 74, 78
Phonebook ................................................... 75, 79
PHONE button .................................................... 73
Phone Commands ........................................... 152
Pick-Up button ............................................. 73, 76
Place Category .................................................. 86
Power Door Mirrors.......................................... 45Power Mode ...................................................... 96
Power Moonroof Operation ............................ 36
Power Window Operation ............................... 35
Radio ........................................................ 58, 67
Rain-Sensing Wipers........................................ 39
Readiness Codes............................................. 146 Rear Camera .................................................... 109
Rear Seats .......................................................... 43
Rearview Mirror ................................................ 45
Recent Places.................................................... 86
Refueling........................................................... 111Remote Battery Strength ............................... 113
Remote Engine Start ......................................... 94
Remote Transmitter .......................................... 31
Reporting Safety Defects................................. 22Road Departure Mitigation (RDM) ......... 24, 105
Roadside Assistance ...................................... 150
Routing .............................................................. 88
Safety Information .............................................. 3
Airbags .............................................................. 8
Child Safety .................................................... 14
Reporting Safety Defects ............................. 22
Safety Label Locations ................................. 21
Safety Messages ............................................ 3
Seat Belts ......................................................... 5
Saved Places ..................................................... 87
Seat Belts ............................................................. 5
Fastening a Seat Belt ..................................... 7 Proper Use of Seat Belts
............................... 5
Seat Belt Inspection ....................................... 6
Seat belt reminder ........................................ 26
Seat Heaters ...................................................... 49
Seats .............................................................. 40
Rear Seat Access ......................................... 43
Security system ................................................. 26
Selector knob..................................................... 73
Service Codes.................................................. 129Settings ........................................................ 30, 50
Setting the Clock ............................................... 51
Shifting .............................................................. 96
Shift Lever Does Not Move ........................... 113
Siri Eyes Free ..................................................... 82
SiriusXM Radio .................................................. 68
SiriusXM Radio Commands ........................... 153
Smart Entry system ..................................... 24, 32
SMS Text Messaging ....................................... 80
Song By Voice Commands ............................ 153
Sound .............................................................. 56
Speci cations .................................................. 147
Speed Dial .................................................... 75, 80
SRS (Supplemental Restraint System) Indicator.............................................. 10
Starter system ................................................... 24
Steering Wheel.................................................. 44Steering Wheel and Nearby Controls ............. 1
Steering Wheel Controls............................ 54 , 83
Street Address................................................... 85Supplemental Restraint System (SRS) .......... 24
System Guidance Volume ................................ 83
System message ............................................... 26
Talk button .................................................... 73, 76
Talk Button Tips ........................................... 77, 83
Text Messaging ................................................. 80
Tire Information ............................................... 140
DOT Tire Quality Grading ........................... 144
In ation Guidelines ..................................... 140
Tire and Loading Information Label ......... 141
Tire Chains .................................................... 142
Tire Identi cation Number (TIN) ............... 143
Tire Labeling ................................................. 143Tire Service Life
........................................... 142
Tire Terminology .......................................... 143
Wear Indicators .......................................... 140
Winter Tires .................................................. 142
Tire Pressure Monitoring System (TPMS) ..... 25, 118
Tires .................................................... 147, 148
Towing ............................................................ 117
Traf c .............................................................. 89
Trip Computer .................................................... 29
Troubleshooting ............................................... 149
Trunk .............................................................. 32
Release lever ............................................... 115
Trunk Release Button ....................................... 34
Trunk release lever ......................................... 115
Turn-by-turn directions .................................... 88
Turn Signal ......................................................... 36
Turn signals ........................................................ 27
USB Commands............................................... 153 USB Flash Drive........................................... 60 , 70
USB Port ............................................................. 52
Vehicle .................................................... 147, 148
Vehicle Controls ................................................ 31
Vehicle Settings ................................................ 30
Vehicle Stability Assist (VSA) ................. 25, 100
Visual Index.......................................................... 1
Voice Command Index ................................... 152
Voice Portal Commands ................................. 152
VSA ........................................................ 25, 27
Walk Away Auto Lock ...................................... 33
Warranty Coverages ...................................... 151
Washer uid level ............................................. 26
Wear Indicators .............................................. 140
Wi-Fi Connection............................................... 64 Windows............................................................. 35
Window Washer Fluid .................................... 137
Winter Tires ...................................................... 142
Wiper Blades ................................................... 139
Wiper Operation ................................................ 38
Wireless Charger .............................................. 53
