HONDA CIVIC COUPE 2018 Owner's Manual (in English)

109Continued
Instrument Panel

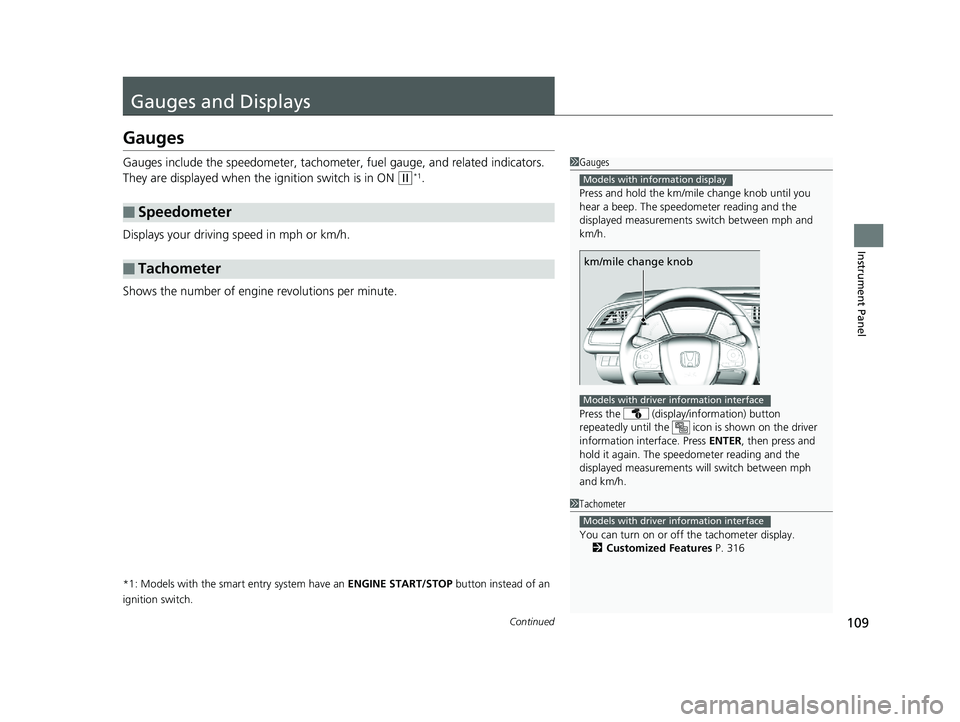

Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
1 Gauges
Press and hold the km/mil e change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
Press the (display /information) button
repeatedly until the ic on is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
Models with information display
km/mile change knob
Models with driver information interface
1 Tachometer
You can turn on or off the tachometer display.
2 Customized Features P. 316
Models with driver information interface
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 109 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuGauges and Displays uGauges
110
Instrument Panel
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant. Blinks when the tachometer reading
approaches the red zone.
■Fuel Gauge
■Temperature Gauge
■Shift Up Backlight*
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 589
1Shift Up Backlight*
You can use the customized features to turn the shift
up backlight blink feature on and off.
2 Customized Features P. 316
Shift Up Backlight
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 110 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

111
uuGauges and Displays uInformation Display*
Continued
Instrument Panel

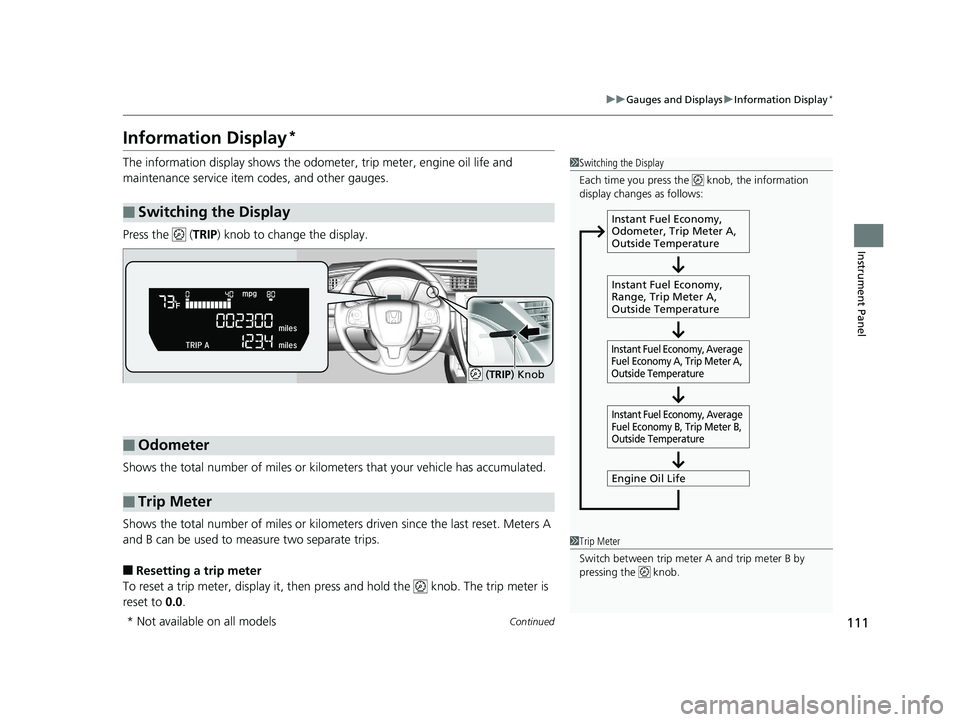

Information Display*
The information display shows the odom eter, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
Engine Oil Life
Instant Fuel Economy, Average
Fuel Economy A, Trip Meter A,
Outside Temperature Instant Fuel Economy, Average
Fuel Economy B, Trip Meter B,
Outside Temperature
■Odometer
■Trip Meter
( TRIP) Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 111 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuGauges and Displays uInformation Display*
112
Instrument Panel

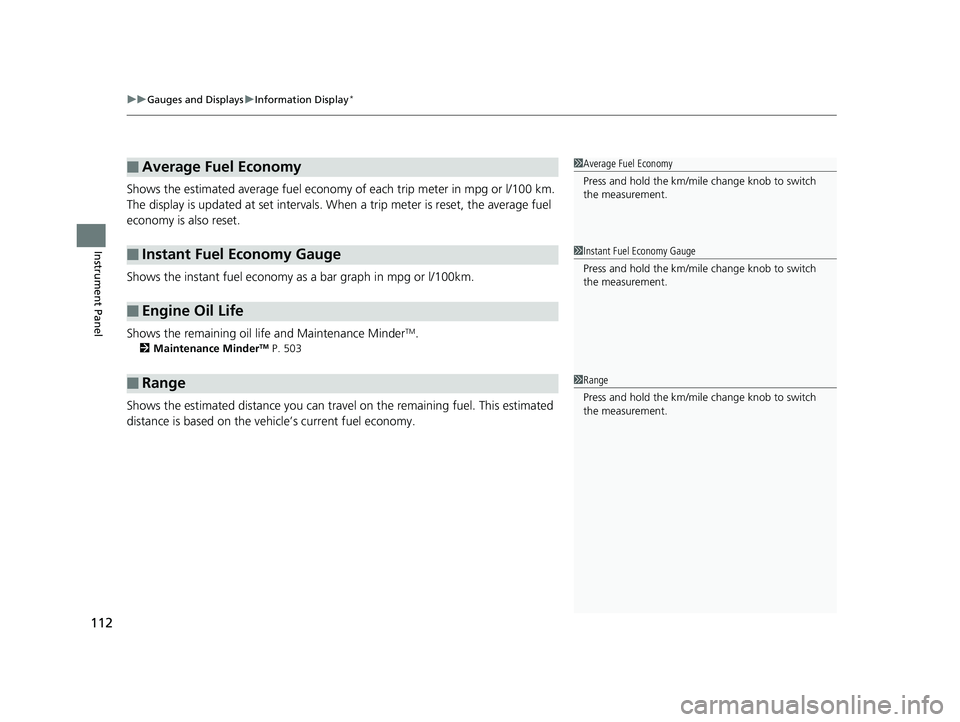

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the instant fuel economy as a bar graph in mpg or l/100km.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 503
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
■Average Fuel Economy
■Instant Fuel Economy Gauge
■Engine Oil Life
■Range
1Average Fuel Economy
Press and hold the km/mile change knob to switch
the measurement.
1 Instant Fuel Economy Gauge
Press and hold the km/mile change knob to switch
the measurement.
1 Range
Press and hold the km/mile change knob to switch
the measurement.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 112 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

113
uuGauges and Displays uInformation Display*
Instrument Panel

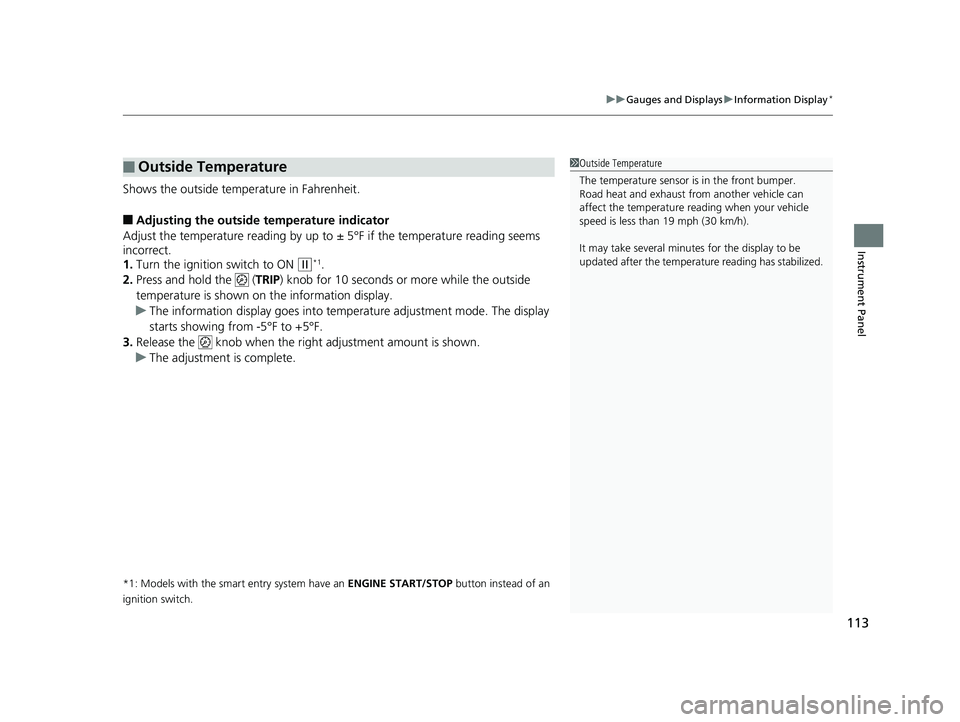

Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature indicator
Adjust the temperature reading by up to ± 5°F if the temperature reading seems
incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the ( TRIP) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F.
3. Release the knob when the righ t adjustment amount is shown.
u The adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 113 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

114
uuGauges and Displays uDriver Information Interface*
Instrument Panel

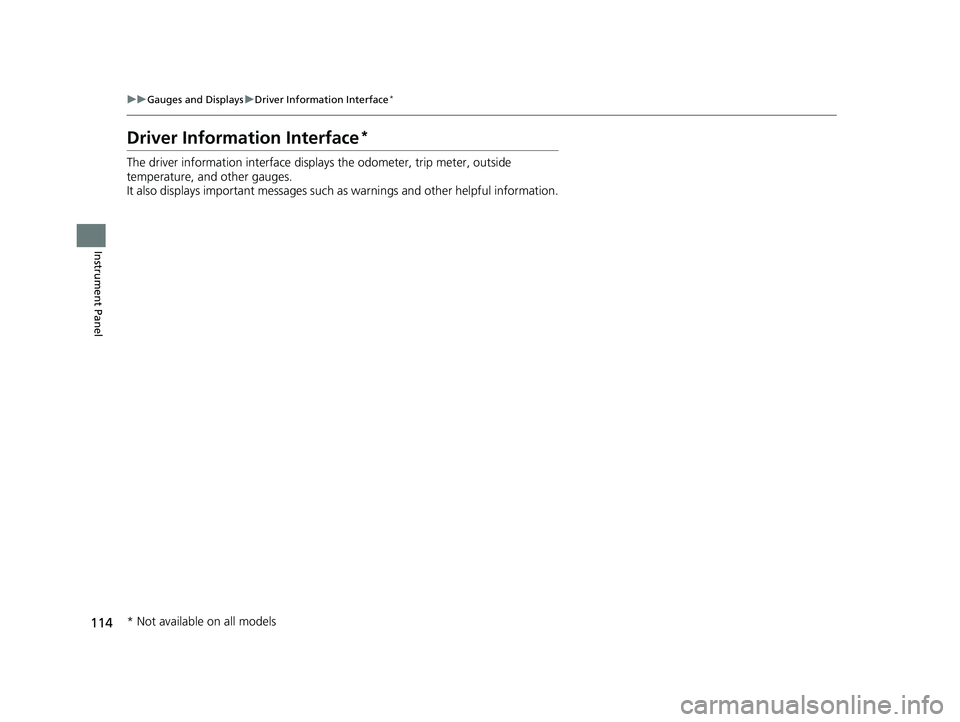

Driver Information Interface*
The driver information interface displa ys the odometer, trip meter, outside
temperature, and other gauges.
It also displays important messages such as warnings and other helpful information.
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 114 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

115
uuGauges and Displays uDriver Information Interface*
Continued
Instrument Panel

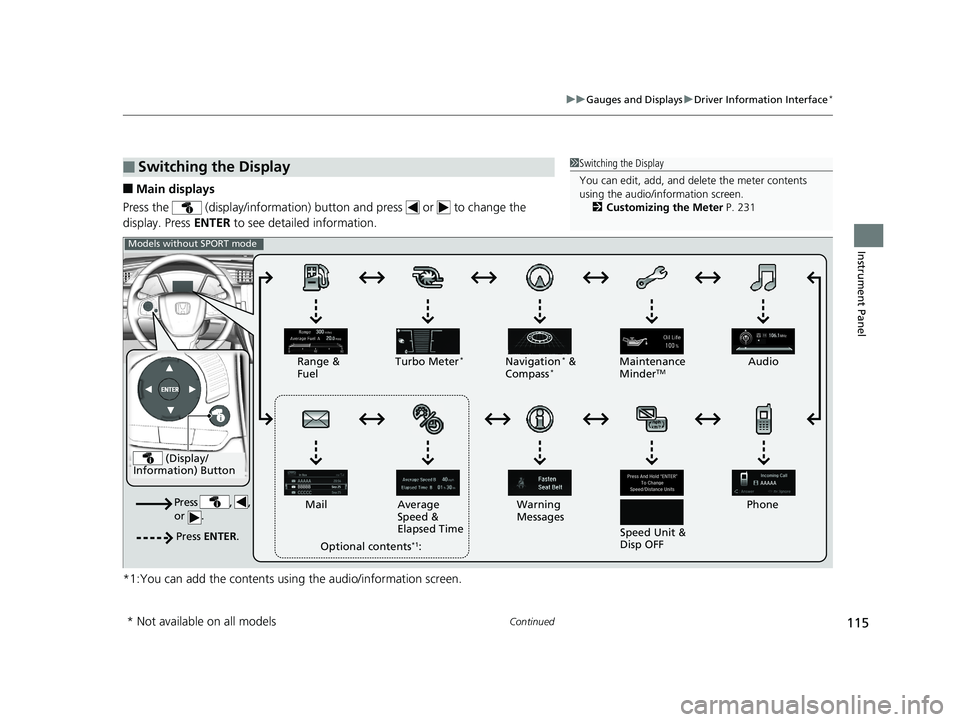

■Main displays
Press the (display/information) button and press or to change the
display. Press ENTER to see detailed information.
*1:You can add the contents using the audio/information screen.
■Switching the Display1 Switching the Display
You can edit, add, and de lete the meter contents
using the audio/information screen.
2 Customizing the Meter P. 231
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel Turbo Meter*Navigation* &
Compass*Maintenance
MinderTMAudio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed &
Elapsed Time
Mail
Optional contents
*1:
Models without SPORT mode
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 115 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

116
uuGauges and Displays uDriver Information Interface*
Instrument Panel

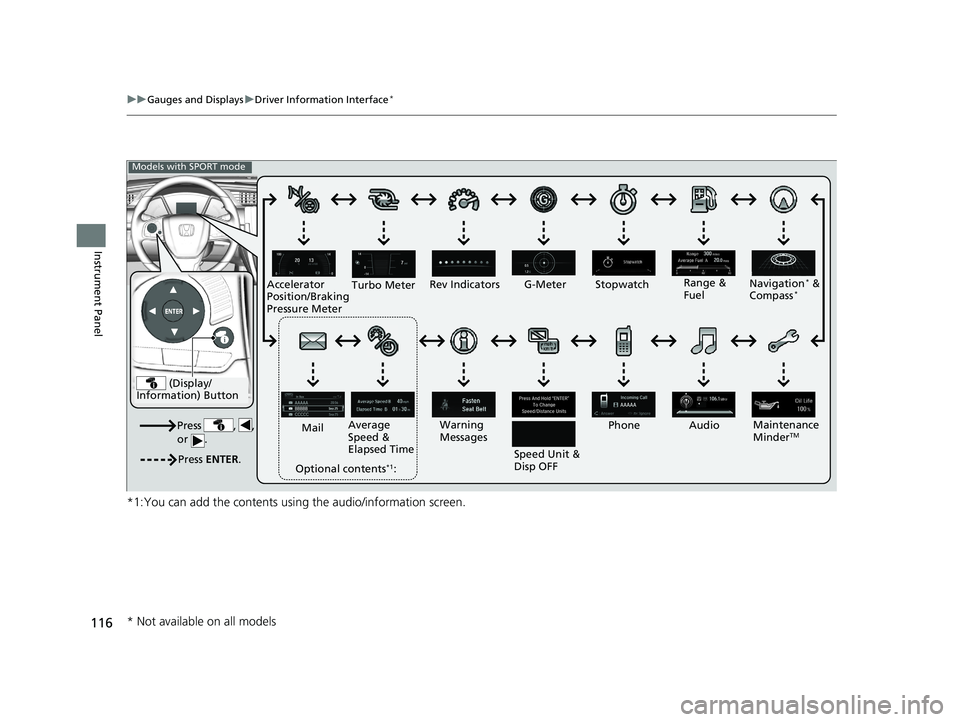

*1:You can add the contents usin g the audio/information screen.
(Display/
Information) Button
Press , ,
or .
Press ENTER .
Range &
Fuel
Turbo Meter
Navigation* &
Compass*
Maintenance
MinderTM
Rev Indicators
Audio
Phone
Speed Unit &
Disp OFF
Warning
Messages
Average
Speed &
Elapsed Time
Mail
Optional contents
*1:
Models with SPORT mode
G-Meter Stopwatch
Accelerator
Position/Braking
Pressure Meter
* Not available on all models
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 116 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

Continued117
uuGauges and Displays uDriver Information Interface*
Instrument Panel

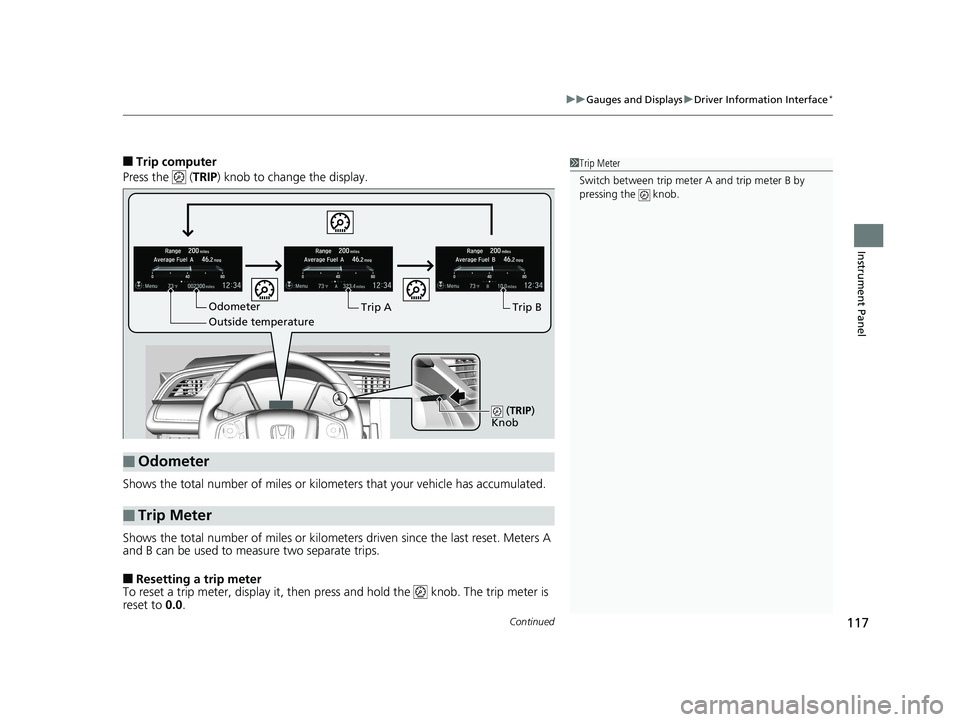

■Trip computer
Press the ( TRIP) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
■Odometer
■Trip Meter
Odometer
Outside temperature Trip ATrip B
(
TRIP )
Knob
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 117 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分

uuGauges and Displays uDriver Information Interface*
118
Instrument Panel

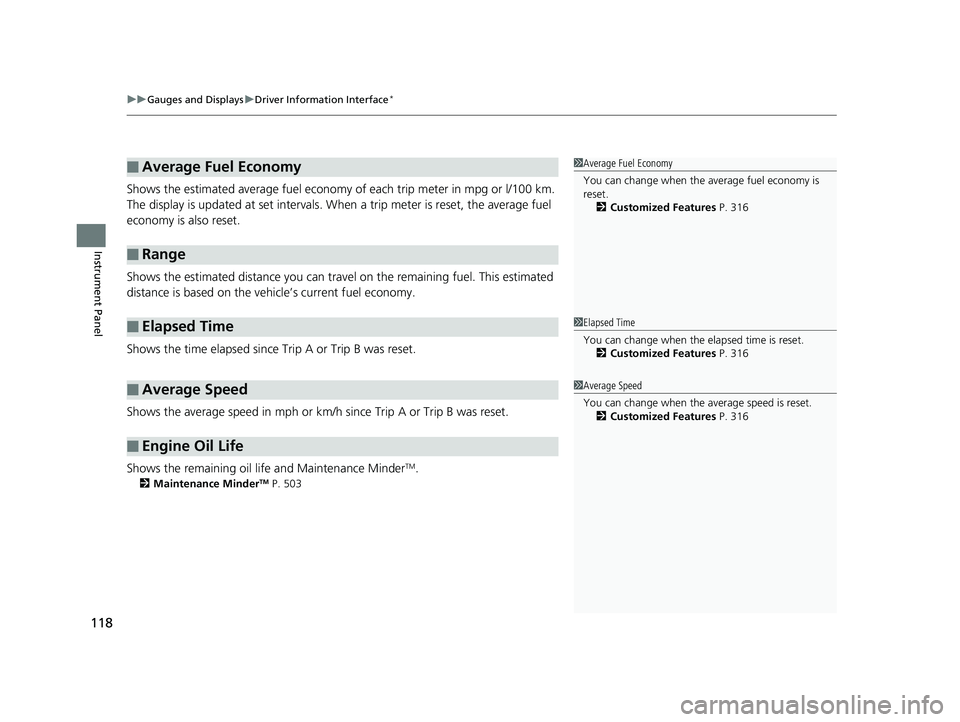

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. Wh en a trip meter is reset, the average fuel
economy is also reset.
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the ve hicle’s current fuel economy.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph or km/h since Trip A or Trip B was reset.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 503
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Engine Oil Life
1Average Fuel Economy
You can change when the average fuel economy is
reset.
2 Customized Features P. 316
1Elapsed Time
You can change when the elapsed time is reset.
2 Customized Features P. 316
1Average Speed
You can change when the average speed is reset.
2 Customized Features P. 316
18 CIVIC 2D HCM (KA KC KL)-31TBG6201.book 118 ページ ２０１８年１０月２６日 　金曜日　午前９時１０分
